USER MANUAL SPM 2000 F3 SILVERCREST

SPM 2000 F3 Introduction Information about these operating instructions Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s). Intended use The panini maker is designed for toasting small bread rolls and sandwiches or grilling other foods. It is not intended for any other use or use beyond that specified. This appliance is not intended for use in commercial or industrial environments. This appliance is intended solely for use in private households. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The operator bears sole liability. Warning notes The following warnings are used in these operating instructions: DANGER! A warning at this hazard level indicates an imminently hazardous situation. If the hazardous situation is not avoided, it could result in death or serious physical injury. ► Follow the instructions in this warning to prevent a fatality or serious personal injury. WARNING! A warning at this hazard level indicates a potentially hazardous situation. Failure to avoid this hazardous situation could result in physical injury. ► Follow the instructions in this warning to prevent physical injury. CAUTION A warning at this hazard level indicates potential property damage. Failure to avoid this situation could result in property damage. ► Follow the instructions in this warning to prevent property damage.GB

 3 ■ SPM 2000 F3 NOTE ► A note provides additional information that will assist you in using the appliance. Safety In this section, you will find important safety instructions for using the appliance. The appliance complies with the statutory safety regulations. Improper use may result in personal injury and property damage. Basic safety guidelines To ensure safe operation of the appliance, follow the safety guidelines set out below: ■ Prior to use, check the appliance for visible external damage. Do not operate a appliance that has been damaged or dropped. ■ Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury. ■ This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks. ■ Children must not use the appliance as a plaything. ■ Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised. ■ Children younger than eight years of age must be kept away from the appliance and the power cable.■ 4 

SPM 2000 F3 ■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Failure to make proper repairs can put the user at risk. It will also invalidate any warranty claim. ■ Repairs to the appliance during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise no warranty claims can be considered for subsequent damage. ■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used. ■ Do not allow the power cable to come into contact with hot appliance parts. NEVER use the appliance near naked flames, a hotplate or a heated oven. ■ After use, allow the appliance to cool down completely before cleaning it. Risk of burns! ■ Set up the appliance as close as possible to the electrical power socket. Ensure that the power plug is quickly reachable in case of danger, and also that there is no danger of tripping over the cable. ■ Provide a stable location for the appliance. HAZARD DUE TO ELECTRIC SHOCK! ► The appliance should only be connected to correctly installed and earthed mains power sockets. Ensure that the rating for your local power supply corresponds with the details on the rating plate of the appliance. ► Arrange for Customer Services to repair or replace connecting cables and/or appliances that are not functioning properly or have been damaged. ► Do not expose the appliance to rain, and never use it in a humid or wet environment.GB

 5 ■ SPM 2000 F3 HAZARD DUE TO ELECTRIC SHOCK! ► Take steps to ensure the power cable never becomes wet or moist during use. ► NEVER submerse the appliance in water or other liquids! This would bring about the risk of a potentially fatal electric shock upon the next use of the appliance should moisture be present in the voltage conducting elements. ► Always take hold of the plug when handling the power cable. Do not pull on the cable itself and never touch the power cable with wet hands, this could result in either a short circuit or an electric shock. ► Do not place the appliance itself, furniture items or similar objects on the power cable, and take steps to ensure it cannot become jammed or trapped in any way. ► Do not open the appliance housing or attempt to repair or modify the appliance. If the housing is opened or improper modifications are made, you run the risk of receiving a potentially fatal electric shock and the warranty will be void. ► Protect the appliance from drips or splashes of water. Do not place any water-filled vessels (e.g. flower vases) on or near the appliance. ► Always pull out the plug from the wall socket after every use and before each cleaning. WARNING! RISK OF BURNS! Caution! Hot surface! ► The surface of the appliance can become extremely hot during use. Touch the appliance using only the handle.■ 6 

SPM 2000 F3 CAUTION! MATERIAL DAMAGE! ► Do not use an external timer switch or a separate remote control system to operate the appliance. ► Never leave the appliance unattended during operation. ► Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames. ► Do not use charcoal or similar fuels to operate the appliance! ► To protect the non-stick coating, do not use metallic tools such as knives, forks, etc. Should the non-stick coating become damaged, stop using the appliance. ► Only operate the appliance with the original accessories supplied. NOTE ► No user action is required to switch the product between 50and 60Hz. The product adapts automatically to either 50or 60Hz. Operating components Figure A: 1 Control dial 2 1 indicator lamp (alternates between red and green) 3 Cable retainer 4 Safety catch 5 Handle 6 Juice outlet 7 Griddles Figure B: 8 Cleaning scraper 9 Juice collectorGB

 7 ■ SPM 2000 F3 Unpacking and assembly WARNING! To avoid risks, observe the following safety instructions: ► Packaging material must not be used as a plaything. Risk of suffocation. ► Please follow the instructions regarding the electrical connection of the appliance to avoid damage to property. Package contents and transport inspection This appliance is supplied with the following components as standard (see fold-out page): ● Panini Grill ● Juice collector ● Cleaning scraper ● Operating instructions NOTE ► Check the package for completeness and for signs of visible damage. ► If the consignment is incomplete or damaged due to defective packaging or carriage, contact the Service hotline (see the chapter Service). Unpacking ♦ Remove all parts of the appliance and the operating instructions from the box. ♦ Remove all packaging material. Disposal of packaging materials The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites.■ 8 

SPM 2000 F3 Handling and operation This section provides you with important information on handling and using the appliance. Before initial use

1) Clean all accessories as described in the section “Cleaning and care” to

remove any possible production residues.

2) Read these operating instructions carefully.

3) Set up the appliance in accordance with the safety instructions.

4) Open the safety catch 4 by moving the slider from the

position to the position.

5) Clean the appliance with a damp cloth as described in “Cleaning and Care”.

6) Close the appliance.

7) Insert the mains cable plug in a properly connected and earthed mains

power socket which supplies the voltage stated in the”Technical data” section.

8) Allow the appliance to heat up to its maximum temperature for approx.

5 minutes. To do this, turn the dial 1 to “Max”. In the front area of the dial 1, the marking shows you the set position. NOTE

The first time the appliance heats up, a small amount of smoke and odour may be generated due to production-related residue. This is normal and is completely harmless. Provide sufficient ventilation; for example, by opening a window.

9) Turn the dial1 to position “0”.

10) After heating, pull the plug out of the mains socket and allow the appliance to

cool down completely.

11) Clean the appliance again with a damp cloth.GB

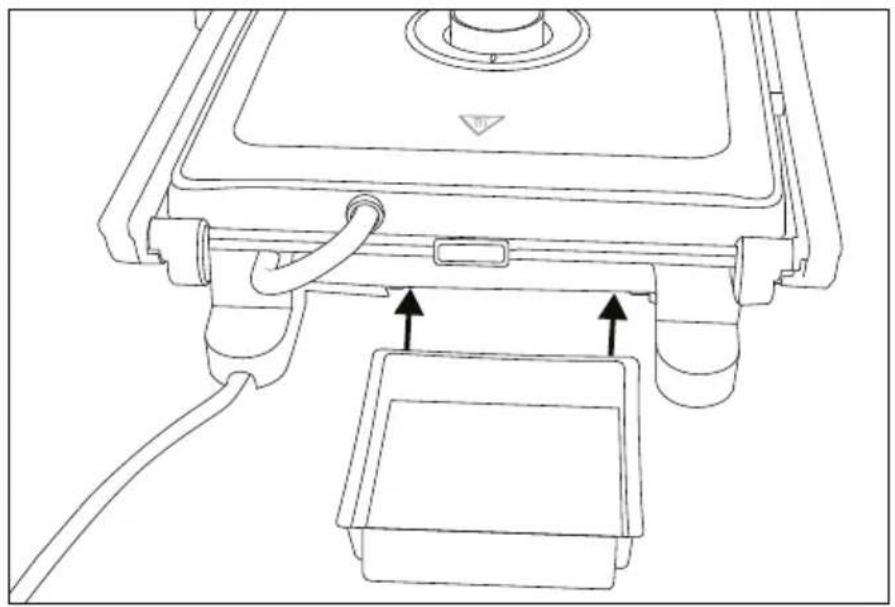

2) Slide the juice collector 9 into the holder on the back of the appliance

(fig. 1). Fig. 1 NOTE ► In the front area of the dial 1, the marking shows you the set position.

3) Insert the plug into the mains power socket.

The indicator lamp 2 lights up.

4) Set the dial 1 to the desired position from “Min” to “Max”.

The green indicator lamp 2 goes off and then lights up red: The appliance heats up. The red indicator lamp 2 goes off and then lights up green: The set temperature has been reached. The appliance no longer heats up. NOTE ► When the indicator lamp 2 lights up red, this shows that the appliance is heating up. The indicator lamp 2 remains switched on until the set temperature level is reached. Note that, depending on the ambient temperature, heating may start at different positions on the dial 1! ► When the green indicator lamp 2 lights up green, this shows that the appliance is no longer heating up. It therefore also lights up green when the dial 1 is in any position before "Min". ► The indicator lamp 2 may also change colour again after the set temperature has been reached. The indicator light 2 then lights up red. This indicates that the appliance is heating up again to maintain the temperature.■ 10 

5) As soon as the indicator lamp 2 switches from red to green, open the

appliance lid by the handle.

6) Place the food you want to roast/grill on the lower griddle 7.

7) Close the appliance lid using the handle 5.

8) Due to its movable mount, the upper griddle 7 always lies parallel to the

lower griddle 7 even if the food to be grilled is bulky. This guarantees an optimal grilling result.

9) Check the browning of the food after a short time. To do this, open the

appliance lid using the handle 5. NOTE ► Start with short grilling times and increase these until you have found the correct duration. For your orientation, please also refer to the section "Food processing table".

10) Once you are satisfied with the level of browning, remove the food.

CAUTION! PROPERTY DAMAGE! ► Do not use pointed or sharp objects to remove the food. They could damage the surfaces of the griddles 7!

11) Turn the dial1 to position “0”.

12) Remove the plug from the mains power socket.

Food processing table The following table will help you by giving you examples of how to process different ingredients. The information in the table refers to the temperature level “Max”. Adjust the recommended amounts according to the recipe and your individual taste. Depending on the recipe, ingredients and desired level of browning, you may have to adjust the quantity of ingredients and the cooking time. If you want to process more than the recommended quantity, divide the total quantity into several portions and process them individually. INGREDIENTS RECOMMENDED QUANTITY TEMPERATURE TIME Minced meat burger 100–600 g¹ Max. 10–15 mins. Salmon fillet 150–600 g² Max. 8–10 mins. Chicken breast brochettes 1–4 pieces Max. 10–15 mins. Cheese sandwiches 1–4 pieces Max. 3–5 mins. Aubergine sprinkled with oil 1–4 slices Max. 3–4 mins. ¹Up to 6 burgers of approx. 100 g each. ²Up to 4 salmon fillets of approx. 150 g each.GB

 11 ■ SPM 2000 F3 Tips and tricks ■ To make meat more tender and speed up the grilling process, you can marinate it beforehand. An ideal basis for this can be sour cream, red wine, vinegar, buttermilk or fresh papaya or pineapple juice, for example. Add herbs and spices according to taste. Do not add salt as this can draw water out of the meat and make it dry. Place the meat in the marinade so that it is completely covered and close the container. Ideally, leave it overnight. ■ The griddles 7 have a non-stick coating, therefore extra fat is not necessary. If you still wish to use fat, please ensure that the fat/oil is suitable for grill-roasting, e.g. rapeseed oil. ■ If you are not sure whether the food is cooked all the way through, you can use a commercially available meat thermometer. Cleaning and care WARNING! RISK OF ELECTRIC SHOCK! Risk of injury when cleaning the appliance! To avoid risks, observe the following safety instructions: ► Before cleaning, pull out the plug and wait until the appliance has completely cooled down. Risk of injury! ► Never clean the appliance under running water and never immerse it in water. The appliance could be irreparably damaged! CAUTION! PROPERTY DAMAGE! ► To avoid irreparable damage to the appliance, ensure that no moisture gets into it during cleaning. ► When cleaning the surfaces use neither abrasive or chemical cleaners, nor sharp or scratchy objects.

1) After the griddles 7 have cooled down, drag the cleaning scraper 8 over

the griddles 7 so that any fat and residues are scraped together or fall into the juice collector 9. This makes fat and residues easier to remove.

2) Wipe the griddles 7 with a damp cloth. Do not use any abrasive cleaning

agents, rough sponges or sharp objects for cleaning as these could damage the non-stick coating.

3) For stubborn crusting, lay a wet cloth on the baked-on residues to soften them.

4) Empty the juice collector 9. We recommend removing the worst greasy

residues with kitchen paper or similar so that the grease does not block up the sink. Clean the juice collector 9 afterwards in warm water with a mild detergent. Rinse out the juice collector 9 with fresh water and dry it.

5) A damp cloth is sufficient for cleaning the exterior surfaces. Ensure that all

parts are completely dry before re-using the appliance.■ 12 

6) Wipe the cleaning scraper 8 with a damp cloth. For stubborn soiling use a

mild detergent on the cloth. Storage ♦ Close the safety catch 4. ♦ You can place the cleaning scraper 8 in the juice collector 9 for storage. Afterwards, slide the juice collector 9 back into the holder on the back of the appliance (fig. 1). ♦ There is a cable retainer 3 on the underside of the appliance. Wrap the mains cable clockwise around the hook and the foot of the appliance (fig. 2). NOTE ► Clamp the mains plug between the coiled mains cable and the juice collector 9. ► There is a clip attached to the mains cable to fix it in place. Slide it with one side directly under the mains plug and attach it with the other side to the coiled mains cable. Fig. 2 ♦ You can store the appliance vertically to save space. ♦ Store the cleaned appliance in a clean, dust-free and dry location.GB

 13 ■ SPM 2000 F3 Disposal of the appliance The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Appendix Technical data Voltage supply 220–240 V ∼ (alternating current), 50/60 Hz Power consumption 2000 W Protection class I ( protective earth) All of the parts of this appliance that come into contact with food are food-safe.■ 14 

SPM 2000 F3 Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.GB

 15 ■ SPM 2000 F3 Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)393298_2201 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN)393298_2201. Service Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail] IAN 393298_2201 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

SPM 2000 F3 Recipes A panini is a warm sandwich prepared from fresh white bread. It is freshly toasted and then served. Spinach and cheese panini 250 g spinach leaves 1 onion 1 clove of garlic 1 tbsp. cooking oil 2 tbsp. lemon juice 1 pinch of salt (and pepper) 4 slices of toasting bread/white bread 40 g herb butter 75 g Mozzarella 20 g pine nuts Preparation

1) Sort and wash the spinach leaves.

2) Peel and finely chop the onion and garlic, stew in hot oil. Add the spinach.

Season with lemon juice, salt and pepper.

3) Spread the herb butter on the bread.

4) Cut the Mozzarella into slices and place these on two slices of bread

together with the drained spinach. Sprinkle with pine nuts.

5) Top the panini with a second slice of bread.

6) Lay the panini carefully onto the preheated panini maker and close the lid.

7) Wait until the panini are toasted golden brown. Then remove them from the

1) Heat up some butter in a coated frying pan and sear the chicken breast on

both sides. Turn the cooker down to a medium heat and then fry the chicken breasts for about 10 minutes. After frying, season with salt, pepper and papri- ka, remove from the pan and set aside.

2) Reheat the fat in the pan and use it fry the bacon strips until they are crisp.

3) Spread the yoghurt dressing on 3 slices of toasting bread, add the iceberg

lettuce; cut the tomatoes into slices, season them and then also add these onto the bread.

4) Cut the chicken breasts along their length and lay them on top of the

5) Lay the strips of bacon on the chicken breasts.

6) Cut open the avocados vertically and use a turning movement to remove the

halves from the stone. Peel and cut the avocado into slices. Drizzle the lime juice onto the avocado to prevent from going brown. Lay the slices onto the panini.

7) Cut the cucumber into slices and place them on the avocado.

8) Top the panini with a second slice of bread.

9) Lay the panini carefully onto the preheated panini maker and close the lid.

10) Wait until the panini are toasted golden brown and remove them carefully

1) Cut into the baguette at 2 – 3 centimetre intervals but do not cut all the way

2) Peel and crush the garlic, dice the gherkins and grate the pecorino cheese.

3) Mix the hot and sweet mustards with the soft butter, garlic, diced gherkin,

pecorino cheese and chives and season with salt and pepper.

4) Fill the mustard butter into the slits in the baguette and wrap the baguettes in

5) Lay the baguettes carefully onto the preheated panini maker and close the
