Product type	Air purifier
Brand	HoMedics
Model	TotalClean PetPlus APPET35WT
Filtration technology	TRUE HEPA filter, pre-filter, PetPlus odor filtration, UV-C technology, ionizer
TRUE HEPA filter efficiency	Removes up to 99.97% of particles 0.3 microns
Pre-filter	Captures large particles; vacuum cleaning recommended once a month
UV-C technology	Eliminates microbes, viruses, and bacteria; lifespan approximately 10,000 hours
Ionizer	On/off; produces ozone quantity below 0.05 ppm
Fan speeds	3 speeds: low (1), medium (2), high (3)
Timer	2, 4, 8 or 12 hours
Night mode	3 options: blue light, display off, redisplay
Recommended area	125 m² (2.43 m ceiling) for air exchange per hour at high speed
Maximum airflow	303 m³/h (10752 ft³/h)
Essential oil tray	Includes 3 essential oil pads; automatic fragrance diffusion
Power supply	220-240 V, AC
Warranty	3 years
Available consumables	HEPA filter (AP-T40FL), UV-C lamp (AP-UVC1), oil pads (ARM-PAD3), oil tray (AP-T40WTARM or AP-T40BKARM)
Maintenance	Clean exterior with a dry cloth; vacuum pre-filter once a month; replace TRUE HEPA filter every 12 months
Safety	Unplug before cleaning; do not immerse; do not block air outlets; use only recommended accessories

Frequently Asked Questions - TotalClean PetPlus APPET35WT HOMEDICS

When should the TRUE HEPA filter be replaced?

The filter should be replaced every 12 months under normal use. The filter replacement indicator lights up when replacement is needed. Use only the HoMedics approved replacement filter (part number AP-T40FL).

How to reset the filter replacement indicator after changing the filter?

Plug in the unit, then press and hold the ION button for 3 seconds until the filter replacement indicator turns off.

What to do if the UV-C lamp stops working?

The UV-C button flashes red when the lamp is burned out (lifespan ~10,000 hours). Unplug the unit, remove the HEPA filter, unscrew the 2 screws of the UV-C cover, replace the lamp (part AP-UVC1), and reinstall the cover. Never use the unit without the UV-C grille.

How to clean the air purifier?

Clean the exterior with a dry cloth. Vacuum the pre-filter once a month using a vacuum cleaner brush. Never use water, wax, polish, or chemical products on the unit. For the oil tray, wipe inside with a soft cloth after removing the pad.

Can I use essential oils with this unit?

Yes, the essential oil tray accepts the included pads. Add 5-7 drops of oil onto the pad, do not pour oil directly into the tray. Be cautious with pets: diffuse in a ventilated area and leave a door open. In case of irritation, discontinue use.

Is the ionizer safe for pets?

The ionizer produces a trace amount of ozone (less than 0.05 ppm). It may be harmful to birds and small animals. Use it in a well-ventilated area and avoid prolonged exposure near sensitive animals.

How to set the timer?

Press the Timer button multiple times to select 2, 4, 8, or 12 hours. To cancel, press until all timer indicators turn off. Without a timer, the unit runs continuously.

The airflow is weak, what should I do?

Check that the rear grille is not obstructed. Vacuum the pre-filter. If the problem persists, the TRUE HEPA filter may need replacement.

How to use night mode?

Press the Night mode button once to turn on a blue light. A second time turns off the display. A third time turns the display back on. Night mode reduces light and noise.

The unit makes a dry sound or clicking sounds, is this normal?

Yes, you may hear small dry sounds when the ionizer is operating. This is normal. If the noise becomes excessive, check that the unit is placed on a flat, level surface.

USER MANUAL TotalClean PetPlus APPET35WT HOMEDICS

Register your product today at www.homedics.co.uk/product-registration

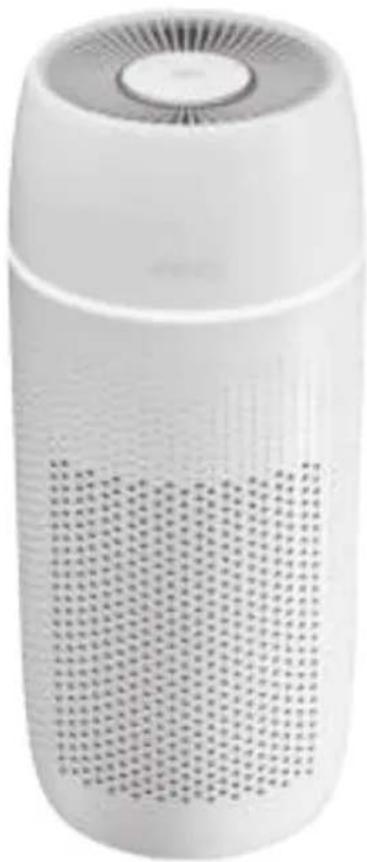

White cylindrical electronic device with grid pattern and ventilation grille (no visible text or symbols)

TOTALCLEAN PETPLUS 5 IN 1 AIR PURIFIER

instruction manual

3 YEARGUARANTEE

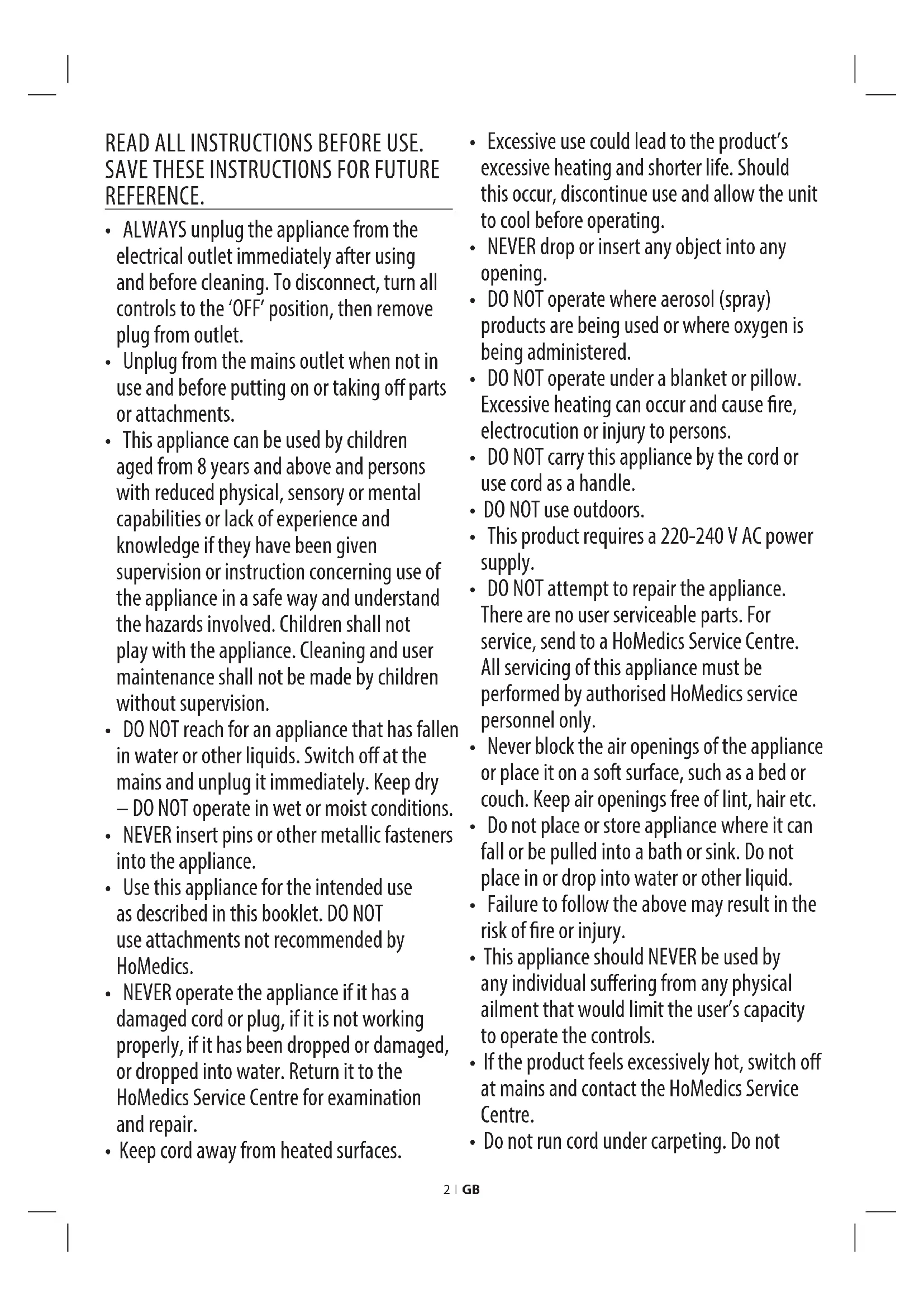

READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the 'OFF' position, then remove plug from outlet.
• Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins or other metallic fasteners into the appliance.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.

• Keep cord away from heated surfaces.

• Excessive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.

• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
• DO NOT carry this appliance by the cord or use cord as a handle.
• DO NOT use outdoors.
• This product requires a 220-240 V AC power supply.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch. Keep air openings free of lint, hair etc.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• Failure to follow the above may result in the risk of fire or injury.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• If the product feels excessively hot, switch off at mains and contact the HoMedics Service Centre.
• Do not run cord under carpeting. Do not

cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.

THREE YEAR GUARANTEE

FKA Brands Ltd guarantees this product from defect in material and workmanship for a period of 3 years from the date of purchase, except as noted below. This FKA Brands Ltd product guarantee does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorised accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of FKA Brands Ltd. This guarantee is effective only if the product is purchased and operated in the UK / EU. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and / or authorised, or repair of products damaged by these modifications is not covered under this guarantee. FKA Brands Ltd shall not be responsible for any type of incidental, consequential or special damages.

To obtain guarantee service on your product, return the product post-paid to your local service centre along with your dated sales receipt (as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through HoMedics Service Centre. Service of this product by anyone other than the HoMedics Service Centre voids the guarantee. This guarantee does not affect your statutory rights.

For your local HoMedics Service Centre, go to www.homedics.co.uk/servicecentres

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

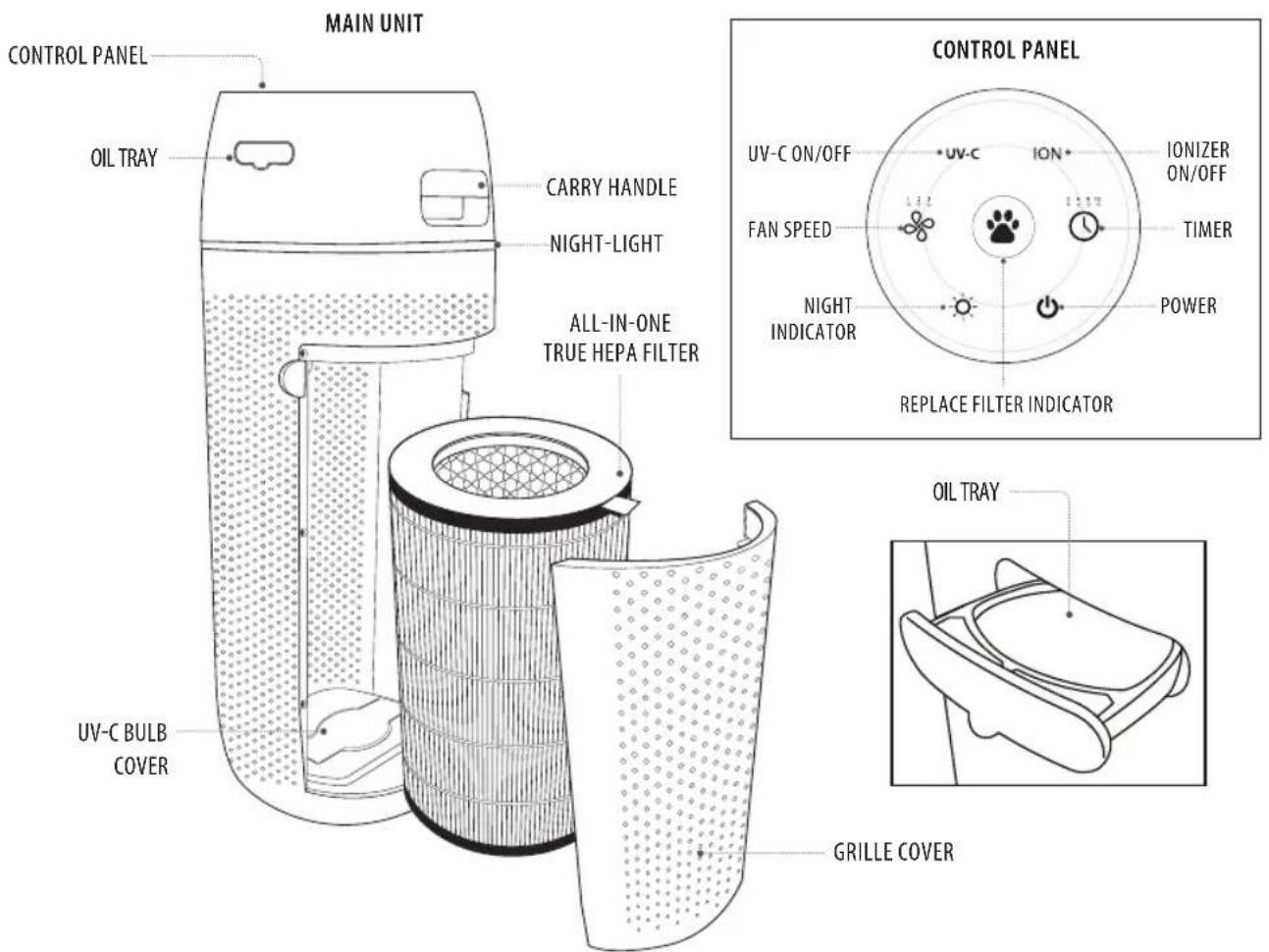

MAIN UNIT CONTROL PANEL OIL TRAY CARRY HANDLE NIGHT-LIGHT ALL-IN-ONE TRUE HEPA FILTER UV-C BULB COVER GRILLE COVER CONTROL PANEL UV-C ON/OFF FAN SPEED NIGHT INDICATOR ON/OFF IONIZER ON/OFF TIMER POWER REPLACE FILTER INDICATOR OIL TRAY

ALL-IN-ONE TRUE HEPA FILTRATION SYSTEM

TRUE HEPA FILTRATION

Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odour, mould spores, and smoke from air that passes through the filter.

PETPLUS ODOR FILTRATION

Reduces litter box odor, wet dog smell, household odors and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.

PRE-FILTER

Captures large particles.

UV-C TECHNOLOGY WITH ON/OFF

When on, the UV-C technology light kills germs, viruses, and bacteria.

IONISER WITH ON/OFF

When on, the ioniser assists in the air purification process.

3 SPEEDS

Low, medium and high

BUILT-IN TIMER

Choose from 2, 4, 8, or 12 hours.

REPLACE FILTER INDICATOR

Illuminates when it is time to replace the filter.

SUGGESTED ROOM SIZE

125m ^2 / 1344 ft ^2 . Portable air purifiers will be more effective in rooms where all the doors and windows are closed.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 125m^2/1344ft^2 room (assuming an 2.43 M/8 FT ceiling) once per hour on high speed in a closed room. The airflow rate is 303m^3/h/10,752ft^3/h .

OIL TRAY

Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

OPERATING INSTRUCTIONS

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
- Place the air purifier on a firm, level surface.
- Plug the power cord into a standard AC outlet.

POWER BUTTON AND FAN SPEED SETTINGS

• To turn the air purifier on, press the power ⏻ button.
• This air purifier has 3 fan speed settings: low (1), medium (2), and high (3). The higher the fan speed setting, the faster the air will be purified. To select or change fan speed, press the fan speed ✿ button until the desired setting is reached.

UV-C TECHNOLOGY WITH ON/OFF

The optional UV-C technology kills germs, viruses, and bacteria by penetrating its DNA, resulting in the microorganism's death or the inability to reproduce. Press the UV-C button to turn the UV-C technology on. The blue LED will glow. Press the UV-C button again to turn the UV-C technology off.

IONISER SETTING WITH ON/OFF

Ion particles have a positive or negative charge that attach to airborne particles, making them easier to be captured by the filtration system. Press the ioniser ION button to turn the ioniser on. The blue light will glow to indicate the ioniser is in use. Press the ioniser ION button again to turn the ioniser off.

NOTE: Dust particles may accumulate on surfaces around the air purifier when the ioniser is in use. These dust particles can be vacuumed or wiped away with a soft, damp cloth.

NOTE: You may hear occasional popping sounds when the ioniser is used. This is normal.

NOTE: The ioniser produces less ozone than the UL-established limits of 0.05 ppm. Ozone may be harmful around birds and small pets. To prevent ozone buildup, use the ioniser feature in a well-ventilated area.

NIGHT INDICATOR

The night indicator has 3 options. Press the night indicator ⚙ button once to turn the blue night indicator on. Press again to turn the blue night indicator ring and the display lights off. Press a third time to turn the display lights on.

TIMER

Press the timer ⏻ button until the desired timer setting is lit on the display. The timer ⏻ button will cycle through the following settings: 2 hours, 4 hours, 8 hours, 12 hours, and off. To cancel the timer at any time, press the timer ⏻ button until all timer LEDs are off. The air purifier will run continuously when the timer function is off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air.

NOTE: For use with the included HoMedics essential oil pads only. Do not add essential oils anywhere else in the unit as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the air purifier if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

Please note that allergy friendliness is no longer guaranteed if the Essential Oil Scent Tray function is used, since essential oils may lead to allergic reactions.

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

located on the side of the air e night indicator ring.

nd remove the tray.

oad (3 included) into the oil tray.

WARNING: Only place essential oil on the

1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

FILTER REPLACEMENT

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the HEPA-type filter based on the air purifier's hours of use.

REPLACING THE HEPA-TYPE FILTER

For optimal performance, replace every 12 months under normal usage conditions.

1. Unplug the air purifier. Pull the indents on each side of the grille

cover...

1. Remove the grille cover and set

Diagram of a cylindrical container with internal grid structure and label 'aside' (no readable text or symbols)

1. Pull the tabs to remove the old

filter.

1. With the filter tabs facing outward, insert the new HEPA-type filter.

Line drawing of a hand holding a grid-like object next to a cylindrical structure (no text or symbols)

1. Place the tabs at the bottom of the grille cover into the base of the air purifier. Gently push the grille cover until it snaps into place.

1. Plug the power cord into a standard AC outlet and press the power button Press and hold the ioniser

UV-C BULB REPLACEMENT

REPLACING THE UV-C BULB

The UV-C bulb is designed to last for approximately 10,000 hours of use. The UV-C button on the control panel will flash RED when the UV-C bulb burns out and needs to be replaced. The UV-C button will change to blue once the bulb has been replaced.

NOTE: The air purifier will continue to operate without the UV-C function when the UV-C bulb burns out.

CAUTION: Do not operate the air purifier without the protective UV-C bulb cover.

CAUTION: Unplug the power cord before servicing or replacing the UV-C bulb.

1. Unplug the air purifier and remove the HEPA-type filter. Using a Phillips-head screwdriver (not included), unscrew the 2 screws located on the UV-C bulb cover.

1. Remove the cover to expose the UV-C bulb.

2. Gently push from the sides and rotate the UV-C bulb to remove.

Technical diagram of a mechanical component with arrows indicating assembly or force direction (no text or symbols)

1. Remove and replace the UV-C bulb. Re-install the UV-C bulb cover, HEPA-type filter, and grille cover.

NOTE: The UV-C bulb contains mercury (Hg).

ION button for 3 seconds to reset

CLEANING THE PRE-FILTER

NOTE: For best performance, vacuum the pre-filter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA filter as described in the Replacing the True HEPA Filter section.
3. Vacuum the outside of the

True HEPA filter using the brush attachment of your vacuum cleaner, cleaning it thoroughly.

1. Place the True HEPA filter back into the air purifier and close grille.
2. Plug the power cord into a standard AC outlet.

TO CLEAN THE OIL TRAY

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of

the oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

Line drawing of a cylindrical object with a mesh top and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

NOTE: Leave the essential oil pad out of the oil tray when storing.

FOR BEST PERFORMANCE

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.
• Clean off the outside of the unit with a dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed.
  • Vacuum the pre-filter monthly under normal usage conditions.
• Replace the True HEPA filter every 12 months under normal usage conditions.
• Always use a genuine HoMedics replacement filter for optimal performance.

To purchase genuine HoMedics replacement/spare parts please visit www.homedics.co.uk

3 Pack of aroma pads - ARM-PAD3

Aroma tray (white) - AP-T40WTARM

Aroma tray (black) - AP-T40BKARM

HEPA filter - AP-T40FL

UV-C Bulb - AP-UVC1

Cover & screws - APUVCCV

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate · Unit is not plugged inPower button not pressedNo power to unitTrue HEPA filter is not installed correctlyGrille cover is not installed correctly		Plug unit inPress the power button to turn the power onCheck fuses, try a different outletReinstall the True HEPA filterReinstall the grille cover
Reduced airflow · The back grille may be blockedPre-filter needs vacuumingThe True HEPA filter needs to be replaced		Check to make sure nothing is blocking the back grille and air outletVacuum the pre-filter with the brush attachment of your vacuum cleanerReplace the True HEPA filter
Reduced odour removal	The True HEPA filter needs to be replaced	Replace the True HEPA filter
Excessive noise · The unit is not level	Place the unit on a flat, level surface
Replace filter light remains lit after filter replacement	The replace filter indicator needs to be reset	Press and hold the ioniser button for 3 seconds until the replace filter light turns off
Display lights are off · Night indicator setting	Press the night indicator button until the desired lights are on/off

LISEZ TOUTES LES INSTRUCTIONS AVANT L'UTILISATION. CONSERVEZ CES INSTRUCTIONS AFIN DE VOUS Y RÉFÉRER ULTÉRIEUREMENT.

TECHNOLOGIE UV-C AVEC MARCHE/ARRÊT

TECHNOLOGIE UV-C AVEC MARCHE/ARRÊT

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a net over a curved surface, with no text or symbols present.

Illustration of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

REEMPLACEMENT DE LA LAMPE UV-C

REMPLACEMENT DE LA LAMPE UV-C

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force directions (no text or symbols)

Illustration of hands using a tool to cut or adjust a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object, no text or symbols present.

Line drawing of a hand cleaning a circular object (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a nettinger over a curved surface (no text or symbols)

Line drawing of hands handling a cylindrical object with grid lines (no text or symbols)

Diagram of a curved mechanical component with directional arrows and circular features (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands using a tool to cut or adjust a circular component (no text or symbols visible)

Line drawing of a cylindrical object with a mesh top and a hand holding a curved object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

HEPA-Filter - AP-T40FL

UV-C Lampe - AP-UVC1

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with granular material, partially covered by a curved surface (no text or symbols)

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and internal shafts (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands holding a mechanical component, no text or symbols present

Line drawing of a cylindrical object with a mesh top and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal mesh structure (no text or symbols)

Line drawing of a hand holding a nettinger over a curved surface (no text or symbols)

Illustration of hands handling a cylindrical object with grid lines (no text or symbols visible)

Diagram of a curved mechanical component with directional arrows and dotted pattern (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and mounting brackets (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

LIMPIAR LA BANDEJA DE ACEITE

Line drawing of a hand cleaning a circular object (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of hands holding a rectangular object over a circular base (no text or symbols)

Line drawing of a cylindrical object with a mesh top and a hand holding a curved object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

HEPA-filter - AP-T40FL

UV-C-lamp - AP-UVC1

Deksel en schroeven - APUVCCV

PROBLEMEN EN OPLOSSINGEN

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a filter or netting device over a curved surface (no text or symbols)

Line drawing of hands handling a grid-patterned object (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and a central shaft (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

CZYSZCZENIE TACKI NA OLEJEK

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a large cylindrical object with grid lines (no text or symbols visible)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands using a tool to cut or mark a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a small object, no text or symbols present.

Line drawing of a hand cleaning a circular object (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal mesh structure (no text or symbols)

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Diagram of a curved structure with directional arrows and dotted patterns, no readable text or symbols

AZ UV-C IZZÓ CSERÉJE

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and a central shaft (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a small object, no text or symbols present.

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal mesh structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols visible)

Diagram of a curved pipe or channel with directional arrows and circular patterns, no readable text or symbols present.

RESERVGLÖDLAMPA FÖR UV-C-LAMPA

BYTE AV UV-C-GLÖDLAMPAN

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and internal shaft (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

FELSÖKNING

For å finne ditt lokale HoMedics servicesenter, se www.homedics.co.uk/servicecentres

WEEE forklaring

UV-C-TEKNOLOGI MED AV/PÅ-FUNKSJON

Når det er på, dreper UV-C-lyset mikroorganismer, virus og bakterier.

IONISERER MED AV/PÅ-FUNKSJON

UV-C-TEKNOLOGI MED AV/PÅ-FUNKSJON

IONISERER-INNSTILLING MED AV-PÅ-FUNKSJON

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and internal shaft (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

SLIK RENGJ∅R DU OLJEBEHOLDEREN

Line drawing of a hand cleaning a circular object (no text or symbols)

FOR BEST YTELSE

HEPA-filter - AP-T40FL

UV-C-pære - AP-UVC1

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical device with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Illustration of hands handling a cylindrical object with grid lines, no text or symbols present

Technical line drawing of a curved mechanical component with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands using a tool to cut or adjust a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

UV-C-TEKNOLOGI MED TÆND/SLUK

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical structure with internal grid pattern (no text or symbols)

Line drawing of a hand holding a container with a mesh structure, no text or symbols present

1. Træk i tapperne for at fjerne det gamle filter.

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Pure technical line drawing of a curved mechanical component without any text, numbers, or symbols

UDSKIFTNING AF UV-C-PÆRE

SÅDAN UDSKIFTES UV-C-PÅREN

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and internal components (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

SÅDAN OPNÅS OPTIMAL EFFEKTIVITET

Aromabakke (sort) - AP-T40BKARM

HEPA-filter - AP-T40FL

UV-C-pære - AP-UVC1

Dæksel og skruer – APUVCCV

FEJLFINDING

TEMPORIZATOR INCORPORAT

Line drawing of hands using a tool to adjust or install a component (no text or symbols visible)

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with material, no text or symbols present

Illustration of hands handling a large cylindrical object with grid lines (no text or symbols visible)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh top and a hand holding a small object, no text or symbols present.

Line drawing of a hand cleaning a circular object (no text or symbols)

PENTRU CEA MAI BUNĂ PERFORMANTĂ

www.homedics.co.uk/servicecentres

Vysvetlenie k smernici OEEZ

Line drawing of hands using a tool to adjust or install a component, no text or symbols present

1. Odpojte čistič vzduchu. Potiahnite zarážky na každej strane krytu mriežky.

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

ČISTENIE ZÁSOBNÍKA NA OLEJ

Line drawing of a hand cleaning a circular object (no text or symbols)

ABY SA DOSIAHOL NAJLEPŠÍ VÝKON

Filter HEPA - AP-T40FL

Žiarovka UV-C – AP-UVC1

Kryt a skrutky – APUVCCV

RIEŠENIE PROBLÉMOV

Line drawing of hands using a tool to adjust or install a component, no text or symbols present

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

Line drawing of a hand holding a nettinger with a mesh grille (no text or symbols)

Line drawing of hands handling a cylindrical object with grid pattern (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a tool inserted, showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with concentric circles and internal components (no text or symbols)

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a curved object (no text or symbols)

Line drawing of a hand cleaning a circular object (no text or symbols)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Technical line drawing of a cylindrical container with internal grid structure (no text or symbols)

1. Remova a tampa da grelha e coloque de parte.

Line drawing of a hand holding a container filled with granular material, no text or symbols present

Line drawing of hands handling a cylindrical object with grid lines (no text or symbols)

Pure technical diagram of a curved mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a central pin and circular base (no text or symbols)

Technical line drawing of a mechanical assembly with concentric circles and mounting brackets (no text or symbols)

1. Remova a tampa para expor a lâmpada UV-C.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Diagram of a cylindrical object with a mesh pattern and a hand holding a small object (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)
