USER MANUAL RB36R8817SR SAMSUNG

English User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. RB7000R&8000R_User-servicing-manual.indb 1 2020-12-21 4:58:32English The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

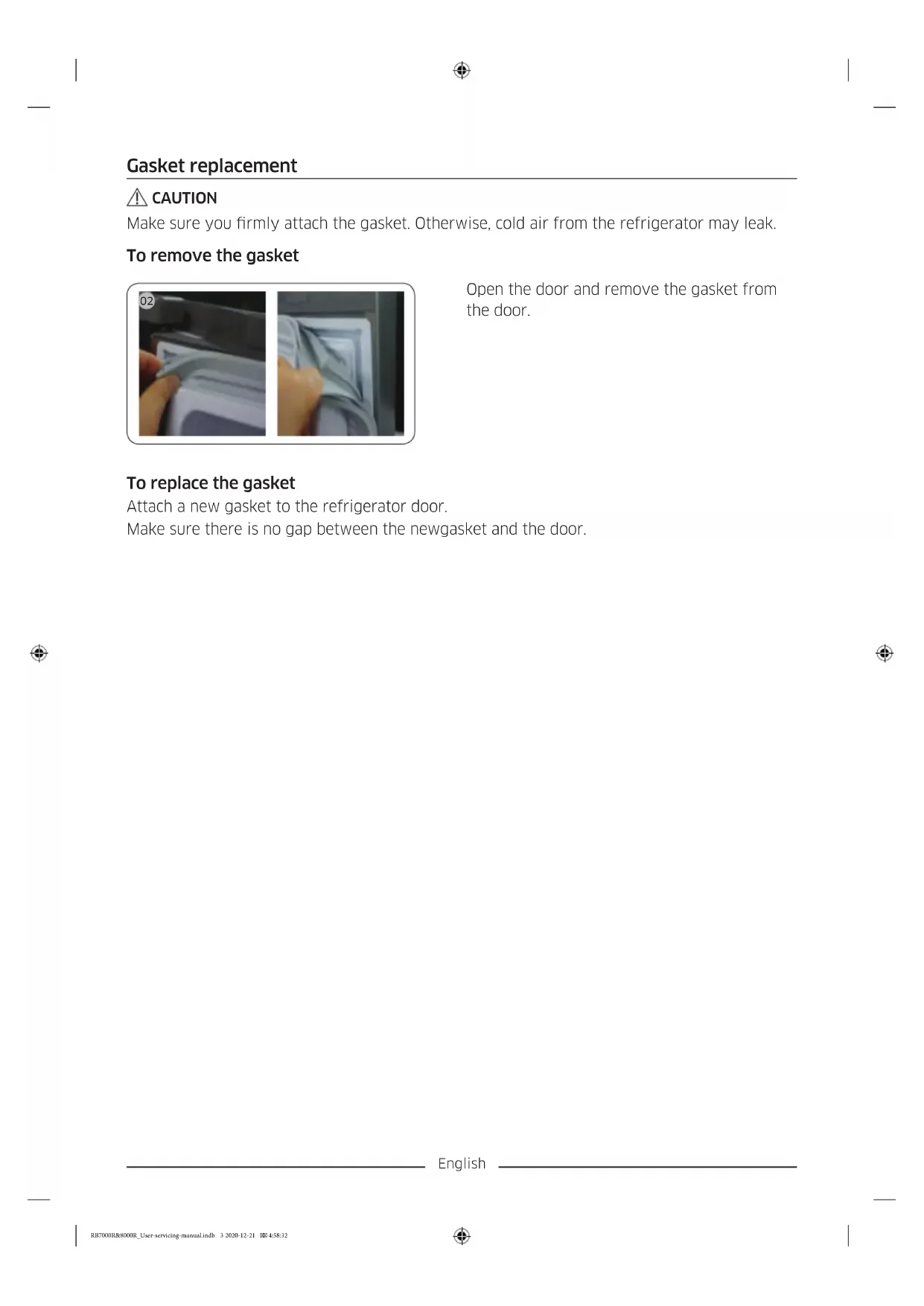

Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the newgasket and the door. RB7000R&8000R_User-servicing-manual.indb 3 2020-12-21 4:58:32English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the drawer Pull the drawers out fully then slightly lift it up to remove the drawers.

• If the drawers get stuck to door, remove drawer by lifting up after remove shelves. Moving the drawers, please grab the handle of drawer tightly. CAUTION If you dropped the drawer during moving it, you will be able to have injury. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps. Hinge replacement To replace the hinges, you must remove the doors rst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. RB7000R&8000R_User-servicing-manual.indb 4 2020-12-21 4:58:33English Tools required (not provided) Phillips screwdriver Flat-head screwdriver 11 mm spanner 8 mm socket wrench (for bolts) Allen wrench (5 mm) Reversing the door

1. Remove the Cover Wire (1) and Cap door

2. Remove the Cover Hinge to push a hook

like below Pictures. RB7000R&8000R_User-servicing-manual.indb 5 2020-12-21 4:58:33English

3. Disconnect the housing. And then remove

2 screws on the Upper Hinge. CAUTION

• The door is heavy, be careful not to injure yourself when removing the door.

• Be careful not to damage the wire during operation.

4. Remove the fridge door from the Middle

hinge by carefully lifting the door straight up. CAUTION The door is heavy, be careful not to injure yourself when removing the door.

6. Remove the freezer door from the Bottom

hinge by carefully lifting the door straight up. CAUTION The door is heavy, be careful not to injure yourself when removing the door.

7. Switch the Position of Cap.

CAUTION Be careful the Scratch, when disassembling the Cap.

8. Lay the refrigerator carefully. Remove the

Leg (1) and the Hinge Low (2).

9. Reassemble in the opposite order of

disassembly after replacing the Hinge Up, Hinge Mid, and/or Hinge Low. CAUTION

• Make sure the wire connectors are connected properly.
