Product Type	Analog HD Recorder (surveillance camera)
Brand	ABUS
Model	TVVR33602
Number of channels	6 channels (BNC)
Supported video formats	TVI, AHD, CVI, CVBS
Maximum resolution	HD (up to 1080p)
Power supply	12 V DC (power adapter included)
Network connectivity	RJ45 Ethernet, DHCP
Video outputs	HDMI, VGA
Internal storage	Hard drive (not included, cable and screws provided)
Mobile app	ABUS Link Station (iOS/Android)
Cloud function	ABUS Link Station for remote access
Security	Administrator password, verification code
Maintenance and cleaning	Avoid liquids and magnetic fields, ensure ventilation
Spare parts and repairability	Contact the dealer or ABUS support
Dimensions (approximate)	Approximately 200 x 200 x 50 mm
Weight (approximate)	Approximately 1 kg
Operating temperature	0 °C to 40 °C
Package contents	Recorder, 12V power adapter, USB mouse, RJ45 cable, HDD cable, screws, guide

Frequently Asked Questions - TVVR33602 ABUS

How to install the TVVR33602 recorder?

Connect the 12V power supply, connect the network cable to the router, and connect the cameras to the BNC inputs. Turn on the device and follow the setup wizard on the screen.

What administrator password should I use?

On first startup, the wizard asks you for a password for the admin user. Choose a complex password (level 'Strong') and keep it safe. Resetting requires ABUS technical support.

How to connect the recorder to my smartphone?

Enable ABUS Link Station in the recorder's network settings. Download the 'ABUS Link Station' app, create an account, then scan the QR code displayed on the recorder's local interface.

What types of cameras are compatible?

The recorder supports analog HD cameras in TVI, AHD, CVI, and CVBS formats via BNC inputs. IP cameras must be connected to the network and added via the interface.

How to initialize the hard drive?

In the setup wizard, select the installed hard drive, click 'Edit' in the 'Process' column, confirm initialization with OK, then finish.

What to do if ABUS Link Station stays offline?

Check that the recorder is connected to a network with Internet access and that DHCP is enabled. Also verify that the verification code is correct and that the app is up to date.

Can I use the recorder without an Internet connection?

Yes, the recorder works locally. For remote access via smartphone, you need to enable ABUS Link Station or manually configure ports on the router (see full manual).

How to reset the administrator password?

Resetting the administrator password is only possible through ABUS technical support. Contact support with your device information.

Where can I download the full manual?

The full manual is available on abus.com, in the 'Downloads' tab for model TVVR33602. You can also use ABUS IP Installer to access manuals.

What are the indicators on the front panel?

The LEDs indicate: power (on), data (hard drive activity) and network (network activity). They help diagnose the recorder's status.

USER MANUAL TVVR33602 ABUS

Security Tech Germany

ABUS

TVVR33602 / TVVR33802

ANALOG

HD- REKORDER

Scope of delivery 22

Warnings 23

Connections 24

Tips for camera installation 26

System activation 27

Software set-up 28

App setup 32

Instructions + software 34

Nederlands

Line drawing of a cable and rectangular device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a broadband cable with two connectors (no text or symbols)

WARNHINWEISE

Security Tech Germany

Security Tech Germany

1

Security Tech Germany

②

iOS Apple App Store

Android Google Play Store

Einrichtung App

https://www.abus.com/product/TVVR33602

https://www.abus.com/product/TVVR33802

Soft ware:

Security Tech Germany

ABUS

TVVR33602 / TVVR33802

ANALOGUE

HD RECORDER

This quick-start guide describes the initial installation steps for your analogue HD recorder.

Detailed information can be found in the user guide on the website www.abus.com

ABUS

Dear Customer,

Thank you for purchasing one of our products. This product complies with current domestic and European regulations.

Conformity has been proven, and all related certifications are available from the manufacturer on request: ABUS Security Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, GERMANY.

To ensure that this standard is maintained and that safe operation is guaranteed, you are obliged to observe the stipulations set out in this user guide. Read the entire user manual before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved. If you have any questions, please contact your specialist dealer.

SCOPE OF DELIVERY

TVVR33602:

• 6-channel recorder
  • 12 V power supply unit
• Wireless USB mouse
• 1 m network cable
• Hard disk drive connection cable
• Screws for hard disk drive
• Quick start guide

TVVR33802:

• 8-channel recorder
• 12 V power supply unit
- Wireless USB mouse
- 1 m network cable
- Hard disk drive connection cable
- Screws for hard disk drive
- Quick start guide

Simple line drawing of a rectangular object with no text or symbols

Line drawing of a cable and rectangular electronic device (no text or symbols)

Line drawing of a computer mouse (no text or symbols)

Line drawing of a flexible network cable with connectors (no text or symbols)

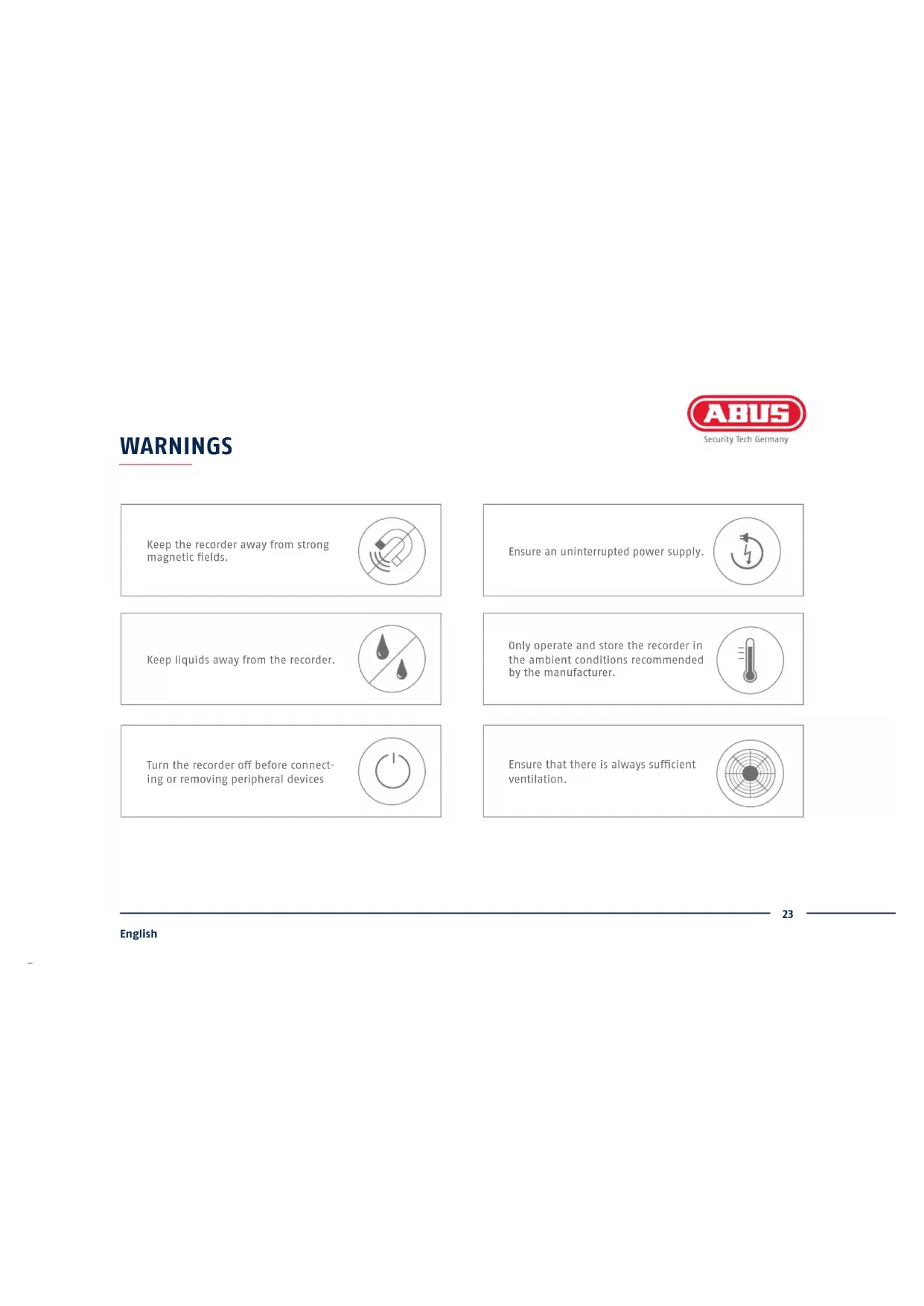

WARNINGS

Security Tech Germany

Keep the recorder away from strong magnetic fields.

Ensure an uninterrupted power supply.

Keep liquids away from the recorder.

Only operate and store the recorder in the ambient conditions recommended by the manufacturer.

Turn the recorder off before connecting or removing peripheral devices

Ensure that there is always sufficient ventilation.

CONNECTIONS

TIPS FOR CAMERA INSTALLATION

Connect the recorder to the power supply and connect it to your home network via the network cable. To integrate analogue HD cameras, connect them to the BNC socket of the recorder and the camera's power supply unit using the combined cable provided. When integrating IP cameras, connect them to the power supply and to your home network.

SOFTWARE SET-UP

Security Tech Germany

1

Select the desired language and click "Apply".

2

In the field "password" enter a password for the admin user. The password must meet the specified minimum requirements. Recommendation: Use a password that is as complex as possible and is classified as "strong".

Admin password:

3

Re-enter the password to confirm it. Make a note of the password in the quick start guide as well and keep it in a safe place. The admin password can only be reset by ABUS technical support.

4

You should also enter the activation password for the cameras here. If you activate a camera via the recorder, the recorder uses this password for it. Then click on "OK". The device is now activated and all of its functions can be used.

5

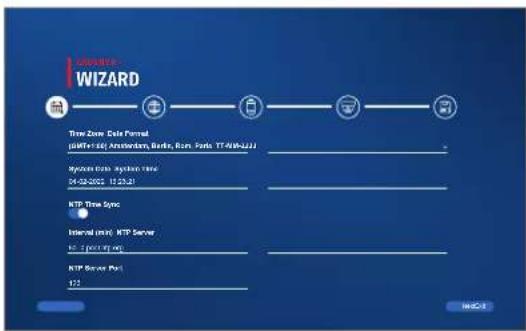

Set the time zone, date, date format and system time. Close the screen by clicking "Next".

6

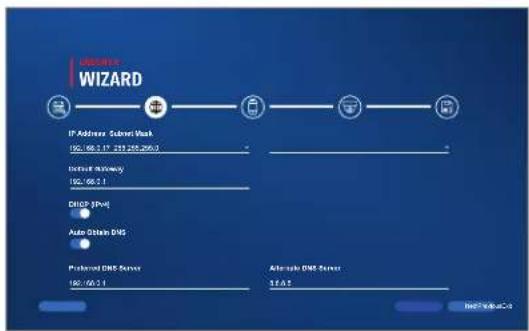

If you wish the address data to be automatically assigned, tick the "Enable DHCP" checkbox. The addresses will then be automatically assigned by your router (where supported).

7

If your router does not automatically assign the address data, enter the data according to the following steps. The image gives an example of connected devices with the corresponding IP addresses.

8

Below you will find all compatible network cameras. Use the checkbox to select the desired network cameras and click on add. Switch to the next screen with „Next“.

Security Tech Germany

9

The installed hard disk must be initialized before use. Select the disk to initialize. Click the „Edit“ button in the „Process“ column and confirm the initialization with OK. Then press "Finish".

APP SETUP

1

Activating ABUS Link Station

• Navigate to the network settings in your local interface and open the ABUS Link Station settings.
• Activate the ABUS Link Station function and click on "Save settings".
• The status should now show as "online". If "offline" is still shown, check that the recorder is connected to a network with internet access.
• Now assign a verification code for the connection. You can write down the code you used here, then keep the quick guide in a safe place.
• Leave the web interface open. The QR code and verification code shown are required to set up the recorder in the app.

Please note: The ABUS Link Station connects your recorder to your smartphone via the cloud service. You do not need to reconfigure your router for this. If you do not want to use the cloud service, you can follow an alternative app setup procedure in the recorder's instruction manual.

Security Tech Germany

②

iOS Apple App Store

Android Google Play Store

App setup

• Download the "ABUS Link Station" app from the iOS App Store or Google Playstore and open it.
• Create an account for remote access by clicking on "Log in" and then on "Register an account".
• Activate the account using the verification code sent to you by email.
• Click on "Add device" and scan the QR code from the recorder's local interface.
• After the recorder has been found, enter the recorder's verification code. The recorder has now been added to your account.
• If you experience problems during setup, please go to our support website: https://support.abus-sc.com/

INSTRUCTIONS + SOFTWARE

Instructions:

instructions for operating the online and recorder interfaces can be found under the "Downloads" tab at the following link:

https://www.abus.com/product/TVVR33602

https://www.abus.com/product/TVVR33802

Soft ware:

1 ABUS Central Monitor Station (CMS) allows you to monitor, control and manage the video data from your ABUS recorder on your PC:

ABUS IP Installer to find your recorder in the network, to check for and install firmware

updates and to download instruction manuals and quick start guides directly to your PC:

https://www.abus.com/var/ImagesPIM/d110001/medias/common/23/ABUS-IP-Installer_V9.5.3.zip
