PMHSA 4 B2 - Hot glue gun PARKSIDE - Free user manual and instructions
Find the device manual for free PMHSA 4 B2 PARKSIDE in PDF.
| Product type | Cordless hot glue gun |
| Brand | Parkside |
| Model | PMHSA 4 B2 |
| Motor voltage | max. 4 V |
| Operating temperature | 180 °C |
| Glue stick diameter | max. 7 mm |
| Flow rate | 3.1 g/min |
| Weight (functional) | approx. 164 g |
| Battery type | Integrated Li-ion |
| Battery nominal voltage | 4 V |
| Battery capacity | 2 Ah |
| Charger power supply | Power supply unit WJG-Y130502400WU1 (100-240 V~, 50/60 Hz, 25 W) |
| Charging type | USB-C |
| LED indicators | Temperature (red/green) and charging (red/orange/green) |
| Package contents | Glue gun, 4 glue sticks (silver, purple, black, clear), USB-C cable, carrying case, instruction manual |
| Recommended use | Household, not commercial |
| Ambient operating temperature | 5 °C to 50 °C |
| Compatible glue stick type | Low melting temperature (110-150 °C) |
| Maintenance | Maintenance-free, clean nozzle with a blunt object after cooling |
| Storage | Dry place, 10-25 °C, battery partially charged (40-60%) |
| Warranty | 3 years |
| Spare parts available | Glue sticks (ref. 30211112), EU power supply (80001281), UK (80001282) |
| Customer service France | Tel. 0800 919270, email: grizzly@lidl.fr |
| Customer service Belgium | Tel. 070 270 171 (0.15 EUR/min), email: grizzly@lidl.be |
Frequently Asked Questions - PMHSA 4 B2 PARKSIDE
User questions about PMHSA 4 B2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hot glue gun in PDF format for free! Find your manual PMHSA 4 B2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMHSA 4 B2 by PARKSIDE.
USER MANUAL PMHSA 4 B2 PARKSIDE


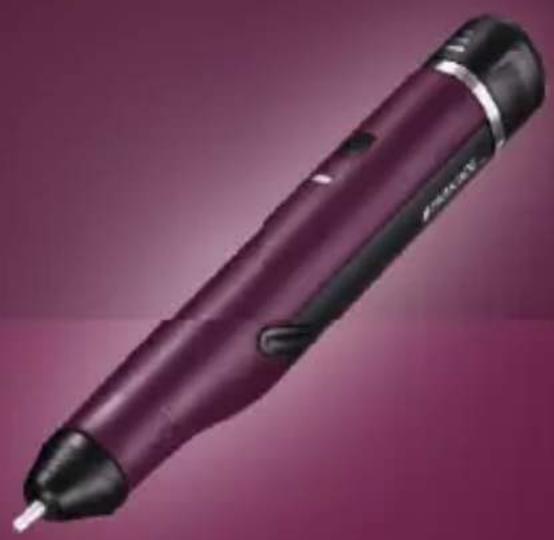

Purple handheld electric brush with black tip and silver handle, isolated on maroon background (no text or symbols visible)Akku-Heißklebestift / Cordless Hot Glue Gun / Pistolet à colle sans fil PMHSA 4 B2
DE AT CH
Akku-Heißklebestift
Cordless Hot Glue Gun
Translation of the original instructions
NL BE
Accu-lijmpistool
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
Service-Center......19
Importeur 19
$$ \text {rot} = > \text {Akku} < 30 \%. $$
Intended purpose......22
General description.....22
Description of functions .....22
Extent of the delivery ..... 22
Overview......23
Technical Data......23
Safety information ..... 23
Symbols on the device ..... 23
Graphical symbols on the charger:....24
Symbols used in the instructions 24
General safety
instructions ...... 24
Correct handling of the charger device....27
Charging process ..... 28
Charging the battery ..... 29
Initial start-up ...... 29
General working instructions ...... 29
Switching on/off......29
Checking the charge status of the battery ..... 29 Gluing ..... 30
Working instructions ... 30
Cleaning and maintenance .... 31
Cleaning....31 Maintenance....31
Storage......31
Disposal/environmental protection .... 32
Guarantee 32
Repair Service......34
Service-Center....35 Importer....35
Replacement parts/Accessories 35
Translation of the original EC declaration of conformity .....153/154
Exploded Drawing .... 169
Introduction
Congratulations on the purchase of your new device.
With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended purpose
This equipment is not suitable for commercial use.
Commercial use will invalidate the guarantee.
Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.
The manufacturer is not liable for damage caused by improper use or incorrect operation.
General description
The illustration of the principal functioning parts can be found on the front foldout page.
Description of functions
The rechargeable automatic hot glue pen has a temperature indicator and a button for dispensing the adhesive. Refer to the following descriptions for the function of control elements.
Extent of the delivery
Carefully unpack the appliance and check that it is complete: Dispose of the packaging material properly.
- Cordless Hot Glue Gun
- 4 glue sticks (silver, purple, black and transparent)
- USB-C charging cable
- Case
- Instruction Manual
The scope of delivery does not include a power adapter.
Overview
1 Nozzle
Temperature indicator
3 On/off switch
4 Battery charge level indicator 5 Button
6 Glue stick chamber
7 Charging socket
8 Glue stick
9 Charging cable connector
10 USB plug
Technical Data
Cordless Hot
Glue Gun ......PMHSA 4 B2
Motor voltage U_max ..... 4 V ===
Operating temperature. 180°C
Glue stick
diameter ∅ ......max. 7 mm
Gluing performance 3.1 g/min
weight (ready) approx. .164 g
Rechargeable battery (Li-Ion)
Battery cells....1
Power consumption ..... 25 W
Output voltage.....5.0 V ===;
Output current .....2.4 A
Output power ...... 12,0 W
Average
active efficiency ...... 81.8 %
Efficiency at low
load (10%)....84.3%
Power consumption
at zero load 0.08 W
Protection class ...... ☐ II
Protection type.....IPXO
Safety information
Follow all safety instructions
when using the device.
Symbols on the device
Read the instruction manual carefully.
GB IE
Do not dispose of the device with the battery installed in household waste.
Removable power adapter
On/Off switch
Dispense glue
Caution! Hot surface
Graphical symbols on the charger:
Read the instruction manual carefully.
Pole orientation
The charger is only suitable for use indoors.
Protection class II
Electrical devices must not be disposed of with domestic waste.
Symbols used in the instructions
Hazard symbols with information on prevention of personal injury and property damage.
Precaution symbol with information on prevention of harm/ damage.
Wear ear protection
Notice symbol with information on how to handle the device properly.
General safety instructions
This device can be used by children aged 8 years and up as well as individuals with reduced physical, sensory or mental abilities or a lack of ex-
perience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the res- ulting hazards. Children must never play with the device. Cleaning and user maintenance must not be carried out by children if they are not supervised.
Attention! The following basic safety precautions must be observed while using electrical devices to protect against electric shock, injury and risk of fire:
This is how to avoid accidents and injuries:
- Never leave the device unattended at the workplace when it is ready for use.
- Check the device and accessories regularly for damage. Do not use the device or accessories if damaged.
This is how to avoid accidents and injuries from an electric shock:
- Switch the device off
- When you are not using the device or when you are transporting or leaving it unattended;
- When you inspect the device, clean it or remove blockages;
- When you perform cleaning or maintenance work, or swap accessories;
- After contact with foreign objects or if abnormal vibration occurs.
- Do not submerge the device in water and
GB IE
do not operate it in a damp environment.
- Do not submerge the device in water!
- Do not touch the device with wet or damp hands!
This is how to avoid damage to the equipment and possible personal injuries resulting from this:
- Only use original spare parts and accessories (see "Spare parts/accessories") which are supplied and recommended by our service centre. Using externally produced parts results in the immediate loss of the warranty claim.
- Only have repairs performed by customer service centres authorized by us.
- Comply with the device's cleaning and mainten-
ance instructions.
- Store the device in a dry place and out of reach of children.
- Do not use any accessories that are not recommended by PARKSIDE.
This can result in electric shock or fire.
This helps you prevent a fire if the device is not handled carefully
- Be careful when using the devices near flammable materials
- Do not use in the presence of an explosive atmosphere.
- Heat can be passed to flammable materials that are hidden.
- Allow the device to cool down before it is packed away
- Do not leave the device unattended as long as it is in operation.
Correct handling of the charger device
This device can be used by children aged 8 years and up as well as individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the appliance and understand the resulting hazards. Children must never play with the device. Cleaning and user maintenance must not be carried out by children if they are not supervised.
a) The charger must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30 mA.
b) Do not charge any non-rechargeable batteries with the charger.
c) Before each use, check the charger, cable and plug, and have repairs
carried out by qualified personnel using only original spare parts. Do not use the charger if defective and do not open it yourself. This ensures the safety of the device is maintained.
d) Make sure that the mains voltage matches the details on the charger's type plate. Risk of electric shock.
e) Disconnect the charger from the mains supply before closing or opening connections to the electric tool. This ensures the rechargeable battery and charger are not damaged.
f) Keep the charger clean and away from moisture and rain. Never use the charger outdoors. Soiling and penetration of water increase the risk of electric shock.
g) The charger may only be used with the corresponding original rechargeable batteries. Charging other batteries can lead to injuries
and the risk of fire.
h) Avoid mechanical damage to the charger. This can lead to internal short circuits.
i) The charger must not be operated on flammable surfaces (e.g. paper, textiles). Risk of fire due to heating caused by charging.
i) In order to minimise the risk of electric shock, pull the charger plug out of the socket prior to cleaning it.
k) If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.
I) Do not connect a damaged cable to the power supply. Do not touch a damaged cable before it has been disconnected from the power supply, as you could come into contact with active parts.
Charging process
Do not expose the battery to extreme conditions such as heat and shocks. There is a risk of injury caused by leaking electrolyte solution! In case of contact with eyes or skin, rinse the affected sites with water or a neutralising agent and seek medical attention.
The battery must only be charged up in dry areas. There is a risk of personal inju- ries from an electric shock.
- The device may only be powered with SELV (Safety Extra Low Voltage) as indicated by the label on the appliance.
- Charge the battery before using it for the first time.
- To charge the Li-ion battery integrated in the device, use only the WJG-Y130502400WU1 power adapter. The power adapter is available from our online shop.
- For charging use only
protection class II power supply approved for use with household products.
• Always comply with the latest safety instructions, as well as the regulations and information relating to environmental protection.
- Defects resulting from improper handling are not covered by the warranty.
Charging the battery
- Plug a power adapter into a socket.
Insert the USB plug (A 10) of the charging cable into the power adapter. - Connect the charging cable connector (9) to the charging socket (7) on the device.
-
The battery indicator (A 4) lights up:
Red illuminated - battery < 30%, charging red/orange illuminated - battery > 30%, charging Red/orange/green illuminated - battery fully charged -
Once charging is complete, disconnect the power adap-
ter from the mains supply.
Initial start-up
General working instructions
- Remove the power supply unit before working with the equipment. Do not use extension cables. The power supply unit is to be used only in enclosed spaces.
Wearing hearing protection reduces the risk of hearing damage.
Switching on/off
- Press and hold the On/Off switch (3) for approx. 2 seconds to start the device. The temperature indicator (2) lights up red.
- To switch the device off, press the On/Off switch (3).
Checking the charge status of the battery
The battery charge level indicator (A 4) signalises the state of charge of the battery.
GB IE
- Press the On/Off switch. The state of charge of the battery is indicated by the 3 coloured LED lights:
Red-amber-green => battery > 60%
Red-amber => battery charged 30% - 60%
Red => battery < 30%. please charge
C
Gluing
-
Insert a glue stick (8) the glue stick chamber
-
Turn the device on (see "Switching on/off").
-
Allow the device to heat up. Do not press the button (5) while the device is heating up. The temperature indicator (2) switches to green as soon as the device is ready.
i
As long as the temperature indicator (2) is
red, the device has not rea- ched the operating temperatu- re required for gluing.
-
Press the button (5) to dispense glue.
-
Press the nozzle (1) onto the materials you want to glue
to apply glue. Please note the tips for gluing below.
- If necessary, press on the glue stick (8) a bit.
- Press the materials you want to glue together for approx. 10 to 30 seconds. During this time, you can still correct the bond.
| Large-scale, long work-pieces | Apply the glue in lines |
| into flexible materials (e.g. textile) | Apply the glue in dots |
Working instructions
- The glue and nozzle heat up to 150°C. There is a danger of burns! If hot glue comes into contact with your skin, hold the affected area under cold water straight away for several minutes. Do not attempt to remove the hot glue from the skin. If necessary, seek medical assistance.
Only use any accessories that are recommended by Parkside.
- Only use glue sticks with
a low melting temperature (110-150°C). Do not use glue sticks suitable for higher operating temperatures (170-200°C).
- Bonds can dissolve due to the effects of moisture.
- Keep bonds clean, dry and free of grease.
- Do not use any flammable or combustible materials.
-
Only work in operating temperatures between 5°C and 50°C.
-
Keep the housing and handles of the device clean. Use a damp cloth or brush to do this.
Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance. - Clean the nozzle (1) with a blunt object as soon as the glue and nozzle have cooled sufficiently.
Maintenance
Cleaning and maintenance
Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.
Cleaning
Perform the following cleaning work regularly. This will guarantee long and reliable use.
The device must not be sprayed with water or placed in water. Otherwise there is a risk of electric shock.
The equipment is maintenance free.
Storage
- Store the device in a dry and dustproof location and out of reach of children.
- Only store the batteries in the partially-charged state. The charge status should amount to 40-60% during a lengthy storage period (1-2 LEDs are on).
- Store the device between 10 °C and 25 °C. Avoid extreme cold or heat during storage, so that the batteries do not lose power.
GB IE
- Check the battery charge status approximately every 3 months during a lengthy storage period and recharge if necessary.
Disposal/ environmental protection
The device, accessories and packaging should be properly recycled.
Machines do not belong with domestic waste.
Do not dispose of the device with a built-in battery
in the household waste, a fire (risk of explosion) or water. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape.
- Dispose of the device with the battery discharged. Do not open the device or battery.
- Dispose of the device in accordance with the local regulations. Return the device to a collection point from
where it can be submitted for environmentally compatible recycling. For more information, please contact your local waste management provider or our service centre.
• We will dispose of any defective devices that you send to us free of charge.
Guarantee
Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the
product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. glue sticks) or to cover damage to breakable parts (e.g. switches).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and item number (IAN 373241_2104) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address
communicated to you. En- sure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 373241_2104
IE Service Ireland Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzly@lidl.ie
IAN 373241_2104
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Replacement parts/Accessories
Spare parts and accessories can be obtained at www.grizzlytools.shop
If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 35).
4 glue sticks
(silver, purple, black and transparent) 30211112
Power adapter EU 80001281
Power adapter UK 80001282
Sommaire
Introduction ...... 36
Service-Center......55
Importateur 55
Pièces de rechange/ Accessoires .... 56
Attention ! Surface chaude
Service-Center......72
Importeur 72
Reserveonderdelen/ Accessoires ...... 72
vermogen......12,0 W
Gemiddelde
Service-Center......89
Importer 89
Service-Center......104
Dovozce......104
Service-Center......119
Dovozca......119
Náhradnédiely/
Príslušenstvo......119
Service-Center......134
Importør 134
Reservedele / Tilbehør ...... 134
Service-Center......150
| GBIE | Translation of the originalEC declaration of conformity |
| We hereby confirm that the Cordless Hot Glue GunPMHSA 4 B2 seriesSerial number: 000001 - 040000conforms with the following applicable relevant version of the EU guidelines: | |
| 2014/30/EU • 2014/35/EU2011/65/EU* & (EU) 2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1:2012/A2:2019 • EN 60335-2-45:2002/A2:2012EN 62233:2008 • EN 55014-1:2017/A11:2020EN 55014-2:2015 • EN IEC 61000-3-2:2019EN 61000-3-3:2013/A1:2019 • EN IEC 63000:2018 | |
| This declaration of conformity (21)** is issued under the sole responsibility of the manufacturer: | |
| CEGrizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany, 20.11.2021 | Christian FrankDocumentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.
| GBIE | Translation of the originalEC declaration of conformity |
| We hereby confirm that the Power adapterWJG-Y130502400WU1 seriesIAN 373241_2104conforms with the following applicable relevant version of the EU guidelines: | |
| 2014/30/EU • 2014/35/EU • 2009/125/EC(EU) 2019/1782 • 2011/65/EU* & (EU) 2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019 • EN 60335-2-29:2004+A2:2010+A11:2018EN 55014-1:2017/A11:2020 • EN IEC 61000-3-2:2019EN 61000-3-3:2013/A1:2019 • EN 55014-2:2015EN 62233:2008 • EN IEC 63000:2018 | |
| This declaration of conformity (21)** is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany, 20.12.2021 | Christian FrankDocumentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.

