USER MANUAL PHP 500 C2 PARKSIDE
Translation of original operation manual
SE
LIMPISTOL
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
F
GB/IE Translation of original operation manual Page 1
Proper use 2
Features 2
Included items 2
Technical details 2
Safety notes 2
1.Workplace safety 2
2. Electrical safety 3
3. Personal safety 3
4. Careful handling and use of electrical power tools 3
Operation 4
Before first use 4
Preparing the tool for use 4
Maintenance and Cleaning 4
Disposal 5
Warranty. 5
Service. 5
Importer 5
Translation of the original conformity declaration 6

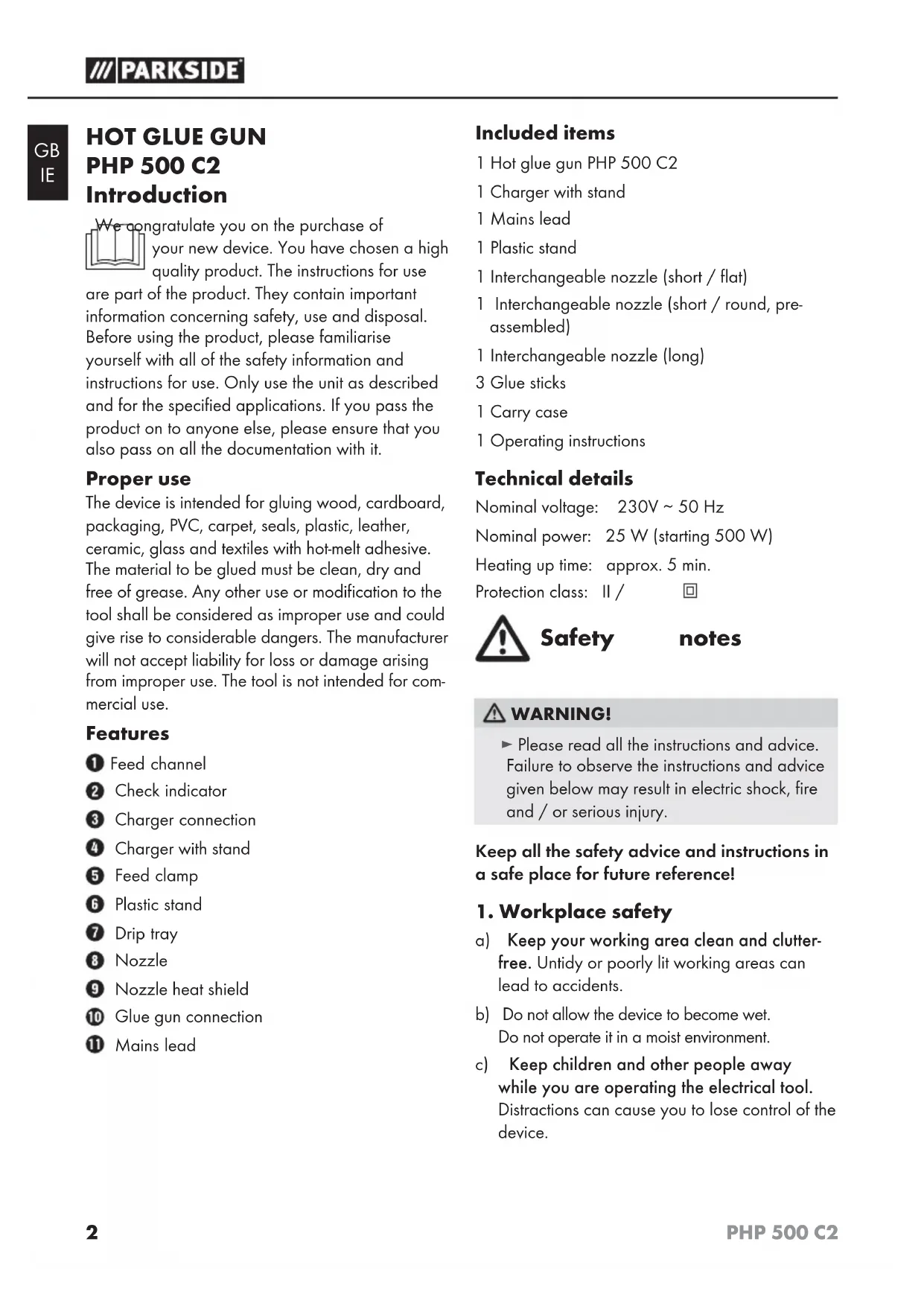

HOT GLUE GUN PHP 500 C2 Introduction
We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Proper use
The device is intended for gluing wood, cardboard, packaging, PVC, carpet, seals, plastic, leather, ceramic, glass and textiles with hot-melt adhesive. The material to be glued must be clean, dry and free of grease. Any other use or modification to the tool shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use. The tool is not intended for commercial use.
Features
Feed channel
Check indicator
Charger connection
4 Charger with stand
5 Feed clamp
6 Plastic stand
Drip tray
Nozzle
9 Nozzle heat shield
10 Glue gun connection
1 Mains lead
Included items
1 Hot glue gun PHP 500 C2
1 Charger with stand
1 Mains lead
1 Plastic stand
1 Interchangeable nozzle (short / flat)
1 Interchangeable nozzle (short / round, pre-assembled)
1 Interchangeable nozzle (long)
3 Glue sticks
1 Carry case
1 Operating instructions
Technical details
Nominal voltage: 230V 50Hz
Nominal power: 25 W (starting 500 W)
Heating up time: approx. 5 min.
Protection class: II/
Safety notes
WARNING!
- Please read all the instructions and advice. Failure to observe the instructions and advice given below may result in electric shock, fire and/or serious injury.
Keep all the safety advice and instructions in a safe place for future reference!
1.Workplace safety
a) Keep your working area clean and clutter-free. Untidy or poorly lit working areas can lead to accidents.
b) Do not allow the device to become wet. Do not operate it in a moist environment.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
ATTENTION! This tool must be placed down on its plastic stand when it is not being used.
2. Electrical safety
a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device in creases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the lead away from heat, oil and sharp edges. Do not touch the mains lead if it becomes damaged or severed while you are working, instead pull the mains plug out of the mains socket immediately. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) To avoid the danger of injury, burning and damage to health:
Danger of burns! The glue and the nozzle can reach temperatures of 200^ . Do not touch the nozzle or the glue. Keep other people and animals away from the hot glue. On contact with the skin, hold the affected part under running cold water for several minutes. Do not try to remove the glue from the skin.
4. Careful handling and use of electrical power tools
a) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
b) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people. Let the device cool down completely before putting it away. The hot nozzle can cause damage.
c) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
d) Always work with the mains lead leading away from the rear of the device.
GB IE
Operation
Before first use
Preparing the glue site:
Do not use inflammable solvents to clean the glue site.
The ambient temperature and temperature of the materials to be glued must be not less than +5^ and not warmer than +50^
The glue sites must be clean, dry and free of grease.
Smooth surfaces should be roughened before gluing.
Warm any materials that are prone to cool down quickly (e.g. steel) to improve the bond with the glue.
Screw on the appropriate nozzle. 8
Preparing the tool for use
Working with the mains lead connected:
Connect the mains lead to the glue gun connection (see Fig. B). Insert the mains plug into the mains socket.
Fold forward the plastic stand. Stand the device up.
Push a glue stick into the feed channel.
Let the device heat up for about 5 minutes. The device is now ready for use.
Cordless working:
Connect the mains lead to the charger connection 3 Insert the mains plug into the mains socket.
Place the glue gun into the charge4.
Push a glue stick into the feed channel.
Let the device heat up for about 5 minutes. The device is now ready for use.
Repeat the heating-up procedure if the feed switch becomes stiff or the outcoming glue becomes viscous.
Gluing:
Press the feed clamp to regulate the flow of glue as required for your work.
Apply the glue in individual dots. Apply in zig-zaags on flexible materials such as fabrics.
Immediately after applying the glue, press the two materials together for about 30 seconds. The glued joint can be loaded after about 5 minutes.
When you take a break from work, set the glue gun down on the plastic stand 6 or in the charger
Remove any glue residue with a sharp knife after cooling. Glued joints can be loosened again by applying heat.
Switching off the device:
Pull the mains lead out of the mains socket.
Changing the nozzle:
Wear protective gloves.
Heat up the device for about 5 minutes. Change the nozzle when it is hot.
Danger of burns! Touch the nozzle only by the heat shield The nozzle tip is hot!
NOTE
Hold item upright, tip up, to prevent glue from flowing out.
Maintenance and Cleaning
The glue gun is maintenance-free.
WARNING! Pull the mains lead out of the mains socket before you clean the tool. Always keep the device clean and dry.
Do not allow any liquids to enter the tool. Use a soft cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.
Disposal
packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
dispose of electrical appliances in household waste.
In accordance with European Directive 2012/19/EU on used electrical and electronic appliances and its implementation in national law, used power tools must be collected separately and recycled in an ecologically compatible manner.
Information on options for disposing of electrical appliances after their useful life can be obtained from your local or city council.
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
Service
WARNING!
Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING!
If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN113366
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN113366
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original conformity declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Deutschland, hereby declare that this product complies with the following standards, normative documents and the EC directives:
EU Low Voltage Directive (2006/95/EC) EMC (Electromagnetic Compatibility) (2004/108/EC)
RoHS Directive (2011/65/EU)
Applied harmonised standards: EN 60335-2-45/A2:2012
EN 60335-1:2012
EN 62233:2008
EN 55014-1/A2:2011
EN 55014-2/A2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2013
Type / Device description: Hot glue gun PHP 500 C2
Year of manufacture: 06 - 2015
Serial number: IAN 113366
Bochum, 21/01/2015
C E
Semi Uguzlu
- Quality Manager
Subject to technical changes in the course of further developments.
