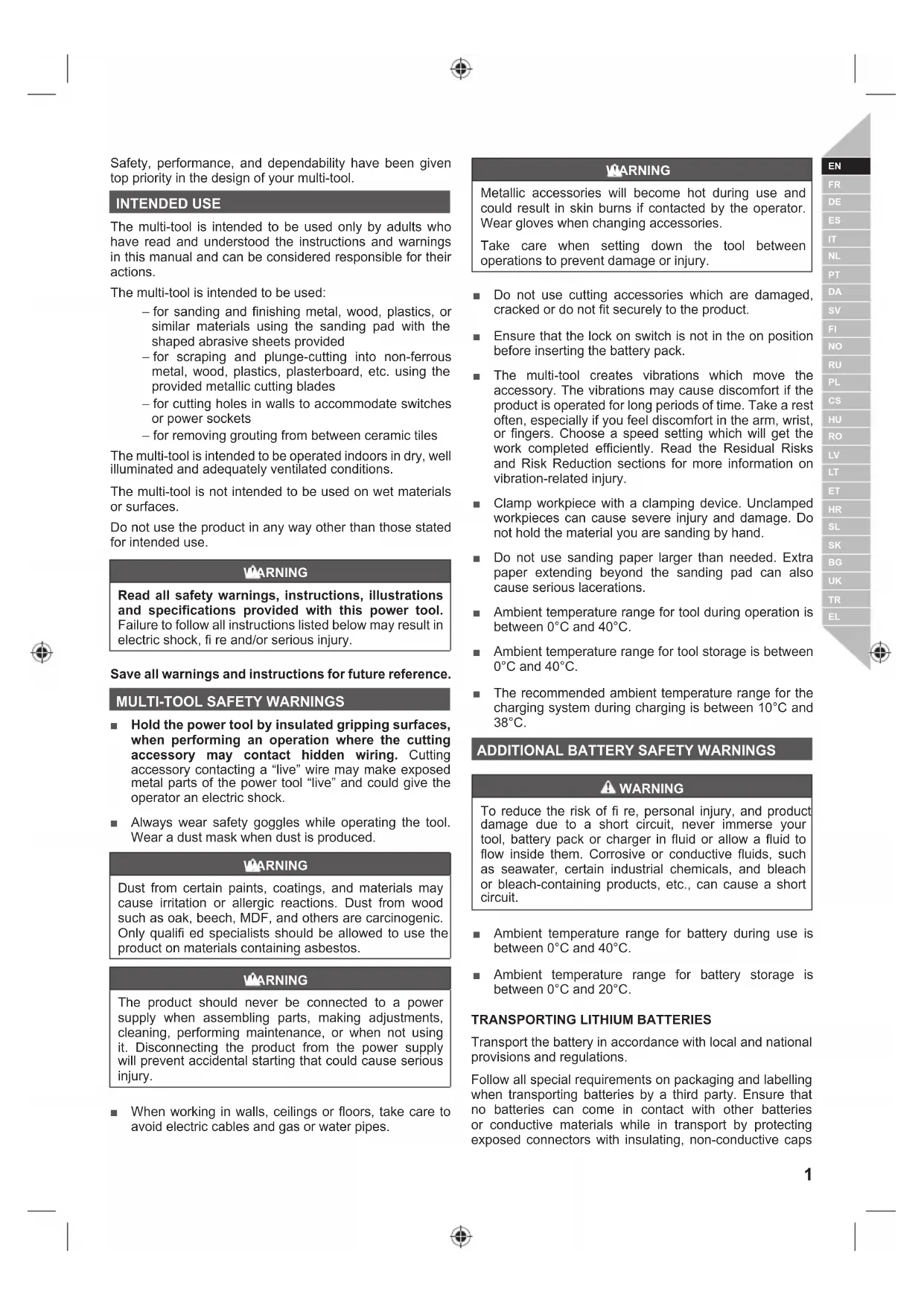

■ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ Always wear safety goggles while operating the tool. Wear a dust mask when dust is produced. WARNING Dust from certain paints, coatings, and materials may cause irritation or allergic reactions. Dust from wood such as oak, beech, MDF, and others are carcinogenic. Only qualifi ed specialists should be allowed to use the product on materials containing asbestos. WARNING The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when not using it. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury. ■ When working in walls, ceilings or floors, take care to avoid electric cables and gas or water pipes. WARNING Metallic accessories will become hot during use and could result in skin burns if contacted by the operator. Wear gloves when changing accessories. Take care when setting down the tool between operations to prevent damage or injury. ■ Do not use cutting accessories which are damaged, cracked or do not fit securely to the product. ■ Ensure that the lock on switch is not in the on position before inserting the battery pack. ■ The multi-tool creates vibrations which move the accessory. The vibrations may cause discomfort if the product is operated for long periods of time. Take a rest often, especially if you feel discomfort in the arm, wrist, or fingers. Choose a speed setting which will get the work completed efficiently. Read the Residual Risks and Risk Reduction sections for more information on vibration-related injury. ■ Clamp workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage. Do not hold the material you are sanding by hand. ■ Do not use sanding paper larger than needed. Extra paper extending beyond the sanding pad can also cause serious lacerations. ■ Ambient temperature range for tool during operation is between 0°C and 40°C. ■ Ambient temperature range for tool storage is between 0°C and 40°C. ■ The recommended ambient temperature range for the charging system during charging is between 10°C and 38°C.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fl uid or allow a fl uid to fl ow inside them. Corrosive or conductive fl uids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit. ■ Ambient temperature range for battery during use is between 0°C and 40°C. ■ Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps 1 English |

ELor tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following: ■ Injury caused by dust – Wear eye protection at all times. – Wear respiratory protection masks containing filters appropriate to the materials being worked. Ensure adequate workplace ventilation. – Do not eat, drink or smoke in the work area. ■ Injury caused by noise and vibration – Wear ear protection. – Do not operate the product for long periods of time. See “Risk reduction”. ■ Risk of electrocution if electric cables are cut – Always hold the product by designated handles. Do not touch the cutting blades or metal parts of the product. RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fi ngers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: ■ Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome. ■ After each period of operation, exercise to increase blood circulation. ■ Take frequent work breaks. Limit the amount of exposure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms. WARNING Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

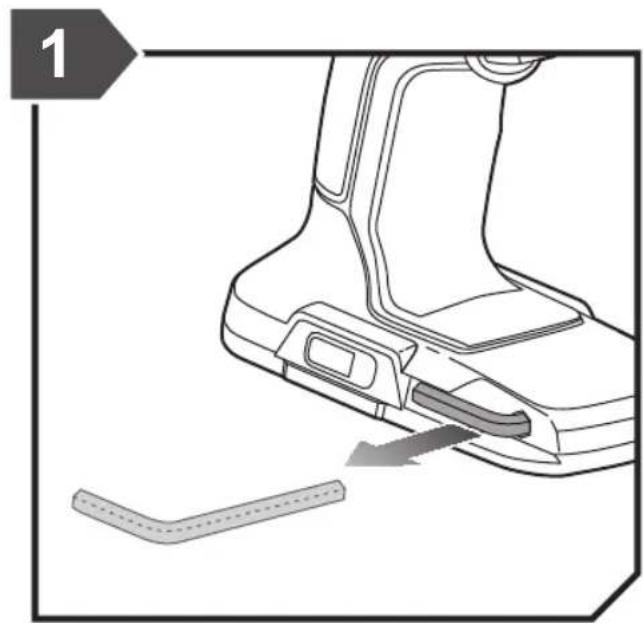

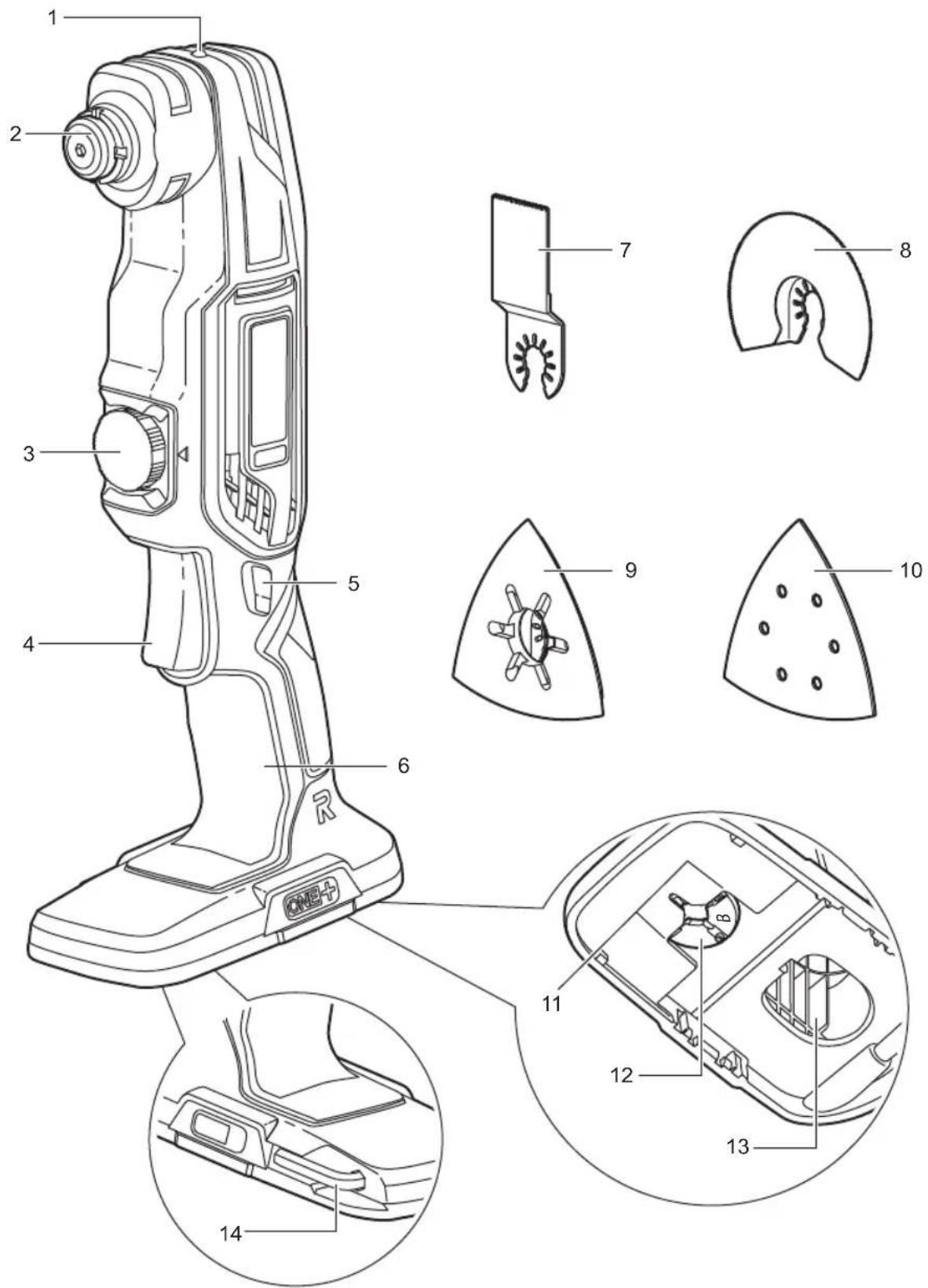

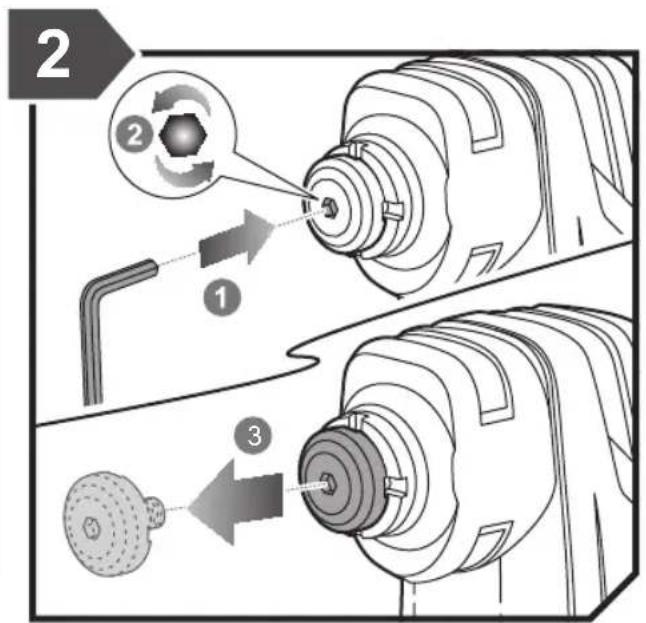

2. Blade locking screw

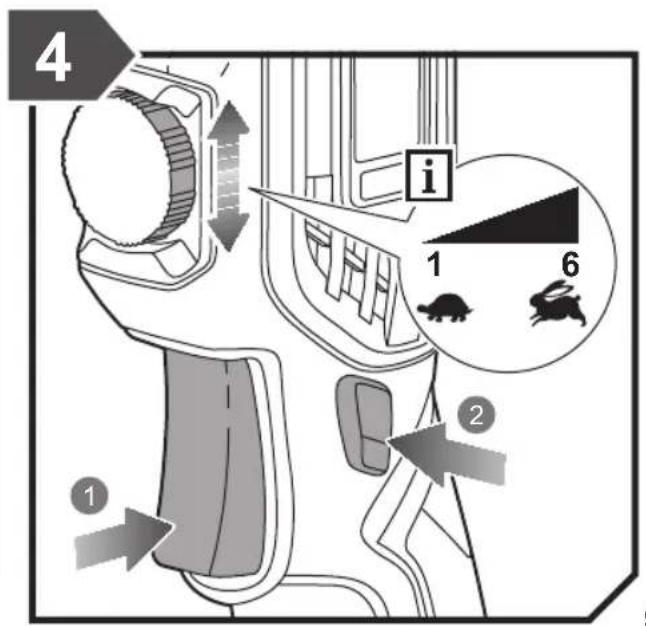

6. Handle, insulated grasping surface

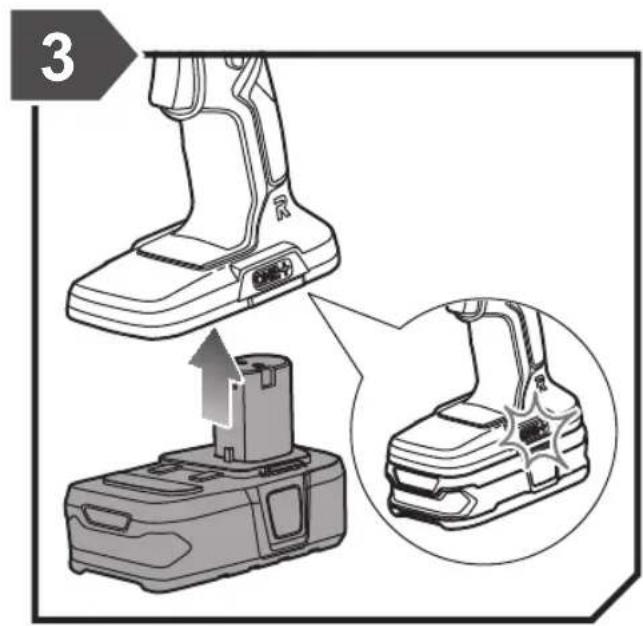

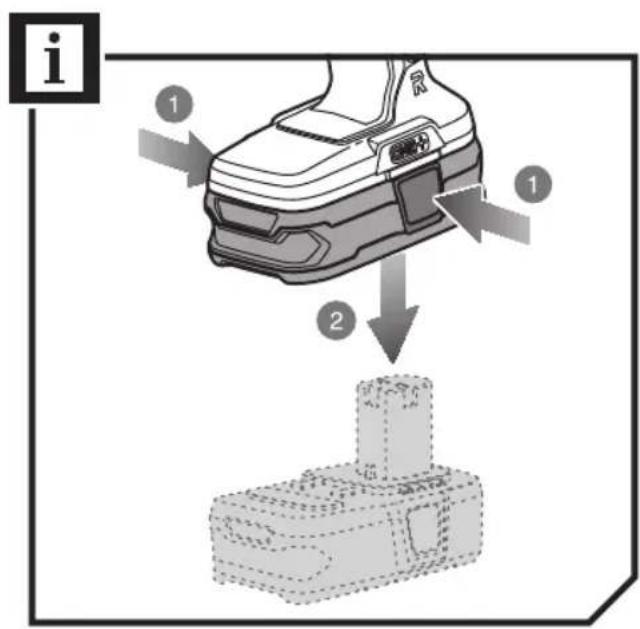

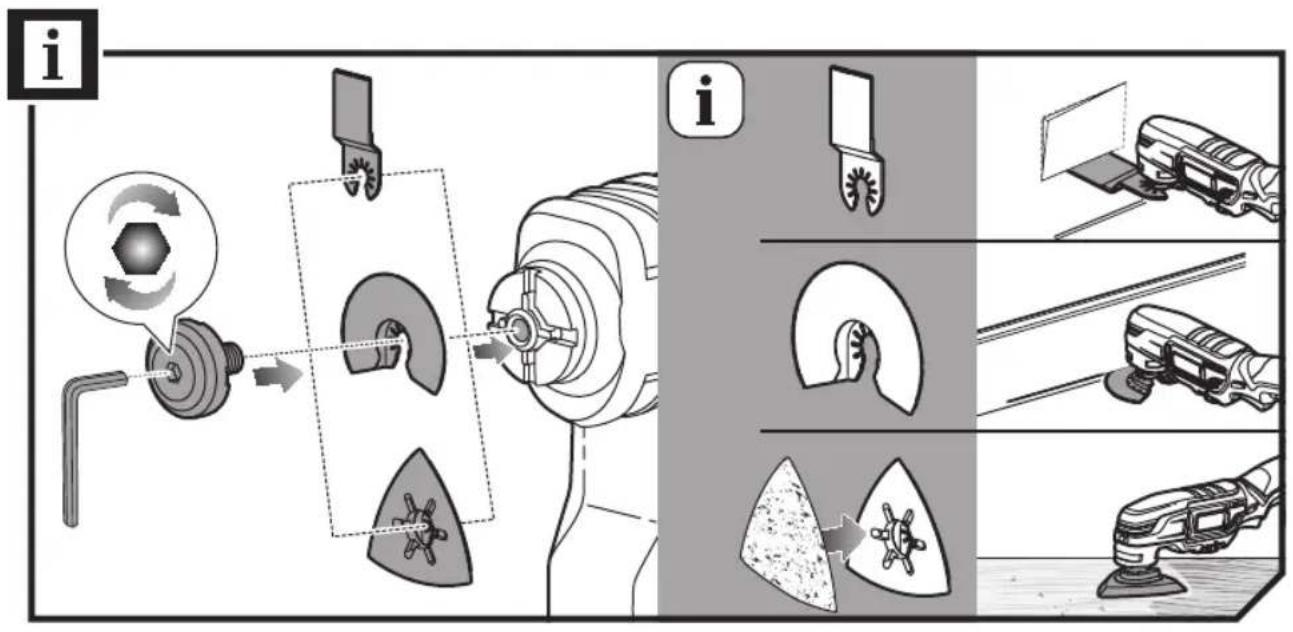

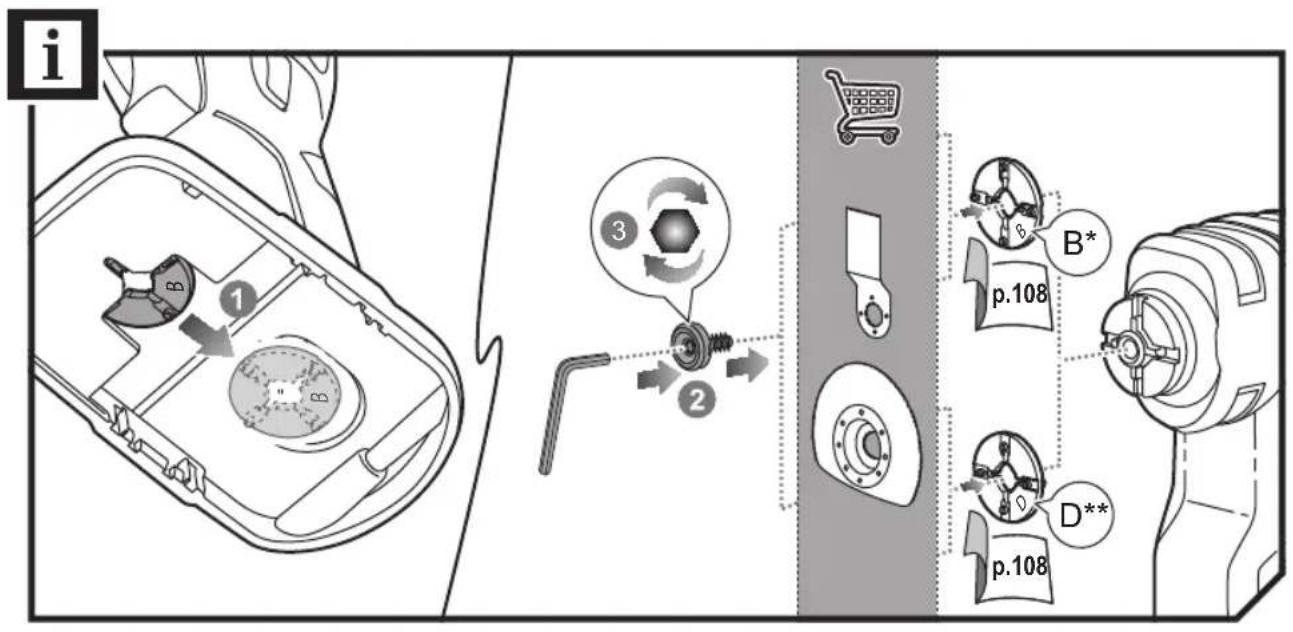

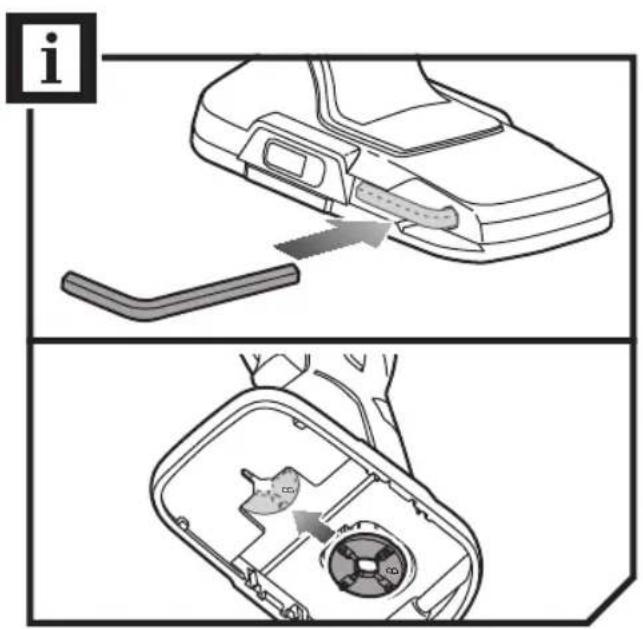

*Compatible with BOSCH accessories. BOSCH is a registered trademark of Robert Bosch GmbH. **Compatible with DREMEL accessories. DREMEL is a registered trademark of Robert Bosch Tool Corporation. OPERATION The product is supplied with an extra adapter for use with other brands of cutting, scraping, and sanding accessories. The adapter may be turned over for use with the desired brands of accessories. Do not use the adapter with RYOBI accessories supplied with your tool. ■ Secure workpieces that can move with a clamp to prevent movement during sanding or cutting operations. Do not hold the workpiece by hand. An inadvertent slip while operating the product may cause serious personal injury. ■ When making a plunge cut into soft materials like wood and plasterboard using the cutting accessory, gradually bring the vibrating blade to the workpiece. Do not push the vibrating blade hard into the material to be cut. Let the product do the work and concentrate on keeping the product and the cutting accessory stable in the position you wish to make the cut. ■ Take extra care when cutting in non-ferrous metals. The vibrating cutting blade may skip around before beginning the cut. If necessary, drill some holes along the line to be cut before you start cutting. ■ If the cutting accessories become jammed in the workpiece, switch off the product and disconnect from the power supply. If the cutting accessory cannot be removed easily, allow the cutting accessory to adequately cool before releasing the cutting accessory from the product. Wear gloves and use hand tools, such as pliers or wrench, to remove the cutting accessory from the workpiece. OVERCURRENT PROTECTION When overcurrent is detected, the product will automatically switch off. If the product stops working, release the trigger and then apply again. The product should again start working. MAINTENANCE WARNING The product should never be connected to a power supply when you are assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product will prevent accidental starting that could cause serious injury. ■ When servicing, use only original manufacturer’s replacement parts. Use of any other parts may create a 2 | Englishhazard or cause product damage. WARNING For greater safety and reliability, all repairs should be performed by an authorised RYOBI service centre. GENERAL Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc. WARNING Do not, at any time, let brake fl uids, gasoline, petroleum- based products, and penetrating oils, come in contact with plastic parts. They contain chemicals that can damage, weaken, or destroy plastic. The dust from plaster and wall board is abrasive and may cause premature failure of the product if it is allowed to enter the motor area. Thoroughly clean the product after use by using a brush and a vacuum. Take care not to push dirt into the ventilation openings. Beware of using compressed air to clean the product because dust and grit can cause serious eye injury. LUBRICATION All of the bearings in the product are lubricated with a suffi cient amount of high grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment- friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert CE conformity No-load speed V Volts Direct current EurAsian Conformity Mark Please read the instructions carefully before starting the machine. Ukrainian mark of conformity Wood – Plunge and fl ush cuts Non-ferrous metal – Plunge and fl ush cuts Plastics – Plunge and fl ush cuts Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Note Parts or accessories sold separately Unlock Lock Speed, minimum Speed, maximum The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage. 3 English |
