Product type	Video inspection camera
Brand	Laserliner
Model	FixView Camera
Image sensor	CMOS
Probe diameter	4 mm
Probe length	40 cm
Camera resolution	320 x 240 pixels
Field of view	63°
Focus (sharpness range)	3 cm to 7 cm
LED lighting	4 LEDs
Camera head protection rating	IP67 (water resistant)
Minimum bending radius	0 mm (rigid probe)
Weight	24 g
Dimensions (L x H x D)	18 x 459 x 18 mm
Operating conditions	0°C to 60°C, max. 85% RH, non-condensing
Storage conditions	-20°C to 80°C, max. 85% RH, non-condensing
Compatibility	VideoFlex base unit (not included)
Intended use	Visual inspection in cavities, shafts, masonry, vehicles
Maintenance and cleaning	Slightly damp cloth, no solvents or abrasive cleaners
Safety instructions	Do not use near hazardous voltages; keep out of reach of children
Regulatory compliance	Compliant with EMC directive 2014/30/EU and WEEE

Frequently Asked Questions - FixView Camera Laserliner

Does the FixView Camera work standalone?

No, the FixView Camera is a camera unit that must be connected to the VideoFlex base unit (not included) to display images.

What is the camera resolution?

The resolution of the CMOS sensor is 320 x 240 pixels.

Is the probe diameter suitable for tight spaces?

Yes, with a diameter of only 4 mm, the probe can enter very narrow openings.

How to clean the camera?

Clean all components with a slightly damp cloth. Avoid cleaning agents, scouring products, or solvents.

What are the temperature conditions for using the FixView Camera?

The camera operates in a temperature range of 0°C to 60°C and can be stored between -20°C and 80°C.

Is the camera head waterproof?

Yes, the camera head has an IP67 rating, making it water resistant (temporary immersion).

What is the optimal focus distance?

The sharpness zone is between 3 cm and 7 cm in front of the camera head.

Can I use this camera for medical examination on a person?

No, it is strictly prohibited to use the FixView Camera for medical examinations on humans.

What to do in case of malfunction?

Do not use the instrument if one or more functions fail or if the battery level is low. Contact customer service.

Where can I find additional safety information?

Visit the website laserliner.com/info?an=AJK for additional remarks and safety instructions.

USER MANUAL FixView Camera Laserliner

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

The FixView Camera is a camera unit for connection to the base VideoFlex unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the FixView Camera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The FixView Camera must not be used for medical examinations / examining people.

• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Laserliner

1 Base unit connection

3 Camera head with

2 Fixed camera probe

4 high-power LEDs

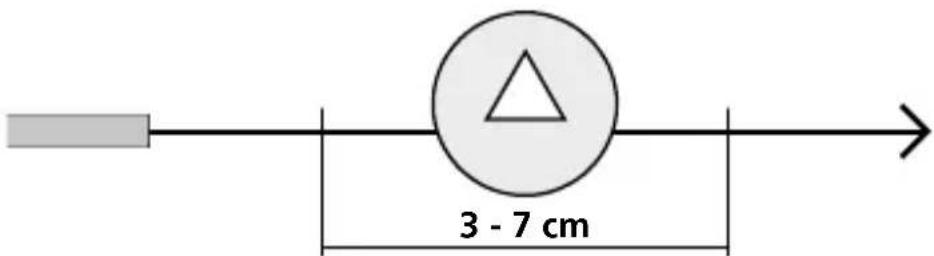

1 Focal depth

The FixView Camera delivers sharp images in a range between 3 and 7cm from the camera head.

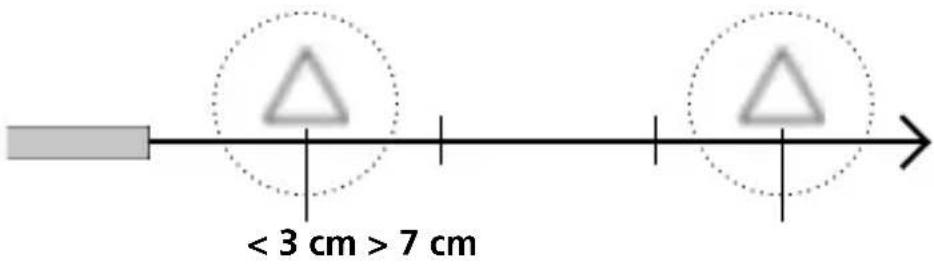

Objects well beyond the focus range may appear blurred.

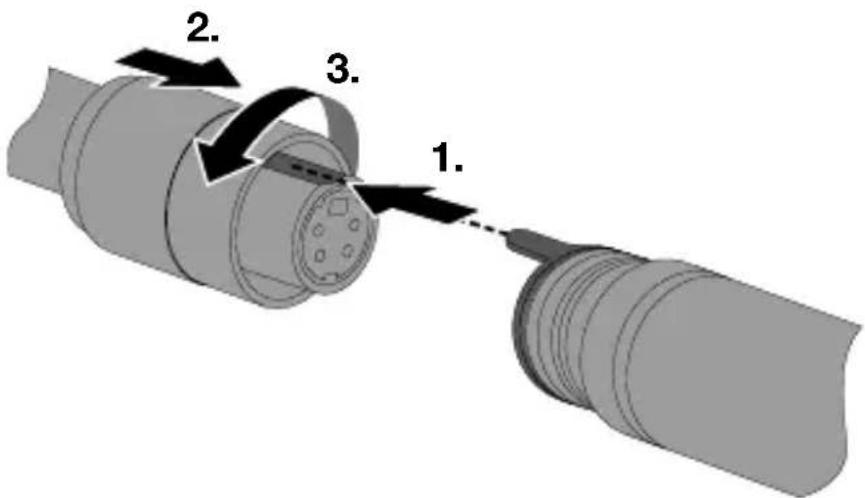

2 Connection for Camera probe

Technical data	Subject to technical alterations. 20W05
Type of camera CMOS image sensor
Camera head 4 mm
Camera head protection class	water-resistant, IP 67
Camera head LEDs 4
Camera resolution 320 x 240 pixels
Field of vision 63°
Camera focus F3 cm - F7 cm
Camera probe diameter 4 mm
Camera probe length 40 cm
Minimum bending radius 0 mm
Operating conditions	0°C ... 60°C, max. humidity 85% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-20°C ... 80°C, max. humidity 85% rH, no condensation
Weight 24 g
Dimensions (W x H x D) 18 x 459 x 18 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AJK
