Product type	Professional griddle plate
Brand	Hendi
Model	203170
Dimensions (W x D x H)	550 x 380 x 240 mm
Cooking plate dimensions	520 x 330 mm
Net weight	20.5 kg
Power supply	220-240 V ~ 50/60 Hz
Rated power	2400 W
Protection class	Class I
Protection rating	IPX3
Adjustable temperature range	50 °C to 300 °C
Controls	On/off switch, temperature control knob
Indicator light	Orange indicator light for heating
Included accessories	1 drip tray
Thermal safety	Thermal fuse with reset button (rear)
Intended use	Professional grilling of meat, fish, vegetables, eggs
Care and cleaning	Damp cloth with mild detergent; do not immerse or use steam cleaner
Warranty	12 months
Country of origin	Not specified (European brand)

Frequently Asked Questions - 203170 Hendi

How to install the Hendi 203170 griddle plate?

Place the appliance on a stable, clean, dry, heat-resistant surface, leaving at least 10 cm of space around it for ventilation. Plug it into a suitable grounded outlet (220-240 V). Before first use, heat it to 250 °C for 5-10 minutes without food to burn off production residues.

What is the temperature range of this appliance?

The temperature is adjustable from 50 °C to 300 °C using the control knob. The orange indicator light illuminates during heating and turns off once the temperature is reached.

How to clean the griddle plate?

Unplug the appliance and let it cool completely. Clean the surface with a damp cloth and mild detergent. Never immerse the appliance in water and do not use abrasive products, steel wool, or a steam cleaner.

What to do if the appliance does not heat or the indicator light does not turn on?

First check that the plug is properly connected. If the switch lights up but the indicator light stays off, the thermal fuse may have tripped. Reset it: unplug, let cool, remove the black cap on the rear, and press the reset button until you hear a click. If the problem persists, contact your dealer.

Can the griddle plate be used outdoors?

No, this appliance is designed for indoor use only. It must not be exposed to water, rain, or excessive humidity (IPX3 rating).

What foods can I cook on this plate?

You can grill meat, fish, vegetables, and eggs. Avoid overloading the plate for even cooking. The temperature is higher in the centre, so the edges are cooler.

How to reset the thermal protection device?

Unplug the appliance and let it cool. On the rear, remove the black cap, then press the reset button until you hear a click. Screw the cap back on. This operation is necessary after overheating.

Is the appliance suitable for disabled people or children?

No, this appliance should not be used by persons with reduced physical, sensory, or mental capabilities, nor by children. Keep it out of reach of children.

What is the required electrical power?

The appliance operates on 220-240 V ~ 50/60 Hz with a power of 2400 W. Ensure the outlet and circuit can handle this load.

Where can I find spare parts or get the appliance repaired?

For any spare parts or repairs, contact your dealer or a qualified technician. Do not attempt to open the housing yourself. The 12-month warranty covers manufacturing defects.

USER MANUAL 203170 Hendi

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

For indoor use only.

For item 203163 only.

Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

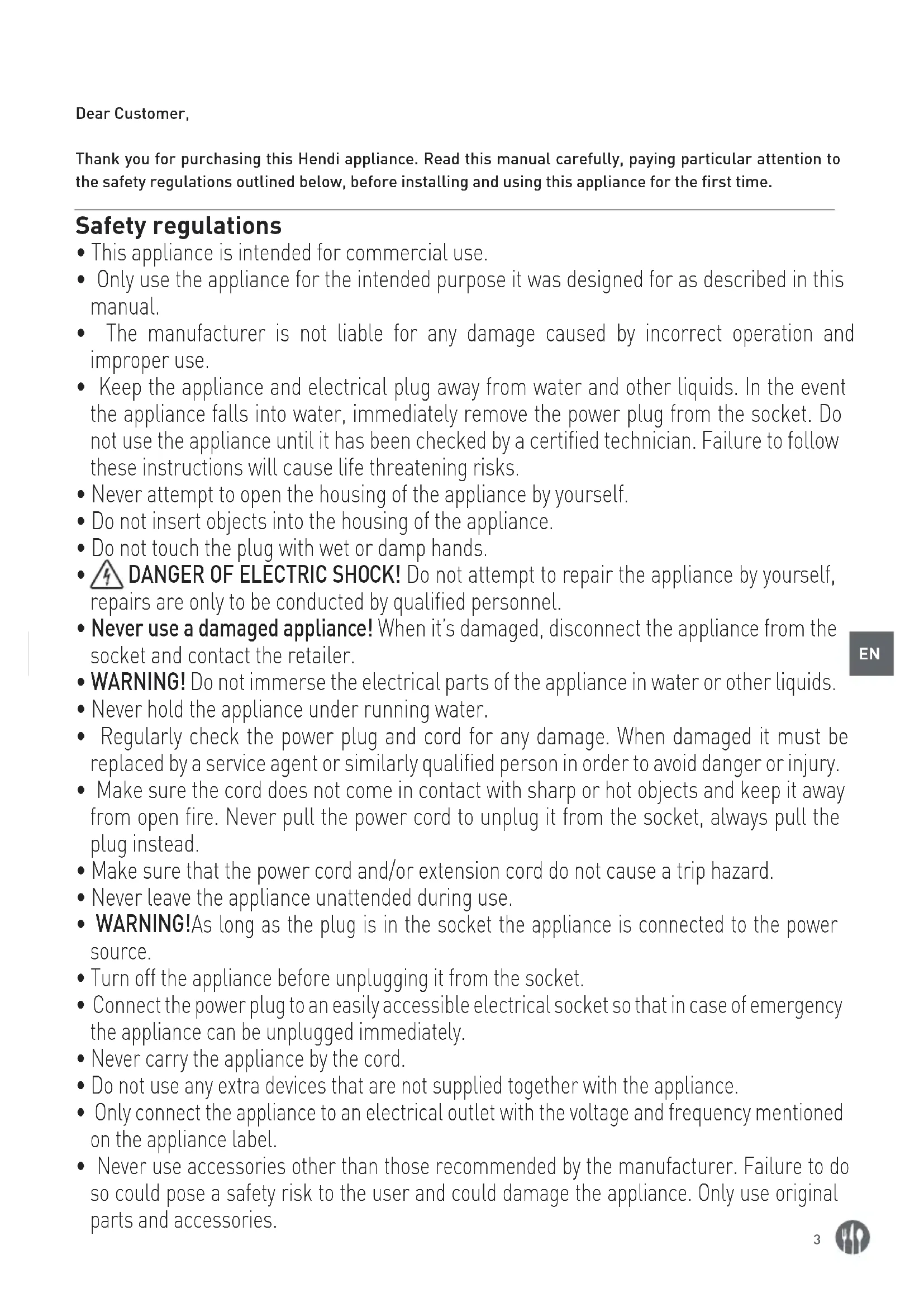

Safety regulations

• This appliance is intended for commercial use.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
  DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• WARNING! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• WARNING!As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special Safety Regulations

• This appliance must be operated and maintained by specialized trained personnel in kitchen of the restaurant or canteens or bar staff.
• Do not place any objects on the top of the appliance. Do not place objects with open flames, e.g. candles on top of or beside of the appliance. Do not place objects filled with water.
• Keep the appliance away from the hot surfaces and heat sources such as heat stoves, fire, ovens, gas burners or other flammable objects such as alcohol, fuels, etc.
• When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative finishes, etc., it is recommended that they are made of noncombustible material; if not, they shall be clad with a suitable non-combustible heat insulating material, and that the closest attention be paid to fire prevention regulations.
• CAUTION! RISK OF BURNS! The surface of the appliance and adjacent areas are very hot. Touch only the power switch, and the temperature control knob only. Fat and oil become very hot during operation. Beware of this.
• DANGER! Never use old oil as old oil has a reduced flash point and is more prone to surge boiling which increases the risk of fire and dangerous situations.
• Do not cover the appliance during the operation.
• Do not use hard utensils to hit the griddle plate. Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.
• Leave at least 10cm surrounding the appliance for ventilation purpose. Use the appliance only in a well-ventilated area and avoid blocking the ventilation holes. Place the appliance on a stable, clean, dry, level and heat-resistant surface.
• Clean the appliance after each use for the reason of hygiene.
• WARNING! Allow completely cool down before cleaning and storage.

Intended use

• The appliance is intended for professional use.

• This appliance is designed only for grilling appropriate food products. Any other use may lead to damage of the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Preparation before using for the first time

• Remove all protective packaging and wrapping. Make sure no packaging debris remain on the appliance.
• Check for completeness (1 dripping tray included) and any transport damage. In case of damages or incomplete delivery, please contact supplier (See --- > Warranty page).
• Keep the packaging if you intend to store your appliance in the future.
• Ensure there is enough clearance around the appliance. Place the appliance in a well-ventilated area.
• Connect the power plug to a suitable electrical wall outlet.
• Switch ON the appliance by pressing the power switch (1) to ON position. Set the temperature

control knob [4] to about 250^ & dry running without food for about 5 ~ 10 minutes in the first use. The orange heating indicator [4] will light up.

Note: Due to the manufacturing residues, the appliance may emit a slight odor in the first few cycles. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

• When the temperature is attained, orange heating indicators (3) goes off.
• Allow the appliance to cool down completely and clean it afterwards (See ----> Cleaning and maintenance).

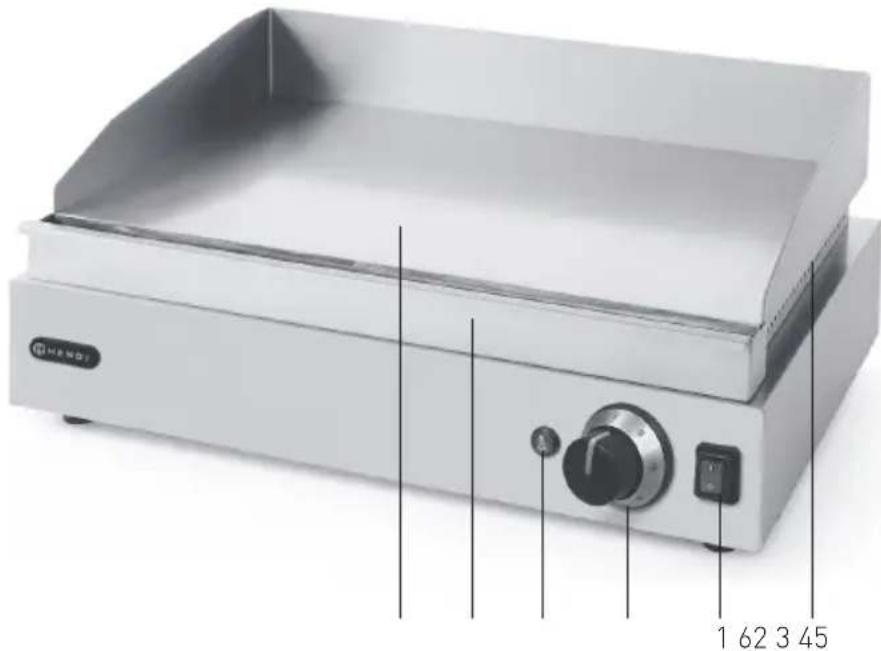

Main parts of the griddle

EN

1. Power switch (ON/OFF)
2. Dripping tray
3. Heating indicator (orange)
4. Temperature control knob
5. Griddle plate
6. Ventilation holes

Operation

• The griddle is designed for frying meat, fish, vegetables, eggs, etc. The temperature can be adjusted between 50^ and 300^ .
• First, ensure there is enough clearance around the appliance. Place the appliance in a well-ventilated area and firm and level surface.
• Next, place the dripping tray [2] on the appliance.
• After that, connect the power plug to a suitable electrical wall outlet.
• Then, switch ON the appliance by pressing the power switch (1). Set the temperature control knob (5) to your desired temperature. (Temperature range 50^ to 300^ ). The orange heating indicator (4) will light up.
• When the set temperature is reached, the orange heating indicator (4) will go out.
• Now, you can start frying the food.

CAUTION! RISK OF BURNS!

• To remove the food, use the turner (not supplied), make sure not to touch the surface of griddle plate (3) and damage the surface.
  After use, switch OFF the appliance by pressing the power switch (1) to OFF position.
• Disconnect the power cord from the electrical power outlet.
• Allow the appliance completely cool down before cleaning and storage (See = = > Cleaning and Maintenance).

Note:

• Do not put too much food at one time for even spacing and cooking.
• The appliance reaches the highest temperature at the centre. The temperature is lower at the front and side part. You can allow fried food for temporarily placed.

RESET the Hi-limiter (thermal cut-out)

Please note that the RESET button is located at the rear side of the appliance with a protective cap (See line drawing)

• Unplug the appliance from the electrical outlet first.
• Allow the appliance to completely cool down.

• Unscrew the black protective cap of the RESET button.

• Press the RESET button of the Hi-limiter (thermal cut-out). You should hear a click sound.

• Screw back the protective cap on the RESET button.

Cleaning and Maintenance

WARNING! Always disconnect the appliance from the electrical power supply and allow the appliance completely cool down before cleaning.

• Never use abrasive sponges or aggressive detergents, steel wool or metallic utensils to clean the griddle plate.
• Avoid the use of sprays as this may damage the griddle plate.

• Never immerse the appliance in water or any other liquid.

• This appliance should be cleaned regularly and any food deposit removed.

• Wipe out any remaining oil or fat.
• Clean the surface of the griddle with a damp cloth (water with mild detergent).

Storage

Always make sure the appliance has already been disconnected from the electrical wall outlet and cooled down completely.
- Store the appliance in a cool and clean place.

Troubleshooting

• If the appliance does not function properly, please check the below table for the solution.

If you are unable to solve the problem, please contact the supplier/service provider.

Problem Possible cause Possible	solution
Heating indicator & power switch indicator do not light up.	Power plug and the outlet are not connected firmly with the electrical power outlet.	Check again the connection and make sure they are firmly connected.
Check again the connection and make sure they are firmly connected.	Hi-limiter (thermal cut-out) tripped	Reset the hi-limiter (thermal cut-out)
	Hi-limiter (thermal cut-out) defective	Contact your supplier
	Thermostat defective Contact your supplier
Long frying time. The lamp in the on/off switch lights. The orange lamp does not light	Thermostat defective Contact your supplier

Technical specification

Item no. 203149 203156	203125 203170 203	163
Operating voltage and frequency	220-240V~ 50/60Hz
Rated power 2400W 2400W 2000W 2400W 3500W
Protection class I
Waterproof protection class	IPX3
Dimensions (W x D x H)	550 x 380 x (H) 240mm	550 x 380 x (H) 240mm	450 x 300 x (H) 225mm	550 x 380 x (H) 240mm	720 x 530 x (H) 250mm
Dimensions of the plate	520 x 330mm 520 x 330mm 330 x	270mm 520 x 330mm	mm 690 x 410mm
Type of the plate entirely smooth	1/2 smooth and 1/2 ribbed	entirely smooth	entirely ribbed	2/3 smooth and 1/3 ribbed
Net weight (kg)	22,6kg	21,5kg	12,5kg	20,5kg	34,3kg

Remarks: Technical specification is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re

sources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

RESET the Hi-limiter (thermal cut-out)

Specifications technicals

Articol nr. 203149 2031	56 203125 203170 203163
Tensiune Şi freventaţă	220-240V~ 50/60Hz
Puterea nominală de intrare	2400W 2400W	2000W 2400W 3500W
Clasa de proteție Clasa I
Clasa de proteție contra apei	IPX3
Dimensiunile mașinii (W x D x H)	550 x 380 x (H) 240mm	550 x 380 x (H) 240mm	450 x 300 x (H) 225mm	550 x 380 x (H) 240mm	720 x 530 x (H) 250mm
Dimensiunile plăcii 520 x 330mm 520 x 330mm 330 x 270mm 520 x 330mm 690 x 410mm
Tip suprafata gatire	Neteda	1/2 neteda si 1/2 striata	Neteda Striata		2/3 neteda si 1/3 striata
Greutatea netă (kg) 22,6kg 21,5kg 12,5kg 20,5kg 34,3kg

OchOBhble DeTaN HarpeBaTeNbHO nnTbI rpnla

1. NepekeJIOUaTeJIb nITaHn (ON/OFF)
   2.ПоДон
2. CBeToBoHnHdkaTOp (opaHkeBbI)
3. Puyka peyjraTopa TempepaTpybI
   5.HarpeBaTeIbHa nOBepxHocTb rpuIra
4. BeHTnJIaIcNoHHbIe OTBepCTnIa

IcnoJb30BaHne

• HarpeBaTeIbHЯ NOBepxHocTb rpnIcIyKHTdJIy -обжарпаня Мяса, рblbI, OBOUeN, RAuN T.I.
• Temnepatypj xapkn MoXHo yCTaHOBnTB B DuaNa-3OHe 50°C - 300°C.
• Chauana y6eHntecb, yTO BOKpyr ycTpoNCTBa. IMeetcdoctaToUHO npocTpaHCTBa. IomeCTnTe ycTPOINCTBO B XopoIo BeHTUNPyemOM MeCe Ha TBepDo, POBHO NOBepXHOCn.
• YctaHOBNTe noDIOH [2] Ha ochOBaHne yCTpOc-CTBa.
• BctaBbTe BnIky B noXoJyIO 3neKtpnueckyo p03eTKy.
  BknHouHTe yctpoNCTBO c nOmoIbIO nepeKJIHOuTeIa1, yctahOBnB ero B noLoXeHne .ON". YcTaHOBInTe Tpe6yEmyo Tempeatypy C nOmoIbOpereYJATopAp TempeatpybI (5). (DnaNa3OH TempeatpybI OT 50^ do 300^ 3arOpntc npaHexeBbI CBETOBn INnKaTOp (4).
• Пи достинжени заданно Temператypы, opah-JжевскийCBetOBОИнДИКATOPnorachET(4).
• Bbl mojkeTe Haayt bkapky.

BHIMAHHE! ONACHOCTb OXKoROB!

-ДяТOrO,чTo6bI CHrTb rOTOBoe 6JIIOc C NOBepx-HocTn rPnJIA,ИспОь3yЛte loNaTky (He npUraeTcK yCTpoiCTBy);6yDbTe oCtopoXHbI,чTo6bl He NOBpeDnTb HArpeBaTeJIbHyIO NOBepxHocTb rPnJIA [3].
- Послеспобьовая, Выклочип рибор с поцью поеклочаел (1), устанавливая erо в поожене .OFF".
- BbHbTe BnIky n3 3JIeKtpnuecko pO3eTKn.
- Pered qnctkoi xpaehneM, octaBte npu6op, yTo6bI OH nOJIHOCTbIO OCTbIIN (CMOTpnte ---> OqncTka nTexHnueckoe o6cnyKnBaHne).

3ameuHne:

Ha harpeBaTeIbHOn nobepxHocTn rpnJHe pa3MeaIte OndHOBpeMeHHO cInsKOM 60JIbWoTO KoIInueCTBa Niu, yTo6bl oBeCneHTb paBHomepHoe npoxapNBAHne.
- Camaj BbICOKa TeMnepaTpa JxapKn noLyuaeTcB U cHTpe yCTpoNCTBa. BoJee Hn3Ka TEmnpaTypa XapKn 6yJeT cpePEn n no 6okOBbIX CTOpOHax yCTpoNCTBa. Bbl MoXeTe OCTaBntb eDy Ha HArpeBaTeJIbHoi NOBepXHOCTn rPnI Ha HeKOTopoe Bpemr.

C6P0C orpaHnHTeT (TePMoBbIKIOuAteT)

CneNyET NOMHnTB, YTO KhoNka RESET pacnoJoxeHa Ha 3aDHe CToPOHe yCTpOiCTBa n 3aUuIeHa HAKlaKnOi (CMOTpuTe pucyHok).

• Chauana otknouhnte yctpoiCTBO OT nCTOuHnKa NITaHn, BbHyB BuNkU n3 po3eTKn.
• OctaBbTe yCTpoNCTBO Do noJHOrO oxJaXdEHHa.

• Otkpytnte чьнь 3auntнь колnaok KhoNKI RESET.

• Haxmte KhoNky RESET orpaHnHTeTne (TePMoBbIKNoUaTeT).YcblIwTe 1eNOK.

• Пикрутinte занов Quерны 3auntньй клпаок Кногн reset.

OuNTka n TexHnueeCKoe o6cnyKnBaHne

ПЕДУПЕЖDEHNE! Пе徳 чистков BCERда оТКлюаite yctpoиCTBO OT ИСТОЧИКА ПИТAHИ, ВblHyВ BИЛКУ n3 розETK. Oставte yctpoиCTBO, YTOБыОно плноctьIO OCTbILO.

• Πя Ounchkн HaraebaTeJIbHoi NOBepxHocTn

rpnI He noJIb3yInTecb abpa3nBhbIMn r6kamn, abpa3nBhbIMMoUcIMN cpeDCTBaMn, MetaIINuCeCKmM MoaKamN IIN MetaIINuCeCKmN np6opamn.

• 136eaiTe nCnoB30BaHnA a3po30nei, TaK KaK OH NmOryT NOBpeDNTb HArpeBaTeIbHyIO NoBepx-HoCTb rPnJI.

Hnkorda He norpykaTe yctpoiCTBO B Body nIIN dpuyIO XnIDKOCTb.
- YcTpoIcTBo cIeIyET peYIaHPO OuNtau b N ydaJIaTb OCTaTKI NnI.

• Ptoptte octaTKMacna nnn Xupa.
  -ПоверхноctbucpoiCTBaOuNuaIteTKaHbIO，CMO-ueHHoBBOOnIMMROUcIMCpeiCTBOM.

XpaHeHne

• Ipeed xpaenem y6eintecb, yTO yctpoiCTBO OTKIOUeHOOTo3ETKNIOHOCTBIOOCTBJIO.
• UcTpoIcTBO XpaHnTe B YnCTOM N IpoxlaHOM Me-CTe.

Ponck uycTaPaHeHne HencnpaBHOcTei

• Ecni yctpoiCTBO He pa6oTaETdoJXHbIM o6pa3OM, npouHTaTe TaBnUy Hxke, UTo6bI HaHTn npabNlbHoe peWeHne.

• Ecnn Bbl He moxete peuHTb npo6nemy, o6patntecb K NoCTaBnKy

6pa30m, KoToPbI He BpeDen IJIa 3OpOBBy N OkpykaUoIeN cpebl.

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

Str. 13 decembris 94A, Hala 14

Braşov, 500164, Romania

Tel: [phone]

Email: [e-mail]

PKS Hendi South East Europe SA

5 Melsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

FindHendi on internet:

www.hendi.eu

www.facebook.com/HendiToolsforChefs

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen, Druck- und Satzfehler vorbehalten.
  -Wijzigingen,druk-enzefoutenvoorbehen.
• Zastrzega sie möglichwość zmián, btędów w druku i składzie.
• Sous réserve d'erreurs de modification, d'impression et de composition.

• Con riserva di modifiche, errori di stampa e composizione.

• Rezervate modificarile, tiparirea si erorile de tiparire.

• Mby ocTabnrem 3a coboi npabo BHocntb n3MeHeHn, own6kn neatni Ha6opa.
  -Enpuuaaoovraalayec,ekunwankaiotoxieotheia.
  Zmény, chyby tisku a szby vyhrazeny.
• Spremembe, tiskanje in tipnastavitev napake shranjenih.
