264706 - Grill plate Hendi - Free user manual and instructions

Product type	Professional grill plate (Salamander)
Brand	Hendi
Model	264706
Dimensions (L x D x H)	600 x 520 x 530 mm
Weight	49 kg
Power supply	220-240 V ~ 50/60 Hz
Total power	3600 W (2 x 1800 W)
Number of thermostats	2
Protection class	Class I (grounding mandatory)
Ingress protection rating	IPX3
Temperature range	Up to 300 °C
Heating surface	590 x 350 mm
Vertical cover travel	70 to 200 mm
Indicator lights	Green (on) and orange (heating)
Usage	Professional, indoor use only
Main material	Stainless steel (estimated)
Included accessories	Removable grid, drip tray
Cleaning grid and drip tray	Hand wash only (not dishwasher safe)
Cleaning the housing	Damp cloth, no abrasive cleaners
Warranty	12 months against manufacturing defects
Repairability	Repairs by qualified technician, original parts available

Frequently Asked Questions - 264706 Hendi

How to clean the grill plate after use?

Let the appliance cool down completely. Remove the grid and drip tray and wash them by hand with a damp cloth. For stubborn residues, pour a few drops of cooking oil and let it sit for 20 minutes. Do not use abrasive cleaners or metal sponges. Wipe the housing with a damp cloth. Never immerse the appliance in water.

What to do if the appliance does not heat up even though the green light is on?

If the green light is on but the appliance does not heat up (orange light off), the thermostat may be defective or set to 'Off'. Turn the thermostat to activate it. If the problem persists, contact the dealer as the heating element or thermostat may be defective.

Can I use the grid and drip tray in the dishwasher?

No, the grid and drip tray must be washed only by hand. The dishwasher could damage them. Wash them with a damp cloth and mild detergent.

What is the maximum temperature of the plate?

The temperature can be set up to 300 °C. The orange light turns on during heating and turns off when the desired temperature is reached.

Can the appliance be used for foods other than grilling?

The appliance is designed only for grilling, heating, keeping warm, or crisping suitable foods (sandwiches, dishes). Any other use may damage the appliance or cause injury and voids the warranty.

How to adjust the height of the cover?

The cover can be moved vertically within a range of 70 to 200 mm. Adjust the height according to the thickness of the food to prevent burning. Use the handle to lift the top panel.

What to do if the cover is stuck?

Check that no external object is blocking the movement. If not, there may be an internal mechanical defect. In that case, contact the dealer for repair.

Does the appliance need to be plugged into a grounded outlet?

Yes, this appliance is protection class I and must be connected to a grounded electrical outlet to reduce the risk of electric shock.

How to prevent food from burning during cooking?

Set a temperature suitable for the thickness of the food and adjust the height of the cover. Too long a cooking time, too high a temperature, or a cover too close can burn the food. Perform tests to find the optimal setting.

Where to find spare parts for this appliance?

Spare parts must be original Hendi and installed by a qualified technician. Contact the dealer or Hendi after-sales service to order compatible parts. Do not attempt to repair the appliance yourself.

USER MANUAL 264706 Hendi

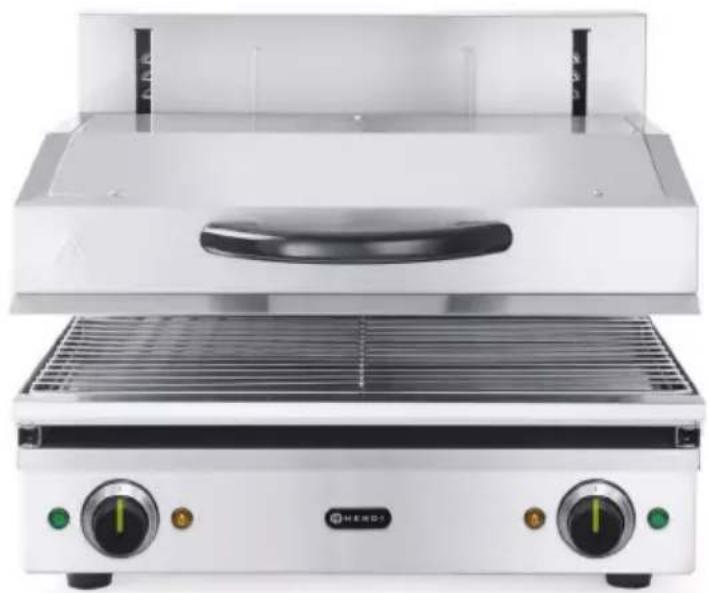

Exterior view of a modern stainless steel food appliance with a control panel (no visible text or symbols)

Exterior view of a modern stainless steel electric stove with control knobs and grilles (no visible text or symbols)

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

Simple icon of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a square frame (no text or numbers present)

CE

Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety regulations

• This appliance is intended for commercial use.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special Safety Regulations

• Hot surface! Risks of burns! The grid and the adjacent metal enclosure part becomes very hot during operation. Therefore, touch only the designated handle and the rotating knob only.
• The utensil (not supplied) that put on the grid should be heat resistant.
• Do not cover the appliance during operation and keep it away from inflammable objects, e.g. curtains, newspaper or liquid such as alcohol & fuels
• Do not place the appliance near heat sources, like cooking stove, heater or fire.
• This appliance is only served for the preparation of food.
• Use the appliance only in a well-ventilated area. Place the appliance on a flat, horizontal, stable surface. Leave at least 20 cm spacings from surrounding for ventilation purpose.
• Clean the appliance after each use to avoid infestation with mould fungus or vermin.
• The grid and the dripping tray are not dishwasher safe and must be cleaned by hands.
• Allow completely cool down before storage and cleaning.
• Warning! During installation, do not place on surfaces or near walls, partitions, or kitchen furniture and the like --- unless they are made of non-combustible material or clad with a suitable non-combustible heat insulating material, and also pay attention to the fire prevention regulations.

Intended use

• This appliance is intended for professional use.
• This appliance is designed only for grilling appropriate food products. Any other use may lead to damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Hendi Salamander

The temperature of the appliance can be regulated up to 300^ C. This appliance is mainly used for grill-

ing or keeping dishes/sandwiches warm and crisp. It also has a removable grid and dripping tray.

Before First Use

• Remove all parts from the packing material.
• Check for the completeness and shipping damage immediately after unpacking. Contact the supplier if there is any damage.
• Clean the appliance (See ==> Cleaning and maintenance).

• Operate the appliance for at least 10 minutes without food with the temperature controller at MAX position. This will burn any product residue away (See ==>Operation).

• During this operation, some smoke might evoked due to burning of production residue. This is normal and does not indicate any defect or hazard to the appliance.

• Unplug the appliance from the electrical supply outlet.
• Let the appliance cool down completely and then clean it before start to use. (See ==> Cleaning and Maintenance).

Operation

• Connect the power plug to a suitable electrical power outlet.
• Then, rotate the temperature controller clockwise to the desired temperature (up to 300^ ) and ORANGE heating indicator light up.
• GREEN ON/OFF indicator will also light up.
• The appliance is starting to be heated up.
• ORANGE heating indicator will go out once the set the temperature is reached.
  At the same time, the heater stops operating.
• Lift up the top panel using the handle before taking out the food.

• When the temperature lowers, the temperature controller switch ON and the ORANGE heating indicator will light up again. The heating tube will start operation again.

• When the temperature controller is switched to the maximum position, the appliance will heat continuously with the maximum temperature.

• The salamander with double temperature controller operates the same way.
• Green ON/OFF indicator will go out after the product is switched off.

Remark

• Warning! Only touch the front handle on the top panel or temperature regulator. Other parts may get very hot during operation.
• Attention! Make sure the food does not spill over the edge of the grilling plate.

Useful hints

• Grilled food may burn if the grilling time is too long or if the temperature is too high or the top panel is too close.
• The grilling time and temperature depends upon the kind of food and the thickness. Find the optimal time by trial.

• Always make sure that the grilled food is completely cooked.
- Always lift up the top panel to remove grilled food and using a suitable tool (not supplied) to avoid danger of burns.

Cleaning and Maintenance

Risk of electric shock!
- Do not let water or liquids enter the appliance!
- Always unplug the appliance from the electrical power supply supply before cleaning and storage.

Risk of burns!

• Make sure the grid have cooled down completely before cleaning.
• Clean the appliance after each use.
  • Properly dispose of the oil in the dripping tray.

• The gird and the dripping tray are removable for cleaning.

• Drop a little edible oil on stubborn residues on the grid and dripping tray. Let these soak for approx. 20 minutes.

• Wipe the grid, dripping tray and the housing with a slightly damp cloth.
• Avoid strong cleaning agents or scouring pads as these may damage the grid and the dripping tray.
• Keep the appliance in a clean and dry location, away from the direct sunlight.
• Keep the appliance out of reach of the children for storage.

Troubleshooting

If the appliance does not function properly, check the below table to find a solution. If you are still

unable to solve the problem, contact the supplier/service provider.

Symptom Possible Cause Solutions
Appliance is not working at all and all the lights are off.	- Appliance not plugged in.- Circuit breaker triggered.- Internal power malfunction.	- Plug the appliance into a working power supply.- Check the circuit breaker of the power supply.- Contact supplier.
Appliance is not heating, the green light is on and the orange light is off.	- Temperature regulator defective.- Temperature regulator in the 'off' position.	- Contact supplier.- Turn the knob of the temperature regulator to switch it on.
Appliance is not heating, the green light and orange light are on	- Heating element defective. - Contact supplier.
Circuit breaker is triggered when the appliance is switched on.	- Overload of the power supply.- Internal Short-circuit.	- Connect the appliance to suitable power supply (16 Ampère).- Check if there are other appliances on the same circuit breaker.- Contact supplier.
Appliance is not hot enough or too hot	- Temperature regulator defective.- Incorrect height of the heating element.	- Contact supplier.- Decrease or increase the height of the upper housing (heating element).
Upper housing can't be moved up or down.	- Upper housing blocked by external object.- Internal mechanical defect.	- Remove the external object to free the upper housing.- Contact supplier.

Technical specification

Model 264607 264706
Dimension (mm) 480x520x(H)530 600x	520x(H)530
Power supply 220-240V~ 50/60Hz
Power 2800W 3600W (2x1800W)
Number of temperature controllers 1	2
Protection class class I
Waterproof class IPX3
Temperature range Up to 300 °C
Heating area (mm) 440x320 590x350
Vertical movement of upper housing	70~200mm
Weight	39 kg	49 kg

Remark: Technical data is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
