USER MANUAL 263501 Hendi

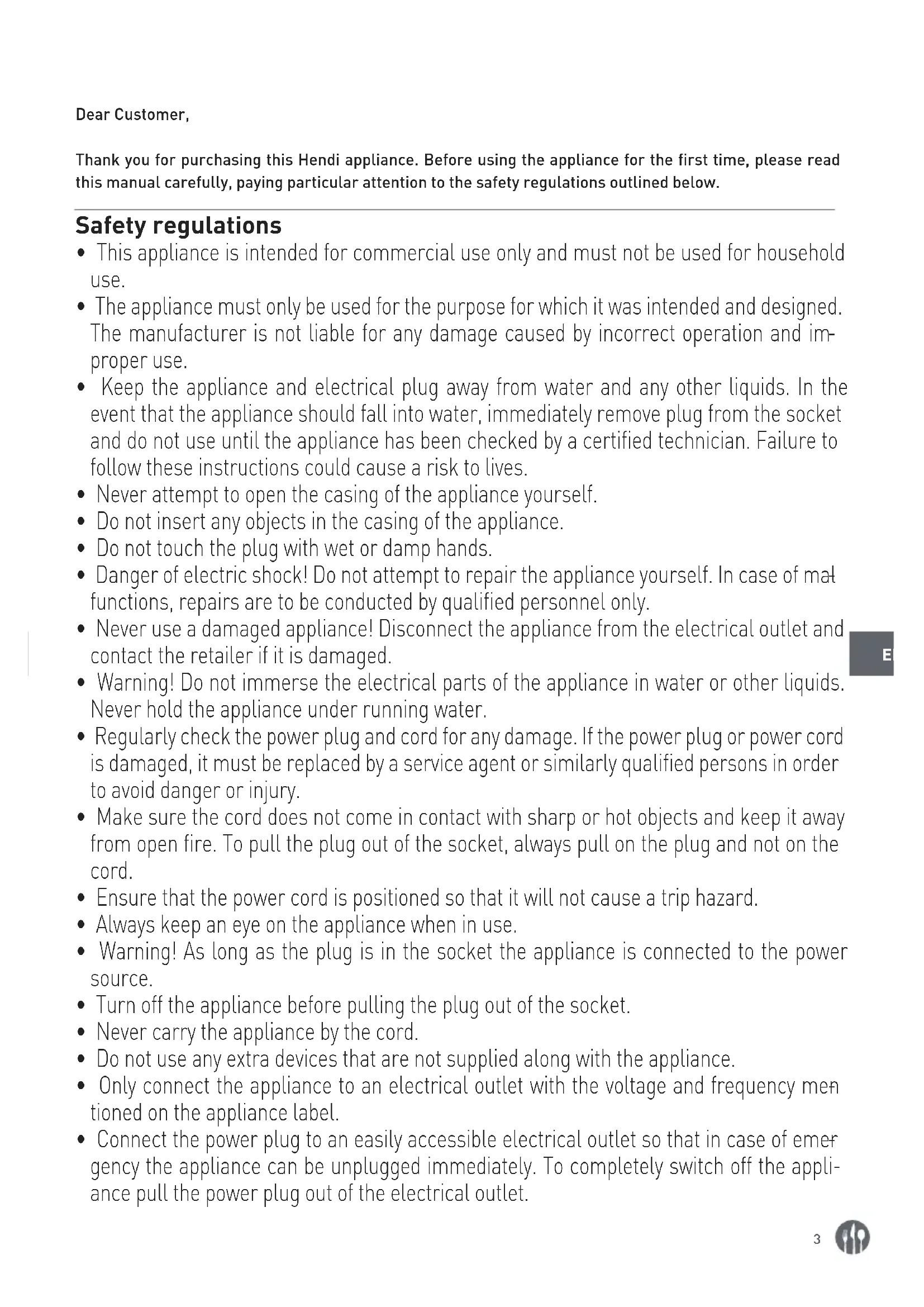

• This appliance is intended for commercial use only and must not be used for household use.

• The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and im

• Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.

• Never attempt to open the casing of the appliance yourself.

• Do not insert any objects in the casing of the appliance.

• Do not touch the plug with wet or damp hands.

• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of mal

functions, repairs are to be conducted by qualified personnel only.

• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.

• Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.

• Ensure that the power cord is positioned so that it will not cause a trip hazard.

• Always keep an eye on the appliance when in use.

• Warning! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before pulling the plug out of the socket.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied along with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency men

• Connect the power plug to an easily accessible electrical outlet so that in case of emer

gency the appliance can be unplugged immediately. To completely switch off the appli- ance pull the power plug out of the electrical outlet.

• Always turn the appliance off before disconnecting the plug.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance is not intended for use by persons (including children) with reduced phys

ical, sensory or mental capabilities, or lack of experience and knowledge.

• This appliance must not be used by children under any circumstances.

• Keep the appliance and its cord out of reach of children.

• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.

• Never leave the appliance unattended during use. Special safety precautions

• Do not place any object on the grilling place & close it with great force.

• The adjustable temperature setting of the equipment is between 50~300°C. It is recom

mended that the av- erage working temperature normally should be 200~250°C.

• Do not place the appliance near heat sources, like cooking stove, heater or fire, etc. The environment temperature lower than 45°C, the humidity is under 85%. Important Safety Instructions

Risk of burns! Hot surface! Fat and oil become very hot while grilling and can cause severe burns.

Caution! Risk of burns! The grill plates and adjacent metal and plastic become very hot . The grill plates and adjacent metal and plastic parts become very hot. Therefore, use only the designated handle to open and close the grill plates.

• Do not cover the appliance in operation and keep it away from inflammable objects, e.g. curtains or newspapaers or liquids, e.g.alcohol or fuels.

• This appliance exclusively meant for private commercial use and should not be used for household use.

• This appliance is serves only for the preparation of food.

• Use the appliance only in a well-ventilated area. Place the appliance on a flat and stable surface.

• Clean the appliance after each use to avoid infestation with mould fungus or vermin.

Hendi Contact Grill The temperature of the grill plates can be regu- lated for different cooking requirements. This ap- pliance is mainly used for grilling sandwiches and meat but can also be used for other purposses.5

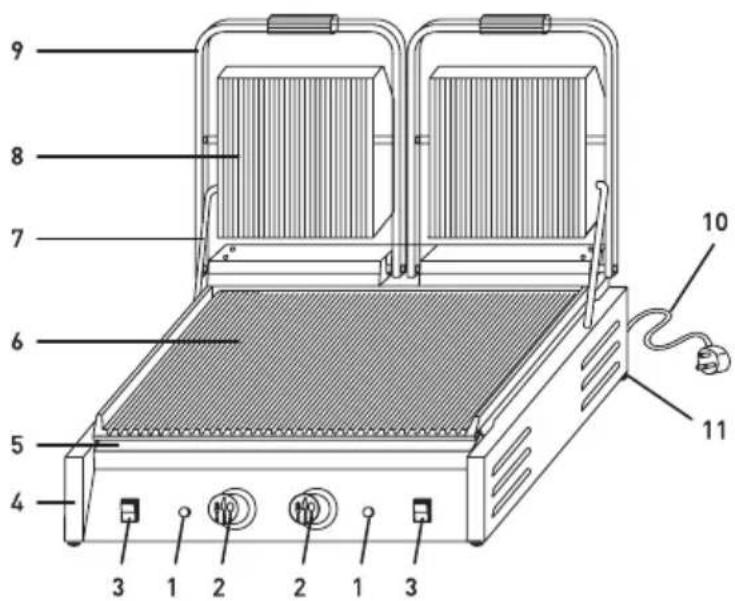

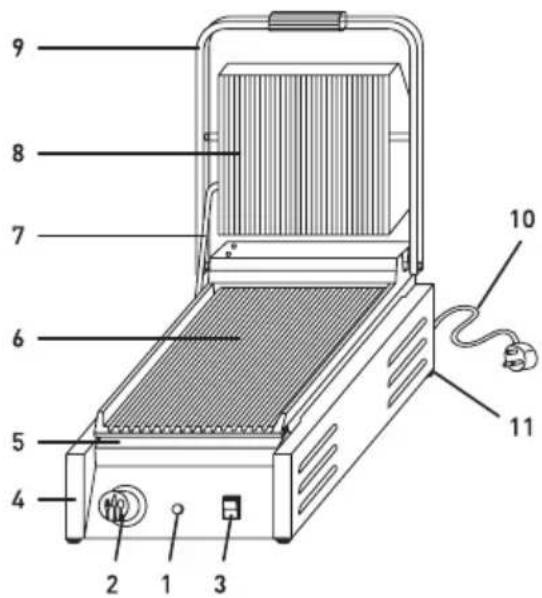

6. Lower grill plate

7. Opening support system

Features of Function and Structure

• The upper and lower grill plates are enameled and are easy to clean.

• Independent temperature controle on the double contact grill is convenient and allows the use of a single grill plate.

• Internal temperature protector is reliable and safe.

• Grilling temperature is adjustable.

• Made of stainless steel and the drawer-style dripping tray is also made of stainless steel.

• Grill is easy to open thanks to the support sys- tem. Operating instructions

• Before use, make sure the supply voltage match with the rating plate.

• Plug into the socket & switch on the appliance.

• Set temperature controller clockwise to the de- sired temperature. The orange indicator light up. The upper and lower grilling plate starts heating up.

• Temperature can be adjusted depends on differ- ent food within 180°C to 250°C.

• After approx. 8 minutes, swivel the upper griling plate with the handle.

• Put some edible oil on the upper & lower grilling plate.

• Place the food to be grilled on the lower gilling plate and then close the appliance using the han- dle. Keep an eye during cooking.

• When the temperature reaches the setting value, the orange indicator light off.

• At the front side of the lower grilling plate, there is the drip tray. The remaining edible oil will flow to the drip tray.

• Open the appliance by lifting the handle and take away the grilled food.

• After finish grilling, set the temperature control- ler to the “OFF” position and unplug the appli- ance.6

Cleaning and Maintenance Attention! Edible oil remaining on the grill is very hot after use of the appliance. Risk of Electric Shock!

• Do not let water or liquids enter the appliance.

• Always disconnect the power plug before cleaning. Risk of burns!

• Make sure the grilling plates cool down before cleaning.

• ATTENTION! Always unplug the appliance and cool down before cleaning.

• Clean the appliance after each use.

• Properly dispose of the oil in the drip tray.

• Drop a little edible oil on stubborn residues on the grill plates and let these soak for approx. 20 minutes.

• Wipe the grill plates and the housing with a slightly damp cloth.

• Avoid strong cleaning agents or scouring pads as these may damage the grilling plates coorode the plastic.

• Keep the appliance in a clean and dry location, away from the direct sunlight.

• Keep the appliance out of reach of the children. Transportation and Storage

• Please handle with care during transport, never transport or store the appliance up side down or on it's sides. This may cause damage to the ap- pliance.

• When storing the appliance, make sure the stor- age space is ventilated and that there are no cor- rosives near the appliance. Troubleshooting Problems Causes Solutions

1. Heating plates are not heated after the

1. If the thermostat is defective the

orange heating indicator would not be illuminated.

2. At least one of heating element is

3. If the Hi-limiter is triggered the orange

indicator would be off.

1. Contact supplier for repair

2. Contact supplier for repair

3. There is a reset rod on the bottom of the

appliance. There is no need to open the appliance.

2. Temperature controller has no function. Temperature controller is defective Contact supplier for repair

3. The indicator does not light up. Indicator is broken. If the indicator is broken you don't need

to replace the thermostat but you should contact the supplier. Aforementioned troubles are just for reference. If any fault occurs, please cease using and contact the supplier. WARNING!

• Check the operation of the appliance regularly to prevent problems that can cause serious ac- cidents.

• As soon as you feel the appliance isn't working correctly or there is a problem, stop using the ap- pliance, shut it off and contact the supplier.7

Technical specifications Model Contact Grill single lower/upper ribbed Contact Grill single upper ribbed / lower flat Panini Grill lower/upper ribbed Panini Grill lower flat/ upper ribbed Contact Grill double, left flat / right ribbed Contact Grill double, upper ribbed / lower flat Contact Grill double, lower & upper ribbed Contact Grill double, upper ribbed / lower flat Contact Grill double, low- er & upper ribbed Model

Weight 14kg 14kg 16 kg 16 kg 28.5kg 26kg 27kg 26kg 27kg Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment At the end of the life of the appliance, please dis- pose of the appliance according to the regulations and guidelines applicable at the time. Throw packing materials like plastic and boxes in the appropriate containers.8

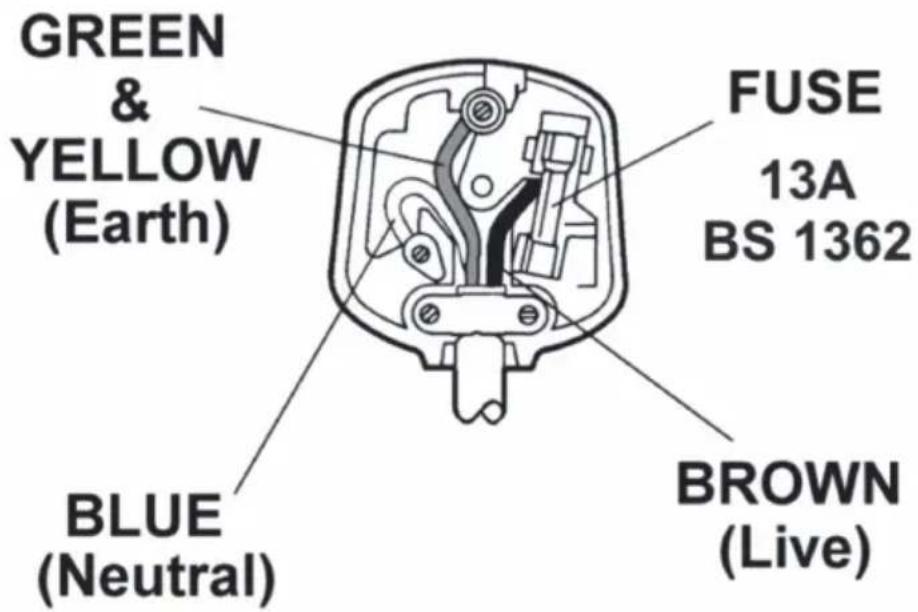

Important notice to UK users This appliance is fitted with a UK approved mains plug and a 13A fuse. Should the fuse need to be replaced, an ASTA or BSI approved BS1362 fuse, rated at 13A must be used. If the plug needs re- placing, ensure that the fuse is removed before- hand. Always dispose of defunct plugs and fuses immediately. Connecting a mains plug The wires in the mains lead are coloured as following: Blue: NEUTRAL Brown: LIVE Green & Yellow: EARTH As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire coloured BLUE must be connected to the terminal marked with the letter N or colour- ed BLUE or BLACK.

• The wire coloured BROWN must be connected to the terminal marked with the letter L or colour- ed BROWN or RED.

• The wire coloured GREEN & YELLOW must be connected to the terminal marked with the letter E or coloured GREEN or GREEN & YELLOW or marked with the Earth Symbol If you have any doubt about the electrical supply to you appliance, consult a qualified electrician before use.9
