238608 - Grill plate Hendi - Free user manual and instructions

Brand	Hendi
Model	238608
Product type	Electric grill plate
Usage	Professional (indoor only)
Power supply	220-240 V ~ 50 Hz
Rated power	1800 W
Protection class	Class I
Dimensions (L x W x H)	550 x 230 x 110 mm
Cooking surface	Non-stick coating
Temperature control	Rotary thermostat with indicator light
Power cord	Yes, with plug
Main material	Steel and plastic
Color	Silver and black
Warranty	12 months
Maintenance	Clean with damp cloth and mild detergent; do not immerse
Safety	Do not leave unattended; do not use if damaged
Included accessories	Removable thermostat
Certifications	CE
Use	Indoor only
Pre-cleaning	Clean the plate before first use

Frequently Asked Questions - 238608 Hendi

How to use the grill plate for the first time?

Remove all packaging, clean the plate with a damp cloth, then plug in the device. Set the thermostat to the desired position. Let it heat for a few minutes before placing food.

Can I immerse the grill plate in water for cleaning?

No, never immerse the appliance or cord in water. Clean only with a damp cloth and mild detergent.

What to do if the appliance does not heat up?

Check that the thermostat is properly plugged into the plate and that the plug is fully inserted into the socket. If the indicator light does not come on, contact a qualified technician.

Can I use metal utensils on the plate?

No, use only wooden, plastic, or silicone utensils to avoid damaging the non-stick coating.

The appliance emits a strange smell during first use, is this normal?

Yes, it is normal. These are manufacturing residues burning off. Ventilate the room and let it heat empty for 10 minutes.

What is the warranty period?

The warranty is 12 months from the date of purchase, covering manufacturing defects with proper use.

Can I use the grill plate outdoors?

No, this appliance is designed for indoor use only. Do not expose it to rain or moisture.

How to clean burnt cheese residue on the plate?

Let it cool, then remove large residues with a plastic or wooden spatula. Then clean with a damp cloth and dish soap. Never use abrasive products.

Is the thermostat removable?

Yes, the thermostat removes from the plate for easy cleaning. Make sure to unplug the appliance and let it cool before removing it.

What to do in case of breakdown or electrical damage?

Unplug the appliance immediately and do not use it. Have it repaired by a certified technician. Do not open the housing yourself.

USER MANUAL 238608 Hendi

Plated grating setup with skewers, sausages, and a cheese slice on a black tray (no text or symbols visible)

Never leave an empty griddle on full power. This allows the thermal fuse in the plug to be overloaded and blown faster. Blown fuses are not covered by warranty.
Lassen Sie die Kochplatte niemals auf einer maximal eingestellten Leistung des Erwärmens. Die erwärmte Kochplatte kann eine zu schnelle Überhitzung der Thermosicherung in der Steckdose verursachen. Die Thermosicherungen werden nicht von der Garantie erfasst.
Laat een lege plaat nooit langdurig op vol vermogen staan. Hierdoor kan de thermische zekering van de stekker overbelast worden en sneller defect gaan. Doorgebrande zekeringen vallen niet onder garantie.
Nigdy nie zostawiaj płyty ustawionej na petną moc grzania. Pozostawianie nagrzanej płyty może spowodować zbyt szybkie przegrzanie bezpiecznika termicznego w gniazdku elektrycznym. Bezpieczniki termiczne nie podlegają gwarancji.
Ne laissez jamais une plaque vide à puissance maximum longuement. Ceci pourrait forcer et détraquer le fusible thermique. Les fusibles brûlés ne tombent pas sous garantie.

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

Simple icon of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

FOOD CONTACT

Symbol of a trash bin crossed out by diagonal lines, no text or numbers present

RoHS

CE

Thank you for purchasing this Hendi appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

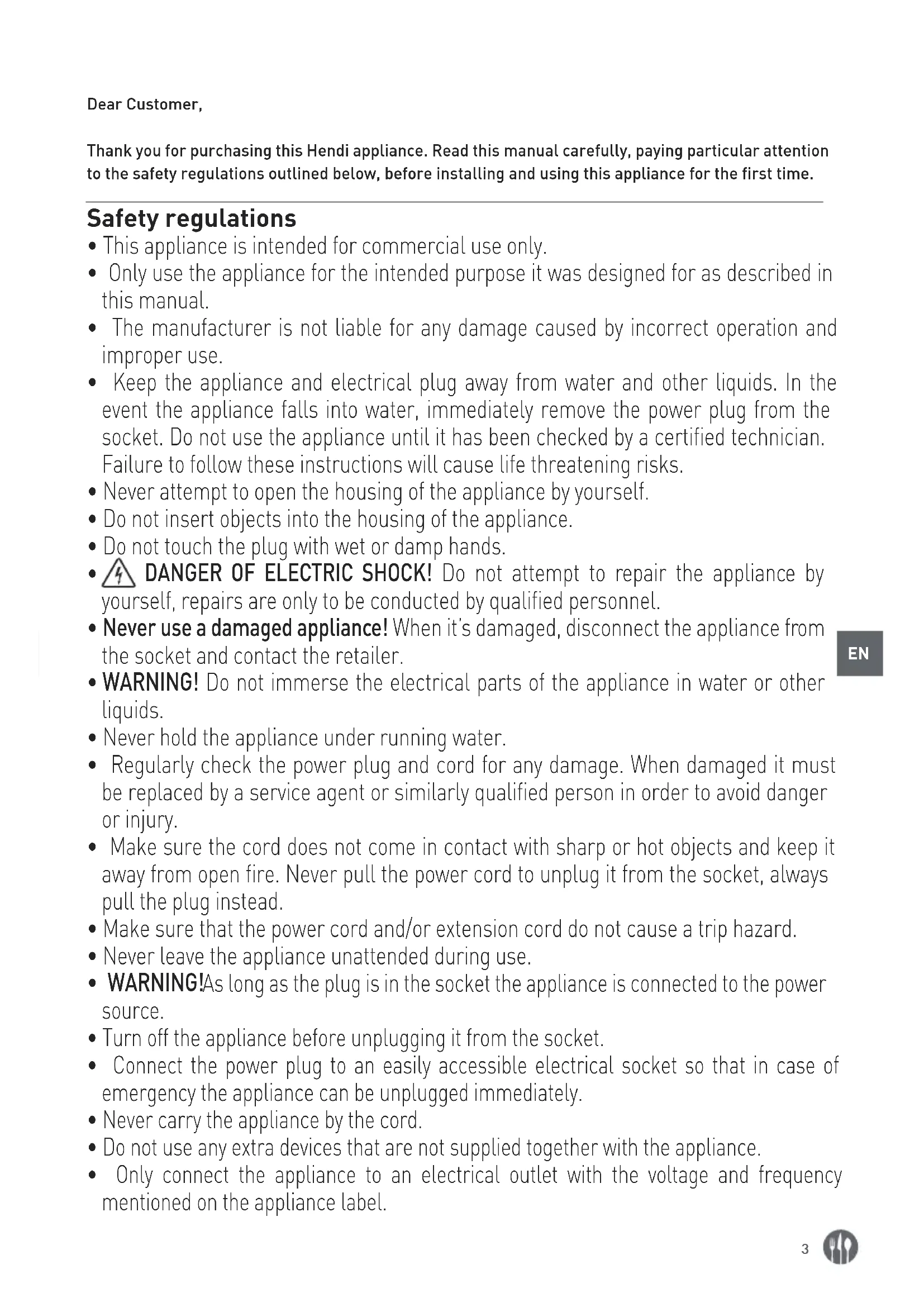

Safety regulations

• This appliance is intended for commercial use only.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
• DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• WARNING! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• WARNING! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special Safety Regulations

• The unit heats up very quickly and cools down only very slowly. Watch out for splashing of fat and vapours during operation and and even during the grilling process! Touch it only at the handle.
• Do not place this unit next to hot devices (e.g. next to a cooker or oven). Also, there must be no inflammable objects (such as curtains) near the unit.

Intended use

• The appliance is intended for professional use.
• This appliance is designed only for grilling appropriate food products. Any other use may lead to damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class

I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Healthier grilling

- With this indoor grill, you can prepare food much healthier than with earlier grill devices: The grill plate has been given a non-stick coat-

ing. It therefore requires very little or no oil for the grilling process.

Before first use

• Remove all packing material.
• Clean the unit before using it for the first time (see CLEANING AND MAINTENANCE).

• There can be some smells when using it for the first time. Residues left over from the manufacturing process are being burned on the grill plate.

• Position the appliance in such a way that the plug is accessible at all times.

• Keep the packaging if you intend to store your appliance in the future.

Operation

• First, prepare the food to be grilled (clean, marinate, apply spices and, if necessary, a thin layer of oil or fat). Let moist foodstuffs dry.
• Place the stuff to grill at the centre of the baking plate. Do not use any metallic or sharp edged tools. They could damage the non-stick coating on the unit.

• Plug the connector with thermostat into the appliance, then connect the main plug to a suitable socket.

• Turn the thermostat pass "0", the indicator lamp lights up, the baking plate begins to heat up.

• Caution: the unit becomes very hot during operation! Touch it only at the handle.
• You can terminate the grilling process any time by turning the thermostat to "0" or pulling out the mains plug.
• Always pull out the mains plug, when the grilling operation is over.

Cleaning and Maintenance

• Before any cleaning, disconnect and let your grill cool for half an hour minimum, after that, remove the thermostat.
• Please note that the grill may never be submerged in water or any other liquid.
• Use a piece of damp cloth and mild cleaning medium for cleaning the housing.
• First remove the larger pieces of food such as

burnt up cheese. Use only soft tools for cleaning, such as plastic or wooden spoons. Never use any baking oven sprays or other sharp, pointed or scouring cleaning media. Do not use petrol or solvents! Clean with a damp cloth and possibly some soft washing-up liquid, use no scouring liquid.

Technical specification

Item no. 238608 238301
Operating voltage and frequency 220-240 V ~ 50 Hz
Rated power 1800W
Protection class	Class I
Dimensions	550x230x(H)110mm	900x200mm

Remarks: Technical specification is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
