WS503AC - Paper stripper Vonroc - Free user manual and instructions
Find the device manual for free WS503AC Vonroc in PDF.
| Product type | Steam wallpaper stripper |
| Brand | Vonroc |
| Model | WS503AC |
| Supply voltage | 220-240 V ~ 50/60 Hz |
| Power consumption | 1900-2300 W |
| Protection class | Class I (earthing) |
| Protection rating | IPX4 |
| Tank capacity | 4.5 L (max) |
| Weight | 2.18 kg |
| Hose length | 400 cm |
| Hose diameter | 22 mm |
| Steam plate dimensions | 100 x 150 mm (plate) / 280 x 195 mm (base) |
| Autonomy | 70 minutes (full tank) |
| Heating time | 6 to 11 minutes depending on water temperature |
| Intended use | Steam removal of wallpaper, no chemicals |
| Safety | Safety cut-off if water level low, safety valve |
| Maintenance | Rinse the tank with clean water regularly |
| Package contents | Boiler, steam plate with base, hose, scraper, power cable |
Frequently Asked Questions - WS503AC Vonroc
User questions about WS503AC Vonroc
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Paper stripper in PDF format for free! Find your manual WS503AC - Vonroc and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WS503AC by Vonroc.
USER MANUAL WS503AC Vonroc


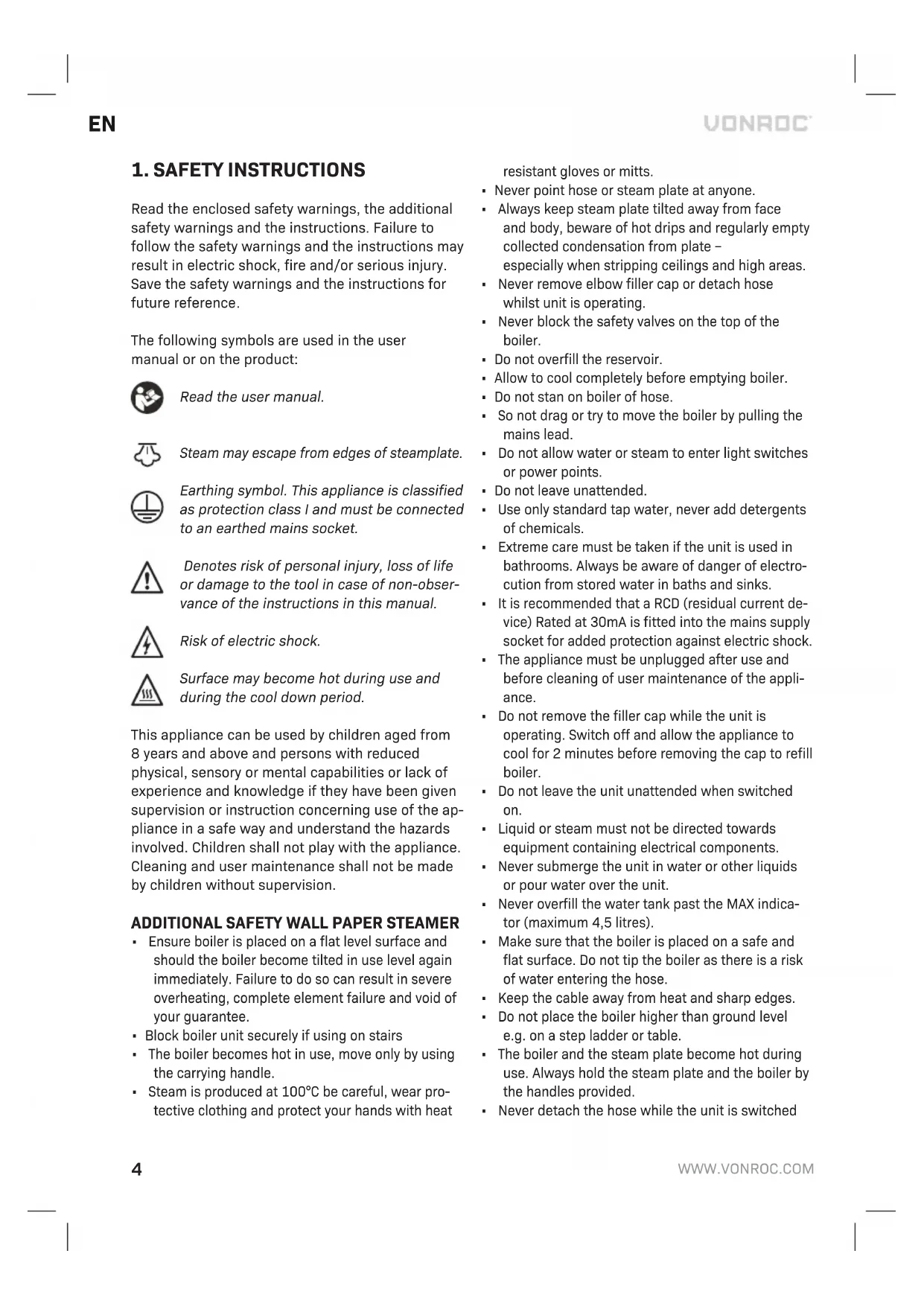

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:
Read the user manual.
Steam may escape from edges of steamplate.
Earthing symbol. This appliance is classified as protection class I and must be connected to an earthed mains socket.
Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.
Risk of electric shock.
Surface may become hot during use and during the cool down period.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
ADDITIONAL SAFETY WALL PAPER STEAMER
- Ensure boiler is placed on a flat level surface and should the boiler become tilted in use level again immediately. Failure to do so can result in severe overheating, complete element failure and void of your guarantee.
- Block boiler unit securely if using on stairs
- The boiler becomes hot in use, move only by using the carrying handle.
- Steam is produced at 100°C be careful, wear protective clothing and protect your hands with heat
resistant gloves or mitts.
- Never point hose or steam plate at anyone.
- Always keep steam plate tilted away from face and body, beware of hot drips and regularly empty collected condensation from plate – especially when stripping ceilings and high areas.
- Never remove elbow filler cap or detach hose whilst unit is operating.
- Never block the safety valves on the top of the boiler.
- Do not overfill the reservoir.
- Allow to cool completely before emptying boiler.
- Do not stan on boiler of hose.
- So not drag or try to move the boiler by pulling the mains lead.
- Do not allow water or steam to enter light switches or power points.
- Do not leave unattended.
- Use only standard tap water, never add detergents of chemicals.
- Extreme care must be taken if the unit is used in bathrooms. Always be aware of danger of electrocution from stored water in baths and sinks.
- It is recommended that a RCD (residual current device) Rated at 30mA is fitted into the mains supply socket for added protection against electric shock.
- The appliance must be unplugged after use and before cleaning of user maintenance of the appliance.
- Do not remove the filler cap while the unit is operating. Switch off and allow the appliance to cool for 2 minutes before removing the cap to refill boiler.
- Do not leave the unit unattended when switched on.
- Liquid or steam must not be directed towards equipment containing electrical components.
- Never submerge the unit in water or other liquids or pour water over the unit.
- Never overfill the water tank past the MAX indicator (maximum 4,5 litres).
- Make sure that the boiler is placed on a safe and flat surface. Do not tip the boiler as there is a risk of water entering the hose.
- Keep the cable away from heat and sharp edges.
- Do not place the boiler higher than ground level e.g. on a step ladder or table.
- The boiler and the steam plate become hot during use. Always hold the steam plate and the boiler by the handles provided.
- Never detach the hose while the unit is switched
on. Allow to cool down for 10 minutes.
- Do not allow the hose to become kinked or blocked by debris. In the event of a hose blockage remove the plug from the wall socket.
Electrical safety
Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.
Replacing cables or plugs
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.
- Do not use the machine if the mains cable or the mains plug is damaged.
- Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use an extension cable reel, always fully unroll the cable.
2. MACHINE INFORMATION
Intended use
The wall paper steamer is developed for stripping wall paper. The steam helps removing wall paper without chemicals. This machine converts water into steam.
TECHNICAL SPECIFICATIONS
| Model No. WS503AC | |
| Voltage 220-240V~ 50-60Hz | |
| Input power 1900-2300W | |
| Protection class Class I | |
| IP number IPX4 | |
| Boiler Capacity 4.5 L | |
| Weight 2.18 kg | |
| Tube length 400 cm | |
| Tube diameter 22 mm | |
| Steam plate dimensions: Steam plate Steam plate base | 100x150mm 280x195mm |
| Working time (4.5L) | 70 min |
DESCRIPTION
The numbers in the text refer to the diagrams on pages 2-3.
- Boiler carrying handle
- Boiler tank
- Water level indication
- Hose
- Hose connector
6A. Steam plate
6B. Steam plate base - Filler cap
- Power cable
- Wall scraper
3. ASSEMBLY
Fitting the hose (fig. A and B)
- Screw one end of the hose (4) to the hose connector (5) on the boiler tank (2).
- Screw the other end of the hose (4) to the steam plate (6).
- Check that the hose has been connected properly.
Initial filling of the boiler reservoir (fig. C)
Warning! Make sure that the appliance is unplugged.
- Unscrew and remove the filler cap (7).
Note: When filling the boiler, use clean tap water only. - Fill the boiler tank (2) with water. Do not overfill the tank past the MAX indicator (maximum 4.5 litres) see fig. D.
- Place the boiler filler cap (7) back, do not over-tighten.
- Place the steam plate (6) in a bucket before starting the machine, never lay the steaming plate flat on a surface always on its back see fig. H.
Power cable (fig. E)
- Plug the connector of the power cable (8) in to the machine.
- Plug the mains plug of the power cable (8) into the power supply.
- The machine will automatically start working when plugged in correctly.
TIP! Fill the machine with warm tap water to shorten the warm-up time.
4. OPERATION
Steam is hot! The unit is designed for safe, fast removal of wallpaper but please be aware that steam is produced at 100^ C so be careful, wear protective clothing and protect your hands with heat resistant gloves or mitts.
Please note: When waiting for the steam to appear and when putting the steam plate down during use, always place it on its back. This will prevent the steam coming into contact with anything that may be damaged. Some water may spit from the steam plate. However, this is quite normal and will not affect the performance of your unit.
Reaching temperature
- Depending upon the temperature of the water used to fill the boiler tank (2), the appliance will take between 6 and 11 minutes to start producing steam.
Refilling the boiler reservoir (fig. C)
WARNING! Refill boiler every 70 minutes. Do not go under the minimum level (fig. D). Do not re-fill while the boiler is pressurised!
- Disconnect the appliance from the mains supply.
- Wait at least 2 minutes for the water to cool and the pressure to decrease before removing the boiler filler cap (7).
The filler cap may be hot during use and during the cool down period.
- Unscrew and remove the filler cap (7).
- Fill the boiler tank (2) with clean tap water. Do not overfill the reservoir past the MAX indicator (maximum 4.5 litres) see fig. D.
- Replace the boiler filler cap (7), do not over-tighten.
- Plug the mains plug into the power supply.
- An additional feature is the safety valve. Should excess pressure build up inside the water tank, steam will automatically be released through the safety valve. This may be caused by the hose being shut off by standing on it or by placing a ladder on it.
- However, should the safety valve not operate for any reason, send the unit back for reparation.
Using the wallpaper stripper (fig. F, G, H, I)
- Check the state of your plaster before you start work as high temperature steam can loosen weak, porous or poorly bonded plaster. Plaster is also loosened more easily in areas of cracks, holes or if the steam plate is held in one position for too long.
- You may be able to detect if you have weak plaster by tapping a few areas of the walls with your knuckles. If this produces a hollow sound, we recommend proceeding only with extreme care.
- In all cases test out the wallpaper stripper on a small area, about 100 cm ^2 , before starting work properly.
- To achieve fastest paper removal always gently score the areas to be stripped (Fig. I).
- With heavily embossed, vinyl coated or painter papers this is essential. Either use a proprietary perforator tool or alternatively score the paper with the side of the wall scraper (9) in a criss-cross pattern with 150mm (6 inch) spacing.
- As with all decorating work be sure to protect carpets and furniture with covers.
- If at any stage finishing plaster is loosened or you hear a crack, do not continue. The wallpaper stripper is safe for drywall/plaster board surfaces.
- Due to the heat generated by this product, it is possible that certain surfaces for example carpets, soft furniture, table tops, cabinets etc., could be marked or damaged. To prevent this, ensure a wooden board or other barrier is placed under the boiler to prevent the heat damaging the surface. Dust sheets or newspapers are not adequate for this purpose.

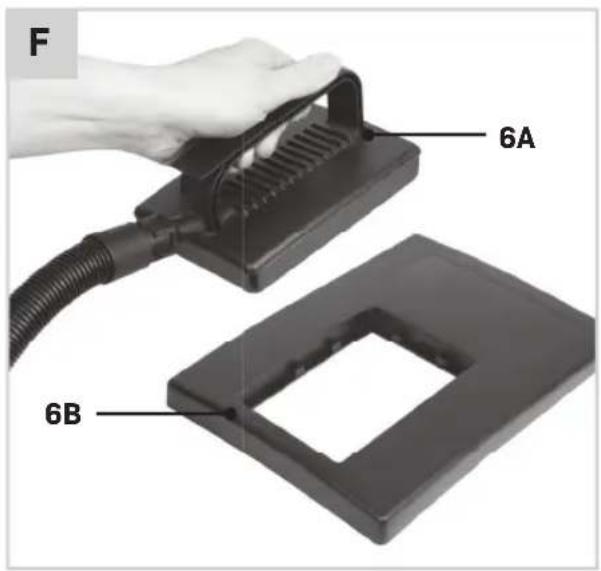

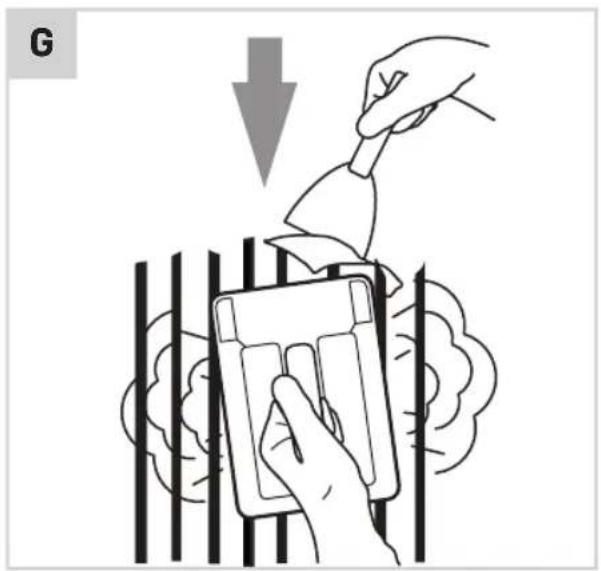

- After checking and testing, hold the steam plate against the wallpaper you wish to remove. For small areas, you can remove the steam plate (6A) from the steam plate base (6B) (fig. F).
- For best results, remove wallpaper with a scraper (9). Scrape off wallpaper in a downward direction (fig. G).
- Always wear protection when removing wallpaper from the ceiling. Be careful of condensation collecting in the steam plate as hot water may drip. Empty the steam plate regularly and never use directly above your head.
- Always place the steam plate (6) in a suitable container when left unattended, even for a few seconds, and keep the steam plate facing away from you when in use (fig. H).
Storage
- Allow the appliance to cool for at least 10 minutes.
- Before storing, ensure that all water has been emptied from the water tank and dry it with a cloth.
- Store the appliance upright in a dry place.
Safety cut out
A safety cut out is fitted to prevent overheating the element if the water level is low. If unit stops boiling during use this may be the cause. Wait for 2 minutes before removing the filling cap then re-fill with clean tap water. The cut-out will self-reset and steam be produced again within 5-25 minutes.
The cut-out will not protect the element if a partly filled unit is tilted during use in a way which enables part of the element to be out of the water for longer than 15-20 seconds.
5. MAINTENANCE
Warning! Before performing any maintenance, switch off and unplug the appliance and allow it to cool. Occasionally rinse the boiler with tap water until it runs clear.
Do not use chemical additives.
This appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
TROUBLE SHOOTING
Unit fails to boil
The unit had probably not been left for long enough to cool- refer to section on safety cut out. Check the fuse in the plug is sound and rated at 13 amps. If using an extension cord check that it is rated at a minimum of 10 amps and fully unwound.
Unit leaks steam from pressure relief valve
The pressure relief valve is a special low pressure valve and cannot be replaced by any other valve. If steam is leaking form the valve, the most likely cause is a blockage in the hose. Allow the hose to cool then remove the hose and check for any blockage. Always check the inlet in the tool you are using.
Under no circumstance force the valve shut. This is operating for your protection.
ENVIRONMENT
Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.
Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
WARRANTY
VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.
The following circumstances are excluded from this guarantee:
- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
- Normal wear and tear;
- The tool has been abused, misused or improperly maintained;
- Non-original spare parts have been used.
This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.
The product and the user manual are subject to change. Specifications can be changed without further notice.
DECLARATION OF CONFORMITY WS503AC - WALLPAPER STEAMER
(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnicí 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(TR) Tek sorumlusu biz olmak üzere bu ürünün Avrupa Parlamentosunun 2011/65/EU ve 8 Haziran 2011 tarihli konseyin elektrikli ve elektronik ekipmanlarda belirlenmiş tehlikeli malzeme kullanımının kısıtlanması hakkındaki talimatları ile birlikte aşağıda belirtilen standart ve yönergelere uygun ve uyumlu olduğunu beyan ederiz:
EN 60335-1, EN 60335-2-54, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU
Zwolle, 01-06-2022 H.G.FRosberg CEO
VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands
VONROC®
BUILD YOUR FUTURE
©2022 VONROC
WWW.VONROC.COM
2206-27
