USER MANUAL eSRZ APRILIA
This manual is valid for the following electric scooters:
eSR1
eSR2
eSR2 Evo
eSRZ
User manual
Instructions translated from the original Italian
Thank you for choosing this product.
For information, technical support, assistance or to consult the general terms of the warranty, please contact your dealer or visit the website www.apriliasmartmovement.com
- Safety instructions
- Package contents and assembly
- Product overview
- Battery charging and activation
- Command information / Control panel
- Quick guide
- Folding and carrying
- Range and performance
- Storage, maintenance and cleaning
- App configuration
- Technical data sheet
- Troubleshooting
- Liability and general terms of warranty
- Information on disposal
- Declaration of conformity
1. Safety instructions
IMPORTANT! Carefully read and follow the instructions below before using the product. Keep this manual for future reference or new users.
Take the time to learn the basics of the procedure to avoid severe accidents that may occur in the first few months. Contact your dealer for the proper support on how to use the item correctly or to be directed to an appropriate training organisation.
The company assumes no direct or indirect responsibility arising from misuse of the item, non-compliance with both the highway code and the instructions in the manual, accidents or disputes caused by non-compliance or illegal activity.
This product is to be used for recreational purposes, by one person only and without passengers, therefore it cannot be used by more than one person at a time.
Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting objects, towing other vehicles or trailers.
The electric scooter must be used carefully, always respecting the rules imposed by the Highway Code of the country where it is used, in order to avoid dangerous situations and to take the utmost care of yourself and others.
CAUTION
Driving requirements:
| Scooter model | eSR2 eSR2 EVO eSR1 | eSRZ | |
| Product code without indicators | AP-MO-210002 AP-MO-210003 AP-MO-210004 | 01 AP-MO-210005 | |
| Product code with indicators included | AP-MO-210006 - - AP-MO-210007 | ||
| MIN weight (Kg) 30 30 | 30 30 | ||
| MAX weight (Kg) 100 | 100 100 100 | ||
| MIN age * 14 14 14 14 | |||
| MAX age * 65 65 65 65 | |||
| MIN height (cm) 120 | 120 120 120 | ||
| MAX height (cm) 200 | 200 200 200 |
- Before using the product, check and follow local regulations regarding the minimum age of the driver, restrictions on the type of drivers who can use the product and on the use of the product itself.
The A-weighted emission sound pressure level (noise) at the rider's ear is less than 70dB(A).
Symbols identifying the safety warnings
To identify the safety messages in this manual, the following graphic warning symbols will be used. They draw the focus of attention of the reader/user to the proper, safe use of the item.
CAUTION
Pay attention
Highlights the rules to follow to prevent damage to the item and/or prevent hazardous situations from arising.
DANGER
Residual risks
Highlights the presence of hazards that generate residual risks to which the user must pay attention to avoid injury or material damage.
General warnings
CAUTION
It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are observed down to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may cause severe injury.
This product is an electric vehicle. The faster you ride, the longer the braking distance. Emergency braking on slippery, muddy, wet or icy roads may result in wheel spin and loss of balance. Adequate speeds and safety distances from other vehicles or pedestrians must be adhered to. Take extra care when riding on unfamiliar roads. Do not open the kickstand when using the item, risk of severe personal injury and damage to item.
CAUTION
On wet roads, the braking distance increases and the grip decreases compared to dry roads!
Drive more carefully, keep a safe distance!
For personal safety, wear a helmet, and knee and elbow pads to protect against falls and injuries while riding the item. When allowing others to use the item, ensure that the rider wears the safety equipment and explain the operation of the vehicle. To avoid injury, do not allow other persons to use the item if they do not know how to use it. Wear shoes before using the item.
Children must not play with the scooter or its parts, nor should they be allowed to clean it or perform maintenance operations.
When riding, take special care to not frighten children or pedestrians. When passing behind them, warn them by sounding the horn and slow down using the minimum speed of 6km / h .
Instructions and warnings on rider behaviour
| Conditions Appropriate/intended use Improper use | ||
| Riders | One More than one person, with children | en or animals |
| Safety equipment | Helmet, knee pads, elbow pads, reflective vest | No safety equipment |
| Pre-riding check | Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle, indicators, lights and charge status of battery. If any unusual noises or faults are detected, do not use the item and contact your dealer or the Authorised Technical Support Department | Never checking the item prior to use Using the item when noise or faults are present |
| Walking while pushing the item | Not accelerating Depressing the throttle Pushing while walking across pedestrian crossings In pedestrian areas when not in pedestrian mode (6 km/h) In overcrowded areas Riding the vehicle | Riding the vehicle on pedestrian crossings Riding the vehicle in pedestrian areas when not in pedestrian mode (6 km/h) in overcrowded areas |
| Stationary | The person riding the item must be able to easily place both feet on the ground while holding the handlebars at the correct height | Not being able to keep the item stationary and balanced. Sitting on the item while it is running or stationary |
| Riding under normal conditions | No objects hanging from handlebars | Objects hanging from handlebars result in instability and may impede manoeuvring |
| Riding with both hands on handlebars. Not using devices such as phones, smartwatches, music players, or headphones | One-handed or hand-free riding Using devices such as phones, smartwatches, music players, or headphones | |
| Riding with both feet on the footrest comfortably and safely | Riding with one or both feet outside the footrest It is prohibited to place or amass weight on the rear mudguard. | |
| Riding with helmet and protective equipment | Riding without helmet and protective equipment | |
| Conditions Appropriate | Riding on easily accessible, smooth and compact roads, avoiding areas with intense traffic or overcrowded areas: e.g. dedicated cycle path, smooth paved surfaces Complying with local regulations and the highway code | Riding on motorways, long-distance roads Riding on busy roads Riding on pavements Riding in overcrowded areas Riding on very rough roads Riding near: ravines, escarpments, harbours, sea, lakes or rivers Failure to comply with regulations and the highway code |
| Looking ahead and watching out for obstacles, vehicles or nearby pedestrians | Becoming distracted while riding | |
| Changing direction, making sure to be seen, moderating speed Anticipating the route and moderating speed while observing the highway code and those that are the most vulnerable Using direction indicators, if included on the item | Changing direction abruptly at high speed without making sure that you have been seen Braking and cornering at the same time makes the vehicle unstable Not using direction indicators | |
| Slowing down when pedestrians are present Using pedestrian mode in pedestrian areas (6 km/h) Warning others of your presence by using the bell | Accelerating or maintaining a constant speed when pedestrians are present Riding without using pedestrian mode in pedestrian areas (6 km/h) Not warning others of your presence by using the bell | |
| Uneven road conditions: speed bumps/ steps/rough road surfaces | Riding at moderate speeds High-speed Bend knees slightly for better shock absorption when traversing uneven surfaces. | riding Accelerating over bumps or ditches, going down steps, jumping over obstacles, climbing pavements, riding harshly. |
| Behaviour: around bends, down slopes, in the presence of nearby obstacles, vehicles and pedestrians | Keeping at a safe distance Not observing safety distances Ceasing to accelerate Braking and slowing down Riding at moderate speed and braking safely Paying attention to doors and other high obstacles | Accelerating Riding at high speed, braking suddenly Traversing beneath high obstacles |
| Conditions Appropriate/Intended use Improper use | ||
| Visibility conditions | Only ride if there is enough light to ride safely. When riding in unfavourable lighting conditions (from half an hour following sunset, throughout the entire period of darkness and even during the day, if weather conditions preclude road visibility, when driving through tunnels), remember to switch on the item's lights and wear a reflective vest, belts or bands. | Riding in unfavourable lighting conditions with lights off and without using a reflective vest, belts or bands. |
| Weather conditions | Driving in optimal conditions (no rain) | Driving in adverse conditions: in the rain, in case of snowfall, in the presence of ice or mud on the road, in case of strong wind and fog. |
| Parking | In designated areas without impeding movement of vehicles or pedestrians On smooth surfaces, ensuring stability is maintained Switching off the item and using an anti-theft device Using the kickstand provided | Everywhere, impeding movement of vehicles or pedestrians On uneven surfaces and without ensuring stability Leaving the item switched on, unattended with no anti-theft device |
| Engaging in extreme sports/acrobatics | NO YES | Riding near: ravines, escarpments, harbours, sea, lakes or rivers Riding through puddles Racing with other vehicles |
| Subjecting the item to forceful impact | NO YES | jumping over object or persons, jumping off steps or from high places |
What to do after a fall:
Check that the throttle lever works properly. To do this, accelerate and decelerate several times.
Check that the brakes work properly. To do this, get off the item, push it forward and brake to ensure it responds to the controls.
Check that all vehicle components are in place and securely fastened.
Check tyre wear and pressure (see side of tyre for recommended value).
Check the wear of the brakes and cables.
DANGER
The brakes may become hot during use. Do not touch after use.
2. Package contents and assembly
Assembled item, the handlebar must be installed using the special screws contained in the package.
| Model Reference picture In the package Handlebar assembly | |||
| eSR2 | battery charger charging cable 2 M5 screws and 2 washers size 3 Allen wrench | ||
| eSR2 EVO | |||
| eSR1 | battery charger charging cable 4 M6 screws size 4 and 5 Allen wrench adapter for inflating the tires 2 wrenches to remove the battery | ||
| eSRZ | Battery charger with charging cable 4 screws adapter for inflating the tires 3 Allen wrenches 1 spanner | ||
Method:
Take the item out of the packaging
- Open the kickstand and check that the item is stable
- Open the handlebar stem and secure it by closing the lever of the closing mechanism
- Connect the display power cable to the main wiring
- Install the handlebar on the stem (do not crush the cables)
- Tighten the screws on the stem using the wrench supplied
- Adjust the stem closing mechanism*
| Model Reference picture * Adjustment | ||
| eSR2 eSR2 EVO | There is a hex screw inside the mechanism. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. | |
| eSR1 | Outside the mechanism there is a hex socket screw. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. | |
| eSRZ | There is a hex screw inside the mechanism. If the handlebar stem is not very stable after closing, adjust the screw in the mechanism, by tightening or loosening it as required to increase the stability of the stem. | |
CAUTION
Assemble the product correctly. If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments occur, do not ride the vehicle and contact your dealer or visit www.apriliasmartmovement.com for technical support.
Do not use accessories and/or additional parts that are not approved by the manufacturer.
Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.
It is forbidden to modify or transform the item or any its parts in any way, as this may impair efficiency, reduce structural integrity and cause damage. Remove any sharp edges caused by misuse, breakage or damage to the item. If any factory defects, unusual noises or faults are detected, do not ride the vehicle and contact your dealer or visit
www.apriliasmartmovement.com for technical support.

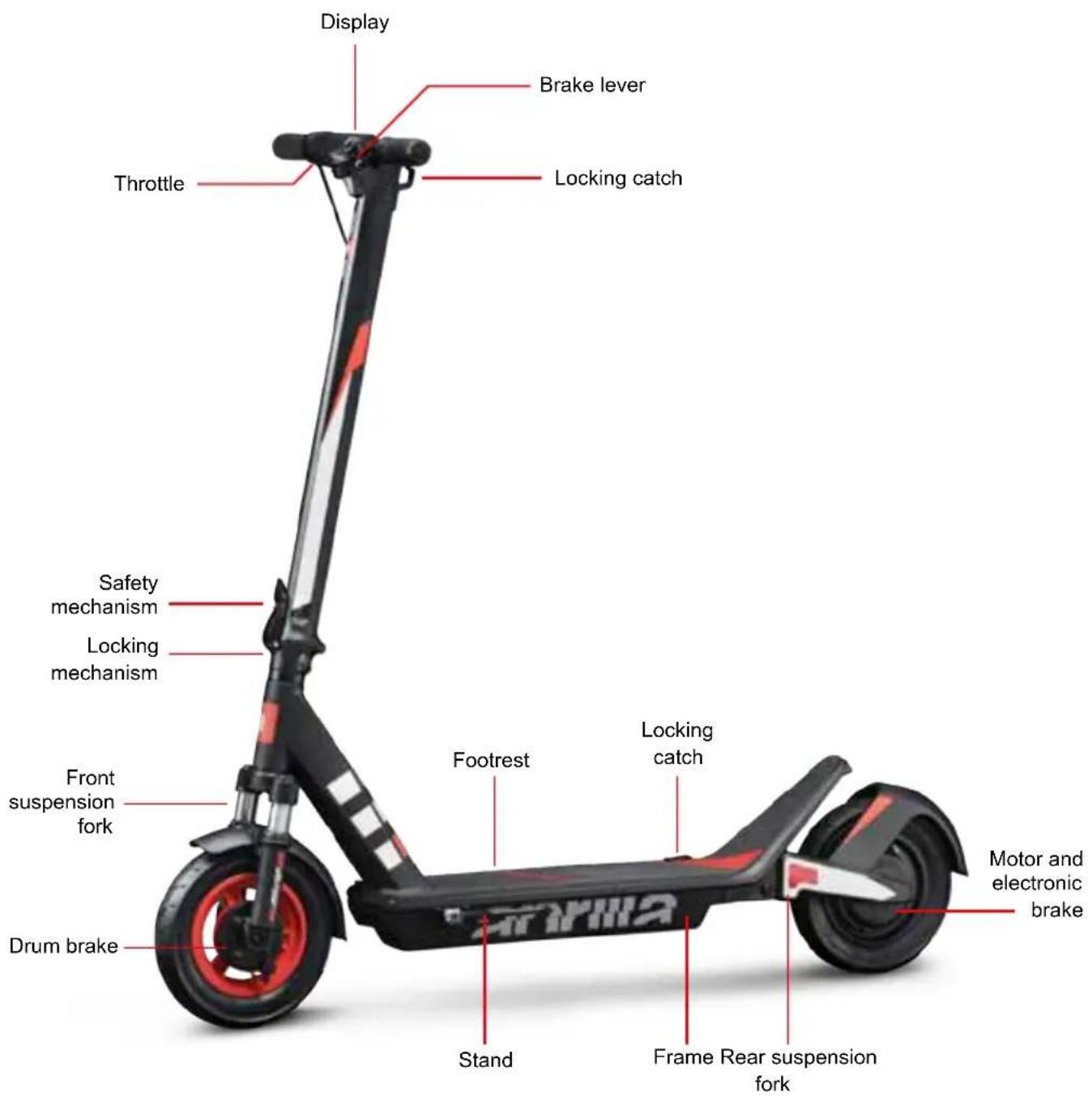

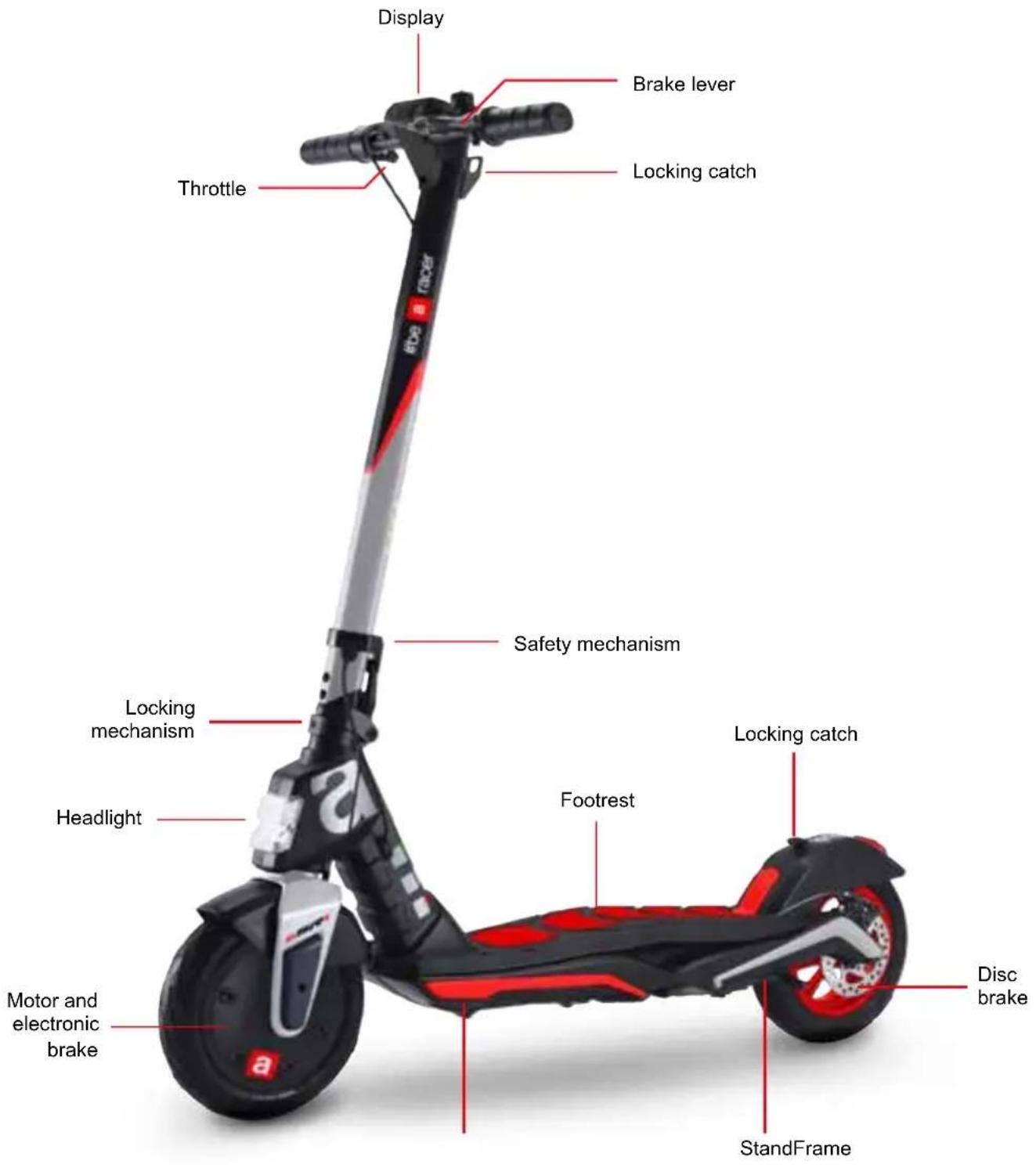

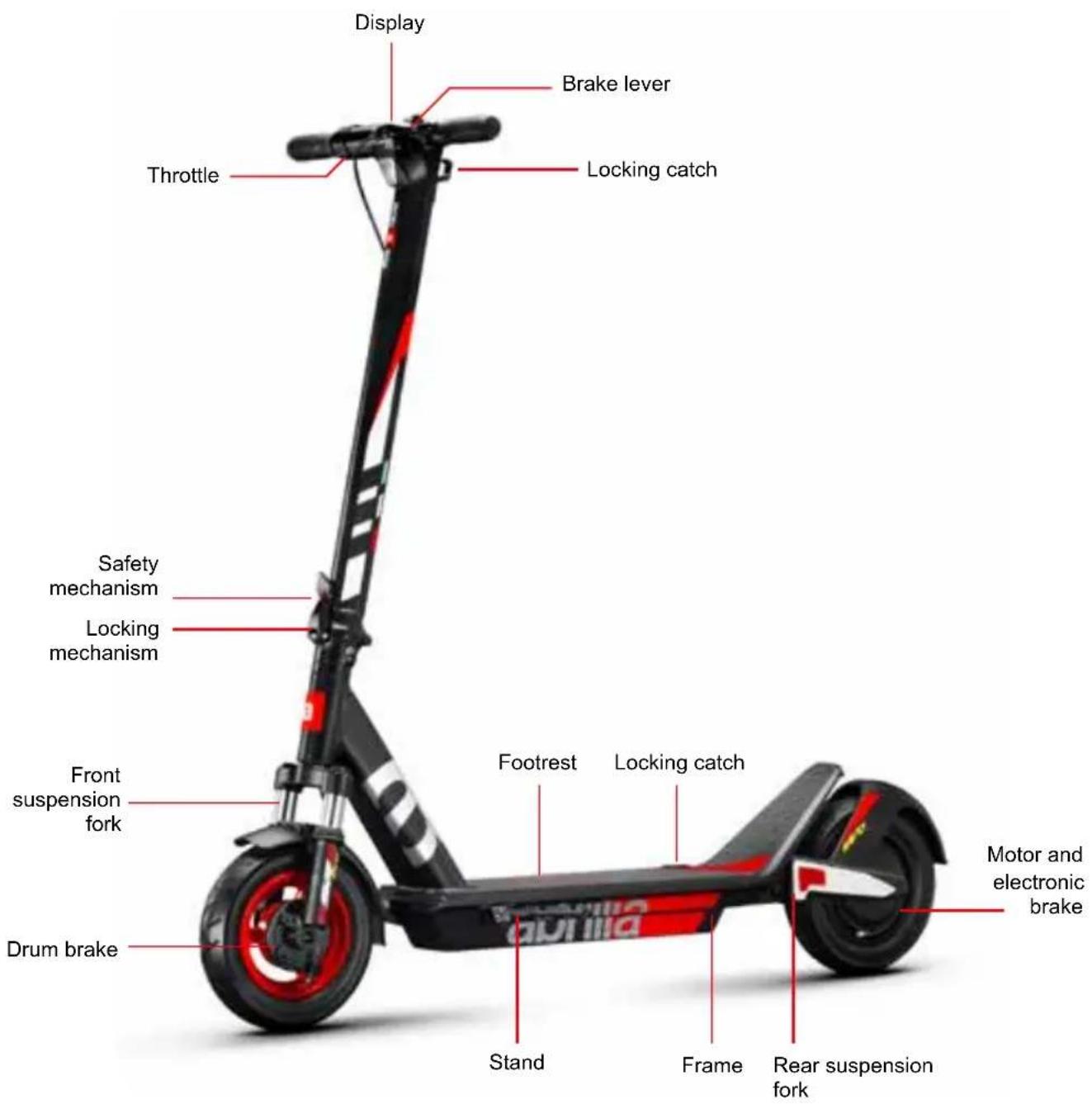

3. Product overview
In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and this manual will not be automatically updated.
For information and to consult the revisions of this manual, visit the website www.apriliasmartmovement.com
eSR2
eSR1
eSRZ
4. Battery charging and activation
Prior to using the item for the first time, charge to 100% . Ensure the item, charger, and charging port are dry.
Instructions
Open the kickstand
Switch off the item
| Model Reference picture Instructions | ||
| eSR2 eSR2 EVO | - Remove the rubber cover from the charging socket - Connect the battery charger to the charging port and then to the power socket. - When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete). - After charging, close the rubber cover on the charging socket - Unplug the battery charger from the power socket | |
| eSR1 | - To access the battery, lift the footrest - Switch off the battery if there is a red button (B) - Connect the battery charger to the charging port (B) and then to the power socket. - When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete). - After charging, close the rubber cover on the charging socket - Unplug the battery charger from the power socket - The battery can be removed; use the wrenches supplied to release the lock (C) - Disconnect the power connector and remove the battery. | |
| eSRZ | - Remove the rubber cover from the charging socket - Connect the battery charger to the charging port and then to the power socket. - When the item is fully charged, the light on the charger changes from red (charging) to green (charging complete). - Disconnect the battery charger from the charging port and put back the rubber cover in the charging socket. - Unplug the battery charger from the power socket. | |
CAUTION
To recharge the item, use the battery charger supplied ONLY
| Model Battery | charger model Output voltage Ch | charging time | |
| eSR2 HLT-180 | 0-4201500 42V – 1.5A 5-6 h | ||
| eSR2 EVO HL | T-180-5462000 54V – 2.0A 6-7 h | ||
| eSR1 XVE063 | 42V – 1.5A 6-8 h | ||
| eSRZ FY0684 | 201500 42V – 1.5A 4-5 h |
Using another type of charger may damage the scooter or entail other potential risks.
Never leave the product unsupervised while it is charging. Do not switch the product on while it is charging.
After each use, fully recharge the battery to extend its useful life. Do not recharge the item immediately after use. Allow the scooter to cool for an hour before recharging.
The item should not be charging for extended periods. Overcharging reduces battery life and poses additional potential hazards.
Allow the vehicle to discharge completely to prevent damage to the battery.
Damage caused by the battery being left uncharged for a long period is irreversible and is not covered by the limited warranty. Once the damage has occurred, the battery cannot be recharged (the battery must not be dismantled by unqualified personnel, as this could lead to electric shocks, short circuits or even major safety incidents). If the owner is away, e.g. on holiday, and the device is entrusted to a third party, leave it in a partial charge state (20-50% charge), not fully charged.
Carry out regular visual inspection of the charger and charger cables. If the battery charger cable is clearly damaged, do not use it to avoid further damage and/or risks; please contact us for a replacement.
Battery warnings
The battery consists of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not use the item if it emits odours, substances or excessive amounts of heat. Do not dispose of the item or the battery with household waste. The end user is responsible for the disposal of electrical and electronic equipment and batteries in compliance with all applicable regulations.
Avoid used, defective and/or non-original batteries of other models or brands.
DANGER
Do not leave the battery near fire or heat sources. Fire and explosion hazard.
Do not open the battery or take it apart. Do not strike, throw, or puncture the battery or attach objects onto it.
Do not touch any substances leaking from the battery, as they are deemed hazardous. Do not allow children or pets to touch the battery.
Do not overcharge or short-circuit the battery. Fire and explosion hazard.
Do not immerse or expose the battery to water, rain or other liquids. Do not expose the battery to direct sunlight, excessive heat or cold (for example, do not leave the item or battery in a car in direct sunlight for extended periods of time), or environments containing explosive gases or flames.
Do not carry or store the battery with metal objects such as hairpins, necklaces, etc. Contact between metal objects and battery contacts may cause a short circuit resulting in physical injury or death.
5. Command information / Control panel

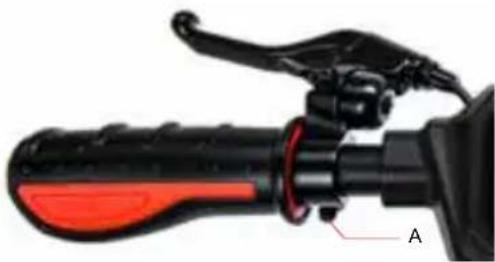

| eSR2 /eSR2 EVO eSR1 | ||
| Activation of direction indicators (if any) C D A Throttle (A): press down to accelerate. Power button (B): Press to switch the item on/off. Brake lever (C): pull the lever to brake Speed level change: press the button (B) once to select the desired level. Quickly press 3 times in a row to switch from Km/h to Mph. Quickly press 4 times in a row to switch from ODO to TRIP. Lights: press the button (B) twice to switch them on/off. Bell: press button (D) once to activate it. | Throttle (A): press down to accelerate. Power button (B): press to switch the item on/off. Brake lever (C): pull the lever to brake Speed level change: press the button (B) twice to select the desired level. Lights: press the button (B) once to switch them on/off. Horn: press the button (D) once to activate it | |
| eSRZ | ||

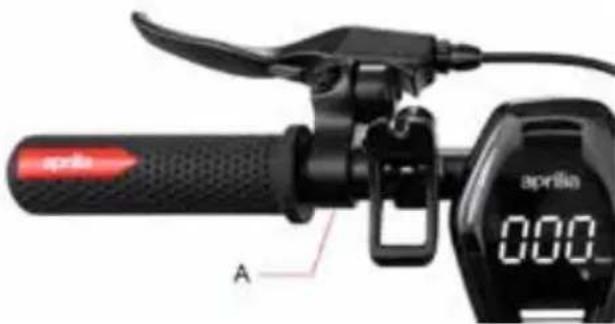

| Activation of direction indicators (if any) C D A Throttle (A): press down to accelerate. ON button (B): press for 2 seconds to turn on or off the item. Brake lever (C): pull the lever to brake Speed level change: press the button (B) twice to select the desired level. Lights: press the button (B) once to switch them on/off. ODO/Trip: press button (B) 3 times to switch mode Km/h-Mph: press button (B) 4 times to switch mode Bell: press lever (D) once to activate it | 888 | |
| Model Reference picture Symbols | ||
| eSR2 eSR2 EVO | aprilia 11 5 6 3 7 4 | 1. Battery Level: The battery level is indicated by 4 bars. 2. Speedometer: Displays the current speed of the scooter. 3. ODO: Total distance travelled. 4. TRIP: Single trip distance. 5. Lights indicator light. 6. Level 1 - The display will show 1 (up to 6 km/h). 7. Level 2 - The display will show 2 (up to 20 km/h). 8. Level 3 - The display will show 3 (up to 25 km/h). 9. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. 10. Service light: indicates that maintenance is required by the assistance service 11. Bluetooth light: always on |
| eSR1 | aprilia 1 5 9 8 7 6 L88888: 88: | 1. Battery Level: The battery level is indicated by 7 bars. 2. Speedometer: Displays the current speed of the scooter. 3. ODO: Total distance travelled. 4. TRIP: Single trip distance. 5. Lights indicator light. 6. Level 1 - The display will show ECO (up to 6 km/h). 7. Level 2 - The display will show D (up to 20 km/h). 8. Level 3 - The display will show S+ (up to 25 km/h). 9. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. |
| eSRZ | aprilia 9 2 6 7 1 | 1. Battery Level: The battery level is indicated by 4 bars. 2. Speedometer: Displays the current speed of the scooter. 3. ODO: Total distance travelled. 4. TRIP: Single trip distance. 5. Lights indicator light. 6. Level 1 - The display will show the pedestrian symbol (up to 6Km/h). 7. Level 2 - The display will show ECO (up to 15 km/h). 8. Level 3 - The display will show D (up to 20 km/h). 9. Level 4 - The display will show S (up to 25 km/h). 10. Cruise Control: Speed control. It is activated after the same speed has been maintained for a few seconds. The display emits a short beep. 11. Unit of measurement of speed: km/h-Mph |
| Direction indicators (if present) | ||
| Models * | ||
| ESR2(left side of handlebars) | Drive: | On models where they are fitted, the direction indicators are placed at the ends of the handlebars (left and right side).The direction indicators are required to provide early warning of any change in direction while riding. |
| CAUTIONBefore each use of the product, check the correct operation of the direction indicators. | ||

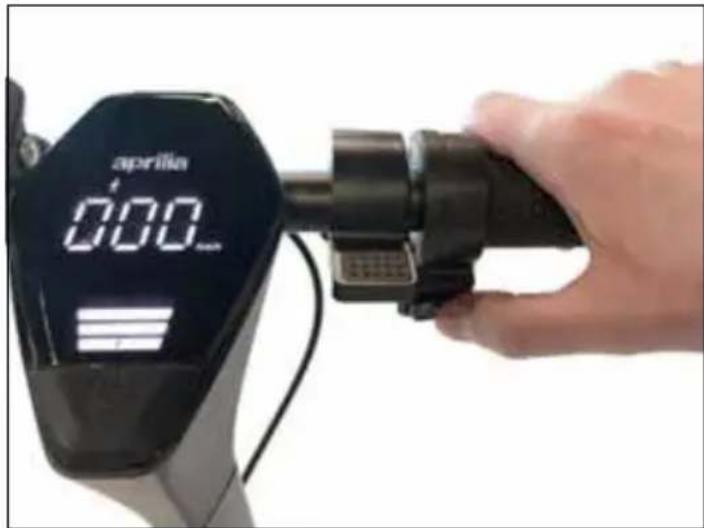

eSRZ (right side of handlebars)
Drive:
On models where they are fitted, the direction indicators are placed at the ends of the handlebars (left and right side).
The direction indicators are required to provide early warning of any change in direction while riding.
CAUTION
Before each use of the product, check the correct operation of the direction indicators.
6. Quick guide
- Prior to using the item for the first time, charge to 100% .
- Check tyre pressure (see side of tyre for recommended value). If the item does not reach at least 60% of the declared kms, or the maximum speed within the first 3 months of use, it is likely that the wheels have deflated once more. In this case, restore pressure as indicated.
- Check and adjust the brakes.
- Turn on the display.
- Place the item on a flat surface.
- Hold the handlebar firmly using both hands. Step onto the footrest with one foot and use the other to give yourself a gentle push and accelerate.
CAUTION
Zero Start Function: the throttle is activated once the forward speed exceeds 3km / h
For safety reasons, the item is initially set up to avoid standing starts.
- When riding the item, tilt your body in the direction of travel when turning and slowly turn the handlebar.
- To stop the item, release the throttle, pull the brake lever
- To get off, first stop the item completely. Getting off the moving item can cause injury.
- Prior to each use, check brakes and any wear, check tyre pressure (see side of tyre for recommended value), wheel wear, throttle and charge status of battery.
Brake lever adjustment
eSR2 / eSR2 EVO eSR1
It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
It is possible to adjust the position of the brake lever, if necessary, by unscrewing the screw (A). Once the position has been adjusted, tighten the screw (A).
eSRZ
The brake lever can be adjusted when needed by unscrewing the screw located underneath (A). Once the position has been adjusted, tighten the screw (A).
Brake lever adjustment
| eSR2 /eSR2 EVO eSR1 | |
| If the brake is too tight or too loose, adjust it by loosening or tightening the screw (A).If the brake lever is too soft or too hard even after following the instructions in the first step, it may be necessary to repeat the operation until the optimal setting has been reached. | CBA If the brake is too tight or too loose, use the Allen wrench to loosen the screw (A), then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, retighten the screw (A).Check the correct alignment between the brake caliper and the disc. Use the screws (B) and (C) to adjust the position / alignment on the disc, if necessary. |
| eSRZ | |
| If the brake is too tight or too loose, use the Allen wrench to loosen the screw (A), then adjust the brake cable, (shorten the brake cable at the top if it is too tight; if it is too loose, pull the brake cable downwards) and then, re-tighten the screw (A).Check the correct alignment between the brake caliper and the disc. Use the screws (B) and (C) to adjust the position / alignment on the disc, if necessary. | |

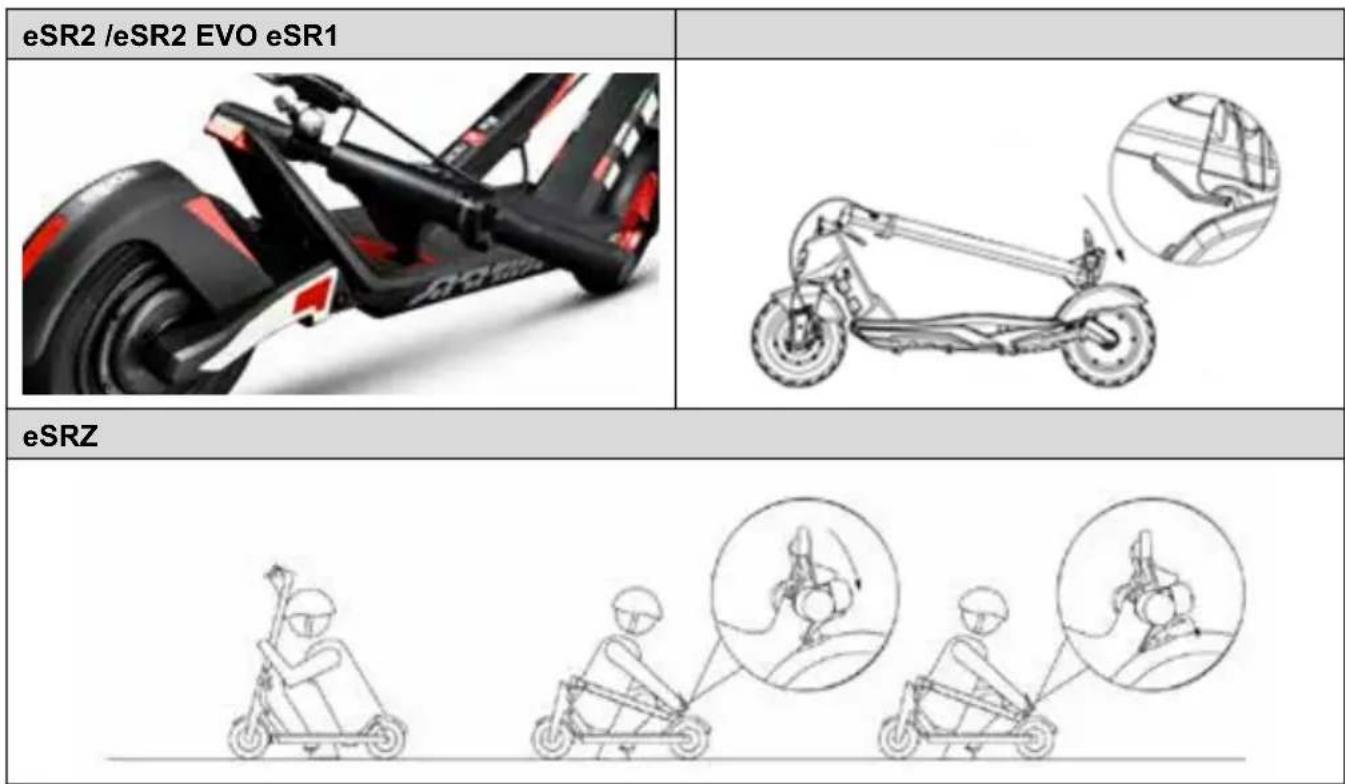

7. Folding and carrying
Make sure the electric scooter is turned off. Hold the handlebar stem with your hand, pull the lever, fold the stem towards the footrest and fasten it.
After folding, lift it by holding the handlebar stem with one or both hands.
CAUTION
Make sure to secure the item during transportation. If the item cannot be lifted, do not transport with the item raised. If dropped, the item may cause severe injury and damage.
8. Range and performance
The maximum range and performance of the vehicle depends on a number of variables:
Terrain: Riding on smooth roads provides greater range and performance than riding on rough roads and climbs.
Weight of user: the greater the weight, the lower the range and performance of the vehicle.
Temperature: riding the scooter in very cold or hot conditions affects range and performance.
Speed and riding style: riding smoothly and at constant speed extends the autonomy. Continuous acceleration, deceleration and manoeuvring greatly reduce the range. A lower speed extends the range.
Maintenance: prompt recharging, proper maintenance and regular checking of tyre pressure (see reference value in section 11) increase range and ensure consistent performance over time.
The level of battery charge affects performance – the lower the level, the lower the speed, especially on climbs.
CAUTION
If there are stains on the body of the scooter, wipe with a damp cloth. If the stains persist, apply neutral soap, brush out with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Do not clean the items with alcohol, petrol, paraffin or other corrosive or volatile chemical solvents to prevent severe damage. Do not wash the item using high-pressure water jets. When cleaning the scooter, make sure that it is switched off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak may cause an electric shock or other serious problems. Water seeping into the battery may cause damage to internal circuits and risk of fire or explosion. Should you suspect that water may have entered the battery, stop using the battery immediately and return it to your dealer's after-sales service for checking.
When the item is not in use, store it indoors in a cool, dry place. Do not store outdoors or inside cars for extended periods of time. Excessive sunlight, overheating, and excessive cold accelerate tyre ageing and jeopardize the life of both the item and the battery. Do not expose it to rain or water or immerse it in water to wash it.
Regularly check the tightness of the bolted parts, in particular wheel axles, the folding and transportation system, the steering system, the braking system, the state of the frame, the forks and the suspension. Nuts and all other self-locking fasteners may lose their effectiveness. Periodically check and tighten these components.
Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear or stress fatigue in a variety of ways. If the service life of a component is exceeded, it may break suddenly, resulting in injury to the rider. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the component has been reached and must be replaced.
Check the condition of the tyres: there must be no cuts, cracks, foreign bodies, abnormal swelling, missing parts or other damage. For tyre pressure, refer to the value indicated in section 11 in this instruction manual.
Do not attempt to disassemble or repair the scooter yourself. Replacement of all scooter components should be carried out by the technical service department. For further information, contact your dealer or visit www.apriliasmartmovement.com
10. App configuration
This item can be used with the Aprilia Smart Movement App. The App allows you to control the item directly from your Smartphone.
Scan the QR CODE to download and install the App. If the App is not found, search for it on your reference App store.
The items with Bluetooth that can be paired with the Aprilia Smart Movement App are the following: Aprilia eSR2, Aprilia eSR2 EVO.
This item can be used with the Aprilia Smart Movement App. The App allows you to control the item directly from your Smartphone.
Open the App and follow the instructions given.
CAUTION
The App may require various permissions required for the use and operation of the App itself.
The App version may have been updated by your App store. It is advisable to constantly check whether any updates are available for the App in order to be able to use the new features and always install the latest version of the App on your device.
Do not use your device while riding.
11. Technical data sheet
General information
eSR2 eSR2 EVO
| Frame aluminium aluminium | |||
| Sunspensions front and rear | |||
| Speed L1: ≤ 6km/h | L2: ≤ 20km/h | L1: ≤ 6km/h | |
| L3: ≤ 25km/h | L2: ≤ 20km/h | ||
| (Max speed) * | L3: ≤ 25km/h (Max speed) * | ||
| Maximum slope** 23% 24% | |||
| Brakes Front drum brake and rear electronic brake | Front drum brake and rear electronic brake | ||
| Tyres 10" with front and rear inner tube | 10" with front and rear inner tube | ||
| Pressure: 36 psi / 2.5 bar | Pressure: 36 psi / 2.5 bar | ||
| Maximum load 100 kg 100 kg | |||
| Rider Check the current legislation in your country | Check the current legislation in your country | ||
| Operating temperature -5 °C/ 45 °C -5 °C/ 45 °C | |||
| Protection level IPX4 | IPX4 | ||
| Charging time | approx 5/6 hours | approx 6/7 hours | |
| Autonomy** | up to 25km | up to 35km | |
Electrical system
| Motor | 0.35kW; 350W Brushless | 0.5kW; 500W Brushless |
| Display | Built-in LED Built-in LED | |
| Battery 36V 8.0Ah 288Wh | 48V 14.4Ah 691Wh | |
| Low voltage protection | 31V | 38V |
| Current limit | 17A | 17A |
| Lights | Front and rear LEDs | Front and rear LEDs |
| Features | Bluetooth | Bluetooth |
Dimensions and weight
| Net weight | 16.5 kg | 18.5 kg |
| Gross weight | 18.5 kg | 21 kg |
| Open item dimensions | 1215x455x1185mm 1215x455x1185mm | |
| Dimensions of item when closed | 1215x455x550mm | 1215x455x550mm |
| Packaging dimensions | 1230x170x600mm | 1230x170x600mm |
- Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.
General information
eSR1 eSRZ
| Frame magnesium alloy steel | ||
| Sunspensions -- | ||
| Speed L1: ≤ 6km/h | L2: ≤ 20km/h | L1: ≤ 6km/h |
| L2: ≤ 15km/h | ||
| L3: ≤ 25km/h | L3: ≤ 20km/h | |
| L4: ≤ 25km/h | ||
| (Max speed) * | (Max speed) * | |
| Maximum slope** 22% 21% | ||
| Brakes Electronic front brake and rear disc brake | Electronic front brake and rear disc brake | |
| Tyres front and rear 10" tubeless | 8.5" with front and rear inner tube | |
| Pressure: 44 psi / 3 bar | ||
| Pressure: 50 psi / 3.5 bar | ||
| Maximum load 100 kg 100 kg | ||
| Rider Check the current legislation in your country | Check the current legislation in your country | |
| Operating temperature -5 °C/ 45 °C -5 °C/ 45 °C | ||
| Protection level IPX4 IPX4 | ||
| Charging time | approx 6/8 hours approx. 4 hours | |
| Autonomy** up to 25km | up to 20km | |
| Electrical system | ||
| Motor | 0.35kW; 350W Brushless | 0.3kW; 300W Brushless |
| Display | 3.5" LED | Built-in LED |
| Battery | 36V 7.8Ah 280Wh | 36V 6.0Ah 216Wh |
| Low voltage protection | 31V | 31V |
| Current limit | 18A | 16A |
| Lights | Front and rear LEDs Front and rear LEDs | |
| Features | -- | |
| Dimensions and weight | ||
| Net weight | 15.5 kg | 13.8 kg |
| Gross weight | 19.5 kg | 16.6 kg |
| Open item dimensions | 1060x475x1170mm 1120x445x1155 mm | |
| Closed item dimensions | 1060x475x490mm | 1120x445x500mm |
| Packaging dimensions | 1150x190x510mm | 1140x160x515 mm |
- Always respect the highway code and the regulations in force in the country where the electric scooter is used.
** Subject to variations based on the rider's weight, on the road conditions and on the temperature.
12. Troubleshooting
Error Cause Solution
| The motor is not running | Electrical issue, error code present | Request technical assistance |
| The drive wheel does not turn | Problems with the brakes | Adjust the brakes; if the problem persists, request technical assistance |
| Motor is blocked Check that | the wheel is properly tightened, check that the wheel turns without starting the vehicle. If the problem persists, request technical assistance | |
| The motor stops while it is running | Motor overheating Stop the | vehicle and wait for it to cool |
| Presence of error code Request | request technical assistance | |
| After charging it, the item does not switch on or it switches off after a few km. | Damaged battery Request | technical assistance |
| The battery does not charge or the item does not switch on | Connection problems Request | est technical assistance |
| The battery is not connected (models with removable battery) | Check that the power connector is connected. | |
| The battery is depleted Charge | charge the battery to 100% | |
| Damaged battery Request | technical assistance | |
| Problems with the battery charger | Replace the battery charger |
Error code table
| Error Code eSR2/eSR2 EVO | Indications Solution | |
| E01 | Engine malfunction Request technical assistance | |
| E02 | Control unit MOS malfunction | Request technical assistance |
| E03 | Brake lever sensor malfunction | Request technical assistance |
| E04 | Throttle malfunction Request technical assistance | |
| E05 | Low voltage protection Recharge the battery; if the problem persists, request technical assistance | |
| E06 | Control unit signal error Request technical assistance | |
| E07 | Protection from overvoltage Switch off the vehicle, wait a few minutes before restarting it if resetting occurs | |
| E08 | Controller OP malfunction Request technical assistance | |
| Error Code eSR1 | Indications Solution | |
| E01 | Engine malfunction Request technical assistance | |
| E02 | Control unit signal error Request technical assistance | |
| E03 | Throttle malfunction Request technical assistance | |
| E04 | Control unit MOS malfunction Request technical assistance | |
| E05 | Phase / current error Request technical assistance | |
| E06 | Average current malfunction Request technical assistance | |
| E07 | Battery voltage error Recharge the battery; if the problem persists, request technical assistance | |
| E08 | Brake lever sensor malfunction Request technical assistance | |
| Error Code eSRZ | Indications Solution | |
| E01 | Throttle malfunction Request | technical assistance |
| E02 | Brake lever sensor malfunction | Request technical assistance |
| E03 | Engine malfunction Request | technical assistance |
| E04 | Communication error Request | technical assistance |
| E05 | Overtemperature error Request | technical assistance |
| E06 | Control unit error Request technical assistance | |
| E07 | Phase / current error Request technical assistance | |
| E08 | Battery voltage error Recharge | the battery; if the problem persists, request technical assistance |
13. Liability and general terms of warranty
The rider assumes all liability for any injury when not wearing a helmet or other protective devices.
The driver must respect current local regulations regarding:
- the minimum age allowed for the rider;
- restrictions on the types of riders who can use the product;
- all other regulatory aspects.
The driver must always keep the product clean and in a perfect state of efficiency maintenance, diligently perform the safety checks he/she is responsible for as described in the previous section, not tamper with the product in any way and keep all the maintenance documents.
M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or persons when:
- the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
the item is modified or tampered with in all or some of its components after purchase.
In the event of item malfunction due to causes not attributable to inappropriate rider behaviour or to consult the general terms of the warranty, please contact your dealer or visit the website https://www.apriliasmartmovement.it/en/
The Legal Guarantee never covers any Product faults or malfunctions caused by accidental events and/or events attributable to the Purchaser, or due to use of the Product in noncompliance with its intended use and/or with the provisions of the technical documentation attached to the Product, or due to failure to regulate mechanical parts, the natural wear of consumable materials, or due to assembly errors, lack of maintenance and/or use of said product in non-compliance with the instructions.
For example, the following are to be considered excluded from the statutory guarantee regarding products:
- damage caused by impacts, accidental falls or collisions, punctures;
- damage caused by use, exposure or storage in an unsuitable environment (e.g.: presence of rain and/or mud, exposure to humidity or excessive heat, contact with sand or other substances);
- damage caused by failure to adjust for road use and/or maintenance of mechanical parts, mechanical disc brakes, handlebars, tyres, etc.; incorrect installation and/or assembly of parts and/or components;
- the natural wear and tear of consumable materials: mechanical disc brake (e.g. pads, callipers, disc, cables), tires, platforms, gaskets, bearings, led lights and bulbs, kickstand, knobs, mudguards, rubber parts (platform), wiring cable connectors, grilles and stickers, etc.;
- improper maintenance and/or improper use of the Item battery;
- tampering with and/or forcing parts of the product;
- incorrect or inadequate maintenance or alteration of the product;
- improper use of the product (e.g.: excess load, use in competitions and/or for commercial or rental activities);
- maintenance, repairs and/or technical interventions on the product carried out by unauthorised third parties;
- damage to the products resulting from transport, if carried out by the purchaser;
- damage and/or defects resulting from the use of non-original parts.
Please refer to the latest version of the warranty terms available at https://www.apriliasmartmovement.it/en/support/
CAUTION
Treatment of the electrical or electronic device at the end of its service life (applicable in all countries of the European Union and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but should be taken to a facility authorised to dispose of waste from electrical and electronic equipment (WEEE).
By ensuring the item is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources.
For more detailed information about the recycling and disposal of this item, you can contact the local waste disposal service or the point of sale where you purchased it.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
More specifically, consumers must not dispose of WEEE as municipal waste, but must dispose of this type of waste separately, in one of two possible ways:
- By taking it to municipal collection centres (also called eco-collection centres or recycling facilities), directly or through the collection services of municipal companies, where these are available;
- By taking it to shops selling new electrical and electronic equipment.
Here, very small items of the WEEE type (with the longest side less than 25cm ) can be left free of charge, while larger ones can be left on a 1-for-1 basis, i.e., you can leave the old item when you buy a new one having the same function.
Moreover, the 1-on-1 mode is always guaranteed when the consumer purchases a new EEE, regardless of the size of the WEEE.
In the event of unauthorised disposal of electrical or electronic equipment, the sanctions provided for by current environmental legislation may be applied (Italian legislation - check the regulations in effect in the country of use/disposal of the vehicle).
If the WEEE contains batteries or accumulators, they must be removed and subjected to specific separate collection.
CAUTION
Handling of spent batteries (applicable in all countries in the European Union and in other European systems with separate collection systems)
This symbol on the product or packaging indicates that the battery pack should not be treated as normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.
The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring that the batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which may otherwise be caused by inappropriate disposal. Recycling materials will help to conserve natural resources. Where for safety, performance or data protection reasons, the items require a fixed connection to an internal battery, this must only be replaced by qualified service personnel.
Deliver the product at the end of its service life to collection centres suitable for the disposal of electrical and electronic equipment: this ensures that the battery inside it is also treated correctly.
For more detailed information about disposal of the dead battery, contact the local waste disposal service or the shop where it was purchased.
In any case, disposal must be carried out in accordance with the legislation in force in the country of purchase.
CE
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489-17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
ToBa pBkoBOdCTBO e BaIiNDHO 3a cNeHnTe eJeKtpuYeCKn TpoTHeTKn:
eSR1
eSR2
eSR2 Evo
eSRZ
PbkoBODCTBO 3a ynoTpe6a
PpeBoD Ha opnHnHaHnHTe HnCTpyKcnn
БлардамВи,чузakynxTeTo3n npoDyKT.
3a INΦopMaζη, TexHnuecka nOДрьЖka, cБeIcTBne n 3a KOHCyJITnpaHe Ha o6uNTe
ycnoBna Ha rapaHcnaTa, ce CbpxKeTe C TbproBeca nnn nocetete caTata
www.apriliasmartmovement.com
1.Инструкции 3a 6e3oNaChocT
2. CbIbpxkHaHe Ha onaKOBKaTa n crIIO6BaHe
3. NaHopamEn n3rpei Ha npOdyKta
4. 3apekdahe n aKTHBnpaHe Ha 6aTepeyTa
5.Инфорmaцянаkomaндinte /КоHTpoJen naHEn
6.Бbp30ynbTbaHe
7. Перъваши Транспортураи.
8. ABTOHOMeH N 3nJIHeHne
9. CbxaHHe, noIpbXka nNouchTbaHe
10. KoHpIpyaun Ha npJIOKeHHeTo
11. TexHnuecka JInCTOBKa
12. OtrpaHbAHe Ha npo6JIeMn
13. Otrobohoctиошусноя ha rapauneta Ta
14.ИнфорmaцязаизХьрларHe
15.ДeКnapaцnia 3a cBoTBeTcTBne
He otBaprTe n He pa3rno6BaIte 6aTepeRnTa, He ydpIe, He XbprIe, He npo6BaIte n He npKpeRnTe pEdmEt NkM 6aTepeRnTa.
He doKocBaIe HnKaBn BeIecTBA, n3TuAaun OT 6aTePraTa, Tb KaTO TcBDbpxa onacn BSeCTBa. He no3BoJraBe Ha deca nn JNBOTHn da DOKOCBaT 6aTePraTa.
He npe3apejdaIte n He nocTaBraTe B KbCo cBeiHHeHne akymyIaTopa. Pnck ot noXap n EKcPNo3n.
He notanrte n He n3naraTe 6aTeepraTa Ha B0da, IbXd IIN dpYrN TeuHn BeuecTba. He n3naraTe 6aTeepraTa Ha npRA cIbHueBa CBETInHa, Ha npEkoMePHa TOnInHa IIN CTyD (HaNPIMep, He OCTabReTe npOdykTa IIN 6aTeepraTa B ABTOMoBnI Ha npRA cJIbHueBa CBETInHa 3a npOdbJxKtEn H nepNoD OT BpeMe), B CpeDa, CbDbpKaa a EKCnIO3NBn Ra3OBe INI nnMaBtu.
He TpaHcnpTnpaIte n He cbxpaHraBaIte 6aTePnraTa 3aeDHO C MeTaJIHn PpeDMeTI KaTo I6n, KOJIneTa n dp. KoHTaKTbT MExdY MeTAJIHn PpeDMeTI N KOHTaKTITE Ha 6aTePnraTa MOKe Da DOBeDe Do KbCS CbeDInHeHn, BODeU N Do TeLeCNI NOBpeDN NII CMbPT.
5. Информацья на komандente / КонтPORен панел
| eSR2 /eSR2 EVO eSR1 | |
| Задействае на有很大ikатори за ( посoka (ако са нашини) | С.D. A B |
| Уckорітел (A): на Tinaс Hedge HaДу olny, за ду усорітел. Бутон 3a вклочаhe (В): на Tinaс Hedge 3a за ВклочиТЕ/N3КлочиТЕ рordукту. Спирачен loct (C): зaterнete спирачни Дост Промяна на НИВо Ha skорoc't: на Tinaс Hedge 1 пьт 6byToHа (В), за ду无缝ерете щеканото НИВо. Натис Hedge 6byP3O 3 пьтп постковateлho 3a ду staptrupaTe Km/h в Мph. Натис Hedge 6byP3O 4 пьтп постковateлho 3a ду помени ODO на TRIP. ФарOBe: на Tinaс Hedge 2 пьтп skloroHa (В), за ду вклочиТЕ/N3KlочиТe. Звъес: на Tinaс Hedge 1 пьт skloroHa (D) за ду ro Задействае. | Uckorітел (A): на Tinaс Hedge HaДу olny, за ду усорітел. Бутон 3a вклочаhe (В): на Tinaс Hedge 3a за ВклочиТЕ/N3KлочиТe рordукту. Спирачen loct (C): зaterнete спирачни Дост Промяна на НИВо Ha skорoc't: на Tinaс Hedge 2 пьтп skloroHa (В), за ду无缝ерете щеканото НИВо. ФарOBe: на Tinaс Hedge 1 пьт skloroHa (В), за ду вклочиТЕ/N3KlочиТe. Звъес: на Tinaс Hedge 1 пьт skloroHa (D) за ду ro Задействае |
| eSRZ | |
| Задействае на有很大ikatори Зусян озka (ако са нашини) | 888 |
| Уckорітел (A): на Tinaс Hedge HaДу olny, за ду усорітел. Бутон 3a вклочаhe (В): на Tinaс Hedge 2 сekундз за вклочиТe ид: ВклочиТЕ/N3KlочиТe рordукту. Спирачen loct (C): зaterнete спирачни Дost Промяна на НИВо Ha skорoc't: на Tinaс Hedge 2 пьт skloroHa (В), за ду无缝ерете щеканото НИВо. ФарOBe: на Tinaс Hedge 1 пьт skloroHa (В), за ду вклочиТe/N3KlочиТe. ОDO/Пьтувае: на Tinaс Hedge 3 пьт skloroHa (В), за сма на рекима Кm/h-Mph: на Tinaс Hedge 4 пьт skloroHa (В), за ду сма на рекима Звъес: на Tinaс Hedge 1 пьт locta (D) за ду ro задействае | 888 |
| Моden Рер党支部а Фигура Символи | |
| eSR2 eSR2 EVO | 1.НИВО Na 6aTERPЯТа:НИВОТо Na 6aTERPЯТа ce obOЗнauBa c 4 bar. 2.TaXIMeTbр:ВИЗУАЛЗИраTekуцаразсokорst Na TpOTINHETKATA. 3.ODO:ОБшо ИЗMINaTO pa3СТОЯп. 4.IПТУВАЕ:ДиSTANцЯ OТДЕЛнa сеся. 5.NIДиКaToP 3a ВИЛЮВанe Na phapove. 6.NИВО 1 = ДИSCПЯТе pOKAZBA 1 (do 6km/h). 7.NИВО 2 = ДИSCПЯТе pOKAZBA 2 (do 20km/h). 8.NИВО 3 = ДИSCПЯТе pOKAZBA 3 (do 25km/h). 9.Cruise Control:ПОДьРЖанe Na skorocCTTa. АктIVира ce, сleck KaTO пОДьРЖа edha и сьша skopocST 3a НЯКOLKO SEKUnД. ДИSCПЯТе пЗдадe краТьК 3ВуК. 10.NIДиKaToP уСлугa:УКAZBA HeOBxODIMOCCTTa OT пОДрьЖka OT CTpaHa Na OTdelen TextHnueckoобслжВанe 11.CBETПИнен Иndikatop Bluetooth: BINAragnakTNBeH |
| eSR1 | 1.НИВО Na 6aTERPЯТa:НИВОТо Na 6aTERPЯТa ce obOЗнauBa c 7 bar. 2.TaXIMeTbр:ВИЗУАЛЗИраTekуцаразсokорst Na TpOTINHETKATA. 3.ODO:ОБшо ИЗMINaTO pa3СТОЯп. 4.IПТYВАЕ:ДиSTANцЯ OТДЕЛнa сеся. 5.NIДиKaToP 3a ВИЛIOUVAHe Na phapove. 6.NИВО 1 = ДИSCПЯТе pOKAZBA ECO (do 6 km/h). 7.NИВО 2 = ДИSCПЯТе pOKAZBA D (do 20km/h). 8.NИВО 3 = ДИSCПЯТе pOKAZBA S+ (do 25 km/h). 9.Cruise Control:ПОДьРЖанe Na skorocCTTa. АктIVира ce, сleck KaTO пОДьРЖа edha и сьша skopocST 3a НЯКOLKO SEKUnД. ДИSCПЯТе пЗдадe краТьК 3ВуК. |
| eSRZ | aprilia 9 2 6 7 4 1 | 1. Нво на 6аерия: НвOTO на 6aерияа ce обознача в c 4 bar. 2. Татуметър: ВизуалзераTekуцараз ckорост на Тротинettingа. 3. ODO: О二季度 поизmenato разсторно. 4. ПьТУВАЕ: Д��станция OTделна сесь. 5. Иndикатор за вklючвае на phарove. 6. Нво 1-Диспегглше пoka3ва симвов na песхODEц (do 6Km/h). 7. Нво 2=Диспегглше пoka3ва ECO ( do 15 km/h). 8. Нво 3=Диспегглше пoka3ва D ( do 20km/h). 9. Нво 4=Диспегглше пoka3ва S ( do 25 km/h). 10. Cruise Control: Пodedържане на сокорostта. Актувира ce, с重点工作 пodьржа сда и сьца сокорst за няковко секунни. Д��рпегглше п: Кратук Звк. 11. Мерна[eдиница на сокорst: km/h-Mph |
HnkaTopn 3a nocoka (ako ca HauHH)
Pereyipaphe Ha cnpaHnTe loCTObe
| eSR2 /eSR2 EVO eSR1 | |
| B сныай, в кочу спирачкatinga e obteгнatable пекалено ил e пекаленo разхлабени, разхлабete ил затегнete виnta (A).Ако посты на спирачкatinga ce okazeп пекалено мек ил пекаленo Тьрд, доиaco e следва на пьвatable сьпka, може за e необховим do се повтори оерац捜а до достигане на оптумалнatable настroduka. | Ако спирачкatinga e Тьрде стетнatable ил Тьрдeхлабава, Изолзайte гаechen Клич, за драххлабITE Виnta (A), сад joюсу регулайte спирачникабел (сьбсete спирачникабел наогore,aco e пекаленo Stetnat,aco e Тьрдeхлабав,Издьрайte каба на спирачкatinga надoly) и сад TOBA OTHOBO 3atetehete HOBNY BINT (A).П robеретe правл Nicholsonу поразвндане мениду спирачнatable скоа и диска.ИзолзайteВинтовete(B)и(C)да регуларate поэцята /поравн Bavанeto на диска,aco e необховимо. |
| eSRZ | |
| B A C | Ако спирачкatinga e Тьрдe стетнatable ил Тьрдeхлабава, Изолзайte чебокаяпештоctенни Клич,здраххлабITEВинтовete(B)и(C)да регуларate поэцята /поравн Bavанeto на диска,aco e необховимо. |
He n3noJ3BaIte BaIeTo yCTpoNCTBO, DOKaTO WoΦnape.
11. Texhnuecka JnctOBka
Obça nHΦopMaζηa
eSR2eSR2 EVO
| Рама anecdиму anecdиму | ||
| Окачваши поедно и за干嘛 no поедно и за干嘛 no | ||
| Скорост L1: ≤ 6km/h | L2: ≤ 20km/h L3: ≤ 25km/h (makc. скорост) * | L1: ≤ 6km/h L2: ≤ 20km/h L3: ≤ 25km/h (makc. скорost) * |
| Мakсимален наklон** 23% 24% | ||
| Спирачки anecdн спирачка c барабан и за干嘛[eльке рогнha | П徳на спирачka c барабан и за干嘛[eльке рогнha | П徳на спирачka cбарабан и за干嘛[eльке рогнha |
| Гум 10" с поедно и за干嘛 Вьздунна камера Наляганe: 36 psi / 2,5 bar | 10" c поедно и за干嘛 Вьздунна камERA Наляганe: 36 psi / 2,5 bar | |
| Мakсимално натоварвае | 100 kg 100 kg | |
| Вобач | Проберete правлata, koю са в сида вьв вада тдржава | Проберete правлata, koю са в сида вьв вада тдржава |
| РавOTHA Tempepatура -5°C / 45°C -5°C / 45°C | ||
| Нимо на зашита | IPX4 | IPX4 |
| Вре'mе на зашидаheade | okoно 5/6 ча | okoно 6/7 ча |
| Автономия** | do 25 km | do 35 km |
| Еlektrоческа сисема | ||
| Мотор | 0.35kW; 350W Бeэчеков | 0.5kW; 500W Бeэчеков |
| Ди检пелей | В相对较ен LED Иnd尼克атор | В相对较ен LED Иnd尼克atop |
| Баэрия | 36V 8.0Ah 288Wh | 48V 14.4Ah 691Wh |
| ЗашURA на тоху неблии | 31 V | 38 V |
| Гразниça на тох | 17A | 17A |
| С被告п Фуншконалhoeft | пөдөн и заэн LED Иnd尼克атор | пөдөн и заэн LED Иnd尼克atop |
| Bluetooth | Bluetooth | |
| Размeper | ||
| Нeto Тergл 16,5 kg | 18,5 kg | |
| Брутуно Тergл | 18,5 kg | 21 kg |
| Размeperи на отворенья пожддт | 1215x455x1185mm | 1215x455x1185mm |
| Размeperи на отворенья пожддт | 1215x455x550mm | 1215x455x550mm |
| Размeperи на опakobкatinga | 1230x170x600mm | 1230x170x600mm |
*Bunharcna3BaIte Kodekca 3a DnIXeHne no nTnUaTa n npabnata 3a DnIXeHne, KOnto ca B cnla B dbpXaBaTa Ha DnIXeHne.
**Подnexи На помян, В Зависмост OT Ternoto На ВODач, На ПьтHTe усюпя И на TemпepaТура.
Obza HnOpmaun
eSR1eSRZ
| Рама сплав от магнezи | стоманa | |
| Окачваши-- | ||
| Скорост L1: ≤ 6km/h | L2: ≤ 20km/hL3: ≤ 25km/h(Makc. скорост) * | L1: ≤ 6km/hL2: ≤ 15km/hL3: ≤ 20km/hL4: ≤ 25km/h(Makc. скорost) * |
| Мakсимален наков** 22% 21% | ||
| Спирачки Пгедна[elektroponна и за干嘛дискова скрочka | Пгедна[elektropondи и за干嘛дискова скрочka | |
| Гуни 10" бeз травьни р徳и Заден Налягане: 44 psi / 3 bar | 8,5" с п徳и и за干嘛 вьзduшна камераНаляганe: 50 psi / 3,5 bar | |
| Мakсимално натоварванe | 100 kg 100 kg | |
| Вобач | Пробerte правILA对接а, koito саВ сида вьв ваша对接жава | Пробerte правILA对接а, koito саВ сида вьв ваша对接жава |
| РавOTHA Temпература -5°C / 45°C -5°C / 45°C | ||
| Ниво на зашита | IPX4 | IPX4 |
| Вре'mе на зараздени | okoно 6/8 ча | okoно 4 ча |
| Автоюмия** | do 25 km | do 20 km |
| Еlektrоческа сисема | ||
| Мотор | 0.35kW; 350W Бeached | 0.3kW; 300W Бeached |
| Ди检пел | 3,5" LED | Вtrightен LED Иndиケатор |
| Баэрия | 36V 7.8Ah 280Wh | 36V 6.0Ah 216Wh |
| ЗашURA Напlexенье | 31 V | 31 V |
| Гразниça на тоK | 18A | 16A |
| Светлии | п徳ен и заeden LED Иndиケатор | п徳ен и заeden LED Иndиケатор |
| Фунkedионал noct | -- | |
| Размeper | ||
| Нeto Тergлу 15,5kg | 13,8kg | |
| Брутыно Тergло | 19,5kg | 16,6kg |
| Размeper на OTворенье пождкт | 1060x475x1170mm | 1120x445x1155 mm |
| Размeper на заевочни пождкт | 1060x475x490mm | 1120x445x500mm |
| Рazмeper на onakobka差别 | 1150x190x510mm | 1140x160x515 mm |
*Bunar n cna3BaIte KodeKca 3a DnXeHne NO nbTnUata N npabnlaTa 3a DnXeHne, KOnto ca B cnJa B dbpxAbata Ha DnXeHne.
** Побпеки на помяна, в Зависмост OT Terноу На Вдача, на NBTHITE усюня и на Temпepатура.
- MHHIMaJIHa Bb3pacT, pa3peWeHa 3a BoDaHa,
- orpaHnueHn 3a Tnna BoDaun, KOnTo MoRaT da N3NoJ3BaT npOdyKTa
- BCNUKn dpyr n acneKTn, CBbP3aHn C perJaMeHTN
BodaT eДьЖeH CbIoo Taka Da NOdIbPka IpoDyKTa YIcT N B nepOpeKTHO CbCTOHa He oEeKTHBHOCT N OIDpBXKa, Da N3BbPbWA BHNMaTeJIHO IpoBepKITE 3a 6e3OnaCHOCT Ha HrOBA OTROBOPHOCT, KaKTo e ONICAHO B INPeXoDHNTE pa3JeN, Da He NOdnpBa IpoDyKTA NO HNKaKBb HauHH I Da CbXpaHЯBa ZIJaT aDOKyMeHTaCnA, CBbp3aHa C NOdIpBXKaTa.
HnmuTa He Hocn OTROBOPHOCT 3a 5eTN, npuHHeH N He npuHHeH N NO HnKaKbB HaHH He Hocn OTROBOPHOCT 3a 5eTN, npuHHeH Na IMyUecTBO IIN JIua, B CnyuAHTe, KORATo:
- npOdykTbT ce n3noI3Ba HenpaBnH0 IIN He OTROBapr Ha IHCTpyKcNITe B pboBOODCTBOTo 3a yNoTpe6a;
- npOdykTbT, CJIeI 3aKyIyBaHe, e npOMEHeH IIN IOJnpaBeH BbB BCnUKN IIN HAKON OT HeROBNTe KOMNOHEHTN."
B clyuha Ha Hen3npaBHOCT Ha npodykTa nopadn npuHH, KOHTo He ce dJxKAT Ha HnpaBOMepHo NOBeHHe Ha BODaHa N B clyua, Ye JeJaTe Da ce 3ano3HaTe C oBUnTe ycNoBna Ha rapaHcIyTa, MoJIa, CBbPxKeTe Ce C TbproBeca nn nocetete https://www. apriliasmartmovement.com/en/
BnHarnCe n3KnIOUcbat OT oxbata Ha IpaBHaTa rapaHcna Ha IpoDyKTnte, eBeHTyaJIHn NOBpeN nn HEn3IpaBHOCTn, npuHHeNOT cnyaHn Cb6tura /nnI DblJxau Ce Ha OTROBOPHOCT Ha KynBaua nn OT ynoTpeBa Ha IpoDyKta, KOrTO He CbOTBeTcBA Ha IpeDbUHeHa T yNoTpeBa nn HAp3npoeD6te Ha TexHueckata DokymeHTaun, npInOKeHa KbM IpoDyKta, nn NopAdn nnca Ha HAcTPOka Ha MexAHnuHnTe qactn, eCTeCTBeHO n3HOCBaHe Ha HOceUHTe MaTePnAIn nn npuHHeN O T rpeWkn B CrIIO6raBaHeTo, nnCa Ha NoIdpbXka nn /nnI TAXHaTa yNoTpeBa, KonTo He OTroBaprt Ha INcTpyKcUnTe. HanpImep, Tpr6Ba da ce cHTa, ye CNeEdHnTE eJeMeENTn Ca n3KnIOUcHn OT pRaBHaTa rapaHcna, CBbp3aHa C IpoDyKTnte:
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXXX to YYYYY2020XXXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
AutoTo EyyEipioIO IOxUeI YIA Ta aKoLouOa nEkTpiKa TATIVia:
eSR1
eSR2
eSR2 Evo
eSRZ
Evyειρίδιο χρήσης
Metappaon Twv Tpwtotuww oyniow
Zaç Euxapiotouμe Toun Eπiégαte auto To Tpoiov.
Tia πλnpoφopieç, TExviñuTTOoTnpiŋ Kai Boθεiα, Kaθωc Kai yia va δiaβaσεTE Touc γεviKouc opouc Eyyúnəng aπεuθuvθεite στον πρoμηθεutn αac n επισκεφteite Tov IOTóTOTTO www.apriliasmartmovement.com
EVIKcTPOeIbOToiInoEic
PPOZOXH
Eivai oμavikó va éxεTE uTóyn oTI otav βpiokεoTE σδημoio xwpo n OTov dpóμo, akoun KAI OTV TnpéITE kata ypáμα auto TO eyyεipidio, δev iσTE aTóλuTa TTPOOATeUμévoi aTTOpaμaioouc TOU μTOpεi va opeiaovtaI Ε πapβaoeic n akataaanLεC εvρyeieC Ε oxéon μe alla oxμata, επtóbia n atoua. H kakn xpnoTou TTPOIOVTOc n n mtnpnon TOW obnyiw Tou pApovTOC eyyεipidiou μTOpεi va TTPOKaλeouuv oopapeç ζημieC.
To pioiov auto eva nekpiko oxma. Ooo TIO ynpyopa to odnyeite, toco
TepiooTepo einnkuveta oiaotma neonc. H eieouaa neon ane oiaonpuoc,
laanwdeic, bpeyevouc n panwouc opouc mtopei va npokaleoei tvn oiaonnTwv
tpoxw kai nV aIwlaia nC Iooppoiaac. Eivai aTapaitno va diatnpetai n katalnn
taxutnta kai aIootaon aoaaleiac ato alaa oxmuata n Teouc. Aattteita myiotn
tpooxn otav odnyeite oaywotouc dpouuc. Mnv avoiye to stavr otnpicns evw
xpnoiotioieite to pioov, biotu npaxei kivduvoC va poknthei oobapoc ppoawtikoc
tpauatiooC n 9nua oTO pioiov.
PPOZOXH
Sigma 0.05 M (100 mg) (20 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (10 mg) (20 mg)
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489-17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSIEN301489-17V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED:ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in
countries that follow the CE marking directives.
:dllll llygsll lglgsw
eSR1
eSR2
eSR2 Evo
eSRZ
D
aJUJI aJUJI J
.
gogall ojju jai g iiaabio gaoaoll e jgolly jaii aolll jaial bgs lc gbll jogdoaalglall aolll
www.apriliasmartmovement.com
aolwullulal.1
gogolgoo.2
cioll lc dolo oybi .3
aJbll b. g jxwll .4
aai / aai / 1g5j clogs .5
2.6
jajg 51.7
15yI yJzog aJb00.8
aillg aallg bai1.9
10
aJdAaJg1.11
1.2
aolall jllal bgygagjglguil .13
alssill jw logdso.14
aJbJ1j.15
J 1.
Jaaannllg aJg
3 2 .
aawio a ydd awwgo ll gglgall aowll oolwll gjbn waioll acll
- 3.
aagaiallg cglal g 1glll yll l 111111111111111
Jlgljll Jaiolalw yIg bdoIg wsw jno aolalw ggyaiaeall llaolalw 4 . jy
.
11 Jai gI aIauuall gI aygSlyaalll aaiyraiaaii Iia ayalalalalalalalalalalalalalalalalalalalalalalal
.5g1 Cldao gl C5o
gill iiaolaii aiall alaii jj gnnn nll lalll gagaaalall gall aagawll nnll nll aaywll aalglg 1gbl ,
lgljg lglalldjo
.(A)J70jolal 1 A ooggall (cloggll)gall sbai
aJ
Jl Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn J
.
4
aL
.0jfo g 1g 2g 3g 4g 5g 6g
j_b
aai jblal
. 1
aole 1
4
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
a>Jg 3 JdU11e 3 0sJglll
1aJg 10000000000000000000000000000000000000000000
1olally oyl 20,51 jjooolly
a 1 a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
.
ailllll llll cllc a jy gaiigg jgswjly
.1JJJ Jn JauJg aJb: (A)
alabgl jlljnljnljol: (B) jllljj
aloljll jno aaill jn nn (C) alojll aoi
J 15.48900000000000000000000000000000000000000000000000
1y 8
:duo 1y d y aal y aol l 1y uag ay aay aauu
J 1
a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a. a.
aJy aag aayabll oJe yjolal g o jgll d ayd a jg kwlld 0jg: oJrJl
Jkay aIbll Oo JdJI bglggyaannll sbllg gJy. yJIbJI Oo no aIg aall oaij: oaiJI baig ac
aJbll oo no Jo Jbi Wlaxil jll acjll.
oJoo (11 aell 8 aegjoll aagll) clll bcll alalall gaaall gaiall g jolll ool
.0g j 2000 a1j 151 yu 1000
.
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa
aalbgiag aeggll albig jaiIg gaiol biaig aaglglkgsaagssgaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J
. Aprilia eSR2 EVO ,Aprilia eSR2 :Aprilia Smart Movement . Aprilia Smart Movement
a aalaae aee eae aee ae aee
. 1
aole clogso
eSR2eSR2 EVO
| العربية الحرفية | |||
| ال�ا | العربية | العربية | العربية |
| \( \ddot{a} c l w/ \rho s 6 ≥ :L1 \) | \( \ddot{a} c l w/ \rho s 20 ≥ :L2 \) | \( \ddot{a} c l w/ \rho s 25 ≥ :L3 \) | \( \ddot{a} c l w/ \rho s 6 ≥ :L4 \) |
| \( \ddot{a} c l w/ \rho s 25 ≥ :L3 \) | |||
| *(\( \ddot{s} g s a c l l a c l r e s w l l \)) | *(\( \ddot{s} g s a c l l a c l r e s w l l \)) | ||
| **\( \ddot{s} g s a c l l a c l r e s w l l \)%23%24 | |||
| \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) |
| \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) | \( \ddot{a} c k h a s p l o w a l a y \) |
| \( \text{ملايره}/\text{ملايره}"10 \) | \( \text{ملايره}/\text{ملايره}"10 \) | \( \text{ملايره}/\text{ملايره}"10 \) | \( \text{ملايره}/\text{مleaيره}"10 \) |
| \( \text{jال 2.5 / } \text{العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/العاء \/الع eighteen} \) | \( \text{jال 2.5 / } \text{الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen �\ddot{a} c l w/ \rho s 6/5 \) | \( \text{jال 2.5 / } \text{الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/الع eighteen \/{\ddot{a}} c l w/ \rho s 6/5 \) | \( \text{jال 2.5 / } \text{الع eighteen \/الع eighteen \/الع eighteen \/{\ddot{a}} c l w/ \rho s 6/5 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P x 4 \) | \( \ddot{I} P X 4 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I}\ddot{P}\ddot{X}4 \) | \( \ddot{I}\ddot{P}\ddot{X}4 \) | \( \ddot{I}\ddot{P}\ddot{X}4 \) |
| \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) | \( \ddot{I} P X 4 \) |
y
aill 1iis 4 gawll jll .1
aoll oolai waj jg jj jn jn aalll caiog asab lc ao gaoal gai .2
aall 1s yll 1g aaggl g algal .3
Jc aolaiisil glbi 4aayaoxlll clogx jiaag aiwllg oelssl no aullloag laii jc bally aljyl sll Jc y
aalally aaleoall gttgll jc blaolg ayrb ayuull cssll oac ally. dawl olw y
$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$
$$ \left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left. \text {山} ^ {\prime} = 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 5 ^ {\prime} = 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime} = \right) ^ {\prime}\right) ^ {\prime} = \right) ^ {\prime} = $$
$$ \therefore \text {c l} (\text {a d a l l g} \text {a d a l l}, \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l}) \text {c l} (\text {c l} (\text {a d a l l}) \text {c l} (\text {a d a l l})) $$
$$ \frac {j \dot {e} \quad a _ {i j} \omega_ {i j}}{g / g} \text {a} _ {i j} \omega_ {i j} \text {a} _ {i j} \omega_ {i j} \dots \text {a} _ {i j} \omega_ {i j} $$
$$ : {1 0 2 5 } = 1 g _ {1} ^ {3} $$
$$ j _ {i} ^ {\prime} \text {a l l} j _ {i} ^ {\prime} \text {g} _ {i} ^ {\prime} \text {j} _ {i} ^ {\prime} \text {b l l} j _ {i} ^ {\prime} \text {d i s t} g _ {i} ^ {\prime} \text {d i a l l} \dots \text {c a l l} $$
$$ \because (g) \left[ \begin{array}{l l} \text {I} & \text {I} \ \text {I} & \text {I} \end{array} \right] \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I} \text {I}, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, g / g, $$
$$ \left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$
$$ : \left. g _ {j} \right\rangle_ {\mathrm {a l l}} \otimes \left. g _ {j} \right\rangle_ {\mathrm {a l l}} \otimes \left. g _ {j} \right\rangle_ {\mathrm {a l l}} \otimes \left. g _ {j} \right\rangle_ {\mathrm {a l l}} \otimes \left. g _ {j} \right\rangle_ {\mathrm {a l l}} \otimes \left. g _ {j}\right) $$
$$ \cdot \text {a l o l} \text {r e} \text {j a c} \text {g b} \text {a l d i s w} \text {j e} \text {a l l} \text {w g} \text {s a l l} \text {g} / \text {g} \text {c a l l} \text {l g} \text {j r o l} $$
$$ / / \text {h t p s : / / w . a p r i l i a s m a r t m o v e m e n t . i t / e n / s u p p o r t g e g o l l} \quad \mathrm {j c} \quad \text {l i a l l} \quad \mathrm {j c} \quad \text {l a w} \quad \mathrm {b g n} \quad \mathrm {j c} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} \quad \text {d} $$
(1)
aai jg j 25 1jgl j g j 1y l) o aag k y g aeg y h y aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aAL
glll) aaii jaiy iayjai yil gllg lglg sgsaagaaal 10000000000000000000000000000000000000000000000000000000000000000000
（）
g. aie aie iaiiia iiai iiai ie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie iie i ie
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a
1JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg
CE
Declaration of conformity
The undersigned: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
certifies
that the design and manufacture of this product
| Product brand: | Aprilia |
| Item model number: | eSR1 |
| Type of product: | Electric scooter |
complies with the following directives: Machinery Directive 2006/42/EC
MD Standard:Annexe I of 2006/42/EC,EN ISO 12100:2010
EN 60335-1:2012+A11:2014+A13:2017, EN62233:2008
EMC: EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019
RoHS: 2011/65/EU + 2015/863/EU
and therefore complies with the essential requirements of the Machinery Directive.
MD 2006/42/EC
LVD 2014/35/EU
EMC 2014/30/EU
Serial number: YYYYY2020XXXXXX to YYYYY2020XXXXXXX
Name and surname: Emanuele Summa
Summa Position: Administrator
Officer Company: M.T. Distribution S.r.l.
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italia
Date: 01/12/2020
CE
Declaration of conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
| Product brand: | Aprilia |
| Product model: | eSR2 |
| Description of product: | Electric scooter |
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
EN 60335-1:2012+AC:2014+A11:2014+A13:2017
ETSI EN 301 489-1 V2.2.3:2019-11
ETSI EN 301 489-17 V3.2.4:2020-09
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
CE
Declaration of Conformity
M.T. Distribution S.R.L
Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSR2 EVO
Description of product: Electric Scooter
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2011/65/EU (ROHS)
2014/30/EU Electromagnetic Compatibility Directive
(UE) 2019/1782 (ERP)
Applicable harmonized standard(s):
EN 62479:2010
EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09)
EN 55032
EN IEC 61000-3-2:2019, EN IEC 61000-4-11:2020
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-11
EN 55035
EN 301489 -17
EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
EN 55014-1:2017+A11:2020, EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2014
IEC/EN 62368-1
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN 50581:2012
IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-8:2017
EN 14372:2004
EN 50563:2011/A1:2013
IEC 62133-2:2017
IEC 61960
Factory name: SICHUAN AEE AVIATION TECHNOLOGY CO., LTD.
Factory address: Room 812, enterprise service center, No.17, section 3, west section of
Changjiang North Road, Linggang Economic Development Zone, Yibin City, SICHUAN, P.R.C
Date: 25/06/2021
Technical file available from EU headquarters
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE: This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
C E
Declaration of Conformity
PLATUM by M.T. Distribution S.R.L
Address: Via Bargellino 10 c/d, 40012 Calderara di Reno (BO), Italy
This declaration of conformity is issued under the sole responsibility of the Manufacturer
Product Brand: Aprilia
Product Model: eSRZ
Description of product: Electric Scooter
Serial identification number(s): APMNXX2X0XXXXX
Is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating:
2006/42/EC Machinery Directive
RED 2014/53/EU Radio Equipment Directive
2014/30/EU Electromagnetic Compatibility Directive 2014/35/EU Low Voltage Directive
Applicable harmonized standard(s):
MD: EN ISO 12100:2010, EN 60204-1:2018
EN ISO 13857:2019
EN ISO 13849-1:2015
EN ISO 13850:2015
EMC:ETSI EN 301489-17 V3.2.4
ETSI EN 301 489-1 V2.2.2
EN 55032:2015
EN 61000-6-3:2007+A1-2011, EN 61000-3-2:2014, EN 61000-3-3:2013
LVD: EN 62368-1-2014+A11-2017
EN 62479:2010
EN 60335-1:2012/A13:2017
EN 62233:2008
EN 60529:1991+A1:2000+A2:2013
RED: ETSI EN 300 328 V2.2.2
EN 17128:2020
Factory name: Zhunhai Chang Jing Trade Co., Ltd
Factory address: Room 2-502 HGSS Building, Ianpu Road, XiangZhou Area, Zhunhai City, China 519000
Date: 29/11/2021
Technical file available from EU headquarter
Declaration Place: Bologna, Italy
First name and surname: Alessandro Summa
Position: CEO
MT DISTRIBUTION S.R.L
Via Bargellino 10, 40012, Calderara di Reno (BO), Italy
Authorized person: Alessandro Summa
Position: CEO
NOTE:
This declaration of conformity is only applicable to Electric Scooter sold in countries that follow the CE marking directives.
