USER MANUAL CID15020ProS SCHEPPACH

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Revisionsdatum 03. February 2021

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

	Read the operating and safety instructions before start-up and follow them!
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
	Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
	Wear work gloves.

Table of contents: Page:

1. Introduction 16
2. Device description 16
3. Scope of delivery.. 16
4. Intended use. 16
5. Safety information 17
6. Additional SafetyWarnings 18
7. Residual risks 19
8. Technical data 19
9. Unpacking 19
10. Installation 19
11. Cleaning 20
12. Storage 20
13. Maintenance 20
14. Disposal and recycling 20
15. Troubleshooting 21

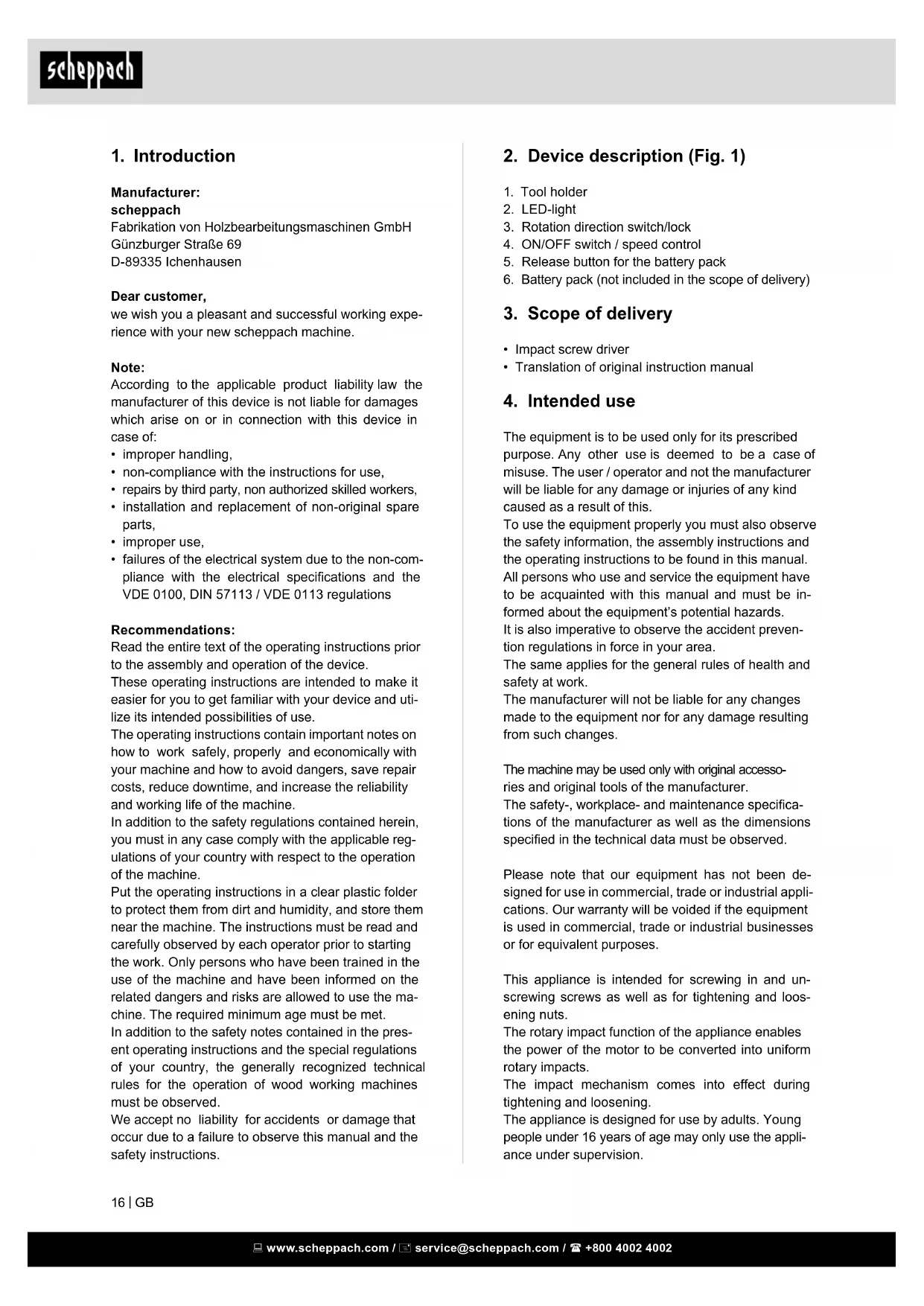

1. Introduction

Manufacturer: scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

we wish you a pleasant and successful working experience with your new scheppach machine.

Note:

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
  improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation of the device.

These operating instructions are intended to make it easier for you to get familiar with your device and utilize its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply with the applicable regulations of your country with respect to the operation of the machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work. Only persons who have been trained in the use of the machine and have been informed on the related dangers and risks are allowed to use the machine. The required minimum age must be met.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. 1)

1. Tool holder
2. LED-light
3. Rotation direction switch/lock
4. ON/OFF switch / speed control
5. Release button for the battery pack
6. Battery pack (not included in the scope of delivery)

3. Scope of delivery

• Impact screw driver
• Translation of original instruction manual

4. Intended use

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual.

All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment's potential hazards.

It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes.

The machine may be used only with original accessories and original tools of the manufacturer.

The safety-, workplace- and maintenance specifications of the manufacturer as well as the dimensions specified in the technical data must be observed.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

This appliance is intended for screwing in and unscrewing screws as well as for tightening and loosening nuts.

The rotary impact function of the appliance enables the power of the motor to be converted into uniform rotary impacts.

The impact mechanism comes into effect during tightening and loosening.

The appliance is designed for use by adults. Young people under 16 years of age may only use the appliance under supervision.

The manufacturer accepts no liability for damages caused by improper use or incorrect operation of the appliance.

Use this product only as described and for the areas of applications specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

5. Safety information

General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions specifically for impact screwdrivers

• Hold the power tool by the insulated gripping surfaces, when performing an operation where the screw or attached tool could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock.
• Wear hearing protection when impact screwing.
• Exposure to loud noise can lead to hearing loss.

• Secure the workpiece! A workpiece securely held by a clamping device or vice is much safer than one held in your hand.

• Hold the power tool firmly. High torques can occur for brief periods while tightening and loosening screws.

• Wait until the power tool has come to a standstill before putting it down.
• The tool can jam, this leading to loss of control of the power tool.

6. Additional SafetyWarnings

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Information on the rechargeable battery

• Please observe the operating manual for the rechargeable batteries.

Information on the charging unit and charging process

• Please observe the operating manual for the charging unit.

Careful handling and use of battery devices

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.
• Recharge the batteries indoors only because the battery charger is designed for indoor use only. Risk of electric shock.

• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

• Allow a hot battery to cool before charging.
• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
• Do not use non-rechargeable batteries. This could damage the appliance.

7. Residual risks

The machine has been built according to the state of the art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this manual. This ensures that your machine performs optimally.
• Hands may never enter the processing zone when the machine is in operation.

8. Technical data

Motor power supply:	20 V
No load speed:	0 - 2000 min-1
Impact power:	0 - 3000 bpm
Torque:	150 N.m
Tool holder	1/4" (6,35 mm)
Weight	1,2 kg

Subject to technical changes!

Noise and vibration

Warning: Noise at the workplace can exceed 85 dB (A). In this case, noise protection measures are necessary for the user (wear hearing protection!).

Noise output in dB

Sound power level L_wA 102 dB(A) (EN ISO 3744)
Sound pressure level L_pA 91 dB(A) (EN ISO 11201)
Uncertainty K_wa/pA 3 dB(A)

Vibration value

Vibration ah 20,3m / s^2 Uncertainty Kh 1,5 m/s

9. Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage. Inform the transport agent immediately of any faults. Later complaints cannot be considered.
• If possible, store the packaging until the warranty period has expired.
• Familiarize yourself with the machine with the help of the operating instructions manual before using it.
• Use only original parts for accessories as well as consumables and spare parts. Spare parts can be obtained from your scheppach retailer.
• Please quote our article numbers as well as type and production year in all your orders.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

10. Installation

To ensure that the Li battery pack provides long service you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops.

Insertion / removal of a batterypack into the appliance

Ensure that the appliance is switched off before inserting the battery. The insertion of a battery into an electrical appliance that is switched on can lead to accidents.

Inserting the rechargeable battery pack:

Move the rotation switch (3) into the middle position (lock) and push the rechargeable battery pack (6) into the handle until it engages.

Removing the rechargeable battery pack:

Press the release button (5) and remove the rechargeable battery pack (6).

Used batteries

If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.

Switching on and off

Switching on:

To start the appliance, press the ON/OFF switch (4) and keep it pressed in.

The LED working light (2) lights up when the ON/OFF switch (4) is depressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching off:

Release the ON/OFF switch (4) to switch off the appliance.

Setting/preselecting the rotation speed/tightening torque

Press the ON/OFF switch (4) lightly for a low speed/ tightening torque.

Increasing the pressure increases the speed/tightening torque. The tightening torque depends on the selected speed/torque preselection and impact duration.

NOTE

However, to tighten lug nuts, the smallest torque setting must be selected to avoid over tightening.

CAUTION!

The tightening torque actually attained must always be checked with a torque wrench!

NOTE

The integrated motor brake ensures rapid stoppage.

Changing the direction of rotation

Change the direction of rotation by pressing the rotation direction switch (3) towards the left or right.

11. Cleaning

Danger!

Always pull out the battery pack before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

12. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30^ . Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool.

13. Maintenance

There are no parts inside the equipment which require additional maintenance.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Carbon brushes

• Not necessarily included in the scope of delivery!

14. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective elements must be disposed of as special waste. Your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive 10 (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be used at a designated collection point. This can be, for example, by handing it in at an authorised receiving point for the recycling of waste electrical electronic equipment. Improper handling of the equipment may have negative consequences on the environment and human health due to potential hazardous substances that are often contained in electrical and electronic equipment. By properly using of this product, you are also contributing to effective use of natural resources. You can gain information on collection points for waste disposal from your municipal administration, rubbish disposal authority, an authorised body for disposal of waste electrical and electronic equipment or your waste disposal company.

15. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
Device does not start	Battery empty Charge battery
	Battery defective	Check the battery, have it repaired by a certified electrician if necessary
	On/off switch defective Repair by an authorised service centre
	Motor defective Repair by an authorised service centre
Motor stops during operation	Battery empty Charge battery
	Battery not inserted correctly Re-insert battery
	Battery defective Clean contacts, replace original battery
Reduced power	Battery depleted Replace battery
	Battery not fully charged Charge battery

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Vázeni zákaznici,

Günzburger Straße 69

D-89335 Ichenhausen

Tiszelt vásárló!

CE - Declaration of Conformity

Impact Wrench -CID150-20PROS

Clé à chocs

5909223900

01001-02001

2014/29/EU		2004/22/EC	89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU	2014/68/EU	90/396/EC	Annex V
X	2014/30/EU	X 2011/65/EU*		Annex VI Noise: measured LwA = xx dB(A); guaranteed LwA = xx dB(A) P = xx KW; L/∅ = cm Notified Body: Notified Body No.:
X 2006/42/EC
	Annex IV Notified Body: Notified Body No.:Certificate No.:			2010/26/EC Emission. No:

Standard references:

EN 62841-1:2015; EN 62841-2-2:2014; EN 55014-1:2017; EN 55014-2:2015

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

90

Documents registrar: Thomas Schuster

Günzburgr Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not

manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
