Product Type	Cordless Screwdriver
Brand	RYOBI
Model	CSD4107BG (CSD41)
Rated Voltage	4 V DC
No-Load Speed	180 rpm
Maximum Torque	5 Nm
Clutch	12 positions
Chuck	6.35 mm (hexagonal)
Max Drilling Capacity	5.00 mm (diameter)
Weight (with battery)	0.47 kg
Power Supply	Integrated 4 V lithium-ion battery
Charger	230 V, 50 Hz, AC; output 4.5 V, 160 mA
Charging Time	10 to 12 hours (first charge); 3 hours minimum after normal use
Sound Pressure Level (LpA)	62 dB(A); uncertainty K=3 dB
Sound Power Level (LWA)	73 dB(A); uncertainty K=3 dB
Vibrations (screwdriving without impact)	0.6 m/s²; uncertainty K=1.5 m/s²
Vibrations (metal drilling)	0.8 m/s²; uncertainty K=1.5 m/s²
Main Functions	Variable speed trigger, reversible, LED work area light, adjustable clutch, spindle lock, gripzone coating
Safety	Insulated gripping surfaces, lock in center position, short circuit protection
Maintenance and Cleaning	Clean with a clean cloth; do not use solvents; do not immerse in water
Spare Parts and Repairability	Repair by authorized service center; use original parts; do not disassemble the battery
Warranty	24 months; extension possible via online registration within 30 days
Certifications	CE, EAC, Class II, double insulation

Frequently Asked Questions - CSD4107BG RYOBI

How long does it take to fully charge the battery?

The charging time is approximately 10 to 12 hours for a full charge. After normal use, a charge of 3 hours minimum is sufficient. Use only the supplied charger (230 V, 50 Hz).

How to change the rotation direction of the screwdriver?

Use the rotation direction selector located above the trigger. For tightening, set it to the left; for loosening, to the right. The center position locks the trigger to prevent accidental starting.

How to adjust the tightening torque?

Turn the torque adjustment ring to one of 12 settings. Settings 1-2 are for small screws, 3-4 for soft materials, 5-7 for mixed materials, 8-9 for hard wood, and 10-11 for large screws. Setting 12 corresponds to maximum power.

What if the LED work area light does not turn on?

The LED light turns on when you press the trigger. If it does not turn on while the tool is working normally, it means the battery is low. Recharge the screwdriver immediately.

How to insert and remove a screwdriver bit?

Firmly insert the bit into the hexagonal collet until it clicks. To remove it, simply pull the bit out of the collet. The spindle is locked when the trigger is released.

What type of battery does the screwdriver use?

The screwdriver is equipped with an integrated 4 V lithium-ion battery. It cannot be removed. Recharge it with the supplied charger. Do not attempt to disassemble it.

How to clean and maintain the screwdriver?

Use a clean cloth to wipe off dust, oil, or grease. Never use solvents or harsh chemicals. Do not immerse the tool in water. Plastic parts may be damaged by certain liquids.

What are important safety precautions?

Always wear safety glasses and hearing protection. Hold the tool by the insulated gripping surfaces to avoid electric shock. Use the trigger lock in the center position when not in use. Keep the tool out of reach of children.

What is the warranty period and how to extend it?

The warranty is 24 months from the date of purchase. To extend it, register your tool on www.ryobitools.eu within 30 days of purchase. The warranty covers manufacturing defects but not normal wear.

Where can I have my RYOBI screwdriver repaired?

Find the nearest authorized service center on the website http://fr.ryobitools.eu. Use only original parts and have repairs done by a qualified technician. Do not attempt to repair the battery yourself.

User questions about CSD4107BG RYOBI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Screwdriver in PDF format for free! Find your manual CSD4107BG - RYOBI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CSD4107BG by RYOBI.

USER MANUAL CSD4107BG RYOBI

RYOBI CSD4107BG - 1

RYOBI CSD4107BG - 2

RYOBI CSD4107BG - 3

RYOBI CSD4107BG - 4

RYOBI CSD4107BG - 5

RYOBI CSD4107BG - 6

RYOBI CSD4107BG - 7

RYOBI CSD4107BG - 8

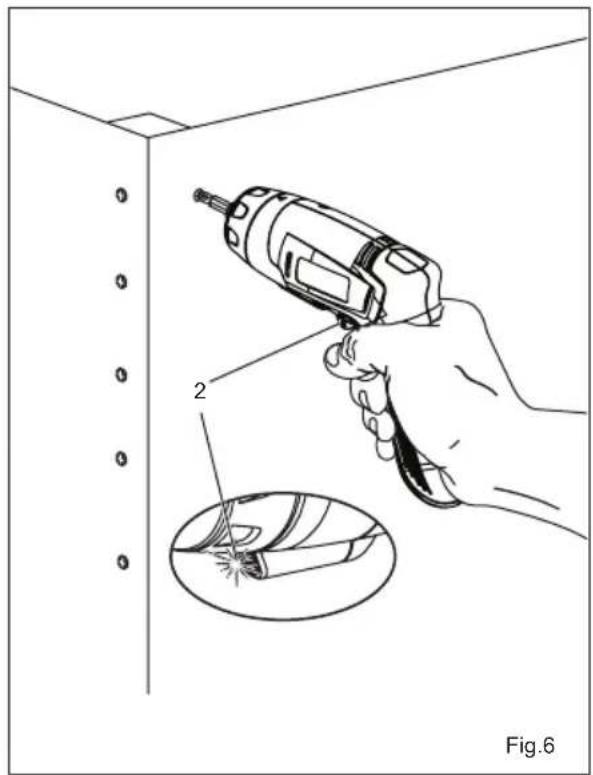


RYOBI CSD4107BG - 9

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dúležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Bажно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Bажливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Dikkat!	Ürünün montajını, bakımını yapmadan ve ürünü çalıştırmadan önce bu kılavuzda yer alan talimatları okumanız önemlidir.
Просохн!	Еівали полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

RYOBI CSD4107BG - 10

RYOBI CSD4107BG - 11

(EN) Important!

This appliance is not intended to be used or cleaned by persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given instructions concerning the safe use of the appliance by a person legally responsible for their safety. They should be supervised whilst using the appliance. Children shall not use, clean or play with this appliance, which when not in use should be secured out of their reach.

(FR) Attention!

Safety, performance, and dependability have been given top priority in the design of your screwdriver.

INTENDED USE

The screwdriver is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

The product is intended for fastening and removing screws and bolts.

Do not use the product in any way other than those stated for intended use.

NOTE: It is recommended to use pilot holes prior to driving screws.

RYOBI CSD4107BG - INTENDED USE - 1

RYOBI CSD4107BG - INTENDED USE - 2

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

DRILL AND SCREWDRIVER SAFETY WARNINGS

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
■ Hold power tool by insulated gripping surfaces, when performing an operation where the fasteners may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

CHARGER SAFETY WARNINGS

■ Do not expose charger to wet or damp conditions.
■ Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injuries to person.
■ To reduce risk of damage to charger body and cord, pull by charger plug rather than cord when disconnecting charger.

■ Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage and stress.
■ An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used, make sure:

That pins on plug of extension cord are the same number, size and shape as those of plug on charger.
That extension cord is properly wired and in good electrical condition.

■ Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, have the charger replaced by an authorised serviceman.
■ Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
■ Do not disassemble charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
■ To reduce risk of electric shock, unplug the charger from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk.
■ Disconnect charger from power supply when not in use.
■ Risk of electric shock. Do not touch uninsulated portion of output connector or uninsulated battery terminal.
■ Save these instructions. Refer to them frequently and use them to instruct others who may use this unit. If you loan someone this unit, loan them these instructions also.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

SPECIFICATIONS

4V lithium-ion screwdriver

Model CSD41

Motor 4 V DC

English

Switch

Single Speed /

Reversible

No load speed (Drill mode): 180 r/min.(RPM)

Clutch 12 Positions

Torque 5 Nm max

Collet 6.35 mm

Weight (included battery) 0.47 kg

Maximum Drilling Capacity Dia. 5.0mm

Charger Rating

Input: 230V-AC 50Hz

Output: 4.5V-DC 160mA

Charge Time

10 - 12 hours

Measured sound values determined according to EN 60745:

A-weighted Sound pressure level

L_pA = 62 ~dB(A)

Uncertainty K

3 dB

A-weighted Sound power level

L_WA = 73dB(A)

Uncertainty K

3 dB

Wear ear protectors.

The vibration total values (triaxial vector sum) determined according to EN 60745:

Screwdriving without impact a

h = 0.6 m/s ^2

Uncertainty K

1.5 m/s²

Drilling into metal

a_h,D = 0.8 m/s^2

Uncertainty K

1.5 m/s²

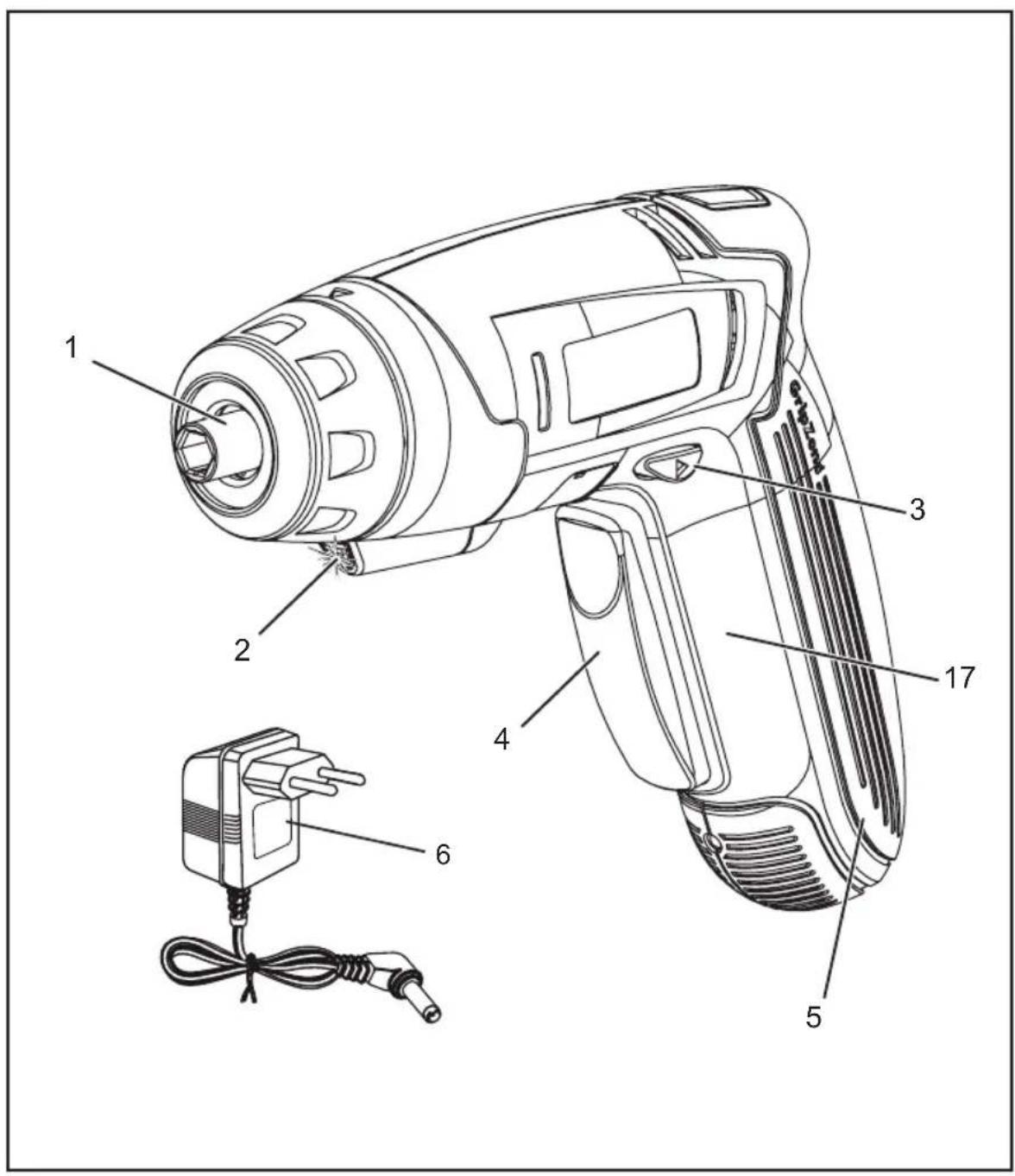

DESCRIPTION

Chuck
LED worklight
Direction of rotation selector (forward/reverse/center lock)
Switch Trigger
Grip zone
Charger
Red charge light
Input jack
Charger plug
To decrease torque
To increase torque
Torque adjustment ring
Reverse
Forward
Collet
Bit
Handle, insulated gripping surface

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

■ Damage to hearing caused by noise
Wear suitable hearing protection and limit exposure.
■ Injury to the eyes
Wear protective eye shields or goggles when using the product.
■ Injury caused by vibration
Limit exposure. Follow the instructions in Risk Reduction.
■ Electric shock caused by contact with hidden wires
Hold the product only by insulated surfaces.
■ Injury caused by dust

Dust created by operating the product can cause respiratory injury. Wear appropriate dust control mask with filters suitable for protecting against particles from the material being worked on.

RISK REDUCTION

It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
■ After each period of operation, exercise to increase blood circulation.
■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR EL

English

OPERATION

WARNING

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING

Always wear safety goggles or safety glasses with side shields when operating products. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

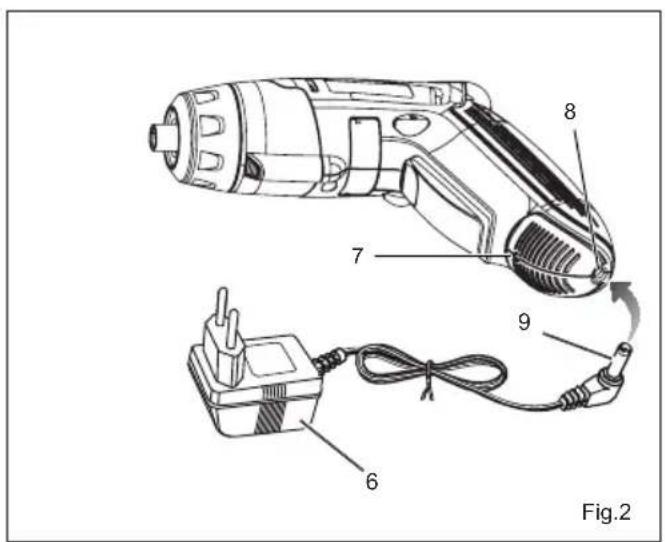

TO CHARGE

See figure 2.

When charging the screwdriver, a red charge light will illuminate on the handle of the screwdriver. This red charge light will go off when the screwdriver is fully charged.

■ Insert charger plug into input jack making sur properly connected.
■ Charger can be used with normal household voltage of 230V,50Hz, AC only.
■ Connect charger to power supply.
■ After normal usage, a minimum of 10-12 hours charging time is required to fully recharge the screwdriver.
■ Do not place charger in an area of extreme heat or cold. It will work best at normal room temperature.
■ Remove the product from the charger once it is fully charged and ready for use.

WARNING

Battery products are always in operating condition. Therefore, the switch should always be locked when not in use or carrying at your side.

ADJUSTABLE TORQUE CLUTCH

This screwdriver is equipped with an adjustable tool clutch for driving different types of screws into different materials. The proper setting depends on the type of material and the size of screw you are using.

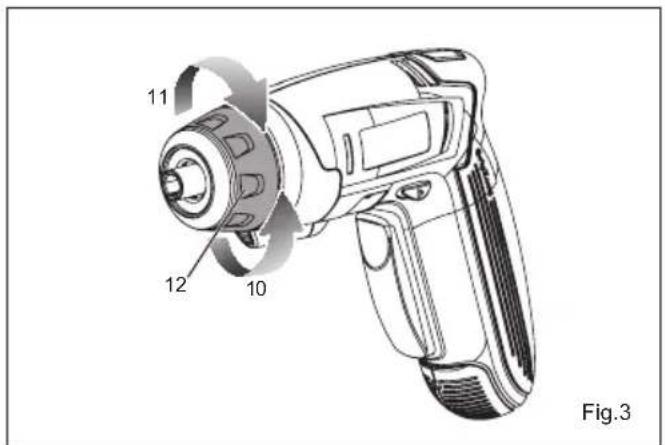

ADJUSTING TORQUE

See figure 3.

There are twelve torque indicator settings located on the front of the screwdriver.

■ Rotate adjustment ring to desired setting, aligning number on adjustment ring with arrow on housing.

1 - 2 For driving small screws
3 - 4 For driving screws into soft material
5 - 7 For driving screws into soft and hard materials

8 - 9 For driving screws into hard wood

10 - 11 For driving large screws

For full power applications

DIRECTION OF ROTATION SELECTOR (FORWARD/ REVERSE/CENTER LOCK)

See figure 4.

The direction of bit rotation is reversible and is controlled by a selector located above the switch trigger. With the screwdriver held in normal operating position, the direction of rotation selector should be positioned to the left of the switch trigger for forward motion. The direction is reversed when the selector is to the right of the switch trigger. Setting the switch trigger in the OFF (center lock) position helps reduce the possibility of accidental starting when not in use.

eTol stop the screwdriver, release the switch trigger and allow the collet to come to a complete stop.

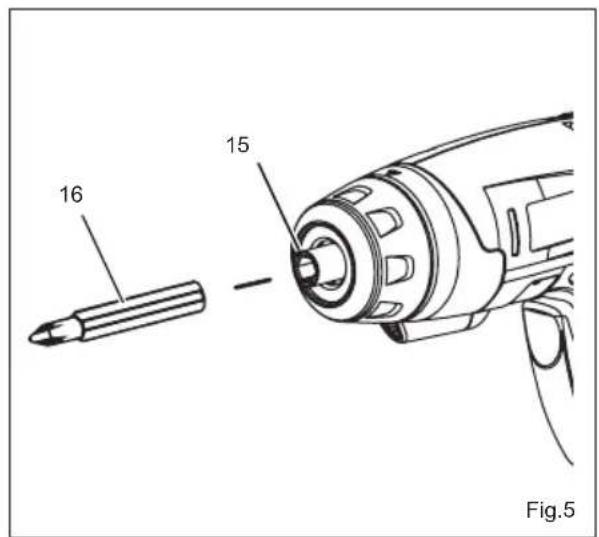

INSERTING/REMOVING BIT

See figure 5.

Insert the bit into collet until it snaps in place. Remove the bit by pulling it out of the collet.

SPINDLE LOCK

The screwdriver spindle is locked when the On/Off switch is not pressed.

This enables screws to be screwed in, even when the battery is empty.

GRIP ZONE

Soft grip reduces the danger of slipping and thereby improves the grip on the tool and handing. At the same time, the rubber coating achieves a vibration-reducing effect.

LED WORKLIGHT

See figure 6.

The screwdriver has a built-in LED worklight. This feature is convenient when working in close or tight areas where additional light is needed. Whenever the switch trigger is

English

depressed, the LED worklight will illuminate.

NOTE: During normal operation, if the LED worklight will not illuminate, charge the screwdriver.

MAINTENANCE

WARNING

When servicing, use only original RYOBI replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING

Always wear safety goggles or safety glasses with side shields during product operation or when blowing dust. If operation is dusty, also wear a dust mask.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Do not open the battery yourself. There is a danger of short circuit.

Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an Authorised service centre.

ENVIRONMENTAL PROTECTION

RYOBI CSD4107BG - ENVIRONMENTAL PROTECTION - 1

Recycle raw materials instead of disposing as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling.

SYMBOLS

RYOBI CSD4107BG - SYMBOLS - 1

Safety alert

RYOBI CSD4107BG - SYMBOLS - 2

No-load speed

RYOBI CSD4107BG - SYMBOLS - 3

CE conformity

RYOBI CSD4107BG - SYMBOLS - 4

EurAsian Conformity Mark

RYOBI CSD4107BG - SYMBOLS - 5

Please read the instructions carefully before starting the machine.

RYOBI CSD4107BG - SYMBOLS - 6

Please read the instructions carefully before starting the machine.

RYOBI CSD4107BG - SYMBOLS - 7

For indoor use only.

RYOBI CSD4107BG - SYMBOLS - 8

Class II equipment

RYOBI CSD4107BG - SYMBOLS - 9

Ukrainian mark of conformity

RYOBI CSD4107BG - SYMBOLS - 10

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Français

DE ACCU OPLADEN (AFB. 2)

a_h,D = 0.8 m/s^2

1.5 m/s²

BESKRIVELSE

INDSTILLING AF FASTSKRUNINGSMOMENT

DIOD FÖR BELYSNING AV ARBETSOMRÅDET (FIG. 6)

INNSTILLING AV DREIEMOMENT (FIG. 3)

Finn de 12 dreiemomentinnstillingene som står på medstillingsringen til dreiemoment på skrutrekkeren din.

■ Drei innstillingsringen til dreiemoment til du kommer til ønsket innstilling, dvs. ved å stille nummeret som står på ringen i linje med pilen som står på skrutrekkerens overside.

8-9 Innskruing i hardt tre.

LYSDIODE TIL ARBEIDSOMRÅDET (FIG. 6)

No TC RU C-DE.AE11.B.04234

a_h,D = 0.8 m/s^2

Nenoteiktība K

1.5 m/s²

APRAKSTS

!SPÈJIMAS

HOIATUS

TRELL JA KRUVIKEERAJA OHUHOIATUSED

LED DELOVNA LUČKA (SL. 6)

VAROVANIE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

FR AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

any damage to the product that is the result of improper or lack of maintenance

–any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
-any damage caused by non-observance of the instruction manual
–any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

-normal wear and tear spare parts

-inappropriate use, overloading of the tool

-use of non-approved accessories or parts

Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc.
Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.
For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected
This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://en.ryobitools.eu/header/service-and-support/service-agents

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

EN DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

4V Lithium-Ion Screwdriver

Brand: RYOBI

Model number: CSD41

Serial number range: 46260601000001 - 46260601999999

is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2011/65/EU, EN55014-1:2006+A1:2009+A2:2011, EN 55014-2:2015, EN60745-1:2009+A11:2010, EN60745-2-1:2010, EN60745-2-2:2010, EN 61000-3-2:2014, EN 61000-3-3:2013

RoHS documentation is compiled according to EN 50581:2012

RYOBI CSD4107BG - EN DECLARATION OF CONFORMITY - 1

Andrew John Eyre (BEng, CEng, MIET)

Vice President, Regulatory & Safety

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

FR DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

NL CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI CSD4107BG - NL CONFORMITEITSVERKLARING - 1

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI CSD4107BG - NL CONFORMITEITSVERKLARING - 2

OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI CSD4107BG - OVERENSSTEMMELSESERKLÆRING - 1

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

FI SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

NO SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PL DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CS PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HU MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RO DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Alexander Krug, Director general

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

LV ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Ar Šo Paziņojam, Ka Produkti

4 V Litija-Jonu Akumulatora Skrüvgriezis

Zimols: RYOBI

Modela numurs: CSD41

Max-Eyth-Straße 10, 71364 Winnenden, Germany

LT ATITIKTIES PAREIŠKIMAS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ET VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

4V Liitium-Ioon Kruvikeeraja

Mark: RYOBI

Mudeli number: CSD41

Seerianumbri vahemik: 46260601000001 - 46260601999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HR IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SL IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SK PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

TR UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 1

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 2

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 3

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 4

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 5

RYOBI CSD4107BG - TR UYGUNLUK BEYANI - 6

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

961152888-01
