Brand	Xplora
Model	X5 Play
Product Type	Children's phone watch (Smartwatch)
SIM card type	Nano-SIM only
Power supply	Magnetic charging cable, 5 V / >500 mA
Battery	Built-in, non-removable by user
Activation	Via Xplora app, QR code scan
Companion app	Xplora (available on Apple App Store and Google Play)
Main features	Voice call, SOS function, GPS location, messaging, activity tracking, settings via app
Main button	Power/Home/SOS button (10 s power on, 5 s SOS)
Radio frequencies	GSM 2/3/5/8, WCDMA 1/2/4/5/8, LTE FDD 1/2/3/4/5/7/8/20, LTE TDD 38/40, Bluetooth, Wi-Fi 2.4 b/g/n
SAR value (near mouth)	0.72 W/kg (limit 2 W/kg)
SAR value (on body)	2.0 W/kg (limit 4 W/kg)
Operating temperature	-10 °C to 45 °C
Compliance	CE, Canada IC (CNR, ICES-003)
Box contents	X5 Play watch, quick user guide, charging cable
Maintenance and safety	Use only Xplora approved accessories; do not attempt to remove the battery; remove the SIM card PIN before use

Frequently Asked Questions - X5 Play Xplora

How to activate my Xplora X5 Play watch?

Make sure the SIM card is active with enough voice and data. Charge the watch if necessary. Open the Xplora app and create a guardian account. From the watch, go to the QR code menu in settings. Scan this QR code with the app, then follow the instructions to complete activation.

What type of SIM card to use in the X5 Play?

The watch only accepts Nano-SIM format SIM cards. Mini-SIM and Micro-SIM formats are not compatible. Before inserting the card, make sure to disable the SIM card's PIN code.

How to charge the Xplora X5 Play watch?

Use only the supplied magnetic charging cable or an Xplora approved accessory. Connect the magnetic charger as shown. Plug into a 5V power source with a current greater than 500 mA. After a complete discharge, charge the watch for at least 15 minutes before using it.

What to do if the watch is unresponsive or won't turn on?

Press and hold the power button for more than 10 seconds to reset the system. If the watch is completely discharged, charge it first. If the problem persists, contact customer support at [e-mail].

How to use the SOS function?

The SOS function is activated by pressing and holding the power/home/SOS button for 5 seconds. The watch will then send an alert to the predefined numbers in the Xplora app. Make sure the SIM card is active and emergency contacts are set up.

What is the battery life?

Battery life is not specified in the manual, but it depends on usage (calls, GPS, standby). Under normal use, expect about 1 to 2 days. To optimize battery life, reduce location frequency and disable unnecessary functions through the app.

Is the watch water-resistant?

The manual does not mention water resistance. It is recommended to avoid any contact with water to preserve the device. Remove the watch before swimming or showering.

What are the SAR levels of the X5 Play?

The maximum SAR values are 0.72 W/kg near the mouth (limit 2 W/kg) and 2.0 W/kg worn on the body (limit 4 W/kg). These values comply with European and Canadian standards.

Can I replace the battery myself?

No, the battery is built-in and non-removable by the user. Any attempt to replace it may cause a risk of explosion or damage the watch. In case of issues, contact Xplora customer support.

How to set up the watch for the first time?

1) Insert a Nano-SIM card without PIN code. 2) Charge the watch. 3) Download the Xplora app on your phone. 4) Create a guardian account. 5) Turn on the watch by holding the button for 10 seconds. 6) Go to the QR code menu in settings. 7) Scan the code with the app. 8) Fill in the child's profile and the watch number. 9) Follow the instructions to complete activation.

USER MANUAL X5 Play Xplora

Xplora Smartwatch Phone for Kids

QUICK USER GUIDE · KURZANLEITUNG · GUIDE DE L'UTILISATEUR RAPIDE

GUIA RAPIDA DE USUARIO · GUIDA D'USO RAPIDA · BRUKERVEILEDNING

UPPSTARTSGUIDE · PIKAKAYTTOOPAS · SKROCONA INSTRUKCJA OBSLUGI

RÖVID HASZNÁLATI UTMUTATÓ

UK

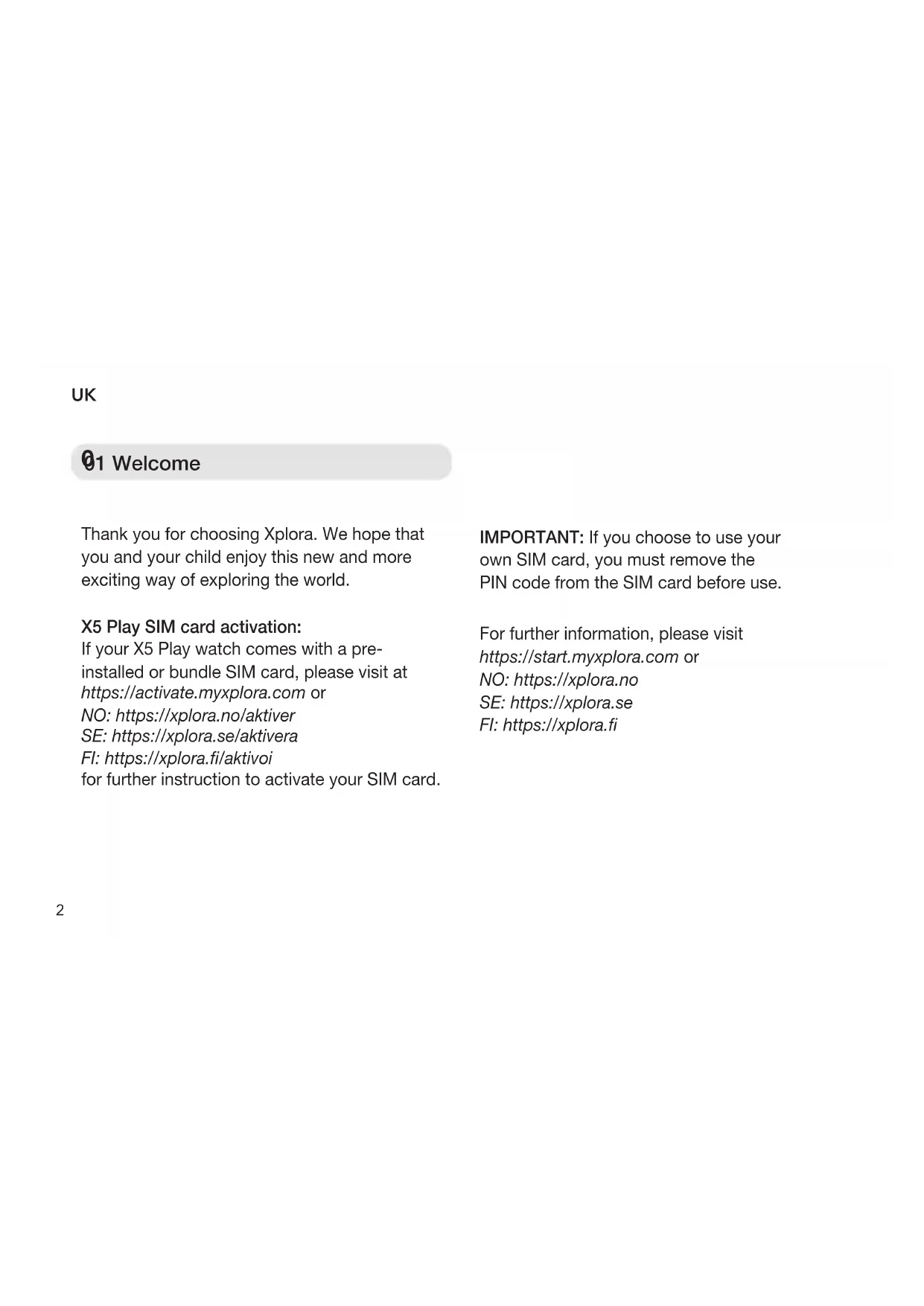

01 Welcome

Thank you for choosing Xplora. We hope that you and your child enjoy this new and more exciting way of exploring the world.

X5 Play SIM card activation:

If your X5 Play watch comes with a pre
installed or bundle SIM card, please visit at
https://activate.myxplora.com or
NO: https://xplora.no/aktiver
SE: https://xplora.se/aktivera
FI: https://xplora.fi/aktivoi
for further instruction to activate your SIM card.

IMPORTANT: If you choose to use your own SIM card, you must remove the PIN code from the SIM card before use.

For further information, please visit

https://start.myxplora.com or

NO: https://xplora.no

SE: https://xplora.se

FI: https://xplora.fi

02 Box contents

Check the box contents:

X5 Play Watch

Quick User Guide

Charging Cable

NOTE: Please use Xplora authorised accessories.

CAUTION: Risk of explosion if battery is replaced with a different type.

Do not remove or attempt to remove the non-user-replaceable battery. If you have a problem with the battery, please contact the customer support service.

UK

03 X5 Play SIM card specification

X5 Play only accepts a Nano SIM card.

Mini SIM

Micro SIM

Nano SIM

Install SIM card:

UK

04 Watch Button

Power / Home / SOS Button

(1) Press and hold for 10 sec to turn it on.
(2) Short press to return the home menu.
(3) Press and hold for 5 sec to initiate SOS.

NOTE: If the watch is not working, press the Power Button for more than 10 sec to perform a hard-reset.

UK

05 Charging the Watch

(1) Use only Xplora authorised magnetic charging cable.
(2) Connect the magnetic charger as shown below.
(3) Charge for the watch more than 15 minutes from empty before use. Please use an output voltage of 5V and and a current of above 500mA .

UK

06 Download Xplora App

The Xplora App is available in the Apple and Google App stores. Search "Xplora" to find the App.

NOTE: Please ensure that you download the correct App for your Xplora watch.

UK

Activation procedure for X5 Play

(1) Ensure the SIM has sufficient voice and data allowance.
(2) If necessary, charge the watch.
(3) Open Xplora App and create your guardian account if using for the first time.
(4) From the watch, click "QR code" menu in Setting menu.
(5) From the App, scan the QR code shown on the watch screen.

(6) Provide your child's profile information as well as the phone number of the watch.
(7) Follow the instruction to complete the activation on the App.

NOTE: The service performance may vary by the mobile network coverage. Feel free to contact us via [e-mail] or for further assistance.

07 Correct disposal of this product

(Waste Electrical & Electronic Equipment)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. This product is RoHS compliant.

DE

01 Willkommen

Virta / Koti-painike / SOS

Declaration of Conformity

Xplora Technologies AS hereby declares that this Xplora smartwatch phone for kids (Model name: X5 Play) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

X5 Play complies with the RF (Radio Frequences) standards by CE, when used next to mouth at distance of 10mm and properly worn on the body. The highest SAR value reported for this device type when tested next to the mouth is 0.72W / kg (legal limit: 4W/kg(10g))and when properly worn on the body is 2 / kg (Legal Limit: 4W/kg(10g)).

A copy of the original declaration of conformity can be found in https://start.myxplora.com. Alternatively you may contact Xplora customer support via [e-mail].

Frequency	Power
GSM 2/3/5/8 32dBm
WCDMA 1/2/4/5/8 22dBm
LTE-FDD 1/2/3/4/5/7/8/20 22dBm
LTE-TDD 38/40 22dBm
Bluetooth	4dBm
Bluetooth LE 0dBm
2.4 b/g/n	14dBm/12dBm/10dBm
EUT operating temperature range -10°C to 45°C
Highest SAR value 2.0W/kg ICNIRP

FCC Statement RF Exposure Information and Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
- This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.

X5 Play (FCC ID: 2AVMJX5P) has been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.805W / kg and when properly worn on the body is 0.497W / kg .

Both devices were tested for typical body-worn operations with the back of the handset kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided.

IC statement

This device complies with RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC e-labelling can be seen from the watch's "Setting" menu under "About".
