DPT351RMJ - Electric stapler MAKITA - Free user manual and instructions

Product Type	Cordless Nailer (Electric Stapler)
Brand	Makita
Model	DPT351RMJ
Dimensions (L x D x H)	227 mm x 79 mm x 249 mm
Net Weight (with battery)	2.1 kg (18 V battery)
Rated Voltage	18 V DC
Compatible Battery Type	Lithium-ion: BL1815, BL1820, BL1830, BL1840, BL1850, BL1815N, BL1820B, BL1840B, BL1850B (18 V)
Magazine Capacity	130 nails
Nail Size	0.6 x 18, 25, 30, 35 mm
Adjustable Nailing Depth	Up to 1.5 mm
Main Functions	Sequential nailing (safety lever + trigger), LED light, battery charge indicator, rotatable hook, nozzle adapter for fragile surfaces
Safety Devices	Safety lever + trigger, anti-restart, jam detection
Sound Pressure Level	74 dB(A) (uncertainty 3 dB)
Vibration Emission	≤ 2.5 m/s² (uncertainty 1.5 m/s²)
Maintenance and Cleaning	Clean with a dry cloth; do not use solvents; regularly inspect screws and mechanism
Spare Parts and Repairability	Specific nails, battery, charger, nozzle adapter, hex wrench; repair by authorized Makita service center
Included Accessories	18 V battery, charger, nozzle adapter, hex wrench, case (depending on kit)
Intended Use	Inserting nails into wood and construction materials
Compliance Standards	CE, EN60745

Frequently Asked Questions - DPT351RMJ MAKITA

How to install the battery on the DPT351RMJ nailer?

Align the battery tab with the groove inside the housing, then slide it until it locks. Make sure the red indicator on the button disappears, indicating the battery is securely attached.

What types of nails can I use with this nailer?

Use only nails of size 0.6 x 18, 25, 30, or 35 mm, as specified in the manual. Using other types may cause jams or damage the tool.

How to adjust the nailing depth?

Using the supplied hex wrench, turn the bolts on the nose cover a quarter turn. The cover slides vertically to adjust the depth up to 1.5 mm. Tighten the bolts firmly once adjusted.

What to do if a nail jams in the tool?

First remove the battery. Remove remaining nails from the magazine, then loosen bolts (A) and (B) with the hex wrench. Remove the nose cover and extract the jammed nail and any debris. Reassemble and tighten the bolts.

How to know when the battery needs charging?

Press the check button on the battery. The LEDs indicate remaining charge: 3 lights = 75-100%, 2 = 50-75%, 1 = 25-50%, flashing = 0-25% (recharge). If no lights come on, the battery may be defective.

Can I use the nailer without a battery?

No, the nailer only works with a compatible Makita lithium-ion battery (14.4 V or 18 V depending on model). It does not have a power cord.

How to clean and maintain the nailer?

Use a dry cloth to wipe off dirt. Never use gasoline, thinner, or alcohol as they may discolor or crack the plastic. Regularly check the tightness of screws and proper operation of the mechanism.

What are the essential safety precautions to follow?

Never point the tool at yourself or others. Keep hands and feet away from the ejection area. Wear safety glasses. Remove the battery before any adjustment or clearing jams. Ensure no one is nearby during use.

How to use the hanging hook?

The hook can be installed on either side of the tool by inserting it into the groove and tightening the screw. Do not hang the nailer from a belt, as accidental movement could cause a fall and unintended operation.

Where can I find spare parts or have my nailer repaired?

Contact an authorized Makita after-sales service center. Use only Makita replacement parts to ensure safety and reliability of the tool.

USER MANUAL DPT351RMJ MAKITA

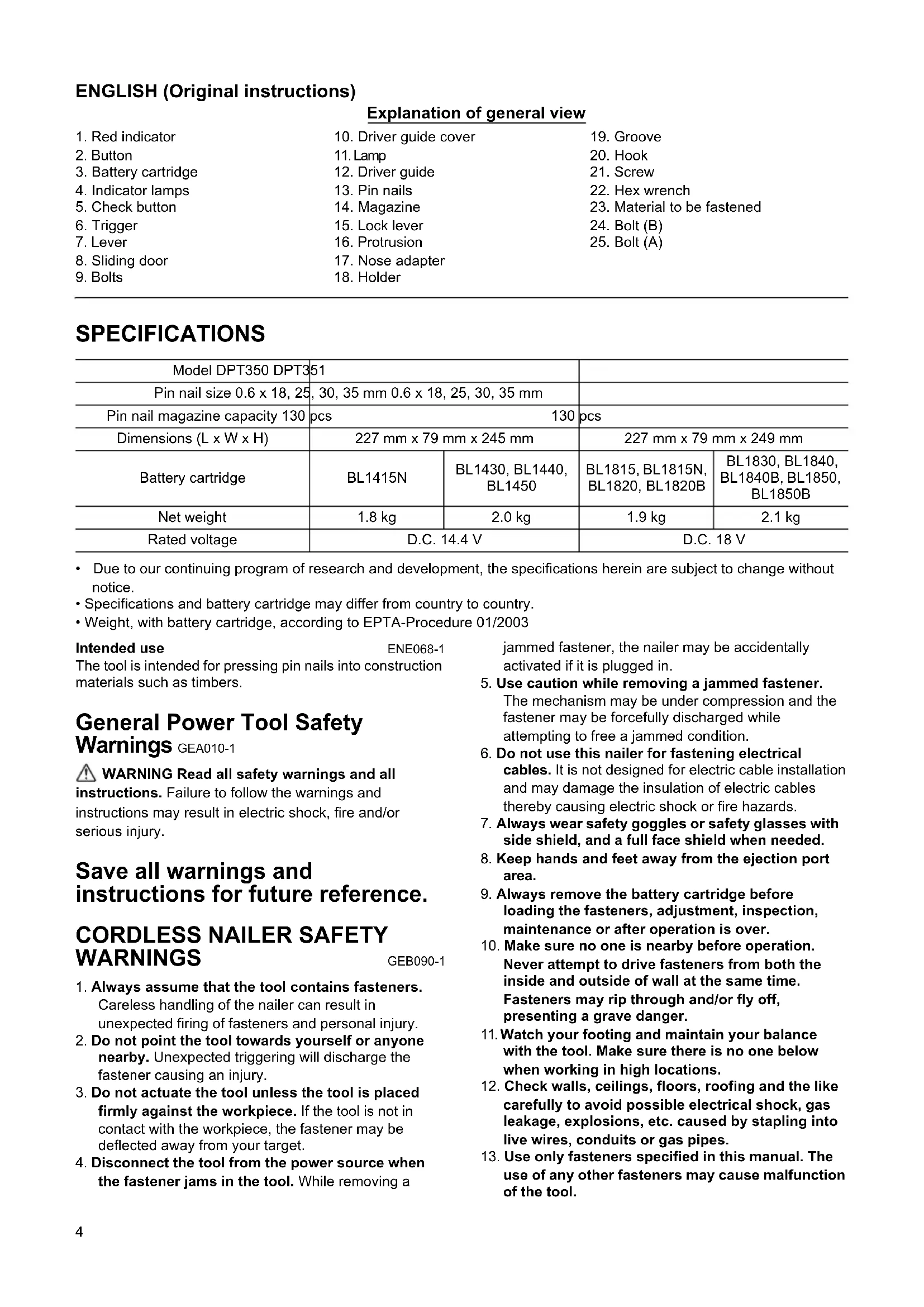

ENGLISH (Original instructions)

Explanation of general view

1. Red indicator	10. Driver guide cover	19. Groove
2. Button	11. Lamp	20. Hook
3. Battery cartridge	12. Driver guide	21. Screw
4. Indicator lamps	13. Pin nails	22. Hex wrench
5. Check button	14. Magazine	23. Material to be fastened
6. Trigger	15. Lock lever	24. Bolt (B)
7. Lever	16. Protrusion	25. Bolt (A)
8. Sliding door	17. Nose adapter
9. Bolts	18. Holder

SPECIFICATIONS

Model DPT350 DPT351
Pin nail size 0.6 x 18, 25, 30, 35 mm 0.6 x 18, 25, 30, 35 mm
Pin nail magazine capacity 130 pcs			130 pcs
Dimensions (L x W x H)	227 mm x 79 mm x 245 mm		227 mm x 79 mm x 249 mm
Battery cartridge	BL1415N	BL1430, BL1440, BL1450	BL1815, BL1815N, BL1820, BL1820B	BL1830, BL1840, BL1840B, BL1850, BL1850B
Net weight	1.8 kg	2.0 kg	1.9 kg	2.1 kg
Rated voltage	D.C. 14.4 V		D.C. 18 V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Intended use

ENE068-1

The tool is intended for pressing pin nails into construction materials such as timbers.

General Power Tool Safety Warnings GEA010-1

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1. Always assume that the tool contains fasteners. Careless handling of the nailer can result in unexpected firing of fasteners and personal injury.
2. Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.
3. Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.
4. Disconnect the tool from the power source when the fastener jams in the tool. While removing a

jammed fastener, the nailer may be accidentally activated if it is plugged in.

1. Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
2. Do not use this nailer for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.
3. Always wear safety goggles or safety glasses with side shield, and a full face shield when needed.
4. Keep hands and feet away from the ejection port area.
5. Always remove the battery cartridge before loading the fasteners, adjustment, inspection, maintenance or after operation is over.
6. Make sure no one is nearby before operation. Never attempt to drive fasteners from both the inside and outside of wall at the same time. Fasteners may rip through and/or fly off, presenting a grave danger.
7. Watch your footing and maintain your balance with the tool. Make sure there is no one below when working in high locations.
8. Check walls, ceilings, floors, roofing and the like carefully to avoid possible electrical shock, gas leakage, explosions, etc. caused by stapling into live wires, conduits or gas pipes.

9. Use only fasteners specified in this manual. The use of any other fasteners may cause malfunction of the tool.

10. Do not tamper with the tool or attempt to use it for other than driving fasteners.

11. Do not operate the tool without fasteners. It shortens the service life of the tool.
12. Stop driving operations immediately if you notice something wrong or out of the ordinary with the tool.
13. Never drive fastener into any materials which may allow the fastener to puncture and fly through as a projectile.
14. Never actuate the switch trigger and safety lever at the same time until you are prepared to fastener workpieces. Allow the workpiece to depress the safety lever. Never defeat its purpose by securing the safety lever back or by depressing it by hand.
15. Never tamper with the safety lever. Check the safety lever frequently for proper operations.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS ENCO07-9

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.

4. Do not use a damaged battery.

5. Follow your local regulations relating to disposal of battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ - 40^ (50^ - 104^) . Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.
• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.
• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Indicating the remaining battery capacity

(Only for battery cartridges with "B" at the end of the model number.) (Fig. 2)

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for few seconds.

Indicator lamps			Remaining capacity
Lighted Off Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

015658

NOTE:

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

Safety system

WARNING:

• Make sure all safety systems are in working order before operation. Failure to do so may cause personal injuries. (Fig. 3)

Test safety systems for possible faulty operation before pin-nailing as follows.

1. Make sure that the tool is not loaded with pin nails before the test.
2. Pull the sliding door of the magazine toward yourself. (Fig. 4)
3. The tool accidentally operates if only the trigger is pulled although the lever is not pulled.
4. The tool does not operate when the trigger is pulled with the lever pulled.

In case of 3 and 4 above, the safety systems are faulty.

Trigger and lever

CAUTION:

• Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. (Fig. 5)

The tool is provided with lever as a safety system in addition to the usual trigger. (Fig. 6)

To fire pin-nails, first pull the lever and then pull the trigger.

Adjusting the depth of pin-nailing

WARNING:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before loading the pin nailer. (Fig. 7)

Depth of pin-nailing can be adjusted on this pin nailer.

Turn two bolts a quarter turn using the hex wrench provided with the tool and the driver guide cover will slide up or down. Depth can be adjusted 1.5mm to the maximum. At desired depth, secure it with two bolts firmly.

Lighting up the lamps

CAUTION:

• Do not look in the light or see the source of light directly. (Fig. 8)

To turn on the lamp, pull the lever. Release the lever to turn it off.

NOTE:

• Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.
• Even if the lamp lights up when the battery power residual gets small, pin nailer may not fire pin nails. In this case, charge the battery cartridge.

Anti-dry firing device

CAUTION:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before loading the pin nailer.

When the number of remaining pin nails in the magazine are 0 - 3 pcs., the trigger can no longer be pulled. At this time, insert a new strip of pin nails in the magazine and the trigger can be pulled again.

NOTE:

• When firing a different length of pin nails shortly after the anti-dry firing device has actuated, insert a new strip of pin nails into the magazine and fire away all the prior pin nails that have remained on junk material.

ASSEMBLY

CAUTION:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before carrying out any work on the pin nailer.

Loading the pin nailer

CAUTION:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before loading the pin nailer.
• Do not abruptly slide the magazine of the pin nailer loaded with pin nails. Accidentally dropping pin nails especially when working in high places may cause personal injuries.
• Load pin nails in the correct direction. Loading in wrong direction may cause premature wear and tear of the driver and damage of the other parts. (Fig. 9)

Remove the battery cartridge.

Press the locking lever and slide the magazine.

Place pin nails against the magazine and insert into the slit all the way. (Be careful to place pin nails in the right direction.)

Keeping pin nails in this position, insert these nails all the way into the driver guide.

Return the magazine to the original position and lock it with the locking lever.

CAUTION:

• Do not use deformed connected pin nails. Use pin nails specified in this manual. Using pin nails other than those specified may cause pin nail jamming and breakage of the pin nailer.

Unloading pin nailer

CAUTION:

• When removing pin nails, make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed from the pin nailer. Misfiring may cause personal injuries and property damage.

Remove the battery cartridge.

Press the locking lever and slide the magazine.

Take out pin nails from the magazine slit.

Nose adapter

CAUTION:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before installing the nose adapter. (Fig. 10) When firing pin nails on the material to be fastened with easily-marred surfaces, use the nose adapter. To install the nose adapter, place it over the driver guide cover so that the protrusion inside the nose adapter fits to the slit in the driver guide cover.

When not in use, store the nose adapter in the holder at the back end of the magazine to keep it from being lost.

Hook

CAUTION:

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before using the hook. (Fig. 11)

CAUTION:

• Do not hang the hook from the waist belt. Dropping the pin nailer, which is caused by the hook accidentally coming out of place, may cause misfiring and personal injuries. (Fig. 12)

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool. To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

Hex wrench storage (Fig. 13)

When not in use, store the hex wrench as shown in the figure to keep it from being lost.

OPERATION

Driving pin nails

WARNING:

• Before pulling the trigger, always make sure that the opening that pin-nails are fired contacts material to be fastened. Just pulling the trigger fires pin nails. Misfiring may cause personal injuries. (Fig. 14)

Place flat the opening of the tool that pin-nails are fired on the material to be fastened and hold the tool firmly against the material. Then pull the lever and then pull the trigger fully to drive the pin nail. The grip is shaped so that the tool head can be held down securely with index finger and thumb. After driving a pin-nail, be sure to release the trigger fully. (Fig. 15)

When the head of driven pin-nail remains above the surface of the material, drive the pin-nail while holding the pin nailer head firmly.

NOTE:

• When the trigger is pulled after a quick trigger action, the nailer may do nothing but operates momentarily and may not fire pin nails. This is not a trouble. At this time, release the trigger once, pull it again and the pin nails can be fired.
• Using the pin nailer continuously with the head of fired pin nails remaining above the surface of material to be fastened may cause damage to the driver of the pin nailer and nailer jamming etc.

Removing jammed pin nails

WARNING:

• Always make sure that the lever is released and the battery cartridge is removed before removing jammed nails. (Fig. 16)

Remove the battery cartridge from the pin nailer.

Take out pin nails that remain inside the magazine.

Loosen bolt (A) and bolt (B) by turning them approximately two turns using the hex wrench provided with the pin nailer.

Remove driver guide cover by sliding it.

• Remove stuck pin nails, debris, adhesives and woodchips etc. from the passage for pin nails.

Check the driver guide cover for stuck pin nails or other foreign matters and then secure it with these two bolts.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
• To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
  Pin nails
• Various type of Makita genuine batteries and chargers
• Safety goggles

NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Noise

ENG905-1

The typical A-weighted noise level determined according to EN60745:

Model DPT350

Sound pressure level (L_pA) : 75 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Model DPT351

Sound pressure level (L_pA) : 74 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Wear ear protection.

Vibration

ENG904-2

The vibration emission value determined according to

EN60745:

Vibration emission (a_h) : 2.5m / s^2 or less

Uncertainty (K): 1.5m / s^2

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.

• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

ENH101-18

EC Declaration of Conformity

Makita declares that the following Machine(s):

Designation of Machine:

Cordless Pin Nailer

Model No./ Type: DPT350, DPT351

Conforms to the following European Directives:

2006/42/EC

They are manufactured in accordance with the following

standard or standardized documents:

EN60745

The technical file in accordance with 2006/42/EC is available from:

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

28.4.2015

Yasushi Fukaya

Director

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

ACCESSIONS FOURNIS EN OPTION

ATTENTION :

WAARSCHUWING Lees alle

Acender as lampieadas

PRECAUÇA:

Yasushi Fukaya Director

Makita, Jan-Baptist Vinkstraat 2, 3070, Bélgica

Evikc PpoEioTPOINoEiC AosaaTou Hktpko Epyaeiou

GEA010-1

IPOEIAOIOIHZH Aiaβaote oAeTIC TIPoeiDTooiaeic aopaaieiac kai oAeTIG oyniec.Av dev akolouoThe OEAC TIC PPOeIDTooiaei KAI TIC Oynies, utapxEVIKVuvoc nKektpoTTnxiac, TUPkayiac / Kai oBapou Tpaumatou.

Eumoppwovvnta e tis akokoutheta Eupwtraikes

Osnyies: 2006/42/EK

Kataaekuaovta ouφwva e To npakatw TpOtuTo n

TUTTOIOINeva Eyypaqa: EN60745

To texviko apxio oupawva u Tnv 2006/42/EK ivai δiaθεσιμο aTó:

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

28.4.2015

Yasushi Fukaya

△ieuouvtns

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

Makita Jan-Baptist Vinkstraat 2, 3070, Belgium

Makita Corporation Anjo, Aichi, Japan

885321B996 www.makita.com
