USER MANUAL DST221RTJ MAKITA

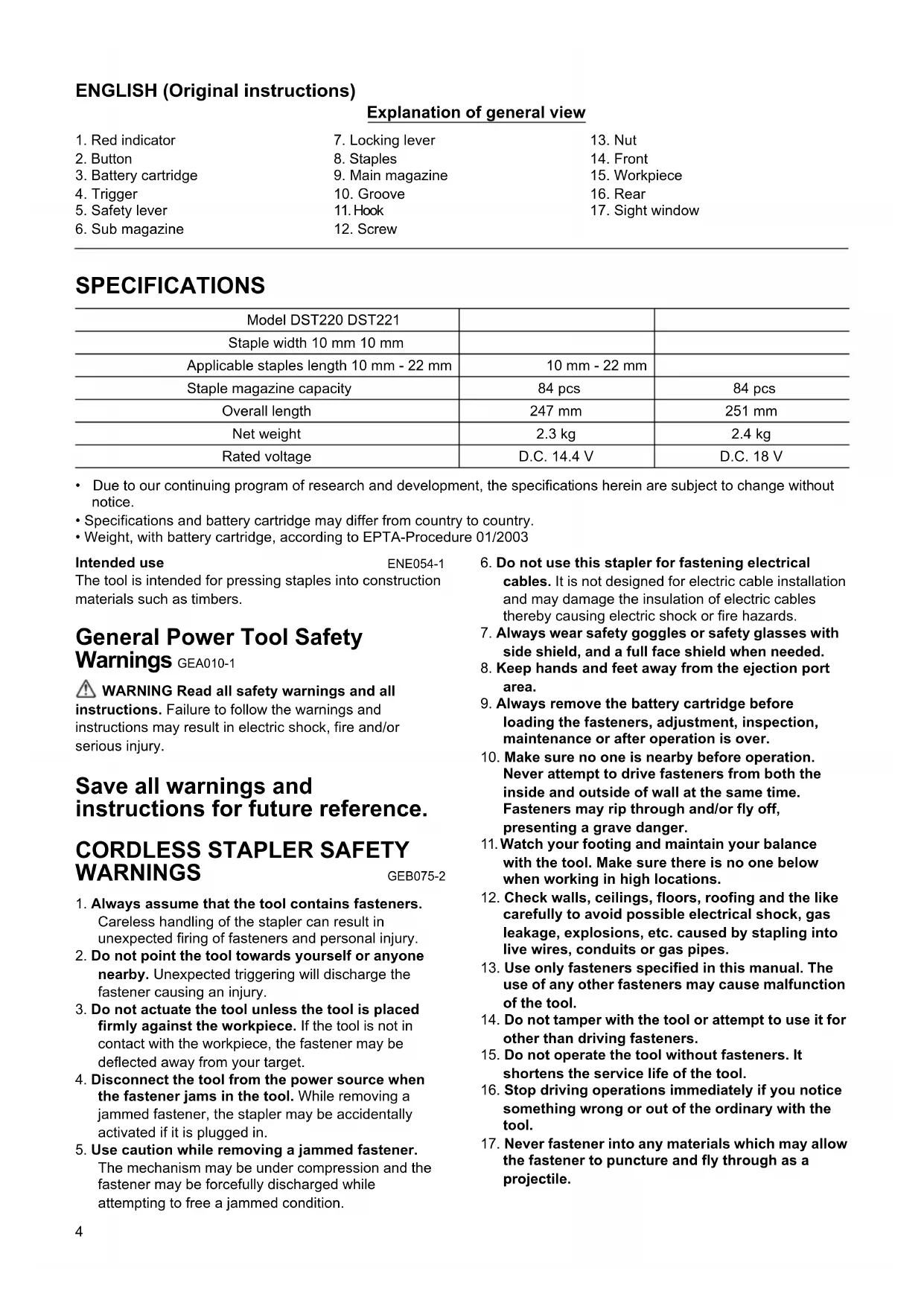

ENGLISH (Original instructions) Explanation of general view SPECIFICATIONS

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications and battery cartridge may differ from country to country.

• Weight, with battery cartridge, according to EPTA-Procedure 01/2003 Intended use ENE054-1 The tool is intended for pressing staples into construction materials such as timbers. General Power Tool Safety Warnings GEA010-1 WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

1. Always assume that the tool contains fasteners.

Careless handling of the stapler can result in unexpected firing of fasteners and personal injury.

2. Do not point the tool towards yourself or anyone

nearby. Unexpected triggering will discharge the fastener causing an injury.

3. Do not actuate the tool unless the tool is placed

firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

4. Disconnect the tool from the power source when

the fastener jams in the tool. While removing a jammed fastener, the stapler may be accidentally activated if it is plugged in.

5. Use caution while removing a jammed fastener.

The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.

6. Do not use this stapler for fastening electrical

cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

7. Always wear safety goggles or safety glasses with

side shield, and a full face shield when needed.

8. Keep hands and feet away from the ejection port

loading the fasteners, adjustment, inspection, maintenance or after operation is over.

10. Make sure no one is nearby before operation.

Never attempt to drive fasteners from both the inside and outside of wall at the same time. Fasteners may rip through and/or fly off, presenting a grave danger.

11. Watch your footing and maintain your balance

with the tool. Make sure there is no one below when working in high locations.

12. Check walls, ceilings, floors, roofing and the like

carefully to avoid possible electrical shock, gas leakage, explosions, etc. caused by stapling into live wires, conduits or gas pipes.

13. Use only fasteners specified in this manual. The

use of any other fasteners may cause malfunction of the tool.

14. Do not tamper with the tool or attempt to use it for

other than driving fasteners.

15. Do not operate the tool without fasteners. It

shortens the service life of the tool.

16. Stop driving operations immediately if you notice

something wrong or out of the ordinary with the tool.

17. Never fastener into any materials which may allow

the fastener to puncture and fly through as a projectile.

18. Never actuate the switch trigger and safety lever

at the same time until you are prepared to fastener workpieces. Allow the workpiece to depress the safety lever. Never defeat its purpose by securing the safety lever back or by depressing it by hand.

19. Never tamper with the safety lever. Check the

safety lever frequently for proper operations. SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. IMPORTANT SAFETY

1. Before using battery cartridge, read all

instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively shorter,

stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or exceed 50°C (122°F).

7. Do not incinerate the battery cartridge even if it is

severely damaged or is completely worn out. The battery cartridge can explode in a fire.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room

temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge once in every six

months if you do not use it for a long period of time. FUNCTIONAL DESCRIPTION CAUTION:

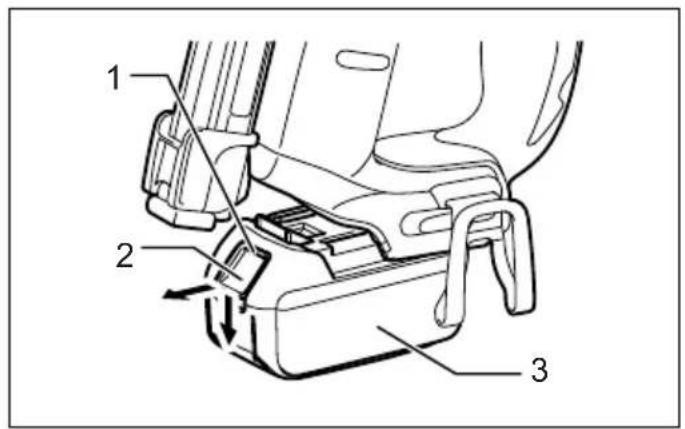

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.

• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

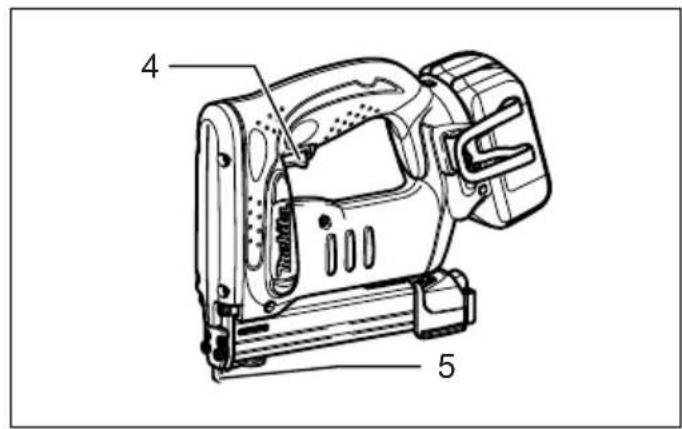

• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. Safety system (Fig. 2) Make sure all safety systems are in working order before operation. The tool must not operate if only the switch trigger is pulled or if only the safety lever is pressed against the wood. It must work only when both actions are performed. Test for possible faulty operation with a tool unloaded and pointed well away from yourself or any bystanders. NOTE:

• There is a possibility that the tool may operate for an instant when only the trigger is pulled. This does not indicate a problem. If this occurs, point the tool well away from yourself or any bystanders. Release and pull the trigger again to make sure the safety systems are in working order. ASSEMBLY CAUTION:

• Always make sure that your fingers are not placed on the trigger and the battery cartridge is removed before carrying out any work on the stapler. Staples

• Handle the staples and their box carefully. If the staples have been handled roughly, they may be bent out of shape, causing poor staple feed or jamming.

• Avoid storing the staples in a very humid or hot place or place exposed to direct sunlight.6 CAUTION:

• Do not use staples other than designated in this manual or staples that appear to be damaged, bent, rusty or corroded.

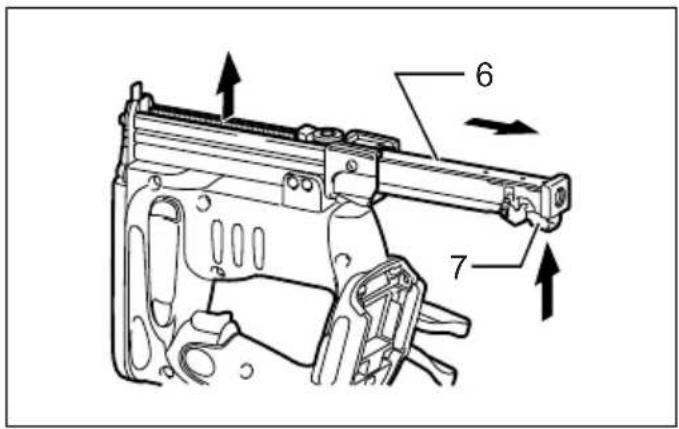

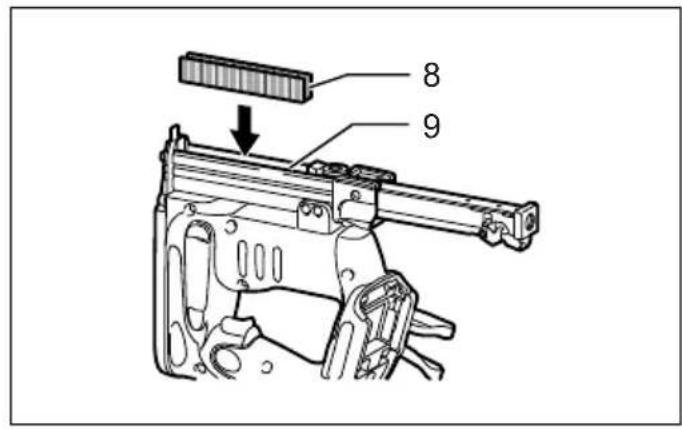

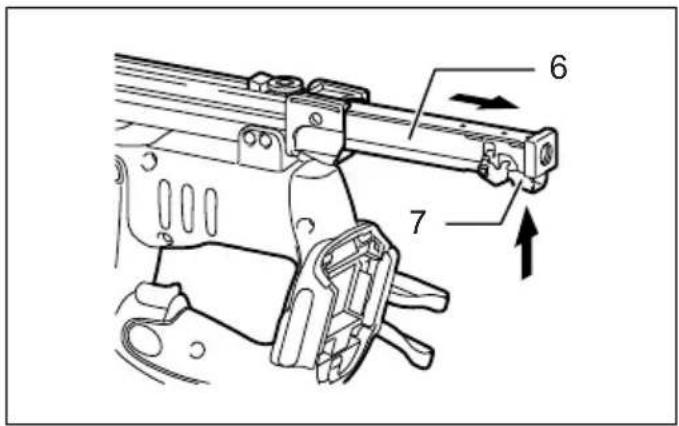

• Do not insert staples of which size is different each other at the same time inside the magazine , causing poor staple feed or jamming. Loading staples Remove the battery cartridge. Press the locking lever on the rear of the sub magazine and slide the sub magazine backward. (Fig. 3) Load staples into the main magazine with their feet facing up. Slide the sub-magazine forward. (Fig. 4) To secure the sub magazine in place, hook the locking lever on the rear of the sub-magazine. CAUTION:

• With the magazine loaded, if the tool is held downward and the sub-magazine is opened, the staples can fall out and present a danger to anyone or anything below. Keep this in mind especially when working in high locations. Unloading staples CAUTION:

• When removing staples, make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed from the stapler. Misfiring may cause personal injuries and property damage. Remove the battery cartridge. Press the locking lever and slide the magazine back. (Fig. 3) Take out staples from the magazine slit. (Fig. 5) Hook CAUTION:

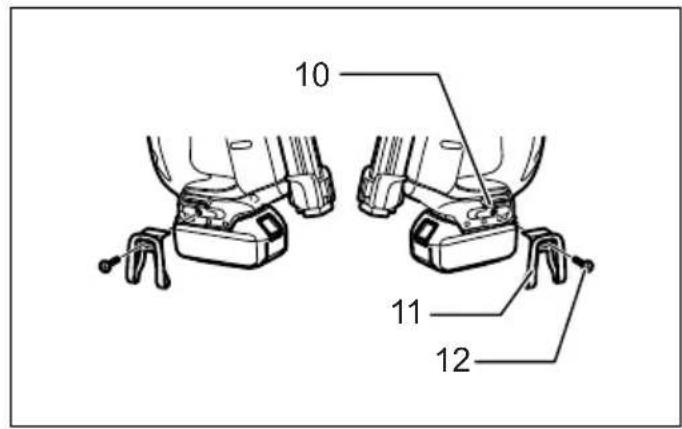

• Always make sure that your fingers are not placed on the trigger or the lever and the battery cartridge is removed before using the hook. (Fig. 6) CAUTION:

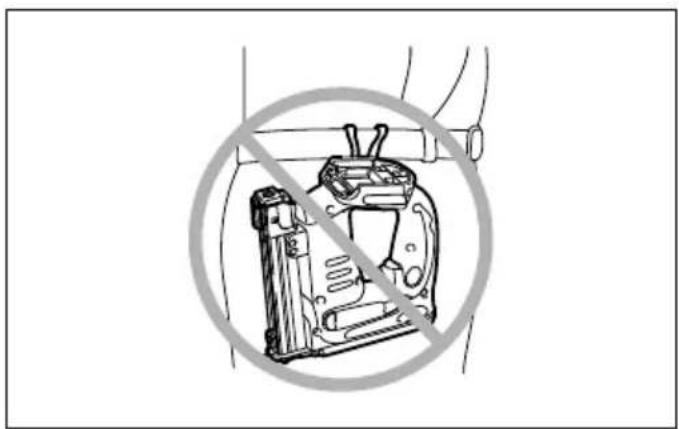

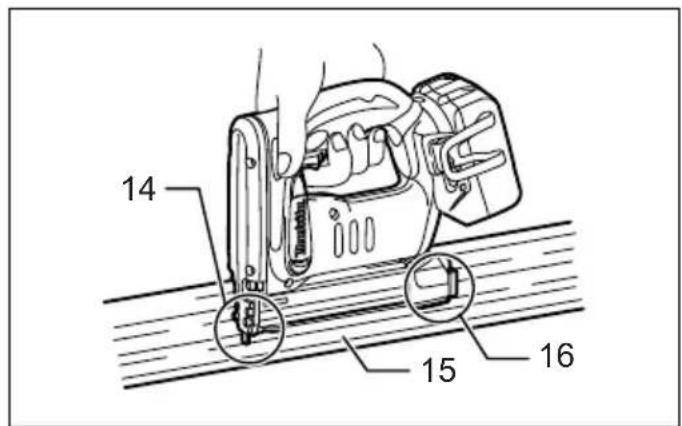

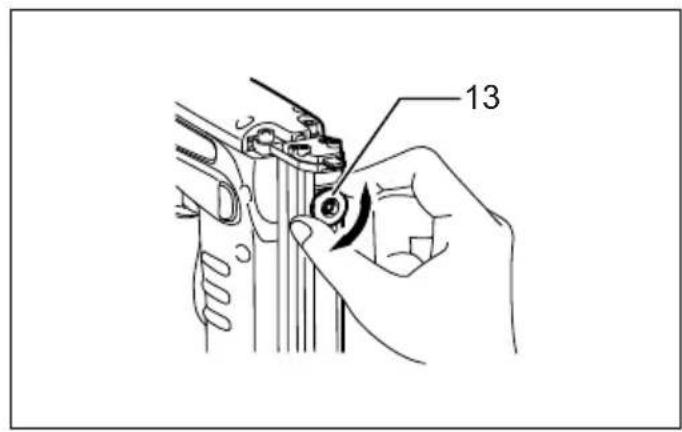

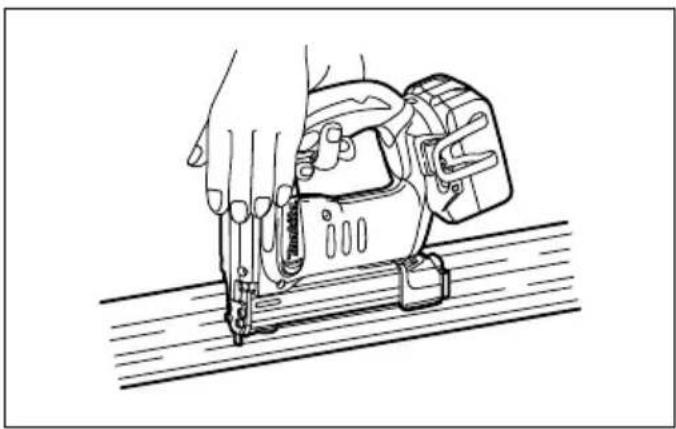

• Do not hang the hook from the waist belt. Dropping the stapler, which is caused by the hook accidentally coming out of place, may cause misfiring and personal injuries. The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool. To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out. (Fig. 7) OPERATION Depth adjustment (Fig. 8) If the staples are driven too deep or too shallow, adjust the driving depth by turning the nut on the bottom of the tool. For deeper driving of staples, turn the nut clockwise. For shallower driving, turn the nut counterclockwise. Please note the nut must be turned in increments of 90° (1/4 turn) so that the groove on the nut runs parallel to the magazine. Driving staples (Fig. 9) Place flat the opening of the tool from which staples are fired on the material to be fastened and hold the tool firmly against the material. Then pull the lever and then pull the trigger fully to drive the staples. The grip is shaped so that the tool head can be held down securely with index finger and thumb. After driving a staple, be sure to release the trigger fully. When the head of driven staple remains above the surface of material to be fastened, drive the staple while holding the stapler head firmly. (Fig. 10) NOTE:

• Using the stapler continuously with the head of driven staples remaining above the surface of material to be fastened may cause damage to the driver of the stapler and stapler jamming etc. Checking remaining staples (Fig. 11) CAUTION:

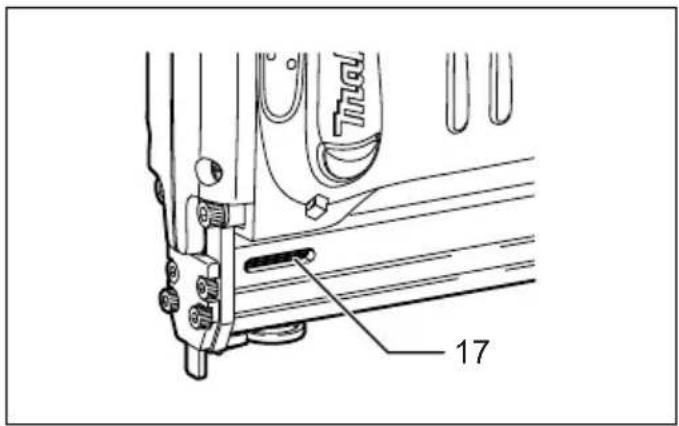

• Do not operate the tool without staples. It shortens the service life of the tool. There is a convenient sight window on the right side of the tool (when viewing the tool from the front). Use this sight window to check if there are staples in the magazine. When staples are not visible through the window, load staples into the magazine. Removing jammed staples

• Always make sure that the trigger are released and the battery cartridge is removed before removing jammed staples . Remove the battery cartridge from the stapler. (Fig. 5) Press the locking lever on the rear of the sub magazine and slide the sub magazine backward. Take out stuck staples that remain inside the opening that staples are fired from as it appears. MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Various type of Makita genuine batteries and chargers7

• Safety goggles NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. Noise ENG905-1 The typical A-weighted noise level determined according to EN60745: Sound pressure level (L

): 82 dB (A) Sound power level (L

): 93 dB (A) Uncertainty (K): 3 dB (A) Wear ear protection. Vibration ENG900-1 The vibration total value (tri-axial vector sum) determined according to EN60745: Vibration emission (a

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.

• The declared vibration emission value may also be used in a preliminary assessment of exposure.

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). For European countries only ENH101-15 EC Declaration of Conformity We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s): Designation of Machine: Cordless Stapler Model No./Type: DST220, DST221 are of series production and Conforms to the following European Directives: 2006/42/EC And are manufactured in accordance with the following standards or standardised documents: EN60745 The technical documentation is kept by our authorised representative in Europe who is: Makita International Europe Ltd. Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, England
