USER MANUAL PDRA 20Li B2 PARKSIDE

PDF ONLINE www.lidl-service.com

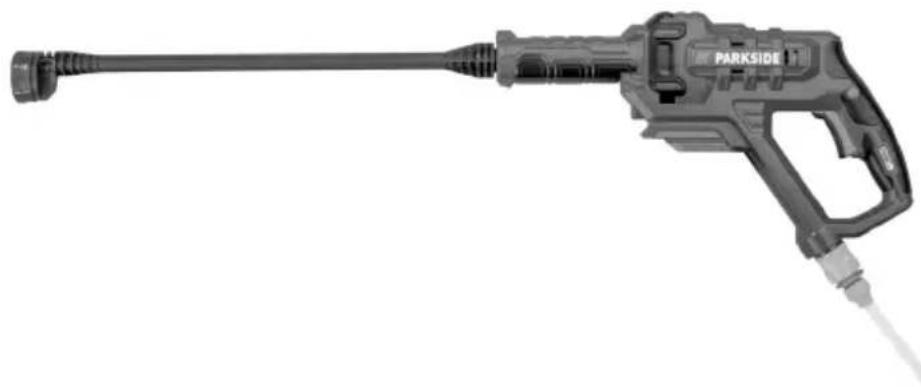

Exterior view of a Parkside water spray gun (no text or symbols visible on the device body)

AKKU-DRUCKREINIGER / CORDLESS PRESSURE WASHER / NETTOYEUR À PRESSION SANS FIL PDRA 20-Li B2

DE AT CH

AKKU-DRUCKREINIGER

Operation and safety notes Translation of the original instructions

FR BE

NETTOYEUR À PRESSION SANS FIL

Technical diagram of a mechanical assembly with numbered parts for identification

Simple line drawing of a bottle with horizontal lines and a label '11' above it (no text or symbols on the bottle itself)

10a 10

9 9b 9a

13 12

B 15 14 16 17

C 14 21 20 19 18

D 14 6 1 15

E 11 7 1 10

F 7 1

G 10 1 11

H 1 5 9a 9

Technical diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

1 10 11

Diagram illustrating a spray bottle with a lock mechanism, showing directional arrows and a lock icon.

J 8 0° 15° 25° 40°

K 2 3

L 9 9b

M 10c 10

Line drawing of a person spraying water on a bench with chairs nearby (no text or symbols)

Line drawing of a person spraying water on a car, with a bucket nearby (no text or symbols)

Line drawing of a person spraying water with flowers and a bucket (no text or symbols)

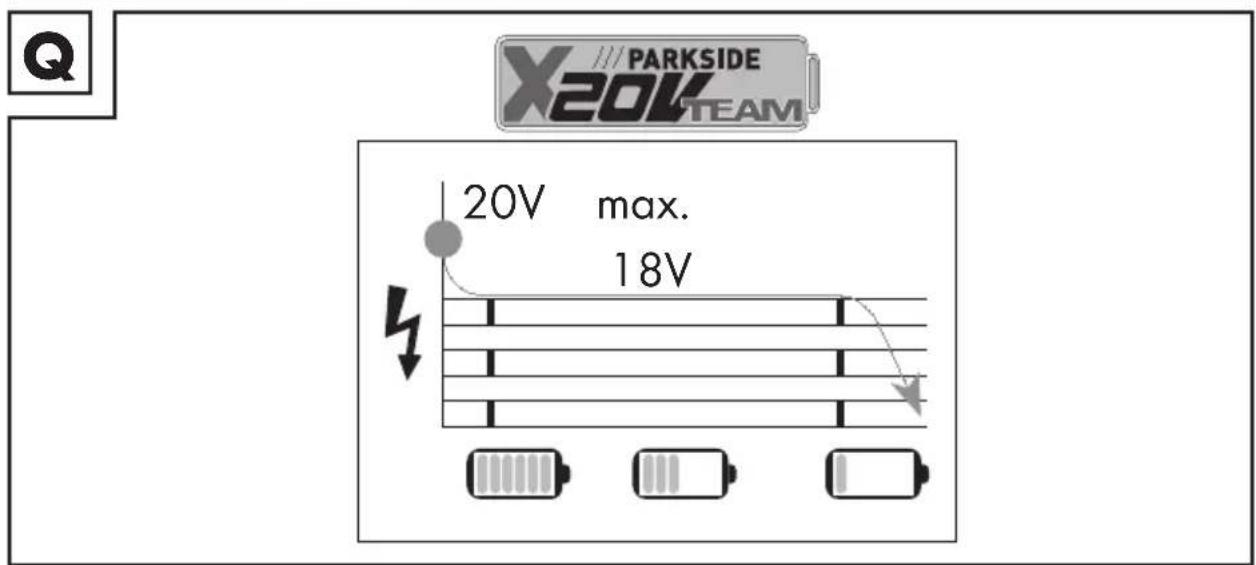

Q PARKSIDE 20V TEAM 20V max. 18V

Benjamin Steeb Managing Director Jena Buchheim Authorised Signatory

DE

Warnings and symbols used ...... Page 25

Introduction Page 26

Intended use. Page 26

Scope of delivery....Page 26

Parts description....Page 27

Technical data Page 27

Safety instructions....Page 28

General power tool safety warnings Page 28

Safety instruction for pressure washers Page 30

Behaviour in emergency situations....Page 31

Residual risks Page 32

Battery charger safety warnings Page 32

Before use Page 33

Accessories Page 33

Unpacking Page 33

Checking the battery pack charging level....Page 34

Charging the battery pack....Page 34

Attaching/removing the battery pack Page 34

Attaching/removing the lances Page 34

Attaching/removing the water hose....Page 35

Filling cleaning agent....Page 35

Adjusting the nozzles....Page 36

Connecting to the domestic water supply ...... Page 36

Using built-in suction function....Page 37

Operation....Page 37

Switching the product on/off Page 37

Troubleshooting Page 38

Cleaning and care Page 38

Cleaning. Page 38

Maintenance Page 39

Repair....Page 39

Storage Page 39

Transportation Page 39

Disposal Page 40

Warranty Page 41

Warranty claim procedure....Page 41

Service Page 41

EC Declaration of conformity....Page 42

Warnings and symbols usedThe following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.		Wear eye protection!
			Wear a dust mask!
	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented could result in death or serious injury.		Switch the product off and remove the battery pack 14 before replacing attachments, cleaning and when not in use.
			The product is not suitable for connecting to a drinking water supply system directly.
	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.		Protect the battery pack against heat and continuous intense sunlight.
			Protect the battery pack from fire.
	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Protect the battery pack against water and moisture.
			Fuse
			Alternating current/voltage (charger)
	ATTENTION! This symbol with the signal word "Attention" indicates a possible property damage.		Direct current/voltage (battery)
	Danger - risk of electric shock!	V	Voltage
	Protection class II (double insulation)		Use the product in dry indoor spaces only (battery charger).
	CE mark indicates conformity with relevant EU directives applicable for this product.

CORDLESS PRESSURE WASHER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless pressure washer (hereinafter "product" or "power tool") is designed for household and car cleaning, as well as garden irrigation.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use.

The product is exclusively intended for domestic use. It is not intended for commercial use, industrial operations or similar purposes.

Always use the correct accessories! Observe the technical requirements of this product (see "Technical data") when purchasing and using accessories.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1x Cordless pressure washer
1x Water hose
1x Spray lance
1x Foam lance
1x Cleaning agent bottle
1x Mesh bag
1x Cleaning agent
1x Instruction manual

Parts description

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

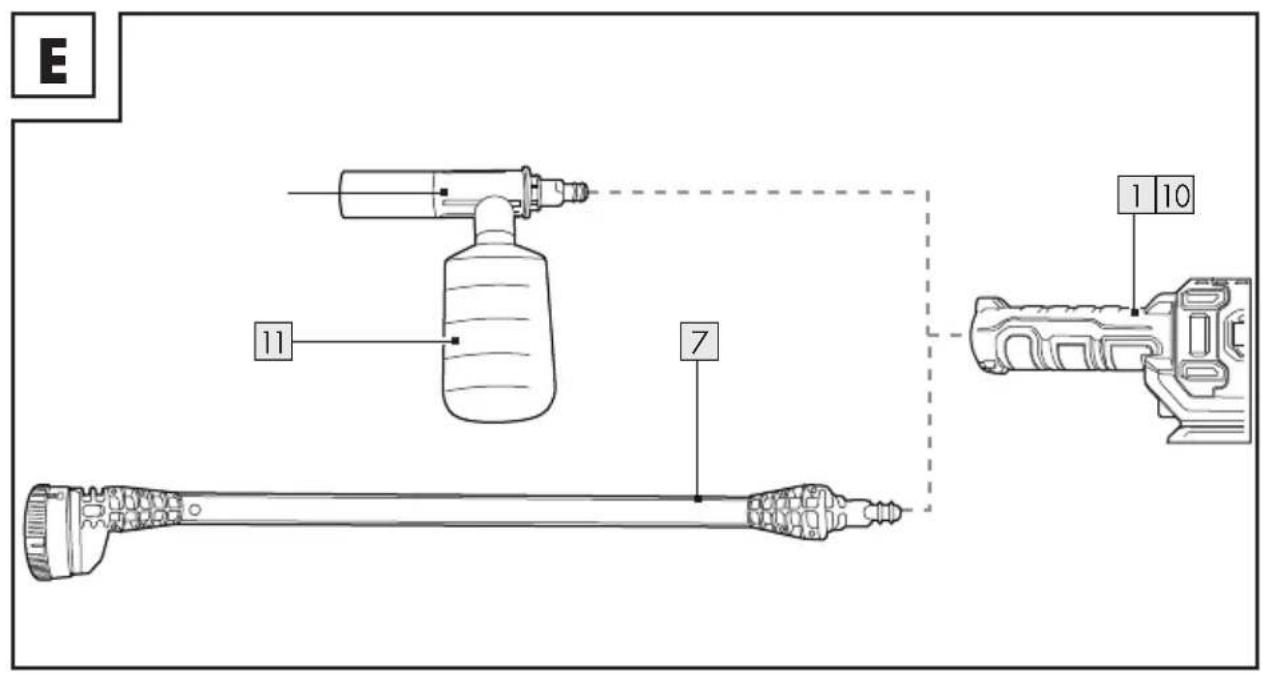

Fig. A, B and C

1	Pressure washer

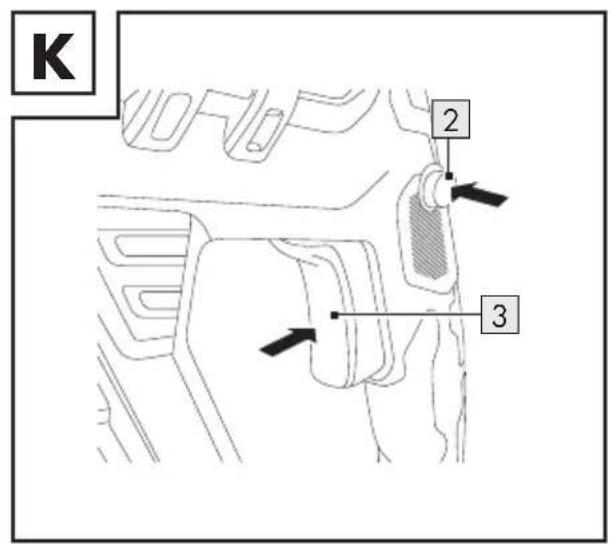

2	Switch lock button
3	Switch trigger
4	Main handle
5	Water inlet connector
6	Battery port

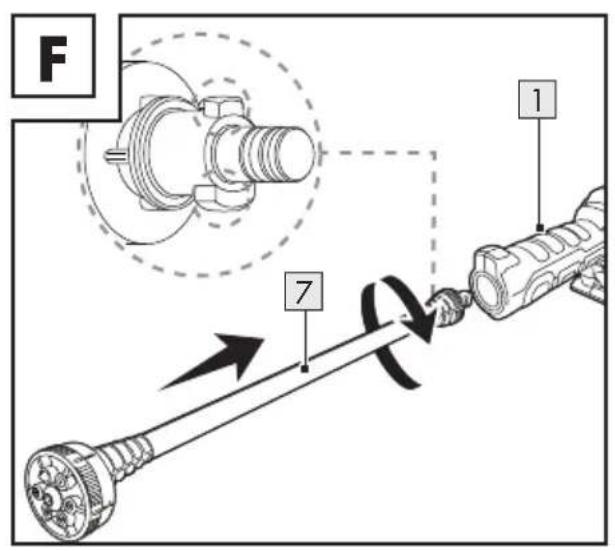

7	Spray lance

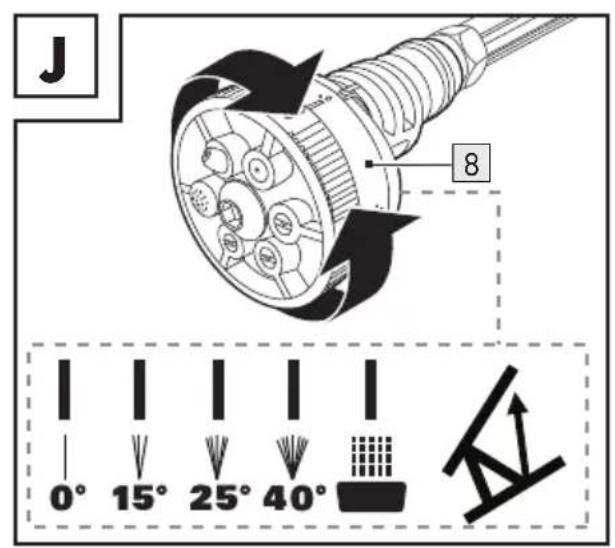

8	Spray nozzles

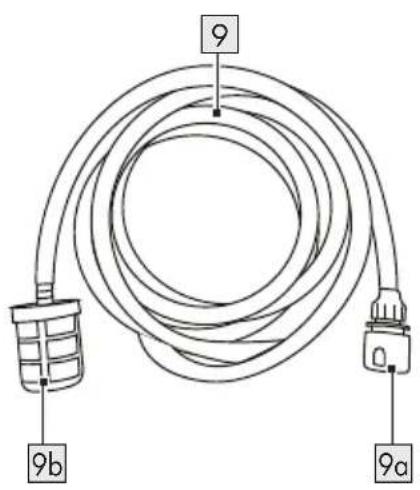

9	Water hose

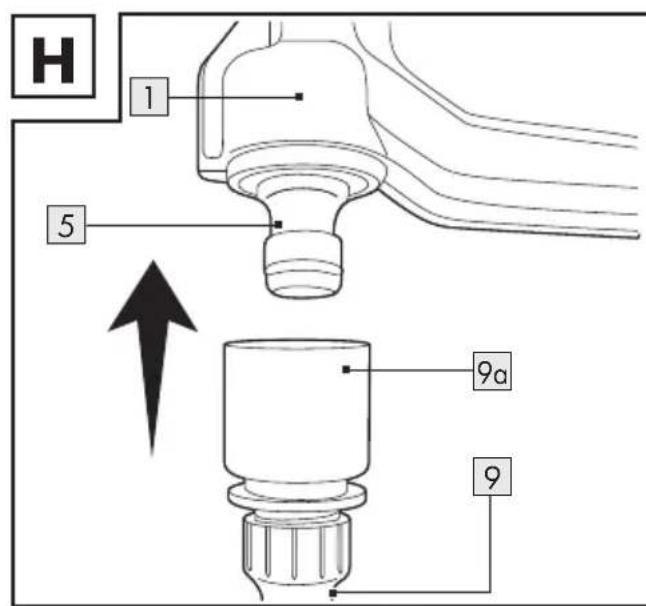

9a	Hose coupler

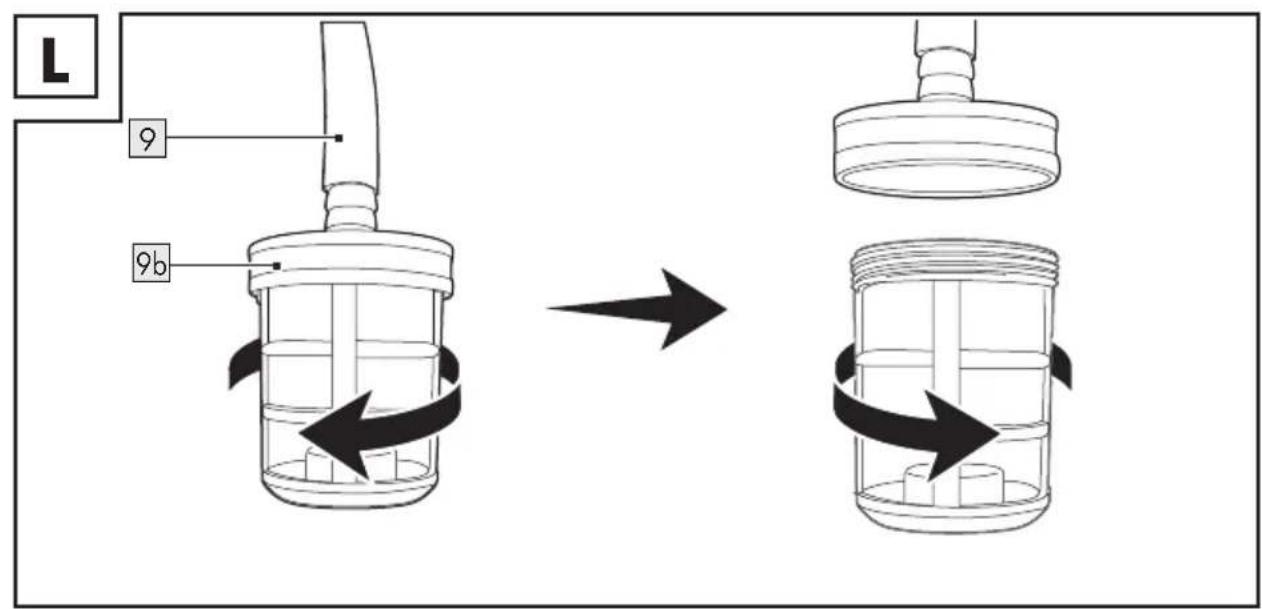

9b	Filter basket

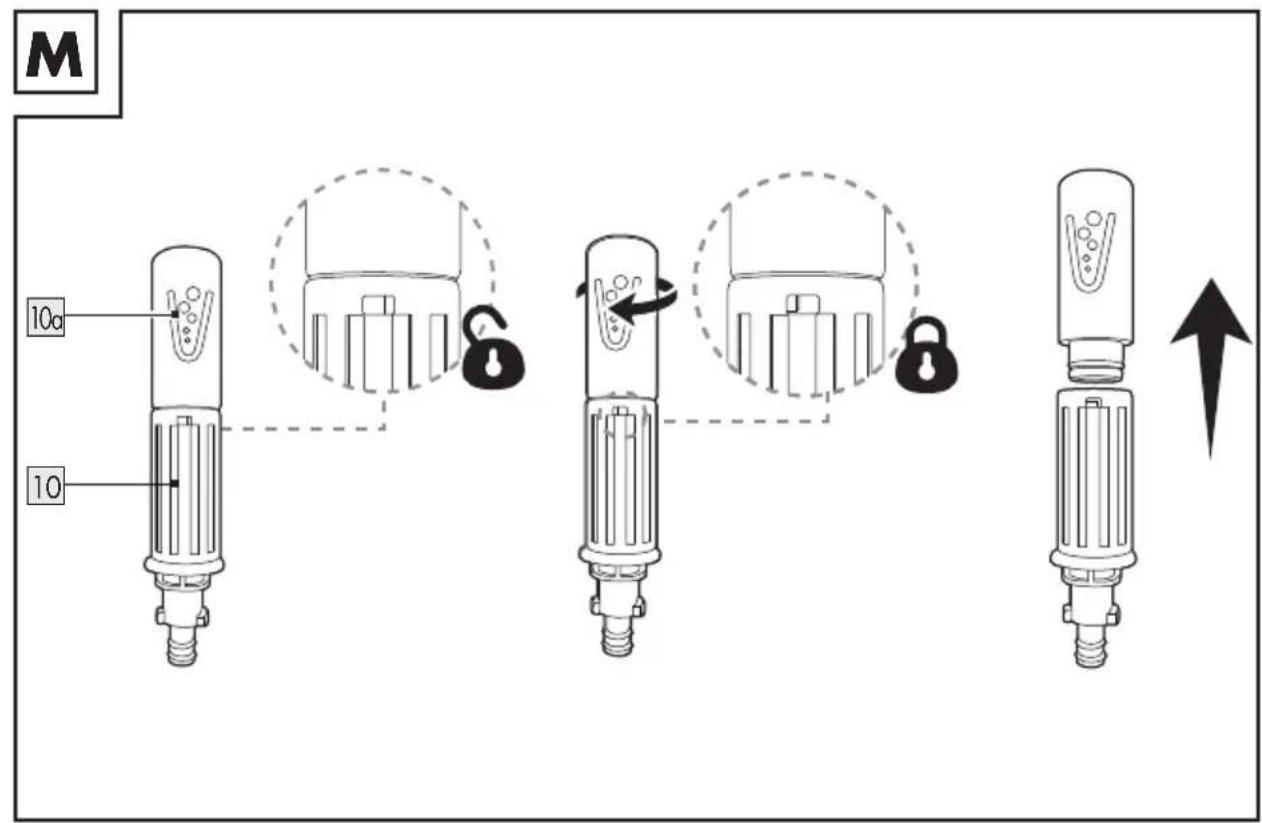

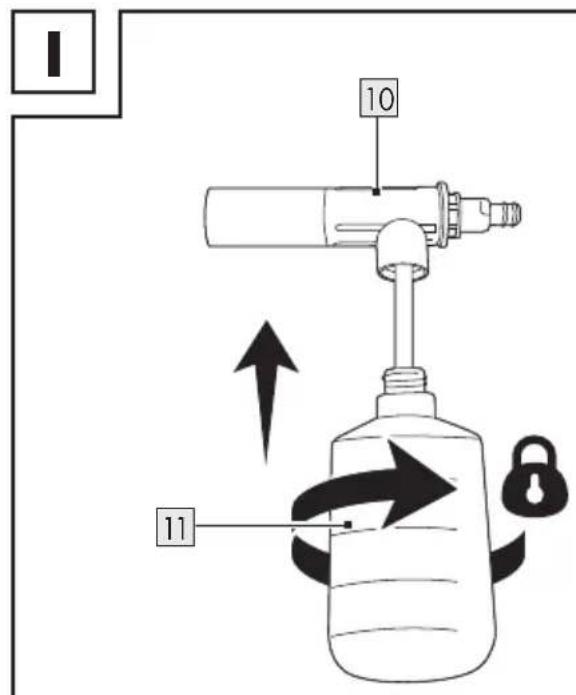

10	Foam lance
10a	Foam spray nozzle

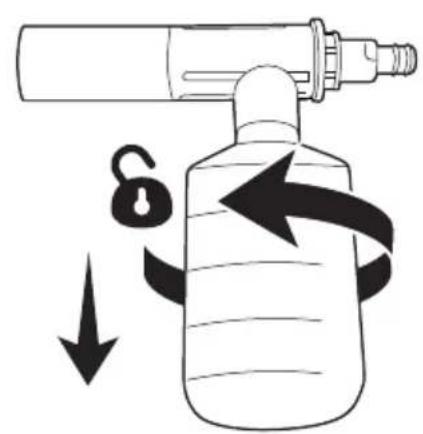

11	Cleaning agent bottle

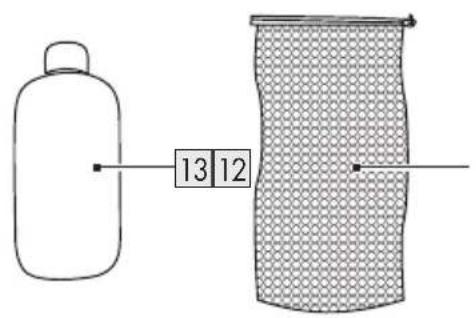

12	Mesh bag
13	Cleaning agent (Model no. HG08977)

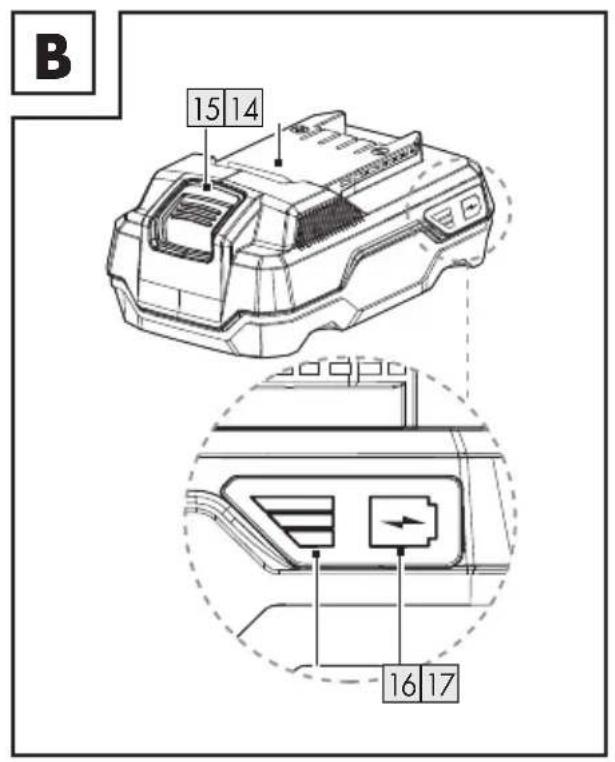

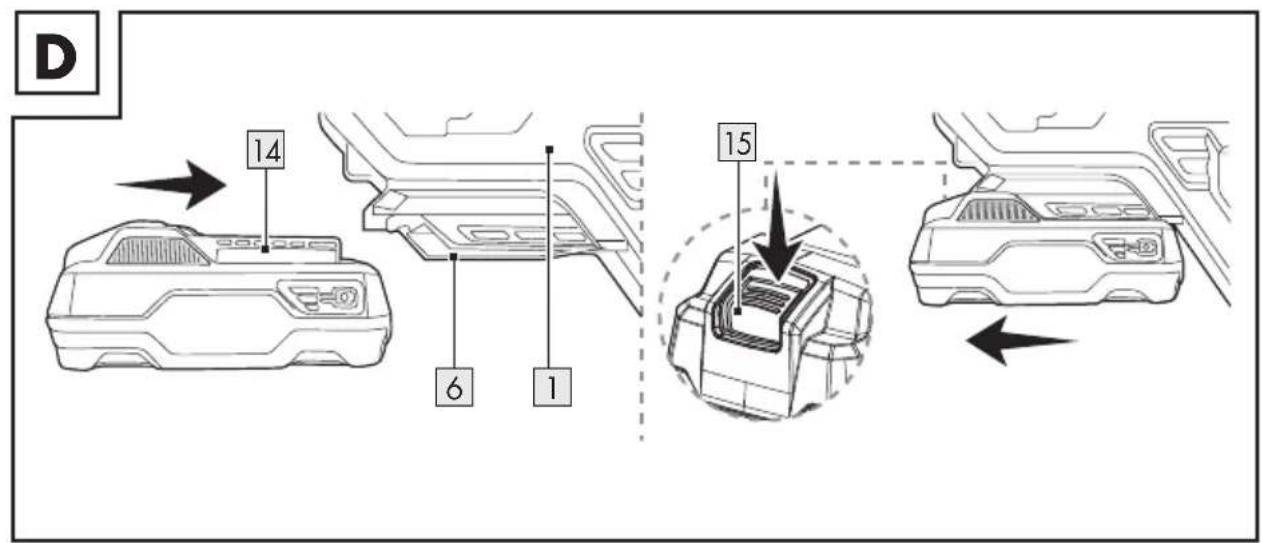

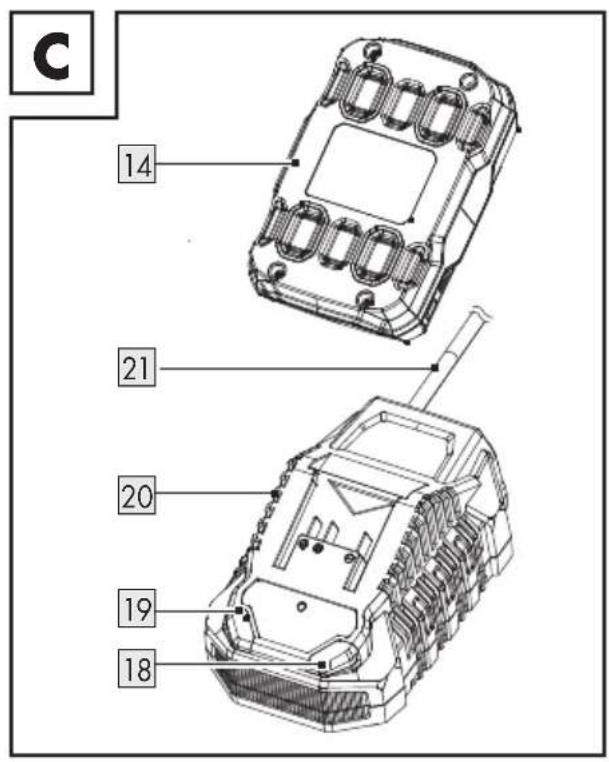

14	Battery pack*
15	Release button
16	button
17	Charging level LEDs (red/orange/green)
18	Charging control LED - red
19	Charging control LED - green
20	Battery charger*
21	Power cord with power plug

* Battery pack and battery charger are not included.

- Technical data

Cordless pressure washer

Model number: HG08941

Rated voltage: 20 V ---

Rated pressure: 25 bar (2.5 MPa) max.

Working pressure: 22 bar (2.2 MPa)

Max. water follow rate: 2.5 l/min

Max. water suction

height: 3 m

Water hose 9 length: 6 m

Cleaning agent

bottle 11 capacity: 500 ml

Battery pack PAP 20 B1 *

Type:	Lithium-Ion
Rated voltage: 20 V	max- - -
Capacity:	2.0 Ah
Energy value:	40 Wh
Number of cells:	5

Battery pack PAP 20 B3 *

Type:	Lithium-Ion
Rated voltage: 20 V	max- - -
Capacity:	4.0 Ah
Energy value:	80 Wh
Number of cells:	10

Rapid battery charger PLG 20 C3 \*

Input:

Rated voltage: 230-240 V \~

Rated frequency: 50 Hz

Rated power: 120 W

Fuse (internal): 3.15 A / T3.15A

Output:

Rated voltage: 21.5 V ---

Charging current: 4.5 A

Protection class: II / ☐

* Battery pack and battery charger (rapid battery charger) are not included.

Charging time:

Battery type PAP 20 B1, 2.0 Ah (available separately): 45 minutes
Battery type PAP 20 B3, 4.0 Ah (available separately): 60 minutes

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) This product can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the resulting dangers. Children are not allowed to play with the product.
2) This product is not intended for use by children. Children are not allowed to play with the product. Cleaning and user maintenance must not be carried out by children.

3) The product must not be used in positions higher than 2000 m.
4) The liquid or the steam must not be directed at electrical devices and equipment that contain electrical components, such as the interior of ovens.
5) The product must be disconnected from the mains by pulling the plug after use and before user maintenance.
6) Do not use in pools that contain water.
7) The product must not be left unattended while it is connected to the mains.
8) The product must not be used if it has been dropped, if there is obvious damage or if it is leaking.
9) Keep the product away from children when it is switched on or cools down.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

6) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
7) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Safety instruction for pressure washers

The water jet must not be pointed at persons, animals, electrical appliances or the product itself.
- Do not direct the jet at yourself or others in order to clean clothes or shoes.
To protect against water or dirt splashing, wear suitable protective clothing and safety goggles.
- Do not operate the product if other people are in immediate vicinity.
Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance can result in a risk of fire or explosion.

• Do not spray combustible liquids. There is a risk of explosion.
• Be aware of the increased risk of tripping up by the water hose when using the product.
  Do not run over, crush or kink the suction hose. There is a risk of damage and therefore a risk of personal injury.
• Do not use the product for cleaning windows.
• Do not work with damaged or incomplete equipment or with equipment that has been modified without the approval of the manufacturer.
  Before initial operation, have a specialist check that the required electrical protection measures are in place.
  Do not use the product if important parts such as the water hose or the spray lance are damaged. It may cause personal injury.
• Protect the product from frost and dry running.
• Do not use in swimming pools that are containing water.
  ■ Remove the battery pack from the product after use and before carrying out cleaning, maintenance or storage of the product.
  The product should not be used by children. Children should be supervised to ensure that they do not play with the machine.
  This product can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ People who are unfamiliar with the operating instructions are not permitted to use the product.
The product may not be operated by non-trained persons.
In case of a malfunction or defect during operation, the product must be switched off immediately and the battery pack must be removed from the product.
Do not use any accessories such as hoses, fittings and couplings or parts that are not recommended by ^1 in a case that result in electric shock, fire or personal injury.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

■ Do not charge non-rechargeable batteries.
Disregarding this instruction is hazardous.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

■ The appliance is suitable for indoor use only.

⚠️ ATTENTION! This charger is only designed for charging the battery pack types:

PARKSIDE 20 V battery pack

PAP 20 B1 2 Ah 5 cells

PAP 20 B3 4 Ah 10 cells

■ An up-to-date list of battery compatibility can be found at www.lidl.de/akku.

Suitable battery packs and chargers

Battery pack:

PARKSIDE X 20 V Team

Charger:

PARKSIDE X 20 V Team

Before use

Accessories

To operate this product safely and correctly, suitable personal protective equipment and accessories are required.
- Accessories and accessory tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").
If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

WARNING!

Do not use accessories not recommended by // PARKSIDE This may result in electric shock or fire.

Unpacking

• Open the packaging and remove the product carefully.
  ■ Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the product and accessory parts for transport damage.

WARNING!

The product and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

- Checking the battery pack charging level

(Fig. B)

■ Press ➕ button 16. The charging level LEDs 17 light up:

Charging level LED 17 Charging level

Red/orange/green Maximum

Red/orange Medium

Red Low

● Charging the battery pack

(Fig. C)

NOTE

The battery pack 14 may be charged at any time without reducing its life.
Interrupting the charging process does not damage the battery pack 14.

- Charge the battery pack 14 before operation when it is at medium or low charging level.

The charging control LEDs (red 18 and green 19) indicate the status of the battery charger 20 and the battery pack 14:

LEDs Status
Red LED lights up Battery pack charges

Green LED lights up	Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing	Battery pack too cold or too warm
Green LED lights up (without battery pack)	Charger ready

• Insert the battery pack 14 into the battery charger 20.
  Connect the power cord with power plug 21 of the battery charger 20 to a socket-outlet.
• When the battery pack 14 is fully charged: Remove the battery pack 14 from the battery charger 20. Disconnect the power plug 21 of the battery charger 20 from the socket-outlet.

- Attaching/removing the battery pack

(Fig. D)

Attaching the battery pack:

• Align the battery pack 14 to the battery port 6.
• Insert the battery pack 14 into the battery port 6 until the battery pack 14 is click-locked.

Removing the battery pack:

Press down the release button 15 of the battery pack 14.
■ Remove the battery pack 14 from the battery port 6.

- Attaching/removing the lances

(Fig. E)

WARNING

Switch the product off and remove the battery pack 14 before replacing attachments, cleaning and when not in use.

The pressure washer 1 can be connected to a spray lance 7 or a foam lance 10 for cleaning and priming works.

Attaching the spray lance

(Fig. F)

• Align the spray lance 7 to the pressure washer 1.
• Insert the spray lance 7 into the pressure washer 1 until the connector is completely inserted.
  ■ Rotate the spray lance 7 in clockwise direction to lock the spray lance 7.

Removing the spray lance

■ Press down the spray lance 7.
■ Rotate the spray lance 7 in anti-clockwise direction.
■ Remove the spray lance 7 from the pressure washer 1.

Attaching the foam lance

(Fig. G)

• Align the foam lance 10 to the pressure washer 1.
• Insert the foam lance 10 into the pressure washer 1 until the connector is completely inserted.
  ■ Rotate the foam lance 10 in clockwise direction to lock the foam lance 10.

Removing the foam lance

■ Press down the foam lance 10.
- Rotate the foam lance 10 in anti-clockwise direction.
■ Remove the foam lance 10 from the pressure washer 1.

- Attaching/removing the water hose

(Fig. H)

Attaching the water hose

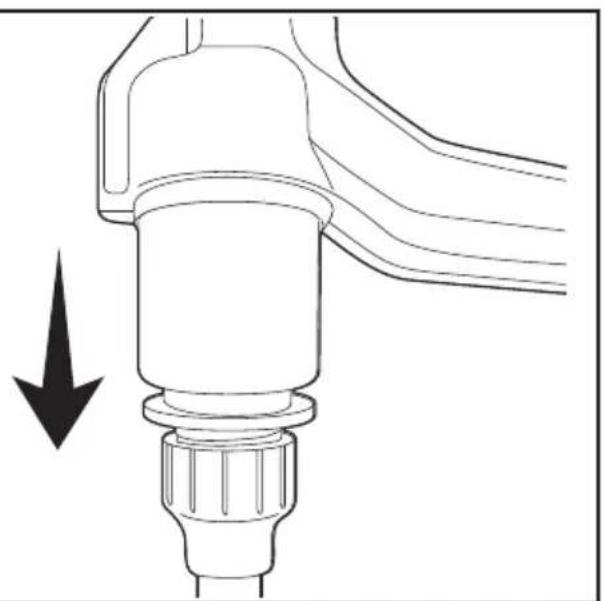

• Align the hose coupler 9a of the water hose 9 to the water inlet connector 5.
• Insert the hose coupler 9a into the water inter connector 5 until it is click-locked.

Removing the water hose

• Hold the upper part of the hose coupler 9a.
  Pull the hose coupler 9a away from the water inlet connector 5.

● Filling cleaning agent

(Fig. I)

■ Hold the foam lance 10.
- Rotate the cleaning agent bottle 11 in anticlockwise direction.
■ Remove the foam lance 10 from the cleaning agent bottle 11.
Fill the cleaning agent bottle 11 with liquid cleaning agent.
- Insert the foam lance 10 into the cleaning agent bottle 11.
- Rotate in clockwise direction to lock the cleaning agent bottle 11 to the foam lance 10.

CAUTION!

This product has been designed to be used with a neutral, biodegradable cleaning agent. Other cleaning agents or chemical substances may impair the safety of the product and damage it. Such damage to the product is not covered by warranty.

- Adjusting the nozzles

(Fig. J)

The spray nozzle 8 has 6 different spray patterns that can be used.
■ Rotate the spray nozzles 8 to select the spray patten.
■ White icons on the top of the spray lance 7 indicate which spray nozzle 8 is selected.

Icon Spray pattern/angle

—	0°
	15°
	25°
	40°
	Gentle spray for watering, irrigation or washing.

Water jet that sprays upward.

- Connecting to the domestic water supply

CAUTION!

The product is not suitable for connecting to a drinking water supply system directly.

CAUTION!

In complying with water supply regulations, a pressure washer must never be operated with the drinking water main supply without being connected to a back-flow preventer device. The back-flow preventer device prevents the backflow of water and cleaning agent into the drinking water pipeline.
A suitable backflow preventer in conformity with EN 12729 type BA must be used and installed by a qualified person. Water that has passed through a backflow preventer is classified as undrinkable. A backflow preventer is available in specialist stores.
The connection of the water hose and backflow preventer device to the domestic water supply is only to be done by a qualified plumber.
▶ Use the product with a domestic water supply with a maximum pressure of 5 bar (0.5 MPa) and temperature 40 °C.

• Open the water tap. Let the water flow until there are no bubbles left inside the water hose.
• Close the water tap.

■ Connect the hose coupler 9a to the water inlet connector 5.

Open the water tap.

- Using built-in suction function - Operation

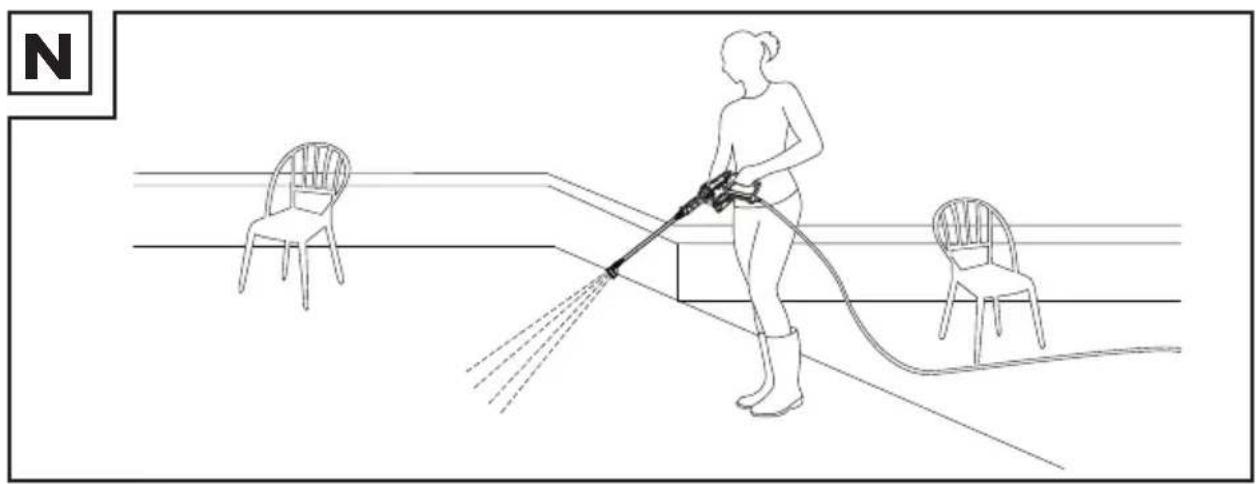

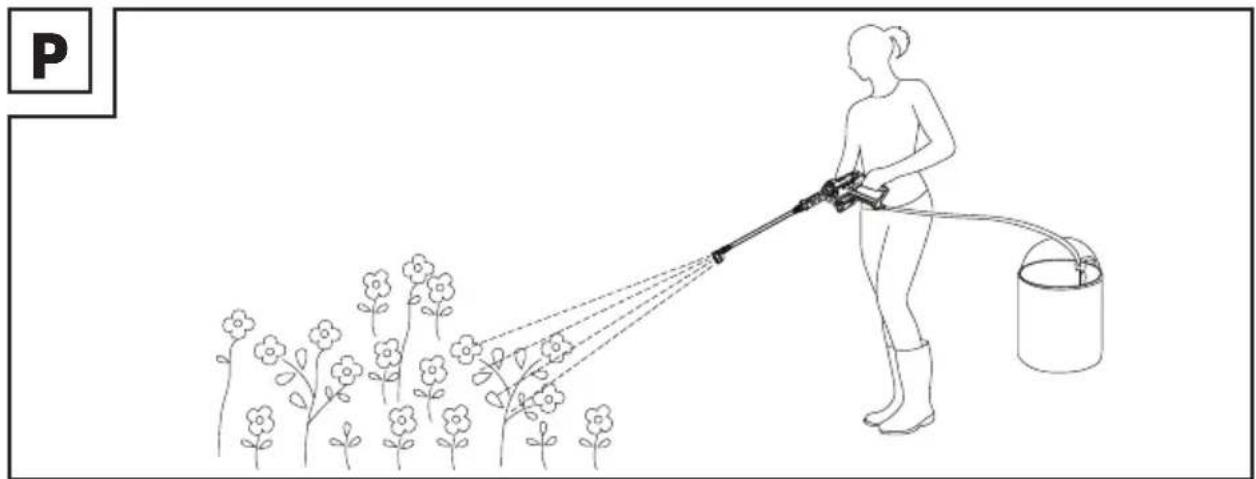

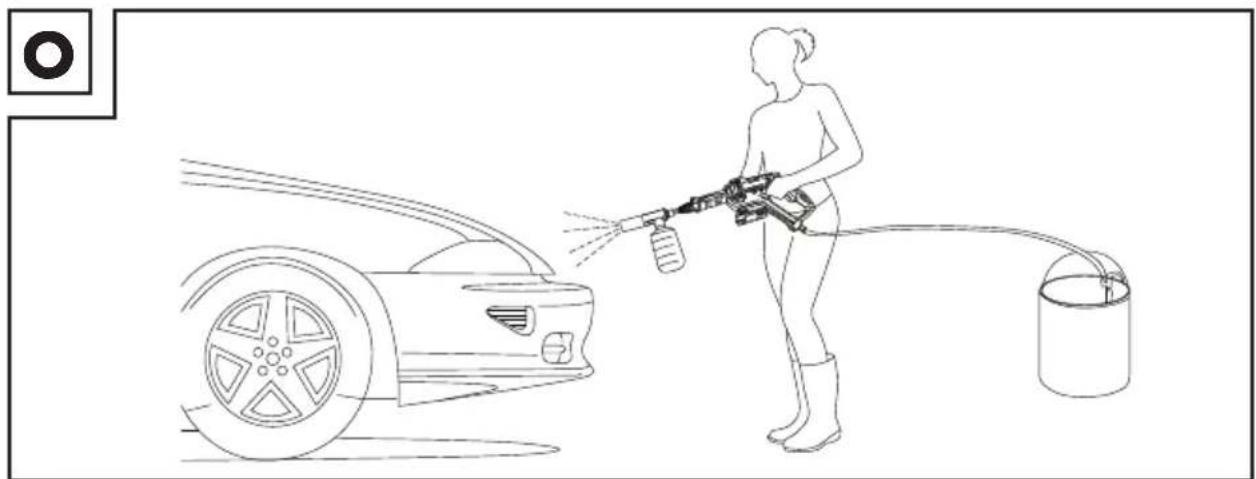

(Fig. N, O and P)

The product can be operated independently without domestic water supply through the built-in water suction function.

WARNING!

Do not immerse the product in water. There is a risk of personal injury from electric shock.
Avoid operating the product without water (Fig. K) flowing (dry run). This can damage the product by overheat. Switch
(Fig. K)

NOTE

Do not suck water from any natural accumulator. There is a risk of contamination from backwashed cleaning agent.
When suctioning, provide sufficient water. Dry running can damage the product.

Only use the water suction function with a water hose 9 equipped with a filter basket 9b.

- Insert the filter basket 9b into the water collector (e.g. water bucket). The filter basket 9b has to be fully covered with water.

CAUTION!

The recoil force of the emitted water jet can be strong. Stand firmly and hold the main handle 4 securely.
▶ Never operate the product with a closed water tap. Dry running can damage the product.

- Switching the product on/off

Switching on

■ Press and hold the switch lock button 2.
■ Push down and hold the switch trigger 3 to switch on and operate the product.
■ Release the switch lock button 2.

Switching off

■ Release the switch trigger 3 to switch off the product.
Press down the switch trigger 3 briefly to check if the switch trigger 3 is in lock position.
■ Remove the battery pack 14 from the product.
- Disconnect the product from the water supply source.
Follow the "Switching on" procedure with removed battery pack 14 and disconnected water supply source to release the residual pressure and water inside the product.
■ Release the switch trigger 3.
Press down the switch trigger 3 briefly to check if the switch trigger 3 is in lock position.

● Troubleshooting

Problem Cause Solution

The water hose is not properly connected to the product.

Switch off the tool immediately.

Remove the battery pack 14 to avoid electric shock.

Follow the steps to connect the water hose to the product (see "Attaching the water hose").

If required, seek for a qualified person to fix the problem.

● Cleaning and care

WARNING!

Switch the product off and remove the battery pack 14 before replacing attachments, cleaning and when not in use.

Cleaning

■ Never allow fluids to get into the product.
■ Regular and proper cleaning helps to ensure a safe use and prolong the life of the product.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Pressure washer 1

■ Disconnect the battery pack 14, the lances 7, 10 and the water hose 9 from the pressure washer 1.
■ Remove all water from the pressure washer 1.
- Clean the pressure washer 1 with a dry cloth.

Spray lance 7 and spray nozzles 8

• Rinse the spray lance 7 and the spray nozzles 8 with clean water.
  ■ Remove all water from the spray lance 7 and the spray nozzles 8.
  If the spray nozzles 8 are soiled or clogged, use a needle to remove foreign objects or particles.

Foam lance 10 and foam spray nozzle 10a

(Fig. M)

• Hold the foam lance 10. Rotate the foam spray nozzle 10a to unlock the parts.
  ■ Remove the foam spray nozzle 10a from the foam lance 10.
  ■ Clean all parts with clean water.
• Allow all parts to dry completely.
• Insert the foam spray nozzle 10a into the foam lance 10.
  ■ Rotate the foam spray nozzle 10a and the foam lance 10 to reconnect the parts.
  ■ After cleaning: Allow all parts to dry completely.

Maintenance

WARNING!

Switch the product off and remove the battery pack 14 before replacing attachments, cleaning and when not in use.

Check the product and accessories (e.g. tools) for wear and damage before and after each use. Replace them with new ones if necessary. Observe the technical requirements (see "Technical data").

Replacing the filter basket 9b

(Fig. L)

NOTE

Replace the filter basket 9b if the filter basket 9b is blocked or damaged by foreign objects.

• Hold the water hose 9.
  ■ Turn the filter basket 9b in anti-clockwise direction.
  ■ Remove the old filter basket 9b.
  ■ Use a new filter basket 9b.
  Screw the filter basket 9b in clockwise direction onto the thread.

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

■ Clean the product (see "Cleaning").
■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
■ Always store the product in a place that is inaccessible to children.
The ideal long term storage (longer than 3 months) temperature is between +20 and +26 °C.
■ Store the product in the mesh bag 12.

Battery pack 14 advice

Only store the battery pack 14 partially charged. The battery pack 14 should be charged to 40 to 60 % (red and orange LED in the charging level LEDs 17 light up) before storing for extended periods.
- Check the battery pack 14 charge about every 3 months when storing for extended periods. Recharge as necessary.

Transportation

■ Transport the product in the mesh bag 12.
- Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Remove the batteries / battery pack from the product before disposal.

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty for the battery pack is 1 year from the date of purchase.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 385577_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail:[e-mail]

EC Declaration of conformity

EC DECLARATION OF CONFORMITY

IAN:

385577_2107

Product identification:

PARKSIDE Cordless Pressure Washer

Model Number:

HG08941

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 60335-1:2012/A2:2019

EN 60335-2-54:2008/A1:2015

EN ISO 12100:2010

EN 62233:2008

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

10.01.2022

Date

Managing Director

88a. Budon

ppa.Jens Buchheim

Authorised Signatory

DÉCLARATION DE CONFORMITÉ CE

IAN : 385577_2107

Authorised Signatory

FR

Nominale spanning: 20 V ---

Nominale druk: 25 bar (2,5 MPa) max.

Werkdruk: 22 bar (2,2 MPa)

Max.

Authorised Signatory

NL

Akumulator PAP 20 B1 \*

Typ: Litowo-jonowy

Akumulator: PARKSIDE X 20 V Team

Ładowarka: 🎯 PARKSIDE X 20 V Team

DEKLARACJA ZGODNOŚCI WE

Authorised Signatory

PL

Rychlonabiječka PLG 20 C3 \* Vstup:

Benjamin Steeb Managing Director ppa.Jens Buchheim Authorised Signatory

CZ

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Directive 2006/42/EC

EN 60335-1:2012/A2:2019

EN 60335-2-54:2008/A1:2015

EN ISO 12100:2010

EN 62233:2008

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

Benjamin Steeb Managing Director

gga. Budon pa.jens Buchheim

Authorised Signatory

SK

Authorised Signatory

ES

Authorised Signatory

DK

Authorised Signatory

IT

Authorised Signatory

HU

Uporabljena opozorila in simboli .... Stran 216

Uvod.... Stran 217

Predvidena uporaba .... Stran 217

Obseg dobave. Stran 217

Opis delov.... Stran 218

Nazivna napetost: 20 V ---

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG08941

Version: 01/2022

IAN 385577_2107

8=
