USER MANUAL CB 850 Genie

EN Spiral binding machine CB850

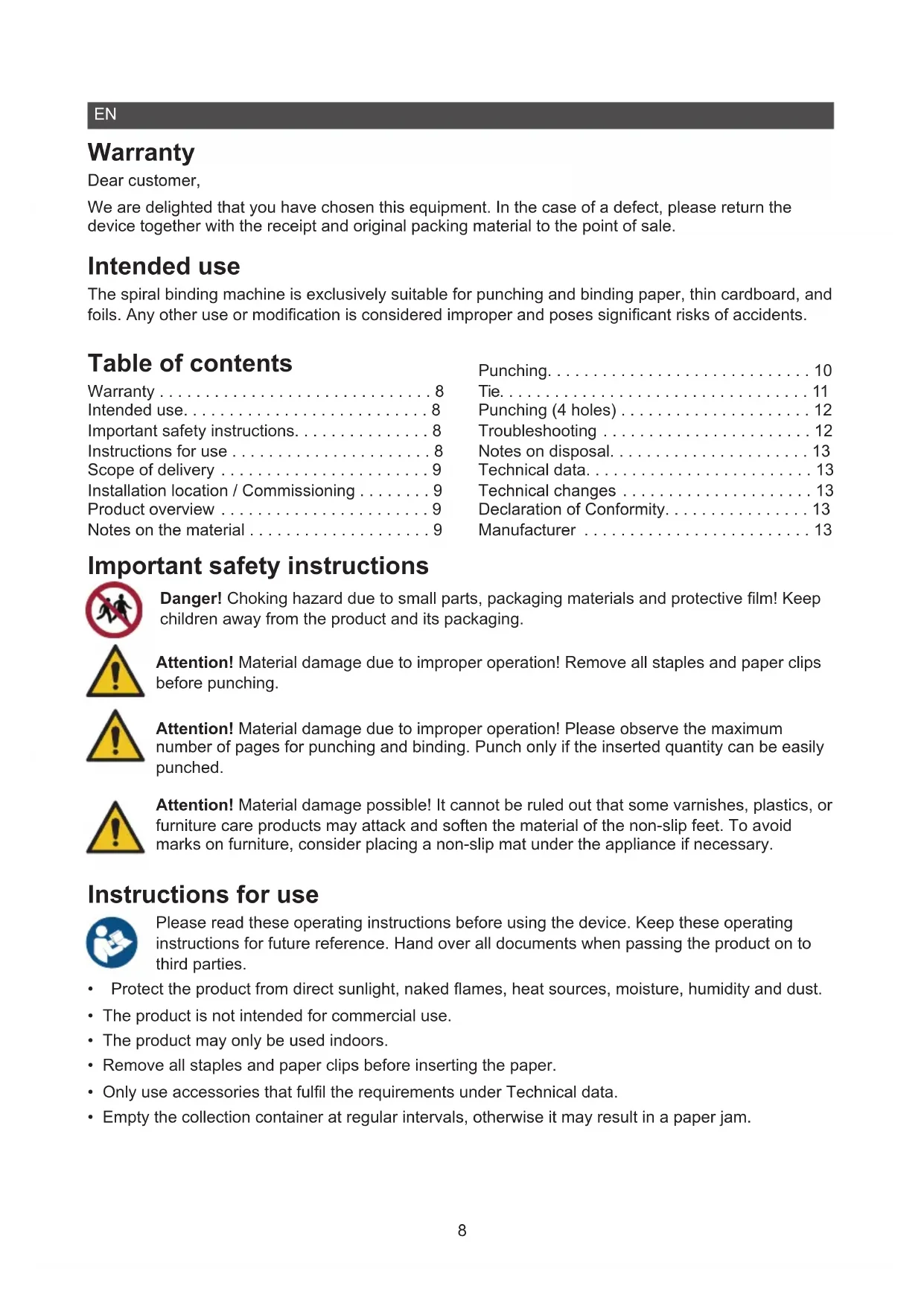

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The spiral binding machine is exclusively suitable for punching and binding paper, thin cardboard, and foils. Any other use or modification is considered improper and poses significant risks of accidents.

Table of contents

Warranty 8

Intended use. 8

Important safety instructions. 8

Instructions for use 8

Scope of delivery 9

Installation location / Commissioning 9

Product overview 9

Notes on the material 9

Punching. 10

Tie. 11

Punching (4 holes) 12

Troubleshooting 12

Notes on disposal. 13

Technical data. 13

Technical changes 13

Declaration of Conformity. 13

Manufacturer 13

Important safety instructions

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Attention! Material damage due to improper operation! Remove all staples and paper clips before punching.

Attention! Material damage due to improper operation! Please observe the maximum number of pages for punching and binding. Punch only if the inserted quantity can be easily punched.

Attention! Material damage possible! It cannot be ruled out that some varnishes, plastics, or furniture care products may attack and soften the material of the non-slip feet. To avoid marks on furniture, consider placing a non-slip mat under the appliance if necessary.

Instructions for use

Please read these operating instructions before using the device. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• The product is not intended for commercial use.
  The product may only be used indoors.
• Remove all staples and paper clips before inserting the paper.
• Only use accessories that fulfil the requirements under Technical data.
• Empty the collection container at regular intervals, otherwise it may result in a paper jam.

Scope of delivery

Check the packaging contents before operating the device. If anything is missing or damaged, do not operate the device under any circumstances. Contact our service team.

1 Spiral binding machine CB850 10 Binding spirals diameter 6mm 10 Binding spirals diameter 8mm 5 Binding spirals diameter 10mm 25 Sheets of PVC cover film 25 Sheets of binding combs
1 Operating instructions

Installation location / Commissioning

Place the device on a stable, level surface.

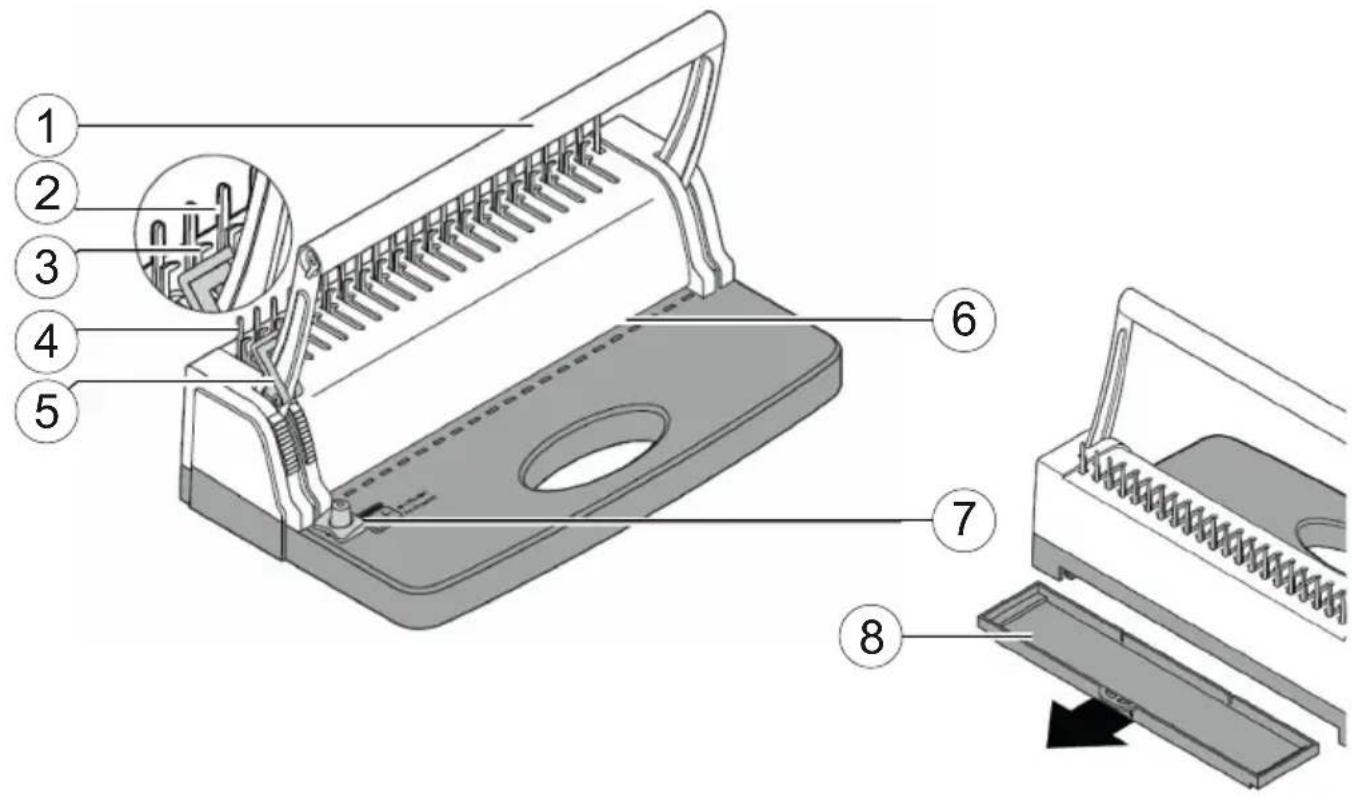

Product overview

1 Handle 5 Locking mechanism
2 Prongs 6 Insertion slot
3 Angles 7 Paper stop
4 Zinc / Angle 8 Collection container

Notes on the material

• Punch up to 12 sheets of standard paper (80g / m^2) simultaneously.
• Punch out cardboard and thin film (up to 300g / m^2 or 0.2mm thick) individually.
• Do not punch any metallic objects such as staples or paper clips.
• Use only plastic binding coils.

Punching

Note: The die mechanism was coated with an oily protective layer before packaging. Punch a blank sheet of paper several times until no residues are visible.

Note: Always test the settings made first on a blank sheet of paper before punching originals. So you can tell if the holes are evenly distributed across the paper.

Note: Plastic films can be punched more easily if you place a sheet of paper on both sides of the film and punch everything together.

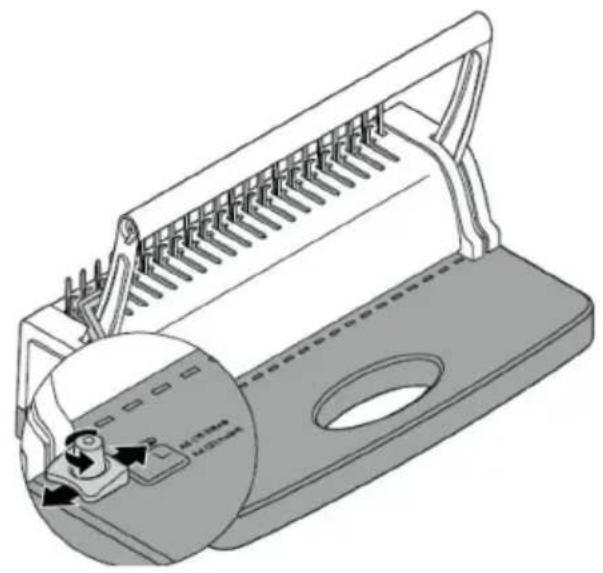

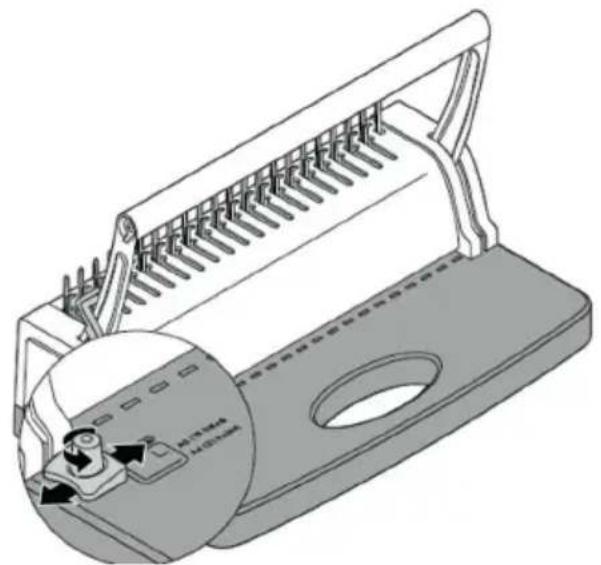

1 Move the paper stop to the required format.

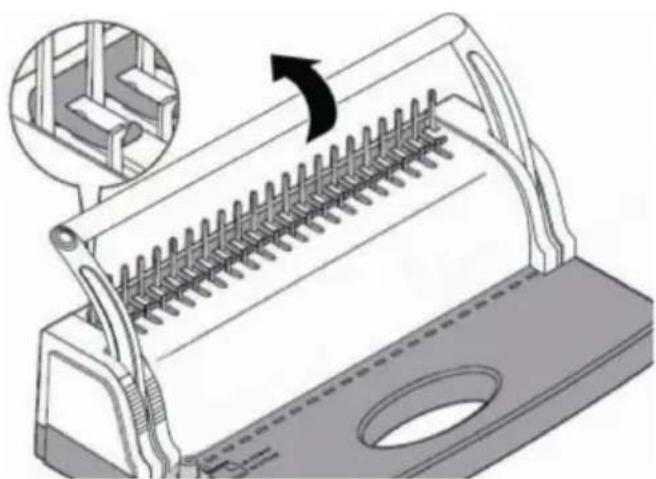

2 Pull the lever all the way up.

Note: If the lever is not completely at the top, the paper cannot be pushed in all the way and will not be punched correctly.

Attention! Material damage due to improper operation! Punch up to 12 sheets of standard paper (80g / m^2) simultaneously. Punch out cardboard and thin film (up to 300g / m^2 or 0.2mm thick) individually.

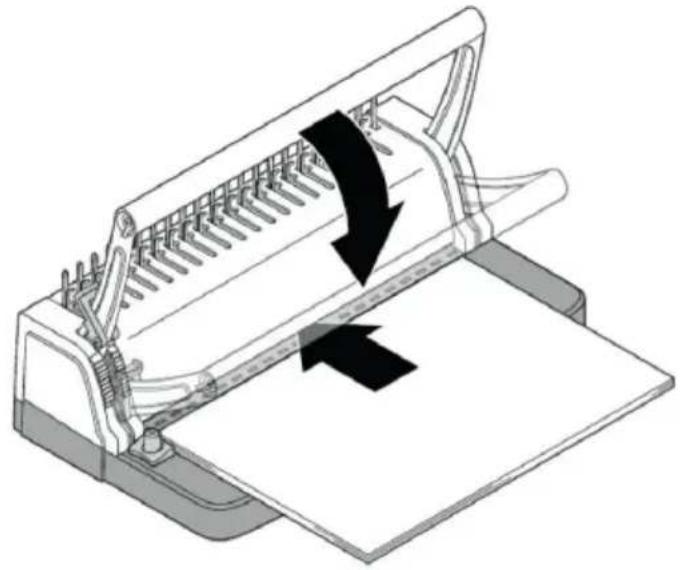

3 Place the paper against the paper stop and push it as far as possible into the paper input tray.

4 Press the lever down slowly and evenly.

5 Pull the lever all the way up again.

Note: If the lever is not positioned all the way at the top, the paper cannot be removed.

6 Remove the punched paper from the input tray.

Tie

Note: If you want to bind sheets, you must first punch them.

1 Choose the binding coil according to the number of pages to be bound.

Diameter of the binding spiral in mm Number of pages (80g / m^2)

62-20

815-35

1033-50

1245-80

1475-100

16 90-120

18 110-140

20 120- 160

2 Place the rings of the binding coil between the prongs.

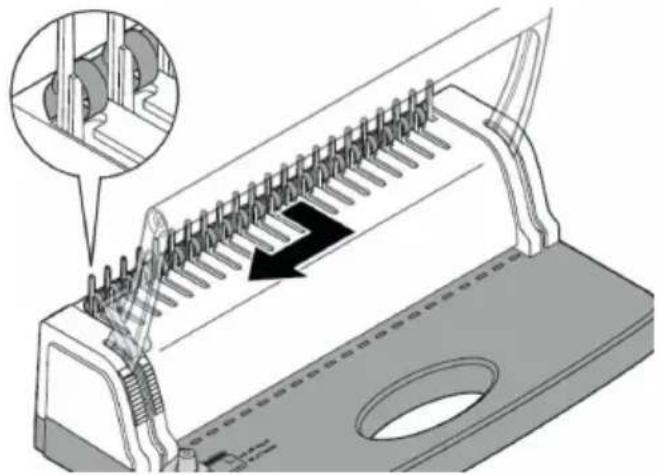

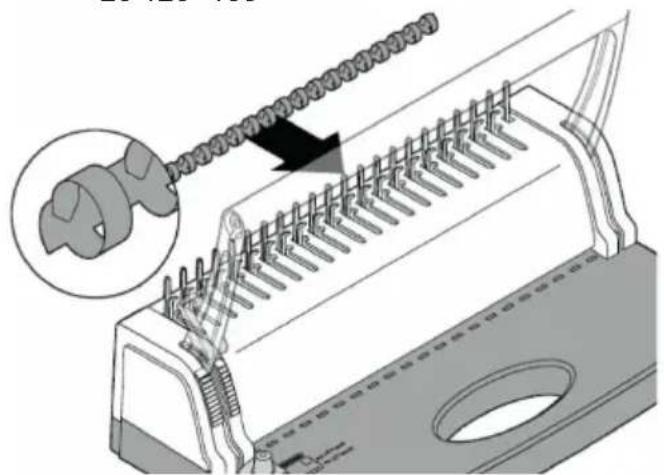

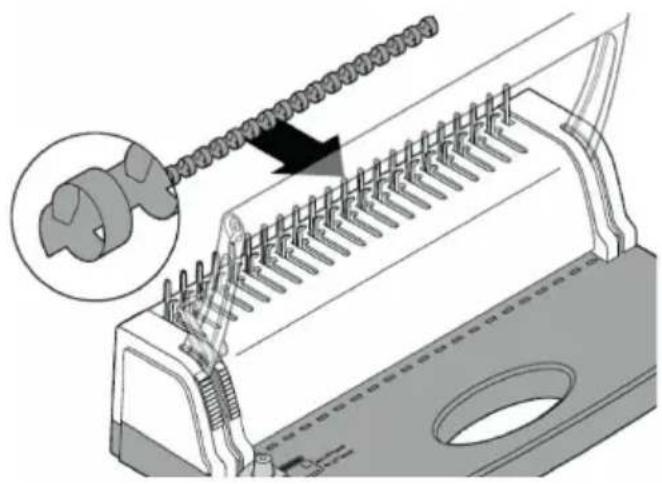

3 Push the binding coil onto the angles.
4 Press the lever down slowly and carefully until the binding spiral is pulled up. The tips of the rings must protrude slightly beyond the angles.
5 In order to keep the lever in this position, press the locking mechanism.

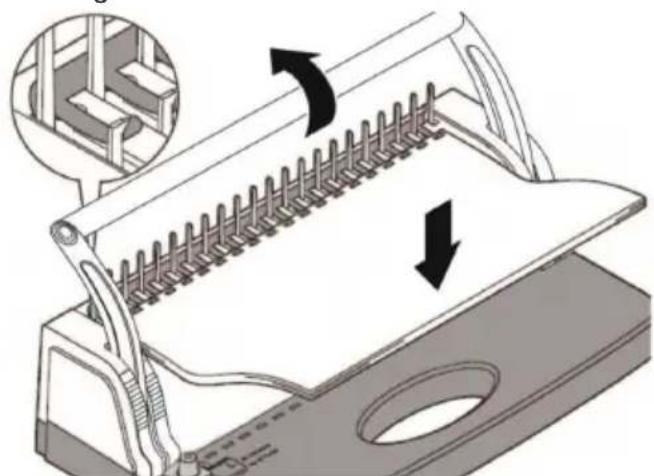

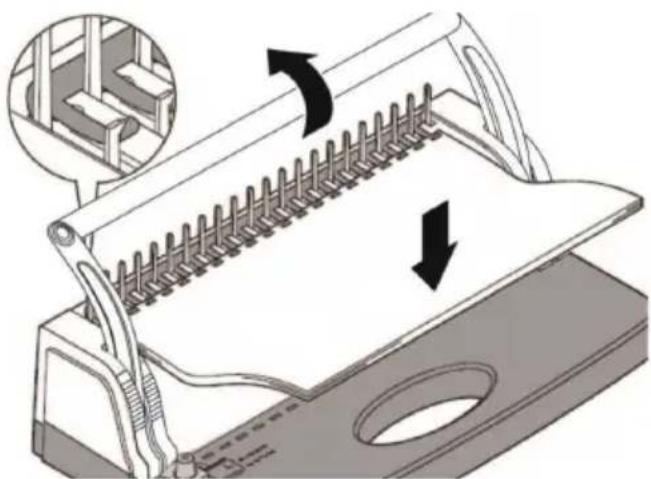

6 Place the holes of the paper over the tips of the rings as shown.
7 Release the locking mechanism and slowly move the lever upwards. Make sure that the paper does not slip off the edges. The binding spiral wraps around the paper.
8 Lift the binding coil with the paper off the tines.

Note: You can remove or add sheets afterwards by opening and closing the binding spiral as described before.

Punching (4 holes)

Note: If the lever is not fully raised, the paper cannot be inserted all the way in and will not be punched correctly.

Attention! Material damage due to improper operation! Punch up to 12 sheets of standard paper (80g / m^2) at a time. Punch holes in cardboard and thin film (maximum 300g / m^2 or 0.2 mm thick) individually.

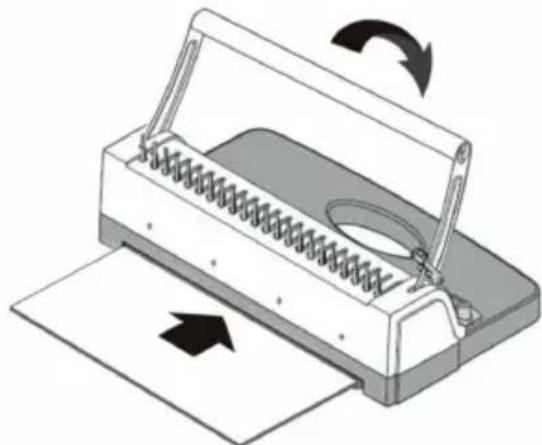

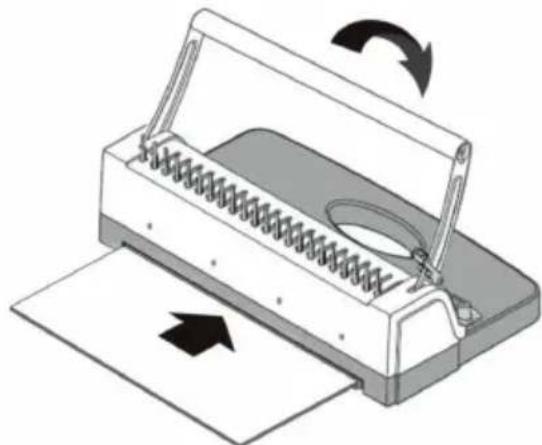

1 Place the paper in the rear opening and push it as far as possible into the feed tray.
2 Press the lever down slowly and evenly.
3 Pull the lever all the way up again.
Note: If the lever is not positioned all the way at the top, the paper cannot be removed.
4 Remove the perforated paper from the insertion slot.

Troubleshooting

The following tips will help you if something is not working as you expect.

Empty collection container

After each use, pull out the waste paper bin for the punching waste, empty it, and push it back in completely. The collection container must audibly click into place.

Resolve blockades

If the lever cannot be brought back up during punching, proceed as follows:

1 Secure the lever with the locking latch.
2 Pull out the collection container and turn the device over.
3 Check what is blocking the punching mechanism and release jammed paper, film, or similar with a suitable tool.
4 Turn the device around again, push the collection container all the way in, and release the locking latch.

Regularly clean

Use a slightly damp, lint-free cloth to clean the housing surface. Do not use cleaning agents or solvents.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1-7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

Technical data

Maximum stanza performance 12 sheets of paper (80g / m^2) or

Maximum paper size A4

Binding capacity maximum 350 sheets (80g / m^2) + front and back made of:

2 × cardboard (approx. 250 g/m^2 ) or

1 x cardboard (approx. 250g / m^2 ) and

1 x plastic film (approx. 0.18 mm thick)

Dimensions 390× 260× 160mm

Weight 3.7kg

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Declaration of Conformity

The CE mark on the device confirms conformity. The Declaration of Conformity can be found at: www.go-europe.com

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1 | 45527 Hattingen, Germany

www.go-europe.com | [e-mail]
