USER MANUAL CB820 Genie

EN Spiral binding machine CB820

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate (no text or symbols)

Diagram of a spiral notebook with clamped ends, enclosed in a circular border (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Abstract 3D geometric diagram with layered rectangular blocks and vertical lines, enclosed in a circular frame (no text or symbols)

Diagram showing a printer presser with a downward arrow indicating compression, alongside a magnified view of its internal structure (no text or symbols)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The spiral binding machine is exclusively suitable for punching and binding paper, thin cardboard, and foils. Any other use or modification is considered improper and poses significant risks of accidents.

Table of contents

Warranty 8
Intended use....8
Important safety instructions....8
Instructions for use 8
Scope of delivery 9
Installation location / Commissioning ..... 9
Product overview 9

Notes on the material 9
Punching....10
Tie. 11
Troubleshooting 12
Notes on disposal.... 13
Technical data....13
Technical changes 13
Manufacturer 13

Important safety instructions

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Attention! Material damage due to improper operation! Remove all staples and paper clips before punching.

Attention! Material damage due to improper operation! Please observe the maximum number of pages for punching and binding. Punch only if the inserted quantity can be easily punched.

Attention! Material damage possible! It cannot be ruled out that some varnishes, plastics, or furniture care products may attack and soften the material of the non-slip feet. To avoid marks on furniture, consider placing a non-slip mat under the appliance if necessary.

Instructions for use

Please read these operating instructions before using the device. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• The product is not intended for commercial use.
• The product may only be used indoors.
• Remove all staples and paper clips before inserting the paper.
• Only use accessories that fulfil the requirements under Technical data.
• Empty the collection container at regular intervals, otherwise it may result in a paper jam.

Scope of delivery

Check the packaging contents before operating the device. If anything is missing or damaged, do not operate the device under any circumstances. Contact our service team.

1 Spiral binding machine CB820 10 binding spirals diameter 6 mm

10 binding spirals diameter 10 mm 1 Operating instructions

Installation location / Commissioning

Place the device on a stable, level surface.

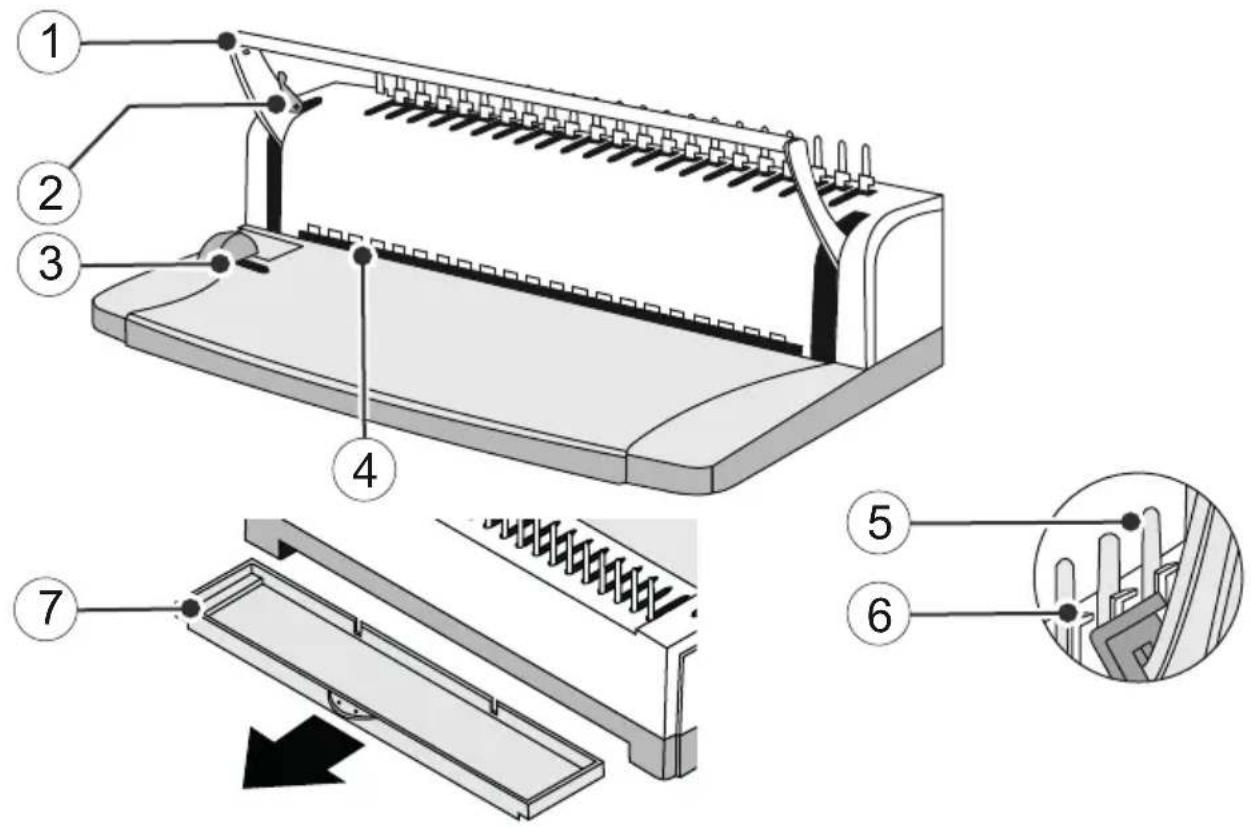

Product overview

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

1 Handle 5 Prongs
2 Locking mechanism 6 Angles
3 Paper stop 7 Collection container
4 Insertion slot

Notes on the material

• Punch up to 8 sheets of standard paper (80 g/m ^2 ) simultaneously.
• Punch out cardboard and thin film (up to 300g / m^2 or 0.2 mm thick) individually.
• Do not punch any metallic objects such as staples or paper clips.
  • Use only plastic binding coils.

Punching

Note: The die mechanism was coated with an oily protective layer before packaging. Punch a blank sheet of paper several times until no residues are visible.

Note: Always test the settings made first on a blank sheet of paper before punching originals. So you can tell if the holes are evenly distributed across the paper.

Note: Plastic films can be punched more easily if you place a sheet of paper on both sides of the film and punch everything together.

Illustration of a printer with a circular inset showing the blade being cut off (no text or symbols present)

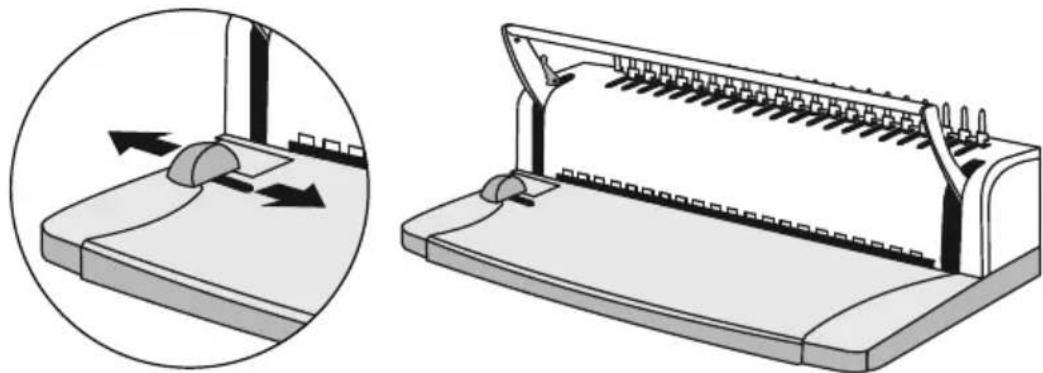

1 Move the paper stop to the required format.

2 Pull the lever all the way up.

Note: If the lever is not completely at the top, the paper cannot be pushed in all the way and will not be punched correctly.

Attention! Material damage due to improper operation! Punch up to 8 sheets of standard paper (80 g/m²) simultaneously. Punch out cardboard and thin film (up to 300 g/m² or 0.2 mm thick) individually.

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

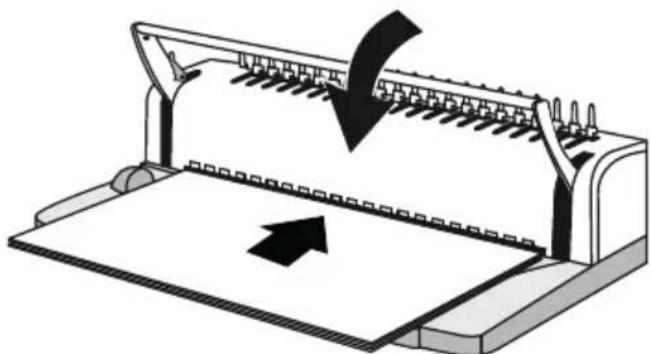

3 Place the paper against the paper stop and push it as far as possible into the paper input tray.

4 Press the lever down slowly and evenly.

5 Pull the lever all the way up again.

Note: If the lever is not positioned all the way at the top, the paper cannot be removed.

6 Remove the punched paper from the input tray.

Tie

Note: If you want to bind sheets, you must first punch them.

1 Choose the binding coil according to the number of pages to be bound.

Diameter of the binding spiral in mm Number of pages (80 g/m²)

6 2-20

8 15-35

10 33-50

12 45-80

14 75- 100

16 90- 120

18 110-140

20 120- 160(max. 150)

Illustration of a mechanical device with a coiled spring and base plate (no text or symbols)

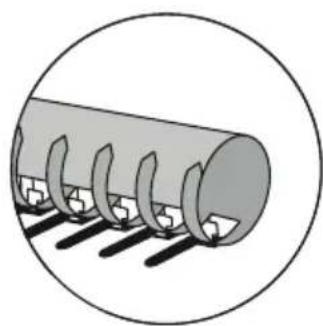

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

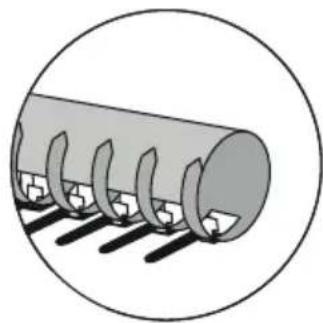

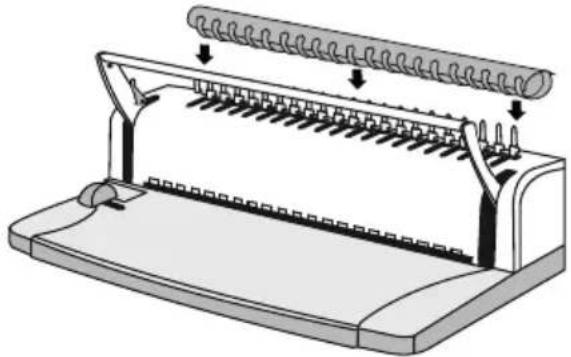

2 Place the rings of the binding coil between the prongs.

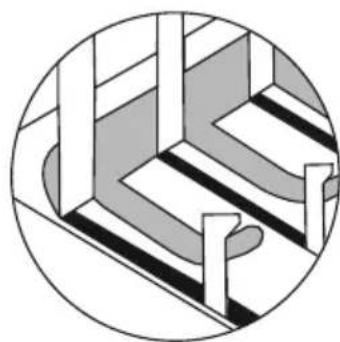

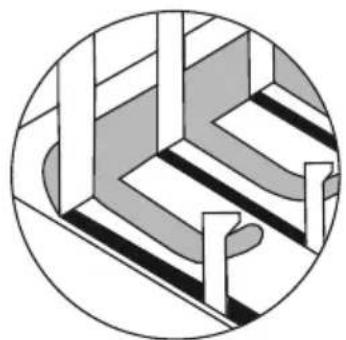

3 Push the binding coil onto the angles.

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

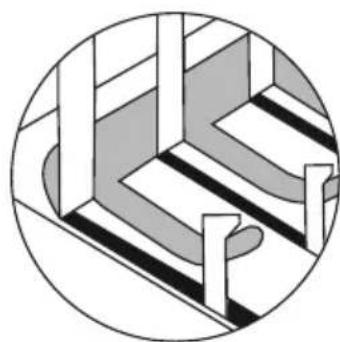

Isometric view of a staircase with wooden beams and slats, enclosed in a circular frame (no text or symbols)

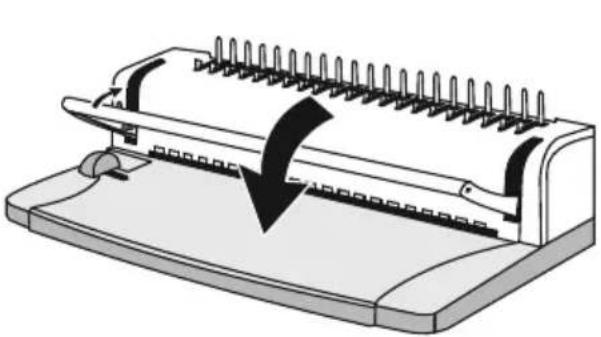

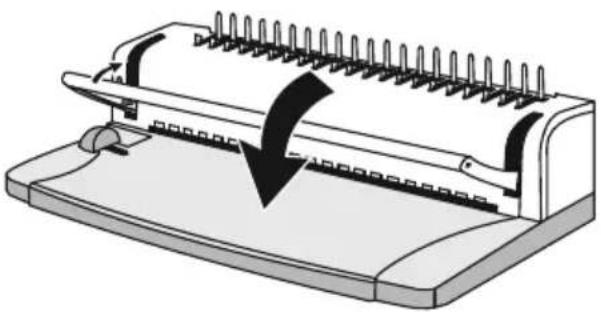

4 Press the lever down slowly and carefully until the binding spiral is pulled up. The tips of the rings must protrude slightly beyond the angles.

5 In order to keep the lever in this position, press the locking mechanism.

Illustration of a printer with spiral binding and a magnified view showing its edge structure (no text or symbols)

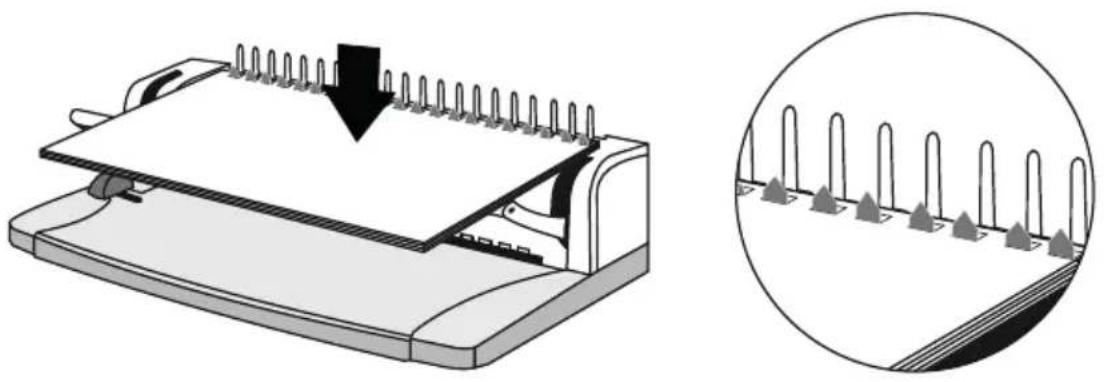

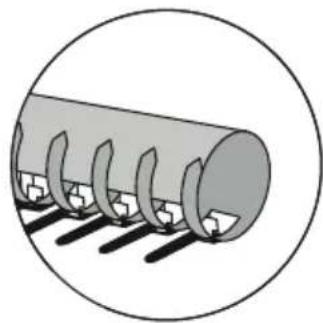

6 Place the holes of the paper over the tips of the rings as shown.

Diagram of a mechanical press or printer with rotating blades and a slide, showing no text or symbols.

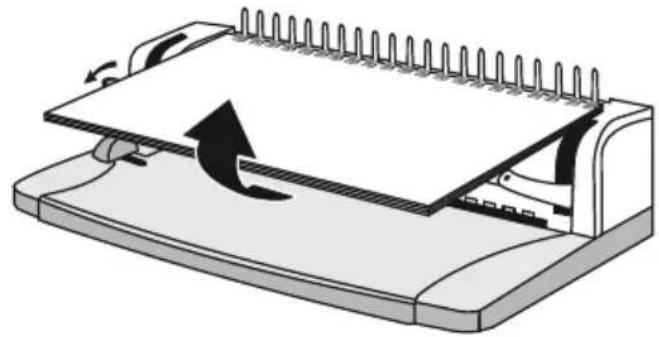

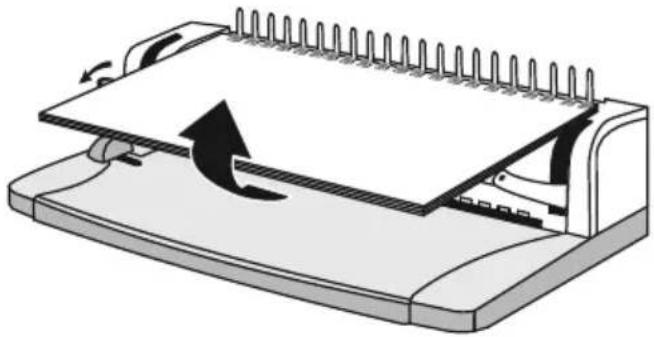

7 Release the locking mechanism and slowly move the lever upwards. Make sure that the paper does not slip off the edges. The binding spiral wraps around the paper.

8 Lift the binding coil with the paper off the tines.

Note: You can remove or add sheets afterwards by opening and closing the binding spiral as described before.

Troubleshooting

The following tips will help you if something is not working as you expect.

Empty collection container

After each use, pull out the waste paper bin for the punching waste, empty it, and push it back in completely. The collection container must audibly click into place.

Resolve blockades

If the lever cannot be brought back up during punching, proceed as follows:

1 Secure the lever with the locking latch.
2 Pull out the collection container and turn the device over.
3 Check what is blocking the punching mechanism and release jammed paper, film, or similar with a suitable tool.
4 Turn the device around again, push the collection container all the way in, and release the locking latch.

Regularly clean

Use a slightly damp, lint-free cloth to clean the housing surface. Do not use cleaning agents or solvents.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1–7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

Technical data

Maximum stanza performance 8 sheets of paper (80 g/m ^2 ) or

Maximum paper size A4

Binding capacity maximum 150 sheets (80 g/m ^2 ) + front and back made of:

2 x cardboard (approx. 250 g/m²) or
1 x cardboard (approx. 250 g/m²) and
1 x plastic film (approx. 0.18 mm thick)

Dimensions 38 x 21 x 10 cm

Weight 1.8 kg

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen, Germany

www.go-europe.de

[e-mail]

FR

Garantie

Cher client,

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate, showing no text or symbols.

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

2 Placez les anneaux de la spirale de liage entre les dents.

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

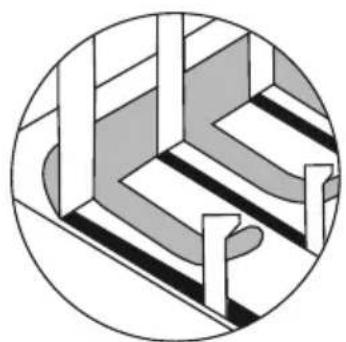

Isometric view of a staircase with wooden beams and slats, enclosed in a circular frame (no text or symbols)

Illustration of a printer with a paper roll being inserted, showing the process and its magnified view (no text or symbols)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

Modifications techniques

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate (no text or symbols)

Illustration of a spiral notebook with base plates, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Abstract geometric diagram with layered rectangular blocks and vertical lines, enclosed in a circular frame (no text or symbols)

Illustration of a printer with a paper roll being inserted, showing the process and its magnified view (no text or symbols present)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base, showing internal structure and mounting points (no text or symbols)

Diagram of a coiled spring with four blades, enclosed in a circular border (no text or symbols)

Illustration of a paper feeding machine with a black arrow indicating compression or disassembly (no text or symbols present)

Isometric line drawing of a staircase with windows and railings, enclosed in a circular frame (no text or symbols)

Illustration of a printer with a paper roll being inserted, showing the process and its magnified view (no text or symbols)

Diagram of a mechanical press or printer with rotating blades and a slide, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

1 Hendel 5 Tand
2 Vergrendelslot 6 Hoek
3 Papierstop 7 Opvangbak
4 Inschuifbare as

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate (no text or symbols)

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Isometric line drawing of a staircase with windows and railings, enclosed in a circular frame (no text or symbols)

Illustration of a printer with a paper roll being inserted, showing the process and its magnified view (no text or symbols)

Diagram of a mechanical press or printer with rotating blades and a slide, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base, showing internal components and mounting points (no text or symbols)

Illustration of a spiral notebook with base plates, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Abstract 3D geometric diagram with layered rectangular blocks and vertical lines, enclosed in a circular frame (no text or symbols)

Diagram showing a printer with spiral blades and a magnified view of the blade structure (no text or symbols)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

1 Poluga 5 Zupci
2 Zaključavanje 6 Trgovina
3 Papirnati plakat 7 Spremište
4 Umetni utor

Upute o materijalu

• Najviše 8 listova standardnog papira (80 g/m²) istovremeno probušiti.
• Karton i tanka folija (najviše 300 g/m² odnosno 0,2 mm debljine) probušiti pojedinačno.
• Nemojte probijati metalne predmete poput spajalica ili kopči.
• Koristite isključivo plastične spiralne vezice.

Oštećenje

Napomena: Stan mehanizam je bio pre pokrivanja pakiran sa uljnom zaštitnim slojem. Prvo nekoliko puta probušite prazan list papira dok više ne vidite nikakve ostatke.

Napomena: Prvo uvijek testirajte napravljene postavke na praznom listu papira prije nego što počnete rezati originale. Tako ćete prepoznati jesu li rupe ravnomjerno raspoređene po papiru.

Napomena: Plastične folije se lakše mogu probušiti ako stavite list papira na obje strane folije i zajedno probušite.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

1 Pomaknite papirni odsjek na potrebni format.

2 Povucite ručicu potpuno prema gore.

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

3 Stavite papir do papirnog zaustavljača i gurnite ga što je moguće dublje u uložni utor.

Illustration of a mechanical device with a coiled spring and base, showing internal components and mounting points (no text or symbols)

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

2 Stavite prstenove spiralne veze između zupčanika.

3 Gurnite spiralnu vezicu na kutove.

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

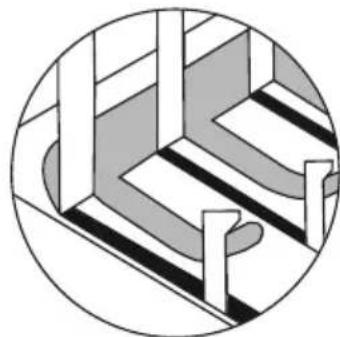

Isometric line drawing of a staircase with windows and railings, enclosed in a circular frame (no text or symbols)

4 Pritisnite polugu polako i pažljivo sve dole dok se spiralna veza ne namota. Vrhovi prstena moraju malo nadvisivati izvan kuteva.

Illustration of a printer with a paper roll being inserted, showing the process and its magnified view (no text or symbols present)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

7 Otpustite zaključavanje i polako podignite polugu prema gore. Pazite da papir ne klizi s vrhova. Spirala za vezanje zatvara se oko papira.
8 Dignite spiralnu s papira sa zupčanika.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base, showing internal components and mounting points (no text or symbols)

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Isometric illustration of a staircase with horizontal beams and slats, enclosed in a circular frame (no text or symbols)

Diagram showing a printer with spiral blades and a magnified view of the blade structure (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base, showing internal components and mounting points (no text or symbols)

Illustration of a spiral notebook with base and spines, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Isometric illustration of a staircase with horizontal beams and slats, enclosed in a circular frame (no text or symbols)

Illustration of a printer with spiral binding and a magnified view showing its edge structure (no text or symbols)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating compression or printing process (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate, showing no text or symbols.

Illustration of a coiled cable or spring with multiple teeth, enclosed in a circular frame (no text or symbols)

Illustration of a paper feeder with a black arrow indicating compression or disassembly (no text or symbols present)

Isometric line drawing of a staircase with windows and railings, enclosed in a circular frame (no text or symbols)

Diagram showing a printer with spiral blades and a magnified view of the blade structure (no text or symbols)

Diagram of a mechanical device with rotating blades and a spring-loaded base (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

Illustration of a printer with a paper roll and its corresponding schematic view showing internal structure (no text or symbols)

Illustration of a printer with a paper roll and arrow indicating print direction (no text or symbols)

Illustration of a mechanical device with a coiled spring and base, showing internal components and mounting points (no text or symbols)

Illustration of a spiral notebook with base plates, enclosed in a circular frame (no text or symbols)

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Abstract 3D geometric diagram with layered rectangular blocks and vertical lines, enclosed in a circular frame (no text or symbols)

Illustration of a printer with spiral binding and a magnified view showing its edge structure (no text or symbols)

Diagram of a mechanical device with rotating blades and a base plate, showing no text or symbols.

Technical diagram of a mechanical device with numbered components and exploded view, showing internal structure and assembly.

زینکی ۵ الرافعة ۱

زاوية ٦ مشبك القل ٢

Illustration of a printer with a circular inset showing the blade being cut off (no text or symbols present)

المطلوب.
٢ بالكامل.

Illustration of a printer with a paper roll and arrow indicating print direction (no text or symbols)

Illustration of a mechanical device with a coiled spring and base plate, no text or symbols present

Illustration of a spiral notebook with base plates, enclosed in a circular frame (no text or symbols)

ن الأصنان.

٣ ١٤ الزوايا.

Illustration of a mechanical presser with a black arrow indicating compression or disassembly (no text or symbols present)

Abstract 3D geometric diagram with layered rectangular blocks and vertical lines, enclosed in a circular frame (no text or symbols)

Diagram showing a printer presser with a black arrow indicating compression and a magnified view of its internal structure (no text or symbols present)

الحلقات.

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)
