BV5724 - Blender SOLAC - Free user manual and instructions

USER MANUAL BV5724 SOLAC

Exterior view of a modern black and silver professional blender with handle and control knob (no visible text or symbols on body)

BATIDORA DE VASO INSTRUCCIONES DE USO

JAR BLENDER INSTRUCTIONS FOR USE

BLENDER MODE D'EMPLOI

Diagram of a blender with internal components and directional arrows indicating motion (no text or symbols)

Fig. 2

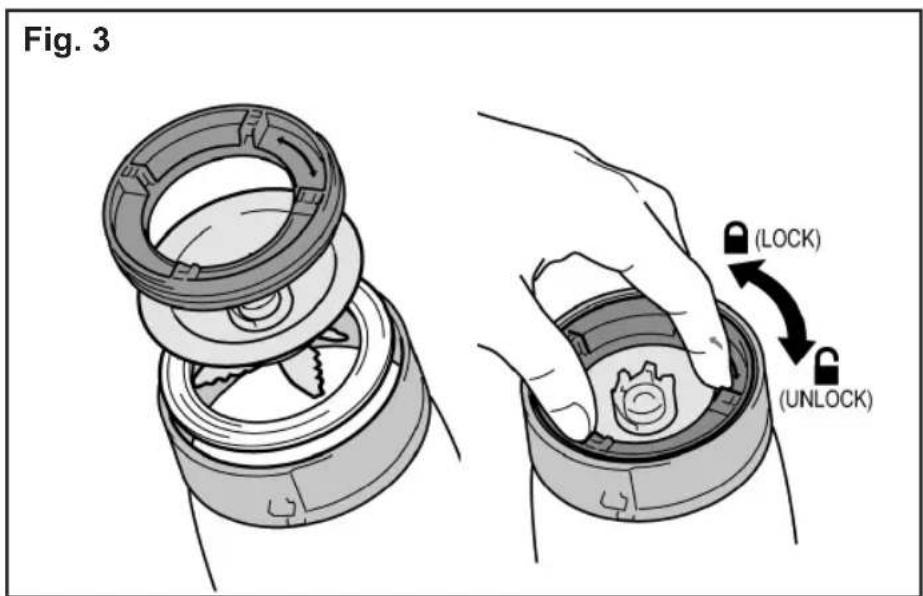

Fig. 3 (LOCK) (UNLOCK)

ESPAÑOL ES

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

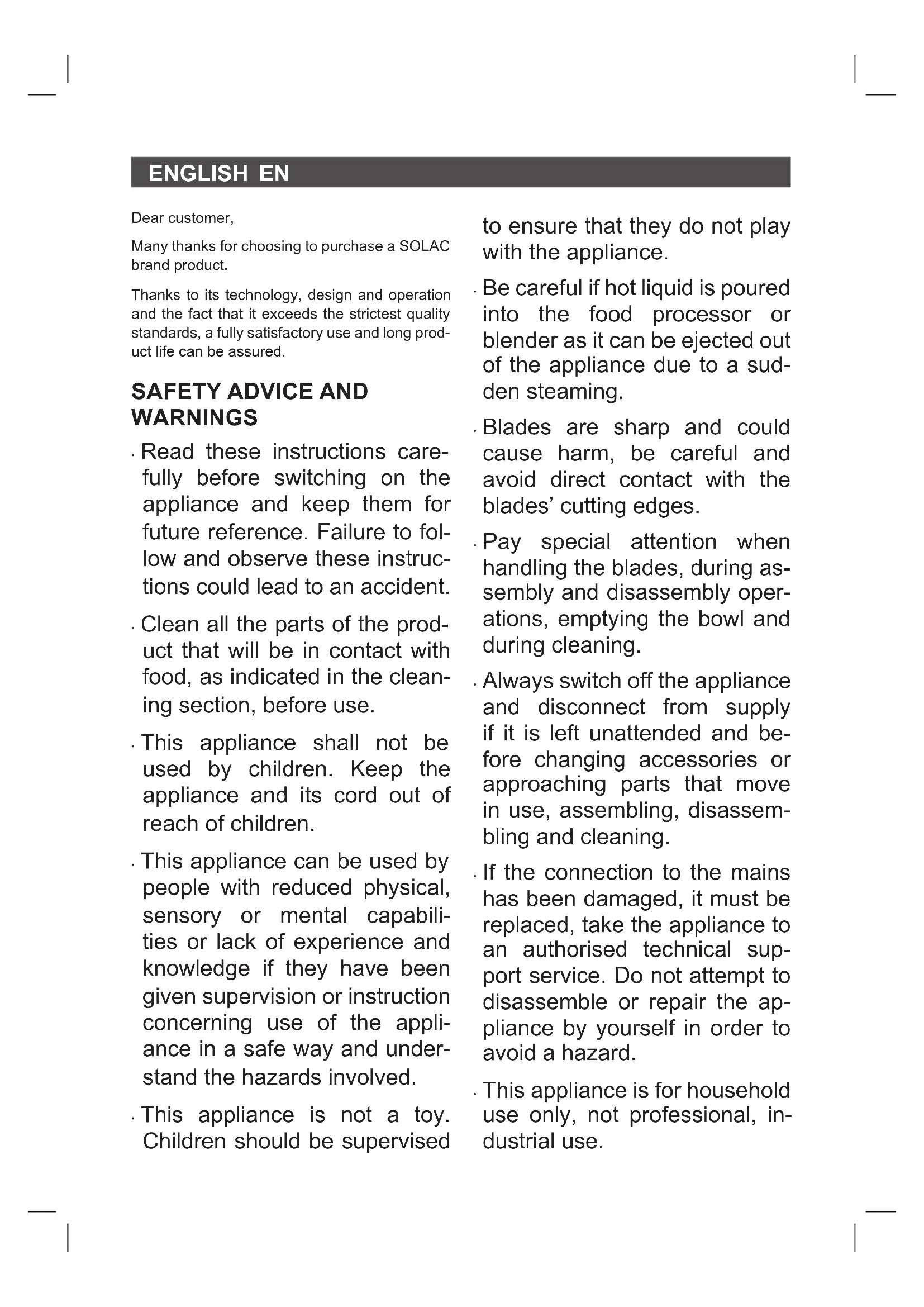

SAFETY ADVICE AND WARNINGS

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised

to ensure that they do not play with the appliance.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

- Blades are sharp and could cause harm, be careful and avoid direct contact with the blades' cutting edges.

- Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.

· Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

EN

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• The appliance must be used and placed on a flat, stable surface.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.
• Before using the appliance ensure that the blade is properly fixed in place.
• Do not touch any of the appliance's moving parts while it is operating.
• Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

• Do not use the appliance while the jug is empty.

• Do not use the appliance if the on/off switch does not work.

• Do not move the appliance while in use.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• Do not force the appliance's work capacity.
• Respect the MAX level indicator.
• When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• NEVER pour hot or boiling food into the jug, it may cause burns during the process. Abrupt temperature contrasts could also break the jar.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Never use liquids that are boiling or ingredients whose temperature exceeds 80^ .
• Check that the lid is closed properly before starting the appliance.
• Never leave the appliance unattended while in use.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance for more than 2 minutes at a time. In case of operate in cycles; allow the appliance a resting period of at least 30 seconds between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• To crush ice, do not introduce more than 10 cubes at a time. To add more ice, remove the measuring cup and insert the cubes one by one.
• Do not use the appliance with frozen goods or those containing bones.
• CAUTION: Do not use the appliance if the glass is cracked or broken.

ENGLISH EN

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Measuring cup
B Jar Lid
C Jar
D Motor body
E Blades set
F Speed selector
G Juice Filter
H Cable winder

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

ASSEMBLING THE JUG AND THE FILTER:

• Fit the jug onto the main body. To do so, position the jar (C) over the body (B) so that the protrusions from the jug align with the grooves of the body.
• Turn the jug clockwise until it fits snugly (Fig.1).
• Be sure to fit the jug onto the body correctly otherwise it will not switch on.
• If you would like to use the blender as a juicer, place the filter (G) around the blade (E) (Fig. 2)

USE:

• Unroll the cable completely before plugging it in.
• Ensure the blade fixing ring is fixed properly to the jar (by turning counter clockwise) before putting on the motor body. (Fig.3).
• Place the jar onto to the motor unit; turn clockwise until the lock clicks into place. (Fig.1).

• Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker).

• Put the lid on the jar; make sure it is properly fixed in place.

• Put the measuring cup in the lid (Fig. 1)
• Connect the appliance to the mains.
• Choose desired speed and start blending.
• Speed P (position for turbo) Hold it in this position for as long as you want the appliance to continue operating (maximum of 2 minute of continuous operation).
• During operation hold the lid on firmly using both hands
• If you wish to add more ingredients pull out the measuring cup.
• Add the ingredients and replace the measuring cup.
• Never remove the lid while the appliance is operating.
• To stop the appliance set the speed back to "0".
• To avoid a fierce, start up of the fan, it is advisable to start off from the lowest speed position and, once the fan has been switched on, progressively increase the speed to the desired position.

ELECTRONIC SPEED CONTROL:

- The speed of the appliance can be regulated by using the speed regulator control (F). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance, selecting position 0 on the selector control.
• Unplug the appliance from the mains.
• Turn the mixing jar anticlockwise and remove it from the motor body.
• Clean the appliance.

"TURBO" FUNCTION

• The appliance works in highest speed to achieve optimal performance.
• Select the speed P and hold this position for as long as need. No more than 2 minutes at a time.

FILTER OPERATION

PRECAUTIONS:

• Never use the filter to process ingredients that are hotter than 80^ .
• Never overload the filter.

EN

• Before switching on the appliance, always make sure that the lid is correctly fitted/closed and that the measuring beaker is in well inserted into the lid.
• Cut fruit into small pieces before putting it into the filter.
• Soak dry ingredients, such as legumes or soy beans, before putting them into the filter.

USE:

• The filter prevents fruit skin and pips from mixing with the drink.
• Once the jar (C) is fitted correctly onto the motor body (A) (Fig. 1).

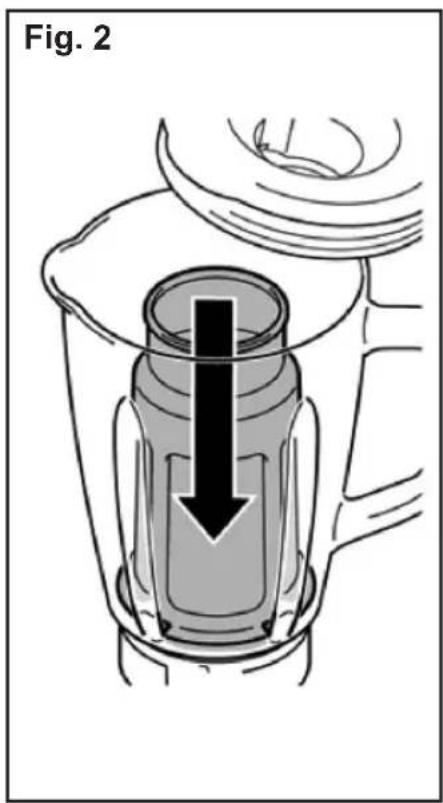

• Place the filter (G) around the blade (D) (Fig. 2).
• Make sure that the slots on the filter fit perfectly into the spigots on the blender jug.
• Place the lid on the jug.
• PLEASE NOTE: Be sure to put the lid on the jug so that the drink is served through the filter in the lid.
• Cut fruit into small pieces or soak dry ingredients before putting them into the filter.
• Place the ingredients in the filter and pour water or other liquid into the jug through the hole in the lid.
• Insert the measuring beaker into the lid (Fig. 1).
• Connect the appliance to the mains.
• Choose the desired speed and start blending.
• NOTE: When processing large quantities, it is advisable not to put all of the ingredients into the filter at the same time. Start with a small amount and let the appliance run for a few seconds. Then switch off the appliance and add another small amount, without filling beyond the top of the sieve mesh. Repeat this procedure until all the ingredients have been processed. Always leave the blender jug lid on while it is operating.

ONCE YOU HAVE FINISHED USING THE FILTER:

• Switch the appliance off and remove the jug from the motor body.
• Serve the drink through the spout on the jug, without removing the lid, measuring beaker or filter. Be sure to put the lid on the jug so that the drink is served through the filter in the lid.
• Clean filter immediately after using it.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Jug (without its blades).
• Removable filter.
• Lid.
• Measuring cup.
• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.
• Then dry all parts before its assembly and storage.

SELF-CLEANING FUNCTION:

• Put water and a small amount of washing up liquid in the jar.
• Select the function "turbo".

REMOVABLE BLADES FOR EFFECTIVE CLEANING (JAR BLENDER ONLY)

• Loosen the blade fixing ring by turning it in clockwise direction. (Fig.3).
• Remove the blade fixing ring, blade set, sealing ring and clean them.
• After cleaning, replace the blade set and turn blade fixing ring in opposite direction.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

ENGLISH EN

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
