USER MANUAL DW711 DEWALT

DW711 Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.Fuses:Europe 230 V tools 10 Amperes, mainsU.K. & Ireland 230 V tools 13 Amperes, in plugsNOTE: This device is intended for the connection to a power supply system with maximum permissible system impedance Zmax of 0.30 Ω at the interface point (power service box) of user’s supply.The user has to ensure that this device is connected only to a power system which fulfils the requirement above. If necessary, the user can ask the public power supply company for the system impedance at the interface point. Defi nitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. Denotes risk of electric shock. Denotes risk of fire. EC-Declaration of Conformity MACHINERY DIRECTIVEDW711 DEWALT declares that these products described under “technical data” are in compliance with: 2006/42/EC, EN 61029-1, EN 61029-2-11.These products also comply with Directive 2004/108/EC. For more information, please contact DEWALT at the following address or refer to the back of the manual.The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT. Horst GrossmannVice President Engineering and Product DevelopmentDEWALT, Richard-Klinger-Straße 11,D-65510, Idstein, Germany01.01.2010 Safety Instructions WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following.Read all these instructions before attempting to operate this product and save these instructions.

SAVE THIS MANUAL FOR FUTURE REFERENCE

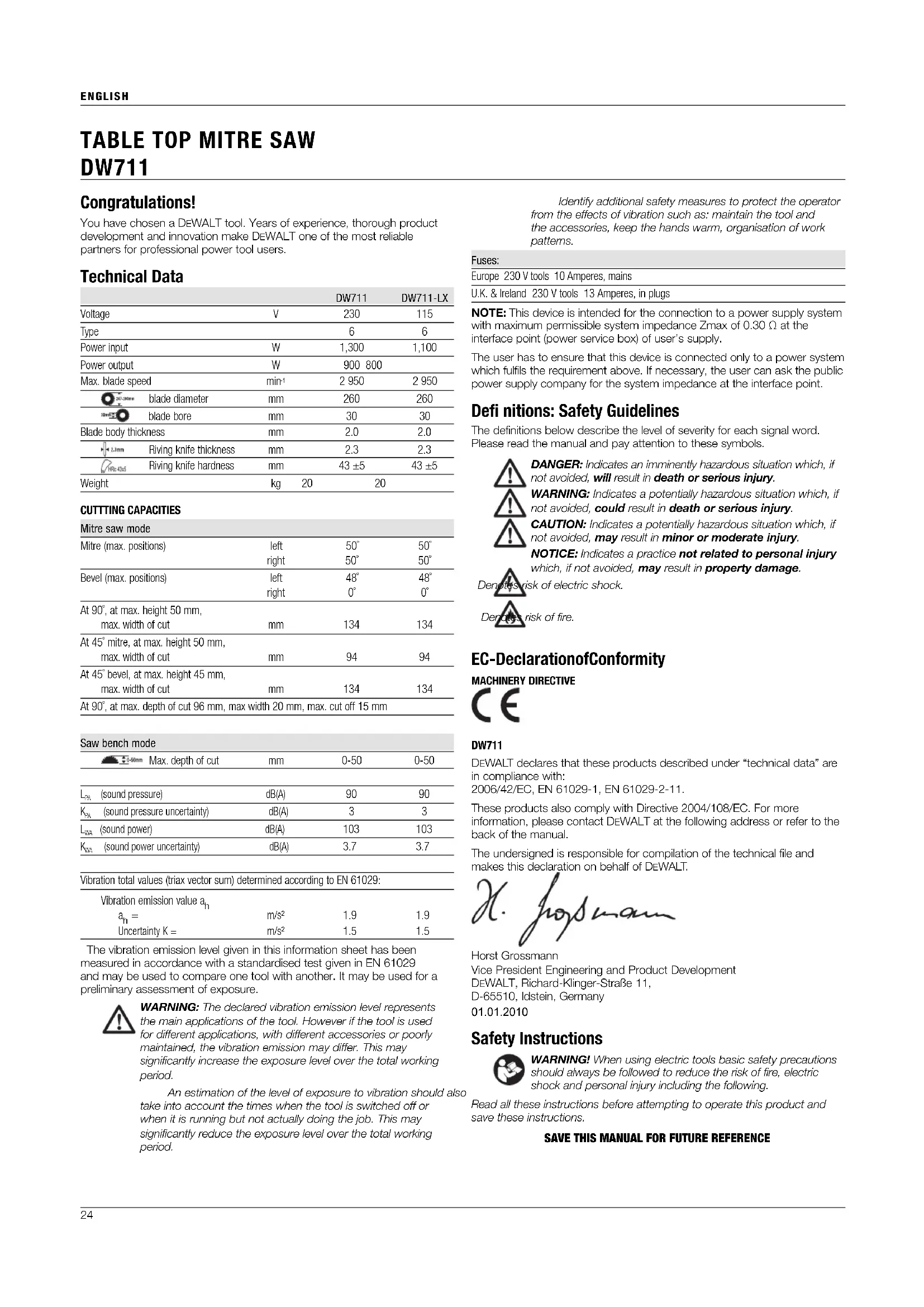

Congratulations! You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users. Technical Data DW711 DW711-LX Voltage V 230 115 Type 6 6 Power input W 1,300 1,100 Power output W 900 800Max. blade speed min

(sound pressure) dB(A) 90 90

(sound pressure uncertainty) dB(A)

Uncertainty K = m/s² 1.5 1.5 The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 61029 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents

the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.ENGLISH

General Safety Rules

1. Keep work area clear.

Cluttered areas and benches invite injuries.

2. Consider work area environment.

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit (250 - 300 Lux). Do not use the tool where there is a risk of causing fire or explosion, e.g., in the presence of flammable liquids and gases.

3. Guard against electric shock.

Avoid body contact with earthed surfaces (e.g., pipes, radiators, cookers and refrigerators). When using the tool under extreme conditions (e.g., high humidity, when metal swarf is being produced, etc.), electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4. Keep other persons away.

Do not let persons, especially children, not involved in the work, touch the tool or the extension cord and keep them away from the work area.

5. Store idle tools.

When not in use, tools must be stored in a dry place and locked up securely, out of reach of children.

6. Do not force the tool.

It will do the job better and safer at the rate to which it was intended.

7. Use the right tool.

Do not force small tools to do the job of a heavy duty tool. Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs.

Do not wear loose clothing or jewellery, as these can be caught in moving parts. Non-skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

9. Use protective equipment.

Always use safety glasses. Use a face or dust mask if working operations create dust or flying particles. If these particles might be considerably hot, also wear a heat-resistant apron. Wear ear protection at all times. Wear a safety helmet at all times.

10. Connect dust extraction equipment.

If devices are provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.

11. Do not abuse the cord.

Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. Never carry the tool by its cord.

Where possible use clamps or a vice to hold the work. It is safer than using your hand and it frees both hands to operate the tool.

13. Do not overreach.

Keep proper footing and balance at all times.

14. Maintain tools with care.

Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tools periodically and if damaged have them repaired by an authorized service facility. Keep handles and switches dry, clean and free from oil and grease.

15. Disconnect tools.

When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.

16. Remove adjusting keys and wrenches.

Form the habit of checking to see that adjusting keys and wrenches are removed from the tool before operating the tool.

17. Avoid unintentional starting.

Do not carry the tool with a finger on the switch. Be sure that the tool is in the “off” position before plugging in.

18. Use outdoor extension leads.

Before use, inspect the extension cable and replace if damaged. When the tool is used outdoors, use only extension cords intended for outdoor use and marked accordingly.

Watch what you are doing. Use common sense. Do not operate the tool when you are tired or under the influence of drugs or alcohol.

20. Check for damaged parts.

Before use, carefully check the tool and mains cable to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual. Have defective switches replaced by an authorized service centre. Do not use the tool if the switch does not turn it on and off. Never attempt any repairs yourself. WARNING! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

21. Have your tool repaired by a qualified person.

This electric tool complies relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user. Additional Safety Rules for Table Top Mitre Saws

• Before work, ensure the machine is placed on an even surface with sufficient stability.

• Never cut light alloy. The machine is not designed for this application.

• Do not use abrasive or diamond discs.

• In case of an accident or machine failure immediately switch the machine off and pull the plug. Report the failure and mark the machine in suitable form which prevents that other persons use the defective machine.

• When the saw blade is blocked due to abnormal feed force while cutting, switch the machine off and disconnect from the power supply. Remove the workpiece and ensure that the saw blade runs free. Turn machine back on and start a new cutting operation with reduced feed force.

• Refrain from removing any cut-offs or other parts of the workpiece from the cutting area while the machine is running and the saw head is not in the rest position.

• Ensure that your body position is always to the left or right of the cutting line.

• Always provide adequate general or localized lighting.

• Switch the machine off when unattended.

• Ensure the operator is adequately trained in use, adjustment and operation of the machine.

• Connect the saw to a dust collection when sawing wood. Always consider factors influencing exposure of dust such as: – Type of material to be machined (Chip board produces more dust than wood) – Correct adjustment of saw blade – Ensure that the local extraction as well as hoods, baffles and chutes are properly adjusted. – Dust extractor with air velocity not less than 20 m/s.

• This machine is of Class I contruction; therefore earthed (grounded) connection is required.

• Do not force the tool. The tool will do the job better and safer at the rate for which it was intended.

• Use the appropriate tool. The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. Do not use tools for purposes not intended.

• Keep the blade sharp.

• The max. allowable speed of the saw blade must always be equal to or greater than the no-load speed of the tool specified on the nameplate.

• Do not use any spacers to make a blade fit onto the spindle.

• Do not use the saw for cutting any material other than wood and plastics.ENGLISH

Additional Safety Rules for Sawing in Table Saw Mode

• Never cut when riving knife and/or top guard are removed. WARNING! The design does not allow the use as bench saw as long as the U-shaped guard is not mounted.

• Always use the push stick. Never cut workpiece smaller than 30 mm.

• Without additional support the machine is designed to accept the maximum workpiece size of: – Height 50 mm by width 400 mm by length 500 mm. – Greater workpiece needs to be supported by suitable additional table.

• Always adjust the sliding fence correctly to avoid contact with the lower guard.

• Do not use saw blades with a body thickness greater or a width of tooth smaller than the thickness of the riving knife.

• Ensure that the table is securely fixed.

• Always keep the push stick (58) in its place when not in use (fig. A2).

• Replace the table insert when worn.

• Slotting, rebating or grooving is not allowed.

• During transportation make sure that the upper part of the saw blade is covered, e.g. by the guard.

• Do not use the guard for handling or transportation.

• Do not remove the saw bench table when adjusting the riving knife. Mitre Saw Mode

• Ensure that the upper portion of the saw blade is completely enclosed in the mitre sawing mode. Never remove the upper blade guard when using the machine in mitre saw mode.

• Never cut workpiece shorter than 20 mm.

• Without additional support the machine is designed to accept the maximum workpiece size of: – Height 40 mm by width 140 mm by length 400 mm – Longer workpieces need to be supported by suitable additional table.

• Always clamp the workpiece safely.

• When performing vertical straight cross-cuts, adjust the sliding fence correctly to ensure a clearance of max. 5 mm between the saw blade and the fence (fig. O).

• When performing mitre, bevel or compound mitre cuts, adjust the sliding fence to ensure the correct clearance for the application (fig. P).

• Ensure that the upper portion of the saw blade is completely enclosed in the mitre sawing mode.

• Refrain from removing any cut-offs or other parts of the workpiece from the cutting area while the saw is running and the saw head is not in the rest position. Residual Risks The following risks are inherent to the use of saws: – injuries caused by touching the rotating parts In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are: – Impairment of hearing. The following factors are of influence to noise production: ~ the material to be cut; ~ the type of saw blade; ~ the feed force. – Risk of accidents caused by the uncovered parts of the rotating saw blade. – Risk of injury when changing the blade. – Risk of squeezing fingers when opening the guards. – Health hazards caused by breathing dust developed when sawing wood, especially oak, beech and MDF. The following factors are of influence to dust exposure: – worn saw blade; – dust extractor with air velocity less than 20 m/s; – workpiece not exactly guided; – Insufficient dust extraction caused by uncleaned exhaust filters. Markings on Tool The following pictograms are shown on the tool: Read the instruction manual before use. When using the machine in the mitre saw mode, make sure that the upper part of the saw blade is fully covered by the upper saw blade guard. Only use the machine when the bench saw table is in highest position. When using the machine in the bench saw mode, make sure that the upper and lower guards are in place. Only use the machine when the bench saw table is in horizontal position. Carrying point. NEVER use the machine in table saw mode when upper saw blade guard and fixed lower guard are not mounted. DATE CODE POSITION (FIG M) The Date Code (59), which also includes the year of manufacture, is printed into the housing. Example: 2010 XX XX Year of Manufacture Package Contents The package contains: 1 Assembled table top mitre saw 1 Parallel rip fence 1 Guard for bench saw position 1 Bottom guard for bench saw position 1 Push stick 1 Hex key 4/6 mm 1 Hex key 5 mm 1 Two-pin spanner 1 Dust extraction adapter for top guard 1 Instruction manual 1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation. Description (fi g. A1–A5)

WARNING: Never modify the power tool or any part of it.

Damage or personal injury could result.

1 On/off switch 2 Head lock up release lever 3 Additional saw bench table locking knob 4 Moveable lower blade guard 5 Fixed tableENGLISH

13 Head lock down screw 14 Saw bench table 15 Riving knife 16 Upper saw blade guard 17 Rip fence 18 Fixed lower guard (for use in bench saw position) 19 Attachment mounting holes OPTIONAL ACCESSORIES

27 Length stop for short workpieces (to be used with guide rails [21])

26 Legstand 29 Roller table INTENDED USE Your DW711 table top mitre saw has been developed for professional cutting wood, wood poducts and plastics. This high precision machine can be easily and quickly set to crosscut, bevel, mitre, or compound mitre. This unit is designed for use with a nominal ø 260 mm carbide tip blade for professional cutting wood, wood poducts and plastics. DO NOT use under wet conditions or in presence of flammable liquids or gases. These table top mitre saws are professional power tools. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

WARNING: Do not use this machine for purposes other

than described. Electrical Safety The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Machines in the scope of EN 61029 are not allowed for production use. In case of cord replacement the tool must only be repaired by an authorized service agent or by qualified electrician. Mains Plug Replacement (U.K. & Ireland Only) If a new mains plug needs to be fitted:

• Safely dispose of the old plug.

• Connect the brown lead to the live terminal in the plug.

• Connect the blue lead to the neutral terminal.

• Connect the yellow/green lead to the earthing terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A. FITTING A MAINS PLUG TO 115 V UNITS The plug should be fitted by a competent person. If you are in doubt, contact an authorized D EWALT repair agent or qualified electrician. The plug fitted should comply with BS EN 60309 (BS4343), 16 Amps, earthing contact position 4h. Using an Extension Cable If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm

; the maximum length is 30 m. When using a cable reel, always unwind the cable completely. Assembly and Adjustment

WARNING: To reduce the risk of injury, turn unit off and

disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. An accidental start-up can cause injury. MOUNTING THE UPPER GUARD (FIG. B)

1. Fasten the guard (16) to the riving knife (15) with the bolt (32), bushing

2. Place the bushing through riving knife and guard. Slide bolt (32) through

bushing and fasten with nut. Tighten securely. Ensure flaps (31) on guard are positioned as shown. MOUNTING AND ADJUSTING THE RIP FENCE (FIG. C1–C4) The rip fence consists of a fixed and a sliding fence.

1. Loosen the fence support locking knob (34) which holds the clamping

plate inposition (fig. C1).

2. Slide the fence onto the front of the table using the U-shaped slot as

the guide (fig. C2, C3).

3. Slide the fence towards the blade and tighten the locking knob.

4. Check that the fence is parallel to the blade.

5. If adjustment is required, proceed as follows:

6. Loosen the sliding fence locking knob (35) (fig. C1) and slide the sliding

fence backwards in order to obtain full sight on the two holes (36) (fig. C4) in the top of the fence.

7. Using the small hex key, loosen the two hex screws fastening the fence

to the fence support. Access is gained through the two holes in the top of the fence.

8. Adjust the fence so that it is parallel to the blade by checking the

distance between the blade and the fence at the front and rear of the blade.

9. When the adjustment has been carried out, re-tighten the hex screws

and check again that the fence is parallel to the blade. ADJUSTING THE SAW BENCH TABLE (FIG. A2, B, D) The table (14) slides up and down manually and is held at the required height with two locking knobs.

1. Loosen the table locking knobs, both main (37) (fig. D) and additional (3)

(fig. A1), but do not take them off.

2. Set the table to the proper height needed.

3. Tighten the table locking knobs (fig. A1, D).

REMOVING THE SAW BENCH TABLE (FIG. B) The table can be removed to gain access to the saw blade.

1. Remove the upper blade guard (16) (fig. B).

2. Loosen the table locking knobs, both main (37) (fig. D) and additional (3)

(fig. A1), but do not take them off.

3. Use the hex key to remove the screw (38) from the rear table column

(fig. D). Take the nut and washer off the other end of the screw.

MOUNTING THE SAW BLADE (FIG. E1–E5)

WARNING: The teeth of a new blade are very sharp and can

In order to fit a new saw blade it is necessary to adjust the table into highest position and raise the saw head to its highest position.

1. Retract the lower guard (4) by pushing the release knob (42) in and

sliding the lower guard back. Leave the guard retracted.

2. Using the spanner (39), place the two holes on the outside of the outer

Remove the blade bolt and its outside flange.

4. Remove the saw blade (43).

5. Install the new saw blade onto the shoulder (44) on the inner flange

(fig. E3). Ensure that the teeth at the bottom edge of the saw blade are pointing towards the fence (away from the operator).

6. Reinstall the outer flange, making sure that the location lugs (46)

(fig. E4) are engaged correctly, one on each side of the spindle.

7. Tighten the blade bolt (41) by turning counterclockwise.

8. Move the lower guard down.

9. After mounting or replacing the saw blade, carry out a complete

movement of the saw head, checking that the movable lower guard locks in its rest position.

WARNING: The saw blade MUST be replaced as described in

this section. ONLY use saw blades as specified under Technical Data. We suggest DT4375. NEVER fit other saw blades. ADJUSTING THE SAW BLADE (FIG. E2) If the saw blade is wobbling during start up and run down, then adjust as follows.

1. Loosen the screw for the arbor collar (40) and rotate the blade (43) a

2. Retighten the screw and check to see if the blade has any wobble.

3. Repeat these steps until the blade wobble has been eliminated.

MOUNTING AND REMOVING THE FIXED LOWER GUARD (FIG. I1, I2) When the unit is being used as a saw bench, the fixed lower guard (18) should always be used (fig. I1).

1. Set the saw head to the vertical position.

2. Loosen locking knob (60) on left side of fence (11) and move fence to

new position as shown (fig. I1).

3. Slide the guard (18) over the rotating table/mitre arm (9) until threads of

head lock down screw align with threaded bushing in head (fig. I2).

4. Depress the head lock up release lever (2) and press down on the head

while tightening the head lock down screw (13).

5. To remove the guard, proceed in reverse order.

STORING THE FIXED LOWER GUARD (FIG. Q1, Q2) When the unit is being used in mitre saw mode, the fixed lower guard (18) can be stored on the table (14).

1. Remove fixed lower guard, refer to Mounting and Removing the

2. Squeeze the fixed lower guard (18) and guide the storage legs (61) into

the slots (62) on the front of the table (14).

3. Push fixed lower guard until the storage legs (61) snap onto the table.

Figure Q2 shows the fixed lower guard in storage position.

4. To remove the guard, squeeze the fixed lower guard and lift guard from

table. CHECKING AND ADJUSTING THE BLADE TO THE FENCE (FIG. F1–F4)

3. Swing the mitre arm until the latch locates it at the 0° mitre position.

4. Check that the two 0° markings (47) on the scale (10) are just visible

5. Place a square (48) against the left side of the fence (11) and blade (43)

WARNING: Do not touch the tips of the blade teeth with the

square. If adjustment is required, proceed as follows:

1. Loosen the screws (49) and move the scale/mitre arm assembly left or

right until the blade is at 90° to the fence as measured with the square (fig. F4).

2. Retighten the screws (49).

CHECKING AND ADJUSTING THE BLADE TO THE TABLE (FIG. G1–G4)

1. Loosen the bevel clamp handle (12) (fig. G1).

2. Press the saw head to the right to ensure it is fully vertical and tighten

the bevel clamp handle.

3. Place a set square (48) on the table and up against the blade

WARNING: Do not touch the tips of the blade teeth with the

square. If adjustment is required, proceed as follows:

1. Loosen the bevel clamp handle (12) (fig. G1) and turn the vertical

position adjustment stop screw (50) in or out (fig. G3) until the blade is at 90° to the table as measured with the square (fig. G2).

2. If the bevel pointer (51) does not indicate zero on the bevel scale (52),

loosen the screws (53) that secure the scale and move the scale as necessary (fig. G4). CHECKING AND ADJUSTING THE BEVEL ANGLE (FIG. H1, H2) The bevel override knob (54) allows the max. bevel angle to be set at 45° or 48° as required (fig. H1). – Left = 45° – Right = 48°

1. Make sure the override knob (54) is located in the left position.

2. Loosen the bevel clamp handle (12) and move the saw head to the left.

This is the 45° bevel position.

3. If adjustment is required, proceed as follows:

4. Turn the stopscrew (55) in or out as necessary until the pointer (51)

indicates 45° (fig. H2).

WARNING: While performing this adjustment, it is advisable to

take the weight of the saw head by holding it. This will make it easier to turn the adjustment screw. ADJUSTING THE RIVING KNIFE (FIG. A2, J1, J2) The correct position is for the top of the riving knife (15) to be no more than 2 mm below the highest tooth of the blade and the body of the radius knife to be a maximum of 5 mm from the tips of the saw blade teeth (fig. J1)

1. Adjust the saw bench table to the lower position.

2. Loosen the hex screw (57) which allows both the bracket to rotate and

the riving knife to move up and down (fig. J2).

3. Rotate the bracket and slide the knife either up or down until the

correct position is attained.

4. Retighten the screw (57) firmly.

WARNING: Always observe the safety instructions and

applicable regulations.

WARNING: To reduce the risk of injury, turn unit off and

disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. An accidental start-up can cause injury.

• Ensure the machine is placed to satisfy ergonomic conditions in terms of table height and stability. The machine site shall be chosen so that the operator has a good overview and enough free surrounding space around the machine that allow handling of the workpiece without any restrictions.

• To reduce effects of vibration make sure the environment temperature is not too cold, machine and accessory is well maintained and the workpiece size is suitable for this machine.

• Ensure the material to be sawn is firmly secured in place.ENGLISH

• Apply only a gentle pressure to the tool and do not exert side pressure on the saw blade.

• Always remove the dust from the machine after using to ensure the lower guard operates properly. The attention of UK users is drawn to the “woodworking machines regulations 1974” and any subsequent amendments.

• Install the appropriate saw blade. Do not use excessively worn blades. The maximum rotation speed of the tool must not exceed that of the saw blade.

• Do not attempt to cut excessively small pieces.

• Allow the blade to cut freely. Do not force.

• Allow the motor to reach full speed before cutting.

• Make sure all locking knobs and clamp handles are tight. SWITCHING ON AND OFF (FIG. A1)

• To switch the machine on, press the on/off switch (1).

• To switch the machine off, press the on/off switch again. Dust Extraction

WARNING: Whenver possible, connect a dust extraction

device designed in accordance with the relevant regulations regarding dust emission. Connect a dust collection device designed in accordance with the relevant regulations. The air velocity of externally connected systems shall be 20 m/s +/– 2 m/s. Velocity to be measured in the connection tube at the point of connection, with the tool connected but not running. Refer to Optional Accessories for more information. Transporting Transport the machine using the hand indentations.

WARNING: Always transport the machine in saw bench mode

with the upper blade guard fitted. Never carry the machine by the guard. Basic Saw Cuts

SAWING IN MITRE SAW MODE

It is dangerous to operate without guarding. Guards must be in position when sawing. Ensure that aluminum workpieces are clamped securely. VERTICAL STRAIGHT CROSS CUT (FIG. A1, K)

1. Slacken the mitre latch (8) and subsequently squeeze it.

2. Engage the mitre latch (8) at the 0° position and fasten the mitre latch.

3. Place the wood to be cut against the fence (11).

4. Take hold of machine handle and press the head lock-up release lever

(2) to release the head.

5. Pull down the head approximately 10 mm and release the lock-up lever.

6. Switch on the machine and depress the head to allow the blade to cut

through the workpiece and enter the table slot.

7. After completing the cut, switch off the machine and return the head to

its upper rest position. VERTICAL MITRE CROSS-CUT (FIG. A1, L)

both left and right. If any intermediate angle is required hold the head firmly and lock by fastening the mitre latch.

3. Always ensure that the mitre latch is locked tightly before cutting.

4. Proceed as for a vertical straight cross-cut.

WARNING: When mitring the end of a piece of wood with a

small off-cut, position the wood to ensure that the off-cut is to the side of the blade with the greater angle to the fence: – left mitre, off-cut to the right – right mitre, off-cut to the left BEVEL CROSS-CUT (FIG. H1, M) Bevel angles can be set from 0° to 48° to the left. Bevels up to 45° can be cut with the mitre arm set between zero and a maximum of 45° mitre position right or left.

1. Loosen the bevel clamp handle (12) and set the bevel as desired.

2. Set the override button (54) if required.

3. Hold the head firmly and do not allow it to fall.

4. Tighten the bevel clamp handle (12) firmly.

5. Proceed as for a vertical straight cross-cut.

Sawing in the Bench Mode RIPPING (FIG. A2, I1, I2, N)

WARNING: The bench table is not adjustable in horizontal

position when the guard (18) is not mounted.

1. Set the saw head to the vertical position.

2. Loosen locking knob (60) on left side of fence (11) and move fence to

new position as shown (fig. I1).

3. Slide the guard (18) over the rotating table/mitre arm (9) until threads of

head lock down screw align with threaded bushing in head (fig. I2).

4. Depress the head lock up release lever (2) and press down on the head

while tighening the head lock down screw (13).

5. Set the depth of cut by sliding the table (14) up or down. The correct

position is to have the tips of three teeth above the top surface of the wood.

6. Set the rip fence (17) as required in order to support as much of the

workpiece as possible. At least the rear end of the fence should be level with the front of the riving knife.

7. Set the rip fence for the width of cut required by using the scale let into

the front of the table.

8. Switch on the machine.

9. Slowly feed the workpiece underneath the front of the upper blade

guard, keeping it firmly pressed against the rip fence.

10. Remember to always use the push stick (58) (fig. N).

11. After completing the cut, switch off the machine.

Quality of Cut The smoothness of any cut depends on a number of variables, e.g. the material being cut. When smoothest cuts are desired for moulding and other precision work, a sharp (60 tooth carbide) blade and a slower, even cutting rate will produce the desired results.

WARNING: Ensure that the material does not creep while

cutting; clamp it securely in place. Always let the blade come to a full stop before raising the arm. If small fibres of wood still split out at the rear of the workpiece, stick a piece of masking tape on the wood where the cut will be made. Saw through the tape and carefully remove tape when finished. MAINTENANCE Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of injury, turn unit off and

disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. An accidental start-up can cause injury. Lubrication This machine requires no additional lubrication. The bearings of the motor are pre-lubricated and watertight.

• Avoid using oil or grease as this can cause clogging with sawdust and chips and create problems.

• Clean the parts subject to accumulation of sawdust and chips periodically with a dry brush.ENGLISH

Cleaning Before use, carefully check the upper blade guard, movable lower blade guard as well as the dust extraction tube to determine that it will operate properly. Ensure that chips, dust or workpiece particle cannot lead to blockage of one of the functions. In case of workpiece fragments jammed between saw blade and guards disconnect the machine from the power supply and follow the instructions given in section Mounting the Saw Blade. Remove the jammed parts and reassembling the saw blade.

WARNING: Blow dirt and dust out of the main housing with dry

air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for

cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

WARNING: To reduce the risk of injury, regularly clean the

WARNING: To reduce the risk of injury, regularly clean the

dust collection system Optional Accessories

WARNING: Since accessories, other than those offered by

DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product. DUST EXTRACTION A separate dust kit is available for optimal dust extraction (DE7779). CLAMPING THE WORKPIECE (FIG. A3)

• In most cases, the action of the blade is sufficient to hold the material firmly against the fence.

• If the material has a tendency to lift or come forward from the fence, preferably use the optional material clamp (23).

• Always use the clamp if cutting non-ferrous metals. SAWING SHORT WORKPIECES (FIG. A3, A4) It is advisable to use the length stop for short workpieces (27) both for batch sawing and for short individual workpieces of different lengths. The length stop can only be used in conjunction with a pair of optional guide rails (21). SAWING LONG WORKPIECES (FIG. A3)

WARNING: Always support long workpieces.

Figure A3 shows the ideal configuration for sawing long workpieces when the saw is used free-standing (all items available as an option). These items (except the legstand and the material clamp) are required both on the infeed and the outfeed side: 20 Table end plate for support the rails; also when working on an existing bench. 21 Guide rails (500 or 1,000 mm). 22 Material support plates. 23 Material clamp. 24 Swivelling stop. 25 Stands to support the guide rails. The height of the stands is adjustable.

WARNING: Do not use the stands to support the machine!

26 Legstand (supplied with mounting instructions). Procedure

1. Place your saw on the legstand and fit the guide rails.

2. Firmly screw the material support plates (22) to the guide rails (21). The

material clamp (23) now functions as a length stop.

3. Install the table end plates (20).

4. Install the swivelling stop (24) to the rear rail.

5. Use the swivelling stop (24) to adjust the length of medium and long

workpieces. It can be adjusted sideways or swung out of the way when not in use. USING THE ROLLER TABLE (FIG. A3, A5) The roller table (29) makes the handling of large and long pieces of wood very easy (fig. A5). It can be connected either to the left or to the right of the machine. The roller table requires the use of the optional legstand (fig. A3).

WARNING: Assemble the roller table following the instructions

supplied with the legstand.

• Replace the short support bars provided with the legstand with the irregular rails from the table on the side the table is to be used.

• Follow all instructions provided with the roller table. Recommended Blades Available Type of blade Blade dimensions Usage (diameter x bore x no. of teeth) DT1529 series 40 260 x 30 x 24 For general purpose, ripping and cross-cutting of wood and plastics DT1530 series 40 260 x 30 x 80 TCG for use with aluminum DT1736 series 60 260 x 30 x 58 ATB for fine cutting of manmade and natural wood DT1737 series 60 260 x 30 x 80 TCG for extra fine cutting of manmade and natural wood Consult your dealer for further information on the appropriate accessories. Protecting the Environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.ENGLISH

GUARANTEE DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE • If you are not completely satisfied with the performance of your

EWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT • If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY • If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;

• The product has been subject to fair wear and tear;

• Repairs have not been attempted by unauthorised persons;

• Proof of purchase is produced;

• The product is returned complete with all original components. If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com.ESPAÑOL

POSITIE DATUMCODE [AFB. (FIG. ) M]

SJEKKE OG JUSTERE BLADET I FORHOLD TIL BORDET (FIG. G1–G4)
