USER MANUAL DCPS620 DEWALT

English (original instructions) Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

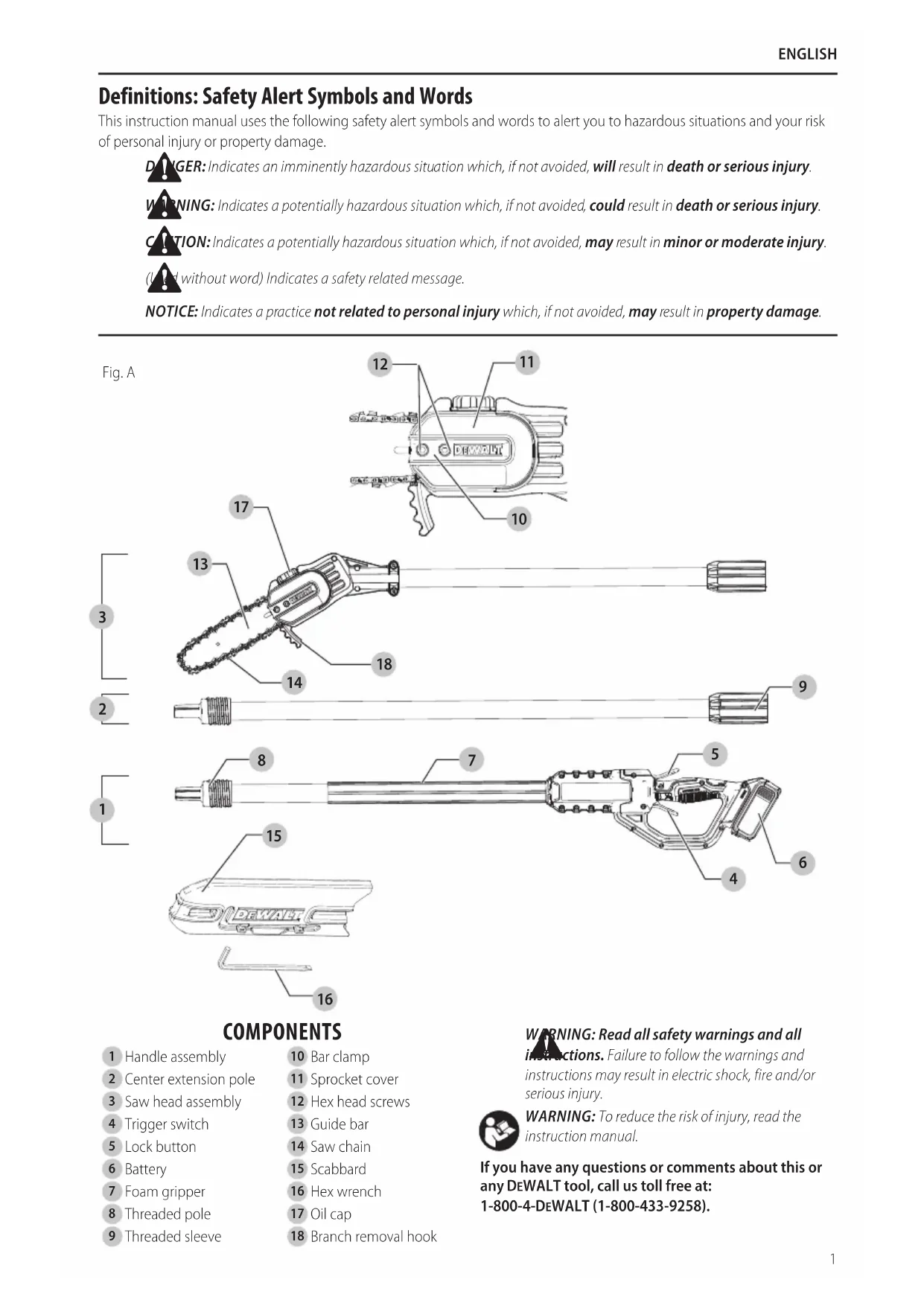

Branch removal hook Fig. A

WARNING: To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and reviewfrequently.

appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including thefollowing. 1 . Avoid Dangerous Environment – Don’t use appliances in damp or wet locations. 2 . Don’t Use In Rain. 3 . Keep Children Away – All visitors should be kept at a distance from work area. 4 . Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain longhair. 5 . Use Safety Glasses – Always use face or dust mask if operation is dusty. 6 . Use Right Appliance – Do not use appliance for any job except that for which it is intended. 7 . Don’t grasp the exposed cutting blades or cutting edges when picking up or holding the appliance. 8 . Don’t Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. 9 . Don’t Overreach – Keep proper footing and balance at all times. 10 . Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired. 11 . Disconnect Appliance – Remove the battery when not in use, before servicing, when changing accessories such as blades, and the like. 12 . Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children. 13 . Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance power source periodically, and if damaged, have it repaired by an authorized service facility. Keep handles dry, clean, and free from oil andgrease. 14 . Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

SAVE THESE INSTRUCTIONS

WARNING - Do not operate near electrical power lines. The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines, Consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the saw chain pole pruner.

• Keep all parts of the body away from the saw chain. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the pole saw may result in serious personalinjury.

• Carry the pole saw by the handle with the saw chain stopped. When transporting or storing the pole saw always fit the saw chain device cover. Proper handling of the pole saw will reduce possible personal injury from the saw chain.

• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. A saw chain contacting a “live” wire may make exposed metal parts of the tool “live” and could give the operator an electricshock.

• Do not use the pole saw in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck bylightning.

• Always use two hands when operating the pole saw. Hold the pole saw with both hands to avoid lossofcontrol.

• Always use head protection when operating the pole saw overhead. Falling debris can result in serious personalinjury.

WARNING: Some dust contains chemicals known

to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,

• compounds in insecticides, herbicides andpesticides,

• arsenic and chromium from chemically treatedlumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/

or disburse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protectionENGLISH

appropriate for the dust exposure. Direct particles away from face and body.

CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. Before Operating Pole Saw

• For safe operation, read and understand all instructions before using the pole saw. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury.

• Watch what you are doing. Use common sense. Do not operate pole saw when you are tired.

• Use pole saw for cutting tree branches only. Do not use pole saw for purposes not intended. Do not use for cutting other items.

• Only well-instructed adults should operate pole saw. Never allow children to operate.

• Do not allow children or untrained individuals to use this unit.

• Wear the following safety gear when operating pole saw: - heavy-duty gloves - steel-toed safety footwear with non-skid soles - safety glasses, goggles or face screen that are marked to comply with ANSI Z87 - safety hard hat that is marked to comply with ANSIZ89.1 - ear mufflers or ear plugs - face or dust mask (if working in dusty areas)

• Wear heavy long pants and boots. Do not wear loose fitting clothing, short pants, jewelry of any kind, or gobarefoot.

• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.

• Before cutting, always provide the following: - clear work area - secure footing - planned retreat path from falling limbs

• Inspect tree before trimming. Make allowance for branches to fall freely to the ground.

• Do not use your pole saw to fell saplings. While Operating Pole Saw

DANGER: To reduce the risk of electric shock do

not use on wet surfaces. Do not expose to rain. Storeindoors.

with battery installed, don’t carry appliance with with finger on switch. Be sure switch is off when installingbattery.

• Stay alert. Use common sense while operating the unit.

• Keep work area clean. Cluttered areas invite injuries.

• Always remove battery from pole saw when finished cutting or when left unattended.

• Keep children, animals and bystanders at least 50' (15 m) away from pole saw. Only pole saw user should be in work area.

• Do not use the pole saw to cut down trees.

• Do not grasp the exposed saw chain when picking up or holding the pole saw.

• Grip pole saw securely - one hand on the pole, the other on the handle.

• Keep finger off trigger until ready to make cut.

• Before starting pole saw, make sure chain is not touchinganything.

• Keep all parts of body away from chain when pole saw isrunning.

• Do not force pole saw while cutting. Apply light pressure. It will do the job better and safer at the rate for which it wasintended.

• Carry pole saw from one place to another: - with battery removed, - fingers off/away from trigger, - by holding pole at balance point, and - with guide bar and chain to rear and with scabbardattached.

• Do not cut small brush and saplings with the pole saw. Slender matter may catch in the chain and be whipped toward you. This could also pull you off balance.

• Do not operate in poor lighting.

• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.

• Keep all parts of your body away from any moving part.

• Do not, under any circumstance, use any attachment or accessory on this product, which was not provided with the product, or identified as appropriate for use with this product in this instruction manual.

• Inspect pole saw before each use and after dropping or other impacts. Ensure there are no significant defects ordamage. Do Not Operate Pole Saw: - while under the influence of alcohol, medication, ordrugs. - in rain or in damp or wet areas. - where highly flammable liquids or gases are present. - if pole saw is damaged, adjusted incorrectly, or not fully and securely assembled. - if trigger does not turn pole saw on and off. Chain must stop moving when you release trigger. Have faulty switch replaced by authorized service center. See Accessories under Maintenance. - while in a hurry. - while in a tree or on a ladder. - while on aerial booms, buckets or platforms. - during high wind or storming weather.ENGLISH

DANGER: Shock Hazard. Serious injury or death

from electrocution if power lines are contacted. Never use near any electrical source, wires, or powerlines.

WARNING: For safe operation read and

understand owner’s manual. Wear face shield (and/or safety glasses) and hard hat to protect against falling debris. Always have a clear work area, retreat path, and be aware of limb/branch location to avoid falling limbs and debris. Keep bystanders 50 ft (15 m) away when operating saw. To reduce the risk of electric shock do not use on wet surfaces. Do not expose to rain. Store indoors.

• To protect yourself from falling branches do not stand directly under the branch or limb being cut. This unit should not be held at an angle over 60° from ground level.

• Keep the handles dry, clean, and free of oil.

• Before you start the unit, make sure the chain is not contacting any object.

• Make sure the cutting chain has stopped before setting the unit down. Service

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. Refer to the Maintenance section of this manual.

• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric shock or injury. Guard Against Kickback

WARNING: KICKBACK may occur when the nose or

tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious injury to user.

The following precautions should be followed to minimize kickback:

• Grip pole saw firmly. Hold the saw firmly with both hands when the unit is running. Use a firm grip with thumbs and fingers encircling the saw handle and pole.

• Keep proper footing and balance at all times.

• Don’t let the nose of the guide bar contact a log, branch, ground or other obstruction.

• Do not extend pole saw handle above shoulder height.

• Use devices such as reduced kickback chain, chain braking system and special guide bars that reduce the risks associated with kickback.

• Only use replacement bars and chains specified by the manufacturer or the equivalent.

• Never let the moving chain contact any object at the tip of the guide bar.

• Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch.

• Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check tension at regular intervals with the motor stopped and battery removed.

• Begin and continue cutting only with the chain moving at full speed. If the chain is moving at a slower speed, there is a greater chance for kickback to occur.

• Cut one branch at a time.

• Use extreme caution when re-entering a previous cut. Engage spiked bumpers into wood and allow chain to reach full speed before proceeding with cut.

• Do not attempt plunge cuts or bore cuts.

• Watch for shifting branches or other forces that could close a cut and pinch or fall into chain. Kickback Safety Features

WARNING: The following features are included on

your pole saw to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a pole saw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

• Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced- kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric chainsaws.

• Reduced Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. A reduced-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1–2012. when tested on the representative sample of chain saws. Pole Saw Names and Terms

• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.

• Guide Bar - A solid railed structure that supports and guides the saw chain.

• Guide Bar Scabbard - Enclosure fitted over guide bar to prevent tooth contact when saw is not in use.

• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in the cut.English

• Reduced Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012. (when tested on a representative sample of chain saws.

• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.

• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012. when tested with specific chain saws. It may not meet the ANSI performance requirements when used with othersaws.

• Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.

• Spiked Bumper (Spike) - The pointed tooth or teeth for use when pruning to pivot the saw and maintain position while sawing.

• switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chain saw.

• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manuallyactuated.

• Trimming (Pruning) - Process of cutting limbs from atree.

• Undercut - An upward cut from underside of a log or limb. This is done while in normal cutting position and cutting with top of guidebar. Storage 1 . Store indoors. The best storage place is one that is cool and dry away from direct sunlight, excess heat or cold and out of the reach of children. 2 . Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If tension is not reduced, it can damage the saw. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. Your tool uses a DeWALT charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and batterypacks.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in designated DeWALTchargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not expose battery pack or tool/appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs areburned.

• If battery contents come into contact with the skin, immedicately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.ENGLISH

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Transportation

WARNING: Fire hazard. Do not store or carry

the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-ion batteries should not be put in checked baggage. Shipping the DeWALT FLEXVOLT™ Battery The D eWALT FLEXVOLT™ battery has two modes: Use and Shipping. Use Mode: When the FLEXVOLT™ battery stands alone or is in a D eWALT 20V Max* product, it will operate as a 20V Max* battery. When the FLEXVOLT™ battery is in a 60V Max* or a 120V Max* (two 60V Max* batteries) product, it will operate as a 60V Max* battery. Shipping Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Shipping Mode. Strings of cells are electrically disconnected within the pack resulting in three batteries with a lower Watt hour (Wh) rating as compared to one battery with a higher Watt hour rating. This increased quantity of three batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries. The battery label indicates two Watt hour ratings (see example). Depending on how the battery is shipped, the appropriate Watt hour rating must be used to determine the applicable shipping requirements. If utilizing the shipping cap, the pack will be considered 3 batteries at the Watt hour rating indicated for “Shipping”. If shipping without the cap or in a tool, the pack will be considered one battery at the Watt hour rating indicated next to “Use”. USE: 120 Wh Shipping: 3 x 40 Wh Example of Use and Shipping Label Marking For example, Shipping Wh rating might indicate 3 x 40 Wh, meaning 3 batteries of 40 Watt hours each. The Use Wh rating might indicate 120 Wh (1 battery implied). Fuel Gauge Battery Packs Some DeWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the batterypack. The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the followingindicators: 75–100% charged 51–74% charged < 50% charged Pack needs to be charged To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. For more information regarding fuel gauge battery packs, please call 1-800-4- DeWALT (1-800-433-9258) or visit our website www.dewalt.com. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium- ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by DeWALT. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with DeWALT and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized DeWALT service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all

instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging DeWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage. NOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery

1. Plug the charger into an appropriate outlet before

inserting battery pack.

into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.

3. The completion of charge will be indicated by the red

light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button

on the battery pack and then slide the battery pack out of the charger.ENGLISH

NOTE: To ensure maximum performance and life of lithium- ion battery packs, charge the battery pack fully before first use.

Charger Operation Refer to the indicators below for the charge status of the battery pack.

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging Fully Charged Hot/Cold Pack Delay*

• DCB107, DCB112, DCB113, DCB115, DCB118, DCB132: The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery pack by refusing to light. NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorized service center. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life. A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms. The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium- ion battery pack on the charger until it is fully charged. Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F and 75°F (18° – 24°C). DO NOT charge the battery pack below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18° – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local service center.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may alsoEnglish

charge a partially used pack whenever you desire with no adverse effect on the battery pack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

6. Do not freeze or immerse the charger in water or any

other liquid. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimal results. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE Intended Use This pole saw is ideal for pruning applications and cutting limbs up to 8" (203 mm) indiameter. DO nOT use under wet conditions or in presence of flammable liquids orgases. This pole saw is a professional power tool. DO nOT let children come into contact with the tool. Supervision is required when in experienced operators use thistool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing and Removing Saw Chain (Fig. A–D)

accidental operation, insure that battery is disconnected from the handle before performing the following operations. Failure to do this could result in serious personal injury.

CAUTION: Sharp moving blade. Always wear protective gloves when installing or removing the chain. The chain is sharp and can cut you when it is not running.

1. Place the pole saw on a firm surface. Rotate the two

counterclockwise with the hex wrench

, and hex headscrews.

3. To remove the saw chain

, rotate the chain tension screw

in the front of the housing using the flat screwdriver end of the wrench. Turning the screw counterclockwise allows the guide bar

to recede and reduces the tension on the chain so that it may beremoved.

4. Lift the worn saw chain out of the groove in the

6. To replace the saw chain, check to make sure that the

slot in the guide bar is over the location pins

shown in FigureD and that hole below the slot is located over the adjustment pin.

7. Place new chain in groove of guide bar and around

sprocket. Make sure saw teeth are facing correct direction by matching the graphic onhousing or guidebar.

8. Rotate the chain tension screw

in the front of the saw housing clockwise to increase the chain tension.

9. Replace sprocket cover, bar clamp, and hex headscrews.

10. Follow the instructions in the section Adjusting

1. With the pole saw still on a firm surface check the saw

tension. The tension is correct when the saw chain snaps back after being pulled 1/8" (3 mm) away from the guide bar

with light force from the middle finger and thumb as shown in FigureE. There should be no “sag” between the guide bar and the saw chain on the underside as shown in FigureF.

2. To adjust saw chain tension, loosen hex head

3. Rotate the chain tension screw

in the front of the housing using the flat screwdriver end of the wrench.

4. Do not over-tension the saw chain as this will lead to

excessive wear and will reduce the life of the guide bar and saw chain. Overtensioning also reduces the amount of cuts you will get per battery charge.

5. Once saw chain tension is correct, tighten hex head

6. When the saw chain is new check the tension frequently

(after disconnecting battery) during the first 2 hours of use as a new chain stretches slightly. nOTE: Saw chain tension should be adjusted regularly. Fig.E

Fig.F Saw Chain and Guide Bar Oiling (Fig.G) Auto Oiling System This pole saw is equipped with an auto oiling system that keeps the saw chain and guide bar constantly lubricated. The oil level indicator

shows the level of the oil in the chain saw. If the oil level is less than a quarter full, remove the battery from the pole saw and refill with the correct type of oil. nOTE: Always empty oil tank when finishedcutting. nOTE: Use a high quality bar and chain oil for proper chain and bar lubrication. As a temporary substitute, a non- detergent SAE30 weight motor oil can be used. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees. Never use waste oil or very thick oil. These may damage your pole saw. Filling the Oil Reservoir

and fill the reservoir with the recommended bar and chain oil until the oil level has reached the top of the oil level indicator

• Periodically switch the chain saw off and check the oil level indicator to ensure the bar and chain are being properlyoiled. Fig.G

from the handle and cover the saw chain

accidental operation, insure that battery is disconnected from the handle and that the protective scabbard is in place on the chain before performing the following operations. Failure to do this could result in serious personal injury. The three assembliess which make up the pole saw are keyed to insure correct assembly. If an assembly does not smoothly attach to another do not force fit. Combining the handle assembly

to the saw head assembly

creates a pole saw that is approximately 6' (1.8m) in length as shown in Figure H. To attach the handle assembly to the saw head assembly:

on the outside of the coupling end of the handle assembly

on the inside of the coupling end of the saw head assembly

. Refer to FigureI. Push the two sections completelytogether. Refer to FigureJ.

2. Slide the threaded sleeve

on the saw head assembly down as far as possible and rotate the sleeve clockwise until it stops and completely covers the threads as shown in FigureK.

WARNING: Always check to make sure that the

sleeve is completely threaded on and that the red threads are no longer visible. Not threading the sleeve completely on could result in the assemblys becoming disconnected creating a hazardous condition. Periodically check the connections to insure that no red threads are visible.English

to the handle assembly

and saw head assembly

creates a pole saw that is approximately 10' (3 m) in length as shown in FigureL. Refer to to Joining Saw Head Module to HandleModule for directions on how to attach the middle assembly to the handle assembly and saw head assembly. Fig.L

WARNING: Always check to make sure that the

sleeve is completely threaded on and that the red threads are no longer visible. Not threading the sleeve completely on could result in the assemblys becoming disconnected creating a hazardous condition. Periodically check the connections to insure that no red threads are visible. DISASSEMBLY

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Detaching Saw Head Module (Fig. M)

accidental operation, insure that battery is disconnected from the handle and that the protective scabbard is in place on the chain before performing the following operations. Failure to do this could result in serious personal injury. When detaching the assemblies, whether it is in the two assembly or three assembly mode, always detach the saw head assembly

first. To do this, rest the handle assembly

the ground and grasp the center of the saw head assembly with one hand as shown in FigureM. Use your other hand to loosen the threaded sleeve and then pull the two halves apart. Repeat this process if the center extension wasattached. Fig.M

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing and Removing the Battery Pack (Fig. N) nOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage. To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual.English

WARNING: To reduce the risk of serious personal

injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle( 24 and one hand on the foam gripper

WARNING: Read and understand all instructions.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious personalinjury.

CAUTION: Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If it is not slackened off, it can damage the pole saw. iMPORTAnT: Never operate a pole saw that is damaged or improperly adjusted or that is not completely and securely assembled. Be sure that the saw chain

stops moving when the trigger switch is released. Never adjust the guide bar

or saw chain when the motor is operating or the battery is attached. Pole Saw Trimming/Pruning

• Never stand directly under the limb you are cutting. Always position yourself out of the path of falling debris.

• Always wear head, eye, foot and body protection. Wearing body protection helps reduce the risk of injury when operating this unit.

• Never stand on a ladder or other unstable support while using the pole saw. Always avoid any position which can cause you to loose your balance and cause severe injury.

• Keep other persons at least 50' (15 m) from the work area. Distractions can cause you to lose control.

• Electrocution Hazard. To prevent shock, do not operate within 50' (15 m) of overhead electrical lines. Always check surrounding area for hidden electrical lines.

• Do not extend pole saw switch handle above shoulderheight. On/Off Switch (Fig. P) Always be sure of your footing and grip the pole saw firmly with both hands with the thumb and fingers encircling the handle. To turn the tool ON pull the lock button

back with your thumb and then squeeze the trigger switch

with your fingers as shown in Figure P. (Once the tool is running you can release the lock button.) To turn the tool OFF, release the trigger. Fig.P

CAUTION: The branch removal hook is not a belt hook. Your pole saw includes a branch removal hook

for the intended purpose of helping to remove small to moderately sized pruned branches.ENGLISH

WARNING: Let the tool work at its own pace.

WARNING: When pruning trees: guard against

kickback which can result in severe injury or death. See Guard Against Kickback, to avoid the risk of kickback. Do not overreach. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.

1. Use both hands to grip pole saw as shown in FigureO.

Use a firm grip. Thumbs and fingers must wrap around pole saw handle and pole. Keep fingers away from sawdust exhaust chute

2. Never operate while in a tree, in any awkward position

or on a ladder or other unstable surface. You may lose control of pole saw causing severe injury.

3. Follow directions below to trim a tee.

a. Make sure pole saw is running at full speed before making a cut. When starting a cut, place moving saw chain

against limb. Hold pole saw firmly in place to avoid possible bouncing or skating (sideways movement) of pole saw. b. Guide pole saw using light pressure. Make first cut 6" (152 mm) from tree trunk on underside of limb. Use top of guide bar

to make this cut. Cut 1/3 through diameter of limb. Then make the finish cut from the top. If you try to cut off thick branches from the bottom, the branch may close in and pinch the saw chain in the cut. If you try to cut off thick branches from the top, without a shallow undercut, the branch may splinter. Do not force pole saw. The motor will overload and can burn out. It will do the job better and safer at the rate for which it wasintended. c. Remove pole saw from cut while it is running at full speed. Stop pole saw by releasing trigger switch

Make sure saw chain has stopped before setting pole saw down. Fig.Q

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running. IMPORTANT: The chain cutters will dull immediately if they touch the ground, stones, masonry or a nail whilecutting. To get the best possible performance from your chain saw it is important to keep the teeth of the saw chain sharp. Chain sharpening services are available from your nearest DeWA LT servicecenter. NOTE: Each time the saw chain is sharpened, it loses some of the reduced kickback qualities and extra caution should be used. It is recommended that a saw chain be sharpened no more than four times. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Regular maintenance ensures a long effective life for the tool. After every 10 minutes of use be sure to remove the battery (be aware the chain and bar can be hot!) check the bar and chain for correct tension and lubricate per Adjusting Chain Tension and Chain Oiling. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis procedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Accessories

WARNING: Since accessories, other than those

offered by DeWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Replacement chain and bar are available from your nearest DeWALT servicecenter.

• DCPS620 requires replacement chain service part number DWO1DT608. Replacement 8” (203 mm) bar, service part numberDWZCSB8. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT Industrial Tool Co., 701East Joppa Road, Towson, MD 21286, call 1-800-4- DeWALT (1-800-433-9258) or visit our website: www.dewalt.com. Repairs The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DeWA LT factory service center or a DeWALT authorized service center. Always use identical replacementparts.English

Register Online Thank you for your purchase. Register your product nowfor:

• WARRAnTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR sAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.dewalt.com/register. Three Year Limited Warranty DeWALT will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www. dewalt.com or call 1-800-4- DeWALT (1-800-433-9258). This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. In addition to the warranty, DeWALT tools are covered byour: 1 YEAR FREE sERViCE DeWALT will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year afterpurchase. 2 YEARs FREE sERViCE On DEWAlT BATTERY PACKs DC9071, DC9091, DC9096, DC9182, DC9280, DC9360, DCB120,

DCB127, DCB201, DCB203BT, DCB207, DCB361

nOTE: Battery warranty voided if the battery pack is tampered with in any way. DeWALT is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw. 90 DAY MOnEY BACK gUARAnTEE If you are not completely satisfied with the performance of your DeWALT Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. lATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARning lABEl REPlACEMEnT: If your warning labels become illegible or are missing, call 1-800-4- DeWALT (1-800-433-9258) for a freereplacement.ENGLISH

TROUBLESHOOTING GUIDE BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS For assistance with your product, visit our website at www.dewalt.com for a list of service centers, or call DeWALT at 1-800-4-DeWALT (1-800-433-9258).

PROBLEM POSSIBLE CAUSE SOLUTION

Unit will not start. Battery pack not installed properly. Check battery pack installation. Battery pack not charged. Check battery pack charging requirements. Lock button not actuated. Pull back on lock button/actuate trigger. Pole connections not properly tightened. Refer to Joining Saw Head Module to Handle Module. Battery pack will not charge. Battery pack not inserted into charger. Insert battery pack into charger until LED illuminates. Charger not plugged in. Plug charger into a working outlet. Refer to Important Charging Notes for more details. Surrounding air temperature too hot or too cold. Move battery pack to a surrounding air temperature of above 40 °F (4.5 °C) or below 104 °F (+40 °C). Bar/chain overheated. Chain too tight. Refer to Adjusting Chain Tension. Lubrication needed. Refer to Chain Oiling. Chain is loose. Chain tension set incorrectly. Refer to Adjusting Chain Tension. Poor cut quality. Chain tension set incorrectly. Refer to Adjusting Chain Tension. NOTE: Excessive tension leads to excessive wear and reduction in life of bar & chain. Lubricate after every 10 minutes of use. Chain needs replacement. Refer to Installing and Removing Saw Chain. Unit runs but does not cut. Chain installed backwards. Refer to Installing and Removing Saw Chain.FRANÇAIS

PROBLÈME CAUSE POSSIBLE SOLUTION

• Maximum initial battery voltage (measured without a workload) is 20 or 60 volts. Nominal voltage is 18 or 54.
