Sweet Dreams ASW401V - Waffle Maker BESTRON - Free user manual and instructions

Product type	Waffle maker
Brand	Bestron
Model	Sweet Dreams ASW401V
Dimensions (L x H x D)	24 x 23 x 9.4 cm
Weight (approx)	Approximately 1.8 kg
Power supply	220-240 V ~ 50/60 Hz
Power	700 W
Protection class	I (earthing)
Cord length	70 cm
Plate material	Non-stick coating
Indicator lights	Heating indicator and power indicator
Safety	Safety clips, insulated handle, automatic shutdown not specified
Use	Domestic and similar (kitchens, offices, hotels, etc.)
Waffle preparation	Preheating, cooking 3-5 minutes, recipes included
Maintenance and cleaning	Clean with a damp cloth, do not immerse, avoid abrasive products
Repairability	Repairs by qualified technician only, Bestron customer service
Warranty	Not specified, contact customer service

Frequently Asked Questions - Sweet Dreams ASW401V BESTRON

How to preheat the waffle maker?

Plug in the appliance. The indicators light up. Wait for the green indicator to turn off, which indicates the plates are at the right temperature.

What is the power of the appliance?

The waffle maker has a power of 700 watts.

Are the plates removable?

The cooking plates are fixed and not removable. Clean them with a damp cloth.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use a wooden or heat-resistant plastic spatula.

How long does it take to cook a waffle?

The normal cooking time is about 3 to 5 minutes, depending on the batter and your preference.

What to do if the appliance emits smoke or odor during first use?

This is normal. Heat the appliance empty for 10 minutes to eliminate packaging odors. Ensure good ventilation.

How to clean the waffle maker?

Unplug and let it cool. Clean the plates with a damp cloth. You can use a little soapy water. Never immerse the appliance.

Is the appliance suitable for people with reduced mobility?

Yes, the appliance can be used by persons with reduced physical capabilities if they are supervised or have received safety instructions.

What to do in case of malfunction?

Contact Bestron customer service via www.bestron.com/service. Do not repair the appliance yourself.

What recipes are provided?

The manual includes three recipes: quick waffles, Brussels waffles, and sour cream waffles.

USER MANUAL Sweet Dreams ASW401V BESTRON

RECEPTEN VOOR WAFELS

Wafels (snelle variant)

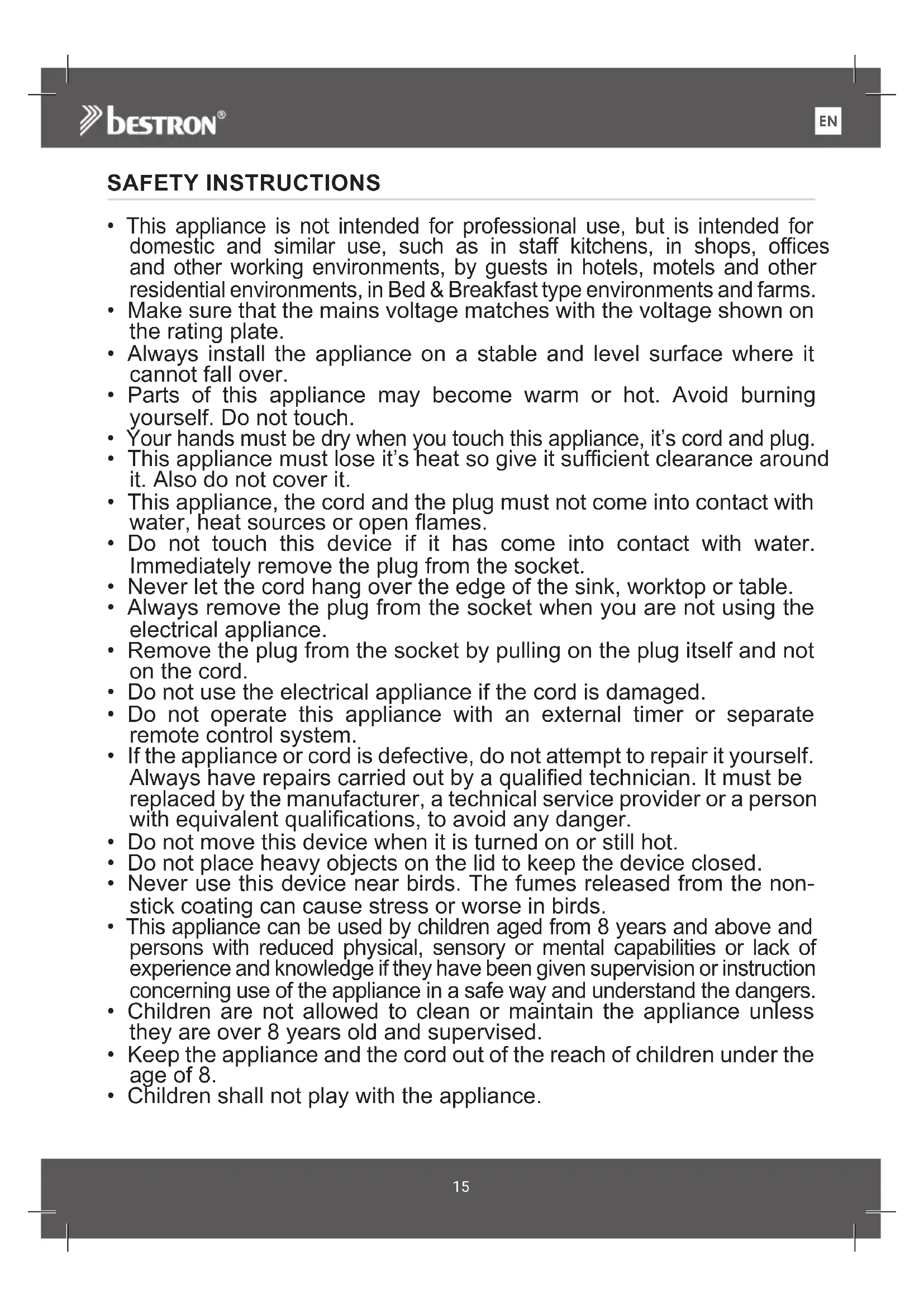

• This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.
• Make sure that the mains voltage matches with the voltage shown on the rating plate.
• Always install the appliance on a stable and level surface where it cannot fall over.
• Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.
• Your hands must be dry when you touch this appliance, it's cord and plug.
• This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.
• This appliance, the cord and the plug must not come into contact with water, heat sources or open flames.
• Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.
• Never let the cord hang over the edge of the sink, worktop or table.
• Always remove the plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling on the plug itself and not on the cord.
• Do not use the electrical appliance if the cord is damaged.
• Do not operate this appliance with an external timer or separate remote control system.
• If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualified technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualifications, to avoid any danger.
• Do not move this device when it is turned on or still hot.
• Do not place heavy objects on the lid to keep the device closed.
• Never use this device near birds. The fumes released from the non-stick coating can cause stress or worse in birds.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.
• Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.
• Keep the appliance and the cord out of the reach of children under the age of 8.
  Children shall not play with the appliance.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

Technical Specifications
Model ASW401
Mains 220-240V~
Frequency (Hz) 50/60
Safety Class 1
Power (Watt) 700
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB) -
Dimensions (L x W x H) (cm)	24x23x9,4
Cable length (cm)	70

OPERATION

The following description is associated with the image on page 2:

1. Housing
2. Baking trays
3. Indicator light "heating up"
4. Indicator light "switched on"
5. Handle

6. Safety clip

7. Unpack the device and remove all packaging parts.

8. Clean the baking tray before using for the first time (see 'Cleaning and maintenance').
9. Plug in the power cord and let the waffle maker heat for 10 minutes. This will remove any packaging odor from the device.

PLEASE NOTE:

The first time you use the appliance, it may produce slight smoke and a specific odour. This is normal and will disappear on its own. Ensure sufficient ventilation.
- Keep birds away from the appliance when the appliance is in operation. When heating the non-stick coating on the baking tray, a substance can be released that is a nuisance to birds.

Preheating

1. Place the appliance on a flat, level surface.
2. This appliance must be connected to an earthed socket.
3. Plug the power cord into the wall outlet. The indicator lights come on and the appliance heats up.
4. Wait for the green indicator light to turn off. The baking trays are then at the right temperature and the waffle maker is ready for use.

Baking waffles

1. Prepare the waffle dough according to the recipe on the dough packaging.
2. Preheat the appliance as described in 'Preheating'
3. Grease both baking trays. Use a brush to spread the oil or butter.
4. Fill the bottom baking tray with dough/batter. Prevent the dough from running over the edge of the baking tray. Close the lid.
5. Bake the waffles until they are the desired colour.
6. Open the appliance when the waffles are ready.
7. Carefully remove the waffles with a heat resistant wooden or plastic spatula so as not to damage the non-stick coating.
8. When you have finished baking waffles, unplug the appliance and open the appliance to allow the baking trays to cool.

PLEASE NOTE:

• Normal cooking time is approximately 3 - 5 minutes. This depends on the dough used and your personal taste. Leave the appliance closed while baking because opening it during use can adversely affect the appearance of the waffles.
• Do not use sharp forks or knives!

CLEANING AND MAINTENANCE

Clean the waffle maker after each use.

1. Disconnect from mains power supply and let the appliance cool down.
2. Clean the waffle iron with a damp cloth. If necessary, you can clean the waffle iron with soapy water. Do not allow liquid to enter the device.
3. Dry the device thoroughly after cleaning.
4. Store the waffle maker.

PLEASE NOTE:

• Do not use aggressive or abrasive cleaning agents or sharp objects (such as knives or hard brushes) when cleaning.

RECIPES FOR WAFFLES

Waffles (quick recipe)

Ingredients for 10-12 waffles

• 500 grams of flour
  1 sachet of baking powder
  150 grams of butter
  4 eggs
  100 grams of sugar
  1/4 litre of milk
  1 small bag of vanilla sugar
  1 pinch of salt

Preparation

Mix the baking powder into the flour. Allow the butter to melt. Beat the eggs to a froth. Add the sugar, milk, vanilla sugar and salt, stirring all the while. Add the cooled butter and mix thoroughly. Finally, add the flour whilst stirring continuously. Allow the waffle iron to heat up, and bake the waffles for 2-3 minutes.

Belgian waffles (milk/water recipe)

Ingredients for 7-9 waffles

120 grams of sugar
2 eggs
- 350 grams of flour
- 1 teaspoon of grated lemon peel (from unsprayed lemons!)
- 12 bag vanilla sugar
1 pinch of salt
150 ml of milk (3.5% fat)
112 sachet of baking powder
Lukewarm water

Preparation

Stir the butter, sugar, lemon peel and vanilla sugar to a froth. Slowly add the eggs. Mix the flour and baking powder. Add alternate potions of flour and milk to the mixture, and add sufficient water to obtain a batter (similar to pancake batter). Leave the batter to stand for about 20 minutes, and then stir thoroughly. Allow the waffle iron to heat; grease the hot baking plate.

Bake the waffles one by one, and sprinkle with sugar and cinnamon.

Waffles (crème fraîche recipe)

Ingredients for 5-7 waffles

• 125 grams of crème fraîche
  125 grams of butter
  6 egg yolks
• 250 grams of sieved flour (type 405)
  1 pinch of salt
• Egg white from 6 eggs
  1 vanilla pod
  100 grams of castor sugar

Preparation

Warm the crème fraîche. Beat the butter to a froth and add the egg yolks, stirring all the while. Add alternate portions of the salt and flour and the crème fraîche to the butter mixture to obtain a thick batter. Beat the egg white until stiff, and fold it through the waffle batter. Leave the batter to stand for 30 minutes. Bake the waffles one by one in the greased waffle iron. Mix the inside of a vanilla pod with castor sugar, and sprinkle the mixture over the freshly-baked waffles. If you so wish serve the waffles with whipped cream and cherries or cherry jam.

• 125 grams of crème fraîche
  125 grams of butter
  6 egg yolks
• 250 grams of sieved flour (type 405)
  1 pinch of salt
• Egg white from 6 eggs
  1 vanilla pod
  100 grams of castor sugar

Förberedelse
