USER MANUAL ACHM200M BESTRON

WAT U MOET WETEN OVER DIT APPARAAT

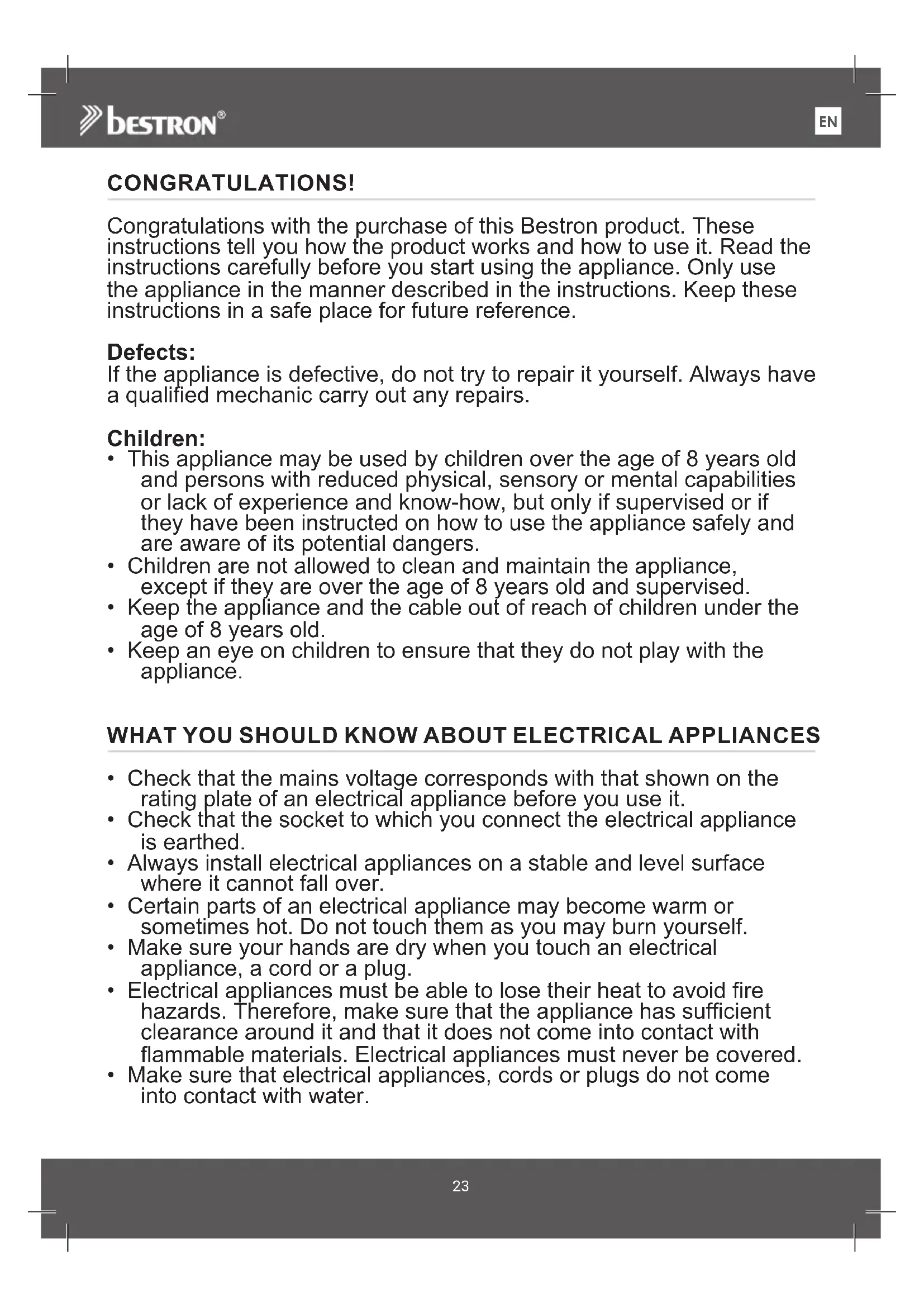

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
• Always install electrical appliances on a stable and level surface where it cannot fall over.
• Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
• Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.

• Make sure that electrical appliances, cords or plugs do not come into contact with water.

• Never immerse electrical appliances, cords or plugs in water or any other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
• Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
• Never let cords hang over the edge of the sink, a worktop or a table.
• Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).

ENVIRONMENT

• Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

R. Neyman

Quality control

OPERATION - General

The Churros maker is intended for domestic use only, not for professional use.

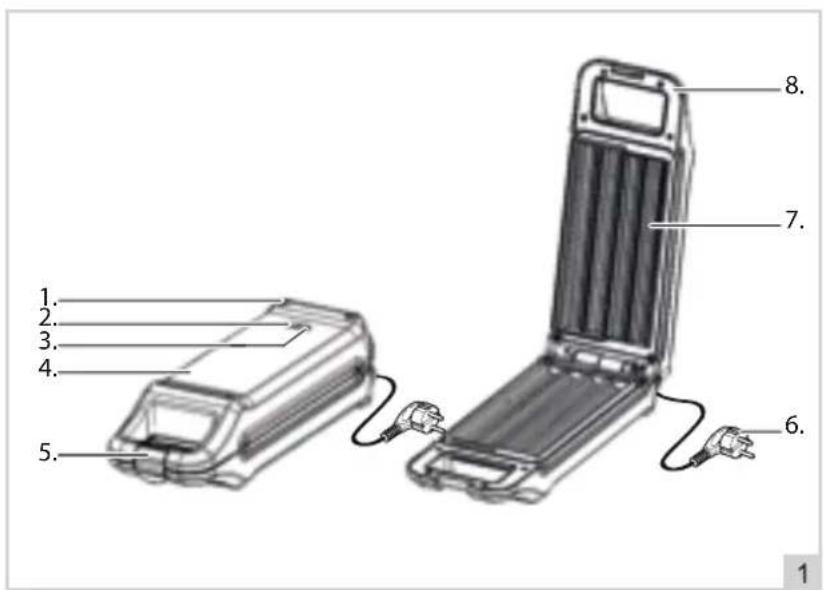

1. Non-slip feet
2. "Ready-to-use" indicator light (green)
3. "Power" indicator light (red)
4. Housing

5. Safety lock clip

6. Power cord and plug

7. Baking plates
8. Handle

OPERATION - Using for the first time

1. Remove the packaging.
2. Clean the appliance (see 'Cleaning and maintenance').
3. Put the plug in the wall socket and let the churros maker heat for 10 minutes. This way you remove any packaging odor from the device.

ATTENTION:

• The first time you use the device, there may be slight smoke and a specific odor. This is normal and will disappear by itself. Ensure adequate ventilation.
• Keep birds away from the device when the device is operating. Heating the non-stick coating on the baking tray can release a substance that is harmful to birds.

OPERATION - Pre-heat

1. Plug in the power cord. The red light comes on and the appliance starts preheating the baking trays.
2. When the baking trays are up to temperature, the green light also lights up. This takes around 3 minutes.

OPERATION - Use

1. Prepare the churros batter according to the recipe on the package.
2. Pre-heat the device as described in "Pre-heating"
3. Place the desired amount of batter on the bottom baking tray. Prevent the batter from coming over the edge of the baking tray. Close the lid.

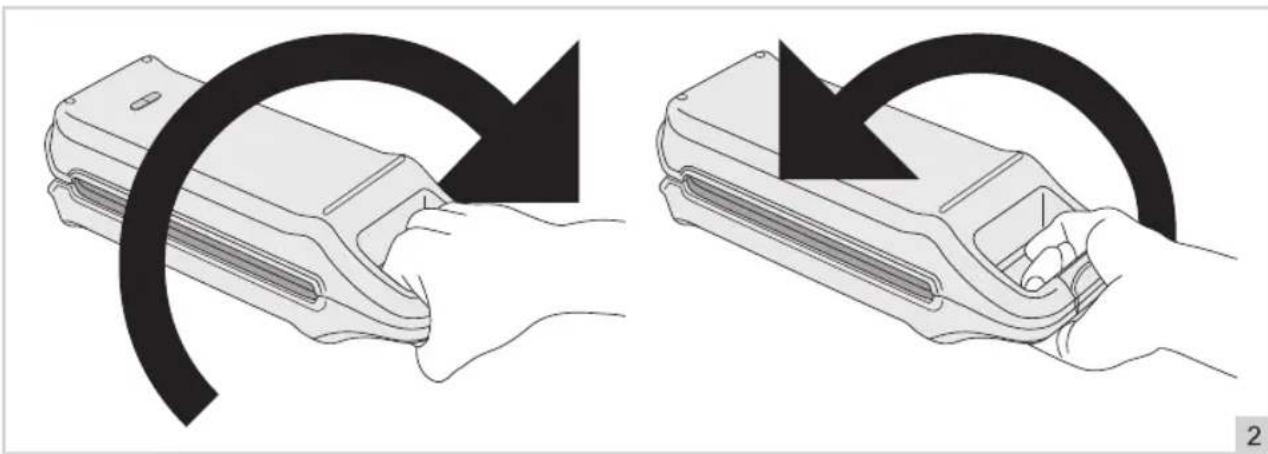

1. During baking, turn the appliance over once or twice for an even distribution of the batter (see figure 2).
2. Bake the churros until they have the desired color.
3. Open the device when the churros are ready.
4. Carefully remove the churros with a heat-resistant wooden or plastic spatula do not damage the non-stick coating.
5. When you have finished baking the churros, remove the plug from the wall socket and open the appliance to let the baking plates cool down.

ATTENTION:

• The normal preparation time is approximately 3 - 5 minutes. This depends on the batter used and your personal taste. Keep the appliance closed during baking, as opening in the meantime can adversely affect the appearance of the churros.
• Do not use sharp forks or knives!

CLEANING AND MAINTENANCE

Clean the device after each use.

1. Remove the plug from the wall socket and let the appliance cool down completely.
2. Clean the baking plates with a damp cloth. If necessary, you can clean the baking plates with soapy water. Ensure that no liquid enters the device.
3. Dry the device thoroughly after cleaning.

ATTENTION:

• Make sure the device is not connected to the power outlet when cleaning.
• Do not use aggressive or abrasive cleaning agents or sharp objects (such as knives or hard brushes) when cleaning.
• Never immerse the device in water or any other liquid.

RECIPE FOR CHURROS

Ingredients

320 grams of sugar
200 ml of water
120 grams of butter
- 5 eggs
140 grams of flour
2.5 teaspoon cinnamon
- pinch of salt

Preparation

1. Heat the Churros Maker as directed.
2. Boil 200 ml of water, 120 grams of butter, a pinch of salt, 20 grams of sugar, half a teaspoon of cinnamon. Turn the heat down and add 140 grams of flour and stir with a spatula until a soft ball forms. Then remove the pan from the heat.
3. Add one egg at a time and mix the ingredients well. Let the dough stand until it can keep shape (+ -5 minutes).
4. Add the batter in a piping bag (this makes it easier to distribute without spilling on the metal plates) and spread it in the slots of the preheated Churros maker. Close the lid and bake for 5-10 minutes or until the Churros are golden brown in color and cooked. Do not forget to turn the device over.
5. Remove the Churros from the Churros maker. Mix the remaining sugar and cinnamon in a medium-sized bowl and spread on the Churros.

RECIPHE FOR CHOCOLATE SAUCE

Ingredients

100 ml whipped cream
- 50 ml of semi-skimmed milk
100 grams of dark chocolate
15 grams of butter or margarine

Preparation

1. Pour the whipped cream and milk into a saucepan, bring to the boil.
2. Put the dark chocolate into pieces in a bowl.
3. Pour the hot whipped cream mixture over the dark chocolate, let it stand for a while and then stir well, with a whisk.
4. Add the butter and stir well with the whisk to a smooth sauce.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

Accidents

• Improper use
• Wear and tear

Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
• Unauthorised changes
• Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

Cords
Lamps

Glass parts

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department: www.bestron.com/service
