Product type	Electric hedge trimmer
Brand	Scheppach
Model	TPH900
Supply voltage	230-240 V ~ 50 Hz
Motor power	0.9 kW
Max cutting diameter	15 mm
Cutting length	410 mm
Cutting speed	1000 min⁻¹
Weight	5.3 kg
Protection class	II
Adjustment angle	-90°, 0°, +45° (135° total)
Sound pressure level	90 dB(A)
Guaranteed sound power level	105 dB(A)
Vibrations (front / rear)	2.72 / 3.05 m/s² (uncertainty K=1.5 m/s²)
Blade type	Double steel blade
Safety	Safety switch, throttle lever, protective guard, safety tab on shoulder strap
Maintenance	Oil the blades before each use, clean with a soft brush, do not use water
Intended use	Trimming hedges, bushes and shrubs; domestic use only
Included accessories	Extension cord, shoulder strap, rollers (3x), blade protection sheath
Warranty	Legal (according to country of sale)

Frequently Asked Questions - TPH900 SCHEPPACH

How to start the TPH900 hedge trimmer?

To start, first press the safety switch (14) and then, while holding it, press the throttle lever (15). Release the throttle lever to stop the device.

What type of oil to use for lubricating the blades?

Use an environmentally compatible oil, e.g., a standard lubrication oil for garden tools. Apply an oil mist over the entire blade surface before each use.

Can I use the hedge trimmer in the rain?

No, do not trim wet hedges and do not use the device in rain. Protect it from moisture to avoid the risk of electric shock and damage.

What to do if the blade jams?

Stop the device immediately, unplug it, then remove the obstructing object (branch, etc.) with an appropriate tool. Never use hands directly.

How to adjust the cutting angle?

Pull the articulation release lever (7) towards you, simultaneously press the articulation lock (8) to orient the blade to one of 7 positions. Perform this adjustment with the engine stopped.

How to clean the hedge trimmer after use?

Clean the blades with a soft brush and spray them with an anti-corrosion oil mist. Never use water or solvents. Wipe the housing with a damp cloth and dry it.

Can the hedge trimmer cut thick branches?

No, the max cutting diameter is 15 mm. For thicker branches, first use a pruner or lopper. Never cut hard wood or similar materials.

Where to find spare parts?

Original spare parts are available from Scheppach after-sales service. Scan the QR code on the home page to access the service center. Indicate the device type and reference when ordering.

How to store the hedge trimmer?

Unplug it, oil the blades to prevent corrosion, and place the protection sheath on the blade. Store the device in a dry place out of reach of children.

What protective equipment to wear?

Always wear safety glasses, hearing protection, protective gloves, non-slip safety shoes and close-fitting clothing. Tie up long hair.

USER MANUAL TPH900 SCHEPPACH

Three different types of hair tools including a shaver, saw, and rack (no text or symbols visible)

TPH900

https://www.scheppach.com/de/service scheppach

DE	Elektro-Teleskop-HeckenschereOriginalbetriebsanleitung	4
GB	Electric telescopic hedge trimmerTranslation of the original instruction manual	17
FR	Taille-haie électrique télescopiqueTraduction des instructions d'origine	28
IT	Tosasiepi elettrico telescopicoTraduzione in italiano delle istruzioni originali	40
ES	Máquina cortasetos telescópica eléctricaTraducción de las instrucciones originales en alemán	52
NL	Elektrische telescoop heggenschaarOriginele handleiding in het Duits	64

Labeled diagram of a hair shaver with numbered parts for identification

2 11 9 17

3 11 17

Close-up of a hand adjusting a black plastic car handle with a numbered label (4 and 9) pointing to the grip (no text or symbols on the object itself)

5 9 4

Close-up of a pipe fitting with a black knob and labeled component '4' (no text or symbols beyond labels)

7 7 6 8 2

8 8 2

9 18 NEW YORK 12

Close-up of a hand holding a handheld electric drill bit with a labeled component (no text or symbols visible)

1 14 15

Close-up of a person's seat with metal hardware and a cable, no visible text or symbols

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the equipment

The use of symbols in this handbook is designed to direct your attention to possible risks. You must make sure that you understand the safety symbols and explanations accompanying them. Warnings themselves cannot remove risks and cannot substitute correct action for the prevention of accidents.

	Read the operating and safety instructions before start-up and follow them!
	Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance.
	Wear ear protection.
	Wear eye protection.
	Wear robust footwear when using the device!
	Wear protective gloves when using the device!
	Warning! Risk of injury! Never put your hands close to the blades. Never touch the blades when turning the tool on or using it.
	Protect the tool from getting wet.
	The product complies with the applicable European directives
	Protection class II
	Always switch off the shredder, disconnect the plug and wait until the cutting disc stops before carrying out maintenance or cleaning work.
	Warning of falling objects
	Guaranteed sound power level
	Beware of electrical wiring! Keep at least 10 m distance and 15 m to other persons
△ Caution!	In these operating instructions we have marked the places that have to do with your safety with this sign.

Table of contents: Page:

1. Introduction......20
2. Layout (Fig. 1)......20
3. Scope of delivery....20
4. Intended use....21
5. Important information 21
6. Technical data 24
7. Attachment and operation 24
8. Working instructions....25
9. Maintenance....25
10. Storage....26
11. Disposal and recycling 26
12. Troubleshooting....27
13. Declaration of conformity 135

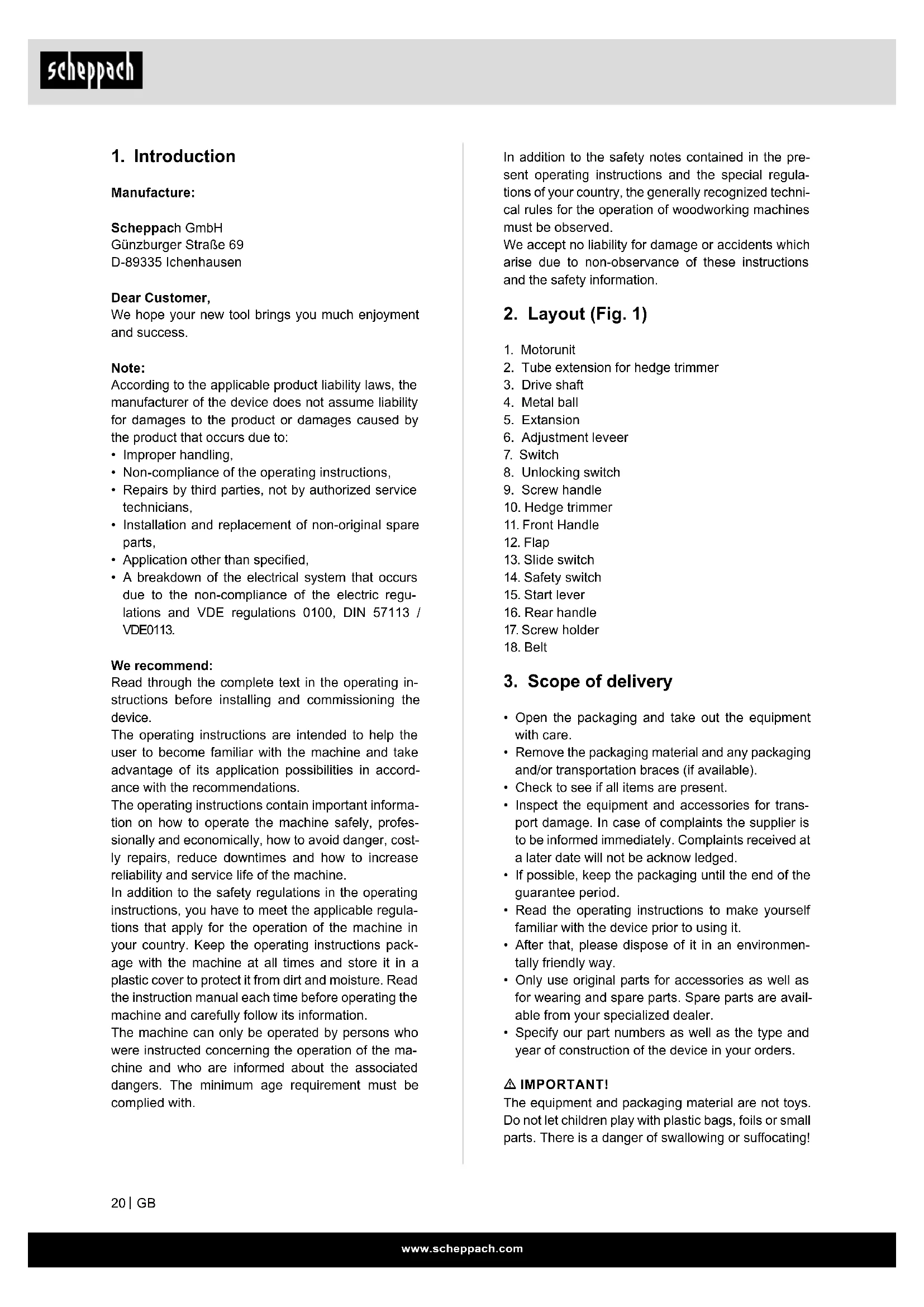

1. Introduction

Manufacture:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information.

The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of woodworking machines must be observed.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

2. Layout (Fig. 1)

1. Motorunit
2. Tube extension for hedge trimmer
3. Drive shaft
4. Metal ball
5. Extension
6. Adjustment leveer
7. Switch
8. Unlocking switch
9. Screw handle
10. Hedge trimmer
11. Front Handle
12. Flap
13. Slide switch

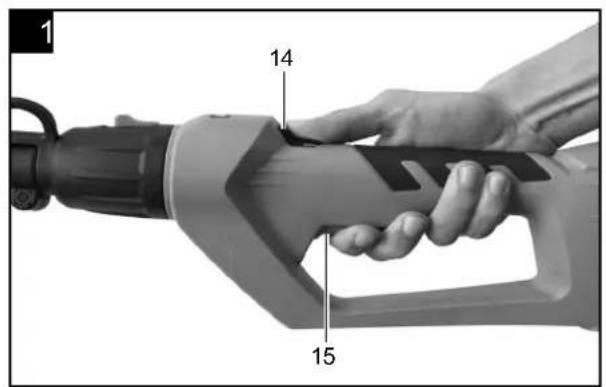

14. Safety switch
15. Start lever
16. Rear handle
17. Screw holder

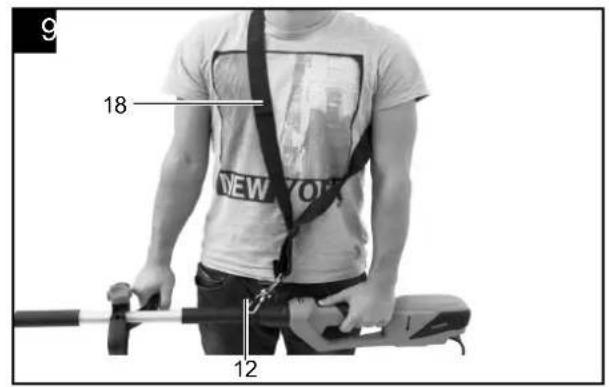

18. Belt

3. Scope of delivery

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are present.
• Inspect the equipment and accessories for transport damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknowledged.
• If possible, keep the packaging until the end of the guarantee period.
• Read the operating instructions to make yourself familiar with the device prior to using it.
  • After that, please dispose of it in an environmentally friendly way.
• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.
• Specify our part numbers as well as the type and year of construction of the device in your orders.

⚠ IMPORTANT!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Screw handle x3
• Belt
• Hedge trimmer
• Extension
• Motor unit

4. Intended use

The machine meets the currently valid EU machine directive.

• Before starting any work, all protective and safety devices must be in place.
• These hedge clippers have been designed to cut soft, freshly grown hedge material. They are not suitable for cutting branches, tough wood or other material to be cut.
• The machine has been designed to be operated by one person.
• The operator is responsible for third parties in the area of operations.
• All safety and hazard notices on the machine must be observed.
• All safety and hazard notices on the machine must be kept in a completely legible condition.
• Use the machine in a technically flawless condition only, as well as for its intended purpose, in a safe manner and being aware of dangers, in compliance with the operating instructions!
• Disruptions which can affect safety in particular must be eliminated straight away!
• The manufacturer's safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to.
• The machine may only be used, maintained or repaired by trained persons who are familiar with the machine and have been informed about the dangers. Unauthorized modifications of the machine exclude a liability of the manufacturer for damages resulting from the modifications.
• The machine is intended for use only with original spare parts and original tools from the producer.
• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.
• The hedge trimmer may be used only for cutting hedges, bushes and shrubs. Alternative use not specified in these instructions can damage the hedge trimmer or severely injure the user. Therefore, it is explicitly excluded from the list of possible uses.
• The device must not be used for commercial, technical or industrial applications.
• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.

WARNING! For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these instructions.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

Non-permitted users:

People who are not familiar with the operating manual, children under the age of 16 and people under the influence of alcohol, drugs and medication, as well as those who are tired or ill.

5. Important information

General safety instructions for electric tools

⚠ CAUTION: Read all safety regulations and instructions. Any failures made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

The term “electric tool” used in the safety instructions refers to electric tools operated from the mains power supply (with a power cable) and to battery operated electric tools (without a power cable).

1. Workplace safety

• Keep your work area clean and well illuminated. Untidy or unlit work areas can result in accidents.
• Do not operate the electric tool in an environment where there is a risk of explosions and where there are inflammable liquids, gases or dust. Electric tools produce sparks which could set the dust or vapours alight.
• Keep the electric tool out of the reach of children and other persons. If there is a distraction, you may lose control of the appliance.

2. Electrical safety

• The connector plug from this electric tool must fit into the socket. The plug should never be altered in any way. Never use adapter plugs together with earthed electric tools. Unaltered plugs and correct sockets reduce the risk of an electric shock.

• Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of electric shock is increased if your body is earthed.

• Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool increases the risk of an electric shock.

• Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled cables increase the risk of an electric shock.
• If you are working outdoors with an electric tool, only use extension cables which are designed specifically for this purpose. Using specially designed outdoor extension cables, the risk of electric shock is reduced.
• If operation of the electric tool in a damp environment can not be avoided, use a earthleakage circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock.

WARNING! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

3. Safety of persons

• Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using the electric tool can result in serious injuries.
• Wear personal protection equipment and always wear safety goggles. Wearing personal protection (such as dust masks, non-slip safety shoes, safety helmet or ear protection, depending upon the type and use of the electric tool) reduces the risk of injury.
• Make sure that the appliance cannot start up accidentally. Ensure that the electric tool is switched off before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If your finger is on the switch whilst carrying the electric tool or if you connect the appliance to the mains when it is switched on, this can lead to accidents.
• Remove keys and wrenches before switching on the electric tool. A tool or key which comes into contact with rotating parts of the appliance can lead to injuries.
• Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all times. In this way, you can control the electric tool better in unexpected circumstances.

• Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.

• If vacuuming devices and draining devices can be fitted, make sure that these are correctly attached and correctly used. The use of a dust extraction system can reduce the danger posed by dust.

• Do not allow yourself to be lulled into a false sense of security and do not ignore the safety rules for electric tools, even when you have used it many times and have become familiar with it. A careless action can cause severe injury within a fraction of a second.

4. Usage and treatment of the electric tool

• Do not overload the appliance. Use the correct tool for your work. You will be able to work better and more safely within the given performance boundaries.
• Do not use an electric tool with a defective switch. An electric tool that cannot be switched on or off is dangerous and must be repaired.
• Pull the plug out of the socket and/or remove the battery before making any adjustments to the appliance, changing accessories or put the appliance down. This safety measure prevents starting the electric tool unintentionally.
• Keep unused electric tools out of the reach of children. Do not allow people who are not familiar with the appliance or who have not read these instructions to use the appliance. Electric tools are dangerous if they are used by inexperienced people.
• Clean your electric tool carefully. Check whether moving parts are functioning properly and not jamming, whether parts are broken or damaged enough that the functioning of this electric tool is affected. Have damaged parts repaired before using the appliance. Many accidents are caused by badly maintained electric tools.
• Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges will jam less and are easier to control.
• Make sure to use electric tools, accessories, attachments, etc. in accordance with these instructions. Take the conditions in your work area and the job in hand into account. Using electric tools for any purpose other than the one for which they are intended can lead to dangerous situations.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

- Have your electric tool repaired only by trained personnel using only genuine spare parts. This will ensure that your electric tool remains safe to use.

Safety regulations for hedge trimmers

• Make sure you keep all parts of your body away from the blades. Never attempt to remove the cuttings with the blades running or to hold material you wish to cut. Always switch off the equipment before attempting to remove any jammed cuttings. A single moment of carelessness when using the hedge trimmer can result in serious injuries.
• Carry the hedge trimmer by its handle and make sure the blades have stopped. Always fit the protective cover when transporting the hedge trimmer or putting it into storage. Careful handling of the equipment reduces the likelihood of injury by the blades.
• Hold the electric tool by the insulated handles, because the blade may come into contact with the tool's own mains lead. Contact between the blade and a live cable can also make the metal parts of the equipment live and will cause an electric shock.
• Keep the cable out of the cutting zone. During operation the cable may be covered by hedges and cut through by accident.

Specific safety information

Please read this safety information and the directions for use carefully and be sure to follow the instructions to the letter.

1. Always remove the power plug from the socket outlet before you perform any work on the hedge trimmer, e.g.
2. repairing a damaged cable
3. cleaning the blades
4. troubleshooting
5. cleaning and maintenance

6. before leaving the tool unattended.

7. The hedge trimmer can cause serious injuries! Read the directions for use carefully in order to acquaint yourself with the correct way to handle, set up, service, start and put down the machine. Familiarize yourself with all the machine's control elements and its proper use.

8. Always handle the hedge trimmer with both hands.

9. When working with the hedge trimmer, wear sturdy shoes and make sure of your footing.

10. Never work with the hedge trimmer in the rain or on wet hedges and never leave the hedge trimmer outdoors. The hedge trimmer must not be used if it is wet.

11. We recommend that you wear safety goggles and ear-muffs when working with the hedge trimmer.

12. Wear suitable working clothes such as rubber gloves and non-slip shoes. Do not wear loose garments. Keep long hair in a hairnet.

13. Avoid abnormal postures and make sure of your footing, particularly when working on ladders and steps.

14. Be sure to hold the hedge trimmer well away from your body when it is switched on.

15. Make sure there are no other persons or animals within your working area (radius of swing).

16. Carry the hedge trimmer only by its guide handle.
17. Keep cables clear of where you are cutting.
18. Before you use the hedge trimmer, examine the power cable for signs of damage and aging.
19. Use the hedge trimmer only when the power cable is in good working order.
20. Do not remove the power plug from the socket outlet by pulling on the cable. Never carry the tool by its cable. Take care not to damage the cable in any way.
21. Protect cables from heat, caustic fluids and sharp edges. Replace damaged cables immediately.
22. If the blades become jammed, e.g. due to thick branches or the like, switch off and unplug the hedge trimmer immediately. Only then are you to remove the cause of the obstruction.
23. Keep the hedge trimmer in a dry place out of children's reach.
24. During transportation and storage of the hedge trimmer, keep the blades covered at all times with the special guard.
25. Take care not to overload the hedge trimmer and do not use it on jobs for which it is not intended, i.e. you are allowed to use the hedge trimmer only to cut hedges, shrubs and perennials.
26. Use only cables and connectors approved for outdoor use:
27. power cable HO7RN-F 2x1.0 with integral two-plug plug;
28. extension cable HO7RN-F 3G1.5 with rainwater-protected earthing-pin plug and earthingcontact coupling.
29. The use of a leakage-current or earth-leakage circuit-breaker is recommended for operating electric tools. Ask your electrician!
30. The hedge trimmer requires regular inspection and maintenance. Always replace damaged blades in pairs. If the hedge trimmer suffers any damage from impact (falling on hard ground etc.), have it checked immediately by a specialist.
31. Look after your hedge trimmer carefully. Keep it clean and sharp to ensure efficient and safe cutting. Follow the maintenance and cleaning instructions.
32. The German Farmers Union, for example, prohibits the use of electric hedge trimmers by persons aged 17 or less. Persons aged 16 and above may only use electric hedge trimmers if supervised by an adult.
33. Do not use the hedge trimmer with a damaged or excessively worn cutting system.
34. Check your surroundings and take note of any potential dangers which you may not be able hear due to the machine's noise.

35. Never try to work with an incomplete machine or a machine with unapproved modifications.

36. It is advisable not to use the hedge trimmer when other persons, and particularly children, are nearby.

37. Children are not allowed to use the hedge trim-mer.
38. The machine may exceed 85 db (A) at the workplace. The operator will require noise protection measures and ear muffs if this is the case.
39. Always ensure that all the handles and safety equipment is fitted when the hedge trimmer is in use.
40. Examine the hedge for any concealed objects, e.g. wire, before you start your work.
41. This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

Do not lose this safety information.

⚠️ Residual risks

The machine has been built using modern technology and in accordance with recognized safety rules.

Some hazards, however, may still remain.

• Risk of injury to fingers and hands from the tool in operation during improper use.
• Electrical hazards when unsuitable electric connections are used.
• Safety hazard from the hedge clippers in case of long hair and loose clothing; Wear personal protective equipment such as a hair net and tight work clothing.
• Although having regarded all considerable rules there may still remain not obvious remaining hazards.
• Minimize remaining hazards by following the instructions in "Safety Rules", "Use only as authorized" and in the entire operating manual.

6. Technical data

Cutting circle diameter 15 mm

Angle adjustment -90°/0°/+45 (135°)
Cutting length 410 mm
Max. cutting speed 1000 min	-1
Engine 230 - 240 V / 50 Hz
Max. engine output 0,9 kW
Weight hedge trimmer 5.3 kg

Subject to technical changes!

Information concerning noise emission measured according to relevant standards:

Sound pressure L_pA = 90 dB

Sound power L_WA = 105 dB

Uncertainty K_PA = 3 dB

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Vibrations:

Hedge trimmer: A_hv = Front 2,72 m/s ^2

Rear 3,05 m/s ^2

Uncertainty K_PA = 1.5 m/s^2

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

7. Attachment and operation

ASSEMBLY

When assembling this machine, please follow the instructions for assembly printed.

Assemble the handle on the machine (Fig 3-4)

Open the screw holder (17)

Install the front handle (11) at your desired position and close the screw holder (17) after this. Screw down the screw handle (9) for a fix position.

Assemble the extension / hedge trimmer (Fig 5-6)

Put the two tubes together. Please make sure that the metal ball (4) and the bore are on one line. Push them together until the drive shaft(3) are locked. If you don't find the correct position please turn the tubes. The metal ball (4) have to lock at the bore. It's only allowed to use the device if you locked the metal ball (4). Fix the position with the screw handle (9)

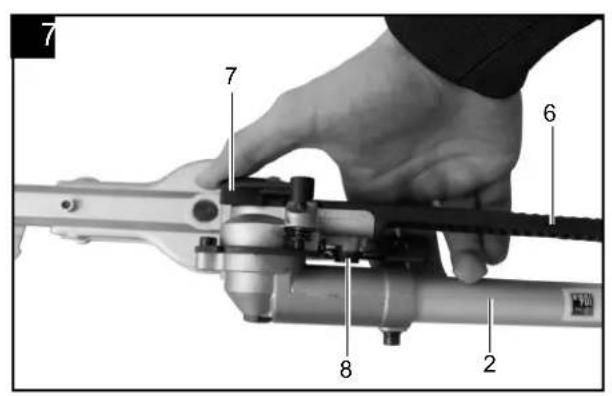

Angle adjustment (Fig 7-8)

If you want to change the angle pull the switch (7) to yourself and at the same time press the unlocking switch, now you can change to 7 different angel for a perfect work balance. Attention. Only change the angel if the motor is not connect.

The belt install (Fig 9, 12)

It's only allowed to work with the device if the belt is installed. Balance out the device before you start.

• Wear the belt like in the picture.

• Let the machine swing out.

• The device is not allowed to touch the ground during normal work attitude.

• Safety lap at the carrying strap. ATTENTION! In an emergency, the safety latch (I) can be pulled from the harness. The machine then detaches immediately from the carrying strap (9) and falls to the ground.

Change the handle position Fig. 10

Push the slide switch (13) to the stop.

At the same time you can switch between 5 different position (-90°, -45°, 0°, 45°, 90°). If you find the right position release the slide switch (13).

Starting of the hedge trimmer Fig. 11

Before starting the hedge trimmer you have to press first the saftey switch (14). Secondly press the start lever (15) for starting. For tunr off the deivce, release

8. Working instructions

Working with hedge trimmer

• The hedge trimmer may be used only for cutting hedges, bushes and shrubs
• Hold the hedge trimmer with both hands on a safe distance from the body.
• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.
• Due to its double sided knives the hedge trimmer can be guided forward and backward or by oscillating movements from one to another side.
• At first cut the sides of the hedge and then the upper edge.
• Cut the hedge from the bottom up.
• Cut the hedge in trapezium shape.
• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.
• Trim in several passes if you have to cut down a large portion of the hedge.
• Remove unconditionally any foreign objects out of the hedge (e.g. wires) as these can damage the knives of the hedge trimmer.

Best time for hedge trimming:

• Leaved hedge: June and October
• Conifer hedge: April and August
- Quickly growing hedge: from May and then every 6 weeks

Pay attention to breeding birds in the hedge. If so, put off hedge trimming or leave this area out.

Oil the blades and the angle adjustment each time before starting work, with environmentally friendly lubricant. Regularly oil the blades during working hours as well.

WARNING! Oil the tool only when the motor has been turned off.

CAUTION: Incorrect use and misuse can damage the bush cutter and cause severe injuries because of pieces hurled away.

To minimize the risk of accidents by use of the cutting blade, take note of following points:

• Never cut shrubbery or wood whose diameter is larger than 2 cm.
• Avoid contact with metal bodies, stones, etc.
• Periodically check the cutting blade for damages. Never continue to use a damaged cutting blade.
• When the cutting blade becomes apparently blunt, it must be sharpened according to instructions. When the cutting blade is apparently out of balance, it must be replaced.

9. Maintenance

WARNING!

Before working on the device, disconnect the mains cable from the socket.

Always wear protective gloves when working on or around cutting tools.

• Regularly check the device before starting work.
• Damaged blades have to be repaired or replaced by an authorised service department before you can work with the device.
• Clean the blades with a soft brush after working with the device and spray a thin layer of liquid protective oil on the whole blade.
• Always keep the ventilation holes in the motor casing free and clean.
• Never use water to clean or spray the device. Clean the motor casing with a damp cloth and never use detergents or solvents! This may damage the device's plastic parts. Dry the motor casing carefully afterwards.
• Always store the machine with the supplied protective cover.
• Only use OEM parts for maintenance work. Using parts other than original parts can cause damage to the machine.

Check the hedge trimmer for obvious faults such as:

• loose attachments
• worn or damaged components
• bent, broken or damaged cutting tools
• correctly attached and working covers and safety devices
• wear, in particular, cutting tool play

Immediately replace damaged or blunt cutting tools, even in the event of minor damage.

Wear Parts

Even when used in the intended way, some components are subject to normal wear. They have to be replaced depending on the kind of duration of usage. These parts include, among others, the cutting tool and the retaining disk.

⚠ WARNING! Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty.

Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
  • Article number of the machine

Replacement parts / accessories:

For the cutting equipment listed here, you can always use the safety guards provided with the unit.

The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modifications of the tool, use of non-authorized spare parts, accessories, working tools, unrelated and not intended use, secondary damages due to use of faulty components.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: carbon brushes, blade

* Not necessarily included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

10. Storage

• Disconnect the hedge trimmer from the electricity supply when it is not being used.
• Oil the blades to prevent rust
• Store the device in a dry place beyond the reach of children.
• When the device is not being used, store it so it cannot be started by unauthorised persons.

WARNING!

Do not store the device without protection outside or in a damp environment.

11. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.

- The end user is responsible for deleting their personal data from the old device being disposed of!

- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

- Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)
• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

12. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
Machine does not start	· Supply voltage not on · On/Off switch faulty · Worn carbon brushes · Motor faulty · Power cable damaged	· Check the socket or the electricity supply; if required, arrange repair by an authorised electrician. · Contact the service centre · Contact the service centre · Contact the service centre · Check the extension lead and have it replaced, if required.
Machine works with interruptions	· Power cable damaged · Internal connections are loose · On/Off switch faulty	· Check the extension lead and have it replaced, if required. · Contact the service centre · Contact the service centre
Poor cutting quality	· Blades are blunt.	· Have the blades sharpened or the knife bar replaced.
Motor is running but the gears are not engaging	· The power unit is jammed by a thick branch or other objects.	· Turn the hedge trimmer off immediately, disconnect the electricity supply and remove the blockage.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Stimato Cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

D-89335 Ichenhausen

Godātais klient!

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator assembly.

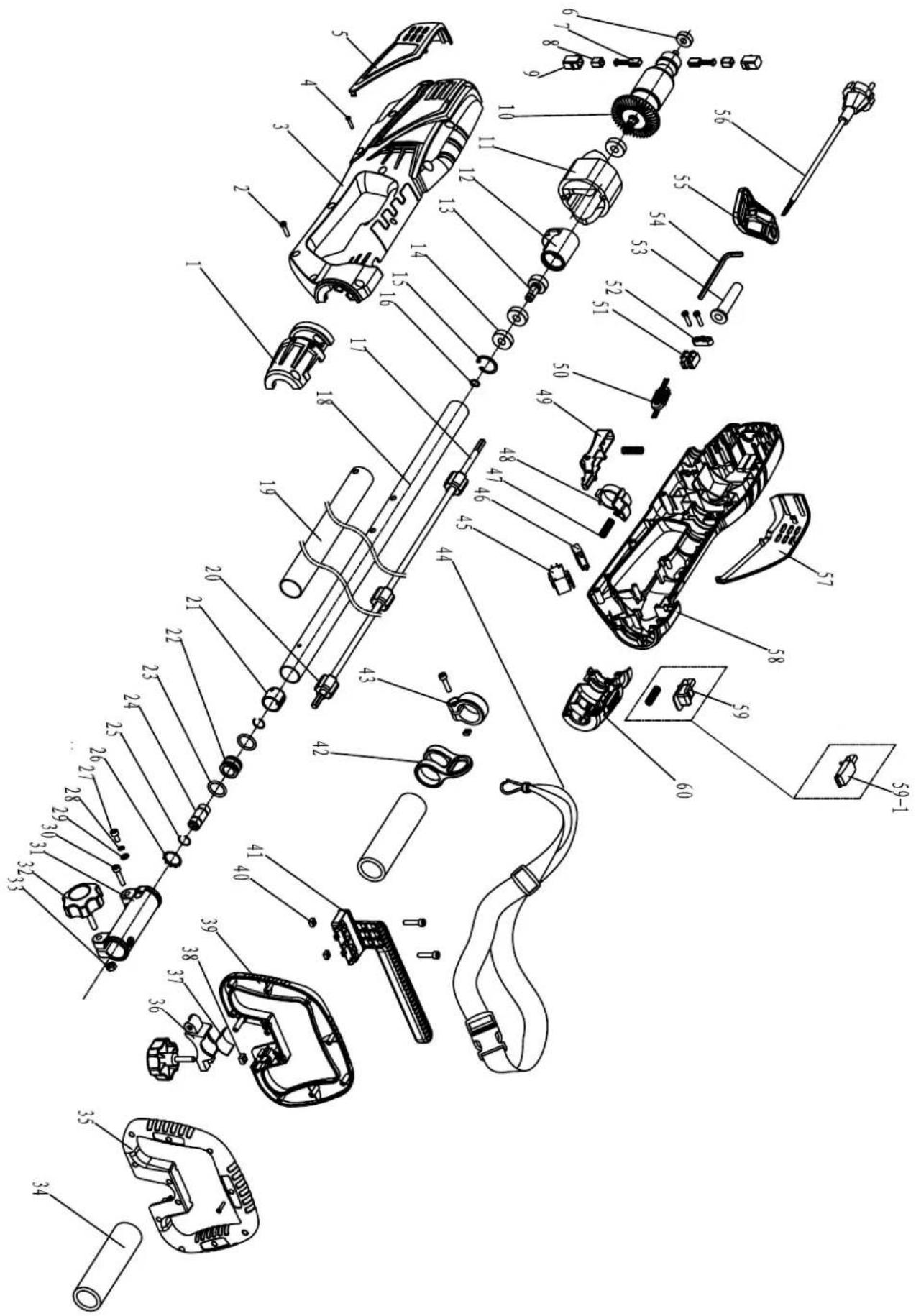

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

EU Declaration of Conformity

Standard references:

EN 62841-1:2015; EN 62841-4-2:2019; EN ISO 10517:2019+A1; EN ISO 12100:2010; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1+A2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
