Product type	Cordless leaf blower
Brand	Grizzly
Model	ALS 4025 Lion
Power supply	Li-Ion battery 40 V
Motor voltage	40 V DC
No-load speed	6000-13500 min⁻¹
Blowing air flow	260 m³/h
Suction air flow	400 m³/h
Collection bag capacity	20 L
Shredding ratio	10:1
Runtime (suction)	max. 20 min
Runtime (blowing)	max. 26 min
Weight (without charger)	2.8 kg
Sound pressure level	84.8 dB(A)
Guaranteed sound power level	96 dB(A)
Vibration level	0.84 m/s² (K=1.5 m/s²)
Battery type	Li-Ion, 2.5 Ah, 90 Wh
Charging time (1A charger)	approx. 2.5 h
Charging time (fast charger 2A)	approx. 1.25 h
Protection class	III
Functions	Blowing, suction with shredding
Power adjustment	Electronic speed control
Carrying strap	Yes, included
Warranty	24 months
Supplied accessories (Set)	Blowing tube (3 pieces), suction tube (3 pieces), collection bag, battery, charger

Frequently Asked Questions - ALS 4025 Lion Grizzly

How to charge the battery of the ALS 4025 Lion?

Remove the battery from the device. Insert it into the charger until it clicks. Plug the charger into a mains socket. The green LED flashes during charging, a steady green LED indicates a full charge. Unplug the charger and remove the battery.

What is the battery runtime?

The runtime depends on the mode: approximately 20 minutes in suction and 26 minutes in blowing with a fully charged battery.

Can I use the device in the rain or wet weather?

No. Never use the blower vacuum in the rain or with wet materials. The device is not designed to vacuum liquids.

How to assemble the blowing and suction tubes?

Assemble the three tube pieces by clicking them together. For blowing, attach the tube to the blowing opening on the motor housing. For suction, remove the protective cap, then push the suction tube into the suction opening until it clicks into place.

What to do if the device does not start?

Check that the battery is charged and correctly inserted. Make sure the on/off switch is in the 'I' position. If the red LED flashes, the device has a fault: remove the battery and check that nothing is blocking the impeller. If the problem persists, contact customer service.

How to empty the collection bag?

Turn off the device and wait for the impeller to stop completely. Remove the battery. Detach the bag hook from the housing, unlock and remove the bag. Open the zipper and empty the contents into a compost if possible.

What are the battery storage instructions?

Store the battery away from heat and moisture, ideally between 10°C and 25°C. For long-term storage, maintain a charge level of 40-60%. Check the charge every 3 months.

What does the red LED on the switch mean?

A flashing red LED accompanied by an audible signal indicates a fault: usually a blocked impeller or overload. Immediately stop the device, remove the battery and remove any stuck objects.

Can I use other batteries than the Grizzly 40 V series?

Yes, the ALS 4025 Lion is compatible with batteries from the Grizzly 40 V series (e.g. AHS 4055 Lion, AKS 4035 Lion, etc.). Only use original batteries recommended by the manufacturer.

How to clean the device?

Before cleaning, turn off the device and remove the battery. Clean the ventilation slots, housing and handles with a damp cloth or brush. Do not use pressure water or solvents. Never immerse the device in water.

USER MANUAL ALS 4025 Lion Grizzly

Grizzly Service-Center ....155

Einleitung

Introduction......22

Grizzly Service-Center ....155

Introduction

Motorspanning....40 V==

Output....40 V=1A/2A

Beschermniveau....□

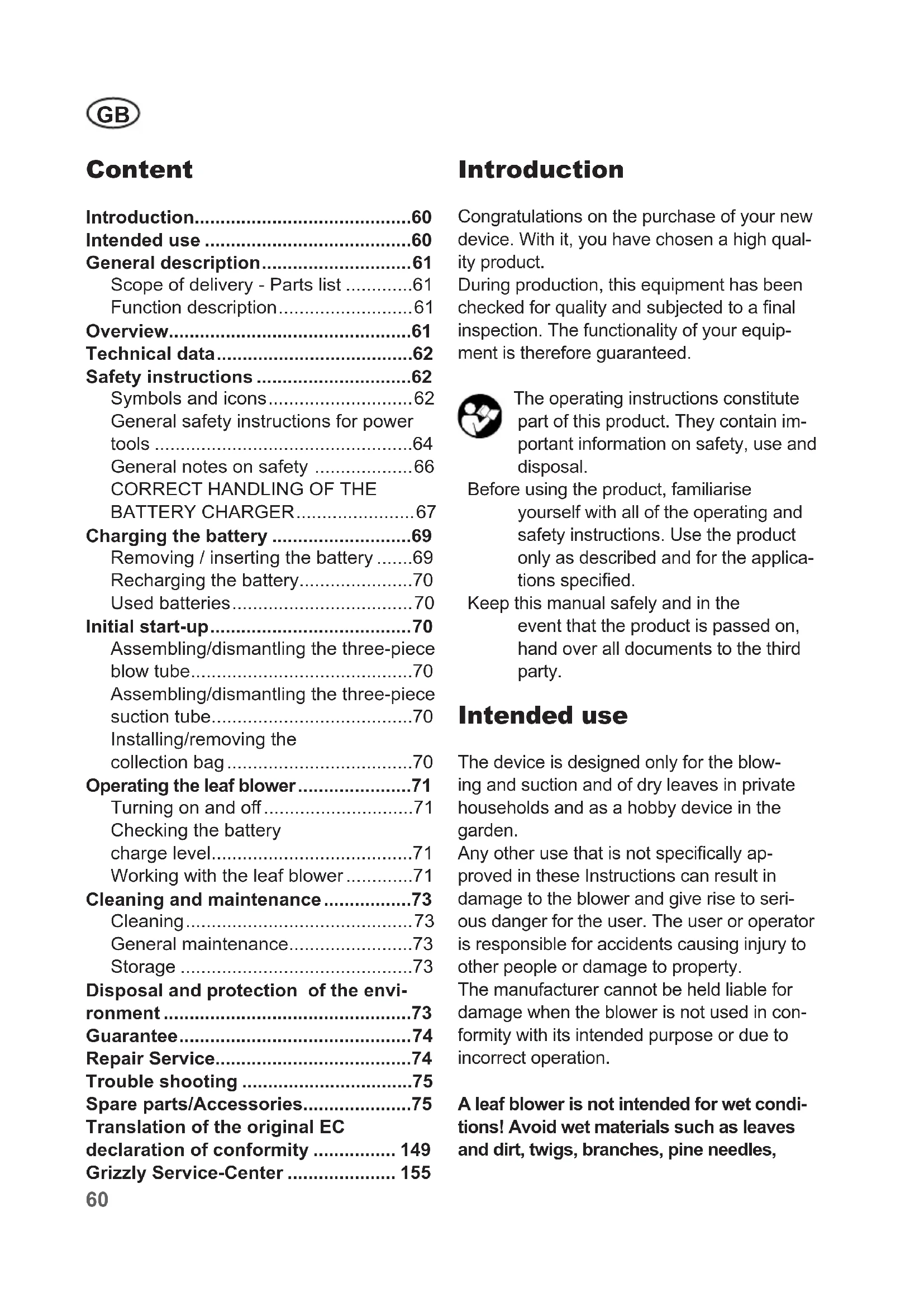

Introduction......60

Intended use ....60

General description......61

Scope of delivery - Parts list ......61

Function description......61

Overview....61

Technical data....62

Safety instructions....62

Symbols and icons....62

General safety instructions for power tools 64

General notes on safety 66

CORRECT HANDLING OF THE BATTERY CHARGER....67

Charging the battery 69

Removing / inserting the battery .....69

Recharging the battery....70

Used batteries....70

Initial start-up....70

Assembling/dismantling the three-piece blow tube....70

Assembling/dismantling the three-piece suction tube....70

Installing/removing the collection bag....70

Operating the leaf blower....71

Turning on and off....71

Checking the battery charge level....71

Working with the leaf blower .....71

Cleaning and maintenance....73

Cleaning....73

General maintenance....73

Storage 73

Disposal and protection of the environment....73

Guarantee....74

Repair Service....74

Trouble shooting 75

Spare parts/Accessories....75

Translation of the original EC declaration of conformity .... 149

Grizzly Service-Center 155

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended use

The device is designed only for the blowing and suction and of dry leaves in private households and as a hobby device in the garden.

Any other use that is not specifically approved in these Instructions can result in damage to the blower and give rise to serious danger for the user. The user or operator is responsible for accidents causing injury to other people or damage to property.

The manufacturer cannot be held liable for damage when the blower is not used in conformity with its intended purpose or due to incorrect operation.

A leaf blower is not intended for wet conditions! Avoid wet materials such as leaves and dirt, twigs, branches, pine needles,

grass, earth, sand, mulch, cuttings, etc. Do not use on wet lawns, grass areas or fields. Misuse may lead to congestion in the shredding unit and lead to reduced functionality. The machine may need to be completely dismantled and cleaned. This work should be carried out by a qualified service technician and is not covered by guarantee.

General description

The illustration how to handle the appliance can be found on pages 2-3.

Scope of delivery - Parts list

Unpack the device and check for completeness.

Dispose of the packaging material properly.

Art.: 72038032 ALS 4025 Lion

• Cordless leaf blower
• Blower pipe (3-piece)
• Suction pipe (3-piece)
• Collection bag
• Instructions for use

Art.: 72038033 ALS 4025 Lion Set

• Cordless leaf blower
• Blower pipe (3-piece)
• Suction pipe (3-piece)
• Collection bag
• Battery
• Battery charger
• Instructions for use

Function description

The garden vacuum has a blowing/vacuuming unit for the blowing and suction functions. In blowing mode, you can quickly blow together fallen leaves or

blown them out of places that are difficult to reach. In suction mode, the leaves are shredded to save space, and blown out of the ejector outlet into the collection bag. The collection bag is fitted with one-sided inner lining to prevent fine dust and wetness from penetrating the bag to the outside. This lining is located on the left-hand side of the bag to protect your working clothes from soiling.

You can vacuum up dry leaves and leaf parts on the flat with the flat suction nozzle

Overview

1 engine housing 2 On/off switch

3 Volume control 4 handle 5 battery

6 Auxiliary handle

7 Release button for additional handle

8 Release button for suction tube 9 collection bag 10 suction pipe (3-piece)

11 Protective cover for suction in- take

12 Device base

13 Locking knob for blowing aperture

14 blower pipe (3-piece) 15 Battery charger

16 Fastening hooks for catcher Fastening eye for catcher

18 Guide rail for battery retainer

19 Unlocking device for battery 20 battery charge state indicator

Technical data

Appliance

Motor voltage....40 V=Idling speed n 0 ....6000-13500 min ^-1 Runtime (suction)....max. 20 min*Runtime (blowing)....max. 26 min*Blowing speed....max. 260 m ^3 /hSuction speed....max. 400 m ^3 /hCollection bag....20 LMulch ratio....10:1Protection class....IIIWeight (without battery charger)....2,8 kgSound pressure level(L pA )....84,8 dB (A), K pA =3 dBSound power level (L WA )guaranteed....96 dB(A)measured....94,3 dB(A); K WA =2,02 dBVibration (a h )....0,84 m/s ^2 ; K=1,5 m/s ^2

* The actual runtime under load of a fully charged battery depends on how you work and on the load put on the trimmer during operation.

Battery (Li-Ion)...... DYMA81

Nominal voltage ( U_max )....40 V === Capacity (C)....2.5 Ah Energy (E)....90 Wh Battery cells....10

Charger 1 A / Quick charger 2 A

Voltage input .. 220-240 V\~, 50 Hz, 0.6 A / 1 A Voltage output ..... 40 V == 1 A / 2A Protection class ..... ☐ Protection category..... IP20 Charging time ..... appr. 2.5 h / 1.25 h

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions,

references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at pro- tecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety instructions

This section describes the basic safety rules when working with the device.

Symbols and icons

Symbols on the appliance

Warning! through the operating manual carefully before using the device.

Wear eye and ear protection. Do not use the battery leaf vacuum in the rain or for wet materials

Caution.

Rotating impeller wheel.

Keep hands away.

Danger due to materials blown out of machine! Remove persons in the vicinity from the danger area.

Remove the battery prior to servicing the appliance.

Guaranteed sound power level

Handle adjustable in 3 positions

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the battery

Carefully read these Operating Instructions.

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45°C).

Do not expose the device to moisture.

Battery Indicator

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Symbols on the charger

Caution!

Carefully read these Operating Instructions.

The charger is for indoor use only.

Device fuse

Protection class II (double isolation)

Electrical appliances must not be disposed of with the domestic waste.

Removing the rechargeable battery.

Symbols used in the instructions

Hazard symbol (explanation of hazard partly instead of exclamation mark) with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution partly instead of exclamation mark) with information on prevention of harm / damage.

GB

Notice symbol with information on how to handle the device properly.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un-modified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operation of the electric device in a damp environment is inevitable, please use a fault-current circuit breaker. The use of a fault-current circuit breaker reduces the risk of electrocution.

3) PERSONAL SAFETY

Please note that children, individuals with limited physical, sensory or mental capabilities, those with insufficient experience or knowledge or individuals who are not familiar with the instructions must never be permitted to use the machine. Local regulations may specify an age restriction for the user.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
.h) Never let children or persons who are unfamiliar with these instructions use the machine.
i) Stop using the machine when persons – especially children – or pets are nearby.
j) Use the machine only in daylight or with good artificial lighting.
k) Always keep your hands and feet away from the cutting equipment, especially while starting the engine.

I) Never install metallic cutting elements.
m) Prior to commissioning and after any impact, check for signs of wear and damages, and have any necessary repairs performed.
n) Never use the machine with damaged or missing protective equipment.

4) POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

GB

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

General notes on safety

1) ADDITIONAL SAFETY INFORMATION

Familiarise yourself with all the unit's parts and correct operation of the unit before you start working with it. Make sure that you can immediately switch off the unit in an emergency. Improper use of the unit may lead to serious injury.

• The device must not be operated by children. Laws and local regulations can determine a minimum age for use. Likewise, working with the device should never be allowed for persons who are not completely familiar with the operating instructions.
• Pay attention to open windows, children, pets, etc. Stop working if children and pets are nearby. The blown material may fly in their direction. Maintain a safety distance around you of 5 m.
• Do not turn on the device if it is upside down or is not in working position.
• Do not point the device when it is working at persons, in particular, do not point the airstream at eyes and ears.
• Make yourself familiar with your surroundings and pay attention to possible dangers which, under certain circumstances, can be missed while working.

• While working, make sure that you are standing in a firm position – especially when you are on a slope. Always hold the device with both hands and work only with correctly adjusted shoulder carrying strap.

• Walk at a steady pace, do not run. Carefully inspect the surface to be cleaned and remove all wires, stones, cans and other foreign bodies.

• Keep fingers and feet away from the suction tube opening and impeller wheel. There is a danger of injury.
• Employ the device in a completely assembled condition only.
• Only use the replacement parts that are supplied and recommended by our Service Centre.

• Remove the battery:

• when you are not using the device,

• transporting it or leaving it unattended;
• when you are checking the device, cleaning it or removing blockages;
• when you are carrying out cleaning or maintenance work or replacing accessories;
• when the power or extension cable is damaged; after contact with foreign bodies or in case of abnormal vibration;

- Keep all cooling air inlets clear of dirt.

2) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.
• Recharge the batteries indoors only because the battery charger is designed for indoor use only.
• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

• Allow a hot battery to cool before charging.

• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
  • Do not use non-rechargeable batteries!

3) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

CORRECT HANDLING OF THE BATTERY CHARGER

- This device can be used by children aged 8 and over and by people with reduced physical,

GB

sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

• Keep the equipment away from children and pets. Children should be supervised in order to ensure that they do not play with the equipment.
• To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.
• Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.
• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt

and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. For the first recharge cycle we recommend that you charge the battery for about 5 hour. Slot the battery into the base and plug the battery charger into a mains outlet.
• When the battery is fully charged, unplug the charger from the mains and from the appliance. Charging time is approx. 5 hour.
• Do not charge the battery continuously since this may damage the battery cells. Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.
• Do not use the charger to charge non-rechargeable batteries.

Charging the battery

If you own another device from the Grizzly Battery 40 V range and the corresponding battery, you can use the same battery for this device.

The following devices are compatible:

Cordless Hedge Trimmer

AHS 4055 Lion

Cordless leaf blower

ALS 4025 Lion

Cordless chainsaw AKS 4035 Lion

Cordless Lawn Trimmer

ART 4032 Lion

Akku Sense AS 4026 Lion

Cordless lawn mower

ARM 4041 Lion

Cordless lawn mower

ARM 4046 A-Lion

Otherwise, please contact the Service Centre (cf. Spare parts/accessories). You can order the rechargeable battery and the corresponding charger from them.

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to elec- tric shock.

Only use the original charger from the package to charge the battery. Mind not to charge the appliance for more than 8 hours at a time. If you do, the battery and the appliance may be damaged and longer charging times would be a waste of energy. Excessive charging will void the warranty.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
  • Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Removing / inserting the battery

1. To insert the battery (5) place it on the guide track (18) and push it back into the appliance. It will audibly snap in.

1. To remove the battery (5) from the appliance, press the release button (19) on the battery and pull out the battery.

Recharging the battery

1. Remove the battery (5) from the appliance, as necessary.

2. Inser the battery (5) in the charging compartment of the battery charger (15). It will audibly snap in.

3. Plug the battery charger (15) into a mains outlet.

The charging indicator lights up: green LED flashes, red LED lights up: Battery charging green LED lights up: Battery is charged

1. When the battery is fully re- charged unplug the battery charger (15) from the mains.

2. Press the release button (19) on the battery (5) and pull the battery out of the battery charger (15).

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see “Cleaning and Maintenance”).

Initial start-up

Before operating the equipment, you must

• install the blower or suction pipes,
• install the collection bag for suctioning leaves,

Caution, Risk of Injury! During the assembly or disassembly of

the blower pipe, suction pipe or collection bag, the engine must be turned off, the on/off switch set on „0“, and all moving parts must have come to a standstill.

Assembling/dismantling the three-piece blow tube

1. Assemble the three-piece blow tube (14) as illustrated. The parts can be felt to lock into place.

2. Now push the blow tube (14) on to the blowing aperture of the motor housing (1) as far as the locking device (13).

3. Dismantle the blow tube (14) by releasing the lock (13) and pulling off the blow tube downwards.

Assembling/dismantling the three-piece suction tube

1. Assemble the three suction tubes (10) as illustrated.

2. Press the locking switch (8) on the device housing (1) to release the protective cover (11) of the suction aperture.

3. Remove the protective cover (11).

4. To mount the suction tube (10) in the motor housing (5), push it into the suction aperture. Make sure that the guide lugs on the elbow of the suction tube engage in the recesses of the aperture. These then lock into place.

Installing/removing the collection bag

In suction mode the device can only be operated with the collection bag installed.

1. If necessary, remove the blower tube (14) (see „Assembling/dismantling the three-piece blow tube“).

2. Push the catcher (9) on to the blower outlet of the motor housing (1) until this snaps into place in the locking device (13).

3. Insert the fastening hooks (16) of the catcher (9) into the eyelets (17) provided on the motor housing (1).

Operating the leaf blower

Danger of injury.

Wear suitable clothing and work gloves when working with the device. Make sure that the device is functioning properly before every use. Make sure that the collection bag and the tube are assembled correctly and the carrying strap is adjusted correctly for work.

After releasing the switch, you must turn off the motor. Do not use the device if a switch is damaged. Personal protective equipment and a fully functional appliance reduce the risk of injuries and accidents.

After switching off the device, the impeller wheel continues to rotate for some time. Danger of injury due to rotating tool.

Note noise protection laws and local regulations.

Turning on and off

Before switching on device, make sure it is not in contact with any objects. Ensure stable positioning.

1. Check that the battery (5) is in.

2. To switch the device on, press the on/off switch (2). A green LED lights up in the display of the on/off switch (2). If a fault occurs, a red LED flashes in the display and an alarm is sounded (see „Troubleshooting“).

3. Press the control dial (3) to regulate the suction/blowing power.

4. To turn off, release the On/Off switch (2).

Checking the battery charge level

The battery's (5) charge level is indicated by the charge state indicator (20).

Press the PRESS button on the battery. The LEDs indicate the battery's charge level.

Working with the leaf blower

The leaf blower may only be used for the following purposes:

- As a blower to pile up dry leaf material or to blow material out of places that are hard to access (e.g. under cars)

- As a suction device to suck up dry leaf material. The device also functions as a shredder in the suction function. The dry leaves are shredded and their volume is reduced, preparing the material for later composting if desired. The shredding intensity depends on the size of the leaf material and its residual moisture.

Uses other than those described here may damage the machine and put the operator at risk.

GB

During work, ensure that the device is not struck against hard objects, which can cause damage. Do not suck up any solid bodies such as stones, branches or pieces of branch, fir cones or similar, since these can damage the device, in particular the shredding mechanism. Repairs of this type are not covered by the guarantee.

Blowing operating mode:

For safety reasons, make sure the intake cover is properly closed.

• You get optimal results when you use the blower with a separation distance to the ground of 5 -10 cm.
• Begin work with the highest blowing power, in order to rapidly pile up the leaves lying around. Select a lower blowing power to compact the previously piled up leaves.
• Before blowing, loosen leaves adhering to the ground with a broom or rake.
• The guide rollers at the end of the tube make it easier to work on flat surfaces.

Suction operating mode:

In suction mode the device must only be operated with the collection bag mounted.

• Always hold the device tight with both hands during operation: use the handle (4) and the additional handle (6) for this.

• Make sure the volumes of leaf material sucked in at one time are not too large. This will avoid

clogging of the blower / suction tube and blockage of the impeller wheel.

To reduce wear on the collection bag, do not drag it along the ground while working.

If the display on the on/off switch (2) flashes red during operation and an alarm is heard, turn off the device immediately. Remove the battery. Check that there is no material jammed between the impeller and the suction aperture (11). Carry out the procedures as described in the section „Cleaning and Maintenance“. If the device does not start after this, please contact our service centre.

Emptying the collection bag:

With full collection bag, the suction pumping capacity decreases considerably and the collection bag must be emptied when the bag is full or interferes with the suction capacity of the device.

1. Turn off the device and wait until the impeller has stopped.

2. Remove the battery (5)

3. Remove the hook (16) from the eyelet (17). Release the locking device (13) and remove the catcher (9).

4. The carrying handle on the collection bag makes it easier to transport the bag.

5. Open the zip-fastener on the collection bag and empty it completely.

6. Mount the emptied collection bag again.

Composting material does not be-long with domestic waste!

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

- Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

General maintenance

- Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts.

Check that the screws in the cutting disk are tight.

- Check covers and safety devices for damages and correct installation. Replace as necessary.

Storage

• For storage purposes you can remove the blow tube (14) and/or the suction tube (10) and the catcher (9) from the motor housing (1) (see the corresponding installation instructions in the "Start-up" section).
• Store the trimmer in a dry place well out of reach of children.
• Remove the rechargeable battery from the device before storing the device.
• Store the battery only in a partially charged state. The state of chargeshould be 40 – 60 % over a longer storage period.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• Store the equipment between 10°C and 25°C. During storage, avoid extreme cold or heat so the battery does not lose power.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

GB

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Guarantee

This appliance has a 24-month guarantee. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee.

Certain component parts are subject to a normal wear and are excluded from the guarantee

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. spool and battery) or to cover damage to breakable parts (e.g. switches).

Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.

Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Justified guarantee claims should be reported to our Service Centre. Our Service Team will tell you more about our complaints handling procedure.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Trouble shooting

Problem	Possible cause Corrective	action
Appliance won't start	Battery (5) discharged	Recharge battery (see „Charging“)
	Battery (5) not in	Insert battery (see „Operation“)
	Safety switch not operated correctly	Switch on (see „Operation“)
	On/Off switch (2) defective	Send in to Service Centre for repair
	Suction tube (10) not correctly installed	Install the three-piece suction tube correctly
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (2) defective
Weak or no suction power/ throughput	Collection bag (9) is full	Empty collection bag
	Collection bag (9) is dirty	Clean collection bag
	Impeller or suction pipe (10) is clogged or blocked	Remove obstructions or blockages
Display flashes Warning tone	Impeller blocked by objects	Take off and battery Remove objects

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre (see "Grizzly Service-Center"). Please have the order number mentioned below ready.

Battery 80001176

Quick charger ....80001097

IT

Contenuto

Grizzly Service-Center 155

Introduzione

Grizzly Service-Center 155

Ivadas

Grizzly Service-Center ....155

Úvod

Grizzly Service-Center 155

Wstep

Akumulator (Li-Ion) ...... DYMA81

GB	Translation of the original CE declaration of conformity
We confirm, that the Cordless leaf blower Design Series ALS 4025 Lion / ALS 4025 Lion Set Serial number 201801000001 - 201801000753 (ALS 4025 Lion Set) (ALS 4025 Lion) conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU* • 2005/88/EC
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 55014-1:2006/A2:2011 • EN 55014-2:2015 • EN 61000-3-2:2014 EN 61000-3-3:2013 • EN 60335-1:2012/A11:2014 EN 60335-2-29:2004/A2:2010 • EN ISO 12100:2010 EN 60745-1:2009/A11:2010 • EN 62233:2008
The following are also confirmed as complying with Noise Emissions Directive 2000/14/ EC: Guaranteed sound power level: 96 dB(A) Measured sound power level: 94,3 dB(A) The conformity evaluation procedure employed is compliant with appendix VI of 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
	Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, Germany 10.01.2018	Christian Frank (Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Grizzly Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

Garden Italia SPA

Via Zaccarini, 8
