USER MANUAL ELS 2614 E Grizzly

Translation of the original EC declaration of conformity

GB Translation of the original EC declaration of conformity 116

Before initial start-up, please read through these operating instructions carefully prior to using the machine. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.

Grizzly Service-Center 147

Grizzly Service-Center 147

Grizzly Service-Center 147

Grizzly Service-Center 147

Grizzly Service-Center 147

Grizzly Service-Center 147

Las hojas y los trozos de plantas frescosSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO

garanteed 106 dB (A)

Vibración (an) 4,268 m/s²; K=1,5 m/s²

Grizzly Service-Center 147

Grizzly Service-Center 147

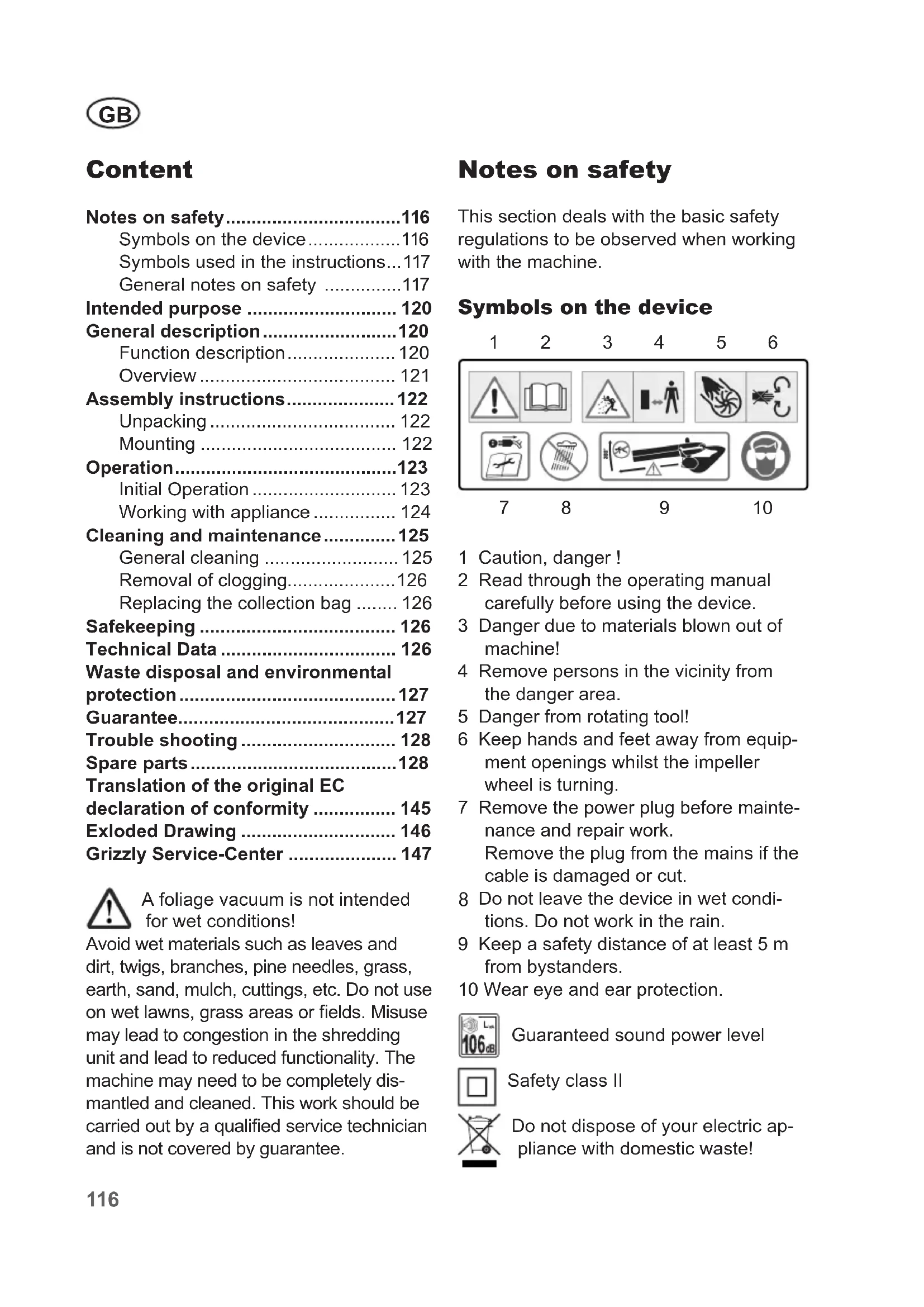

Notes on safety. 116

Symbols on the device. 116

Symbols used in the instructions...117

General notes on safety 117

Intended purpose 120

General description 120

Function description. 120

Overview 121

Assembly instructions 122

Unpacking 122

Mounting 122

Operation 123

Initial Operation 123

Working with appliance 124

Cleaning and maintenance. 125

General cleaning 125

Removal of clogging. 126

Replacing the collection bag 126

Safekeeping 126

Technical Data 126

Waste disposal and environmental

protection 127

Guarantee 127

Trouble shooting 128

Spare parts 128

Translation of the original EC declaration of conformity 145

Exloded Drawing 146

Grizzly Service-Center 147

A foliage vacuum is not intended for wet conditions!

Avoid wet materials such as leaves and dirt, twigs, branches, pine needles, grass, earth, sand, mulch, cuttings, etc. Do not use on wet lawns, grass areas or fields. Misuse may lead to congestion in the shredding unit and lead to reduced functionality. The machine may need to be completely dismantled and cleaned. This work should be carried out by a qualified service technician and is not covered by guarantee.

Notes on safety

This section deals with the basic safety regulations to be observed when working with the machine.

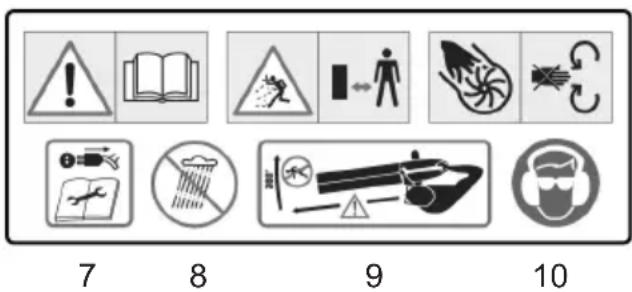

Symbols on the device

1 2 3 4 5 6

1 Caution, danger!
2 Read through the operating manual carefully before using the device.
3 Danger due to materials blown out of machine!
4 Remove persons in the vicinity from the danger area.
5 Danger from rotating tool!
6 Keep hands and feet away from equipment openings whilst the impeller wheel is turning.
7 Remove the power plug before maintenance and repair work. Remove the plug from the mains if the cable is damaged or cut.
8 Do not leave the device in wet conditions. Do not work in the rain.
9 Keep a safety distance of at least 5m from bystanders.
10 Wear eye and ear protection.

Guaranteed sound power level

Safety class II

Do not dispose of your electric appliance with domestic waste!

For safety reasons, the device can be switched on only if both parts of the pipes are correctly installed on the motor housing!.

Symbols used in the instructions

Hazard symbol (explanation of hazard partly instead of exclamation mark) with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution partly instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

General notes on safety

Working with the device:

Familiarise yourself with all the unit's parts and correct operation of the unit before you start working with it. Make sure that you can immediately switch off the unit in an emergency. Improper use of the unit may lead to serious injury.

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire:

The personal protective equipment protects your own health and the

health of others and ensures trouble-free operation of the device.

• Wear suitable working clothes such as robust footwear with anti-slip soles, rugged, long trousers, gloves, protective goggles and hearing protection. Do not use the device if you are barefoot or are wearing open sandals. Wear respiratory protection if you are working in a dusty environment. Wear a dust mask.
• Refrain from wearing loose clothing or jewellery that could be drawn into the air intake nozzle. If you have long hair, use protective head covering.
• Check the operational serviceability and integrity of the device regularly in order to avoid danger to the operator.
• The device must not be operated by children. Laws and local regulations can determine a minimum age for use. Likewise, working with the device should never be allowed for persons who are not completely familiar with the operating instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The user is responsible for accidents and risks to other people and their property.
• Do not allow other persons to touch the device or the extension cord. Keep

the device away from persons, particularly children and domestic animals.

• Pay attention to open windows, children, pets, etc. Stop working if children and pets are nearby. The blown material may fly in their direction. Maintain a safety distance around you of 5m .
• Do not turn on the device if it is upside down or is not in working position.
• Avoid starting accidentally. Ensure that the device is switched off before connecting to the power supply, picking up, or carrying.

If you have a finger on the switch whilst carrying the device or connect the device to the power supply whilst it is switched on, this may cause accidents.

• Do not point the device when it is working at persons, in particular, do not point the airstream at eyes and ears.
  Make yourself familiar with your surroundings and pay attention to possible dangers which, under certain circumstances, can be missed while working.
  While working, make sure that you are standing in a firm position - especially when you are on a slope. Always hold the device with both hands and work only with correctly adjusted shoulder carrying strap.
• Do not stretch the body too far and ensure that balance is maintained.
• Carefully inspect the surface to be cleaned and remove all wires, stones, cans and other foreign bodies.
• Before commencing blowing/sucking, release foreign bodies with a broom or rake.

• Use the entire blow nozzle, so the airflow can work close to the ground.

• In very dry conditions, dampen the surface slightly in order to reduce the strain from dust.

• Keep fingers and feet away from the suction tube opening and impeller wheel. There is a danger of injury.
• Do not work with the device if you are tired or lack concentration or after the consumption of alcohol or tablets. Always take time out for a break. Work at a reasonable pace. Move slowly; do not run.
• Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks.
• Do not use the device in the rain, in bad weather or in a moist environment. Work in daylight or under good artificial lighting.
• Do not work with a device which is damaged, incomplete or altered without the approval of the manufacturer. Check the safety status of the device before use, in particular the power cable and the switch.
• Employ the device in a completely assembled condition only.
• Employ the device suction operating mode only when the collection bag is attached. Check the grass bag regularly for wear or damage.
• Do not intake any burning, smouldering or smoking materials (e.g. cigarettes, embers etc.), fumes or easily inflammable, poisonous or explosive materials.
• Only use the replacement parts that are supplied and recommended by our Service Centre.
• Remove the plug from the plug socket

• when you are not using the device,

• transporting it or leaving it unattended;

• when you are checking the device, cleaning it or removing blockages;
• when you are carrying out cleaning or maintenance work or replacing accessories;

• when the power or extension cable is damaged; after contact with foreign bodies or in case of abnormal vibration;

• Do not attempt to repair the appliance yourself unless you have specific training to do so. Leave any work not listed in this manual to our Service Centre.

• Do not intake any moist or wet material or any liquids.
• Do not use the device in closed or badly ventilated rooms. Do not use the device near inflammable liquids or gases. In case of non-observation of these directions, danger of fire or explosion exists.
• Keep the device in a dry location and out of reach of children.
• Handle the unit with care. Clean the ventilation slits regularly; keep to the maintenance instructions.
• Keep all cooling air inlets clear of dirt.

Electrical safety:

Make sure that the mains voltage is compatible with the information of the label.
- Connect the device, as far as possible, only to a plug socket with a ground-fault circuit interrupter (g.f.c.i switch), with a rated residual current at not more than 30mA .
- Check the device and the power cable with plug for damage before every use. Avoid bodily contact with grounded

parts (e.g. metal fences, metal post).

• The coupling of the extension cord must be protected against splashed water, it must consist of rubber or be surrounded by rubber. Employ only extension cords which are stipulated for use in the open air and are marked accordingly. The flexible lead cross-section of the extension cord must at least 2.5mm^2 . Always roll out the cable drum completely before use. Check the cable for damage.
• Keep the cable away from the field of action and basically play it out behind the operator.
• Use the tension relief provided for the fixing of the extension cord.
• Do not carry the device by the cable. Do not use the cable to pull out the plug from the plug socket. Protect the cable against heat, oil and sharp edges.
• Damaged cables, coupling and plugs or connecting leads not corresponding to specifications, must not be employed. Remove the plug immediately from the plug socket in case of damage to the mains cable.

Do not touch the mains power supply cable under any circumstances until you have pulled the plug out of the mains socket.

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not use the appliance if the on/off switch does not work properly. Always have a damaged switch repaired by our Service Centre.
• Do not overload your device. Work

only within the indicated range of performance. Do not employ any low power machines for heavy work. Do not use your device for purposes for which it has not been designed.

• Before each use, check the power supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn.

Intended purpose

The device is designed only for the blowing and suction and of dry leaves in private households and as a hobby device in the garden. Every other utilization, which is not explicitly approved in these directions, can lead to damage to the device and represents a serious danger to the user.

The device must not be employed in areas where there is health endangering dusts or as a wet suction device.

The device is designed for use by adults. Young people over 16 years may use the device under supervision only. The use of the device in the rain or in a humid environment is forbidden.

The operator or user is responsible for accidents or damage to other persons or their property.

The manufacturer is not liable for damage which is caused through inappropriate use or incorrect operation.

General description

Function description

The garden vacuum has a blowing/ vacuuming unit for the blowing and suction functions. In blowing mode, you can quickly blow together fallen leaves or blown them out of places that are difficult to reach. In suction mode, the leaves are shredded to save space, and blown out of the ejector outlet into the collection bag. The handles are equipped with vibration dampers to improve working safety and reduce wrist and arm joint fatigue.

The collection bag is fitted with one-sided inner lining to prevent fine dust and wetness from penetrating the bag to the outside. This lining is located on the left-hand side of the bag to protect your working clothes from soiling.

You can vacuum up dry leaves and leaf parts on the flat with the flat suction nozzle. The guide rollers at the lower end of the tube make it easier to guide the tube along the ground. To protect the user, the appliance can only be used with the blowing/suction pipe completely installed. The appliance is double-insulated, and does not need to be earthed. Refer to the following descriptions for instructions on how the operating controls work.

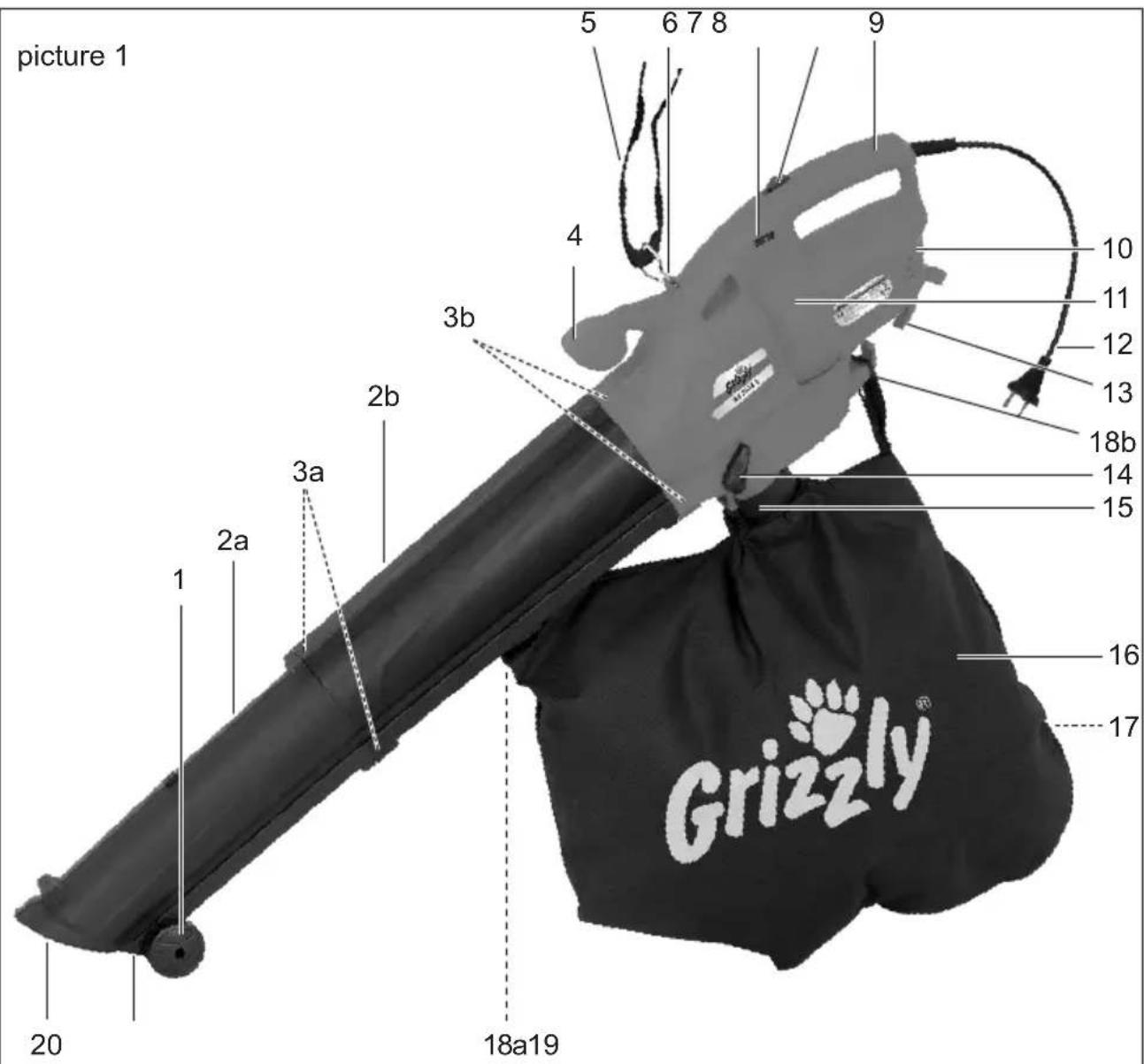

Overview

1 Guide rollers
2a+2b Two-part blower/suction tube
3a+3b Fastening screws (not visible)
4 Additional grip
5 Carrying strap
6 Attachment bar for carrying strap
7 Airstream regulator
8 On / OFF switch
9 Casing handle
10 Ventilation openings

11 Motor casing
12 Mains cable
13 Cable retainer
14 Operating mode selection switch
15 Collection bag frame
16 Collection bag
17 Zip fastener for emptying (not visible)
18a+18b Retainer loops for collection bag
19 Blower opening
20 Suction opening

Assembly instructions (picture 1)

Remove the power plug before all work on the device. Employ only original parts. Danger of injury.

Unpacking

Unpack the device and check whether it is complete:

5 Carrying strap

2a+2b Two-part blower / suction tube with 4 fastening screws (3a+3b)

11 Motor casing
16 Collection bag with bag holder nozzle

Dispose of the packaging material correctly.

Mounting

Before putting the device into operation, the blower / suction tube must be completely mounted and screwed tight and the collection bag and carrying strap must be attached.

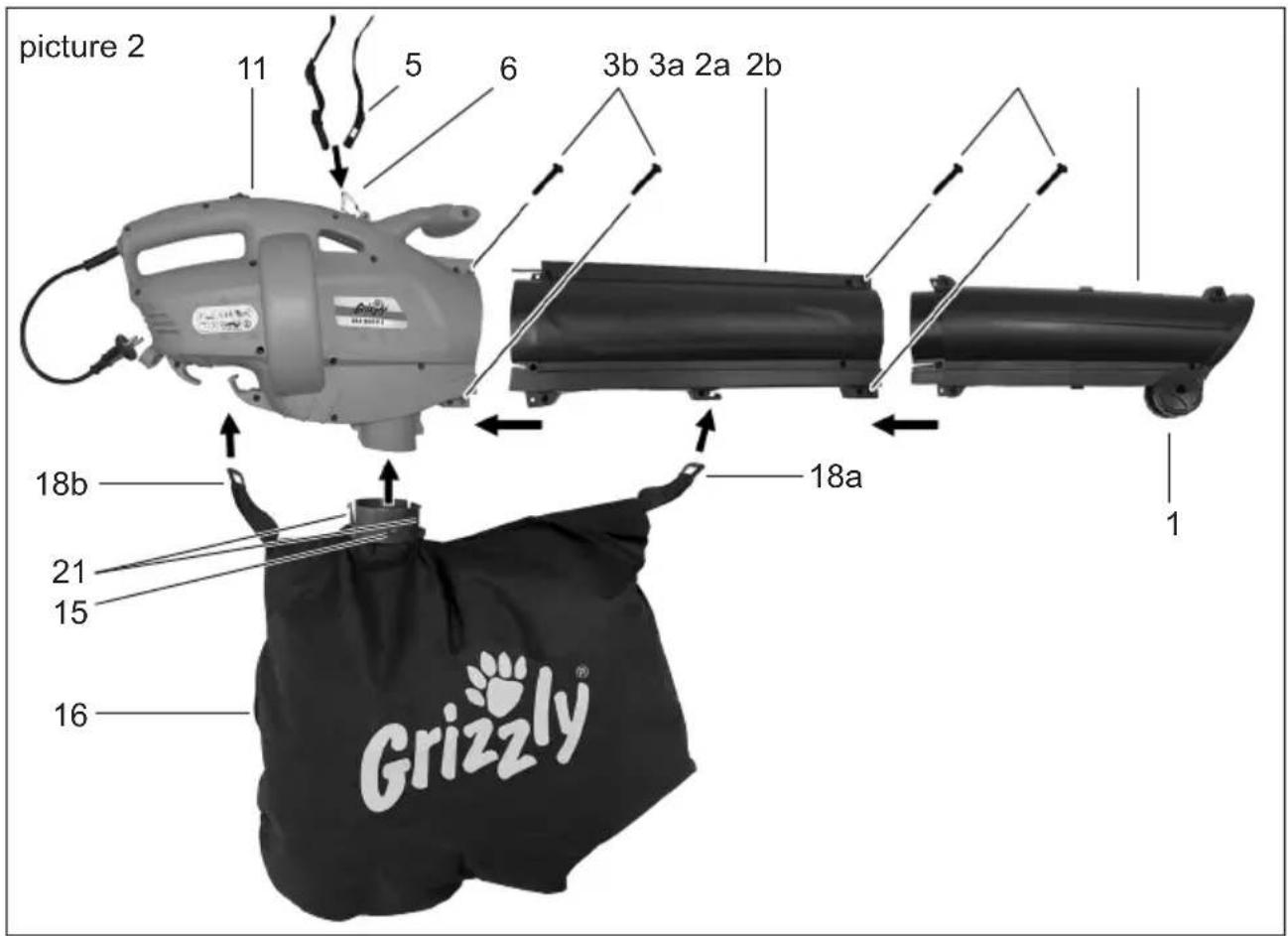

Fitting the blower/suction tube

1. Plug the two sections of the blower/ suction tube (2a + b) into each other and screw them together (3a).
2. Plug the upper blower/suction tube (2b) into the blowing/suction hole on the motor casing (11).
3. Fix the blower/suction tube using the two fastening screws (3b).

Fitting the collection bag

1. Place the retainer frame (15) onto the opening on the motor casing (11) such that the click-in fasteners (21) audibly click into place.
2. Fix the loops (18a + b) from the collection bag (16) to the upper blower/suction tube (2b) and the device casing (11).

Mount carrying strap:

1. Hook the carrying strap (1) onto the attachment bar (8).

Operation

Danger of injury.

Wear suitable clothing and work gloves when working with the device. Make sure that the device is functioning properly before every use. Make sure that the collection bag and the tube are assembled correctly and the carrying strap is adjusted correctly for work. If a switch should be damaged, work with the device must not be carried out any longer. Make sure that the mains voltage values are compatible with the label on the device.

Note noise protection laws and local regulations.

Operate the device only at reasonable times – not early in the morning or late in the evening when others could be disturbed.

After switching off the device, the impeller wheel continues to rotate for some time. Danger of injury due to rotating tool.

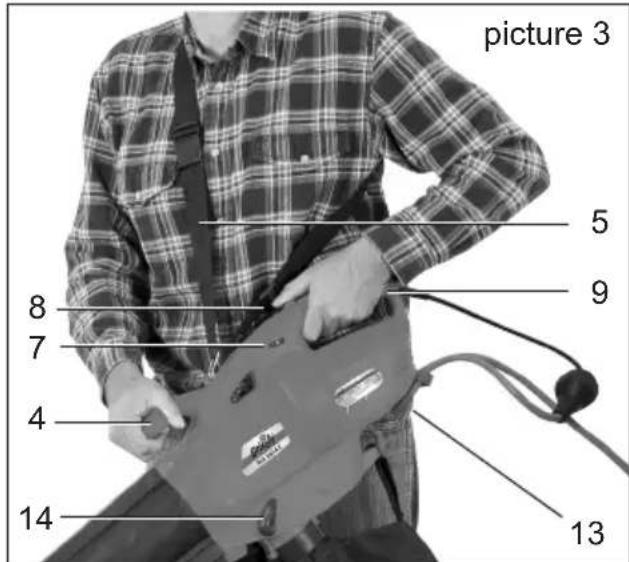

Initial Operation (picture 3)

Before switching on device, make sure it is not in contact with any objects. Ensure stable positioning.

The device can only be switched on if the entire blower / suction tube is correctly mounted.

1. Make a loop of the end of the extension cord and fasten this to the cable support (13). By means of this tension relief, an unintentional pull-out of the electrical plug connection is avoided.
2. Make sure that the device is switched off and connect the device to the mains voltage.
3. Put on the carrying strap (5) and adjust it to the optimum length. During operation, hold the device with one hand on the casing grip and the other on the additional grip.
4. In order to select the operation mode, turn the operation mode selector (14) to the symbol required.

ction operating mode

wing operating mode

GB

1. For switch-on, slide the on/off switch (8) into position "1", the device starts up. To switch off, slide the on/off switch (8) into position "0", the device switches off.
2. With the airstream regulator (7) set the optimal blowing and sucking strength.

Always work at the lowest possible motor rpm level, since the noise level and power consumption both increase / decrease with motor output.

Working with appliance

The foliage vacuum may only be used for the following purposes:

• As a blower to pile up dry leaf material or to blow material out of places that are hard to access (e.g. under cars)
• As a suction device to suck up dry leaf material. The device also functions as a shredder in the suction function. The dry leaves are shredded and their volume is reduced, preparing the material for later composting if desired. The shredding intensity depends on the size of the leaf material and its residual moisture.

Uses other than those described here may damage the machine and put the operator at risk.

During work, ensure that the device is not struck against hard objects, which can cause damage. Do not suck up any solid bodies such as stones, branches or pieces of branch, fir cones or similar, since these can damage the device, in particular the shredding mechanism. Repairs of this type are not covered by the guarantee.

Pull out mains plug immediately if the impeller wheel is blocked or if the cable is damaged or gets wound around something! Danger of electric shock!

Suction operating mode:

• Set the operating mode selector switch to the symbol (see "Initial Operation"). Check whether the collection bag is correctly assembled.

• Make sure the volumes of leaf material sucked in at one time are not too large. This will avoid clogging of the blower / suction tube and blockage of the impeller wheel.

To reduce wear on the collection bag, do not drag it along the ground while working.

If the device stops suddenly during operation and does not produce any suction, then it is to be switched off immediately. Pull out the power plug and make sure that no material is wedged in between the shredder impeller and the casing. Carry out the work as described in the chapter "Cleaning and Maintenance". If the appliance will not start, consult our Service Centre.

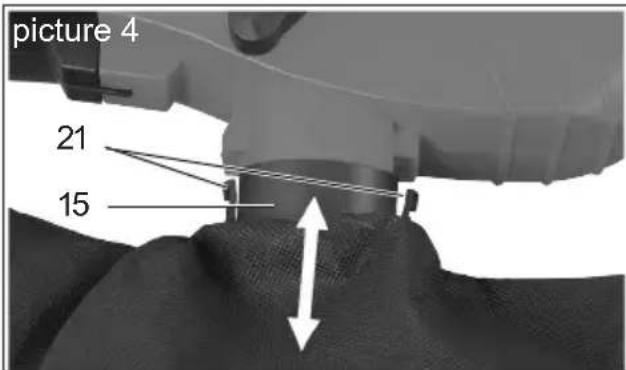

Emptying the collection bag (picture 4): With full collection bag, the suction pumping capacity decreases considerably and the collection bag must be emptied when the bag is full or interferes with the suction capacity of the device.

Disconnect the device and pull out the power plug before emptying the collection bag. Danger of electric shock!

1. Wait until the impeller wheel is still.
2. To remove the collection bag (16), the retainer loop (see picture 1, nos. 18a + 18b ) and press the two side click-in fasteners (21) on the retainer frame (15) inward.
3. Open the zip fastener (see picture 1, no. 17) on the collection bag (16) and empty it completely.
4. Refit the empty collection bag (see chapter "Assembly Instructions").

Composting material does not belong with domestic waste!

Blowing operating mode:

• Set the operating mode selector switch to the symbol (see "Initial Operation").
• You get optimal results when you use the blower with a separation distance to the ground of 5 -10 cm.
• Direct the airstream away from yourself. Ensure that you do not to stir up any heavy objects and hurt somebody or damage something.
• Begin work with the highest blowing power, in order to rapidly pile up the leaves lying around. Select a lower blowing power to compact the previously piled up leaves.
  Before blowing, loosen leaves adhering to the ground with a broom or rake.
  The guide rollers at the end of the tube make it easier to work on flat surfaces.

Cleaning and maintenance

Pull out the power plug before all work on the device.

Leave all work not described in this manual to our Service Centre. Only use original parts.

Before every use, check the foliage vacuum for obvious deficiencies, such as loose, worn or damaged parts and for correct seating of the parts. Replace damaged parts. Check the bag regularly for wear and tear.

Carry out the following maintenance and cleaning work regularly. By this means, a long and reliable life is guaranteed.

General cleaning

Clean the device in each case immediately after working, since otherwise mud with leaf residues hardens and sets and can possibly no longer be removed without dismantling the motor casing. Such cleaning work is not covered by the guarantee.

Do not employ any cleaning agents or solvents. They can irreparably damage the device. Chemical substances can attack the plastic parts of the device.

• Clean the device casing, the tube and the ventilation slots regularly with a soft brush or a cloth. Never clean the device under running water.
  Take off the collection bag after finishing work, turn it inside out and brush it thor

oughly. In this way, you avoid the generation of mold and unpleasant odours.

Free the outlet area from possible shredded residues.

Removal of clogging

Leaf material and fresh plant parts may clog / block the device.

Cleaning the air outlet area:

1. Remove the collection bag.
2. Clean the external outlet area on the device.
3. Set the operating mode selector switch to the suction symbol.
4. Remove dirt residues in the inner air outlet area with a bottle brush or similar. Remove unwieldy objects with a blunt tool without sharp edges.

Cleaning the blower/suction tube and impeller wheel:

1. Remove the 4 tube-fastening screws (see picture 1, no. 3a + 3b ) and pull off both parts of the blower/suction tube (see picture 1, no. 2a + 2b ).
2. Clean the inside of the two-piece blower/suction tube.
3. Carefully remove dirt residues on the impeller wheel with a bottle brush or similar and remove bulky objects with a blunt not sharp tool.
4. Check whether the impeller wheel turns easily and is in fault-free condition. Have a defective impeller wheel replaced by an authorised customer service centre.
5. Refit the blower/suction tube and screw it in place.

Replacing the collection bag

Replace a defective collection bag. Employ only original collection bags (see

"Spare Parts"), otherwise the guarantee claim is invalid.

Safekeeping

• Keep the foliage vacuum in a dry, frost-free location, which is inaccessible to children.
• Do not store the device in direct sunlight; store it in dark or in reduced light conditions.
• Do not cover the device with nylon bags, since moisture can form.
• Clean the device thoroughly at the season end and for storage during wintering. Clean the collection bag by removing it, emptying it and washing with warm water and neutral soap. Reattach the dried bag again.
• Ensure that all nuts, bolts and screws are tightened so the equipment is in safe, functional condition.

Technical Data

Foliage vacuum ELS 2614E Rated input voltage.230-240V\~,50Hz Idling speed .8000-14000 min-1 Input power. 2600 W Safety class .II Protection category IP 20 Air capacity max. 14m^3 /min Air speed max. 160 - 270km / h Shredding rate max.1:10 Content of the collection bag..40 I Weight ca.3.4 kg Sound pressure level (L_pA) .92 dB(A); K_pA = 3.0 dB(A) Sound power level (L_WA) measured ..102.8 dB(A); K_wA = 2.07 dB(A) guaranteed ..106 dB(A) Vibration (a_n) .4.268 m/s;K=1.5 m/s

Noise and Vibration: Noise and vibration values were determined according to the standards and stipulations designated in the Declaration of Conformity. The operating conditions during measuring and the procedures used for measuring in accordance with EN 15503, Appendix A, Appendix B.

Technical and optical changes can be carried out in the course of the further development without announcement. All measures, references and information contained in this operating manual are therefore without guarantee. Legal claims, which are made on the basis of the operating manual, cannot be considered.

This device is designed for operation on a power supply network with a system impedance Zmax at the transfer point (domestic connection) of a maximum of 0.28 Ohms. The user must ensure that the device is operated only on a power supply network that fulfils this requirement. If necessary, the local power supply company can be asked for the system impedance.

Waste disposal and environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

Hand over the device at an utilization location. The plastic and metal parts employed can be separated out into pure materials and recycling can be implemented. Ask your Service Center about this. Defective units returned to us will be disposed of for free.

Guarantee

This appliance has a 24-month guarantee.
- Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. These include in particular: impeller, collection bag and carbon brushes.
- Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
- Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is returned to the dealer undismantled and with proof of purchase and guarantee (you may return the pipe, collection bag and wide-area nozzle dismantled with the appliance itself).

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate. We can only process devices which have been packaged suffi ciently and which have been dispatched with correct stamping.
  Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

Defective units returned to us will be disposed of for free.

Trouble shooting

Problem Possible	cause Fault correction
Device does not start	Mains voltage is not present	Check plug socket, cable, line, plug and fuse, where appropriate, repair through electrical specialist
	Defective on/off switch	Repair through customer service
	Worn carbon brushes
	Defective motor
	Blowing/suction pipe is not completely fitted	Install a two-part blowing/suction pipe
	Impeller wheel cover still open	Close impeller wheel cover and screw it down properly
Device works with interruptions	Damaged power cable	Check cable; where appropriate, replace
	Internal loose connection	Repair through customer service
	Defective on/off switch
Low suction capacity or suction not present	Collection bag is full Empty collection bag
	Collection bag is dirty Clean collection bag
	Selector switch in incorrect position	Set selector switch to the suction symbol
	Device clogged up or blocked by foreign bodies	Remove plug or blockages (see “Cleaning and Maintenance”)
Small or missing blowing power	Selector switch in incorrect position	Set selector switch to the blowing symbol
	Airstream regulator in incor-rect position	Rotate airstream regulator to high position
Device works with interruptions	Foreign body blocks impel-ler wheel	Remove blockage (see chapter Cleaning and Maintenance)

Spare parts

The following spares are available from Service-Center. Please indicate the machine type and the number of the spare part with your order.

91100693.......collection bag with bracket

91100694.........guide rollers

91100695............ carrying strap

If further spare parts should be necessary, please find the part number on the exploded drawing.

Obsah

Grizzly Service-Center 147

Grizzly Service-Center

Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

WERCO spel.s.r.o.

U Mototechny 131

251 62 Mukarov-Tehovec

Tel.: [phone] linka 27

Fax: [phone]

e-mail: [e-mail]

Homepage: www.werco.cz
