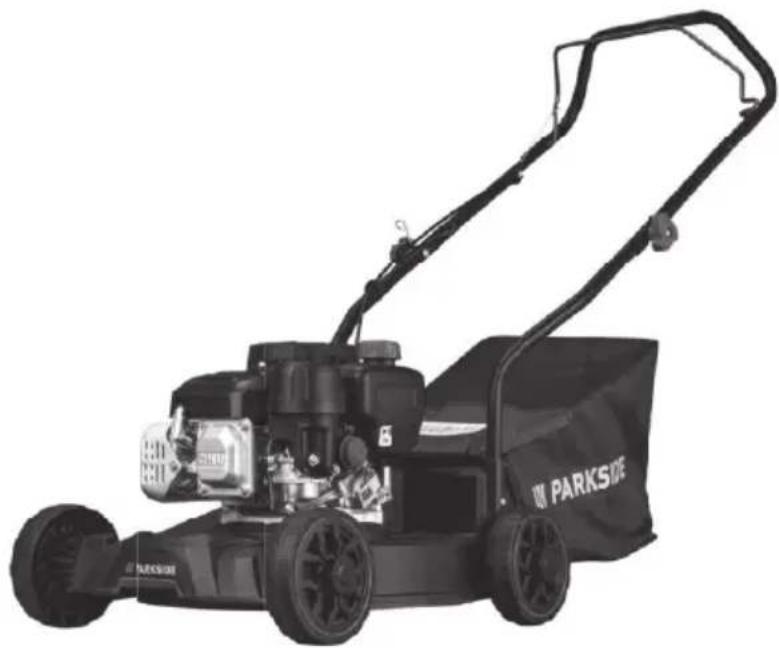

USER MANUAL PBM 132 B1 PARKSIDE

• Service Schweiz Tel.: [phone] (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: [e-mail] IAN 384572_2107 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kon- taktieren Sie zunächst das oben genannte Service-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim DEUTSCHLAND www.grizzlytools.de26 MTGB Content Introduction p. 26

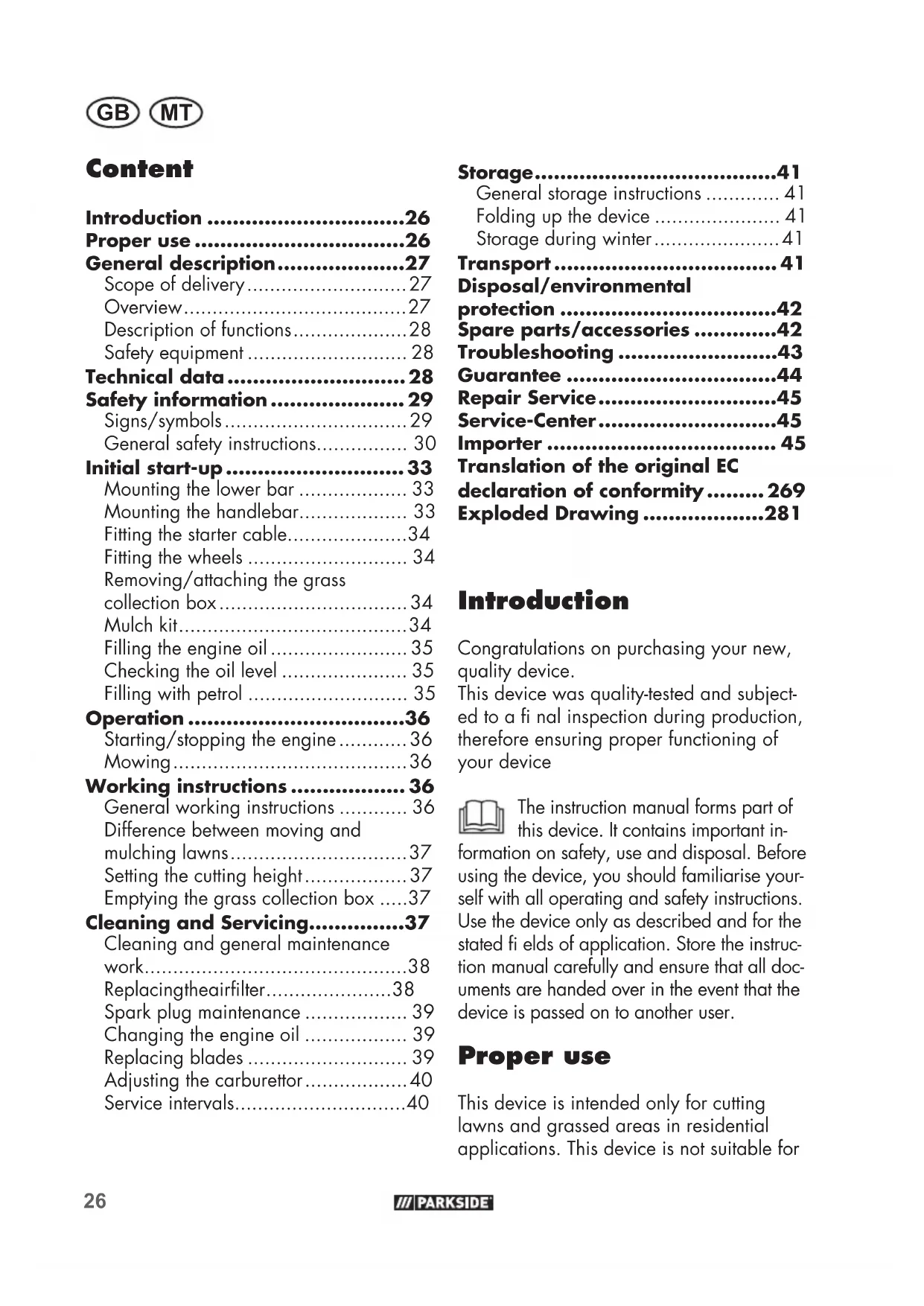

• Proper use p. 26
• General description p. 27
• Scope of delivery p. 27
• Overview p. 27
• Description of functions p. 28
• Safety equipment p. 28
• Technical data p. 28
• Safety information p. 29
• Signs/symbols p. 29
• General safety instructions p. 30
• Initial start-up p. 33
• Mounting the lower bar p. 33
• Mounting the handlebar p. 33
• Fitting the starter cable p. 34
• Fitting the wheels p. 34
• Removing/attaching the grass collection box p. 34
• Mulch kit p. 34
• Filling the engine oil p. 35
• Checking the oil level p. 35
• Filling with petrol p. 35
• Operation p. 36
• Starting/stopping theengine p. 36
• Mowing p. 36
• Working instructions p. 36
• General working instructions p. 36
• Difference between moving and mulching lawns p. 37
• Setting the cutting height p. 37
• Emptying the grass collection box p. 37
• Cleaning and Servicing p. 37
• Cleaning and general maintenance work p. 38
• Replacing the air lter p. 38
• Spark plug maintenance p. 39
• Changing the engine oil p. 39
• Replacing blades p. 39
• Adjusting the carburettor p. 40
• Service intervals p. 40
• Storage p. 41
• General storage instructions p. 41
• Folding up the device p. 41
• Storage during winter p. 41
• Transport p. 41
• Disposal/environmental protection p. 42
• Spare parts/accessories p. 42
• Troubleshooting p. 43
• Guarantee p. 44
• Repair Service p. 45
• Service-Center p. 45
• Importer p. 45
• Translation of the original EC declaration of conformity p. 269
• Exploded Drawing Introduction Congratulations on purchasing your new, quality device. This device was quality-tested and subject- ed to a nal inspection during production, therefore ensuring proper functioning of your device The instruction manual forms part of this device. It contains important in- formation on safety, use and disposal. Before using the device, you should familiarise your- self with all operating and safety instructions. Use the device only as described and for the stated elds of application. Store the instruc- tion manual carefully and ensure that all doc- uments are handed over in the event that the device is passed on to another user. Proper use This device is intended only for cutting lawns and grassed areas in residential applications. This device is not suitable for27 MTGB commercial use. The warranty is void in the case of commercial use. Any other use that is not expressly permit- ted in this instruction manual may result in damage to the device and pose a serious hazard to the user. The device is intended for use by adults. Children and people who are not familiar with this instruction manual must not use the device. The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property. General description An illustration of the most im- portant functional components can be found on the front and the back fold-out pages. Scope of delivery Carefully remove the device from the packaging and check whether all the parts listed below are present and complete: - Petrol lawnmower - 2x Lower bar - Mounting accessories for the handlebar - Grass collection box - Cable clamp - Spark plug wrench - Mulch kit - Screwdriver - Quick guide - Instruction manual The supplied screwdriver can be used as both a fl at-head and a Phillips-head screwdriver. You can change the screw variant by reinserting the han- dle. Overview 1 Handlebar 2 Safety bracket 3 Mounting accessories, handlebar 4 Lower bar 5 Grass collection box 6 Impact protection 7 Tank cover 8 Filler plugs 9 Air lter box 10 Air lter (not visible) 11 Petrol pump (primer) 12 Lawn mower housing 13 Wheels 14 Machine handle 15 Exhaust guard 16 Spark plug connector 17 Spark plug (not visible) 18 Engine cover with ventilation holes ( nger protection) 19 Bowden cable 20 Cable clamp 21 Starter cable guide 22 Starter handle with starter cable 23 Spark plug wrench 24 Mulch kit 25 Screwdriver 4a Phillips screw 3a Knurled nut 3b Washer 3c Screw 26 Attachment for grass collection box 5a Carrying handle 27 Oil tank cap with dipstick 28 Cutting height position28 MTGB 13a Wheel bolt 13b Safety washer 29 Blade 30 Blade bolt 31 Motor spindle 32 Clamping disk 33 Oil drain screw Description of functions The device is powered by a powerful 4-stroke engine (Zongshen 132cc Easy Start). The device is equipped with a robust plas- tic housing, a grass collection box and a foldable grip handle. Please refer to the descriptions below for information on how the operating elements work. Safety equipment 2 Safety bracket The device stops when the safety brack- et is released. 15 Exhaust guard Prevents hands or fl ammable materials from coming into contact with the hot exhaust. 6 Impact protection Protects the operator from ejected parts and against unintended contact with the blade when mowing without the grass collection box. Technical data Petrol Lawnmower PBM 132 B1 Engine p. 281
• Zongshen 132cc Easy Start Engine displacement cm p. 132

= 1.84 dB Sound power level (L

measured ...... 94.5 dB(A); K

Levels of noise and vibration were deter- mined according to the standards and reg- ulations in the declaration of conformity. The vibration emission value has been measured according to a standardised test- ing method and may be used for compari- son with another device. The indicated vibration emission value may also be used for an introductory assess- ment of the exposure.

Warning: The vibration emission

value whilst actually using the de- vice may vary from the given values regardless of the type and way in which the device is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. All parts of the op- erating cycle have to be considered while doing so (for example, times when the power tool is switched off29 MTGB and times when it is switched on but running without any load). Safety information This section describes the basic safety rules when working with the device. Signs/symbols Symbols on the device Caution! Read the instruction manual Risk of injury due to ejected parts; Keep persons in the vicinity away from the device Risk of injury due to sharp blade!

Warning: Keep hands and feet

away from the blade Caution - Toxic vapours! Do not operate device in closed rooms Caution - Petrol is fl ammable! Do not smoke and keep away from heat sources Do not refuel while the motor is in operation. Do not expose the device to moisture. Never operate the device in rain. Attention! The lawnmower blade continues to move Switch off the engine when you leave the device. Never mow if there are people, particularly children or animals, nearby. Switch off the engine before maintenance work and unplug the spark plug connector Caution - Hot surfaces! Risk of burn injury Wear eye and hearing protection The sound power level L

is indi- cated in dB Danger! Keep hands and feet at a safe distance Tank cap symbols: max. 10% ethanol Symbol on the oil tank cap: OIL Reference to the oil ller neck Symbol on petrol pump:

Press petrol pump (primer) 3x be- fore starting. Symbols on the motor: Read the instruction manual Warning against fl ammable sub- stances Caution - Toxic vapours! Do not operate device in closed rooms Caution! Check the oil level before starting. Use 10W30 motor oil30 MTGB Symbol on handlebar:

Switch device on (ON): Pull up safety bracket

OFF Switch device off (OFF): Release safety bracket Graphical symbols on the wheel bolt: Loosen wheel bolt Fasten wheel bolt Symbols used in the instructionmanual Hazard symbol with infor- mation on the prevention of personal injury or property damage. Hazard symbol with information on damage prevention. Stand behind the device when start- ing it. Advisory symbol with information on how to best use the device. Read the instruction manual. Wear gloves when handling the blade. highly fl ammable toxic environmentally hazardous General safety instructions WARNING! Read all safety instruc- tions and guidelines carefully. Fail- ure to follow the safety instructions and guidelines may result in re and/or serious injuries. Note:

• Read the instruction manual carefully. Familiarise yourself with the adjustment settings and how to use the machine correctly.

• In case of uncertainties, consult some- one for instruction concerning the use of the device and prohibited opera- tions.

• Pay attention, be aware of what you are doing and take the utmost care when working. Do not use the device if you are tired or ill or you are under the infl uence of drugs, alcohol or other medication. A moment of inattention whilst using the device can result in serious injuries.

• This device is not intended for use by people with restricted physical, sensory or mental capabilities; those who do not have suf cient experience in using the device or knowledge of the device must not use it unless they are super- vised by an individual responsible for their safety, or receive instructions from this person on how to use the device.

• Children must be supervised to ensure that they do not play with the device.

• Never allow children or other people who are unfamiliar with the instruction manual to use the device. Local regula- tions may specify the minimum age of the user.

• Never mow if there are people, particu- larly children or animals, nearby. Dis- tractions can cause you to lose control of the device.31 MTGB

• Remember that the user is responsible for accidents involving other people or their property.

• Observe noise protection rules and other local regulations. Preparations:

• Always wear slip-resistant shoes and long trousers when mowing. Do not mow barefoot or in light sandals. Loose clothing, jewellery or long hair may get caught in moving parts. Wearing suita- ble clothing reduces the risk of injuries.

• Check the terrain on which the device will be used and remove all objects (e.g. stones, sticks, wires, toys) which may be drawn into the device and ejected.

• Warning: Petrol is highly fl ammable. Fire or explosions can lead to severe burns: - Store petrol only in the specially pro- vided containers; - Refuel only in open areas and never smoke while refuelling the device; - Petrol has to be added before start- ing the engine. The fuel tank cap must not be opened and petrol must not be added while the engine is running or the device is still hot. - If there was an accidental petrol spill, do not attempt to start the engine. Instead, remove the device from the petrol contaminated sur- face. Do not try to ignite the engine until all petrol vapours have evapo- rated; - If the fuel tank or other tank caps are damaged, replace them for safety reasons.

• Replace defective muffl ers.

• Before use, always perform a visual inspection to check whether the cutting tools, fastening bolts and the entire cutting unit are worn out or damaged. Worn or damaged tools and bolts must only be replaced as a set to prevent imbalance.

• Take care when using devices with several cutting tools as the movement of one blade can lead to rotation of the other blades.

• Use replacement and accessory parts supplied or recommended by the manufacturer only. Using externally produced parts can cause injury, and void any warranty claims. Operation:

• Never let the internal combustion engine run in a con ned space, as dangerous carbon monoxide can ac- cumulate.

• Use the machine only in daylight or with good arti cial lighting. Working in areas without lighting can result in accidents.

• Do not work with the device if there is a risk of lightning strike. Danger of electric shock.

• Caution! The exhaust gases from the lawnmower contain toxic substances.

• Avoid operating the machine in poor weather conditions, especially when there is a lightning hazard.

• If possible, do not use the device on wet grass.

• Always ensure secure positioning, par- ticularly on hillsides, land lls, ditches or dykes. This will help you to have bet- ter control of the device in unexpected situations. - Always move crosswise across slopes, never up or down. - Take special care when changing the direction of travel on slopes. - Do not mow on overly steep slopes (max. 10°).32 MTGB

• Only operate the device at walking speed.

• Take special care when turning the de- vice around or pulling it towards you.

• Stop the cutting tool when the device has to be tipped for transport over other areas than grass and when the device is moved from and to the area to be mowed.

• Never use the device with damaged pro- tective equipment or protective grating or without installed protective equipment, e.g. impact protection and/or grass col- lection equipment. This ensures the safety of the device is not adversely affected.

• Do not change the controller settings of the motor and do not overturn it. This could damage the device.

• Turn on the device with care in accord- ance with the manufacturer instructions. Ensure your feet are at a suf cient dis- tance from the cutting tool. There is a risk of injury.

• When starting or turning the engine on, the device must not be tilted, unless it is required to lift the device in the process. In this event, tilt the device only as far as absolutely necessary and lift it only on the side facing away from the user.

• Do not start the motor when standing in front of the ejector opening.

• Switch the engine on as directed and only if your feet are a safe distance away from the cutting tools.

• Never place your hands or feet on or below rotating parts. Always keep away from the ejector opening. A moment of inattention when using the device can result in serious injuries.

• Never lift or carry the device when the engine is running.

• Shut off the engine, disconnect the spark plug connector, remove the igni- tion key if present, and make sure that all movable parts have stopped moving: - before removing obstructions, or loosening blockages from the ejector opening; - before checking the device, cleaning it or performing maintenance work on it; - when a foreign object has been hit. Check for damages to the device and perform any required repairs before starting and working with the ma- chine again; - if the device starts to vibrate abnor- mally strong, an immediate inspection is required. - when leaving the device; - before refuelling.

• Never leave the device unattended at the workplace.

• Do not work with a damaged or incom- plete device or one which has been converted without the permission of the manufacturer. Using the device for anything other than its intended use can lead to dangerous situations.

• Do not work with the device if there is a risk of lightning strike. Danger of electric shock. The throttle valve must be closed when the motor comes to a stop. If the engine has a petrol shut-off valve, it must be closed after mowing. Maintenance and storage:

• Make sure that all nuts, bolts and screws are properly tightened, and that the device is in safe working order. Many accidents are caused by poorly main- tained appliances.

• Never store the device with fuel in its petrol tank inside a building, where fuel vapours may be coming in contact with re or sparks.

• Give the engine time to cool off before you store the device in an enclosed33 MTGB space. Possible re hazard.

• To avoid risk of re, keep engine, ex- haust and the area around the petrol tank free of grass, leaves or leaking grease (engine oil).

• Check the grass collection unit regu- larly for wear or loss of function.

• Replace worn or damaged parts for safety reasons. Replace defective muf- fl ers.

• If you need to drain the petrol tank, you must do so outside.

• Treat your device with care. Keep the tools sharpened and clean in order to be able to work better and safer. Fol- low the maintenance instructions.

• Do not try to repair the device yourself, unless you have professional training. All work not speci ed in this instruction manual may only be carried out by cus- tomer service centres authorised by us.

• Store the device in a dry place and out of reach of children. Devices can be dangerous if operated by inexperi- enced persons.

• The security systems or devices of the lawnmower must not be manipulated or deactivated. The user should not change or tamper with any sealed engine speed control settings. Initial start-up Caution! Risk of injury due to rotating blade. Only perform work on the device when the engine is switched off and has come to a stop. Before starting the device, you must - Remove all transport safety devices, - mount the grip rod, - Fit the wheels - ll the engine oil, - ll the petrol, - mount the grass collection box if necessary, - set the cutting height if necessary. Mounting the lower bar Make sure that the Bowden cable

19) is not crushed during the

assembly of the grip rod.

1. Unscrew the two Phillips screws (4a)

from each of the lower bars (4).

2. Insert the lower bars (4) into the mount

on the lawn mower housing (12). The lower bar (4) with the pre-assem- bled starter cable guide (21) must be inserted into the right-hand side of the lawn mower housing (12) as viewed in the direction of travel.

3. Fasten the lower bars (4) with one Phillips

screw (4a) each. You can use the screw- driver (25) supplied for this purpose. Mounting the handlebar If necessary, remove the handle nuts (3a) and the screws (3c), together with the washers (3b) and the starter cable guide (21) from the lower bars (4) before assembling the handlebar.

2. Slide a screw (5c) through the holes on

the grip rods on both sides.

3. Slide one washer (3b) on each of the

screws (3c). On the right side of the lawn mower, the starter cable guide (21) must be34 MTGB placed on the screw between the washer (3b) and the handlebar (1) on the screw (3c).

Fitting the starter cable

1. Slowly pull the starter cable by the

starter handle (22) towards the bar.

2. Guide the starter cable into the starter

3. Release the safety bracket (2).

Fitting the wheels First mount the bars as mounting the wheel rst makes access to the Phillips screw (4a) for bar mounting dif cult. The cutting height is set by positioning the wheels. The machine has 3 possible posi- tions: 65 mm - large cutting height

• lower position cutting height (28) 45 mm - medium cutting height

• medium position cutting height (28) 25 mm - low cutting height

• upper position cutting height (28) Attach each of the four wheels (13) with a wheel bolt (13a) over a safety washer (13b) at the desired cutting height position (28). Select the same cutting height position for all four wheels (28)! When assembling the wheels, make sure you use the correct wheel bolt (13a) so that the “L” and “R” mark- ings on the lawnmower housing (12) match the “L” and “R” markings on the bolt head. The wheel bolts (13a) on the left (“L”) of the mower are tightened anticlockwise ↺ to ensure they do not loosen by themselves during operation. Removing/attaching the grass collection box Caution: Do not run the de- vice if the grass collection box or impact protection are not attached properly. Risk of injury! Attaching the grass collection box to the device:

1. Lift the rear impact protection (6).

2. Hold the grass collection box (5) by the

carrying handle (5a).

3. Hang the grass collection box (5) into

the grass collection box attachment (26) on the rear of the device.

4. Remove the impact protection (6); it

keeps the grass collection box (5) in place. Removing the grass collection box:

5. Lift the impact protection (6).

6. Remove the grass collection box (5) by

3. Place the mulch kit (24) upright with the

lower edge on the mower.

4. Push the mulch kit (24) by its lower

edge and then by its upper edge into the ejector opening.

3. Tilt the mulching kit (24) slightly for-

(24) out of the machine rst.

5. Remove the mulch kit (24).

Filling the engine oil Place the device on an even base.

1. Screw off the oil tank cap with dipstick

2. Fill the engine oil in the oil tank. The

engine oil tank holds 0.4 l of oil. Use brand-name oil.

3. Close the oil tank cap (27) again.

Checking the oil level

1. Screw off the oil tank cap with dipstick

3. Screw the oil tank cap with dipstick

(27) back on completely.

4. Unscrew the oil tank cap with

dipstick (27) and read the oil level on the dipstick after pulling it out. The oil level must be in the marked eld between the mini- mum and maximum mark (maxi- mum: 0.4 l engine oil in the oil tank).

5. Wipe away any spilt engine oil.

6. Close the oil tank cap (27) again.

Each time before you mow, check the oil level and top up the engine oil before it reaches the bottom mark. Filling with petrol Warning! Petrol is fl ammable and harmful to health and the environ- ment: - Store petrol in vessels intended for this; - Only refuel in the open air and never while the engine is running or hot; - Carefully open the fuel cap so that overpressure can be relieved; - Do not smoke while refuelling; Avoid skin contact and inhalation of fumes; - Remove spilled petrol; - Keep petrol away from sparks, open fl ames and other ignition sources. - Dispose of any petrol remnants in an environmentally friendly way (see “Dis- posal/environmental protection”). - Do not use any petrol/oil mix- ture. - Use lead-free normal or premi- um-grade petrol; If using organic fuel, do not mix more than 10% ethanol. - Only use clean, fresh petrol. - Do not store petrol for longer than one month, as its quality will deteriorate.

1. Unscrew the tank cap (

2. Add petrol up to the lower edge of the

ller neck (8). Do not ll the petrol tank fully, so that the petrol has space to expand.

3. Wipe petrol residues off the tank cap.

4. Close the tank cap.36

MTGB Operation Some level of noise emission with this equipment is unavoidable. Post- pone noisy work until designated periods when it is permitted. Take rest periods when needed and limit working time to the minimum neces- sary. For your personal protection and the protection of people work- ing nearby a suitable form of hear- ing protection must be worn. Starting/stopping theengine Warning! Petrol is fl amma- ble. Start the engine at least 3 m away from where you refuelled. Possible re haz- ard. Place the device on a solid, even base, avoiding high grass if possi- ble. Make sure that the cutting tool does not touch either other objects or the ground. For your safety: Stand behind the device when starting it. Regularly check the petrol and oil levels (see “Checking the oil level”) and top up promptly. Cold start:

1. Press the petrol pump (11)

2. Pull the safety bracket (2) to-

wards the handlebar (1) and hold it.

3. Pull the starter handle (22).

4. If the motor starts, slowly release the

starter handle into the starter cable guide (21). For a warm start it is not neces- sary to press the primer (11). If the primer is pressed too often, too much petrol will enter the carburettor and the motor is dif cult to start. Stopping the engine:

• Release the safety bracket (2). The engine switches off and the blade is braked. Blade stopping device: Regularly examine the blade stopping device:

• Release the safety bracket (2). The engine switches off and the blade is braked. The blade must stop within 7 seconds. Mowing

1. Start the engine (see “Starting/stop-

2. Hold the handlebar (1) and the safety

bracket (2) with both hands while mow- ing. Working instructions General working instructions

• If possible, mow dry grass to go gentle on the sod.

• Adjust the cutting height so that the de- vice is not overloaded.

• Move the device at walking speed and in lines as straight as possible. For a fl awless mowing result, the lines should always overlap by a few centimetres.

• Do not move backwards.

• Always move across the slope when working on hills.37 MTGB

• If the blades come into contact with a foreign object, turn the engine off im- mediately. Wait until the blade comes to a stop and check the device for damage. Only continue working if the device is undamaged.

• Switch off the device during longer breaks or when transporting it and wait until the blade has stopped moving.

• Clean the device after each use, as described in the section “Cleaning/ storage“. Difference between moving and mulching lawns When using the mulch kit (24), the grass clippings are not captured in a collection box but are instead shredded and spread across the lawn. The nutrients contained in the clippings are thus left to be broken down by soil organisms and form a nutri- ent cycle. Mulched lawns therefore need to be fertilised much less frequently. As a basic rule, the lawn has to be mowed relatively often so that only small amounts of mulch remain on the lawn. It is therefore best to mulch the lawn at least once a week and to adjust the mower so that only about 40% of the total height of the lawn is left as mulch. If the mulch remains visible on the lawn (for example when cutting the lawn for the rst time of the year or during strong growth), the grass collection box (5) should be used. Setting the cutting height The device has 3 positions for setting the cutting height: 65 mm - large cutting height 45 mm - medium cutting height 25 mm - low cutting height

1. Loosen the wheel bolt (13a).

2. Remove the wheel (13). Make sure not

to lose the safety washer (13b).

3. Fix the wheel (13) in the desired cutting

height position (28) in the reverse or- der. There are three possible positions.

4. Repeat steps 1 - 3 with the other

wheels. The wheel bolts (13a) on the left (“L”) of the mower are tightened an- ticlockwise ↺ to ensure they do not loosen by themselves during opera- tion. The correct cutting height is between 30and 45mm for an ornamental lawn and about 40 - 65 mm for a utility lawn. A high cutting height should be selected for the rst mowing of the season. Emptying the grass collection box

1. Switch off the engine and wait for the

blade to come to a stop.

grab it at the carrying handle (5a) and at the bottom (see also “Disposal/envi- ronmental protection”).

5. Mount the grass collection box again.

Cleaning and Servicing Have any service and main- tenance work on the device38 MTGB that is not described in this instruction manual performed by a professional. Only use original spare parts. Accident hazard! Maintenance and cleaning work must always be carried out with the engine switched off and the spark plug connec- tor removed. Risk of injury! Allow the device to cool off before performing any main- tenance or cleaning. Engine elements are hot. There is a danger of burns! Wear gloves when handling the blade. Cleaning and general maintenance work Cleaning and maintenance work on the underside of the appliance: Place an underlay under the petrol lawnmower.

1. Fold the upper handlebar (1) up

2. Tilt the device back so that the spark

plug faces upwards. Make sure that a second person holds the device because there is a danger of tipping backwards. Do not tilt the device to the side or forwards. Operating fl uids could escape and the engine could be damaged.

• Always keep the device clean. Use a brush or cloth for cleaning, but do not use any aggressive cleaning agents or solvents. Do not use any water to clean the engine, it could contaminate the fuel system.

• After mowing, remove any plant re- mains using a piece of wood or plastic. Clean the engine cover with ventilation holes ( nger protection) in particular.

18), the ejector opening and the blade area. Do not use any hard or sharp objects, as these could damage the device.

• Check the device before each use for obvious defects such as loose, worn or damaged parts. Ensure that all nuts, bolts and screws are rmly in place.

• Check the covers and protective de- vices ( 2, 7, 15) for damage and correct t. Replace these if necessary. Replacing the air lter Never run the device without an air lter. Dust and dirt may otherwise enter the engine and cause dam- age. Removing the air lter

1. Disconnect the spark plug connector

2. Open the air lter box (9) by turn-

ing the cover anti-clockwise and then removing it upwards (Bayonet locking device).

3. Remove the air lter (10).

4. Clean the air lter (10) in a soap solution.

5. Allow the air lter (10) to dry. Put a

few drops of fresh engine oil into the air lter.

6. Replace the faulty air lter (10) with a

new air lter (10) see „Spare parts/Ac- cessories“).39 MTGB Inserting the air lter

1. Insert the air lter (10) into the air lter

2. Close the air lter box (9) again by

placing the cover back on and turning it clockwise. Spark plug maintenance Worn spark plugs, or a spark plug gap that is too large, will lead to a reduction in engine power.

1. Remove the spark plug connector (16) by

pulling and turning the spark plug (17).

2. Unscrew the spark plug (17) counter-

clockwise with the enclosed spark plug wrench (23).

3. Check the spark plug gap with the help

of a feeler gauge (available from spe- cialised dealers). The spark plug gap must be 0.7-0.8 mm.

4. Reset the gap if necessary, by carefully

bending the ground/side electrode of the spark plug.

5. Clean the spark plug (17) with a wire

6. Insert the cleaned and set spark plug

or replace a damaged spark plug with a spare spark plug (recommended tightening torque 20 Nm, determined with torque wrench) (see “Spare parts/ accessories”). Changing the engine oil Change the engine oil when the petrol tank is empty and the engine is warm.

• Perform the rst engine oil change after about 5 operating hours and then every 50 operat- ing hours or annually.

• Dispose of the used oil in an environmentally-responsible way (see „Disposal/Environmental Protection”).

1. Disconnect the spark plug connector

16) (see “Spark plug mainte-

2. Open the oil tank cap (

3. Pump out the engine oil with an oil

pump (not included in delivery).

4. Top up the engine oil (see “Filling the

engine oil”). The mower has an oil drain screw

33) on the motor head. By

changing the motor oil via the oil drain screw, the lawn mower housing can become dirty. We therefore recommend changing the motor oil as described above using an oil pump. Replacing blades Improper installation can cause severe injury. Never tilt the lawnmower to the side or forwards when the petrol or oil tank is lled! This could damage the en- gine, voiding the warranty. Check the blade for wear and damage. If dull or damaged, replace the blade! Always have a specialist workshop sharpen a dull blade, as they can perform imbalance testing. Wear gloves when handling the blade.40 MTGB Once you have loosened the blade screw (30), you have to replace the clamping disk (32). The tightening torque of the blade is 45 Nm.

1. Disconnect the spark plug connector

2. Tilt the device back so that the spark

3. Use rm gloves and keep hold of the

blade (29). Use a spanner to turn the blade bolt (30) counter-clockwise from the motor spindle (31).

4. Reassemble the new blade in the re-

verse order. Make sure that the blade is positioned correctly and resting fl ush on the en- gine spindle. The clamping disk (32) must be positioned between the blade screw and blade.

5. Tighten the blade with 45 Nm.

Adjusting the carburettor The carburettor has been precon gured for ideal performance at the factory. If any readjustments are necessary (see “Trouble- shooting”), have the adjustments made by a specialist workshop. Service intervals Carefully perform the maintenance tasks listed in the table on a regular basis. Regular servicing will extend the life of your device. Additionally, you will achieve optimum cut- ting performance and prevent accidents. Maintenance tasks (see “Cleaning and Servicing”) before after after the fi rst 5hours after 8hours after 50hours annu- ally work Check and tighten the screws, nuts and bolts

Check the engine oil level/pet- rol level and add engine oil/ petrol as needed

Replace the engine oil

Clean/adjust/replace the spark plug

Replace more frequently in a high dust environment or in case of heavy contamination41 MTGB

1. Start the engine and allow it to run until

it goes out due to a lack of petrol.

2. Perform an oil change (see “Changing

3. Preserve the engine:

- Remove the spark plug (

“Cleaning and servicing”); - Fill a tablespoon of engine oil into the engine compartment through the spark plug opening; - Slowly pull the starter handle with starter cable (

22) several times to

distribute the oil inside the engine; Screw the spark plug (

4. Dispose of used oil and petrol residues in

an environmentally-responsible way (see „Disposal/Environmental Protection“). The petrol tank does not have to be emptied if you add a fuel additive to the petrol (see “Spare parts”). Transport

• When it is being transported, the de- vice must be switched off and the spark plug connector

• Wear gloves when transporting the device and avoid coming into contact with dangerous parts when transporting it (e.g. hot engine, blades).

• Stay at a safe distance from others when transporting the device.

• Do not transport the device upside down and do not tilt it as otherwise fuel might leak out.

• Before transporting between two loca- tions, empty the fuel tank with a petrol suction pump. Do not empty the fuel tank indoors, near re or when smoking. Gas vapours can cause explosions or re. Storage General storage instructions Never store the device with the grass collection box full. If the weather is too hot, the grass will begin to ferment un- der heat. Possible re hazard.

• Clean and maintain the device prior to storage.

• Give the engine time to cool off before you store the device in an enclosed space.

• Use suitable, permissible containers for storing the fuel.

• Store the device in a dry and dustproof location and out of reach of children.

• Do not enclose the device in nylon sacks as this may cause moisture or mould to form. Folding up the device Fold down the handlebar to save space when storing.

3. Open the quick release lever (3a) on

the upper bar (1). Quick release lever (3a), washer (3b) and screws (3c) can remain mounted.

4. Fold the handlebar (1) down. The

Bowden cable (3) must not be jammed when you do this. Storage during winter Failure to follow the storage instructions may leave fuel remnants in the carbu- rettor, which in turn can cause start-up problems or permanent damage.42 MTGB Disposal/environmental protection

• The device, accessories and packaging should be properly recycled. - Carefully empty the petrol and oil tank and take your device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and ef ciently recycled. - Dispose of used oil and petrol resi- dues at a disposal site and do not pour into sewers or down the drain. - Please contact our service centre for more information.

• Disposal of your sent in defective de- vices is carried out free of charge.

• Do not throw cut grass into the rubbish bin; instead, take it for composting or spread it as a mulch below shrubs and trees. Spare parts/accessories You can get spare parts and accessories from www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the “Service-Center” (see page 45). Position Position Description Order No. instruction exploded manual drawing 1,2 22,30 Handlebar with safety bracket 91106017

49 Screwdriver (slotted) 9110618043 MTGB Troubleshooting Problem Possible cause Troubleshooting Engine won’t start Not enough petrol in the petrol tank Fill petrol Incorrect starting sequence Observe the instructions for starting the engine (see “Operation”) Spark plug connector ( 16) not plugged in correctly, sooty spark plug Plug in the spark plug connector Clean, set or replace spark plug (see “Cleaning and Servicing”) Carburettor set incorrectly Have the carburettor reset by a spe- cialist workshop Engine starts, but the device does not run at full power Dirty air lter ( 10) Replace the air lter (see “Cleaning and Servicing”) Carburettor set incorrectly Have a specialist workshop reset the carburettor Engine sput- ters, slows down Carburettor set incorrectly Have a specialist workshop reset the carburettor Sooty spark plug ( 17) Clean, set or replace spark plugs (see “Cleaning and Servicing”) Engine over- heated Ventilation holes ( 18) plugged Clean the ventilation holes Incorrect spark plug (

17) Replace the spark plug

Not enough engine oil in the engine Top up engine oil (see “Initial start-up”) Engine giving off smoke Dirty air lter ( 10) Replace the air lter (see “Cleaning and Servicing”) Not enough engine oil in the engine Top up engine oil (see “Initial start-up”) Output not sat- isfactory or en- gine is dif cult to operate Grass too short or high Change the cutting height (see “Setting the cutting height”) Blade blunt see „Replacing blades“ Blade blocked by grass, grass collection box full, ejector open- ing plugged Remove grass (see “Cleaning and Servicing”) Blade not rotat- ing Blade blocked by grass Remove grass Blade not mounted correctly Fit the blade correctly (see “Replacing blades”) Abnormal sounds, clat- tering or vibra- tions Blade not mounted correctly see „Replacing blades“ Blade damaged44 MTGB Guarantee Dear Customer, This device comes with a 3-year warranty from the date of purchase. Should the device have defects, you are entitled to further rights vis-a-vis the de- vice vendor. These statutory rights are not limited by the guarantee described in the following. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. cylinders, v-belt or attachments) or to cover damage to breakable parts (z.B. Cutting unit, spark plug, air lter, starter cable) This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions speci ed in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper han- dling, use of force, or interventions not under- taken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item num- ber (IAN 384572_2107) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate, an engraved plate on the front page of your manual (bottom left) or as a sticker on the back or bottom.

• Should functional errors or other de- fects occur, please initially contact the service department speci ed below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.45 MTGB

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

• For at undgå brandfare skal motoren,165

Translation of the original EC declaration of conformity We hereby con rm that the Petrol Lawnmower model PBM 132 B1 Serial number 000001 - 130000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC 2011/65/EU*& (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN ISO 5395-1:2013/A1:2018 • EN ISO 5395-2:2013/A2:2017

EN ISO 14982:2009 • EN IEC 63000:2018

We con rm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 96 dB(A) measured: 94.5 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC & 2005/88/EC Registered Of ce: NB0036; TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Germany This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany, 20.12.2021

• The object of the declaration described above satisfi es the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Christian Frank Documentation Representative270
