USER MANUAL UPM 120 C3 ULTIMATE SPEED

GB / MT Translation of the original instructions Page

• Service Schweiz Tel.: [phone] (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: [e-mail] IAN 384226_2107 Importeur Bitte beachten Sie, dass die folgende An- schrift keine Serviceanschrift ist. Kontaktieren Sie zunächst das oben genannte Service- Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 DE-63762 Großostheim, DEUTSCHLAND www.grizzlytools.de14 GB MT Content Introduction p. 14

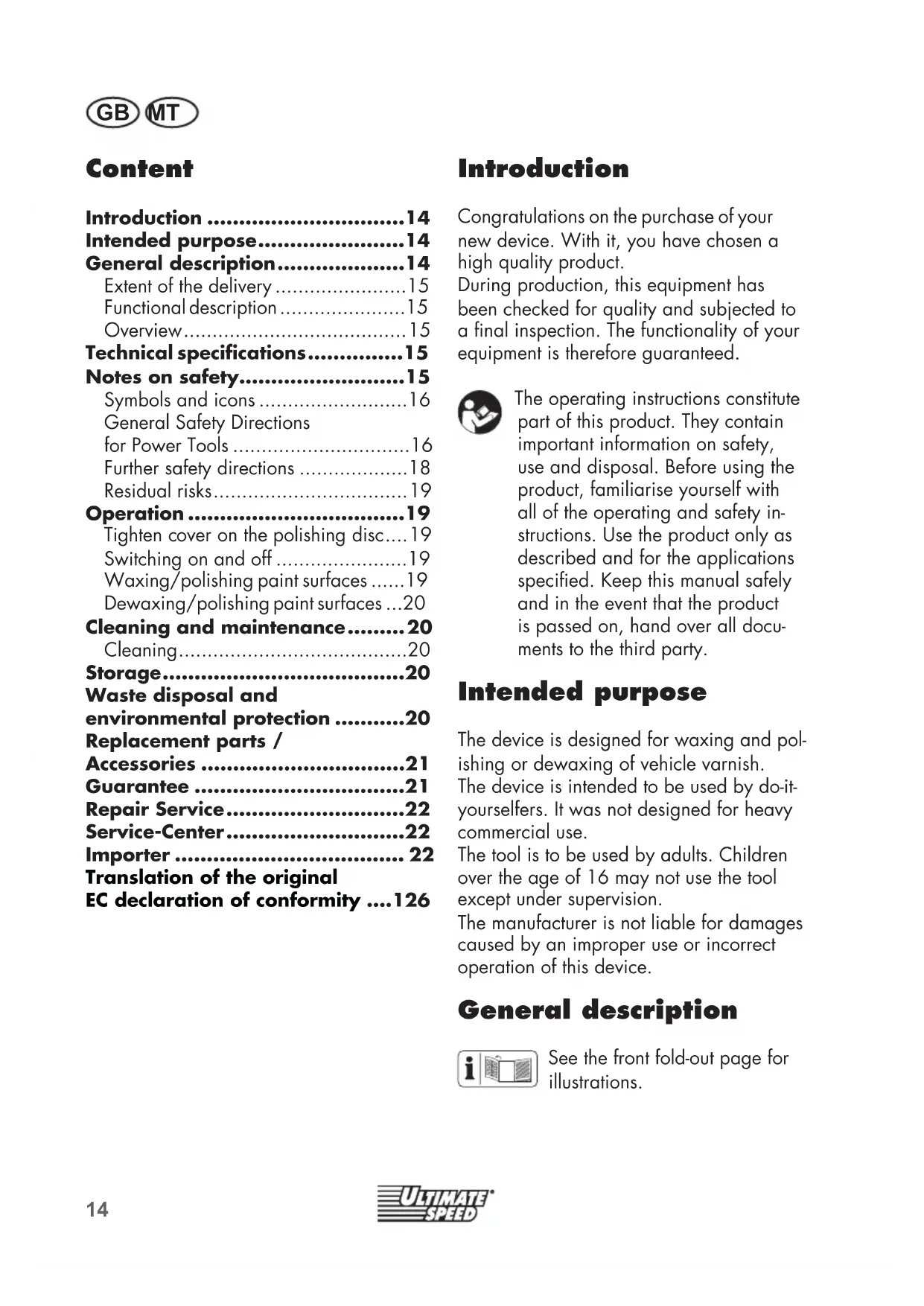

• Intended purpose p. 14
• General description p. 14
• Extent of the delivery p. 15
• Functional description p. 15
• Overview p. 15
• Technical specications p. 15
• Notes on safety p. 15
• Symbols and icons p. 16
• General Safety Directions for Power Tools p. 16
• Further safety directions p. 18
• Residual risks p. 19
• Operation p. 19
• Tighten cover on the polishing disc p. 19
• Switching on and off p. 19
• Waxing/polishing paint surfaces p. 19
• Dewaxing/polishing paint surfaces p. 20
• Cleaning and maintenance p. 20
• Cleaning p. 20
• Storage p. 20
• Waste disposal and environmental protection p. 20
• Replacement parts / Accessories p. 21
• Guarantee p. 21
• Repair Service p. 22
• Service-Center p. 22
• Importer Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety in- structions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all docu- ments to the third party. Intended purpose The device is designed for waxing and pol- ishing or dewaxing of vehicle varnish. The device is intended to be used by do-it- yourselfers. It was not designed for heavy commercial use. The tool is to be used by adults. Children over the age of 16 may not use the tool except under supervision. The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device. General description See the front fold-out page for illustrations. Translation of the original EC declaration of conformity p. 22

GB MT Extent of the delivery Carefully unpack the appliance and check that it is complete. Dispose of the packag- ing material correctly. - Appliance - 2 Towelling covers - 2 Synthetic fur covers - Instruction manual Functional description The device is designed for waxing and polishing or dewaxing of vehicle varnish. Rotating the polishing disc helps achieve a consistent mode of operation. The polish- ing bonnets can be exchange for different applications and detachable for cleaning. Overview 1 Handle 2 ON / OFF switch 3 Polishing disc 4 2 Synthetic fur covers 5 2 Towelling covers 6 Mains cable Technical specications Car polisher ................UPM 120 C3 Rated input voltage (U) ....................... 230-240V~, 50Hz Power input (P) ............................ 120 W Idling speed (n

= 3 dB Sound power level (L

Levels of noise and vibration were deter- mined according to the norms and regula- tions in the declaration of conformity. - The specied total vibration values and the stated noise emission values have been measured according to a stand- ardised test method and can be used to compare one power tool with another. - The specied total vibration values and the stated specied noise emission val- ues can also be used for a provisional assessment of the load.

The vibration and noise emissions may deviate from the specied val- ues during actual use of the power tool, depending on the type and manner in which the power tool is used – and in particular which type of workpiece is processed. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load). Notes on safety Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and re. Please read all these instructions before using this electric tool and please keep the safety instructions.16 GB MT Symbols and icons Symbols on the device: Warning! Read the manual! Wear eye protection Wear breathing protection Wear ear protection Do not expose the unit to rain. Remove the plug from the mains. Immediately if the cable is dam- aged or cut. Safety class II (Double insulation) Electrical machines do not belong with domestic waste

Guaranteed sound power level Symbols used in the instructions: Hazard symbols with in- formation on prevention of personal injury and property damage Precaution symbol with information on prevention of harm / damage Pull out the mains plug. Connect the machine to the power supply. Notice symbol with information on how to handle the device properly General Safety Directions for Power Tools WARNING! Read all safety notices, instructions, illustra- tions and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as17 GB MT c) Prevent unintentional starting. Ensure the switch is in the off-po- sition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust col- lection can reduce dust-related hazards. h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool af- ter using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. pipes, radiators, ranges and re- frigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operation of the power tool in a damp environment is unavoid- able, please use a residual cur- rent circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.18 GB MT b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the re- chargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such pre- ventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in un- expected situations.

a) Have your power tool serviced by a qualied repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. Further safety directions

• Warning! Touching or inhaling harmful or toxic dusts that may arise from polishing paint con- taining lead or from polishing certain wood and metals repre- sents a danger to the operator and people who are close by. Keep persons nearby away from the hazard area. Eyes should be protected from the foreign matter, which can be caused to y during the various applications. Dust or breathing masks should lter the dust that is created dur- ing operation. Wear hearing protection in addition. If you are exposed to loud noise for a long time, you may suffer hearing loss. Wear protective gloves in addition where appropriate.

• If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.

• This device is not intended for use by people with restricted physical, sensory or mental fac- ulties or those who do not have sufcient experience or knowl- edge of it.

• Do not allow yourself to be lulled19 GB MT into a false feeling of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Acting carelessly can result in serious injuries within fractions of a second. Residual risks Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this elec- tric tool may present the following hazards: a) Lung damage, if suitable respiratory protection is not worn; b) Ear damage if working without ear pro- tection. c) Eye damage if no suitable eye protec- tion is worn. d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro- magnetic eld which, under certain circumstances, may impair the func- tionality of active or passive medical implants. To reduce the risk of seri- ous or lethal injuries, we recommend that persons with medical implants consult their doctor and the manu- facturer of their medical implant before operating the machine. Operation Caution! Risk of injury! - Always remove the mains plug before working on the tool. The mains cable is to run over the us- er’s shoulder during the use of the pol- ishing machine to avoid contact with the polished surface. This is to prevent scratches from the mains cable. Tighten cover on the polishing disc

1. Align the polishing disc (3) upwards.

2. Using both hands, grab hold of a

towelling cover (5) or a synthetic fur cover (4) and expand the elastic band outwards.

3. Put the cover (4/5) on a part of the

polishing disc (3) over the edge of the polishing disc. Pull the cover around the edge.

4. Fit the cover (4/5) in centrally and

tightly around the polishing disc (3). Switching on and off Make sure that the power supply voltage matches the voltage rating indicated on the device‘s type plate. Connect the machine to the power supply.

1. To switch on, tilt the on/off switch (2) to

position „I“, the device turns on.

2. To switch off, tilt the on/off switch (2) to

position „0“, the device turns off.

3. Firmly hold the device with both hands

on the handle (1). Waxing/polishing paint surfaces

1. Use the towelling cover (5) to apply polish.

2. Apply the wax or polish on a slightly

smaller area than the area you would like to polish.20 GB MT

3. Work with the polish in a crosswise

movement or circular motions. Exert only moderate pressure on the surface.

4. Please refer to the information from the

polish manufacturer. Do not allow the polish to dry out. There is a risk or surface damage. Therefore, do not work in direct sun- light or on a heated surface. Dewaxing/polishing paint surfaces

1. Use the synthetic fur cover (4) for

2. Work in a crosswise movement or

circular motions. Exert only moderate pressure on the surface.

3. Please refer to the information from the

polish manufacturer. Cleaning and maintenance Pull the mains plug before any ad- justments, maintenance or repair. Have any work on the device that is not described in this instruction guide performed by a professional. Only use original parts. Allow the de- vice to cool off before any maintenance or cleaning is undertaken. There is a risk of burning! Always check the device before using it for obvious deciencies such as loose, worn or damaged parts, correct the position- ing of screws or other parts. Examine the polishing disc in particular. Exchange the damaged parts. Cleaning Do not use any cleaning agent or solvent. Chemical substances can etch the plastic parts of the device. Never clean the device under run- ning water.

• Thoroughly clean the device after every use.

• Clean the ventilation openings and the surface of the device with a soft brush or cloth.

• Hand wash to thoroughly clean the covers after each use. Only use a mild soap sud. Storage

• Store the appliance in a dry place (0-40°C) well out of reach of children. Waste disposal and en- vironmental protection Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have nished with them. Electrical machines do not belong with domestic waste.

• Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

• Defective units returned to us will be disposed of for free.21 GB MT Replacement parts / Accessories Spare parts and accessories can be obtained at www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 22). Towelling covers ....................91103977 Synthetic fur covers ................91103978 Polishing disc .........................91103979 Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defec- tive equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period be- gins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. polishing disc, towelling covers or synthetic fur covers ) or to cover damage to break- able parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper han- dling, use of force, or interventions not under- taken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN 384226_2107) ready as proof of purchase for all enquiries.22 GB MT

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Car polisher design series UPM 120 C3 Serial number 000001 - 160000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU)2015/863 In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN 62841-1:2015 • EN 62841-2-4:2014 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN 61000-3-2:2014 • EN IEC 61000-3-2:2019 • EN 61000-3-3:2013

EN 61000-3-3:2013/A1:2019 • EN IEC 63000:2018

This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany
