Product type	True Wireless Bluetooth sport in-ear headphones
Brand	SilverCrest
Model	STSK P4 A1
Headphone dimensions	Approx. 51 x 28 x 44 mm
Charging case dimensions	Approx. 75 x 76 x 50 mm
Headphone weight (pair)	Approx. 11.6 g
Charging case weight	Approx. 72 g
Power supply (headphones)	Li-Ion battery 3.7 V, 85 mAh, 0.32 Wh
Power supply (case)	Li-Polymer battery 3.7 V, 550 mAh, 2.035 Wh
Charging port	USB-C
Headphone charging time	Approx. 2 hours
Case charging time	Approx. 3 hours
Music playback time	Approx. 7 hours (medium volume)
Talk time	Approx. 2.5 hours
Bluetooth	Version 5.0, range approx. 10 m
Supported Bluetooth profiles	A2DP, AVRCP, HSP, HFP
Protection rating	IPX4 (splash-proof)
Package contents	2 headphones, 3 pairs of ear tips, charging case, USB cable, quick start guide, instruction manual
Main functions	Play/pause, volume, next/previous track, call, voice assistant, auto pairing
Care instructions	Clean with a slightly damp cloth; ear tips washable with water
Warranty	3 years

Frequently Asked Questions - STSK P4 A1 SILVERCREST

How do I pair the SilverCrest STSK P4 A1 earphones with my smartphone?

Remove the earphones from the charging case; they will turn on automatically and enter pairing mode (LED flashes red/white). On your smartphone, enable Bluetooth and select STSK P4 A1 from the device list. If a code is required, enter 0000. Once paired, a confirmation sound will be heard.

How do I reset the earphones?

To reset, disconnect the earphones from any device. Remove one earphone from the case, quickly press the multifunction (MF) button 3 times until the LED briefly lights up light red. Place it back in the case. Repeat with the other earphone. The earphones are then reset.

What is the battery life of the earphones?

Music playback time is approximately 7 hours at medium volume, and talk time is approximately 2.5 hours. The charging case provides up to 3 full recharge cycles for the earphones.

How do I clean the earphones and ear tips?

Clean the earphones with a slightly damp cloth and mild detergent. Avoid solvents. The ear tips can be removed and washed under running water; let them dry completely before reattaching.

Are the earphones water or sweat resistant?

Yes, they are certified IPX4, which protects against splashes and sweat. However, do not submerge them and keep the charging case away from moisture.

Can I use only one earphone at a time?

Yes, the earphones can operate individually. Remove only one earphone from the case; it will pair automatically in mono mode. To use them in stereo, remove both.

How do I activate voice assistant (Siri/Google Assistant)?

Make sure the voice assistant is enabled on your smartphone. With the earphones connected, press and hold the multifunction (MF) button for about 2 seconds until you hear a beep. You can then give your voice commands.

What should I do if an earphone does not power on or charge?

Check that the charging contacts are clean and dry. Place the earphone correctly in the case; the LED should light up red. If the problem persists, reset the earphones. If nothing works, contact customer service.

Are the earphones compatible with all smartphones?

They are compatible with any device supporting Bluetooth 5.0 or earlier, including iOS and Android smartphones. Make sure your device supports A2DP and HFP profiles for music and calls.

What is the warranty period and how do I activate it?

The warranty is 3 years from the date of purchase. Keep your receipt or invoice as proof. In case of issues, contact customer service by phone (France: 0800904879, Belgium: 080071011) or by email at [e-mail] (France) or [e-mail] (Belgium).

USER MANUAL STSK P4 A1 SILVERCREST

Operation and safety notes

F

ÉCOUTEURS INTRA-AURICULAIRES SPORT TRUE WIRELESS BLUETOOTH®

Warning remarks and symbols used 42

Introduction 45

Intended use 45

Trademark notices. Page 46

Scope of delivery. 47

You will need. Page 47

Description of parts. 48

Technical data 49

Safety notices. 51

Safety instructions for built-in rechargeable batteries. 56

Prior to first use 56

Charging the charging/storage box battery . Page 57

Charging the headphones . Page 58

Operation. 59

Charging/storage box. Page 59

Headphones. Page 60

Turning on the headphones . Page 60

Turning off the headphones . Page 60

Manually turning off the headphones . Page 60

LED status. Page 61

Pairing the headphones to each other. Page 61

Pairing the headphones with a Bluetooth device. 62

Reset. 63

Headphones button functions for music playback... Page 63

Headset for phone calls/Playback control . Page 65

Voice control function with Siri / Google Assistant . Page 66

Cleaning and maintenance.. 67

Storage during periods of non-use. 68

Troubleshooting 68

Disposal. 70

Simplified EU declaration of conformity 71

Warranty 72

Warranty claim procedure. . Page 73

Service. 74

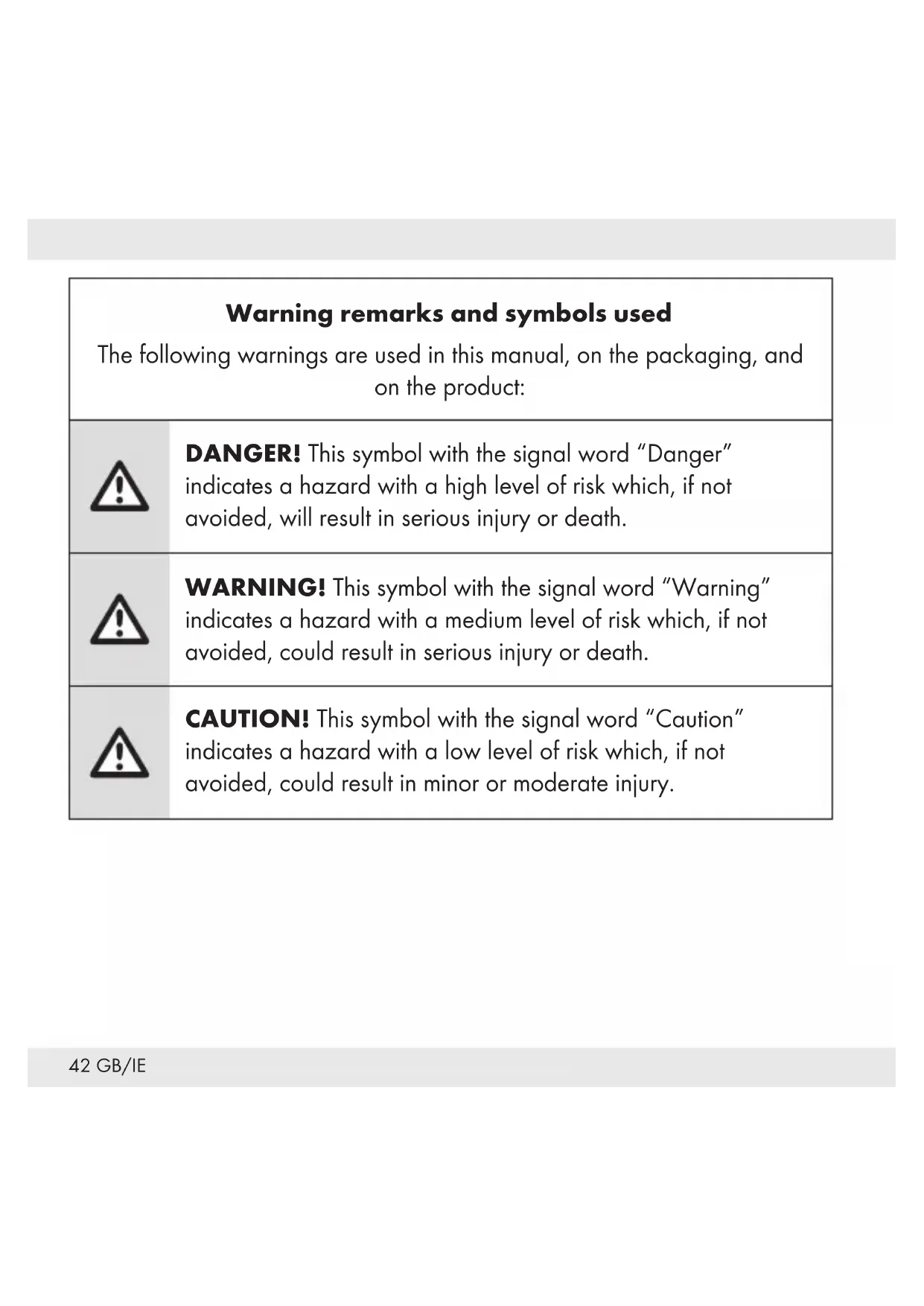

Warning remarks and symbols used

The following warnings are used in this manual, on the packaging, and on the product:

DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

ATTENTION! This symbol with the signal word "Attention" indicates a potential property damage.

NOTE: This symbol with the signal word "Note" provides additional useful information.

WARNING! EXPLOSION HAZARD! A warning with this symbol and word "WARNING! EXPLOSION HAZARD" indicates the potential threat of explosion.

Failure to observe this warning may result in serious or fatal injuries and potential property damage.

Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!

This symbol reminds the user to wear suitable protective hand wear! Follow this warning to prevent hand injury by objects or contact with hot or chemical materials!
A warning with this symbol notifies the user of possible hearing damage. Avoid listening at excessive volumes for prolonged periods.
Direct current/voltage
This symbol means that the operating instructions must be read prior to using the product.
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

TRUE WIRELESS BLUETOOTH® IN-EAR SPORTS HEADPHONES

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

These headphones are a consumer electronics device. The headphones are intended for playback of audio material via a Bluetooth® connection. If the headphones are connected to a smartphone, the headphones can also be used as a headset.

The charging and storage box is intended solely for charging and storing the headphones.

The product is intended for private use only.

Any other use beyond what is specified is not intended. Do not use the product for industrial or commercial purposes.

Any claims for damages resulting from unintended use, improper repairs, unauthorized modifications or the use of unapproved replacement parts are excluded. The user carries the sole risk.

Trademark notices

USBa registered trademark of USB Implementers Forum, Inc.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.
The SilverCrest trademark and trade name is the property of their respective owners.

Any other names and products may be trademarks or registered trademarks of their respective owners.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

If you notice any damage or missing parts, please contact the dealer from whom you have purchased this product.

2 x Headphones (1 x left and 1 x right)
2x Ear cushions - large
2x Ear cushions - medium (pre-installed)
2x Ear cushions - small

1 x Charging/storage box
1 x USB cable (type A to type C)
1 x Quick start guide / Short manual
1 x Instruction manual

You will need

USB voltage source (output voltage 5V ,min. 500mA output current)

Bluetoothplaybackdevice

Description of parts

Before reading, unfold the page containing the illustration and familiar yourself with all functions of the product.

1 Headphones (1 x left and 1 x right)
2a + button
2b - button
3 Multifunction button (MF button)
4 LED
5 Charging contacts
6 Microphone
7 Charging/storage box
8 Charging ports
9 Charging status indicator
10 USB-C charging port
11 USB cable
12 Instruction manual
13 Quick start guide

Technical data

Charging/storage box

USB-C input voltage USB 5 V

USB-C input current 500mA

Rechargeable battery Li-polymer, 3.7 V, 550 mAh, 2.035 Wh

Charging capacity up to 3 complete charge cycles for fully discharged headphones

Charging time of the charging/ approx. 3 hours (complete charging storage boxes' built-in battery cycle)

Headphones

Wireless standard Bluetooth

^ 假 5.0

Supported profile A2DP, AVRCP, HSP, HFP

Frequency band 2402 to 2480 MHz

Max. transmitted power < 20mW

Range approx. 10m

Rechargeable battery

Li-ion, 3.7 V, 85 mAh, 0.32 Wh

Charging time approx. 2 hours (complete charging cycle)

Operating time

Music approx. 7 hours (at medium volume)
Phone approx. 2.5 hours

Ingress protection

IPX4

Operating temperature

+10to+35°C

Humidity (no condensation)

10 to 70% relative humidity

Storage temperature

0 to +40 °C

Dimensions

approx. 51 × 28 × 44 ~mm (headphones)

approx. 75 × 76 × 50 ~mm (charging box)

Weight

approx. 11.6 g (both headphones)

approx. 72 g (charging box)

The specification and design may be changed without notification.

Safety notices

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER! Risk of suffocation! Never leave children unsupervised with the product, its accessories and the packaging materials.

The packaging materials pose a suffocation hazard. Children frequently underestimate the dangers. The packaging materials are not toys.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks.

Do not allow children to play with the product.

• Cleaning and user maintenance shall not be performed by children without supervision.
  The product is not a toy.

WARNING! Choking hazard due to small parts! The product contains small parts that can be swallowed.

DANGER DUE TO DIMINISHED PERCEPTION!

• Do not use the headphones while driving a vehicle or riding a bicycle, operating machinery, or in other situations, where diminished perception caused by ambient noise could endanger you or others. Also observe the laws and regulations of the country in which you use the headphones.

Caution, high sound pressure! Be careful when using the headphones. Using headphones for a long period of time and at high volume can lead to hearing damage to the user. Always set the volume to a low level first and adjust it to a comfortable level. Always use headphones so that the perception of the surrounding noise is guaranteed.

ATTENTION! RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.

The product (headphones and charging box) shall not be opened.

• Keep the charging box away from moisture, dripping and splash water!
• Do not place burning candles or other open fire on or next to the product.
  Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!

If you notice smoke or unusual noise or odour, switch the product off immediately and remove the USB cable.

Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it to prevent short circuits!

• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

WARNING - Radio interference

• Switch the product off on airplanes, in hospitals, service rooms, or near medical electronic systems.
  The wireless signals transmitted could impact the functionality of sensitive electronics.

• Keep the product at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.

The radio waves transmitted could cause interference in hearing aids.
- Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.

The range of the radio waves varies by environmental conditions.
In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded.
The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product.
The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.
The user of the product is fully responsible for correcting interference caused by unauthorised modification of the product (refer to previous two paragraphs).

- Safety instructions for built-in rechargeable batteries

WARNING! RISK OF EXPLOSION! Do not throw the product into fire.

• Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators / direct sunlight.

If rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

• Do not cover the product during operation or charging. Otherwise the product can overheat.
  This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.

Prior to first use

Remove the protective foil between the headphones 1 and the charging/storage box 7.

- Charging the charging/storage box battery

Before first use, the charging/storage box battery must be charged.

Charging via USB

• Connect the charging/storage box via the USB-C charging port 10 and the included USB cable 11 with a USB voltage source with an output current of at least 500mA (e.g. a USB charger or a computer).
  When charging is completed, the 3 charging status indicators light up.

NOTE: The charge status is shown via the charging status indicator 9 on the charging/storage box 7:

LEDs Battery charge status

- Charging the headphones

Before first use, the headphones must also be charged.

i NOTES:

The headphones 1 and the charging/storage box 7 can be charged simultaneously.
The headphones only fit into one of the charging ports 8 respectively.
Make sure that the headphones 1 are completely dry before inserting them into the charging ports 8.
Insert the headphones 1 in the charging ports 8 of the charging/storage box 7.

Charging begins automatically.

The indicator LEDs 4 of the headphones 1 show the current status.

LED Status

Red Charging

White (lights up for approx. 20 s, then OFF)

Fully charged

Off Not charging

Operation

- Charging/storage box

NOTE: The headphones 1 begin charging automatically when at least one head phone is inserted into a charging port 8.

Insert the headphones 1 in the charging ports 8 of the charging/storage box 7.

The current battery capacity status is indicated by the charging status indicator 9 on the charging/storage box:

LEDs Battery charge status

approx. 30%

approx. 60%

approx. 100%

Headphones

- Turning on the headphones

To turn on the headphones, remove them from the charging ports 8.

The headphones emit different sound signals to indicate various conditions, e.g. pairing, disconnecting, battery low, etc.

- Turning off the headphones

To turn off the headphones, insert the headphones in the charging ports 8 of the charging/storage box 7.

- Manually turning off the headphones

To save energy, the headphones turn to off mode automatically when they receive no signal or cannot pair for approx. 5 minutes.
- Turning the headphones to off mode manually: In paired mode, press and hold the MF button 3 for 5 seconds. When the headphones are paired to each other, this turns both headphones to off mode. The Bluetooth connection is ended automatically.

• Briefly press the MF button 3 for approx. 3 seconds to power on the headphones again.

LED status

LED Status

Flashes red/white Waiting for Bluetooth device to pair

Flashes white Headphones paired with Bluetooth device

NOTE: If the headphones have already been paired to each other, the right headphone is already connected to the left and flashes white only.

- Pairing the headphones to each other

To hear sound through both headphones in stereo, they must be paired to each other.

• When you remove the headphones from the charging ports 8, they automatically pair.
  If the headphones do not pair to each other, reset them to the default settings (see "Reset").

When the headphones are paired to each other and are awaiting connection to a Bluetooth device, one of the headphones flashes red/ white and the other headphone flashes white only.

- Pairing the headphones with a Bluetooth device

Remove the headphones from the charging ports 8.
- When the headphones are ready to pair, the indicator LED on one of the headphones flashes red/white.

① NOTE: If the headphones have already been paired to each other, one of the headphones is already connected to the other headphone and flashes white only.

On your Bluetooth playback device, search for a product named STSK P4 A1 and pair with the product. If your Bluetooth device prompts you to enter a password, enter 0000. A signal sounds when pairing is successful.

Reset

To reset the headphones, follow below steps:

• Disconnect the left and the right headphone 1 from a playback device:

• Remove one of the headphones (left or right) from the charging/storage box 7.

Press the MF button 3 3 times in quick succession until the LED 4 briefly lights up bright red.

Insert the previously removed headphone back into the charging/ storage box 7 to complete the reset.

• Remove the other headphone from the charging/storage box 7.

Press the MF button 3 3 times in quick succession until the LED 4 briefly lights up bright red.

Insert this headphone back into the charging/storage box 7 to complete the reset.

Both headphones 1 are now successfully reset.

Headphones button functions for music playback

Set the volume to minimum. Start a playlist on your playback device.
Put on the headphones [1] (Fig. B). Note the labelling on the headphones ( L = left / R = right ).

Adjust the volume using the + button 2a and - button 2b.
The headphones 1 feature following 3 buttons:

Button Function

MF button 3 (on both headphones)	Turning on: Press and hold for approx. 3 seconds. Turning off: Press and hold for approx. 5 seconds. Enabling voice control: Press and hold for approx. 2 seconds. A short signal sounds for confirmation. Starting/pausing playback: Press once.
+ 2a (on right headphone)	Increasing volume: Press once to increase the volume by one level. A signal sounds when the maximum volume has been reached. Skipping to the next track: Press and hold for approx. 2 seconds.
- 2b (on left headphone)	Reducing volume: Press once to reduce the volume by one level. A signal sounds when the minimum volume has been reached. Jumping to the beginning of the track: Press and hold for approx. 2 seconds. Jumping to the previous track: Press and hold for approx. 2 seconds, release briefly, then press and hold for approx. 2 seconds again.

Headset for phone calls / Playback control

You can use the headphones as a headset for phone calls and to control playback.

The table describes operation with a connected smartphone. Other devices may react differently.

Function Action

Answer/end call Briefly press MF button 3.

Reject call Press and hold MF button 3 for approx. 2 seconds.

Briefly press +2a . A signal sounds when the maximum volume has been reached.

Reduce volume Briefly press -2b

End current call and answer waiting
call* Briefly press MF button 3.

Switch between 2 calls (toggle) * Press and hold MF button 3 for approx. 2 seconds (until you hear a beep).

i NOTES:

• These functions must be supported by your mobile service provider.

The ring tone and the caller's voice are rendered through the headphones.

The microphone 6 captures your voice.
Music playback is automatically paused when a call is received. Music continues after the call has been ended.

Voice control function with Siri / Google Assistant

Follow below steps to activate the voice control function:

Activate Siri or Google Assistant on your mobile device.

iOS devices: Complete the Siri setup. Then, use Siri to activate this product's voice control function.

Android devices: Open Google Assistant. Follow Google Assistant's instructions to complete settings before using this product's voice control function.

NOTE: Google Assistant is available on Android 5.0 or above devices.

Activate the Bluetooth function. Pair this product with your mobile device.
Press and hold the MF button 3 for approx. 3 seconds to activate the voice control.
Now you can use the voice control function.

- Cleaning and maintenance

ATTENTION!

Potential damage to the product!

Switch the product off and remove all plugs before cleaning!

• Be sure moisture does not enter the product during cleaning to prevent damage to the product and related repairs.
  Do not use abrasive or solvent-based cleaning agents.
  Only clean the product with a slightly dampened cloth and a mild cleaning agent!
• Carefully remove the ear cushions from the headphones. Clean the ear cushions e.g. under running water. Allow the ear cushions to dry completely before reinstalling them.

Storage during periods of non-use

Store the product in a dry environment, protected from dust and direct sunlight.
Store the headphones in the charging/storage box 7.
Prolonged storage: To prevent battery deterioration, the rechargeable battery has to be charged at least once every 12 months.

Troubleshooting

= Fault
= Possible cause
= Action
= No functions
= Battery drained.
O = Recharge the batteries as described in "Charging the charging/storage box battery" and "Charging the headphones".
= No Bluetooth connection
= Error operating the headphones.
O = Switch the headphones off and on again.
= Bluetooth device error.
O = Separate the connection to the headphones. Reconnect.
O = Check if the headphones work in combination with another Bluetooth device.

= Bluetooth connection error.
O = Move closer to the device connected via Bluetooth.
= No sound
= Error operating the Bluetooth device.
O = Increase the volume on the playback device.
= Bluetooth connection error.
O = Move closer to the device connected via Bluetooth.
O = Disconnect the Bluetooth devices. Reconnect.
= Unable to use all functions
= Error with Bluetooth device.
O = Check whether your Bluetooth device supports all functions.

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Product:

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

roduct is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

- Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY declares that the product TRUE WIRELESS BLUETOOTH INEAR SPORTS HEADPHONES, HG07157, is in compliance with Directive 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 384237_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

C E

WAARSCHUWING - Radiostoringen

LEDs Ladingstatus accu

<30%

<60%

<100%

100%

Oordopjes opladen

LEDs Ladingstatus accu

ca. 30%

ca. 60%

ca. 100%

Oordopies

Oordopjes inschakelen

LED indicatory Status

Červěná Nabíjanie

Biela (svieti pribl. 20 s, potom zhasne)

Uplne nabitá

Vyp. Nenabija sa

Obsluha

Nabijacá odkladaci box

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMCIJA

Servisna telefonska stevilk: 080082034

Garancijski list
