USER MANUAL SBKP 1 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

Black outdoor headphones with adjustable earbuds and black plastic case (no text or symbols visible)

Two views of a black hardcover head with earphones, shown from top and side (no text or symbols visible)

BLUETOOTH®-ON-EAR-KOPFHÖRER/BLUETOOTH® ON-EAR HEADPHONES/CASQUEAUDIO BLUETOOTH® SBKP 1 A1

DE AT CH

BLUETOOTH®- ON-EAR-KOPFHÖRER

Operation and safety notes

NL BE

BLUETOOTH®- ON-EAR-KOPTELEFOON

GB / IE Operation and safety notes Page 22

GEFAHR VON SACHSCHÄDEN

Intended use......Page 23

Warnings used......Page 24

Trademark notices......Page 25

Scope of delivery....Page 25

Parts description......Page 25

Technical data......Page 26

General safety instructions......Page 26

Safety instructions for built-in rechargeable batteries......Page 28

Before use......Page 29

Charging the battery......Page 29

Using the headphones......Page 29

Connecting the headphones to a second Bluetooth® device......Page 30

Clearing paired devices ...... Page 31

Connecting the headphones through audio cable......Page 31

Putting on the headphones......Page 32

Headphones button functions for music playback......Page 32

Headphones button functions as a hands-free device......Page 33

Cleaning Page 34

Storage when not in use Page 34

Troubleshooting Page 35

Disposal Page 36

Simplified EU declaration of conformity......Page 36

Warranty Page 37

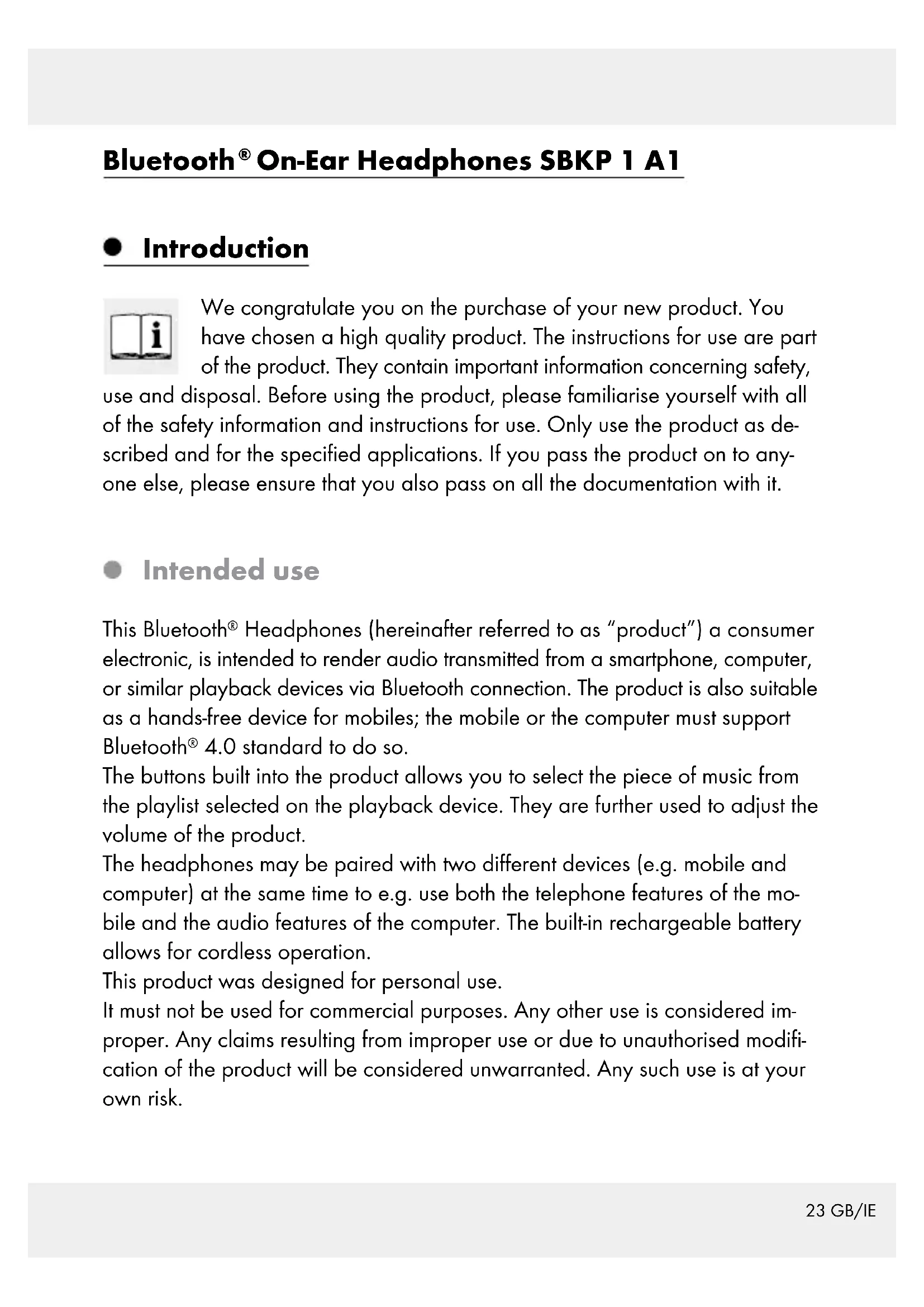

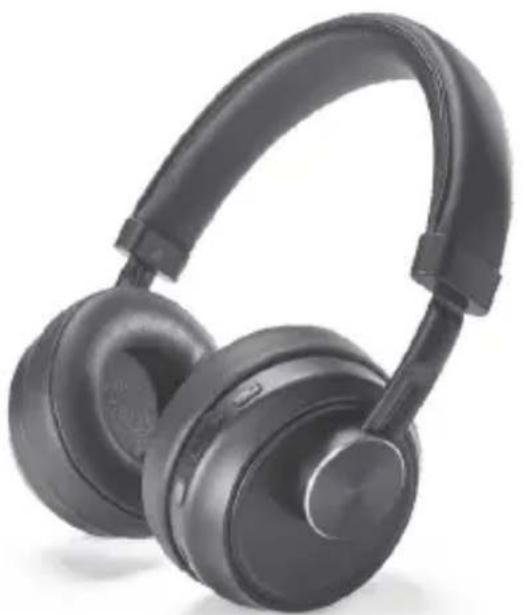

Bluetooth® On-Ear Headphones SBKP 1 A1

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This Bluetooth® Headphones (hereinafter referred to as "product") a consumer electronic, is intended to render audio transmitted from a smartphone, computer, or similar playback devices via Bluetooth connection. The product is also suitable as a hands-free device for mobiles; the mobile or the computer must support Bluetooth® 4.0 standard to do so.

The buttons built into the product allows you to select the piece of music from the playlist selected on the playback device. They are further used to adjust the volume of the product.

The headphones may be paired with two different devices (e.g. mobile and computer) at the same time to e.g. use both the telephone features of the mobile and the audio features of the computer. The built-in rechargeable battery allows for cordless operation.

This product was designed for personal use.

It must not be used for commercial purposes. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered unwarranted. Any such use is at your own risk.

Warnings used

These instructions for use contain the following warnings:

DANGER

A warning with this sign indicates a life threatening situation.

Failure to observe this warning may result in serious or fatal injuries.

■ Follow the instructions in this warning to prevent serious injuries or a danger to life!

WARNING! This symbol with the signal word "WARNING" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.

CAUTION! EXPLOSION HAZARD!

A warning with this symbol and word "CAUTION! EXPLOSION HAZARD" indicates the potential threat of explosion.

Failure to observe this warning may result in serious or fatal injuries and potential property damage.

■ Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!

ATTENTION

A warning with this sign indicates potential property damage.

Failure to observe this warning may result in property damage.

■ Follow the instructions in this warning to prevent property damage.

This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!

A warning with this sign indicates to prevent possible hearing damage, do not listen at high volume level for long period.

NOTE

☐ A note provides additional information to improve product use.

• Trademark notices

-USB is a registered trademark of USB Implementers Forum, Inc.

- The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.

- The SilverCrest trademark and trade name is the property of their respective owners.

Any other names and products may be trademarks or registered trademarks of their respective owners.

- Scope of delivery

NOTE: Take the product and the instruction for use out of the box and remove all packing materials.

1 Bluetooth® Headphones

1 Charging cable

1 Audio cable (3.5 mm)

1 Instructions for use

- Parts description

1 Control panel

2 LED

3 Button

4 Button

5 Button

6 Button

7 Micro-USB charging socket

8 Speakers with ear pads

9 Band

10 3.5 mm socket

11 Microphone

12 Micro-USB plug

13 USB plug

14 3.5 mm audio cable

15 Set of instructions for use

- Technical data

Operating voltage: 5V Direct current via USB

charging socket

Built-in rechargeable battery: 3.7 V rechargeable lithium-ion polymer battery,

400 mAh

Charging time: approx. 2.5 hours

Operating time

(music & phone): approx. 16 hours (at medium volume)

Wireless standard: Bluetooth ^® 4.0

Supported profile: A2DP, AVRCP, HSP, HFP

Range: approx. 10 m

Dimensions: approx. 182 mm x 158 mm x 75 mm (w x h x d)

Weight: approx. 215 g

Operating temperature: 5^ C- 35^ C

Humidity (no condensation): 10%-70%

Storage temperature: 0 °C-40 °C

Frequency band: 2402 MHz–2480 MHz

Max. transmitted power: < 20 mW

Wideband characteristic

voltage (WBCV): ≥ 75 mV

● General safety instructions

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠️ DANGER DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER

Risk of suffocation! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.
- Keep the product away from moisture, dripping and splash water!
- Do not place burning candles or other open fire on or next to the product.
Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
If you notice smoke or unusual noise or odour, switch the product off immediately and remove the USB cable.
■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
Do not throw the product into fire and do not expose to high temperatures.

DANGER

Do not try to open the product! It has no internal parts requiring maintenance.

⚠ WARNING – Radio interference

Switch the product off on airplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics. Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers. The radio waves transmitted could cause interference in hearing aids. Do not place the product near flammable gasses or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire. The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded. The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM. The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such products.

A warning with this symbol is to indicate that always remember that excessive sound pressure or volumes from headphones or earphones can lead to damage to the hearing. Always adjust the volume to a pleasant, not too loud level. If you have adjusted the volume of the headphones to be too high and use that for an extended period, it can damage the listener's hearing.

Safety instructions for built-in rechargeable batteries

■ Never open the product, repairs may only be carried out by qualified personnel.

CAUTION! RISK OF EXPLOSION! Do not throw the product into fire.

- Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators / direct sunlight.

If rechargeable batteries have leaked, avoid contact with skin,
eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical
attention!
- Do not cover the product during operation or charging. Otherwise the product can overheat.
This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.

- Before use

Before use, verify the package contents are complete and undamaged!

- Charging the battery

☐ The battery must be charged prior to first use.
☐TheLED 2 will flash red and headphones sound acoustic signal when the battery is drained. The battery should then be charged as soon as possible.
Plug the micro-USB plug on the charging cable into the micro-USB charging socket 7 on the headphones! Plug the USB plug 13 on the charging cable into the USB port on a PC or a USB adapter (not included).

Note: The LED will remain red whilst charging. Once the battery is fully charged, the LED will remain blue.

Once charging has completed, remove the micro-USB plug from the headphones.

● Using the headphones

☐ Connect the headphones with a communication device.
Place the headphones near a switched on communication device (e.g. mobile or computer).

□ Pairing with a new Bluetooth® device: Hold the ▶ button 3 for approx. 6 seconds until the LED 2 flashes red and blue and acoustic signal sounds. This indicates the headphones are now in pairing mode, which remains active for 5 minutes. The headphones will switch off if they do not detect a Bluetooth® device to connect to and sound 4 beeps.
Now connect your communication device (mobile phone or computer) via Bluetooth® with the headphones. Please refer to the notes in the instructions for your communication device. Select the entry "SBKP 1 A1" from the list of devices detected by your computer or mobile.
Once the connection has been established, the LED will briefly flash blue twice every 3 seconds.
☐ Please note, your communication device must support Bluetooth® Standard 4.0 to use all options.
If you come into range of the paired device with the headphones switched on, a Bluetooth® connection will automatically be established.
☐ You may need to approve the connection on the communication device. Please refer to the instructions for use of the communication device on this topic!
☐ If you leave the range of your communication device with your headphones, the LED will flash blue once every 2 seconds. If the connection is not restored within 5 minutes, the headphones will switch off.
The headphones may be manually switched off by holding the ▶□□ button 3 for 3 seconds until acous tic signal sounds and the LED goes out.

Connecting the headphones to a second Bluetooth® device

The headphones may be connected to two Bluetooth® communication devices at the same time. If the headphones are already connected to a device, follow the steps below to connect to the second device:

□ Activate multipoint mode by pressing and holding button 6 for 2 seconds. Acoustic signal sounds. The first communication device (mobile phone or computer) is disconnected.

Now connect to the second communication device via Bluetooth® with the headphones. Please refer to the notes in the instructions for your communication device. Select the entry "SBKP 1 A1" from the list of devices detected by your computer or mobile. The second communication device is connected.

Briefly press button 6 and acoustic signal sounds. The first communication device is connected again. Now, both communication devices are connected to the headphones simultaneously.

- Clearing paired devices

In paired mode (the LED will briefly flash blue twice every 3 seconds), press and hold ✕ button 6 for 2 seconds and acoustic signal sounds.

The headphones is now in pairing mode. The LED flashes red and blue.

Simultaneously pressing and holding button 6 and +button 4 for approx. 2 seconds and two beeps sound.

☐ The memory in the headphones is cleared and it will not auto-connected to the previous paired communication device.

Connecting the headphones through audio cable

☐ Insert the 3.5 mm plug at one end of audio cable to 3.5 mm socket 10.

☐ Insert the 3.5 mm plug at other end of audio cable to 3.5 mm socket of your playback device.

The headphone will be auto power off if it has been power on before and the LED 2 light off.

☐ Start a playlist on your playback device. You can only adjust the music volume on the playback device.

- Putting on the headphones

The headphones can be adjusted to your head size, if necessary:

The speakers 8 are secured to the band 9 with a metal rail for this purpose. Adjust these to ensure optimal comfort.

Please follow the marking "L" (= left) and "R" (= right). Put on the headphones so the control panel 1 is on the right.

Headphones button functions for music playback

☐ Start a playlist on your playback device and set the volume to minimum first. After putting the headphones on select a pleasant volume. You can adjust the headphones volume with the control panel 1. Music is played back through the speakers 8.
☐ The control panel has 4 buttons. These control the following functions:

Button Function
	- Press and hold to switch the device on / off.- Press once to play / stop music playback.
	- Press once to increase the volume by one level. One signal tones will sound when the maximum volume has been reached.- Press and hold approx. 2 seconds to skip to the next track.
	- Press once to reduce the volume by one level.- One signal tone will sound when the minimum volume has been reached.- During playback, press and hold approx. 2 seconds to jump to the previous track.

Button Function

• In paired mode (LED flash blue twice every 3 seconds), press and hold for approx. 2 seconds and acoustic signal sounds to change to pairing mode to allow another communication device for connection.
• In pairing mode (LED flash red and blue), briefly press and long acoustic signal sounds to connect to the previous paired communication device again.

Headphones button functions as a hands-free device

You may also use the headphones for telephone calls when used with a communication device which supports this function.

If your communication device supports the Bluetooth ^® standard 4.0, you will be able to use the following functions:

Function Action
Answer/end call	Briefly press the ▷□□ button 3
Ignore call	Hold the ▷□□ button 3 approx. 2 seconds until two beep sounds
Redial	Briefly press the ▷□□ button 3 twice
Increase volume	Briefly press + button 4 (one signal tone will sound when the maximum volume has been reached)
Reduce volume	Briefly press = button 5 (one signal tone will sound when the minimum volume has been reached)
Send the call from the headphones to the mobile	Press and hold the ▷□□ button 3
Send the call from the mobile to the headphones	Press and hold the ▷□□ button 3
End the current call and answer call waiting*	Briefly press the ▶▶▶ button 3
Switch between two calls (toggle)*	Briefly press ▶▶▶ button 3 twice until it beeps

*These functions must be supported by your mobile service provider.

• When there is incoming call, the LED will briefly flash blue four time per second.
• The ringer and the caller's voice are rendered through the speakers 8.
• Music playback is automatically paused when a call is received.
  -Themicrophone 11 records your voice.
• Music continues after the call has been ended.

- Cleaning

ATTENTION

Potential damage to the product!

■ Switch the product off and remove all plugs before cleaning!
- Be sure moisture does not enter the product during cleaning to prevent damage to the product and related repairs.
☐ Only clean the product with a slightly dampened cloth and a mild spray!

● Storage when not in use

Store the product in a dry environment, protected from dust and direct sunlight.
☐ To prevent battery deterioration, at longer storage the rechargeable battery has to be charged regularly.

- Troubleshooting

● = Fault

● = Possible cause

O = Action

No functions

Battery drained.

○ Recharge the battery as described in "Charging the battery".

● No Bluetooth connection

Error operating the headphones.

○ Switch the headphones off and on again.

- Communication device error.

Separate the connection to the headphones and connect again.

- Check if other devices using Bluetooth standard 4.0 work with the communication devices.

Bluetooth® connection error.

○ Move closer to the devices connected via Bluetooth®.

No sound

The headphones volume is set to Minimum.

Press the button 4 to increase the volume.

Error operating the communication device.

○ Increase the volume on the playback device.

Bluetooth® connection error.

○ Move closer to the devices connected via Bluetooth®.

○ Disconnect Bluetooth® and reconnect.

● Unable to use all functions

- Communication device error.

- Verify your communication device supports all functions.

- Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

● Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY declares that the product (Bluetooth® On-Ear Headphones SBKP 1 A1, HG04125A / HG04125B) is in compliance with Directive 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Introduction......Page 39

condensation): 10%-70%

large bande (WBCV) : ≥ 75 mV

⚠ WAARSCHUWING – draadloze interface

$$ (L \times A \times P) $$
