USER MANUAL IAN 273507 SILVERCREST

Operating instructions

NL DE

BLUETOOTH®

HOOFDTELEFOON

Gebruiksaanwijzing

ES

AURICULARES BLUETOOTH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 17

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction 18

Information about these operating instructions. 18

Notes on trademarks 18

Limitation of liability 18

Intended use 18

Warnings 19

Safety. 20

Risk of hearing damage 20

Risk of accidents 20

Notes on the radio interface 20

Basic safety instructions 21

Use 22

Package contents 22

Disposal of the packaging 22

Operating elements 23

Handling and use 23

Charging the battery 23

Wearing the headphones. 24

Pairing the headphones with a Bluetooth device 24

Controlling music playback 25

Telephone functions 26

AUX IN mode. 26

Speaker mode 27

Storing the headphones 27

Cleaning 28

Storage when not in use. 28

Troubleshooting 28

Fault causes and remedies 28

Disposal 29

Appendix 29

Technical data 29

Notes on the EU Declaration of Conformity. 30

Kompernass Handels GmbH warranty 30

Service 32

Importer 32

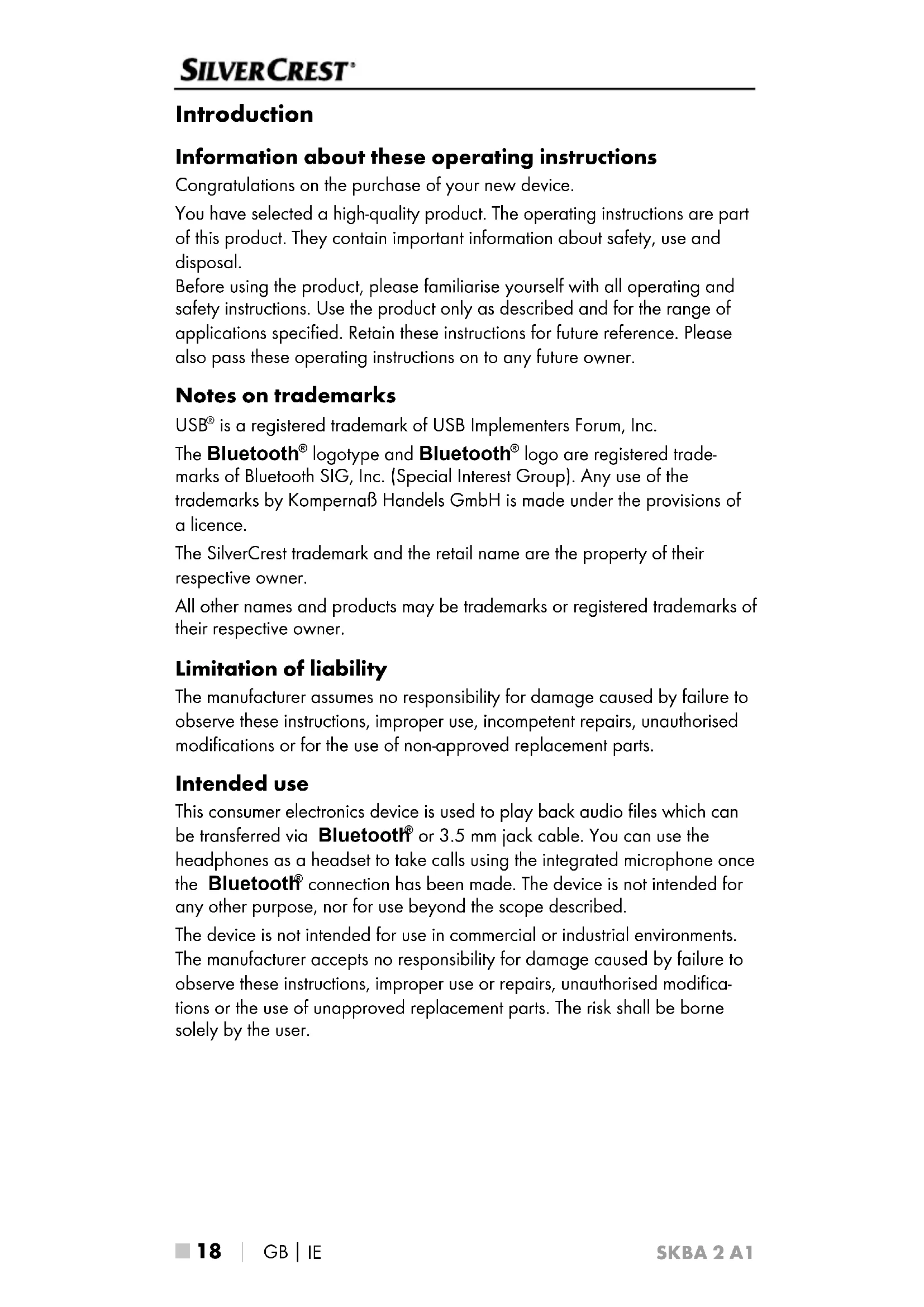

Introduction

Information about these operating instructions

Congratulations on the purchase of your new device.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, use and disposal.

Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner.

Notes on trademarks

USB® is a registered trademark of USB Implementers Forum, Inc.

The Bluetooth® logotype and Bluetooth® logo are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group). Any use of the trademarks by Kompernaß Handels GmbH is made under the provisions of a licence.

The SilverCrest trademark and the retail name are the property of their respective owner.

All other names and products may be trademarks or registered trademarks of their respective owner.

Limitation of liability

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Intended use

This consumer electronics device is used to play back audio files which can be transferred via Bluetooth or 3.5 mm jack cable. You can use the headphones as a headset to take calls using the integrated microphone once the Bluetooth connection has been made. The device is not intended for any other purpose, nor for use beyond the scope described.

The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.

Warnings

The following types of warning are used in these operating instructions:

DANGER

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in injuries or death.

Follow the instructions in this warning notice to prevent injury.

CAUTION

A warning notice of this hazard level indicates a risk of property damage.

Failure to avoid this situation could result in property damage.

Follow the instructions in this warning notice to prevent material damage.

NOTE

A note provides additional information that makes handling the device easier for you.

Safety

This section contains important safety instructions for using the headphones. These headphones comply with statutory safety regulations. Improper use may result in personal injury and property damage.

Risk of hearing damage

DANGER

Risks from extremely high volume levels!

Loud music can lead to hearing damage.

• Avoid listening to music at an extremely high volume, especially over long periods of time, when using these earphones.

Risk of accidents

DANGER

Risk of impaired perception!

• Acoustic warning and indication signals and ambient noise can sound different while you are wearing these headphones. Make yourself aware of how these signals deviate in their sound so that you can recognise the signals in the appropriate situations.
• Do not use the headphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the headphones.

Notes on the radio interface

Switch off the appliance if you are in an aeroplane, hospital, operating theatre or in the vicinity of a electronic medical system. The transmitted radio waves can affect the functionality of sensitive devices. Keep the device at least 20~cm away from a pacemaker or implanted defibrillator, as the proper functioning of the pacemaker or the implanted defibrillator could be affected by radio waves. The transmitted radio waves can cause noise interference in hearing aids. Do not use the unit in the presence of flammable gases or in a potentially explosive atmosphere (e.g. in a paint shop) while the radio component is activated as the transmitted radio waves can cause an explosion or ignite a fire. The range of the radio waves is dependent on the environment and the ambient conditions. Data transmissions via a wireless connection can be intercepted by unauthorised third parties.

Basic safety instructions

To ensure safe operation of the headphones, follow the safety guidelines set out below:

• Check the headphones for visible external damage before use. Do not operate damaged headphones or headphones that have been dropped.

• Protect the cables against damage, for example caused by sharp edges, hot areas, clamping or crushing.

If the cables or connections are damaged, have them replaced by authorised specialists or Customer Service.

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not play with the device. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children.

There is a risk of suffocation!

The headphones should only be repaired by authorised specialist personnel or the customer service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.
Repairs to the headphones during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise, no warranty claims will be held for any subsequent damages.
- Do not make any unauthorised modifications or alterations to the headphones. This device may not be opened by the user.
Ensure that the charger cable is not stretched tightly or kinked.
- Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.
DANGER! Do not operate the device close to naked flames (e.g. candles) and do not place burning candles on or next to the device. This will help to prevent fires.
The device may heat up while it is charging. Place the headphones in a well-ventilated location during the charging process and do not cover it.
- Protect the device from penetration by moisture and liquids. Never submerge the device in water or place objects filled with liquids (e.g. vases) next to the device.

SILVERCREST

• Switch the device off immediately and disconnect any connected cables from the device if you hear any unusual noises, smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.

DANGER! The device has an integrated lithium-polymer battery. Improper use of lithium-polymer batteries can cause fires, explosions, leakages of hazardous materials or other hazards! Do not throw the device into an open fire.

Comply with all restrictions or prohibitions on use for battery-powered devices in locations with specific hazard risks, e. g. petrol stations, aeroplanes, hospitals, etc.

Use

Package contents

The package contents include the following components (see fold-out page for illustrations):

• Bluetooth Headphones
• Charging cable (Micro USB to USB)
• Audio cable (3.5 mm jack plug)
  These operating instructions (symbol)
  Unpack all parts of the device from the packaging and remove all packaging materials.

NOTE

• Check the package for completeness and signs of visible damage.
  If any items are missing or damaged as a result of defective packaging or transportation, please contact the Service Hotline (see section "Service").

Disposal of the packaging

The packaging protects the headphones from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

Operating elements

(See fold-out page for illustrations)

1 Adjustable headband
LED (speaker mode)
3 Slider
4 PAIRING button
5 1/H/c button
Right speaker
7 + button
8 1/ button
Micro-USB charging port (POWER INPUT)
10 Operating/charging LED
11 AUX IN connection socket (3.5 mm jack)
12 Microphone
13 Right earpiece
14 Left earpiece
Left speaker
16 Charging cable (micro USB to USB cable)
17 Audio cable (3.5 mm jack plug)
18 Operating instructions

Handling and use

Charging the battery

Before using the headphones, the integrated battery must be completely charged.

CAUTION

• Only charge the headphones in dry indoor spaces.
  Always use the supplied charger cable to charge the headphones!
  Always disconnect the charger cable 16 when charging is complete!

Make sure that the headphones are switched off. To switch off the headphones, press and hold the / 串 / 串 button 5 until you hear a rising series of beeps and the operating/charging LED 10 goes out.
Connect the USB plug on the charger cable to a PC or to a USB power supply.
Connect the micro USB plug of the charger cable 16 to the micro USB charging socket (POWER INPUT) 9 of the headphones.

NOTE

The operating/charging LED 10 lights up orange during charging. When the battery is fully charged, the operating/charging LED switches off.
- Charging takes about 3.5 hours at a charging current of 500mA . When the battery is fully charged, you can play back music for about 20 hours at a medium volume in headphone mode or for up to 5 hours in speaker mode. The playback time may vary depending on usage (volume).
- When the battery is empty, you will hear two beeps at an interval of two minutes, and the operating/charging LED 10 flashes three times orange every 15 seconds. The headphones then switch off automatically.

Wearing the headphones

When putting the headphones on, please note the side markings "R" (right) and "L" (left) on the inside of the head band 1.
Adjust the headband ① so that it fits your head comfortably and the earpieces 13 + 14 cover your ears.

Pairing the headphones with a Bluetooth® device

Before you can use the headphones with the Bluetooth® function, you must pair it with a compatible Bluetooth® device.

To switch on the headphones, press and hold the button until you hear a rising series of beeps and the operating/charging LED lights up violet for 2 seconds. Afterwards, the operating/charging LED flashes blue once every 3 seconds.
Press and hold the PAIRING button 4 until the operating/charging LED 10 flashes alternately orange and blue to activate pairing mode.
Set the Bluetooth playback device so that it scans for Bluetooth® devices. A detailed description of how to do this can be found in the operating manual for your Bluetooth® playback device.
Select the entry SKBA 2 A1 from the list of found devices on your Bluetooth® playback device and, if required, enter the code 0000 to connect the two devices. If the pairing is successful, you will hear a rising series of beeps and the operating/charging LED ⑩ flashes blue twice at 3-second intervals.

NOTE

After you have successfully paired the headphones with a Bluetooth playback device, they will automatically try to connect to this device the next time you switch them on. Automatic reconnection only works if you have not terminated the Bluetooth® connection of the devices manually beforehand.
- Ensure that the headphones are no more than 10 metres away from the Bluetooth® playback device. Make sure that there are no barriers or electronic devices placed between them.
If no connection can be made within 10 minutes, pairing mode ends and the headphones switch off.

To terminate the Bluetooth connection, either disable the Bluetooth® function on the Bluetooth® playback device or hold down the PAIRING button for approximately 2 seconds until you hear a rising series of beeps, and the operating/charging LED 10 flashes red and blue. The headphones will return to pairing mode.
Switch the headphones off to deactivate the Bluetooth To switch off the headphones, press and hold the / / button 5 until you hear a rising series of beeps and the operating/charging LED 10 goes out.

Controlling music playback

The following music playback functions are only available when the headphones and the playback device are connected via Bluetooth®.

Some smartphones, music apps or music players may not support all functions.

Button Function
①/②③	Press briefly to play/pause the music.
+ / -	Press briefly to increase the volume. When you reach the maximum volume you will hear a beep. Press and hold to jump to the next track.
- / -	Press briefly to decrease the volume. Press and hold to jump back to start of the track. Press and hold again within 2 seconds to jump to the previous track.

Telephone functions

The following telephone functions are only available when the headphones and the playback device are connected via Bluetooth®. Some smartphones may not support all functions.

Make a call

Use your smartphone to dial the required telephone number. The call is automatically transferred to the headphones.
Speak into the device microphone 12 to make your call.

Accept/reject/end a call

NOTE

• If you are listening to music and receive a call, the playback will be paused until the call is ended and you will hear the ringtone in the headphones. After finishing the call, the playback will be resumed automatically.
• You can accept/reject calls via the headphones or your smartphone. The sound is automatically played back through the headphones.
• You can switch the audio source at any time via your smartphone. To do so, please follow the operating manual of your smartphone.

按钮 5	Function
Press 1 x (for incoming call). Accept call
Press and hold for 2 seconds, then release (for incoming calls)	Reject call
Press 1 x (during call) End call
Press 2x Redial

AUX IN mode

You can use the supplied audio cable to connect the headphones to non-Bluetooth®-capable devices. In AUX IN mode, the headphones behave like normal cable-connected headphones and can even be used with an empty battery. The Bluetooth® function is deactivated and the buttons on the headphones do not function. Speaker mode can be switched on in AUX IN mode as long as the battery is sufficiently charged.

Make sure that the headphones are switched off. To switch off the headphones, press and hold the / / button 5 until you hear a rising series of beeps and the operating/charging LED 10 goes out.

Connect the audio cable ① to the AUX IN ① connection socket on the headphones.

Connect the audio cable 17 to the audio output (e.g. headphone jack) on the playback device.

Switch on the playback device and set the volume to minimum.

Put on the headphones as described in the section "Wearing the headphones".

Set the desired volume on the playback device.

Speaker mode

You can also use the headphones as mobile speakers.

In Bluetooth® mode

Connect the headphones with a playback device as described in the section "Pairing the headphones with a Bluetooth device".

Move the slider switch to the position. The blue LED 2 indicates that speaker mode is activated.

Move the slider switch to the position to deactivate speaker mode.

In AUX IN mode

If you are using a playback device in Bluetooth mode, ensure that the Bluetooth function on the playback device is deactivated before you connect the headphones with the audio cable 17.

Connect the headphones to a playback device as described in the section "AUX IN mode".

Move the slider switch to the position.

Press the button for about 2 seconds until the operating/ charging LED 10 flashes blue and the LED 2 lights up blue. Speaker mode is now activated.

Move the slider switch to the position to deactivate speaker mode.

Storing the headphones

Your headphones are fitted with swivelling earpieces, allowing them to be folded and stored without taking up much space.

Proceed as follows to fold the headphones:

Swivel both earpieces 13 + 14 so that they are inside the headband You can now store the headphones in a space-saving way.

Cleaning

CAUTION

• Do not allow any liquids to penetrate interior of the headphones. This could cause irreparable damage to them.
• Do not use aggressive or abrasive cleaning agents, as these can damage the device surfaces.
  Clean the outer surfaces of the headphones with a slightly damp cloth.

Storage when not in use

Store the headphones in a dry environment.
To ensure a long battery life, charge the battery at regular intervals.

Troubleshooting

Fault causes and remedies

The following table will help you to identify and rectify minor malfunctions:

Fault Possible cause Remedy
Headphones does not switch on.	The integrated battery is not charged.	Charge the battery (see section Charging the battery).
The Bluetooth® connection cannot be established.	Your Bluetooth® devices may not be compatible.	Check the settings on your Bluetooth® device.
	Bluetooth® transmission is not activated on your playback device.	Switch on Bluetooth® transmission on your playback device. Please refer to its operating manual for more information.
	The distance between the headphones and the playback device is too great.	Ensure that the headphones is no more than 10 metres away from the playback device.
You hear no sound in your headphones.	The playback device is not switched on.	Switch on the playback device.
	The volume control of the playback device is set to the minimum volume.	Increase the volume at the playback device.
Sound is only coming from one side of the headphones.	The stereo balance control on the playback device is incorrectly adjusted.	Adjust it to the setting you desire.

NOTE

If you are unable to resolve the problem by taking any of the aforementioned steps, please contact the Customer Service department.

Disposal

The crossed-out wheelie bin means that this product is subject to the European Directive 2012/19/EU and must not be disposed of in regular household waste. The product must be taken to a special collection point for electric and electronic devices. The integrated rechargeable battery in this appliance cannot be

removed for disposal.

This type of disposal is free of charge for the user. It contributes to the protection of the environment, your personal health and valuable raw materials.

Your municipal administration or nearest collection point can provide more information on waste disposal.

Appendix

Technical data

Headphones
Operating voltage/current	5 V 500 mA via USB charging port
Bluetooth® specifications	Version 4.1 (range of up to 10 metres)
Frequency band 2,4 GHz
Transmission output < 10 dBm
Supported Bluetooth® profiles	A2DP*, AVRCP*, HFP and HSP *if supported by the smartphone
Frequency response	100 Hz - 16 kHz at a limit of -20 dB
Impedance 32 Ω ± 4 Ω
Wide band characteristic voltage (WBCV)	approx. 200 mV +/- 10 %
Integrated battery (lithium polymer) 3.7 V / 1000 mAh
Operating time in headphones mode	approx. 20 h (music playback at a medium volume)
Charging time approx. 3.5 hours
Weight approx. 275 g
Operating temperature +5°C to +35°C
Storage temperature +0°C to +40°C
Humidity (no condensation)	≤ 75%

External speaker

Output power 2 x approx. 1 W RMS @ 10% THD

Impedance 4 ± 1

Frequency response 180Hz - 20kHz

Operating time in speaker mode

approx. 5 h (music playback at a medium volume)

Notes on the EU Declaration of Conformity

This device complies with the essential requirements and other relevant provisions of the RE Directive 2014/53/EU and the RoHS Directive 2011/65/EU.

You can download the complete EU conformity declaration from: www.kompernass.com/support/288242_DOC.pdf.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 288242

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Table des matieres

Introduction 34

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding. 50

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Uvod. 66

Informace k tomuto navodu k obsluze 66

Informace o ochrannych známkach 66

Omezeni ručeni 66

Pouziti v souladu s urcenim. 66

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NÉMECKO

www.kompernass.com

Indices

Introduccion. 82

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Indices

Introducao 98

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
