NL Pure 10x42 - Binoculars SWAROVSKI OPTIK - Free user manual and instructions

Product Type	Binoculars
Brand	Swarovski Optik
Model	NL Pure 10x42
Magnification	10x
Objective diameter	42 mm
Focusing	Central focusing wheel
Diopter adjustment	Adjustment ring with zero position
Eyecups	Rotating, 4 positions (with/without glasses)
Interpupillary distance	Adjustable for circular image
Included accessories	Functional pouch, cleaning cloth, soap, brush
Serial number	Under the diopter adjustment, on the back
Warranty	10 years international (terms apply)
Country of manufacture	Austria (Absam)
Repairs	Only by SWAROVSKI OPTIK or its authorized network
Optics cleaning	Brush, blowing, microfiber cloth
Body cleaning	Soap and brush provided, rinse with clean water
Storage	In the pouch, ventilated, dry place
Safety	Never look directly at the sun
Use with glasses	Eyecup in position B (pushed down)
Strap attachment	Bayonet system with rotating button

Frequently Asked Questions - NL Pure 10x42 SWAROVSKI OPTIK

How to attach the strap of the NL Pure binoculars?

Press the button, turn it 90° counterclockwise, remove the shaft, pass the strap, then reinsert the shaft and turn clockwise until it clicks. Check that it is securely locked.

How to adjust the eyecups for comfort?

Turn the eyecups counterclockwise for position A (without glasses) or clockwise for position B (with glasses). There are two intermediate positions C and D for fine adjustment.

How to perform the diopter adjustment?

Close the right eye, focus with the left eye using the central wheel. Then open the right eye, close the left, and adjust the diopter ring until sharp. For identical vision, set the ring to zero.

How to clean the binocular optics?

First remove large particles with the provided brush, blow gently, then wipe with the microfiber cloth. Do not use chemicals. For stubborn dirt, the eyecups can be unscrewed for thorough cleaning.

Where is the serial number located on the binoculars?

The serial number is engraved on the back of the binoculars, under the diopter adjustment. It is useful for product registration and repair requests.

What is the warranty of the Swarovski Optik NL Pure binoculars?

Swarovski Optik offers a 10-year international warranty from the date of purchase, covering material and manufacturing defects. The first 5 years include labor. Wear parts (eyecups, strap, etc.) are excluded.

Can I use the binoculars with prescription glasses?

Yes, set the rotating eyecups to position B (pushed all the way down clockwise) to have the eye at the correct distance. There are also two intermediate positions for optimal comfort.

How to maintain the binocular body?

Use the provided soap and brush. Close the lens caps, wet the brush, apply soap in circular motions, rinse with clean water and dry thoroughly. Never clean the optics with this brush.

What to do if the image is not sharp?

First check the focus with the central wheel. If the image remains blurry on one side, adjust the diopter. Also ensure the interpupillary distance is correct (no shadow). As a last resort, clean the lenses.

How to store the binoculars when not in use?

Store them in the carrying case, in a well-ventilated and dry place. If they are wet, dry them before storing. In tropical regions, use an airtight container with a desiccant (silica gel).

USER MANUAL NL Pure 10x42 SWAROVSKI OPTIK

SPEND ONE MINUTE. EARN ONE YEAR

SPEND ONE MINUTE. EARN ONE YEAR

Register at SWAROVSKIOPTIK.COM to enjoy all the benefits of MY ACCOUNT.

• We will extend the warranty by one year, free of charge.*
• Keep track of all your SWAROVSKI OPTIK devices and purchase dates.
  If your product requires servicing, we can quickly call up the key information and ensure that we provide fast, efficient assistance.
• You can conveniently initiate repair orders for your registered products.

*When you register a product, we will extend its warranty in line with our warranty conditions by one year (warranty card also available for download). Electronics are excluded from the extended warranty.

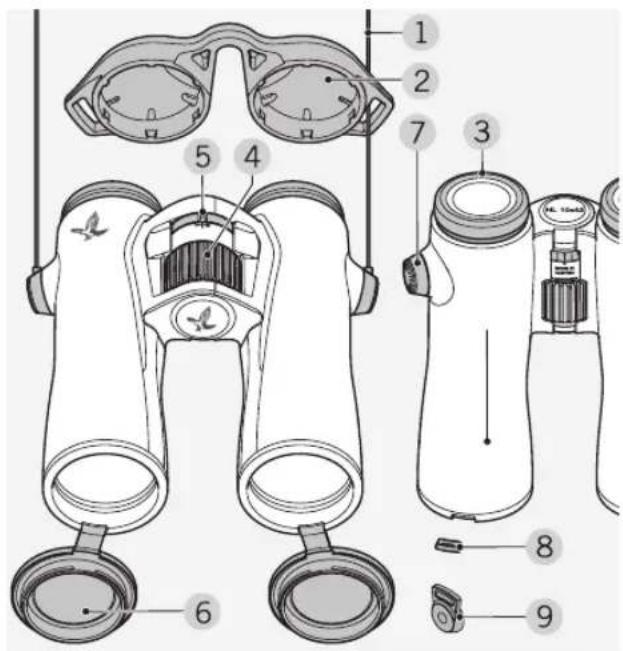

1. OVERVIEW

1 Carrying strap
2 Eyepiece cover
3 Twist-in eyecup
4 Focusing wheel
5 Dipter adjustment

Objective lens cover
7 Trap connector cover
8 Objective lens cover filler piece
9 Trap loop connector

Supplied with:

Functional side bag, cleaning cloth, soap, brush

16

N.PURE/DE

The NL Pure is not supplied with the strap attached. The strap and other accessories are quick and easy to attach when required.

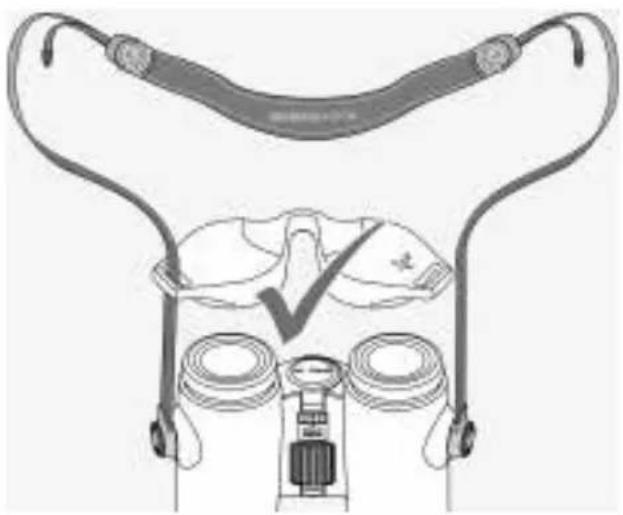

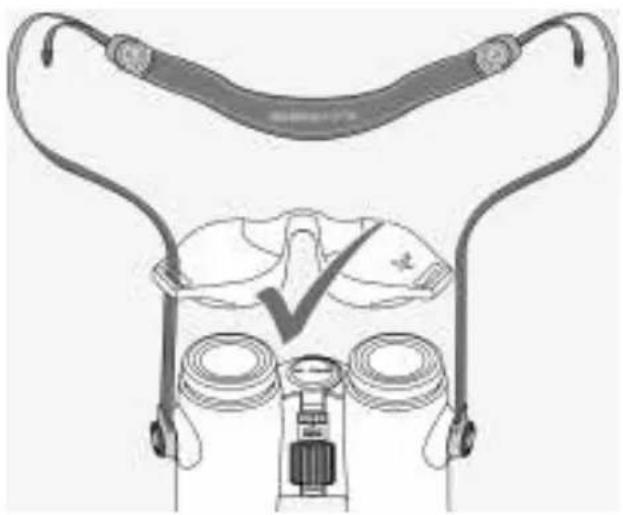

2. ATTACHING THE STRAP

Press on the knob and rotate it counterclockwise (90^)

Pull the knob out.

Remove the pin from the ring.

If you want to fit a rainguard or other accessory, pull the strap through the eyelet of the cover.

Then press the pin into the strap until it clicks.

Insert the knob in the designated place on the binoculars.

NL PURE/DBINLPURE/EN

Push the knob in firmly and rotate slightly clockwise.

Release the pressure from the pin and continue to turn it clockwise until it clicks.

Note:

The pin is securely in place once you can no longer turn it without pressure.

3. OPERATION

There are different setting positions to choose from, offering a different distance from the eye to the eyepiece lens. This allows you to adjust the eyecups separately to the position that suits you.

Pos. A: Starting position without spectacles: Turn the eyecups counterclockwise to the full extent.

Pos. B: Starting position with spectacles: Turn the eyecups clockwise as far as they will go.

Pos. C and D: There are two alternative intermediate stages for observing with and without spectacles.

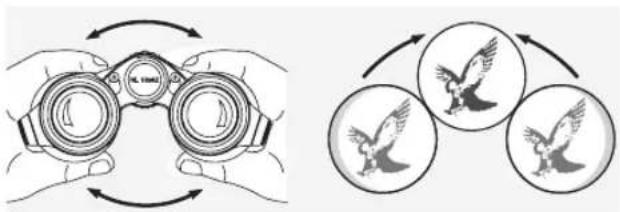

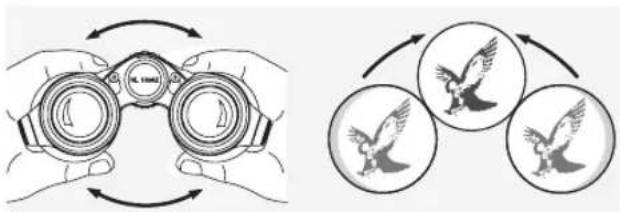

3.2 ADJUSTING THE DISTANCE BETWEEN THE EYEPIECES

To see a single round image, adjust the two halves of the binoculars until no irritating shadows can be seen.

3.3 DIOPTER ADJUSTMENT

To ensure optimum image quality, adjust the focus to compensate for any differences between your left and right eye.

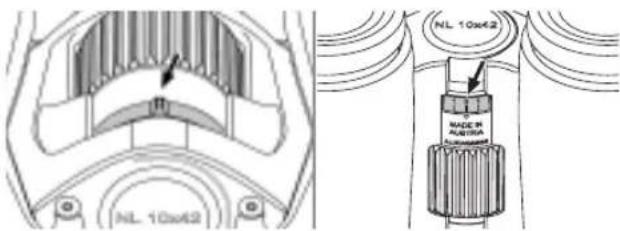

How to adjust if both eyes have equal vision

If you can see equally well with both eyes, make sure the diopler adjustment is set to zero. You can feel the protrusion on the adjusting ring engage in the zero position and the scale on the back of the binoculars corresponds to the index.

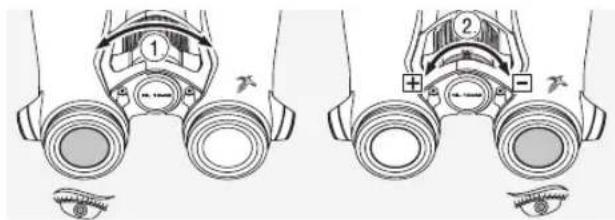

How to adjust if your eyes are different strengths

Look through the left eyepiece with your left eye. Select an object and rotate the focusing wheel until it is sharply focused. Now look at the same object through the right eyepiece with your right eye and adjust the diopter adjustment wheel until it is sharp.

3.4 ADJUSTING THE FOCUS

Turning the focusing wheel allows you to focus on any object from the shortest focusing distance (see technical data sheet) to infinity.

4. REMOVIDING THE OBJECTIVE LENS COVER

1. Open the objective lens cover.

2. Pull the lens cover firmly downwards.

3. Fit the filler piece into the metal ring. When you hear a click, this means that it is attached.

Note:

When you want to replace the lens cover, slide the filler piece out of the metal ring with your thumb and then repeat Step 3 with the lens covers.

5. GENERAL INFORMATION

5.1 SERIAL NUMBER

You will find the serial number of your NL Pure binoculars on the back under the diopter adjustment.

5.2 ADDITIONAL INFORMATION

For more details and tips visit: SWAROVSKIOPTIK.COM.

6. CARE AND MAINTENANCE

6.1 LENS-CLEANING CLOTH

With the included microfiber lens-cleaning cloth you can clean even the most sensitive glass surfaces. It is ideal for objective lenses, eyepieces, and eyeglasses. Please keep the cloth clean, as dirt can damage the lens surface. Simply wash it in lukewarm soapy water and leave to air dry. Please only use it for cleaning glass surfaces.

6.2 CLEANING

We attach great importance to ensuring all elements and surfaces are very easy to clean.

Cleaning the optics. To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free from dirt, oil, and grease. First brush off any larger particles of dirt with an optical lens brush. Then breathe gently on the lens and polish it with the cleaning cloth to remove any remaining dirt. If it is very dirty (e.g. with sand), the twist-in eyecups can be completely unscrewed, making it very easy to clean.

22

N.PURE/DE

Cleaning the protective housing. Use the soap & brush kit (supplied). Close the covers on the eyepiece and objective lenses. Moisten the brush and apply the soap using circular movements to gently clean the housing. Rinse the binoculars with clean water and dry with care. If the optics become wet, dab them dry with a clean cloth to prevent scratching. Rinse the brush thoroughly and leave the soap & brush kit to dry.

Note:

If you clean your binoculars outdoors, please ensure the soapy water does not contaminate the natural water cycle.

6.3 STORAGE

Keep your binoculars in their bag in a well-ventilated place.

If the binoculars are wet, they must be dried first.

NL PURE/DBINLPURE/EN

In tropical areas or areas with high humidity, it is best to store them in an airtight container with a moisture-absorbing agent (e.g. silica gel).

7. SAFETY RECOMMENDATIONS

Never look directly at the sun through the device as this could seriously damage your eyes.

Never look through the device while walking as you may overlook obstacles.

Protect your device against knocks.

Repairs and servicing must only be carried out by SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America, otherwise your warranty will be void.

MERCI D'AVOIR CHOISI
CE PRODUIT DE LA
MAISON SWAROVSKI
OPTIK. POUR TOUTE
QUESTION ADRESSEZ-VOUS
A VOTRE DETAILLANT
OU CONTACTEZ-NOUS
DIRECTEMENT SUR
SWAROVSKIOPTIK.COM.

All the specifications given are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.

PRENEZ UNE MINUTE. ET GAGNEZ UNE ANNEE

C ycnHnEM HxKaTb Ha KhoNky HEmHoro NOBepHyTb ee No YacobOn CTpeKe.

OTnycTntb nHfN NOBepHybero no yacobon cptpeke do ueyka.

Примочан: С�лары:

HTnHADExHO 3aΦNkCnPOBaH, eIe Iero HeJIb3r NOBepHyTB 6e3 HAXMg.

3. 3KcπIyATAUЯ

3.1 PEGYJINPOBKA ONYCKAIOUCEROCA HAFJIa3HnKA

Pa3HnHbIe no3nHn HArHa3HnKOB COOTBcTByIOT pa3HbIM pacCToAHnM OT rna3do OKynpa. 3To no3BOJnEHTpANBaTHarHa3HnKBA COOTBcTBM CNOTpe6HOCTmN.

P03.A:IVcxOAnHnno3uHn6e3 OyKOB:IOJHOCTbB BbIKpyTHe HArnaHnKnIpoTnB YacBOB CTpeKN.

P03.B:VcxOHaHnO3uHnB OyKax: 3akpyTHe Harna3HnKn No Yacoboi cTepeKe Do ynpa.

P03.BnΓ:ecTBdBA npOMeKyoTHbIX ypoBnIHa6nOHeHn B OOKX n Be3 OOKOB.

3.2 PEGYJINPOBKA PACCTOHHMEXKONYOKJIAPAMN

IJIIOJUYEHINO OJHOROPKpyrnoHO3o6paXeHNsOTpeynpyTe IIOJBOHNKINHOHKJRAKIM O6pa3OM,TO6bI Ncpe3NI TeHN MeWauOUIHeHa6nOeHHIO.

In procuring this optical product from SWAROVSKI OPTIK you now own a top-quality instrument for which we grant a worldwide warranty of 10 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that the range of products is changed, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

This warranty is valid only when this warranty/service document has been duly dated, stamped and signed by the Authorized dealer on the day of purchase.

In a warranty case and as well for service and/or repair work please present the instrument to your authorized SWAROVSKI OPTIK dealer together with this warranty/service document or send it, delivery-free, directly to our address. Instruments sent without the warranty/service document enclosed will be repaired and the costs charged to the customer. The return shipment of the instrument, insured (means of transport at our discretion), is free of charge in the case of repairs covered under warranty, otherwise charged to the customer. For shipments to foreign countries any foreign customs duties or fiscal charges are charged to the recipient.

This warranty is given by SWAROVSKI OPTIK KG, Absam, Austria. The place of jurisdiction is Innsbruck; Austrian law applies.

Insofar as other guarantees/warranties (whether legally or voluntary) are pledged in individual countries, these must be fulfilled by the respective importer or authorized dealer. SWAROVSKI OPTIK KG, Absam, Austria, can therefore accept liability only when a legal obligation exists to do so.

Remarks for the United States of America:

For warranty services all products purchased in the United States, our only warranty authorized service is through SWAROVSKI OPTIK North America. For further information please call 1-800426-3089.
