Product Type	Binoculars
Brand	Swarovski Optik
Model	CL Companion NOMAD 10x30
Magnification	10x
Objective lens diameter	30 mm
Adjustable interpupillary distance	Yes, adjustable for a single circular image
Diopter correction	Yes, adjustable on the focusing wheel
Focusing wheel	Yes, for focusing from minimum distance to infinity
Eyecups	Rotatable, adaptable with or without glasses
Power supply	None (optical instrument)
Housing material	Vegetable-tanned leather and synthetic housing
Included accessories	NOMAD functional case, NOMAD strap, optics cleaning cloth, leather care kit
Warranty	10 years international, parts and labor (first 5 years)
Optics maintenance	Clean with brush and microfiber cloth, avoid dirt and grease
Leather care	Included cream, apply in circular motions, buff
Housing care	Soft damp cloth, never water on leather
Safety precautions	Do not look at the sun, do not use while walking
Repairs	Only by Swarovski Optik (Austria or North America)
Storage	In the case, dry and ventilated place; use silica gel in humid areas
Minimum focusing distance	Approximately 3 m (indication, check technical data sheet)

Frequently Asked Questions - CL Companion NOMAD 10x30 SWAROVSKI OPTIK

How to adjust the eyecups on the CL Companion NOMAD 10x30 binoculars?

For use without glasses, turn both eyecups counterclockwise to the stop. With glasses, turn them clockwise to the stop.

How to attach the strap to the binoculars?

Press the button inward and turn it 90° counterclockwise. Remove the pin, thread the strap, then insert the pin until it clicks. Replace the button and turn it clockwise until it clicks.

How to adjust the diopter correction?

First adjust sharpness with the left eye using the focusing wheel. Then look with the right eye and turn the diopter correction (on the wheel) until the image is sharp.

What is the best way to clean the lenses?

First remove large particles with a brush. For deep cleaning, lightly mist the lens with your breath and wipe with the provided microfiber cloth. Ensure the cloth is clean.

How to care for the leather covering of the binoculars?

Use the provided leather care kit. Apply a small amount of cream to the cloth, spread over the entire surface in circular motions, then buff to remove excess. Never use water.

Are the CL Companion NOMAD 10x30 binoculars suitable for eyeglass wearers?

Yes, the rotatable eyecups allow comfortable use with glasses by turning them fully clockwise.

What is the warranty for the Swarovski Optik CL Companion NOMAD binoculars?

The international warranty is 10 years from the purchase date. The first 5 years cover parts and labor. It does not cover damage due to improper use or wear parts.

Can I repair my binoculars myself?

No, repairs must be carried out only by Swarovski Optik (Austria or North America) or the warranty will be voided.

How should I store my binoculars in a humid environment?

Store them in an airtight case with a moisture-absorbing product like silica gel, in a dry and ventilated place.

What are the important safety precautions?

Never look at the sun directly with the binoculars, as it can damage your eyes. Do not use them while walking to avoid obstacles.

USER MANUAL CL Companion NOMAD 10x30 SWAROVSKI OPTIK

Labeled diagram of binoculars with numbered parts for identification

Diagram of a mechanical or electrical component with a circular arrow and internal structure (no text or symbols)

Diagram of a mechanical component with a circular dial and arrow indicator (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a pair of eyeglasses with a vertical screwdriver and downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with a knob and fan assembly (no text or symbols)

Diagram of a fan or impeller device with a circular arrow pointing to the blade (no text or symbols present)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with two circular arrows indicating rotational motion (no text or symbols)

Illustration of two handbikes with binoculars and a bird flying around them, showing rotational motion (no text or symbols)

Illustration of hands holding binoculars with a circular dial on the screen (no text or symbols)

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Anatomical diagram of human eye and eyelid structures with numbered labels indicating different regions or zones.

Illustration of hands cleaning a circular container with a sponge (no text or symbols)

Illustration showing a hand holding a cylindrical mechanical component with rotating arrows, alongside its magnified view (no text or symbols)

Illustration of a person using a radio with a sun symbol above, no text or symbols present

Simple line drawing of a person holding a magnifying glass over a circle with a diagonal line, no text or symbols present.

Simple line drawing of two stacked cylindrical objects with a circular ring and diagonal lines, no text or symbols present.

Illustration of binoculars with a hand holding a circular object (no text or symbols)

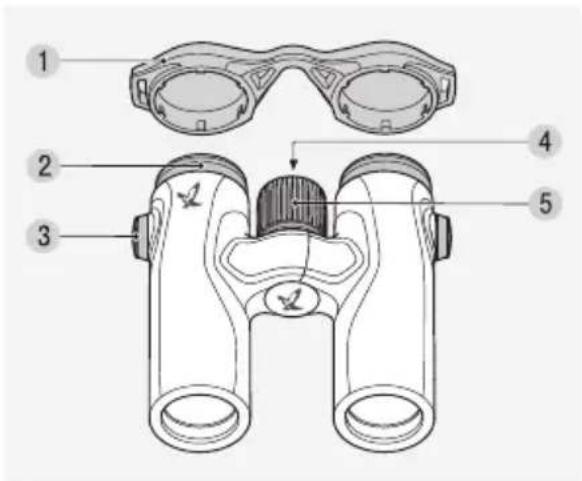

Labeled diagram of binoculars with numbered parts for identification

1 Eyepiece cover
2 Twist-in eyecup
3 Strap connector cover
4 Dioptric compensation
5 Focusing wheel

Supplied with the CL Companion:

NOMAD field bag, NOMAD carrying strap, Optics lens-cleaning cloth, Leather care kit.

The strap is not attached to the CL Companion NOMAD during delivery. You can easily attach the strap or special accessories.

2. ATTACHING THE STRAP

Diagram of a mechanical or electrical component with a circular arrow and internal structure (no text or symbols)

Press the button inwards and turn it counterclockwise (90°).

Diagram of a mechanical component with a circular housing and a dial indicator (no text or symbols)

Pull out the button.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Detach the pin from the ring.

Illustration of a pair of eyeglasses with a vertical screwdriver and downward arrow indicating motion (no text or symbols)

To attach the eyepiece cover, first pull the strap through the loop of the cover.

click

Align the button pin with the strap connector ring and press until it clicks.

Diagram showing a mechanical component with a knob inserted into a housing, connected to a fan-like device (no text or symbols present)

Insert the button strap into the buttonhole on the binoculars.

Diagram of a fan blade with a circular arrow indicating rotation (no text or symbols)

Press the pin in firmly and turn slightly clockwise until it clicks.

Note:

If the pin can no longer be turned without pressing it, it is securely in place.

3. OPERATION

3.1 ADJUSTMENT OF THE TWIST-IN EYE CUPS

Diagram of a mechanical device with rotating components and a central cylindrical component (no text or symbols)

Use without

eyeglasses:

Turn both eye cups (counter-clockwise) until they stop.

Diagram of a device with two circular arrows indicating rotational or bidirectional motion (no text or symbols)

Use with

eyeglasses:

Turn both eye cups clockwise until they stop.

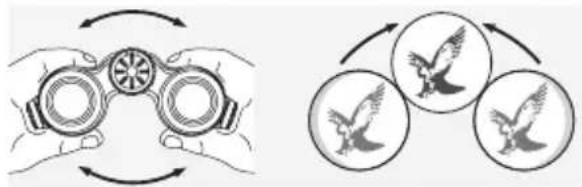

3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

Illustration of two handbikes with binoculars and three bird flying within circular frames (no text or symbols)

3.3 ADJUSTMENT OF FOCUSING

Illustration of two hands holding binoculars with a circular dial on the screen (no text or symbols)

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to infinity by

turning the focusing wheel.

3.4 DIOPTRIC COMPENSATION

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Use with equal acuity of both eyes:

The dioptric compensation is set to "zero".

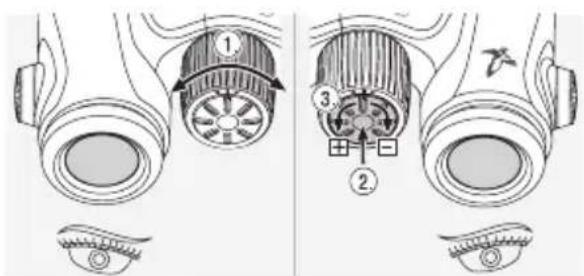

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Now, using your right eye, look at the same object through the right eyepiece and use the dioptric compensation to set the optimal image sharpness. For that purpose, press on the dioptric compensation on the focusing wheel and turn the dioptric compensation left or right until the image is sharp.

Anatomical diagram of eye structures with numbered labels indicating different regions or zones.

4. MAINTENANCE AND CARE

4.1 CLEANING THE OPTICS

We have designed all elements and surfaces to require little care. To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

This microfiber optics lens-cleaning cloth allows you to clean the most delicate of glass surfaces. It is ideal for objective lenses, eyepieces, and eyeglasses.

Please keep the optics lens-cleaning cloth clean, as dirt can damage the lens surface. Simply wash it in lukewarm soapy water and leave to air dry. Please only use it for cleaning glass surfaces.

4.2 CLEANING THE LEATHER AND HOUSING

Your CL Companion NOMAD has been made using the best regional leather. It has been vegetable tanned and worked with great care by expert leather craftsmen. We recommend cleaning it regularly in order to preserve the natural quality of the leather. A leather care set is supplied as standard. This is ideal for looking after the leather armoring of your CL Companion NOMAD and the NOMAD field bag.

Apply a small amount of cream to the cloth supplied and spread across the whole surface. Work it into the leather using circular movements, then polish off.

Illustration of hands cleaning a circular container with a sponge (no text or symbols)

Leather is a natural product, and slight variations in color and texture are a sign that it is a natural, organic material.

The housing is best cleansed with a soft, moist cloth (please do not use the optics lens-cleaning cloth or the leather-cleaning cloth for this).

Illustration showing a hand holding a cylindrical object with a brush, alongside a mechanical component with rotating parts (no text or symbols)

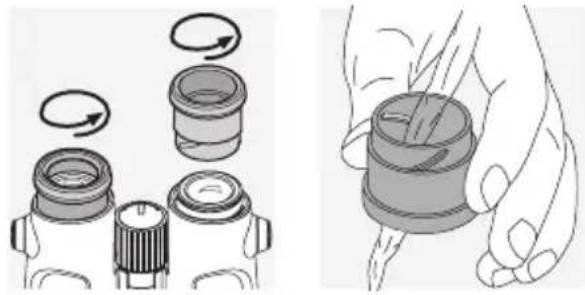

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned easily.

Please note that water should not be used to clean the leather armoring on the binoculars, the NOMAD field bag, or the NOMAD carrying strap. Please also avoid using acids or alkaline cleaners, as this can lead to changes in the leather.

4.3 STORAGE

You should keep your binoculars in its bag in a well-ventilated, dry place.

Simple line drawing of a bag with a bag labeled 'SICAGIL' and two stacked items (no text or symbols beyond label)

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high degree of humidity the

best place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

5. FOR YOUR SAFETY!

Illustration of a person using a radio with a sun symbol above, no text or symbols present

Never look at the sun with the binoculars! This leads to injury of your eyes!

Simple line drawing of a person holding a camera and a prohibition symbol (no text or labels)

Never look through the binoculars when walking! You could encounter obstacles!

Simple line drawing of two stacked cylindrical objects with a circular ring and diagonal lines, no text or symbols present.

Please protect your binoculars from jolts and jars.

Illustration of binoculars with a hand holding a circular object (no text or symbols)

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK

North America and any work by non-authorised parties shall render the warranty void.

All the specifications given are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.
