Product Type	Binoculars
Brand	Swarovski Optik
Model	CL Companion NOMAD 8x30
Magnification	8x
Objective Lens Diameter	30 mm
Minimum Focus Distance	3,0 m
Weight	490 g
Covering Material	Leather (vegetable-tanned)
Diopter Correction	Adjustable (compensation for visual acuity differences)
Focus	Central focusing wheel
Eyecups	Rotating, adjustable for eyeglass wearers
Strap	Removable, press and turn attachment
Eyepiece Cover	Included, attaches to the strap
NOMAD Functional Case	Included
Optics Cleaning Cloth	Included
Leather Care Kit	Included
Optics Cleaning	Brush and microfibre cloth, breathing
Leather Cleaning	Specific cream, circular motions
Housing Cleaning	Soft damp cloth, no water on leather
Storage	Dry, well-ventilated place, provided case
Safety	Do not point at the sun, do not use while walking
Repairs	Only by SWAROVSKI OPTIK (Austria or North America)
Warranty	10 years (first 5 years parts and labor, then parts only)
Manual Languages	FR, DA, DE, EN, ES, FI, IT, NL, RU, SV, ZH (and others upon request)

Frequently Asked Questions - CL Companion NOMAD 8x30 SWAROVSKI OPTIK

How to attach the strap to the CL Companion NOMAD binoculars?

Press the button inward and turn it counterclockwise (90°) to remove it. Insert the pin into the strap loop, then push it in until it clicks. Insert the button into the designated position on the binoculars, press firmly and turn it clockwise until it clicks. To attach the eyepiece cover, first thread the strap through the cover's loop.

How to adjust the eyecups for use with or without glasses?

Without glasses: turn both rotating eyecups counterclockwise to the stop. With glasses: turn both eyecups clockwise to the stop.

How to adjust the interpupillary distance?

Spread the two halves of your binoculars until you see a single circular image with no disturbing shadows. The interpupillary distance is correctly set.

How to perform diopter correction?

Look with your left eye through the left eyepiece and adjust sharpness with the focusing wheel. Then look at the same object with your right eye and turn the diopter correction adjustment (located on the focusing wheel) to the right or left until you get a sharp image.

How to clean the optics without damaging them?

First remove large particles with a special brush. For deep cleaning, lightly moisten the surface with your breath and use the provided microfibre cleaning cloth. Make sure the cloth is clean to avoid scratching the lenses. Wash it in lukewarm soapy water if necessary.

How to care for the leather covering?

Use the provided leather care kit. Apply a small amount of cream to the provided cloth, spread it over the entire leather surface in circular motions, then buff to remove excess. Never use water, acidic or alkaline solutions on the leather.

Where and how to store the binoculars?

Store the binoculars in their NOMAD functional case in a dry, well-ventilated place. If they are wet, dry them first. In tropical or humid areas, use a waterproof case with a moisture-absorbing product (such as silica gel).

What are the important safety instructions?

Never point the binoculars directly at the sun, as this could cause eye injuries. Do not look through the binoculars while walking to avoid obstacles. Protect the binoculars from impacts. Repairs must be carried out only by SWAROVSKI OPTIK.

What is the duration and conditions of the warranty?

The international warranty is 10 years from the date of purchase. The first 5 years cover parts and labor, the following 5 years cover parts only. The warranty does not cover damage due to improper use, unauthorized repairs, or wear parts (eyecups, straps, cases). The warranty card must be duly filled out.

How to obtain repair or after-sales service?

Go to an authorized SWAROVSKI OPTIK dealer with the device and the warranty/service card, or send the device postage paid to SWAROVSKI OPTIK in Absam (Austria) or to SWAROVSKI OPTIK North America. Repairs under warranty are free, otherwise costs are at your expense. For international shipments, customs duties are borne by the recipient.

USER MANUAL CL Companion NOMAD 8x30 SWAROVSKI OPTIK

Diagram of binoculars with numbered parts labeled 1 to 5 for identification

Diagram of a mechanical or electrical component with a circular arrow and internal structure (no text or symbols)

Diagram of a mechanical component with a circular dial and arrow, no text or symbols present

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a pair of eyeglasses with a vertical screwdriver and downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with a circular feature and a pointer indicating direction (no text or symbols)

Diagram of a fan or impeller device with a circular arrow pointing to the blade (no text or symbols present)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Illustration showing two hand positions: one with binoculars and the other with three birds inside a circular frame (no text or symbols)

Illustration of hands holding binoculars with a circular dial on the screen (no text or symbols)

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Anatomical diagram of human eye and eyelid structures with numbered labels indicating different regions or zones.

Illustration of hands cleaning a circular container with a sponge (no text or symbols)

Illustration showing a hand holding a cylindrical mechanical component with rotating arrows, alongside its magnified view (no text or symbols)

Illustration of a person using a radio with a sun symbol above, no text or symbols present

Simple line drawing of a person holding a camera and a prohibition symbol (no text or labels)

Simple line drawing of two stacked cylindrical objects with a circular ring and diagonal lines, no text or symbols present.

Illustration of binoculars with a hand holding a circular object (no text or symbols)

Labeled diagram of binoculars with numbered parts for identification

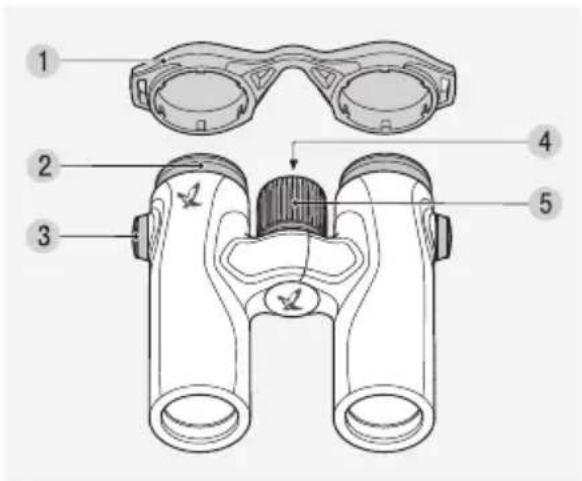

1 Eyepiece cover
2 Twist-in eyecup
3 Strap connector cover
4 Dioptric compensation
5 Focusing wheel

Supplied with the CL Companion:

NOMAD field bag, NOMAD carrying strap, Optics lens-cleaning cloth, Leather care kit.

The strap is not attached to the CL Companion NOMAD during delivery. You can easily attach the strap or special accessories.

2. ATTACHING THE STRAP

Diagram of a mechanical or electrical component with a circular arrow and internal structure (no text or symbols)

Press the button inwards and turn it counterclockwise (90°).

Diagram of a mechanical component with a circular housing and a dial indicator (no text or symbols)

Pull out the button.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Detach the pin from the ring.

Illustration of a pair of eyeglasses with a vertical screwdriver and downward arrow indicating motion (no text or symbols)

To attach the eyepiece cover, first pull the strap through the loop of the cover.

click

Align the button pin with the strap connector ring and press until it clicks.

Diagram showing a mechanical component with a knob inserted into a housing, connected to a fan-like device (no text or symbols present)

Insert the button strap into the buttonhole on the binoculars.

Diagram of a fan blade with a circular arrow indicating rotation (no text or symbols)

Press the pin in firmly and turn slightly clockwise until it clicks.

Note:

If the pin can no longer be turned without pressing it, it is securely in place.

3. OPERATION

3.1 ADJUSTMENT OF THE TWIST-IN EYE CUPS

Diagram of a mechanical device with rotating components and a central cylindrical component (no text or symbols)

Use without

eyeglasses:

Turn both eye cups (counter-clockwise) until they stop.

Diagram of a device with two circular arrows indicating rotational or bidirectional motion (no text or symbols)

Use with

eyeglasses:

Turn both eye cups clockwise until they stop.

3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE

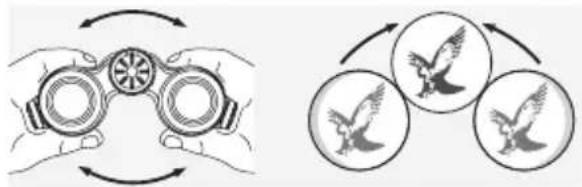

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

Illustration of two handbikes with binoculars and three bird flying within circular frames (no text or symbols)

3.3 ADJUSTMENT OF FOCUSING

Illustration of two hands holding binoculars with a circular dial on the screen (no text or symbols)

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to infinity by

turning the focusing wheel.

3.4 DIOPTRIC COMPENSATION

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Use with equal acuity of both eyes:

The dioptric compensation is set to "zero".

Use with varying acuity of both eyes:

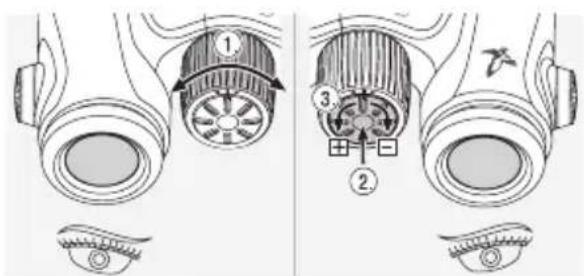

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Now, using your right eye, look at the same object through the right eyepiece and use the dioptric compensation to set the optimal image sharpness. For that purpose, press on the dioptric compensation on the focusing wheel and turn the dioptric compensation left or right until the image is sharp.

Anatomical diagram of eye structures with numbered labels indicating different regions or zones.

4. MAINTENANCE AND CARE

4.1 CLEANING THE OPTICS

We have designed all elements and surfaces to require little care. To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

This microfiber optics lens-cleaning cloth allows you to clean the most delicate of glass surfaces. It is ideal for objective lenses, eyepieces, and eyeglasses.

Please keep the optics lens-cleaning cloth clean, as dirt can damage the lens surface. Simply wash it in lukewarm soapy water and leave to air dry. Please only use it for cleaning glass surfaces.

4.2 CLEANING THE LEATHER AND HOUSING

Your CL Companion NOMAD has been made using the best regional leather. It has been vegetable tanned and worked with great care by expert leather craftsmen. We recommend cleaning it regularly in order to preserve the natural quality of the leather. A leather care set is supplied as standard. This is ideal for looking after the leather armoring of your CL Companion NOMAD and the NOMAD field bag.

Apply a small amount of cream to the cloth supplied and spread across the whole surface. Work it into the leather using circular movements, then polish off.

Illustration of hands cleaning a circular container with a sponge (no text or symbols)

Leather is a natural product, and slight variations in color and texture are a sign that it is a natural, organic material.

The housing is best cleansed with a soft, moist cloth (please do not use the optics lens-cleaning cloth or the leather-cleaning cloth for this).

Illustration showing a hand holding a cylindrical object with a brush, alongside a mechanical component with rotating parts (no text or symbols)

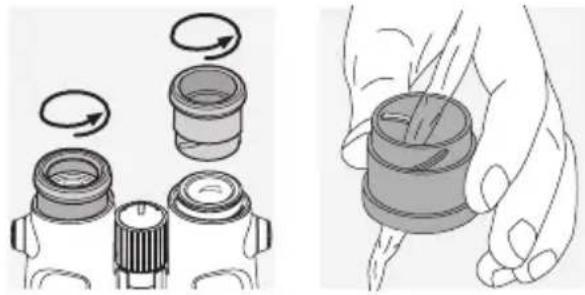

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned easily.

Please note that water should not be used to clean the leather armoring on the binoculars, the NOMAD field bag, or the NOMAD carrying strap. Please also avoid using acids or alkaline cleaners, as this can lead to changes in the leather.

4.3 STORAGE

You should keep your binoculars in its bag in a well-ventilated, dry place.

Simple line drawing of a bag with a bag labeled 'SICAGIL' and two stacked items (no text or symbols beyond label)

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high degree of humidity the

best place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

5. FOR YOUR SAFETY!

Illustration of a person using a protractor to measure sun exposure (no text or symbols)

Never look at the sun with the binoculars! This leads to injury of your eyes!

Simple line drawing of a person holding a camera and a prohibition symbol (no text or labels)

Never look through the binoculars when walking! You could encounter obstacles!

Simple line drawing of two stacked cylindrical objects with a circular ring and diagonal lines, no text or symbols present.

Please protect your binoculars from jolts and jars.

Illustration of binoculars with a hand holding a circular object (no text or symbols)

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK

North America and any work by non-authorised parties shall render the warranty void.

All the specifications given are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors.
