| Product type | LED ceiling light with remote control and white color adjustment |
| Brand | Livarno Lux |
| Model | IAN 359577 / 14155606L / 14155705L |
| Power supply | 230-240 V~, 50 Hz |
| Rated power | 38.5 W (LED) |
| Energy efficiency class | F (according to EU 2019/2015) |
| Protection rating | IP20 (dry interior) |
| Protection class | I |
| Dimensions (ceiling light) | Approx. 40 cm diameter (estimate) |
| Weight | Approx. 1.5 kg (estimate) |
| Main functions | On/off, dimming, cold/neutral/warm white, night light, 30 min timer, color memory (M1/M2) |
| Remote control | With 2 AAA batteries (included), range approx. 8 m |
| Package contents | 1 ceiling light, 1 remote control, 4 wall plugs, 4 screws, 2 protective sleeves, 2 AAA batteries, instructions |
| Installation | Ceiling mounting, electrical connection via terminal block, requires drill and screwdriver |
| Care and cleaning | Disconnect, allow to cool, clean with a dry lint-free cloth |
| Safety | Do not use with external dimmer, do not immerse, risk of burns, LED replacement reserved for manufacturer |
| Batteries (remote control) | 2 x 1.5 V AAA, observe polarity, replace if range decreases |
| Warranty | 36 months from date of purchase, excluding wear parts |
| Manufacturer | Livarno Lux (distributed by the brand) |
Frequently Asked Questions - IAN 359577 Livarno Lux
User questions about IAN 359577 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual IAN 359577 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 359577 by Livarno Lux.
USER MANUAL IAN 359577 Livarno Lux
DE AT CH
Assembly, operating and safety instructions
NL BE
LED-PLAFONDLAMP MET KLEURTINTREGELING
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE
GB / IE Assembly, operating and safety instructions Page 13
Intended use......Page 15
Scope of delivery....Page 15
Parts description Page 15
Technical data......Page 15
Safety Page 15
Safety information......Page 15
Safety instructions for batteries / rechargeable batteries ......Page 17
Preparation......Page 17
Required tools and material Page 17
Prior to installation Page 17
Initial use Page 18
Mounting the light....Page 18
Inserting / replacing batteries (remote control) Page 18
Controlling light effects with the remote control......Page 18
Maintenance and cleaning......Page 19
Disposal Page 19
Warranty and service......Page 19
Warranty declaration Page 19
Service address......Page 20
Declaration of conformity....Page 20
Manufacturer......Page 20

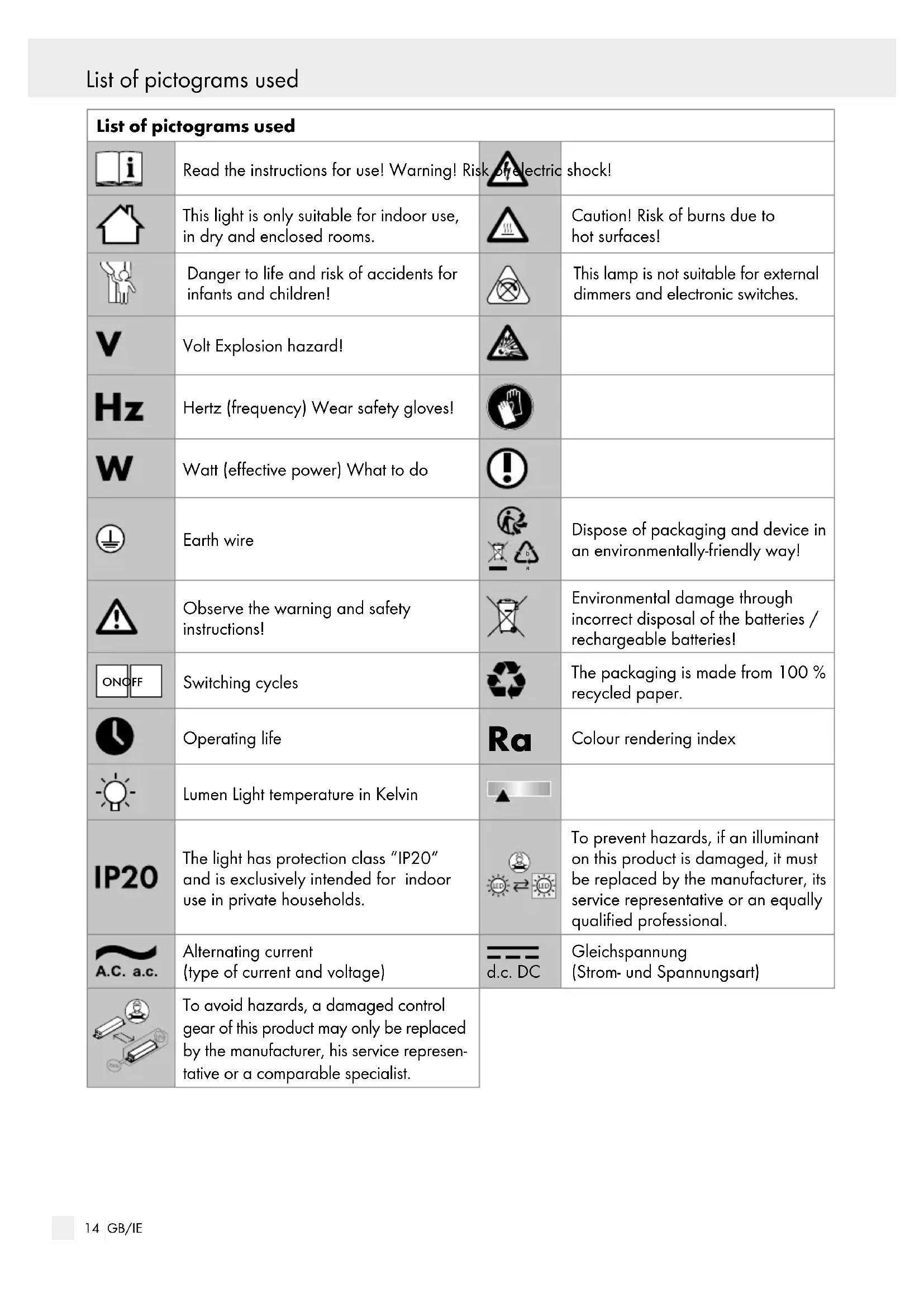

| List of pictograms used | |||
 | Read the instructions for use! Warning! Risk |  electric shock! | |
 | This light is only suitable for indoor use, in dry and enclosed rooms. |  | Caution! Risk of burns due to hot surfaces! |
 | Danger to life and risk of accidents for infants and children! |  | This lamp is not suitable for external dimmers and electronic switches. |
 | Volt Explosion hazard! |  | |
 | Hertz (frequency) Wear safety gloves! |  | |
 | Watt (effective power) What to do |  | |
 | Earth wire |   | Dispose of packaging and device in an environmentally-friendly way! |
 | Observe the warning and safety instructions! |  | Environmental damage through incorrect disposal of the batteries / rechargeable batteries! |
 | Switching cycles |  | The packaging is made from 100 % recycled paper. |
 | Operating life |  | Colour rendering index |
 | Lumen Light temperature in Kelvin |  | |
 | The light has protection class "IP20" and is exclusively intended for indoor use in private households. |  | To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional. |
 A.C. a.c. | Alternating current (type of current and voltage) |   | Gleichspannung (Strom- und Spannungsart) |
 | To avoid hazards, a damaged control gear of this product may only be replaced by the manufacturer, his service representative or a comparable specialist. | ||
LED Ceiling Light with Colour Tone Control
- Introduction
Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the com-
plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.
Intended use
This light is only suitable for indoor use, in dry and enclosed rooms. This product is intended for private household use only. This product is intended for normal operation.
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED ceiling lamp with colour control system, model 14155606L/14155705L
1 Remote control
4 Wall plugs
4 Screws
2 Protective tubes
2 Batteries AAA
1 Set of assembly instructions and instructions for use
Parts description
1 Base plate
2 Wall plug
3 Protective tube
4 Mains connection cable (external)
5 Luster terminal
6 Screw
7 Lampshade
8 Remote control
9 Battery compartment cover
- Technical data
Light:
Model no.: 14155606L/14155705L
Operating voltage: 230-240V\~50Hz
Lamps: LEDs
Rated power: LED, 38.5 W
Protection class: I
Protection type: IP20 (only suitable for indoor use)
LED:
Illuminant: LEDs
Rated power: max. 38.5 W
Remote control:
Batteries: 2 x 1.5 V AAA
This product contains a light source of energy efficiency class "F" (according to Regulation (EU) 2019/2015).
Safety
Safety information
Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!
DANG RACING!
LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!
Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.
Do not leave the light or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. Please always keep the product out of the reach of children.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Avoid the risk of fatal injury from electric shock
■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.
WARNING!
A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.
Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on a wet or conductive substrate!
Prevent fire and injury hazards
Check the light for damage immediately after unpacking. In this case, contact the service centre for a replacement.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES!
Ensure that the light has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.
The light source of this lamp may only be replaced by manufacturer or by one of them commissioned technician or someone similarly qualified person.
This lamp is not suitable for external dimmer and electronic switches.
Do not look directly into the light source (light bulb, LED etc.).
Do not use optical instruments to look at the light source (e.g. magnifying glass).
Safe working
Mount the light so that it is protected from moisture and dirt.
Carefully prepare the installation and allow sufficient time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
Always be attentive when working! Always pay attention to what you are doing and act with common sense. Never install the light if you are having difficulty concentrating or do not feel well.
Safety instructions for batteries/rechargeable batteries
■ DANGER TO LIFE!
Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.
DANGER OF EXPLOSION!
Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
- Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment beforeinserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.
● Preparation
- Required tools and material
The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.
- Pencil/making tool
- 2-pole voltage tester
,- Screwdriver
- Electric drill
- Drill bit (approx. ∅ 6 mm)
- Side cutting pliers
- Ladder
- Prior to installation
Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations.
-This person must be familiar with the properties of the light and the connection regulations.
Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
☐ Use a 2-pole voltage tester to verify cables are not live.
- Initial use
- Mounting the light (Fig. A)
☐ Remove the lampshade 7 by turning it counterclockwise from the base plate 1.
☐ Hold the base plate 1 against the ceiling and mark the drill holes using the holes in the base plate 1 intended for the screws 6.
Drill the holes (approx. ∅ 6 mm, approx. 40 mm deep). Be sure not to damage the supply line.
☐ Insert the wall plugs 2 into the drilled holes. If necessary, use a hammer to do so.
☐ Feed the mains connection cord (extern) 4 through the rubber membrane. Ensure that the membrane is positioned correctly.
☐ Attach the base plate 1 to the ceiling using the screws 6.
☐ Pull the protective tubes 3 over cables L and N of the mains connection cable (external) 4.
☐ Connect the mains connection cable (external) 4 to the lamp using the luster terminal 5.
☐ Pay attention to the color combination of the connected lines (current-carrying conductor, black or brown = symbol L, neutral conductor, blue = symbol N, protective conductor, green-yellow = ⏻).
□ Make sure it is firmly secured.
☐ Attach the lampshade 7 by turning it clockwise onto the base plate 1.
☐ Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box.
Your light is now ready to use.
- Inserting / replacing batteries (remote control) (Fig. B)
If the range of the remote control 8 reduces, the battery needs to be replaced.
☐ Slide the battery cover on the reverse side of the remote control 8 from the remote control 8 in the direction of the arrow.
Remove the batteries.
☐ Insert the new batteries (AAA) into the remote control 8.
Note: The correct polarity is indicated in the battery compartment of the remote control 8.
☐ Slide the battery cover back onto the remote control 8.
- Controlling light effects with the remote control (Fig. B)
Note: The transmitter for the remote control 8 is located on the opposite side of the battery compartment. Ensure there are no obstacles between the transmitter and the receiver.
Switch on
Switch off
+ Brighten
Dim
Cold white, variable
100%Neutralwhite
Warm white, variable
OFF 30MIN Timer function (30 mins)
Cold white/Warm white
Night light function
M1 Memory slot for custom colour programme
M2 Memory slot for custom colour programme
Note: To save the color program on the M1 and M2 buttons, proceed as follows:
☐ Adjust the light as desired.
☐ Press and hold the M1 or M2 button.
Note: When the save process is complete, the light will flash once.
● Maintenance and cleaning
WARNING! RISK OF ELECTRIC SHOCK!
Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
WARNING! RISK OF ELECTRIC SHOCK!
For electrical safety, never clean the light with water or other fluids, or immerse it in water.
⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES!
Allow the lamp to cool down completely.
Do not use solvents, petrol, etc. Otherwise the lamp will be damaged.
☐ Only clean with a dry, lint-free cloth.
Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board/80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
● Warranty and service
● Warranty declaration
This product has a warranty of 36 months from the date of purchase. The appliance has been carefully produced under strict quality control. During the warranty period we will repair any defects in material or manufacture free of charge. If defects are detected during the warranty period, please send the product to the service address listed, specifying the following model number: 14155606L/14155705L.
Wear parts (such as bulbs) and damage caused by improper handling, failure to observe the operating instructions or unauthorised manipulation are excluded
Warranty and service
from the warranty. Providing warranty services does not extend or renew the warranty period.
Serviceaddress
Free service number:
Tel.: 00800/27456637
IAN 359577\_2101
For all inquiries about your product, please have your receipt and the article number (e.g. IAN 123456_7890) ready as your proof of purchase.
- Declaration of conformity CE
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
