USER MANUAL Landroid L1000 WORX

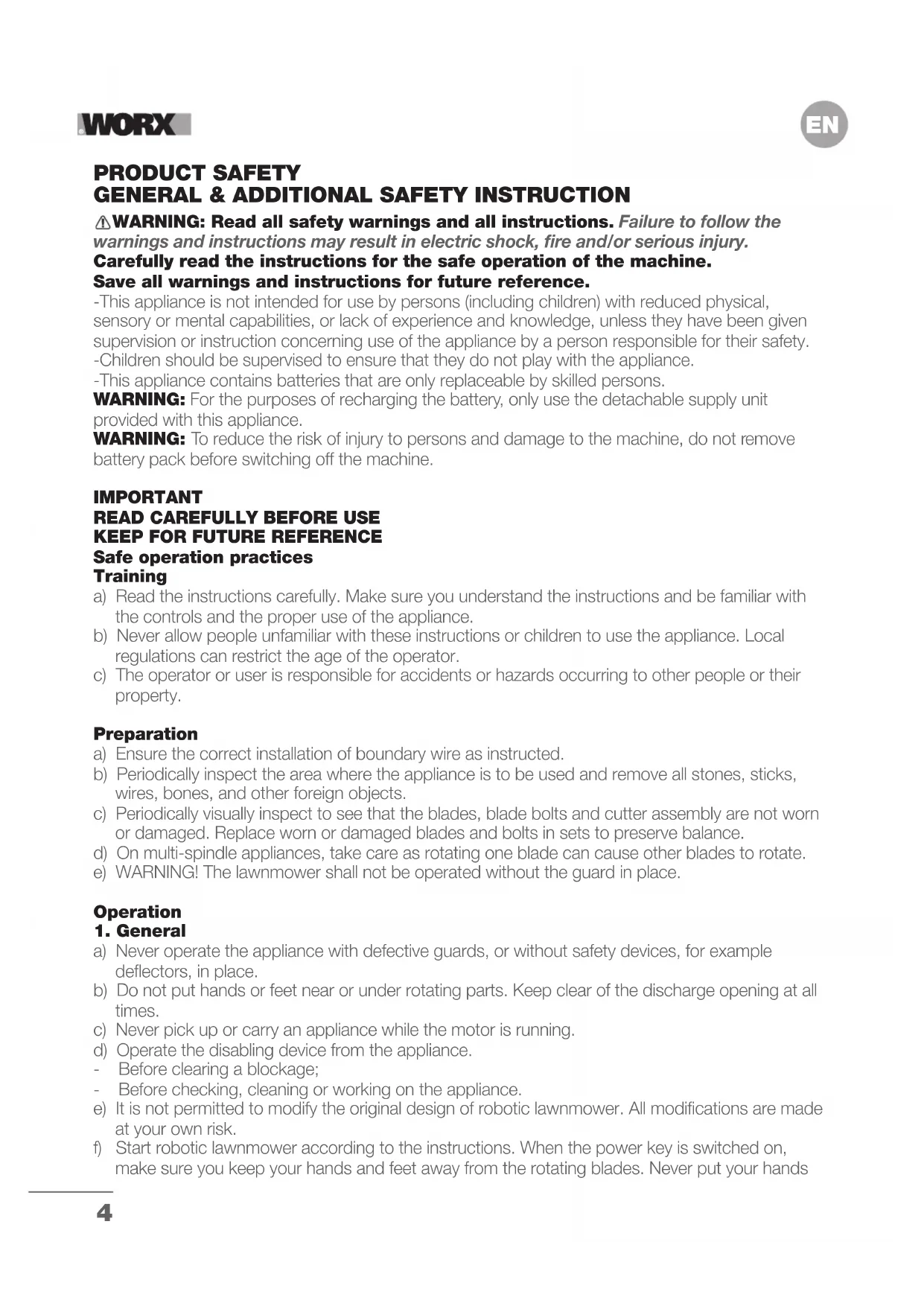

⚠ WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

-Children should be supervised to ensure that they do not play with the appliance.

-This appliance contains batteries that are only replaceable by skilled persons.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

WARNING: To reduce the risk of injury to persons and damage to the machine, do not remove battery pack before switching off the machine.

IMPORTANT

READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

Safe operation practices

Training

a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

a) Ensure the correct installation of boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.

Operation

1. General

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance.

- Before clearing a blockage;

• Before checking, cleaning or working on the appliance.
  e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
  f) Start robotic lawnmower according to the instructions. When the power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands

and feet under the mower.

g) Never lift up robotic lawnmower or carry it when the power key is switched on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered.
I) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.
m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text: Warning! Automatic lawnmower! Keep away from the machine! Supervise children!

2. Additionally when the appliance is operating automatically

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

Maintenance and storage

WARNING! When the mower is turned upside down the power key must always be switched off.

The power key should be switched off during all work on the mower's underframe, such as cleaning or replacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers' instructions.

Recommendation

To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.

Residual risks

To avoid injuries, wear protective gloves when replacing the blades.

Transport

The original packaging should be used when transporting robotic lawnmower over long distances.

To safely move form or within the working area:

a) Press the STOP button to stop the mower.

You select the four digit PIN code when you start the mower for the first time.

b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the front under the mower. Carry the mower with the blade disc away from the body.

RF exposure requirements

To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Safety Warnings for battery pack

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
m) Do not use any battery pack which is not designed for use with the equipment.
n) Keep battery pack out of the reach of children.
o) Retain the original product literature for future reference.
p) Remove the battery from the equipment when not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture, capacity, size or type within a device.
s) Do not remove battery pack from its original packaging until required for use.
t) Observe the plus (+) and minus (−) marks on the battery and ensure correct use.

WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.

WARNING - Keep a safe distance from the machine when operating.

WARNING – Operate the disabling device before working on or lifting the machine.

WARNING - Do not ride on the machine.

Li-Ion battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

Do not burn

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

Prohibit disassembling the machine without authorization

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

Class III appliance

Read operator's manual

Detachable supply unit

Your Android can be used with other Worx functional accessories. Visit www.worxlandroid.com to learn more about these available accessory options.

ABCD E G F H I J K N L M

The picture is only for reference

A Worx Landroid
B Wire repair connectors
C Spare blades kits
D Hex key
E Charging pile
F Charging base
G Screws

H Wire pegs

Power supply
J Boundary wire
K 20V battery
L Boundary wire distance gauges
M Bertelsen ruler
N Manuals

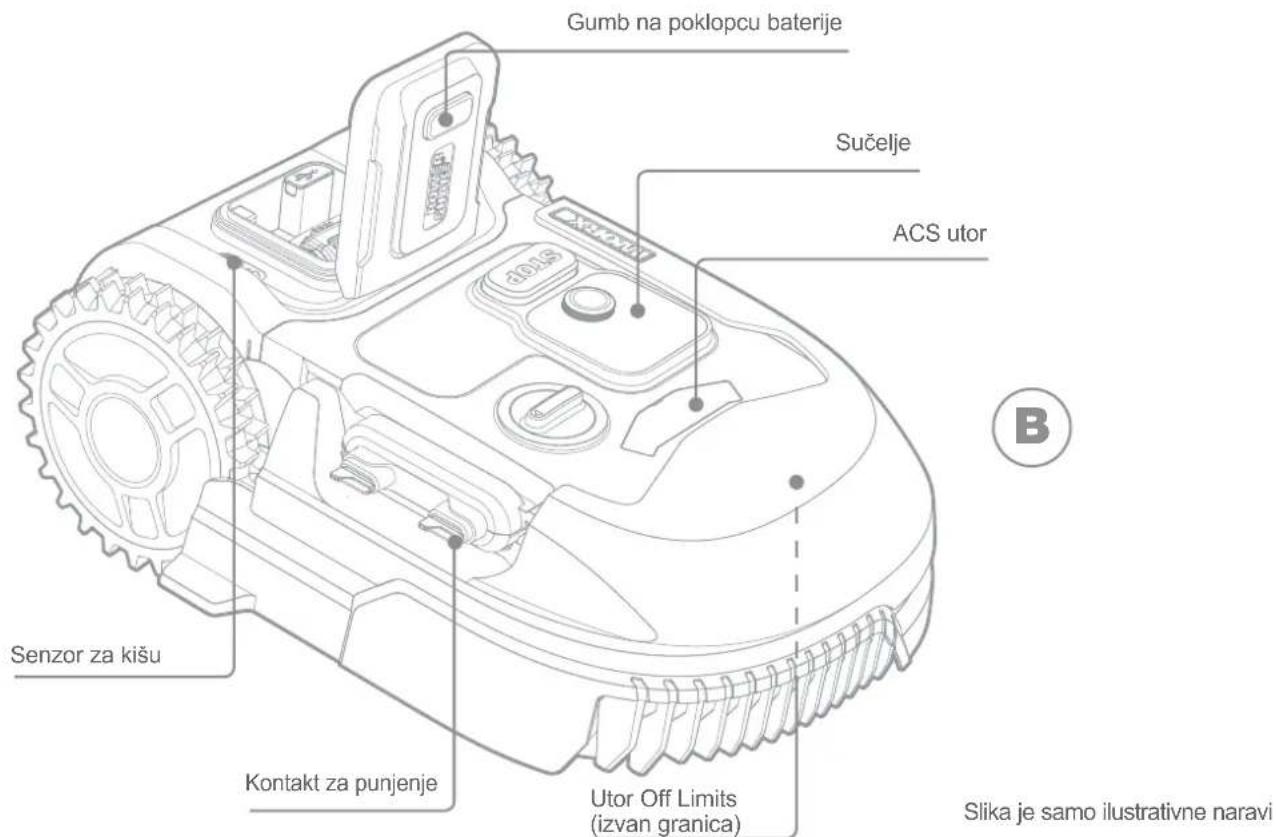

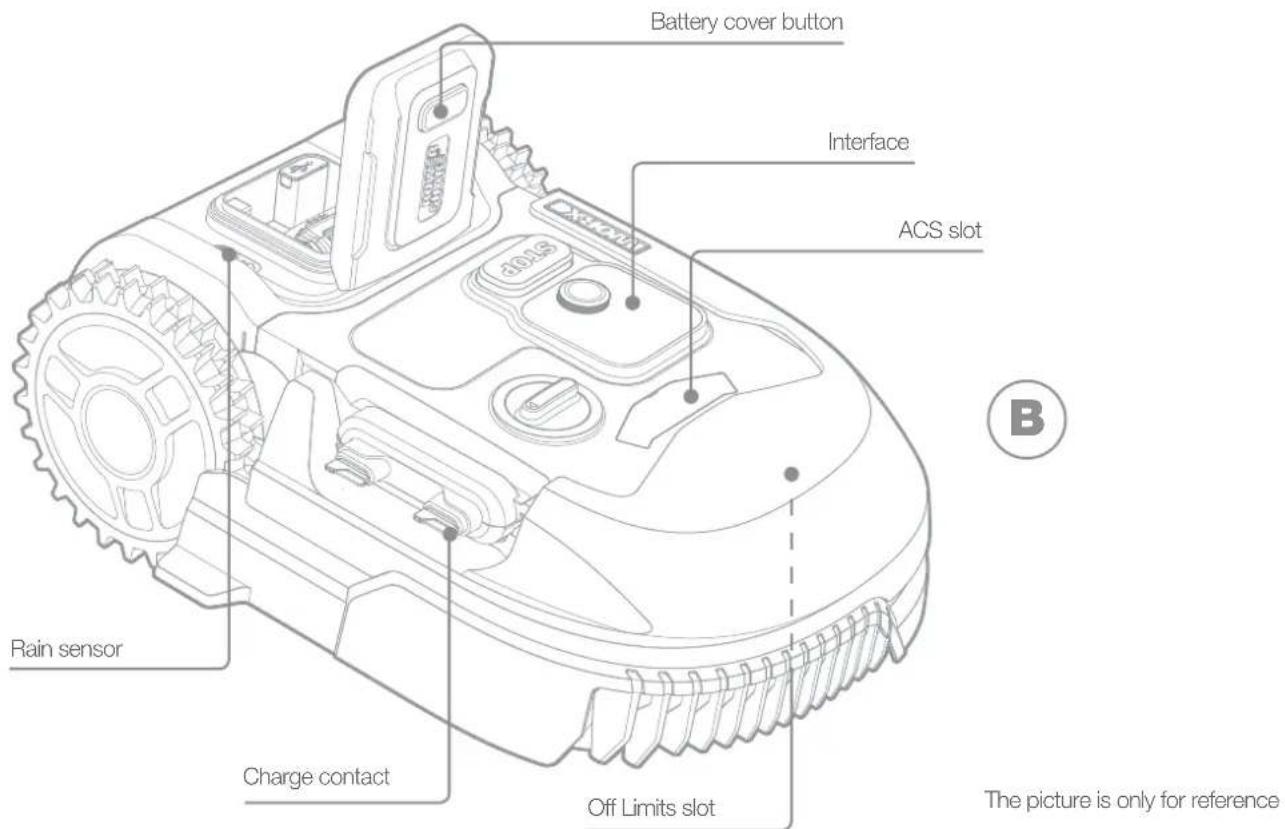

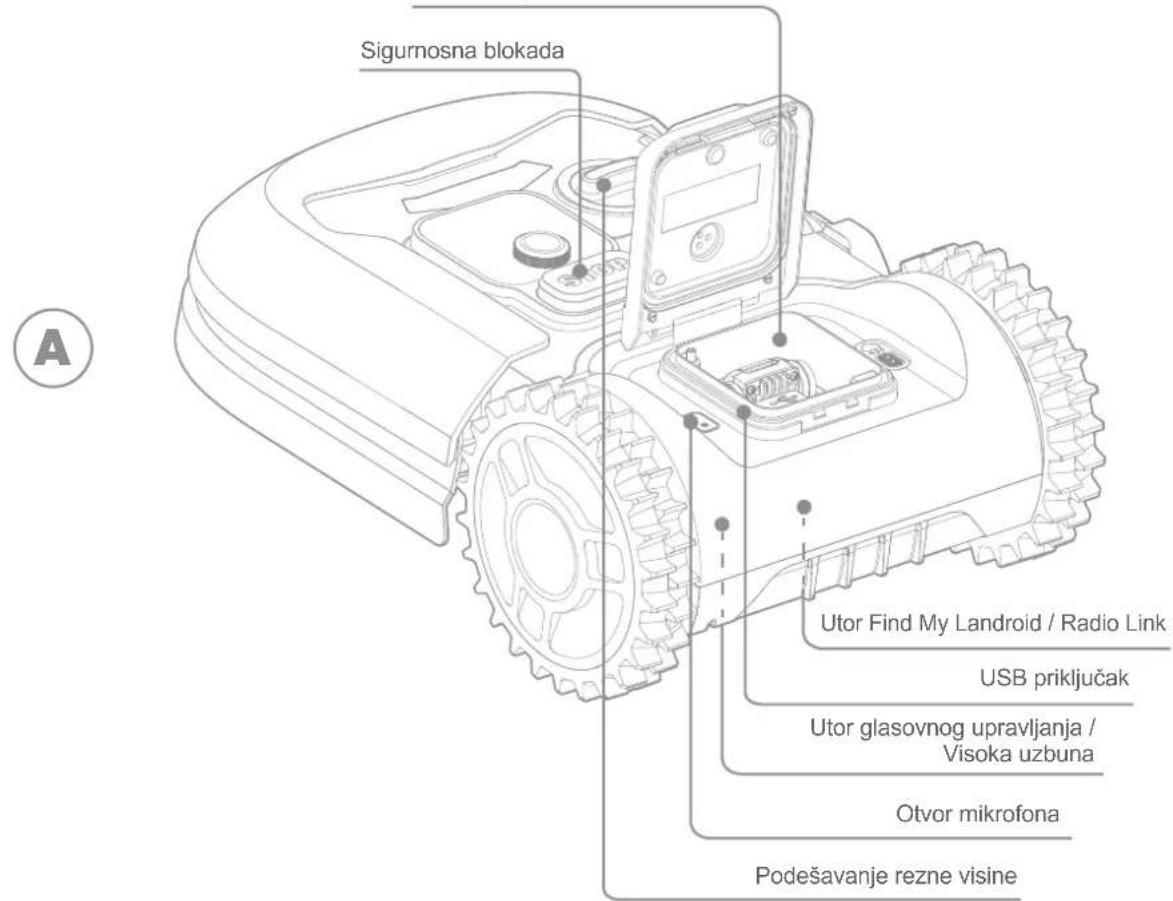

ING TO KNOW ROID Battery slot Safety stop Find My Landroid / Radio Link slot USB port Voice Control Slot / High Pitched Alarm Slot Microphone hole Cutting height adjustment

Battery cover button Interface ACS slot Rain sensor Charge contact Off Limits slot The picture is only for reference

TECHNICAL DATA

Type WR165E WR167E WR148E WR147E.1 (100-199 - designation of machinery, representative of Robotic Lawnmower)

	WR165E WR167E WR148E WR147E.1
Rated voltage 20 V	Max.*
No load speed (/min) 2800 2400
Cutting area (m2) 500 700 800 1000
Cutting diameter (cm) 18 20
Cutting height (mm) 30-60
Cutting height positions 4
Battery type Lithium-ion
Battery model WA3551.3 WA3553.3 WA3551.3 WA3553.3
Charging time approx. (mins)	75	150	75	75
Charger model	WA3750.1/ WA3755.1			WA3775 / WA3776
Charger rating	Input: 100-240 V~50/60 Hz, 38 W, Output: 20V---,1.5 A			Input:100-240 V~50/60 Hz, 90 W, Output: 20 V---, 3.0 A
Machinery weight (kg)	9.5	9.8 11.7	12
Protection degree	III
App (Wifi/Bluetooth)	Y
Frequency band of embedded WLAN module	2.412GHz-2.484GHz
Max. radio-frequency power of embedded WLAN module	802.11b:+16±2dBm(@11Mbps)802.11g:+14±2dBm(@54Mbps)802.11n:+13±2dBm(@HT20,MCS7)
Frequency band of inductive loop systems	77 Hz
Max. radio-frequency power of inductive loop systems	82 dBμA/m

*Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE DATA

	WR165E WR167E WR148E WR147E.1
A weighted sound pressure	L_PA = 45.5 dB(A) L	_PA = 40.68 dB(A)
	K_PA = 0.6 dB(A) K	_PA = 1.36 dB(A)
A weighted sound power	L_WA = 65.5 dB(A) L	_WA = 61.56 dB(A)
	K_WA = 0.6 dB(A) K	_WA = 1.36 dB(A)
Wear ear protection when sound pressure is over 80 dB (A).

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.

ACCESSORIES

	WR165E WR167E WR148E WR147E.1
Screw 9 9 9 9
Charging base 1 1 1 1
Charging base fixing nails 8 8 8 8
Boundary wire 130m 150m 150m 180m
Wire pegs 180 210	210	250
Hex key	1 1 1 1
Boundary wire distance gauge	2 2 2 2
Blade	9 9 9 9
Connector	2 2 2 2
Battery pack (WA3551.3)	1	/	1	/
Battery pack (WA3553.3)	/	1	/	1
Charger (WA3750.1/ WA3755.1)	1 1 1	/
Charger (WA3775 / WA3776) /	/	/	1

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

INTENDED USE

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, your Android may be programmed to operate at any time or frequency. It is impossible for digging, sweeping or snow cleaning.

MAINTENANCE

Your Android works hard and needs to be cleaned and checked from time to time. This section of our guide helps you keep Android in good shape so it can last for years without troubles. Here's how to take care of your Android .Switch off the machine before carrying out any service or maintenance.

Keep it sharp

Landroid does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity.

A. The blade turning disc makes a clockwise and counterclockwise rotation at random to use both cutting edges and minimize the frequency of replacing the blades
B. Each cutting blade will last up to 2 months when it is programmed to mow every day
C. Always check to see if the blades are chipped or damaged and replace them if they are
D. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Android. Spare blades are also available at your nearest Android retailer

WARNING! Before cleaning, adjusting, or replacing the blades, turn your Android OFF and remove the battery. Always wear protective gloves.

1. Replacing the Blades

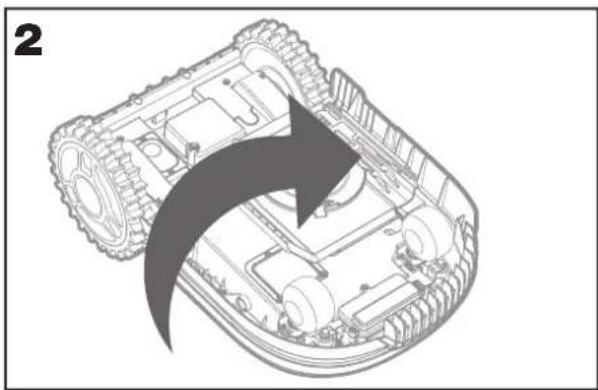

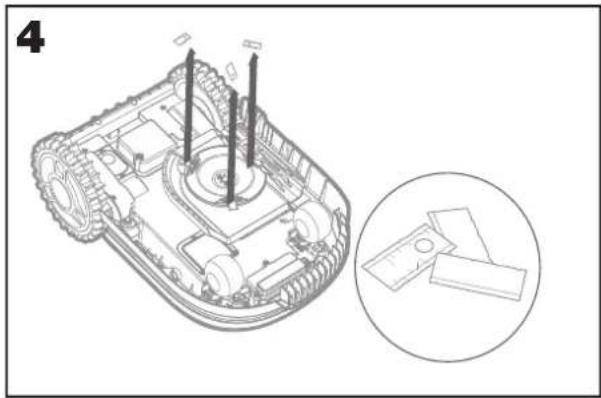

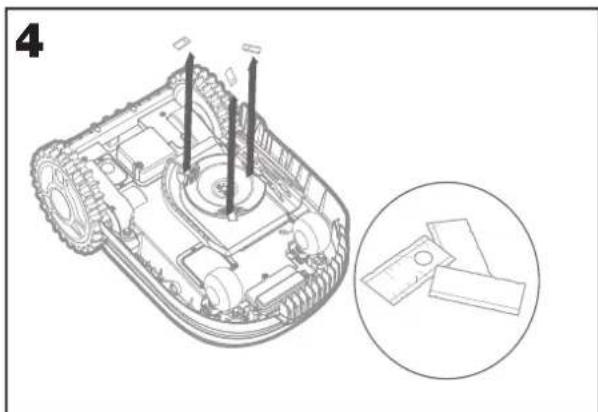

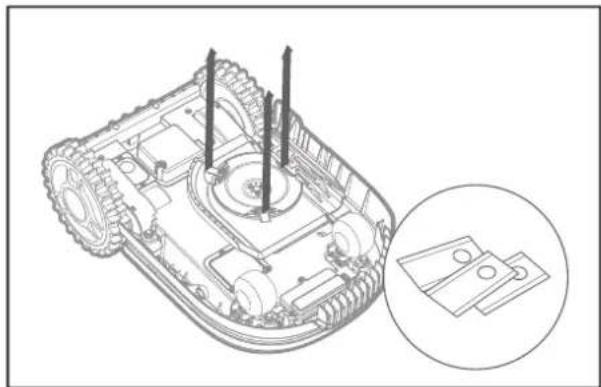

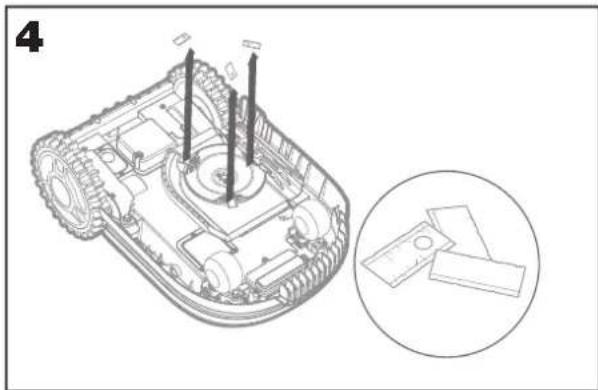

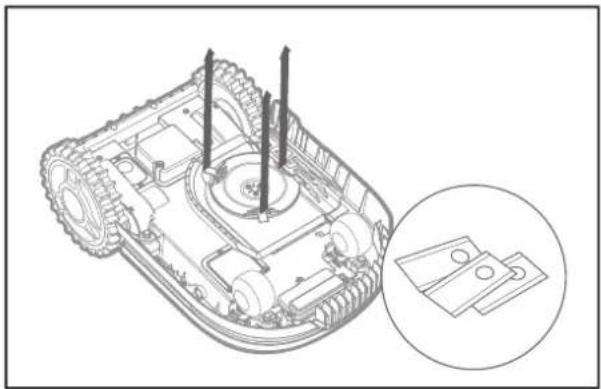

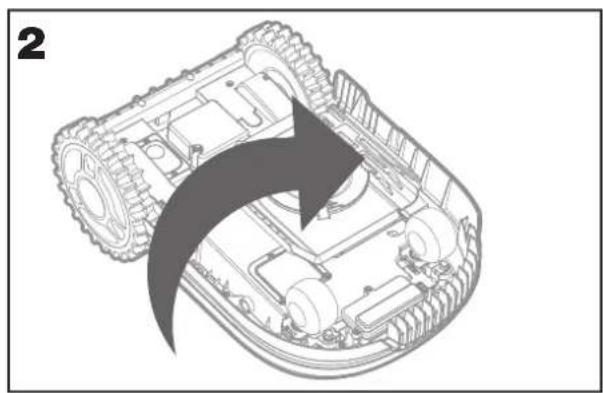

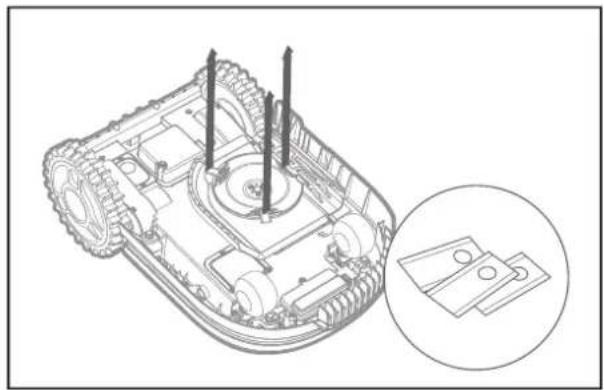

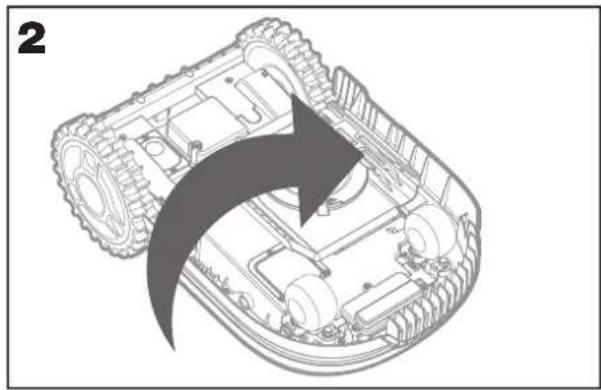

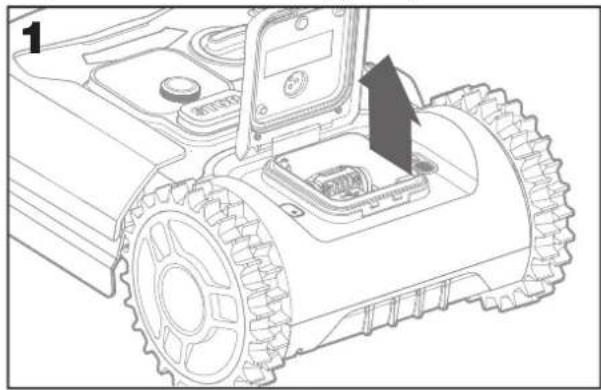

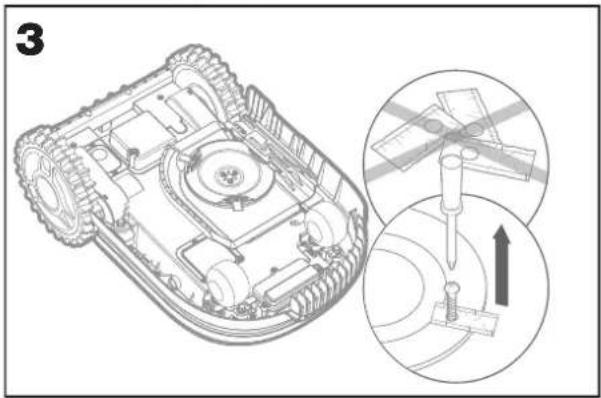

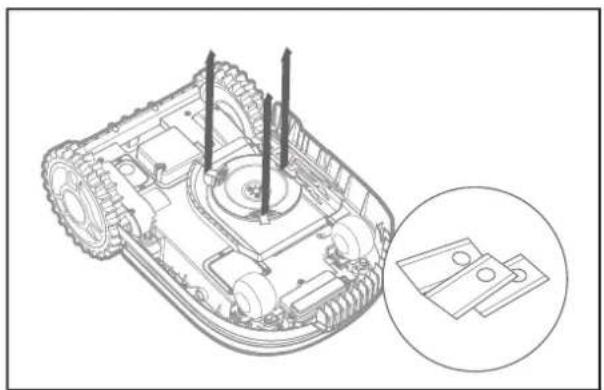

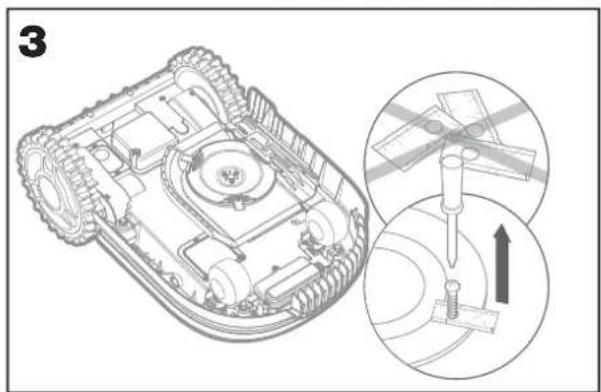

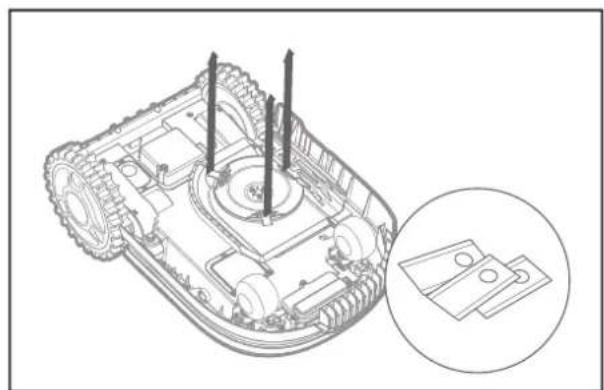

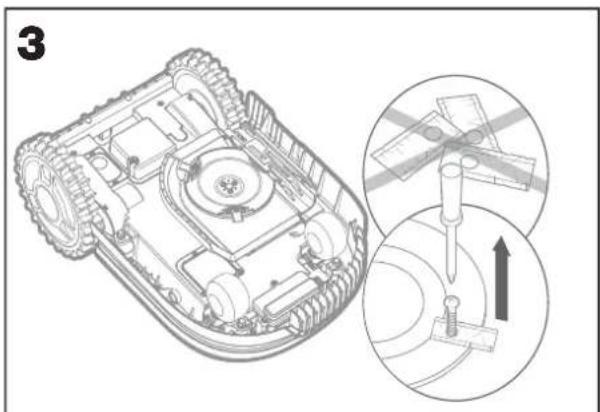

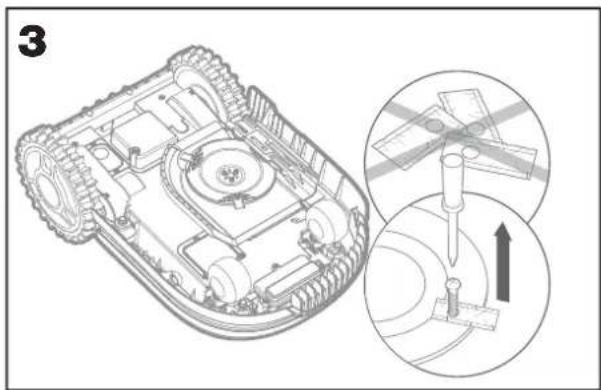

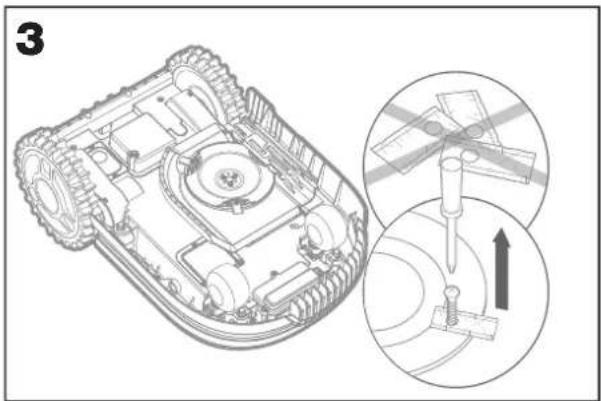

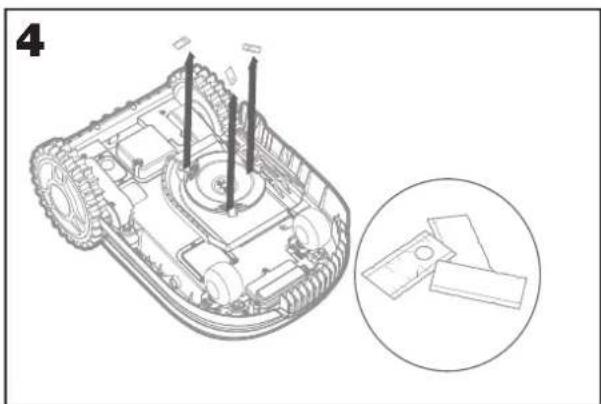

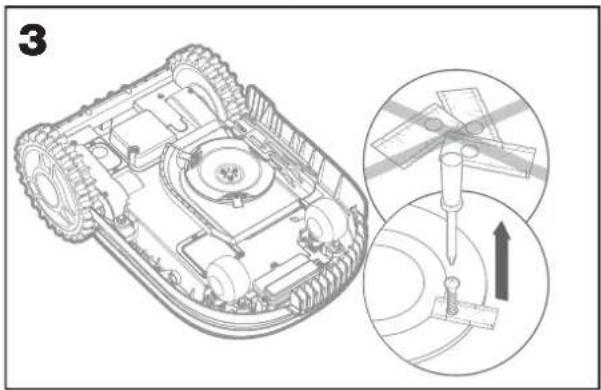

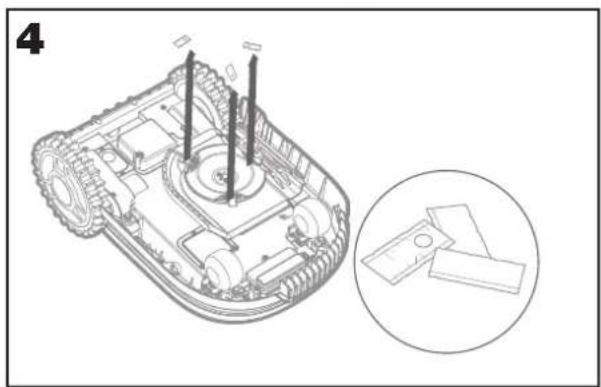

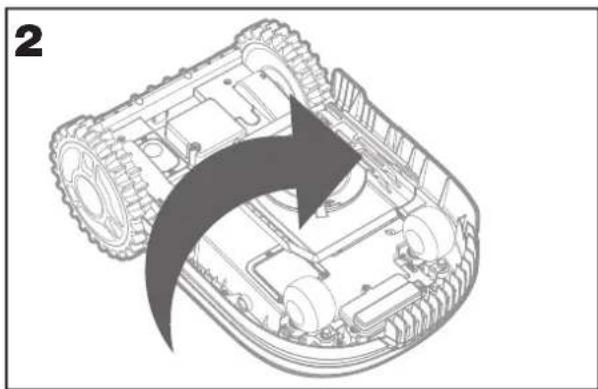

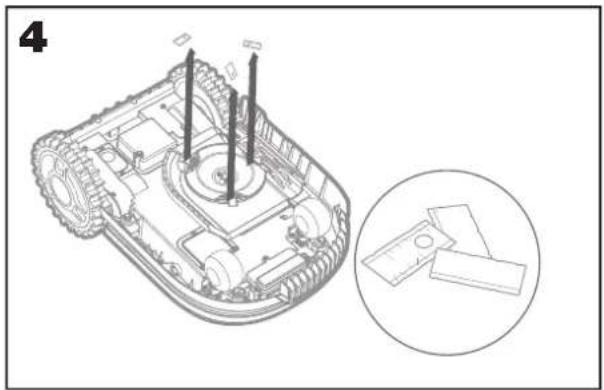

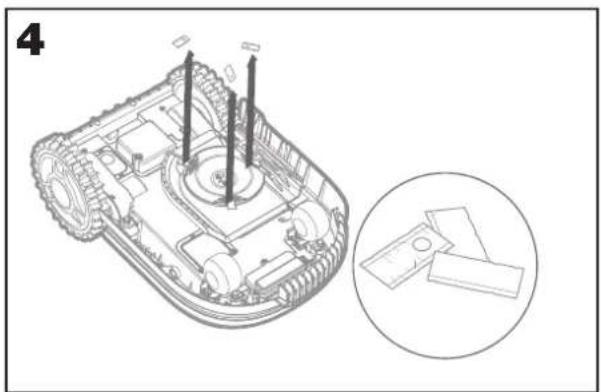

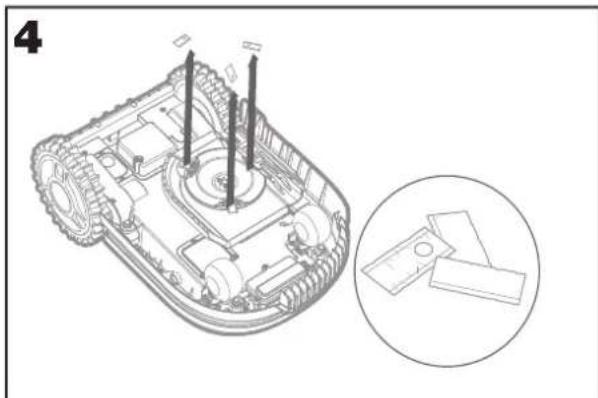

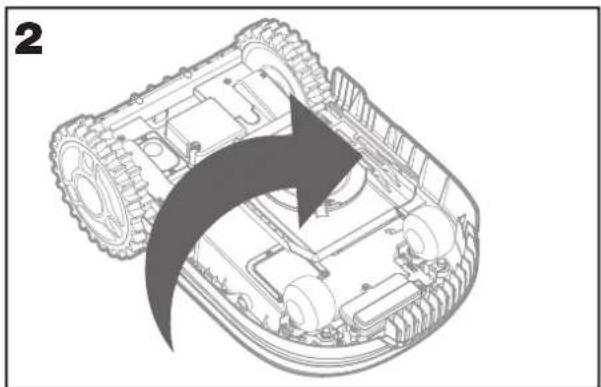

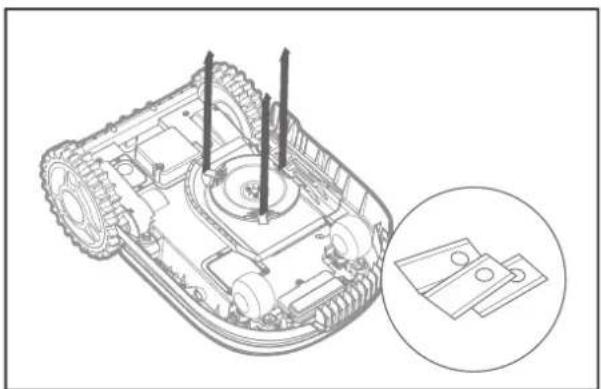

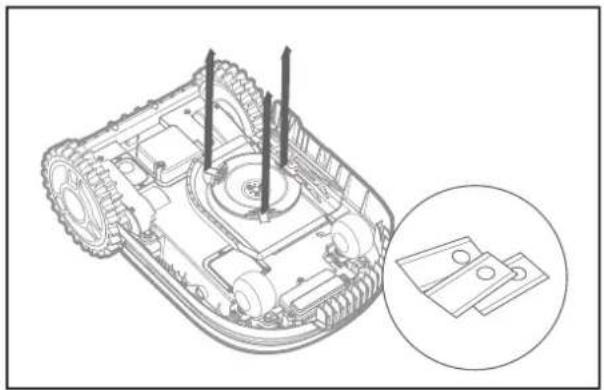

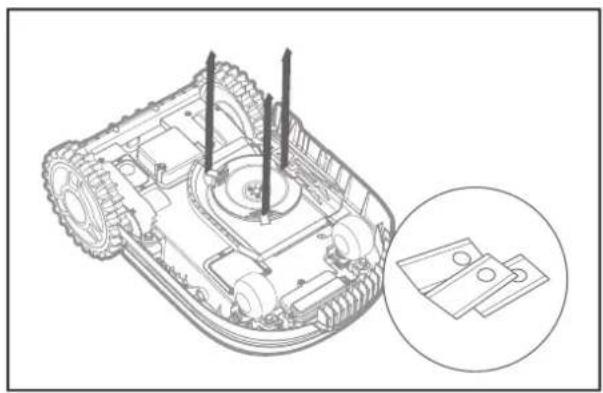

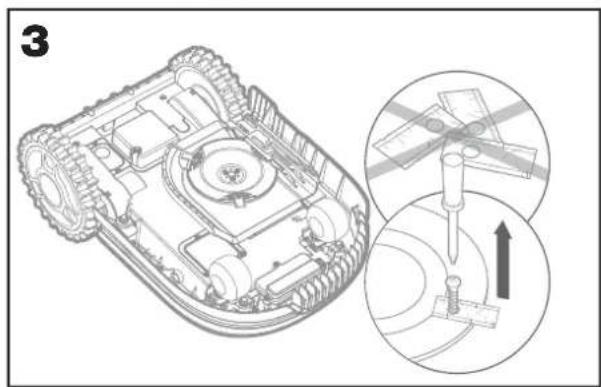

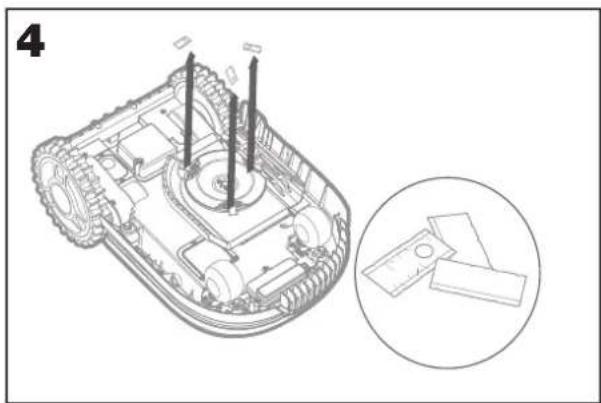

Remove the battery (fig. 1) and gently flip the Landroid over (fig.2) Take the screws off the blades with a screwdriver (fig. 3 - 4) Firmly screw on the new blades (fig. 5 - 6)

Technical line drawing of a robotic lawn mower with visible tire tracks and mechanical components (no text or symbols)

Diagram of a tracked vehicle showing internal components and motion arrows (no text or symbols)

Technical illustration of a tracked vehicle with internal components and two circular insets showing screwdriver positioning (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and structural elements, with an inset close-up of a component detail (no text or symbols)

6 5

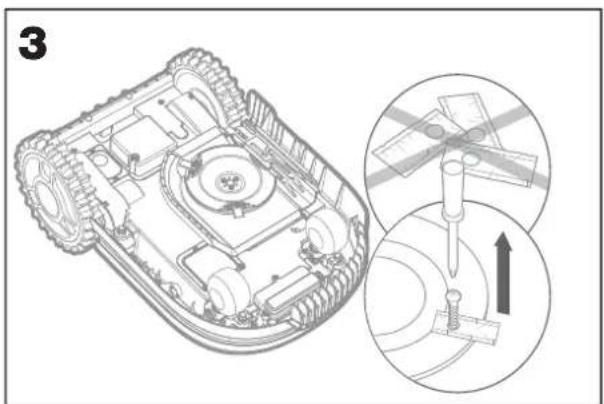

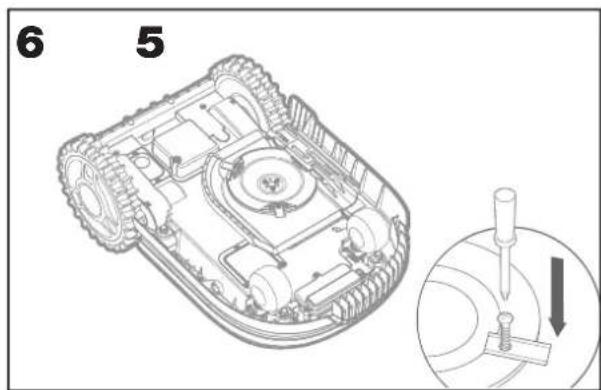

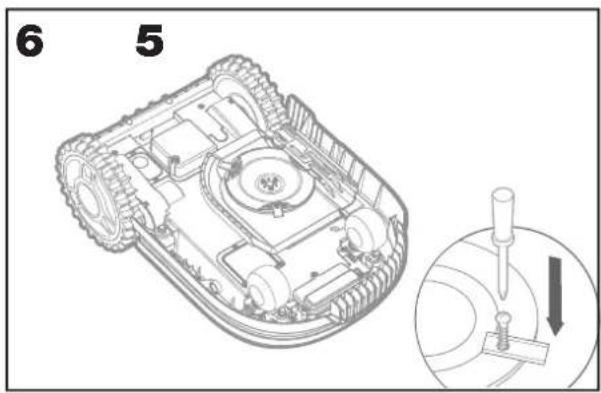

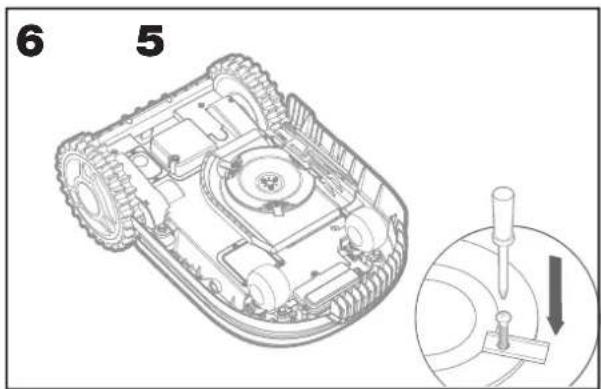

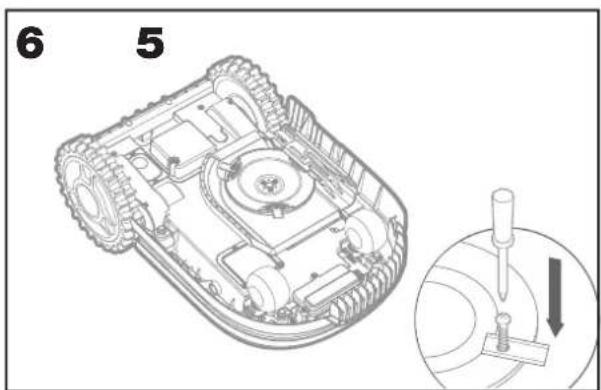

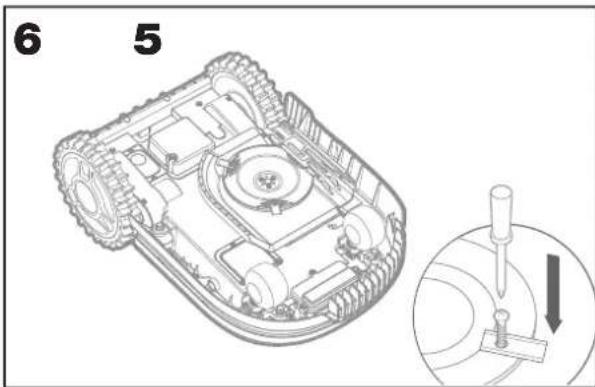

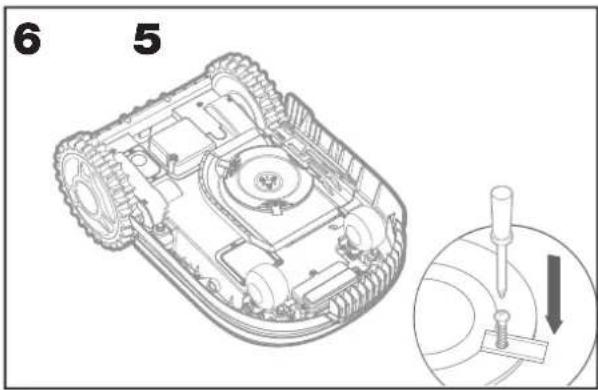

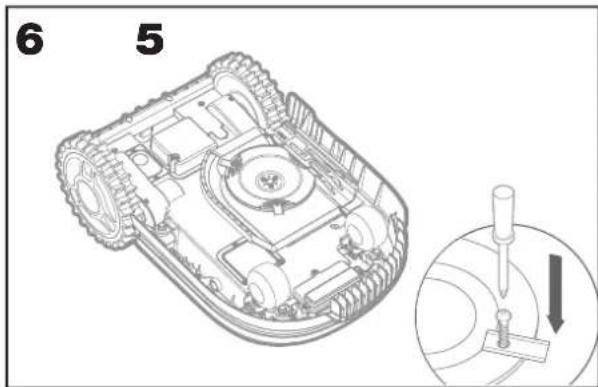

Attention: When fitting new blades, make sure you replace ALL the blades.

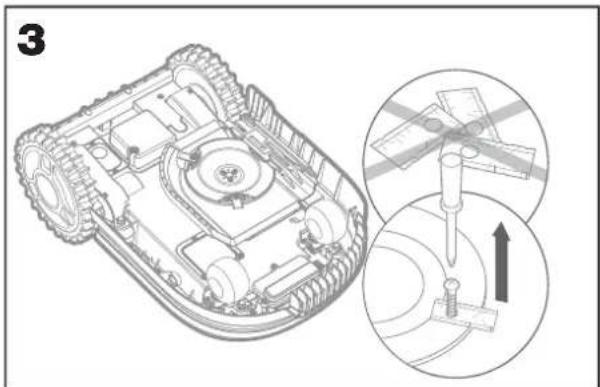

Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury

Important: After screwing the blade to the blade disc, make sure the blade is able to spin freely

Keep it clean

Your Android should be cleaned regularly. This helps keep it in good condition, especially removing dirt, debris and the build-up of grass from daily mowing. Turn Android off before cleaning it. For extra safety, remove the battery.

Attention: Make sure the battery pack cover is closed when washing your Android.

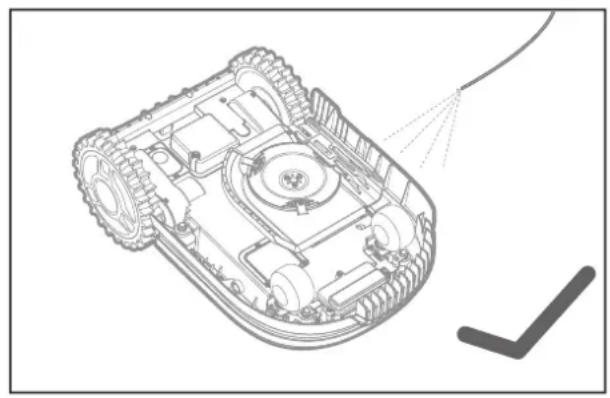

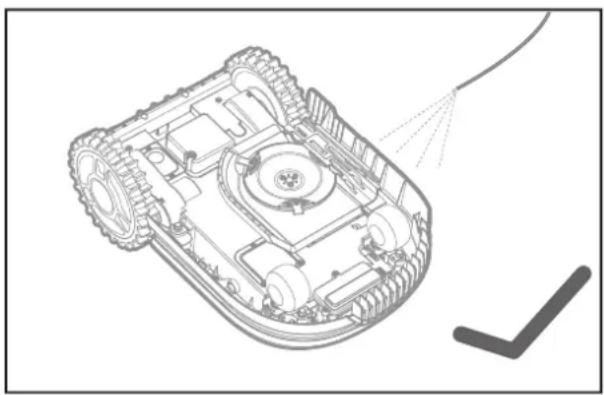

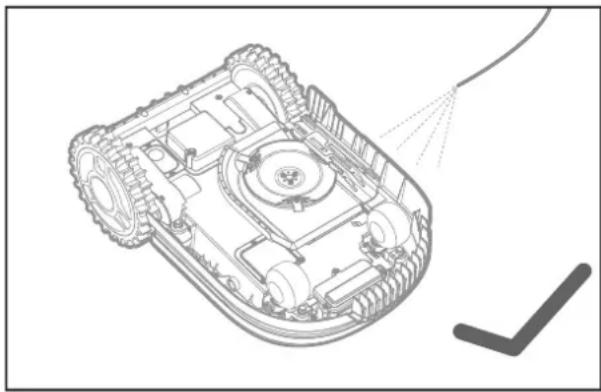

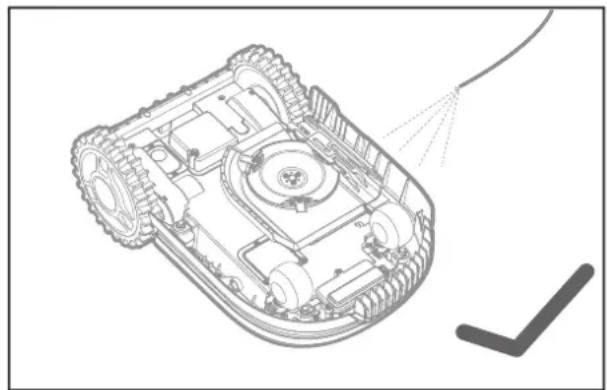

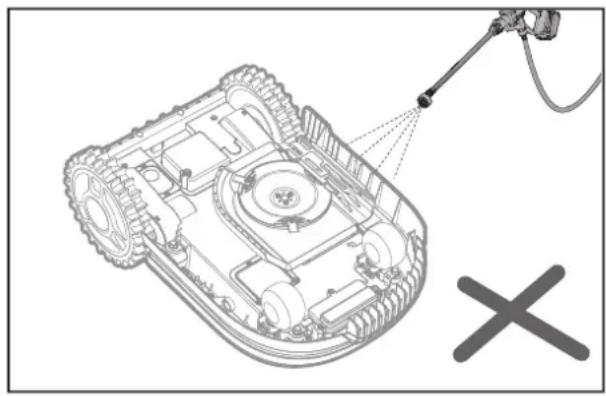

⚠ WARNING! YOUR Landroid can only be washed by using a hose! DO NOT use high pressure washer on your Android. High pressure water can go inside the sealings and damage electronic and mechanical parts.

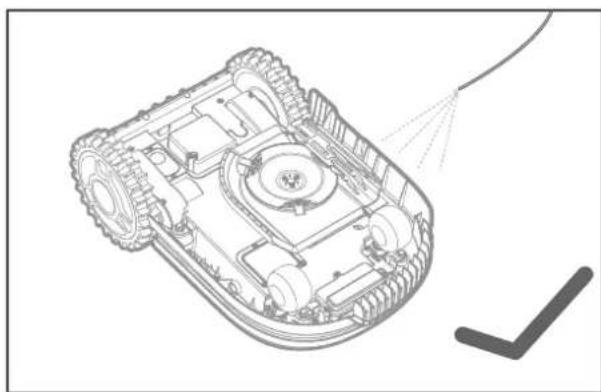

Technical illustration of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

1. Cleaning the upper body

A. Clean with a spray bottle filled with water. Don't use solvents or polishers
B. Use a brush or a clean cloth to remove built-up dirt

2. Cleaning the Bottom

A. Flip Android upside down
B. Remove debris and grass clippings using a brush to remove
C. Be careful not to touch the blades with your hands. Wear gloves for protection
D. Clean the blade disc, the chassis and the front wheel(s) thoroughly with a soft brush or moist rag
E. Rotate the blade disc to ensure it rotates freely. Remove any obstructions. Remove any lodged debris so that they don't cause a crack in the blade disk. Even the tiniest crack effects mowing performance
F. Check the blades spin freely around the fixing screws. Remove any obstructions

3. Cleaning the drive wheels

A. Remove mud from wheels with a brush in order to ensure good grip of the tread

4. Clearing the charging contacts

A. Clean the contact pins located on the charging pile and the charging strips located on the Landroid using a cloth
B. Periodically remove any build-up of grass clippings or debris around the contact pins and the charging strips to ensure Android successfully charges each time

Keep it charged

The heart of Android is its 20V Li-Ion Worx Powershare Battery.

A. For the proper storage of the battery, make sure it is fully charged and kept in a cool dry place.
B. The recommended Android operation temperature is between 0-55°C
C. The life-span of Landroid's battery depends on hours of usage and the length of use per day during the mowing season

1. Landroid can be charged manually without the boundary wire

A. Connect the charging station to a suitable power supply. The green light on the charging station will turn on
B. Manually dock Android into the charging station while Android is powered off
C. The green light on the charging station will flash and Android will begin to charge

Keep it stored over the winter

Although Android is designed and built to survive the most severe weather conditions, we recommend storing it in your shed or garage during the winter. To prepare it for winter hibernation:

A. Clean it thoroughly

B. Fully charge the battery
C. Turn the power off

1. Getting back to work in the Spring

When it is time to re-start Landroid for the new season, please perform the following checks:

A. Update the time and date settings via the app
B. If you notice signs of oxidation on the charging contacts of Landroid and the charging station, clean these with a fine grade emery cloth
C. Full charge Android's battery before operating

Keep it updated

Landroid is always improving and new software versions are made available for free. Always keep Android software updated to make the most of your machine.

1. Over-the-Air (OTA) updates

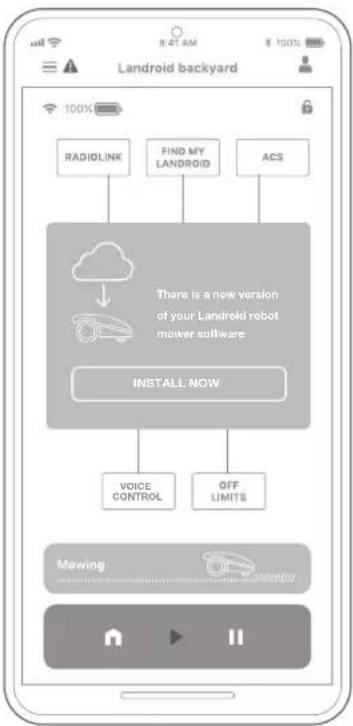

If your Android is connected to your Wi-Fi network, you will be notified that new software is available via the app. Once you confirm, the update will happen automatically Over-the-Air.

2. Check which software version you have

The software version number can be seen when the Landroid is power-on.

3. Manual updates

A. If your Android is not connected to your Wi-Fi network, you can still update it to the latest software version with a USB stick

B. Regularly visit the Worx Android website to check if any new version is available. If you subscribed to Android email list, you will be notified when a new version is available

C. Download the latest software version at our website

D. Take a blank USB stick formatted in FAT32

E. Save the zip file and extract the content to your USB stick

F. Place Android on a secure and level surface

G.Turn off Landroid

H. Go to the rear of the Landroid to access the USB port.

I. Insert the USB stick in the port

J. Place the Android on the lawn again, inside the working area delimited by the boundary wire

K. Turn on Android

L. Without lifting Android, remove the USB stick when 'Please remove the USB key' is displayed

M. The update will begin automatically and may take a while. Android will restart automatically after the update is completed

NOTE: Make sure Android is within the boundary when restarting Android.

OPERATION MESSAGES

MESSAGE LANDROID ACTION
Cutting grass Cutting grass according to the mowing schedule.
Raining The rain sensor detects water.	Landroid will return to the charging station andstay there for the time you have programmed it to do so. When dry, Android will automatically begin the rain delay countdown and then return to mow. If you want Android to mow before this, simply turn it off then on again, but only when the rain sensor is dry, or you can remove the rain delay completely by setting the rain delay time to zero.
Going home Needs to recharge—during the journey to the base, the cutting blade is stopped in order to save energy.
Charging ‘Charging’ and charge percentage are displayed.
No working time scheduled Stand-by, needs to be programmed as desired.
Not working today	Stand-by, will start according to mowing schedule.
Work done today
Zone searching According to the setting of ‘Customize work zone’, Android is searching a certain area to mow.
Charge complete Android has completed its charging.
Emergency charge Android is charging in a powered-off state.

ERROR MESSAGES

Sometimes things can go wrong. Fortunately Android is smart enough to tell you if it is encountering an issue, so you can fix it. If in doubt, please visit our website where you will find useful videos and further support.

MESSAGE CAUSE ACTION
	Battery pack cover is open Close the battery pack cover
Outside working area!Press START to reset.	Landroid cannot find the boundary wire signal.	1. If Android is actually outside of its working area: turn power off, take Android inside the working area, turn the power on and press start.2. If Android is inside its working area check if the LED on the charging pile is solid green. If red, check if the boundary wire is properly connected to the charging pile and that the pile is connected to a suitable power supply. If they are properly connected, the boundary wire terminals are clamped incorrectly and must be reversed.
WRONG PIN! Please retry.	PIN code is wrong.	Input the correct PIN or re-set your PIN.
Blade motor fault!Press START to reset.	Blade disc is blocked by an object, e.g. a branch.	Turn power off.Turn Android upside down and check if there's anything preventing the blade disc from rotating and remove any obstruction.Turn Android upright.Turn power on. Press start
	Blade is over-loaded by thick dense grass.	Turn power off.Take Android to an area with short grass or adjust the cutting height to a higher setting.Turn power on. Press start.
Wheels motor fault!Press START to reset.	Wheel motor is blocked in some way.	Turn power off and take Android to an area free from obstacles.Turn power on. Press start.If the error message is still displayed, turn power off. Turn Android upside-down and check if there's anything preventing the wheels from rotating.Remove any obstruction, turn Android upright, turn power on.
Upside down! Press START to reset.	This could have happened when Android came into contact with a sloping surface which made it overturn.	Turn Android upright and remove any obstacle that might have caused Android to overturn.
Mower trapped! Press START to reset.	Landroid is trapped. Turn power off.	Take Android to an area of your lawn free of obstacles, then turn power on. Press start.If the error message is still displayed: turn power off, turn Android upside-down. Check if there is anything preventing the wheels from rotating.Remove any obstruction, turn the Android upright, turn power on.
Mower lifted! Press START to reset.	Landroid is lifted up. Turn power off.	Take Android to an area clear of obstacles, turn power on. Press start.If the error message is still displayed: turn power off, turn Android upside-down and check there's anything that can cause Android to be lifted up.Remove any possible object, turn Android upright, turn power on.
Battery voltage too low! Please change battery.	Battery exhausted. In this case you must turn Android off and place it in the charging station, then 'Emergency charging' will be displayed and it will start charging. If the battery error still persist, your battery is damaged and need to be changed.
Wire missing! Press START to reset.	Machine can't find boundary wire signal.	If the LED light is red, check if the boundary wire is well connected to the clamps on the charging pile.If the problem persists, check that the boundary wire hasn't been cut.
Battery temperature out of range!Please wait.	Temperature is too high (more than 55°C)or too low(less than 0°C) when charging.	Place the charging station in a shady area or wait until it reaches the normal temperature.
Can't find charge station press START to reset.	Boundary wire is beyond its maximum length (300m or machine doesn't have enough power to go back to charging station.	Take Android to the charging station.
Mower locked! With the Lock Function' enabled, if your Android does not receive a signal from your Wi-Fi router for 3 days, then it gets locked as a security measure.This could be because your router lost its power or because you changed your Wi-Fi router or network provider.	Please reconnect Android to the Wi-Fi network it has been originally paired with. If this is not possible, contact Cutomer Service.

NOTES

A. Before turning power on, always check Android is inside its working area. If not, the message "Outside working area! Press START to reset" will be displayed. This message is also displayed when Android is partly but not completely inside its working area
B. If for any reason—i.e. a party, children playing...—you want to park your Android in the charging station: press home then OK. Android will go to its base and stay there. Please note Android will now wait until the next scheduled mowing session. If you want to re-start it at anytime, press start then OK to start your Android
C. If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire so please refer to the installation instructions and check your set up is correct with its help
D. If your lawn is divided in two separated areas, connected by a corridor less than 1m wide, one of which is not provided with the charging station: when Android runs out of charge, take it manually to the charging station
E. If Android runs abnormally once in a while, please reset it by turning it off and removing the battery for 30 seconds, then restart it. If the problem cannot be solved, please contact our Customer Service for help

7. TROUBLE SHOOTING

If your Android does not work correctly, follow the trouble shooting guide below. If the fault persists, contact Customer Service.

SYMPTOM CAUSE SOLUTION
The LED light on the charging pile does not turn on.	There is no power. Check the charging station is connected properly to the charger and the charger is connected to a suitable power supply.
Red light on the charging pile.	The boundary wire isn't connected.	Check that the boundary wire has been connected correctly to the charging station. Check there are no breaks in the boundary wire.
Landroid turns on, but the blade disc does not spin.	Landroid is searching for the charging station.	This is normal: when Android needs to recharge, the blade disc does not rotate while it is searching for the charging station automatically.
Landroid vibrates. The blade disc is unbalanced. Blades may be damaged.		Check the blades and replace them if damaged.Remove debris and foreign objects from the blades and blade disc.
Grass is being cut unevenly.	Landroid does not work enough hours per day to cut the grass.	Try adding more hours to the mowing schedule.
	Mowing area is too big for the size of Android you have.	Try decreasing the size of the mowing area or increasing working time.
	The blades are dull and not sharp.	Change all the blades and screws in order to balance the bade disc.
	The cutting height is set too low for the length of the grass.	Raise the cutting height and then gradually lower.
	Grass or another object has wrapped around the blade disc.	Check the blade disc and remove any grass or other objects that might prevent it spinning.
	There is a build-up of grass in the blade disc or motor frame box.	Make sure the blade disc rotates easily. If need be, you may take off the blade disc and then remove the debris.
Your Android is inside its working area and the boundary wire is connected, but the display says ‘Outside working area!Press START to reset’	The boundary wire ends are clamped incorrectly.	Reverse the boundary wire ends and reconnect to the charging station.
The charging time is far more than the rated charging time.	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging pile and the charging strip on Android using a cloth.
	The charging protection program is activated due to high temperature.	Place the charging station in a shady area or wait until the temperature has cooled down.
The mower does not charge.	There is no power. Check the power cord is connected properly to the charger and the charger is connected to a suitable power supply.Make sure both the charging strips on the mower touch the center of the contact strips on the charging pile.
Landroid is starting to have shorter run-times between charges.	Something is clogging in the blade disc creating friction and increasing power consumption.	Take off the blade disc and clean it. Maybe the grass is too high and too thick.
	Landroid is shaking heavily because the blade disc is unbalanced.	Check the blade disc and blades, remove debris and foreign objects from the blades and blade disc.Replace the blades with a new set.
	The battery may be exhausted or old. Replace battery.
	The working time is up reset the working time
Landroid is not operating at the correct time.	The clock is not set to the correct time. Set the clock to the correct time.
	Programmed cutting times for Android are not correct.	Change the time settings for the mower to start and stop.
	the percentage of weekly operating time set through APP has changed.	set the correct percentage through APP.
Landroid cannot correctly dock with the charging pile.	Environmental influences. Restart Android.
	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging pile and the charging strip on Android using a cloth.
The green light on the charging pile turns on before charging is complete.	the charging station is overheating or overcooling	Place the charging station in a shady area or wait until it reaches the normal temperature
Landroid wheels skid or repeatedly slip.	Foreign obstacles, such as twigs and branches may be lodged under Android.	Remove foreign objects from underside of Android.
	The lawn is too wet. Wait until lawn has dried.
Landroid runs outside the boundary wire.Landroid does not mow an area within a boundary wire zone.Landroid reverses or rotates erratically near the boundary wire.	The boundary wire of another Android or robotic mower is positioned too closely.	Ensure at least 1m clearance is provided in between your boundary wire and that of your neighbor.
	In wet conditions, the boundary wire electric signal may leak where the wire has been joined or repaired incorrectly.	Check boundary wire joints. Insulate to provide a fully waterproof connection.
	There is boundary wire electric signal leakage due to broken insulation.	Repair damaged boundary wire with the wire connectors supplied.
Landroid slips out of its working area going down a hill.	Low grip of Android drive wheels. Please check the wheels are clean and free of mud in order to have the maximum grip possible.
Landroid operative system crashes when charging or on standby.	Software or display fault. Restart Android.
Landroid shuts off when docking in the charging pile.	Landroid fails to charge due to over temperature protection and is powered off.	Place the charging station in a shady area or wait until the temperature has cooled down.
	Poor connection. Check the LED light on the charging pile. Check the connection between the contact pins located on the charging pile and the charging strip.
Landroid stops in the working area.	There is an obstacle in the working area.	Remove the obstacle from Android's working area.
	The cutting height is set too low for the length of the grass or the grass is too dense.	Raise the cutting height and then gradually lower.
	The extended boundary wire should not exceed 300m or it may cause signal problem.	Reduce the lenght of the boundary wire.
	The distance between the center of the lawn and the boundary wire should not exceed 25m or it may cause signal attenuation.	Reduce the distance between the center of the lawn and the boundary wire perimeter within 25m.
Landroid flips over. There is an inclined obstacle on the lawn.		Exclude the obstacle from Android's working area.
Landroid fails to connect to the internet.	Please check your router has the correct settings.	Make sure your router is 2.4GHz. If your router has two settings, please enable the 2.4GHz band.Make sure your router is set to 802.11 mode and wireless setting is b/g/n mixed.Make sure your router has the SSID Broadcast function enabled when you connect the machine with the app.You can close it after you connect successfully.Make sure DHCP function is enabled.If you changed your Wi-Fi network, you need to connect Android to the new network.If you have a “Fritz!box” router, please make sure activate “Allow communication between devices in same network” in the settings.
	Please check whether the router is disconnected or WIFI SSID is changed	Make sure the router is connected and WIFI SSID is correct
Your Android beeps when you are adjusting “month/hour /minute”	It is normal	Anticlockwise the OK to adjust.

Environmental protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

On behalf of Positec declare that the product

Description Robotic Lawnmower

Type WR165E WR167E WR148E WR147E.1(100-199 - designation of machinery, representative of Robotic Lawnmower) (Serial number is placed on the back page) with battery charger WA3775 / WA3776 / WA3750.1/ WA3755.1 and charging base WA4002.1

Function Cutting grass

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

WR165E WR167E

2000/14/EC amended by 2005/88/EC

- Conformity Assessment Procedure as per Annex V

- Measured Sound Power Level 65.5 dB (A)

- Declared Guaranteed Sound Power Level 67 dB (A)

WR148E WR147E.1

2000/14/EC amended by 2005/88/EC

- Conformity Assessment Procedure as per Annex V

- Measured Sound Power Level 61.56 dB (A)

- Declared Guaranteed Sound Power Level 63 dB (A)

The notified body involved

Name: Intertek, Semko AB (notified body 0413)

Address: Torshamnsgatan 43164 22 Kista Sweden

Certification No.: 201002326SHA-V1

Standards conform to,

EN 60335-1:2012+A11+A13+A1+A14+A2:2019, EN 50636-2-107:2015+A1+A2:2020,

EN 60335-2-29:2004+A2+A11:2018, EN 62233:2008, EN 55014-1:2017+A11:2020,

EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005,

EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN IEC 62311:2020,

EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 55011:2016+A11:2020,

EN 303 447 V1.1.1, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH, Grüner Weg 10, 50825 Cologne, Germany

M A

2020/12/02

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ABCD E G F H I J K N L M

Line drawing of a tracked robot with visible mechanical components and a black arrow indicating a movement or assembly (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion arrows (no text or symbols)

Technical illustration of a tracked vehicle showing internal components and a close-up of the engine assembly (no text or symbols present)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset of a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with visible internal components and a sensor or probe inserted (no text or symbols)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

1. Over-the-Air (OTA) Updates

Typ WR165E WR167E WR147E.1 WR148E (100-199 - designation of machinery, representative of Robotic Lawnmower) (Serial number is placed on the back page) with battery charger WA3775 / WA3776 /WA3750.1/ WA3755.1 and charging base WA4002.1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT

MISES EN GARDE GÉNÉRALES ET COMPLÉMENTAIRES

ABCD E G F H I J K N L M

INFORMATIONS RELATIVES AU BRUIT

	WR165E WR167E WR148E WR147E.1
Niveau de pression acoustique	L_pA = 45.5 dB(A) L	_pA = 40.68 dB(A)
	K_PA = 0.6 dB(A) K	_PA = 1.36 dB(A)
Niveau de puissance acoustique	L_wA = 65.5 dB(A) L	_wA = 61.56 dB(A)
	K_wA = 0.6 dB(A) K	_wA = 1.36 dB(A)
Porter des protections auditives lorsque la pression sonore est supérieure à 80 dB(A).

Line drawing of a robotic vehicle with visible gears and a control panel (no text or symbols)

Technical illustration of a tracked robotic vehicle showing internal components and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a close-up of the gear assembly (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robot with visible internal components and wiring (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible gears and a control panel (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion direction (no text or labels)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tank internal structure with two inserted pins, shown in an inset magnified view (no text or symbols)

6 5

Technical illustration of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

Landroid is always improving and new software versions are made available for free. Always keep Android software updated to make the most of your machine.

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

WR165E WR167E

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURIDAD DEL PRODUCTO INSTRUCCIONES GENERALES Y ADICIONALES DE SEGURIDAD

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible mechanical components and a black arrow indicating motion direction (no text or symbols)

Technical illustration of a tracked vehicle showing internal components and a curved arrow indicating rotation (no text or symbols)

Technical illustration of a tracked vehicle with internal components and two circular insets showing tool positioning (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID

ALGEMENE & EXTRA VEILIGHEIDSINSTRUCTIE

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible mechanical components and motion arrows (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion direction (no text or labels)

Technical line drawing of a mechanical device with internal components and an inset showing a close-up of a screwdriver (no text or symbols present)

Technical line drawing of a tracked vehicle showing internal components and a close-up inset (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with spray gun and no visible text or symbols

Technical line drawing of a robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPIECZEŃSTWO PRODUKTU OGÓLNE I DODATKOWE INSTRUKCJE BEZPIECZEŃSTWA

ABCD E G F H I J K N L M

Line drawing of a tracked robot with visible mechanical components and a black arrow indicating motion direction (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion arrows (no text or symbols)

Technical illustration of a tracked vehicle showing internal components and a close-up of the gear assembly (no text or symbols present)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a mechanical part detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and structural elements, with an inset close-up of a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU ZÁKLADNÍ A DOPLŇKOVÉ BEZPEČNOSTNÍ POKYNY

ABCD E G F H I J K N L M

Line drawing of a tracked robot with visible mechanical components and a black arrow indicating motion direction (no text or symbols)

Diagram of a tracked vehicle showing internal components and a curved arrow indicating motion (no text or symbols)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a close-up inset (no text or symbols)

Technical line drawing of a tank internal structure with two vertical rods inserted, and a magnified inset showing a component detail (no text or symbols)

6 5

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU ZÁKLADNE A DOPLNKOVÉ BEZPEČNOSTNÉ POKYNY

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible mechanical components and a directional arrow (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion direction (no text or symbols)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tank with internal components and a magnified inset showing a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VARNOST IZDELKA

SPLOŠNA IN DODATNA VARNOSTNA NAVODILA

ABCD E G F H I J K N L M

Technical line drawing of a robotic lawn mower with visible tire tracks and mounting components (no text or symbols)

Diagram of a tracked vehicle showing internal components and a curved arrow indicating motion (no text or symbols)

Technical illustration of a tracked vehicle with gear and internal components, shown in two views (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and structural elements, with an inset close-up of a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with a sensor and no visible text or symbols

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO INSTRUÇÕES DE SEGURANÇA GERAIS E ADICIONAIS

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible gears and a control panel (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion direction (no text or labels)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component detail (no text or symbols)

Technical line drawing of a mechanical tank with internal components and a magnified inset showing a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

3. Limpar as rodas motrizes

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BIZTONSÁGI ÓVINTÉZKEDÉSEK ÁLTALÁNOS & KIEGÉSZÍTŐ BIZTONSÁGI ÓVINTÉZKEDÉSEK

ABCD E G F H I J K N L M

Line drawing of a robotic vehicle with visible gears and a control panel (no text or symbols)

Technical illustration of a tracked robotic vehicle with an arrow indicating rotational motion (no text or symbols present)

3

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with a sensor and no visible text or symbols

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI INSTRUCTIUNI GENERALE ŞI SUPLIMENTARE DE SIGURANTĂ

ABCD E G F H I J K N L M

Technical line drawing of a tracked robot with visible mechanical components and a directional arrow (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and motion direction (no text or labels)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component (no text or symbols)

Technical line drawing of a tank with internal components and a magnified inset showing a component detail (no text or symbols)

6 5

Technical line drawing of a mechanical device with a tool and cross symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

Adresă Positec Germany GmbH, Grüner Weg 10, 50825 Cologne, Germany

A# C E

2020/12/02

Allen Ding

Adjunct Inginer Şef, Testare si certificare

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SIGURNOST PROIZVODA OPĆE I DODATNE SIGURNOSNE UPUTE

⚠ UPOZORENJE: Treba pročitati sve napomene o sigurnosti i upute. Ako se ne bi poštivale napomene o sigurnosti i upute to bi moglo uzrokovati strujni udar, požar i/ili teške ozljede.

ABCD E G F H I J K N L M

Slika je samo ilustrativne naravi

A Worx Landroid
B Priključci za popravak žice
c Kompleti rezervnih oštrica
D Imbus ključ
E Postolje za punjenje
F Hrpa za punjenje
G Vijci

H Klinovi za žicu

I Napajanje
J Granična žica
K Baterija od 20V
L Mjerači razmaka granične žice
M Bertelsen ravnalo
N Priručnik

UPOZNAJTE LANDROID

Sigurnosna blokada Utor Find My Landroid / Radio Link USB priključak Utor glasovnog upravljanja / Visoka uzbuna Otvor mikrofona Podešavanje rezne visine

Gumb na poklopcu baterije Sučelje ACS utor B Senzor za kišu Kontakt za punjenje Utor Off Limits (izvan granica) Slika je samo ilustrativne naravi

TEHNIČKI PODACI

Type WR165E WR167E WR148E WR147E.1 (100-199 - oznaka stroja, označava robotsku kosilicu)

	WR165E WR167E WR148E WR147E.1
Nazivni napon	20 V ---Max.*
Brzina bez opterećenja (/min)	2800 2400
Površina košnje (m2)	500 700 800	1000
Promjer rezanja (cm)	18 20
Visina rezanja (mm)	30-60
Položaji visine rezanja	4
Vrsta baterije Litij-ionska
Model baterije	WA3551.3 WA3553.3 WA3551.3 WA3553.3
Vrijeme punjenja Približno (mins)	75 150 75 75
Model punjača	WA3750.1/ WA3755.1			WA3775 / WA3776
Specifikacija punjača	Ulazno: 100-240 V~50/60 Hz, 38 W, Izlazno: 20V ---,1.5 A			Ulazno:100-240 V~50/60 Hz, 90 W, Izlazno: 20 V ---3.0 A
Masa uređaja (kg)	9.5 9.8 11.7	12
Stupanj zaštite	III
App (Wifi / Bluetooth)	Y
Frekvencijski raspon igrađenog WLAN modula	2.412GHz-2.484GHz
Maks. radiofrekvencijska šnaga ugrađen- og WLAN modula	802.11b:+16±2dBm(@11Mbps)802.11g:+14±2dBm(@54Mbps)802.11n:+13±2dBm(@HT20,MCS7)
Frekvencijski pojas indukcijskih sustava petlje	77 Hz
Maks. radiofrekvencijska snaga indukcijskih sustava petlje	82 dBμA/m

Technical line drawing of a tracked robot with visible mechanical components and a black arrow indicating motion direction (no text or symbols)

Technical illustration of a tracked vehicle showing internal components and a curved arrow indicating rotation (no text or symbols)

Technical illustration of a tracked vehicle with internal components and two circular insets showing mechanical assembly (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and X symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or labels)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHED GENERELLE OG YDERLIGERE SIKKERHEDSVEJLEDNINGER

A B C D E F G H I J M K L

Line drawing of a tracked robot with visible mechanical components and motion arrows (no text or symbols)

Diagram of a tracked robotic vehicle showing internal components and a curved arrow indicating motion (no text or symbols present)

Technical illustration of a tracked vehicle showing internal components and two circular insets illustrating screwdriver positioning (no text or symbols)

Technical line drawing of a tracked vehicle with internal components and a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a magnified inset (no text or symbols)

6 5

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a connector (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TUOTETURVALLISUUS YLEISET OHJEET JA TURVAOHJEET

A B C D E F G H I J M K L

Technical line drawing of a robotic arm with visible gears and a control panel (no text or symbols)

Diagram of a tracked vehicle showing internal components and a curved arrow indicating rotation (no text or symbols)

3

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component detail (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SIKKERHETSANVISNINGER GENERELLE OG SPESIFIKKE SIKKERHETSADVARSLER

A B C D E F G H I M J K L

Technical line drawing of a robotic lawn mower with visible tire tracks and mounting components (no text or symbols)

Diagram of a tracked vehicle showing internal components and a curved arrow indicating motion (no text or symbols)

Technical illustration of a tracked vehicle showing internal components and a close-up of the engine assembly (no text or symbols present)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a separate component detail (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a component detail (no text or symbols)

6 5

⚠ OBS: Sørg for å erstatte ALLE knivbladene når du bytter blader.

Technical line drawing of a tracked vehicle with sensor and no visible text or symbols

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÄKERHETSINSTRUKTIONER ALLMÄNNA & SPECIFIKA SÄKERHETSINSTRUKTIONER

A B C D E F G H I J M K L

Line drawing of a tracked robot with visible mechanical components and a black arrow indicating a specific movement (no text or symbols present)

Diagram of a tracked vehicle showing internal components and a curved arrow indicating motion (no text or symbols present)

Technical illustration of a tracked vehicle with internal components and two circular insets showing tool positioning (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a close-up inset (no text or symbols)

Technical line drawing of a tracked vehicle showing internal components and a close-up inset of a component detail (no text or symbols)

6 5

Technical line drawing of a tracked vehicle with sensor and warning symbol (no text or labels)

Technical line drawing of a tracked robotic vehicle showing internal components and wiring (no text or symbols)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
