USER MANUAL RLM3715A RYOBI

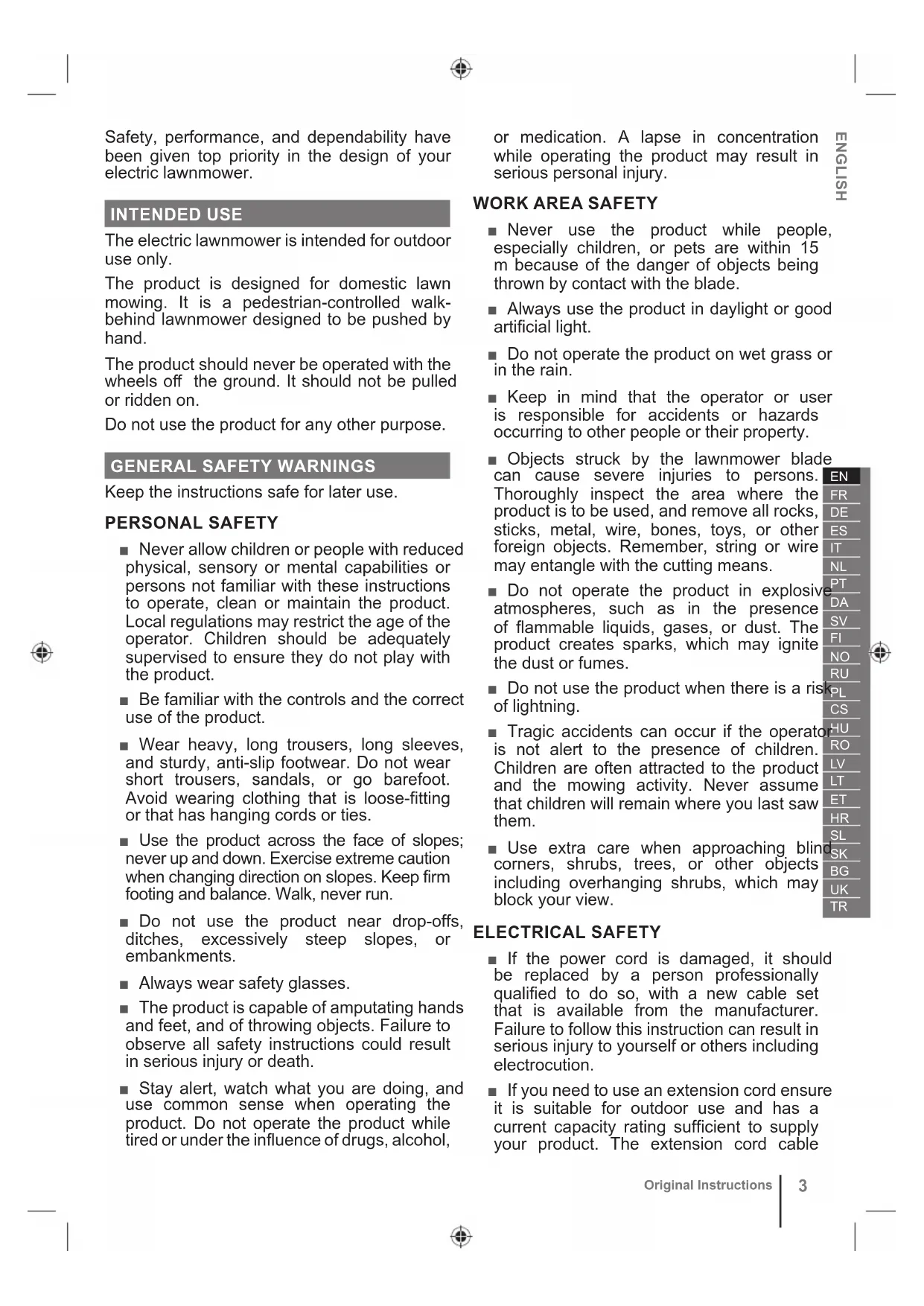

Original Instructions Safety, performance, and dependability have been given top priority in the design of your electric lawnmower. INTENDED USE The electric lawnmower is intended for outdoor use only. The product is designed for domestic lawn mowing. It is a pedestrian-controlled walk- behind lawnmower designed to be pushed by hand. The product should never be operated with the wheels off the ground. It should not be pulled or ridden on. Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

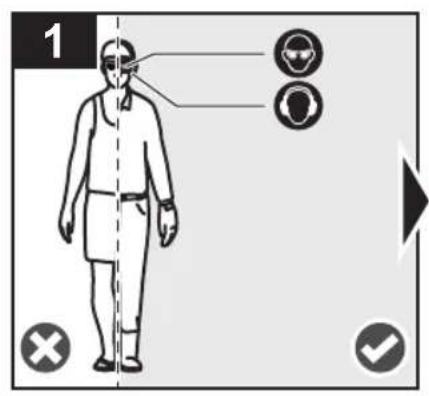

Keep the instructions safe for later use. PERSONAL SAFETY ■ Never allow children or people with reduced physical, sensory or mental capabilities or persons not familiar with these instructions to operate, clean or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure they do not play with the product. ■ Be familiar with the controls and the correct use of the product. ■ Wear heavy, long trousers, long sleeves, and sturdy, anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties. ■ Use the product across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes. Keep firm footing and balance. Walk, never run. ■ Do not use the product near drop-offs, ditches, excessively steep slopes, or embankments. ■ Always wear safety glasses. ■ The product is capable of amputating hands and feet, and of throwing objects. Failure to observe all safety instructions could result in serious injury or death. ■ Stay alert, watch what you are doing, and use common sense when operating the product. Do not operate the product while tired or under the influence of drugs, alcohol, or medication. A lapse in concentration while operating the product may result in serious personal injury.

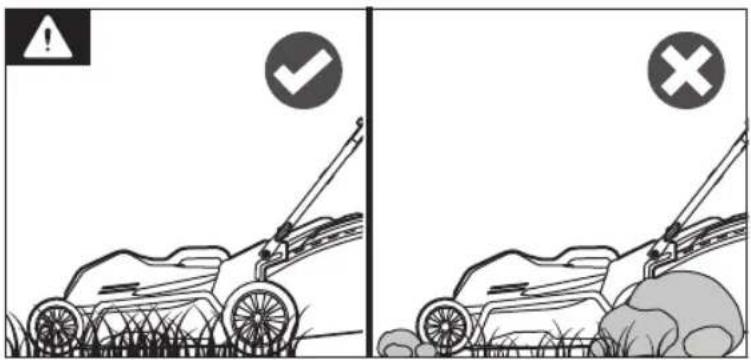

■ Never use the product while people, especially children, or pets are within 15 m because of the danger of objects being thrown by contact with the blade. ■ Always use the product in daylight or good artificial light. ■ Do not operate the product on wet grass or in the rain. ■ Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. ■ Objects struck by the lawnmower blade can cause severe injuries to persons. Thoroughly inspect the area where the product is to be used, and remove all rocks, sticks, metal, wire, bones, toys, or other foreign objects. Remember, string or wire may entangle with the cutting means. ■ Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The product creates sparks, which may ignite the dust or fumes. ■ Do not use the product when there is a risk of lightning. ■ Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the product and the mowing activity. Never assume that children will remain where you last saw them. ■ Use extra care when approaching blind corners, shrubs, trees, or other objects including overhanging shrubs, which may block your view. ELECTRICAL SAFETY ■ If the power cord is damaged, it should be replaced by a person professionally qualified to do so, with a new cable set that is available from the manufacturer. Failure to follow this instruction can result in serious injury to yourself or others including electrocution. ■ If you need to use an extension cord ensure it is suitable for outdoor use and has a current capacity rating sufficient to supply your product. The extension cord cable4 Original Instructions should be marked with either “H05 RN- F” or “H05 VV-F”. Check it before every use for damage, always uncoil it during use because coiled cords can overheat. Damaged extension cords should not be repaired, they should be replaced with an equivalent type. ■ Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. Do not touch the cord before disconnecting the supply. Do not use the product if the cord is damaged or worn. ■ Electrical power should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. ■ Make sure the power cord is positioned so that it cannot be damaged by the cutting means and will not be stepped on, tripped over or otherwise subjected to damage or stress. ■ Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ■ Avoid unintentional starting. Always check that the switch is in off position before plugging in the product to the power supply. Do not carry a plugged in product with your finger on the switch. ■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ■ Never pick up or carry the product by the electric cable. ■ Never pull by the power cord to disconnect from the power supply. ■ Keep the power cord away from heat, oil and sharp edges. ■ Make sure that the voltage is correct for your product. A nameplate on the product indicates the product’s voltage. Never connect the product to an AC voltage that differs from this voltage.

LAWNMOWER SAFETY WARNINGS

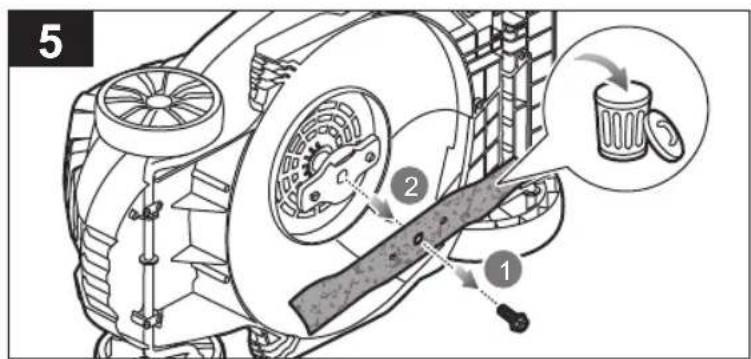

■ Before use, always visually inspect the product to ensure that blades, blade bolts, and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. ■ Bring the product to an authorised service centre to replace damaged or unreadable labels. ■ Do not pull the product backwards unless absolutely necessary. If you must back the product away from a wall or obstruction, first look down and behind to avoid tripping or pulling the product over your feet. ■ Turn off the product and allow the blade to stop if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the work area. ■ Never use the product with defective guards or shields, or without safety devices, such as deflectors and grass catchers, in place. ■ Do not tilt the product when switching on the motor or while the motor is running. If absolutely necessary, you may raise the front of the lawn mower by no more than 5 cm to enable easier starting. Press down on the handlebar to achieve this. Always return the mower to its normal position with all wheels on the ground before cutting. Tilting the lawnmower exposes the blade and increases the probability of objects being thrown and accidental contact with the blade. ■ Do not start the product when standing in front of the grass discharge opening. ■ The product must be started with the user behind the handlebars in the operator safety zone. Never start the product if: ● The grass discharge chute is exposed and is not protected by the grass catcher and grass discharge chute cover. ● Hands and feet of all persons are not clear of the cutting enclosure. ■ Turn on the product carefully according to the instructions, and keep hands and feet away from the blades. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. ■ Never pick up or carry the product while it is running.ENGLISH

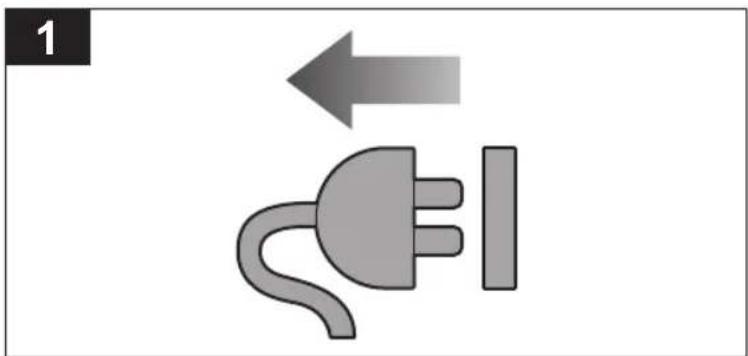

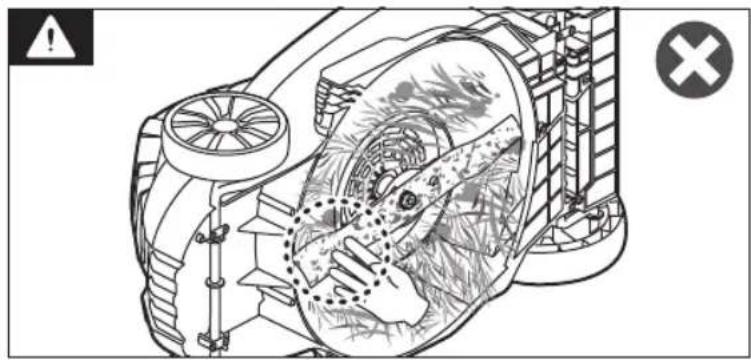

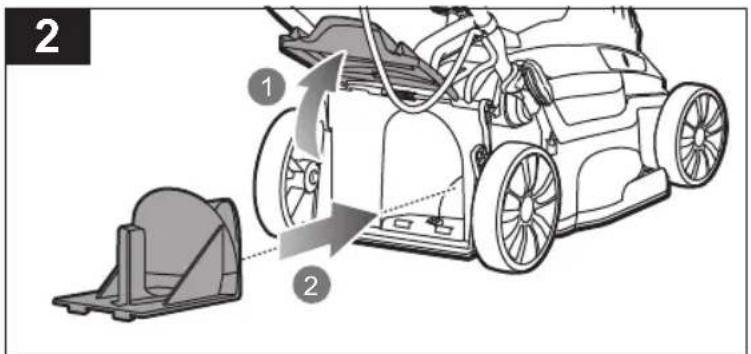

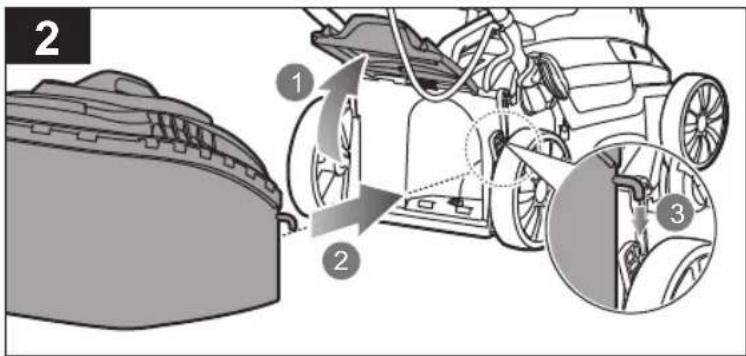

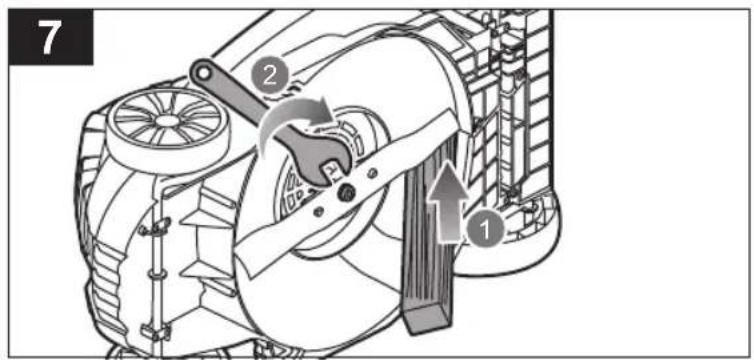

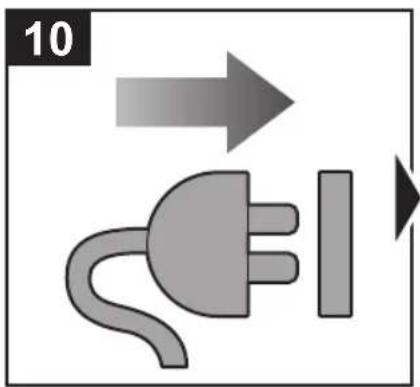

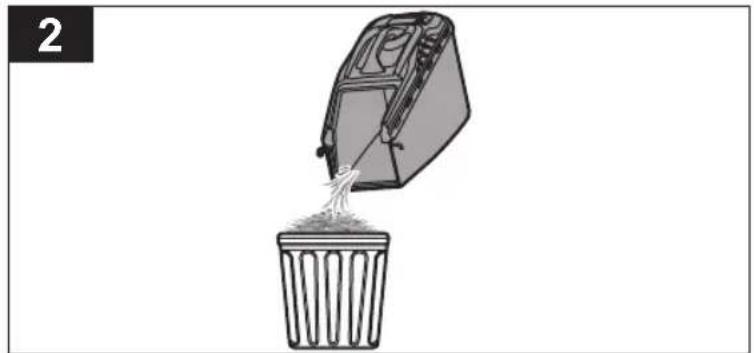

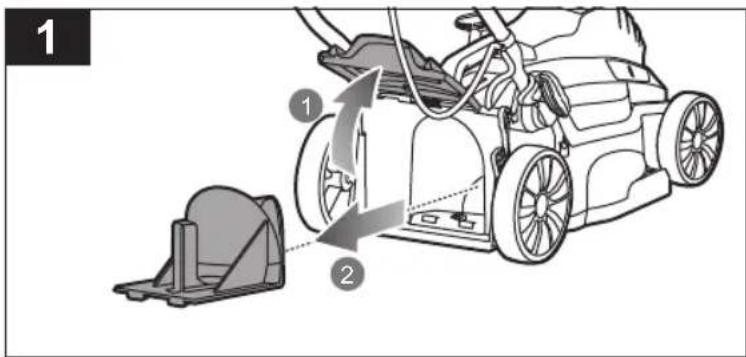

Original Instructions ■ Turn off the product and disconnect it from the power supply. Make sure that all moving parts have come to a complete stop: ● whenever leaving the product unattended (including disposal of grass clippings) ● before clearing blockages or unclogging discharge chute ● before checking, cleaning, or working on the product ● before removing the grass collector or opening the grass discharge chute cover. ● after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the product. ● If the product starts to vibrate abnormally, check immediately to: – inspect for damage, particularly the blades – replace or repair any damaged parts – check for and tighten any loose parts ■ The cutting blade should rotate approximately parallel to the ground over which it is being wheeled. ■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security. ■ Never operate the product if the on/off switch on the handlebar does not properly start and stop the product. ■ Never attempt to lock the on/off switches in the on position, this is extremely dangerous. ■ Do not force the product. It will do the job better and safer at the speed for which it was designed. ■ Stop the blade when crossing gravel surfaces. ■ Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip-and-fall accident. ■ Always ensure that the motor control cable is never trapped, pinched, or otherwise damaged during assembly or when folding the handle. Never apply power to the product if this cable is damaged. Have the product serviced by an authorised service centre only. ■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.

OVERLOAD PROTECTION DEVICE

The product has an overload protection device. When overloading is detected, the product automatically turns off . If the overload protector is actuated, the motor must be allowed to cool down for 5 to 10 minutes. Turn off the product and disconnect it from the power supply. The blades are sharp; wear heavy-duty gloves before touching. Make sure that the blade can rotate freely and is not jammed or tight. When the motor has cooled down, connect the plug to the power supply, and turn on the product. Press the start button, and squeeze the on/off lever to start the product. If the product still does not start, have the product serviced by an authorised service centre only.

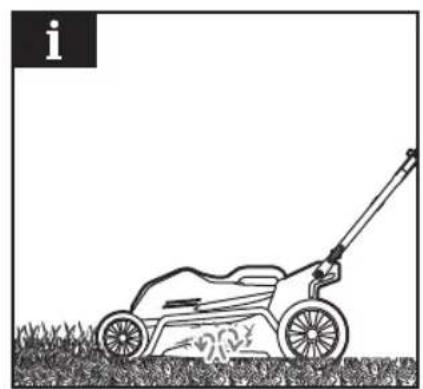

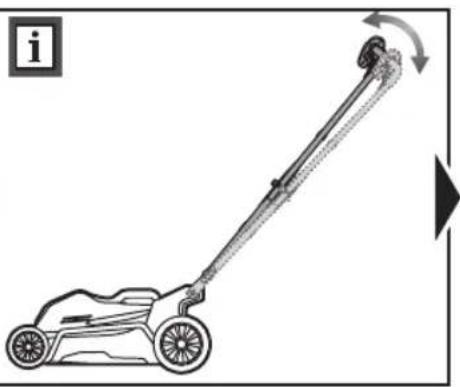

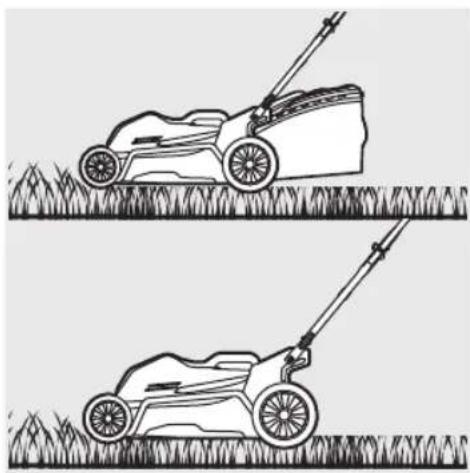

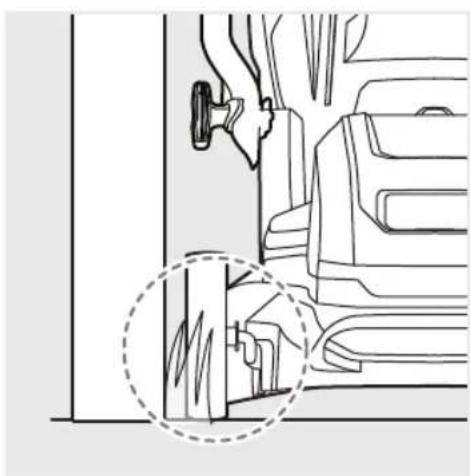

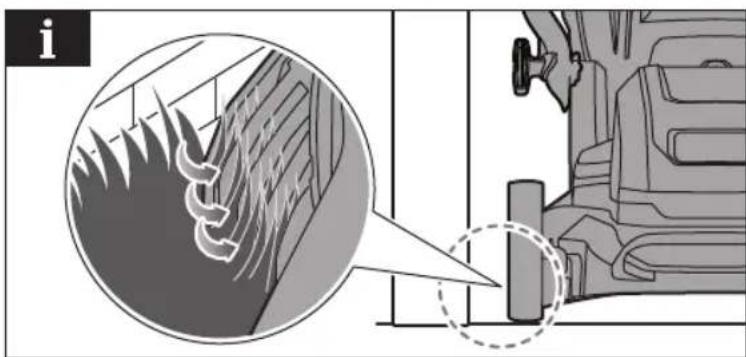

Adjust the cutting height of the lawnmower to suit the current condition of the lawn. ■ For best performance, always cut off one- third or less of the total height of the grass. ■ When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.

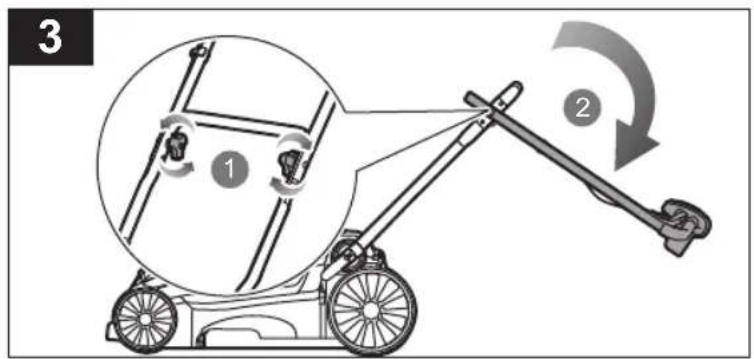

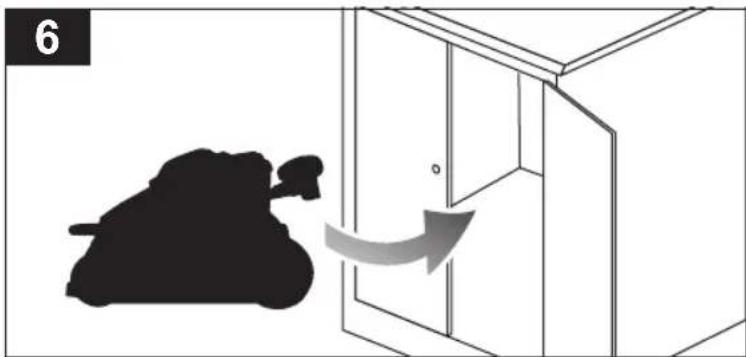

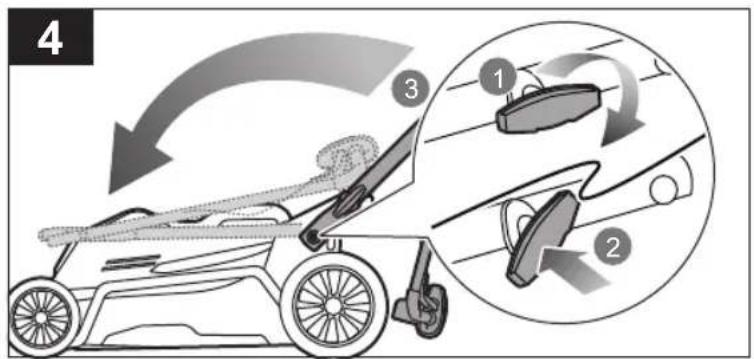

TRANSPORTATION AND STORAGE

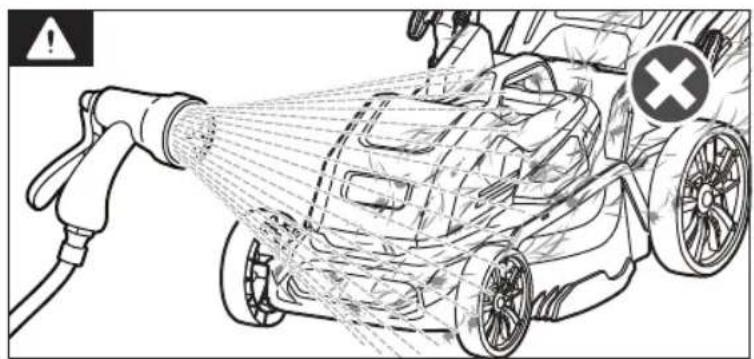

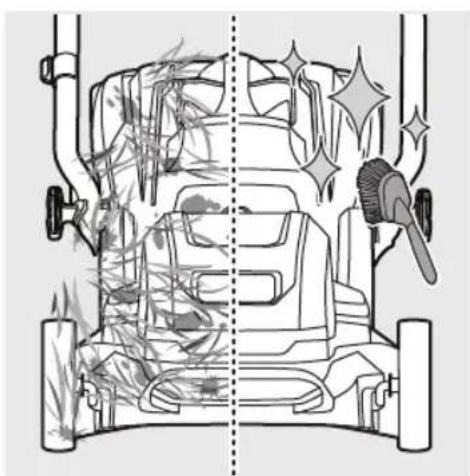

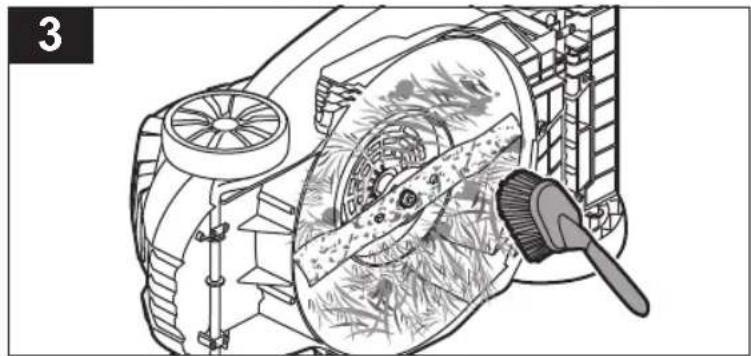

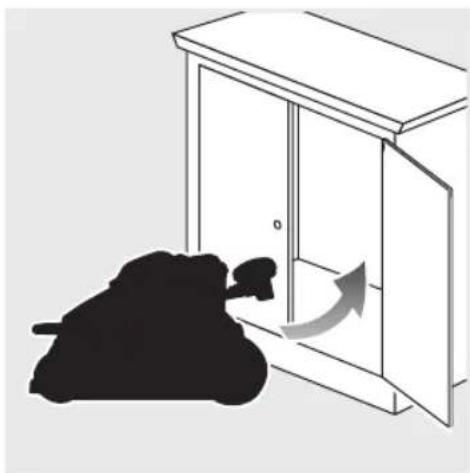

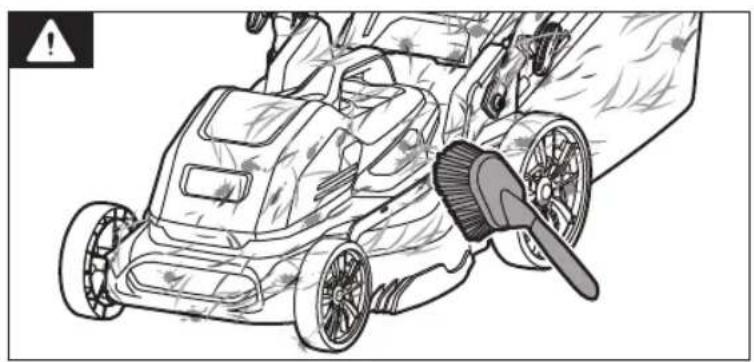

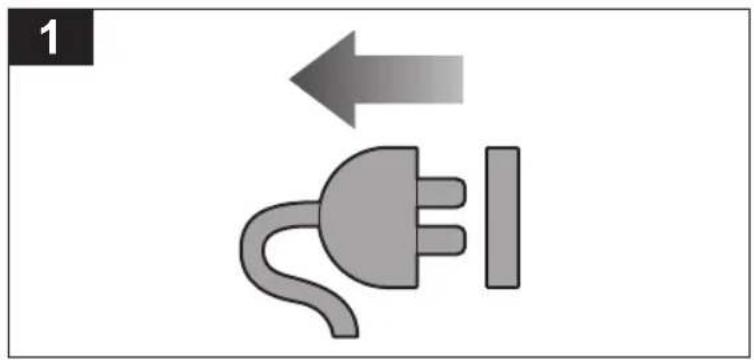

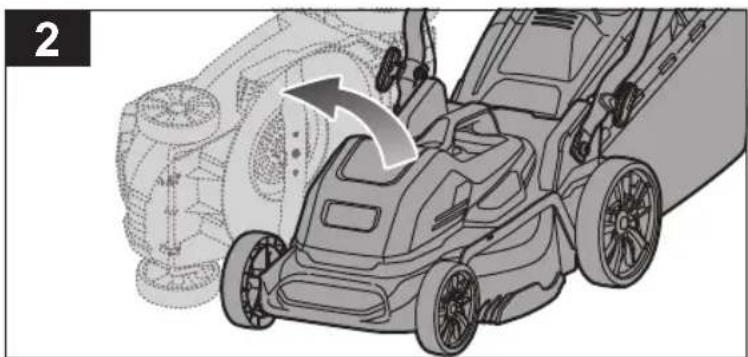

■ Turn off the product and disconnect it from the power supply. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting. ■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts. Do not store the product outdoors. ■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product. ■ Use extreme caution when lifting or tilting the product for maintenance, cleaning, storage, or transportation. The blade is sharp; keep all body parts away from the blade while it is exposed.6 Original Instructions MAINTENANCE ■ Use only original manufacturer’s replacement parts, accessories, and attachments. Failure to do so can cause injury, can contribute to poor performance, and may void your warranty. ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only. ■ Turn off the product and disconnect it from the power supply. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task. ■ Replace worn or damaged parts for safety. ■ Frequently check the grass catcher for wear or deterioration. ■ Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. ■ Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product. ■ When servicing the blades, be aware that even though the power source is switched off, the blades can still be moved. ■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only. ■ After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre. ■ The blade on the product is sharp. Use extreme caution and wear heavy-duty gloves when fitting, replacing, cleaning or checking bolt security. CLEARING BLOCKAGES ■ Turn off the product and disconnect it from the power supply. ■ Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp and the blockage itself could be a sharp object. ■ Remove the grass catcher. Check and carefully clear the grass catcher for obstructions. ■ Check the grass discharge chute, and carefully clear blockages. ■ Turn the product on its side. Check its underside of and the area around the blade. Carefully remove any blockages. Remember that the blade may move during cleaning.

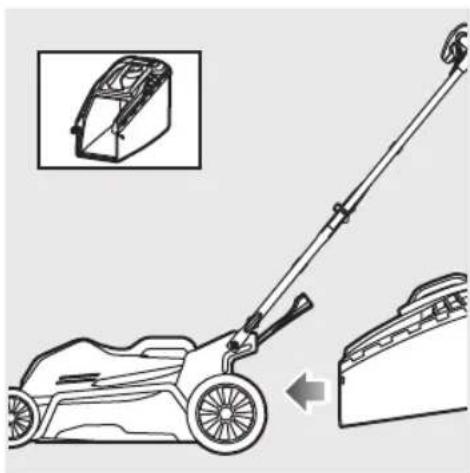

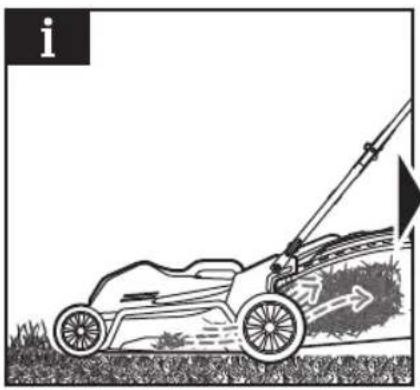

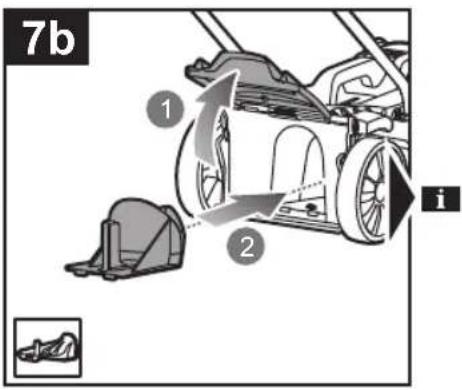

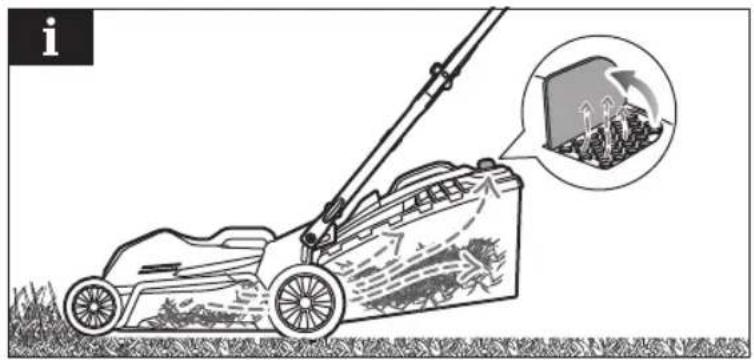

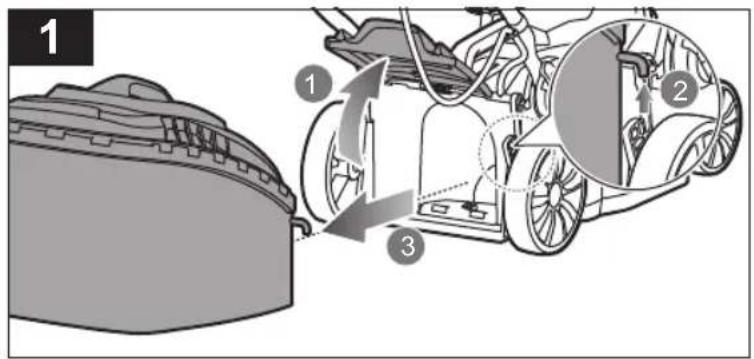

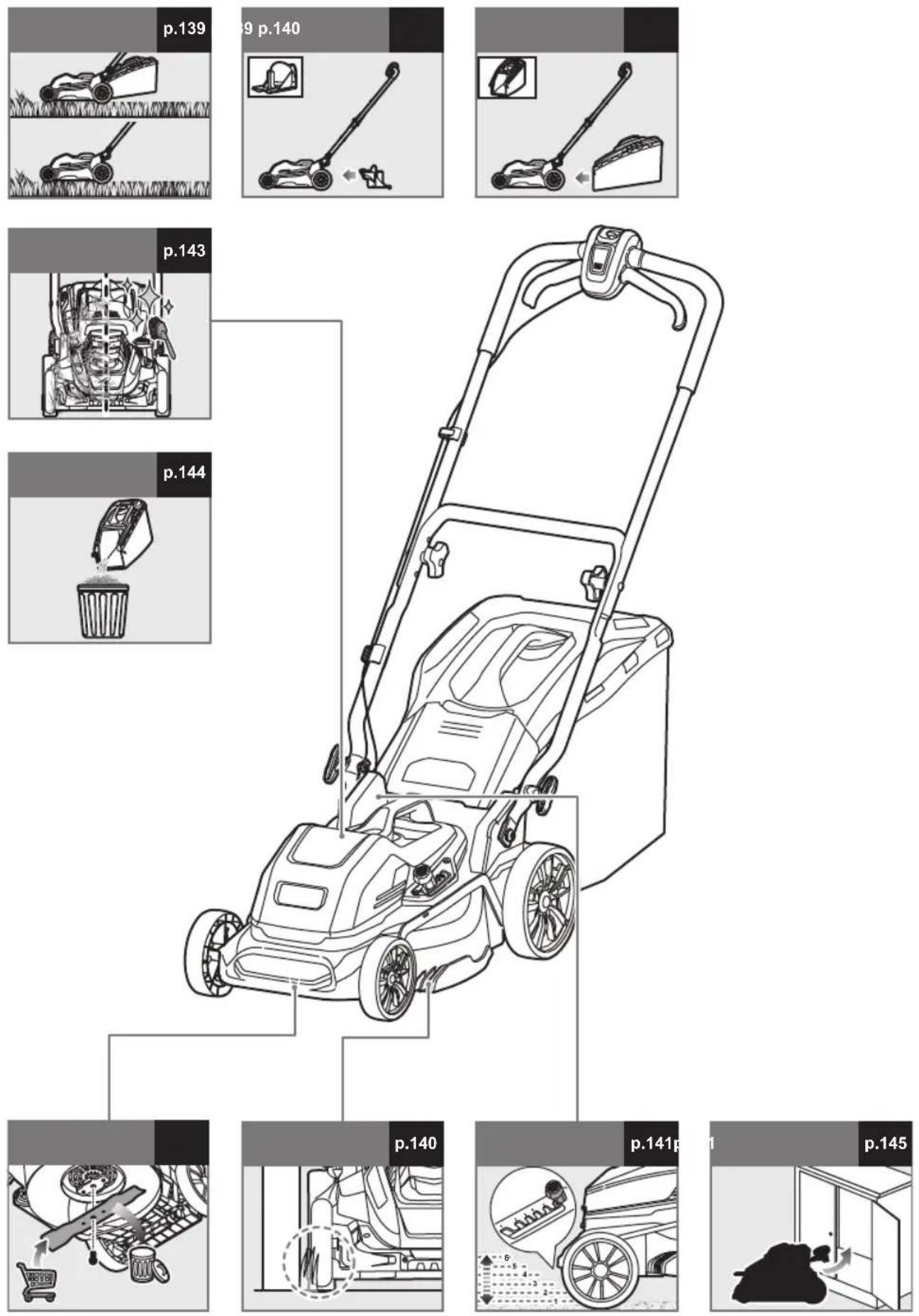

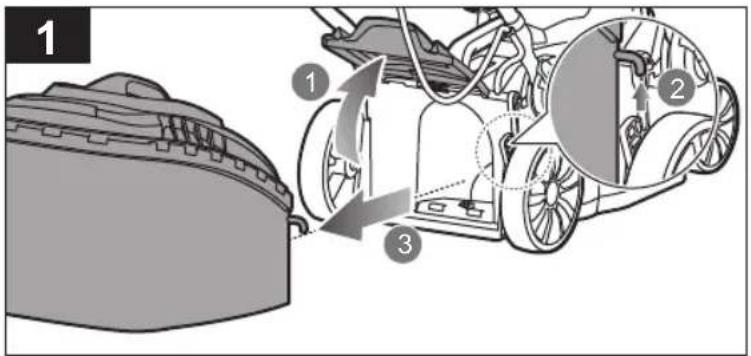

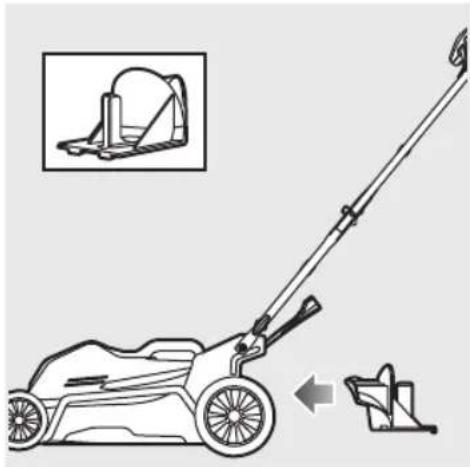

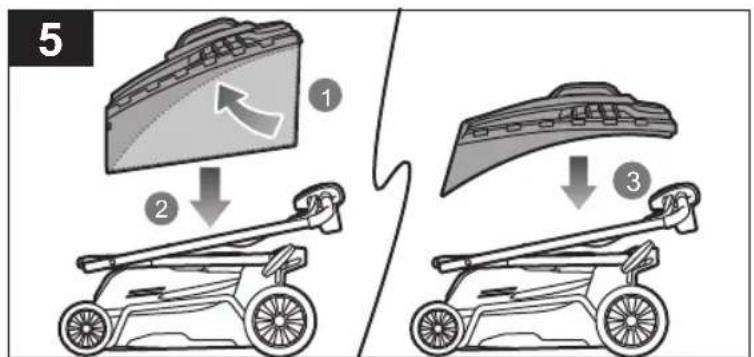

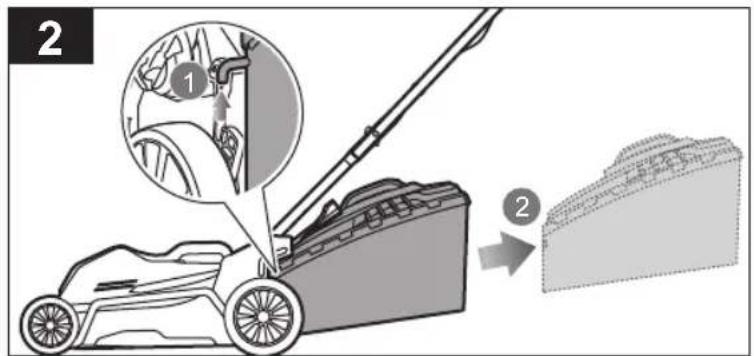

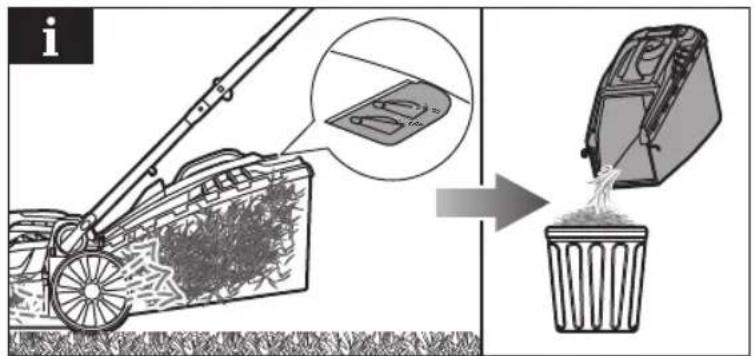

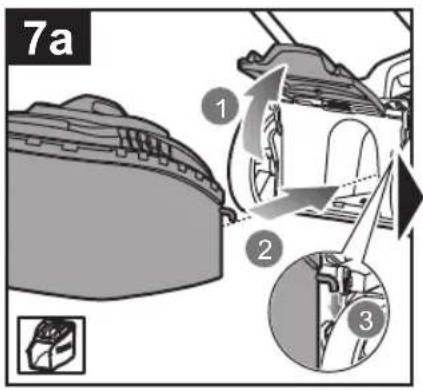

7. Grass catcher full indicator

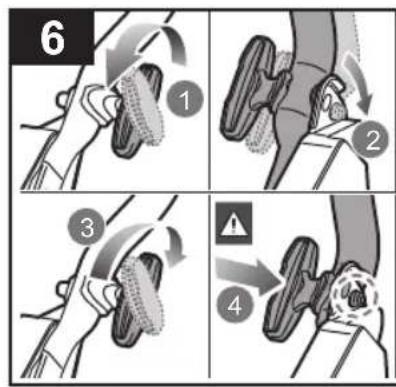

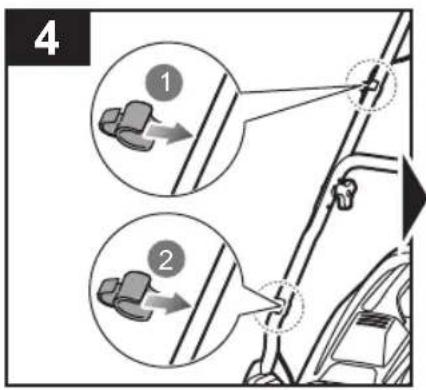

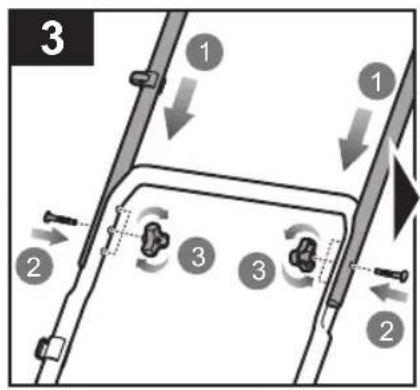

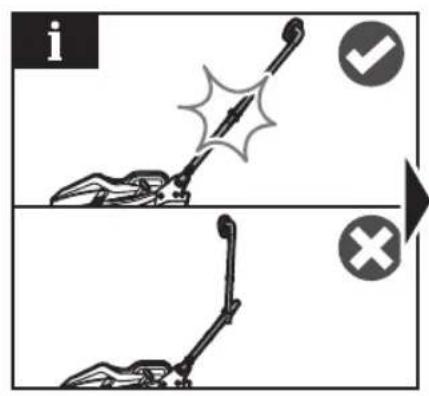

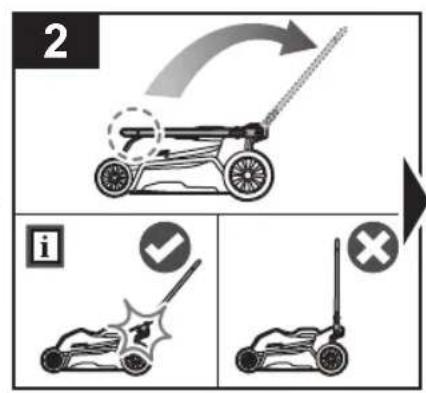

9. Quick-release fastener

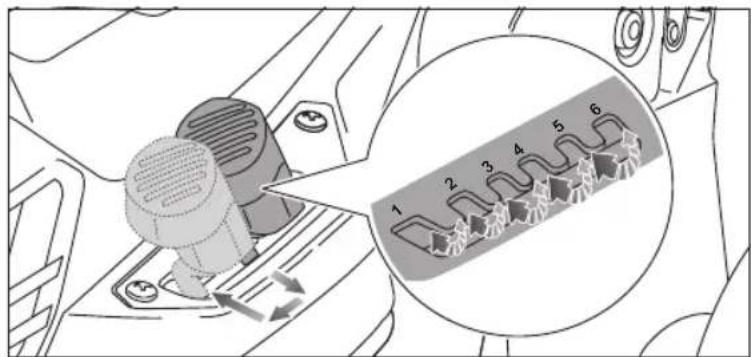

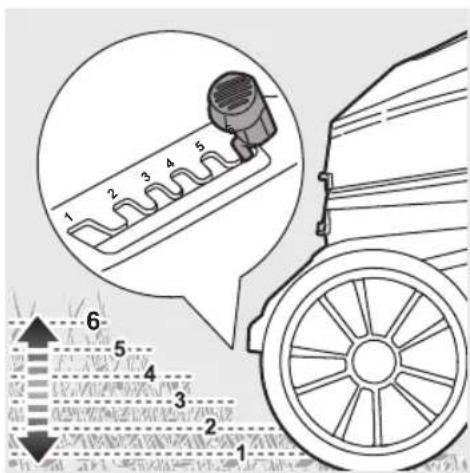

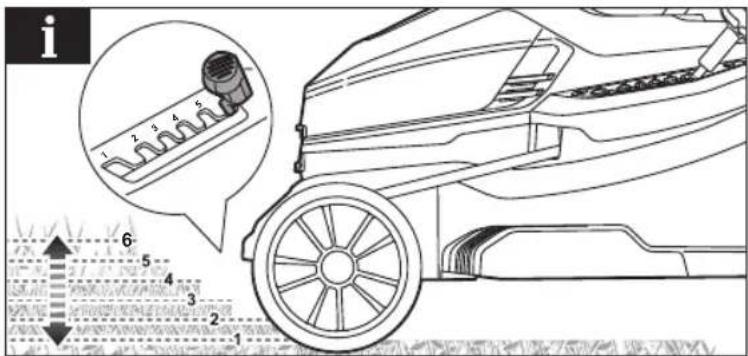

10. Cutting height adjustment lever

SYMBOLS ON THE PRODUCT

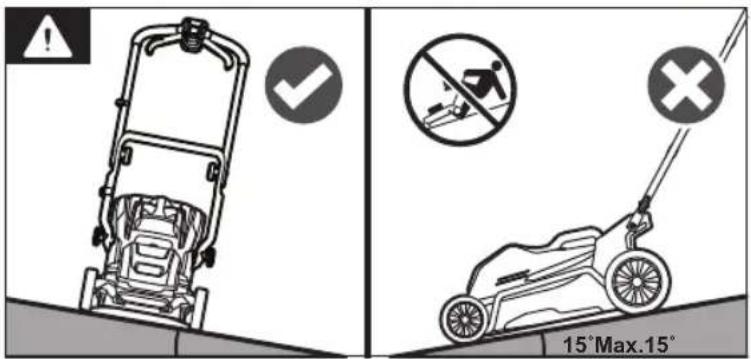

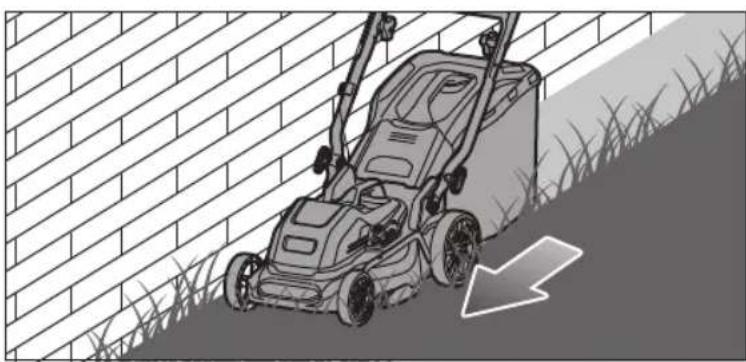

Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Wear ear protection. Wear eye protection. Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. Do not expose the product to rain or damp condition. Beware of sharp blades. Blades continue to rotate after the motor is switched off . Remove the plug from mains before maintenance or if cord is damaged.ENGLISH

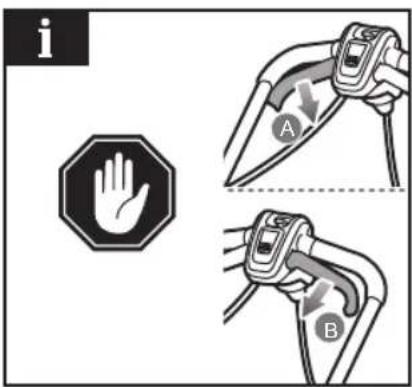

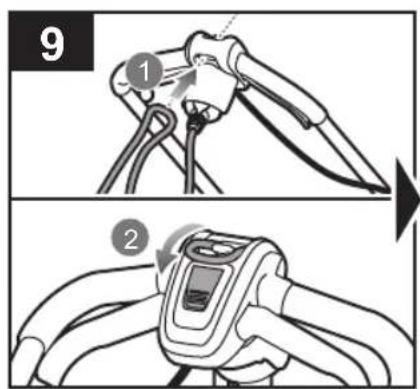

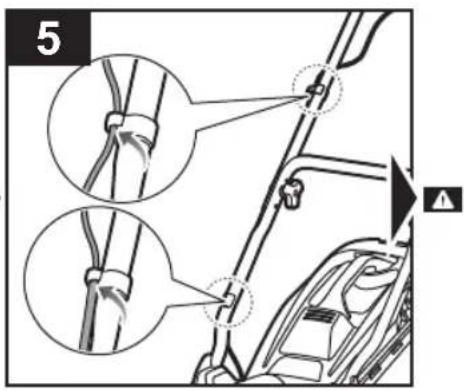

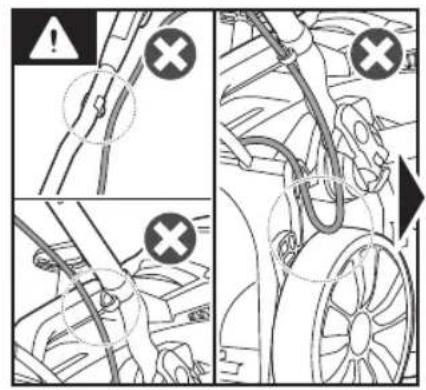

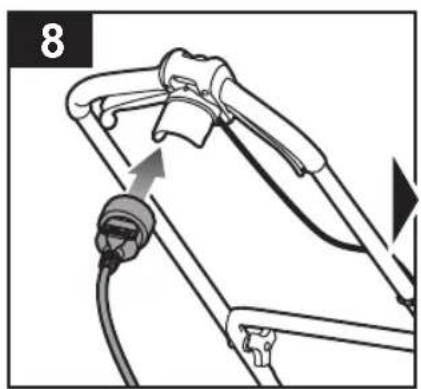

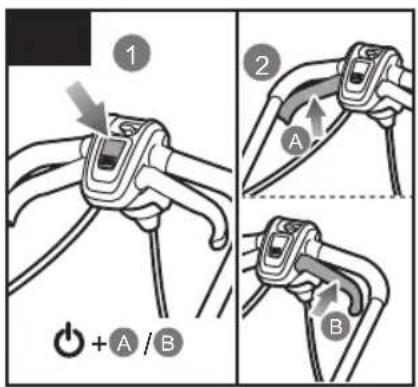

Original Instructions Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15m away from the operating area. Keep the supply fl exible cord away from the cutting blades. Press the start button, and then squeeze the on/off lever (A or B) to start the product. Release the start button and keep squeezing the on/off lever to run the product. Release the on/off lever to stop the product.

Stop Class II tool, double insulation Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. European Conformity Mark EurAsian Conformity Mark Ukraine Conformity Mark

SYMBOLS IN THIS MANUAL

MACHEN SIE SICH MIT IHREM

SYMBOLE AUF DEM PRODUKT

KJENN PRODUKTET DITT

NOSPROSTOJUMA NOVĒRŠANA

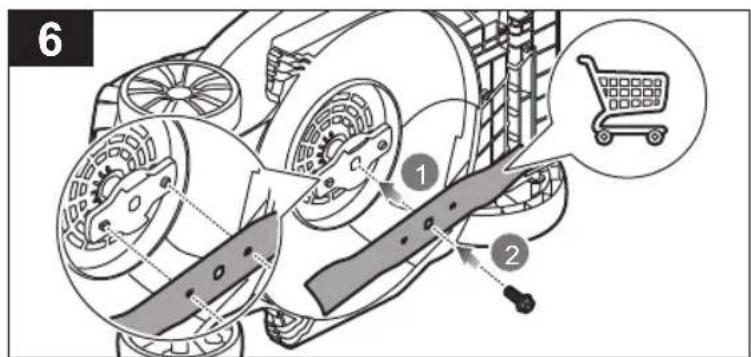

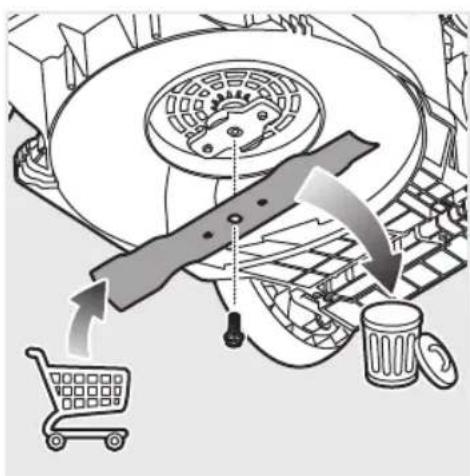

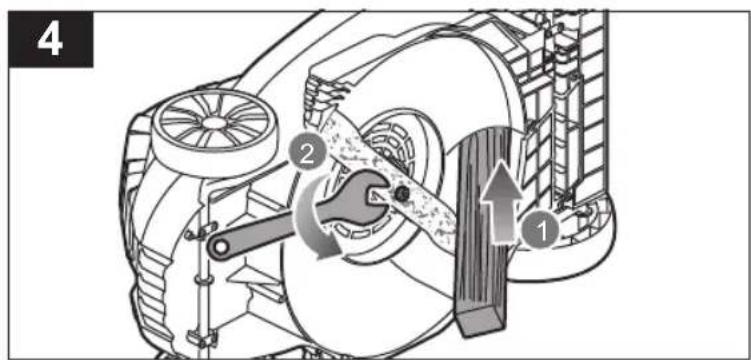

96 dB(A) Náhradní díly Cserealkatrészek Piese de schimb Asendusosad Zamjena dijelova Nadomestni deli Náhradné diely Yedek Parça Nůž Kés Lamă Asmens Geležtė Saeleht Oštrica Rezilo Ostrie Острие Лезо Bıçak RAC422 (682673001)EN WARNING The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure. The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for di󰀨erent applications, used with di󰀨erent accessories, or poorly maintained, the vibration and noise emission may di󰀨er. These conditions may signicantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o󰀨 or when it is running idle. These conditions may signicantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the e󰀨ects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date

when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC)

the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly- acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to

faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to: – any damage to the product that is the result of improper or lack of maintenance – any product that has been altered or modified – any product where original identification (trade mark, serial number) markings have been defaced, altered or removed – any damage caused by non-observance of the instruction manual – any product not displaying the CE approval mark on the rating plate – any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries – any product connected to improper power supply (amps, voltage, frequency) – any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture) – any damage caused by external influences (water, chemical, physical, shocks) or foreign substances – normal wear and tear spare parts – inappropriate use, overloading of the tool – use of non-approved accessories or parts – Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc. – Any periodic adjustments to or maintenance cleaning of carburettors – Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

4. For servicing, the product must be sent or presented to a RYOBI

authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short description of the fault.

5. A repair / replacement under this warranty is free of charge. It does not

constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

6. This warranty is valid in the European Community, Switzerland, Iceland, Norway,

Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards

Authorised to compile the technical file:

No. 0197 – TÜV Rheinland LGA Products GmbH Tillystraße 2 D - 90431 Nürnberg, Germany Todd Chipner Vice President, Quality – Asia Winnenden, Dec. 20, 2021
