Brand	Auriol
Model	Z31045A
Product type	Analog watch for men/women
Power supply	1 x 1.5V battery (pre-installed)
Display	Hands: hours, minutes, seconds
Time setting	Crown in unlocked position
Water resistance	Suitable for rain, shower, bath, swimming, windsurfing, diving (see pictograms)
Strap	Adjustable by links (model HG09306C), repair kit included
Package contents	1 watch, 1 battery, 1 instruction manual, 2 spare links, 1 repair kit
Care	Clean with a slightly damp cloth; rinse under running water if necessary
Warranty	3 years from date of purchase
Customer service France	Tel.: [phone], Email: [e-mail]
Customer service Belgium	Tel.: [phone], Email: [e-mail]
IAN reference	387153_2110
Battery replacement	To be entrusted to a specialized store
Materials	Stainless steel strap (probable)

Frequently Asked Questions - Z31045A AURIOL

How to set the time on the Auriol Z31045A watch?

Pull the crown (2) to the unlocked position (5). Turn the crown to set the hours (4) and minutes (1). Push the crown back to normal position to start the second hand (3).

How to replace the battery of the Z31045A watch?

It is recommended to have the battery replaced by a specialized store. The battery is a pre-installed 1.5V battery.

How to adjust the watch strap?

Use the included repair kit (7). Remove the pins from the links (6) marked with an arrow using the rotating pin pusher. Remove the desired links, then reassemble by inserting the pins in the opposite direction.

Is the Auriol Z31045A watch waterproof?

Yes, it is suitable for use in rain, hand washing, shower, bath, swimming and windsurfing/diving. Refer to the pictograms on the watch for precise limits.

What does the packaging of the Z31045A watch contain?

The packaging contains: 1 watch, 1 battery (pre-installed), 1 instruction manual, 2 spare links and 1 repair kit for the strap.

How to care for the Auriol Z31045A watch?

Clean the exterior with a lint-free, clean, slightly damp cloth. If necessary, rinse under running water and then dry thoroughly.

What is the warranty period of the Z31045A watch?

The warranty is 3 years from the date of purchase. Keep the receipt as proof of purchase.

How to contact Auriol customer service?

In France: call 0800904879 or email [e-mail]. In Belgium: call 080071011 or email [e-mail]. For Luxembourg, dial 80023970.

Does the watch come with a battery?

Yes, a 1.5V battery is already installed in the watch at the time of purchase.

What to do if the pin of the pin pusher is worn out?

Use the repair kit (7). Open the bottom cover (10) containing a replacement pin (9). Using pliers (not included), remove the old pin and insert the new one into the rotating pin pusher (8).

USER MANUAL Z31045A AURIOL

HERREN-ARMBANDUHR / DAMEN-ARMBANDUHR MEN'S WATCH / LADIES' WATCH MONTRE HOMME / MONTRE FEMME

DE AT CH

HERREN-ARMBANDUHR / DAMEN-ARMBANDUHR

Operation and Safety Notes

FR BE

MONTRE HOMME/MONTRE FEMME

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

E
HG09306C
F

HG09306C

List of pictograms used 19

Introduction 20

Intended use. Page 20

Description of parts.. 20

Technical data 21

Scope of delivery. 21

Before first use 21

Changing the battery . Page 22

Setting the time. 22

Water resistance . 22

Adjusting the watch strap (HG09306C) Page 22

Removing segments . Page 23

How to exchange the pin inside the slider (Fig. D, E, F). . . . Page 23

Cleaning and care . 24

Disposal. Page 24

Warranty and service.. Page 26

Warranty . Page 26

Warranty claim procedure . Page 27

Service . Page 27

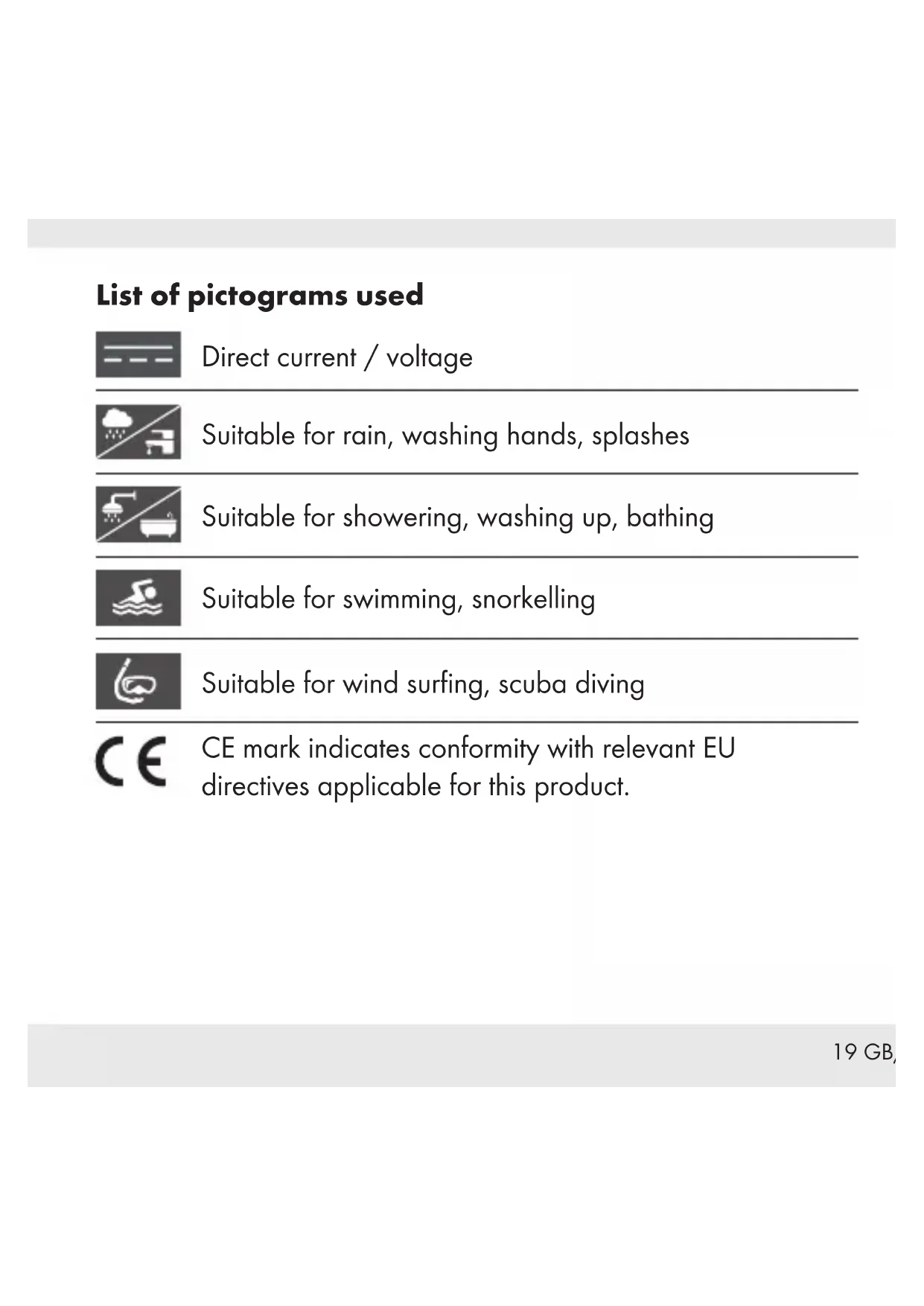

List of pictograms used

Direct current / voltage

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

CE mark indicates conformity with relevant EU directives applicable for this product.

MEN'S WATCH / LADIES' WATCH

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

Description of parts

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 Unlock position

20 GB/IE

Segment (HG09306C)
7 Repair set (HG09306C)
Rotating slider (HG09306C)
9 Spare pin (HG09306C)
Bottom cover (HG09306C)

Technical data

Battery: 1 × 1.5 ~V = -

Button cell (type SR626SW)

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Battery (pre-installed)
1 Set of instructions for use
2 Spare changeable links (HG09306C)
1 Repair set (HG09306C)

Before first use

Remove all packaging materials from the product.

- Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5.
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position, the second hand 3 begins to run.

Water resistance

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

Adjusting the watch strap (HG09306C)

See Fig. C-F:

Adjust the watch strap by removing segments 6

(2 spare changeable links are included). To this purpose you should use the repair set supplied.

- Removing segments

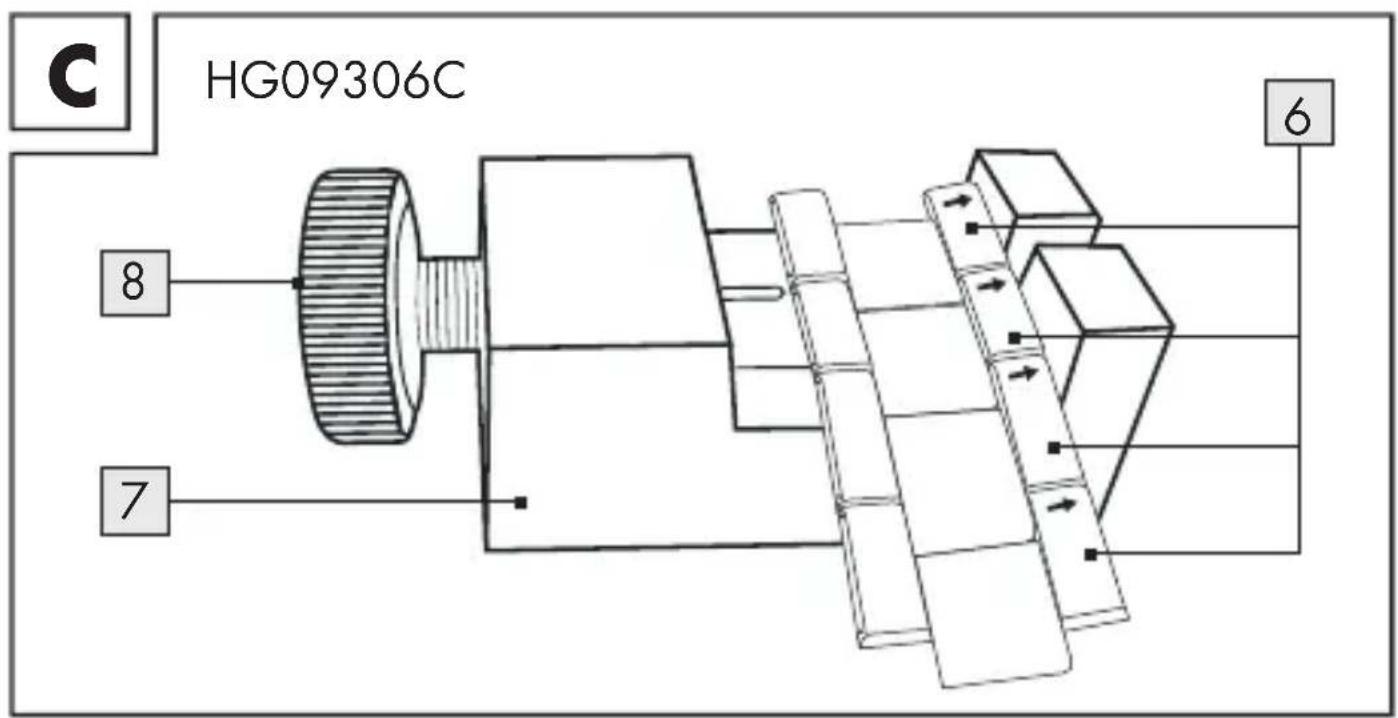

Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 7 . Use a pair of tweezers (not included) if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 7.
Remove the pins of the segment that you wish to remove (as described above) and take out the segment 6.

Note: If you would like to take out more than one consecutive segment 6, it is sufficient to remove the two outer pins.

• Connect the watch strap together again by joining the loose segments 6 with a pin. Press this pin against the direction of the arrow into the adjacent segments 6 .
• How to exchange the pin inside the slider (Fig. D, E, F)

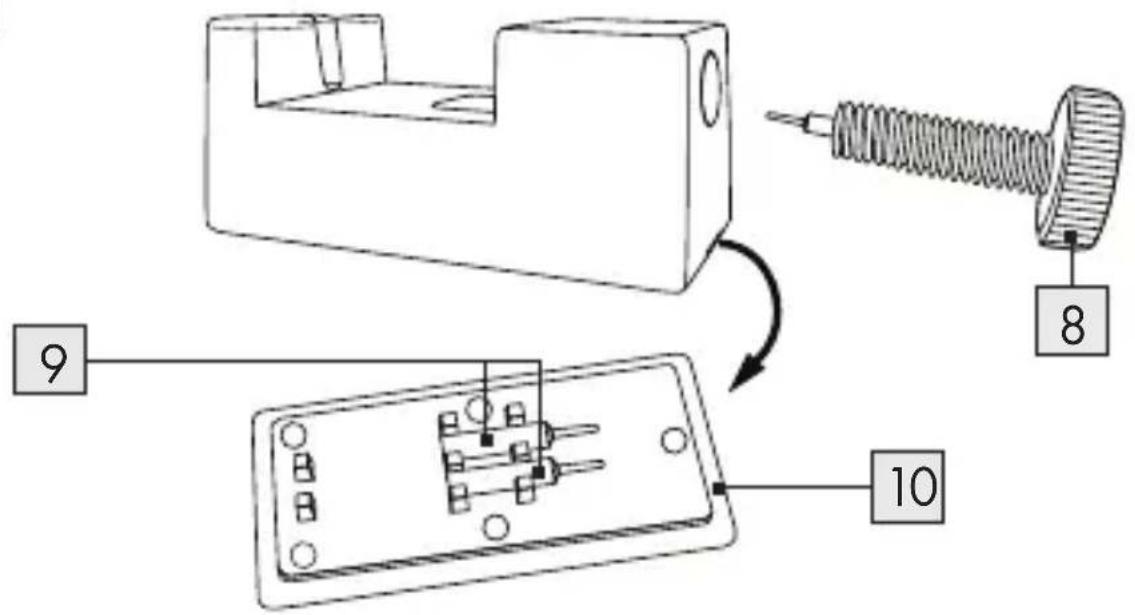

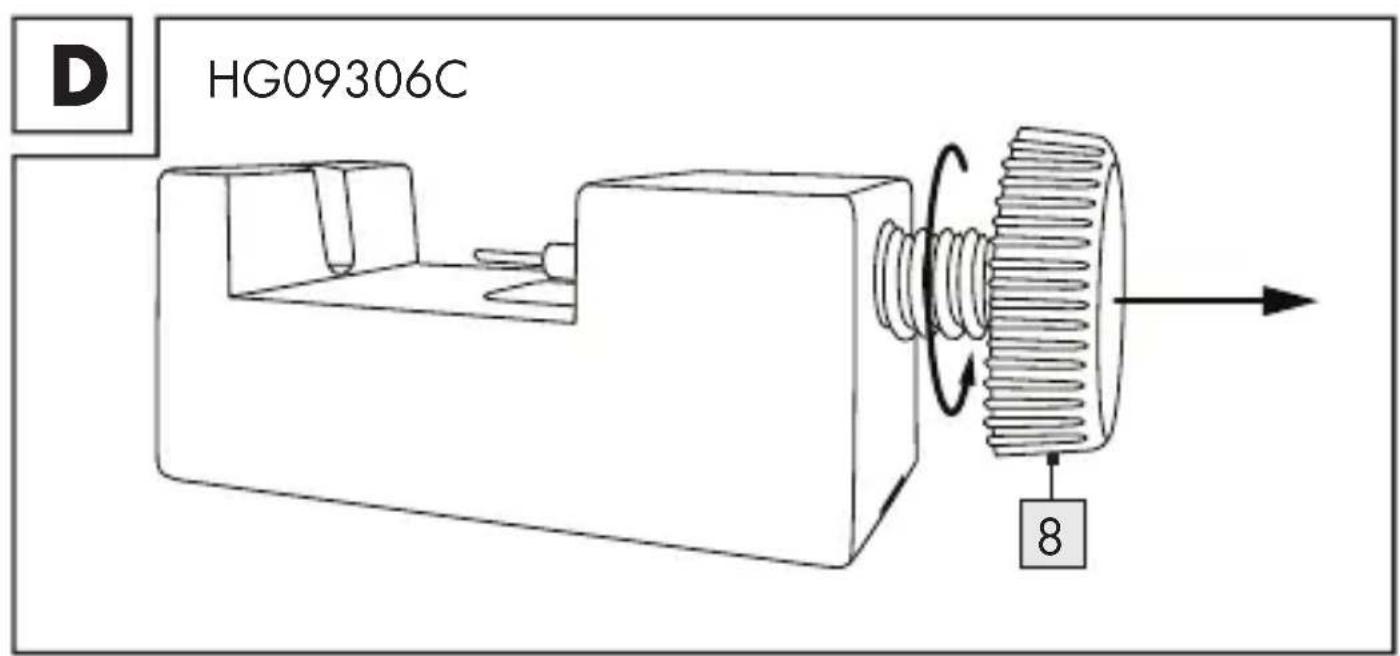

  Take out the rotating slider (Fig. D). Open the bottom cover with the spare pin inside (Fig. E).

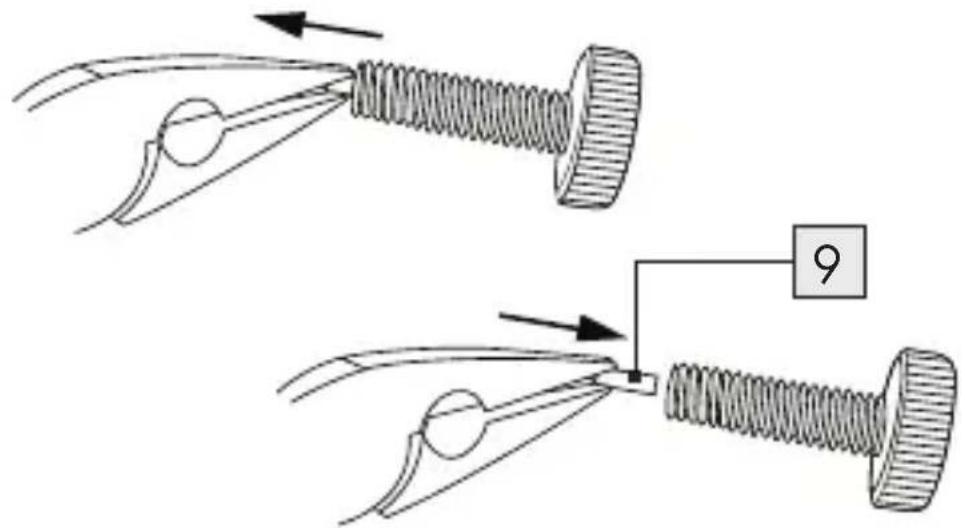

  You will need the pliers (not included) to carefully remove the old pin from the slider (Fig. F).
  Insert the spare pin carefully into the rotating slider 8 by again

using the pliers (not included). The new pin is installed.

Cleaning and care

Clean the product on the outside only with a soft, wet and clean cloth.
Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics /

20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

24 GB/IE

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your

local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 387153_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

27GB
