Product type	Foot pump with pressure gauge
Brand	Crivit
Model	IAN 362138
Maximum pressure	8 bar (116 psi)
Nominal pressure	7 bar (100 psi)
Pressure gauge range	Up to 11 bar (160 psi)
Pump height	Approx. 72.5 cm
Hose length	Approx. 100 cm
Weight	Approx. 1.5 kg (estimate)
Power supply	Manual (no batteries required)
Compatible valve types	Schrader, Dunlop, Presta
Included adapters	2 adapters for inflatables, 1 adapter for balls
Intended use	Inflating bicycle tires, balls, air mattresses
Maintenance	Clean with a damp cloth, oil moving parts occasionally
Storage	Dry, in a temperate environment
Warranty	3 years
Customer service	France: 0800 919270, Belgium: 0800 12089
Manufacturing date	12/2022
Number of pages in the manual	56

Frequently Asked Questions - IAN 362138 CRIVIT

How to inflate a bicycle tire with a Schrader valve?

Open the tire valve. Push the large opening of the pump head onto the valve and lift the locking lever to secure. Then pump to the desired pressure.

How to inflate a ball with this device?

Insert the ball adapter into the large opening of the pump head and lift the locking lever. Then insert the adapter into the ball and pump.

What to do if the pump heats up during use?

Friction can heat up the pump. After 80 inflations, let the pump cool down for 2 minutes. Always hold the pump by the base and handle.

Can I use this pump for air mattresses?

Yes, use the appropriate adapter for inflatables from the adapter set. Insert it into the large opening and lock with the lever, then insert into the mattress valve.

How to set the desired pressure on the gauge?

Turn the red needle on the gauge to set it to the desired maximum pressure. This is only a visual reference and does not affect pumping.

How to maintain the pump?

Clean it with a damp cloth and dry it. Occasionally apply a little oil to the moving parts. Never immerse in water or use harsh chemicals.

Where can I get spare parts?

Essential spare parts are available during the warranty period. Contact customer service at the numbers listed in the manual (France: 0800 919270, Belgium: 0800 12089).

What is the maximum pressure supported by the pump?

The maximum allowable pressure is 8 bar (116 psi). Do not exceed this pressure risk of explosion. Always check the recommended pressure of the inflated object.

Is the pump suitable for children?

No, the product is not suitable for use by children due to the high forces required and risk of injury. Keep packaging out of reach of children (choking hazard).

How to easily transport the pump?

Place the pump hose over the handle and clip it into the two clamps. You can then lift the pump by the handle and carry it.

USER MANUAL IAN 362138 CRIVIT

STANDLUFTPUMPE FLOOR PUMP POMPE À PIED

PDF ONLINE www.lidl-service.com

DE AT CH

STANDLUFTPUMPE

Gebrauchsanweisung

FR BE

POMPE À PIED

Instructions for use

NL BE

STAANDE LUCHTPOMP

Gebruiksaanwijzing

CZ

NOŽNÍ PUMPA

Návod k použití

ES

INFLADOR DE PIE

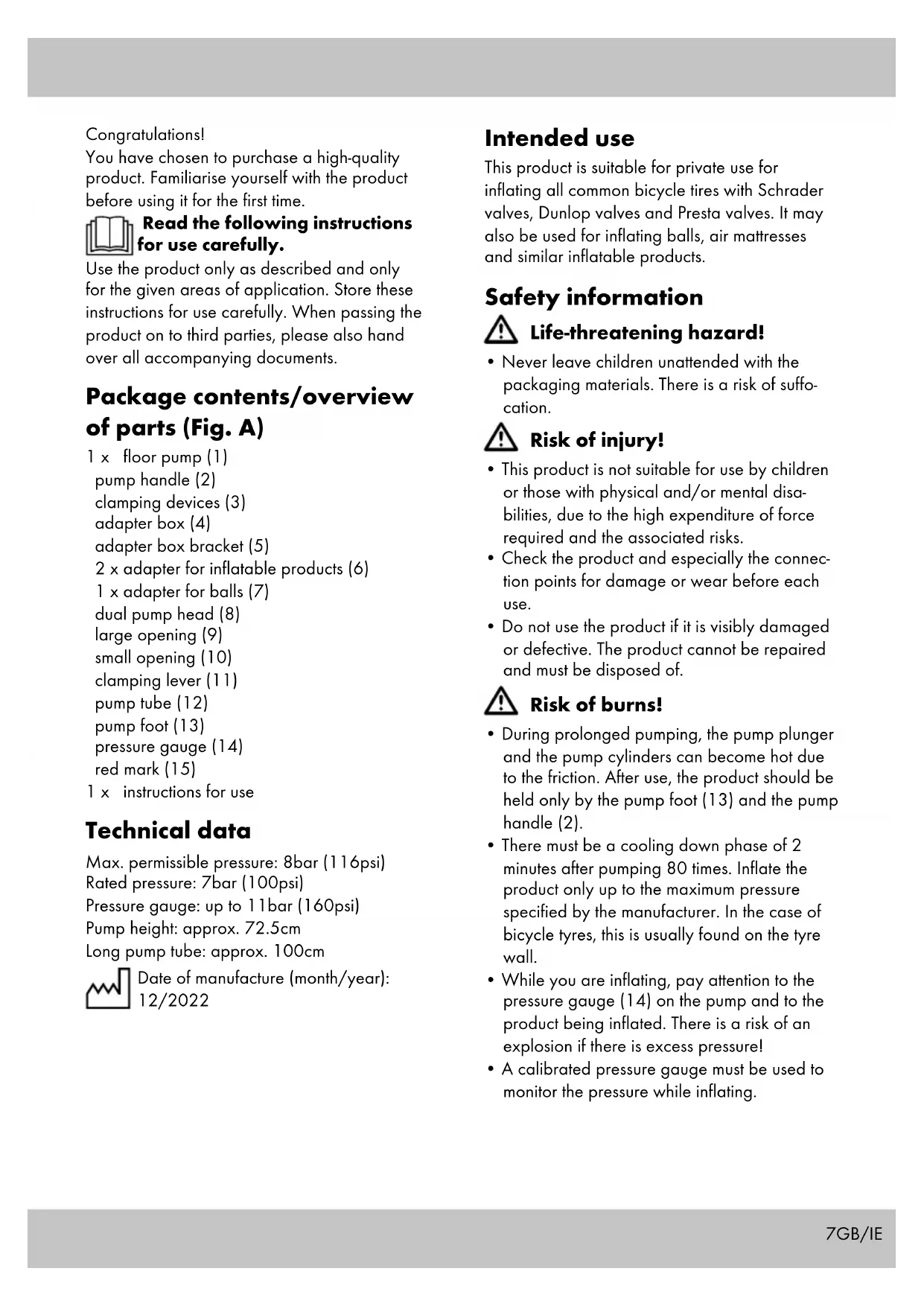

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents/overview of parts (Fig. A)

1 x floor pump (1)

pump handle (2)

clamping devices (3)

adapter box (4)

adapter box bracket (5)

2 x adapter for inflatable products (6)

1 x adapter for balls (7)

dual pump head (8)

large opening (9)

small opening (10)

clamping lever (11)

pump tube (12)

pump foot (13)

pressure gauge (14)

red mark (15)

1 x instructions for use

Technical data

Max. permissible pressure: 8bar (116psi)

Rated pressure: 7bar (100psi)

Pressure gauge: up to 11bar (160psi)

Pump height: approx. 72.5cm

Long pump tube: approx. 100cm

Date of manufacture (month/year):

12/2022

Intended use

This product is suitable for private use for inflating all common bicycle tires with Schrader valves, Dunlop valves and Presta valves. It may also be used for inflating balls, air mattresses and similar inflatable products.

Safety information

Life-threatening hazard!

- Never leave children unattended with the packaging materials. There is a risk of suffocation.

Risk of injury!

- This product is not suitable for use by children or those with physical and/or mental disabilities, due to the high expenditure of force required and the associated risks.

- Check the product and especially the connection points for damage or wear before each use.

- Do not use the product if it is visibly damaged or defective. The product cannot be repaired and must be disposed of.

Risk of burns!

- During prolonged pumping, the pump plunger and the pump cylinders can become hot due to the friction. After use, the product should be held only by the pump foot (13) and the pump handle (2).

- There must be a cooling down phase of 2 minutes after pumping 80 times. Inflate the product only up to the maximum pressure specified by the manufacturer. In the case of bicycle tyres, this is usually found on the tyre wall.

- While you are inflating, pay attention to the pressure gauge (14) on the pump and to the product being inflated. There is a risk of an explosion if there is excess pressure!

- A calibrated pressure gauge must be used to monitor the pressure while inflating.

Use

Note: the product may only be used on a level surface.

Note: there is a red mark (15) on the pressure gauge (14) display.

Rotate the red mark to set the desired maximum pressure as a visual marking. Please note that the adjusted display only serves as a guide and does not affect the pumping!

- Always stand with both feet on the pump foot (13) while pumping to prevent the product falling over. There should be no kinks in the pump tube (12)! Operate the pump handle (2) with a steady action and not too fast.

Selecting the adapter (Fig. B)

The adapters (6/7) are located in the adapter box (4) of the product. Slide the adapter box out of the adapter box bracket (5). Open the adapter box and take out the required adapter.

Inflating balls (Fig. C)

Put the adapter for balls (7) into the large opening (9) of the dual pump head (8).

Flip the clamping lever (11) up to lock the adapter in place. Then insert the adapter into the ball.

Inflating inflatable products (Fig. D)

Open the valve on the inflatable product. Insert the appropriate adapter for inflatable products (6) into the large opening (9) on the dual pump head (8). Flip the clamping lever (11) up to lock the adapter in place. Then insert the adapter into the valve on the inflatable product.

Pumping up tyres with a Dunlop valve (Fig. E)

Open the cap on the tire valve. Put the small opening (10) of the dual pump head (8) onto the valve. Flip the clamping lever (11) up to lock the adapter in place.

Pumping up tires with a Schrader valve (Fig. F)

Open the cap on the tire valve. Put the large opening (9) of the dual pump head (8) onto the valve. Flip the clamping lever (11) up to lock the adapter in place.

Pumping up tires with a Presta valve (Fig. G)

Open the cap on the tire valve. Loosen the nut on the valve. Put the small opening (10) of the dual pump head (8) onto the valve. Flip the clamping lever (11) up to lock the adapter in place.

Transport (Fig. H)

Lay the pump tube (12) over the pump handle (2). Clamp the pump tube into both clamping devices (3).

Then you can lift the product using the pump handle and transport it.

Storage, cleaning

Always store the product clean and dry in a temperature-controlled room.

Do not submerge the product in water, as it will get damaged! Clean with a damp cloth only and wipe dry afterwards. Apply some oil occasionally to the movable parts.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the product and packaging materials in accordance with current local regulations. Store the packaging materials (foil bags, for example) out of the reach of children. For further information about disposal of the product no longer needed, contact your local council. Dispose of the product and the packaging in an environmentally friendly manner.

The Recycling Code distinguishes different materials to be returned for recycling. The Code consists of the recycling symbol for the recycling process and a number that identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 409048_2207

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] E-Mail: [e-mail]
