Product Type	Mini bicycle air pump
Brand	Crivit
Model	IAN 103008
Dimensions	Length approx. 190 mm
Weight	Approx. 150 g
Nominal pressure	120 PSI / 8.3 bar
Power supply	Manual (handle)
Main material	Plastic and metal
Compatible valves	Schrader, Dunlop, Presta
Usage	Inflating bicycle tires (not car)
Attachment	Bicycle frame bracket included
Delivery contents	1 pump, 1 bracket, 1 hose, 3 valve adapters, 2 screws, 1 rubber ring, 1 instruction manual
Safety	Do not use by children, risk of friction burn, check before use
Maintenance and cleaning	Clean with a damp cloth, do not immerse
Warranty	3 years
Repairability	Not repairable (according to manual)

Frequently Asked Questions - IAN 103008 CRIVIT

How to mount the pump on the bicycle frame?

Unscrew the frame screws intended for the bottle cage, then screw in the supplied bracket (4) with the screws (6) or the bottle cage screws. Secure the pump using the rubber ring (3) around the pump (fig. D). Ensure stable support.

Which valve types are compatible?

The pump is compatible with Schrader, Dunlop and Presta valves. The hose has markings for each type.

What is the maximum pressure achievable?

The maximum nominal pressure is 120 PSI (approx. 8.3 bar). Do not exceed the pressure indicated on the tire.

How to clean the pump?

Clean only with a damp cloth then wipe dry. Never immerse in water.

Is the pump suitable for car tires?

No, the pump is designed only for bicycle tires. It is not suitable for inflating car tires.

What to do if the pump is defective?

Defective items should no longer be used and cannot be repaired. They must be disposed of in accordance with local regulations.

How to use the Presta valve?

Unscrew the knurled nut of the bicycle valve, place the Presta adapter vertically on the valve, then inflate. After inflation, screw the nut back on tightly.

Can I use the pump to inflate balloons?

Proper use is limited to bicycle tires. Use for other objects like balloons is not recommended and may damage the pump.

How long is the warranty?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects.

How to store the pump after use?

Always store the hose inside the pump, close the caps properly, and secure the pump to the bracket with the handle facing upwards.

USER MANUAL IAN 103008 CRIVIT

Instructions for use

FI

MINIPUMPPU

Käyttöohje

SE

MINILUftPUMP

Bruksanvisning

DK

MINILUftPUMPE

Brugsvejledning

FR BE

MINI-PoMPE à alr

Simple line drawing of a rectangular container with two circular objects on horizontal lines, labeled 'B' in top-left corner (no text or symbols on objects)

C 6 4

D 3

E 8 9 10

Diagram of a bicycle wheel with a rotating shaft and directional arrow, no text or symbols present

GB IE

Scope of delivery / Part names 6

Technical data 6

Correct use 6

Safety notes 6-7

Mounting to the bike frame 7

Use 7

Maintenance and storage 7

Notes on disposal 8

3 Years Warranty 8

FI

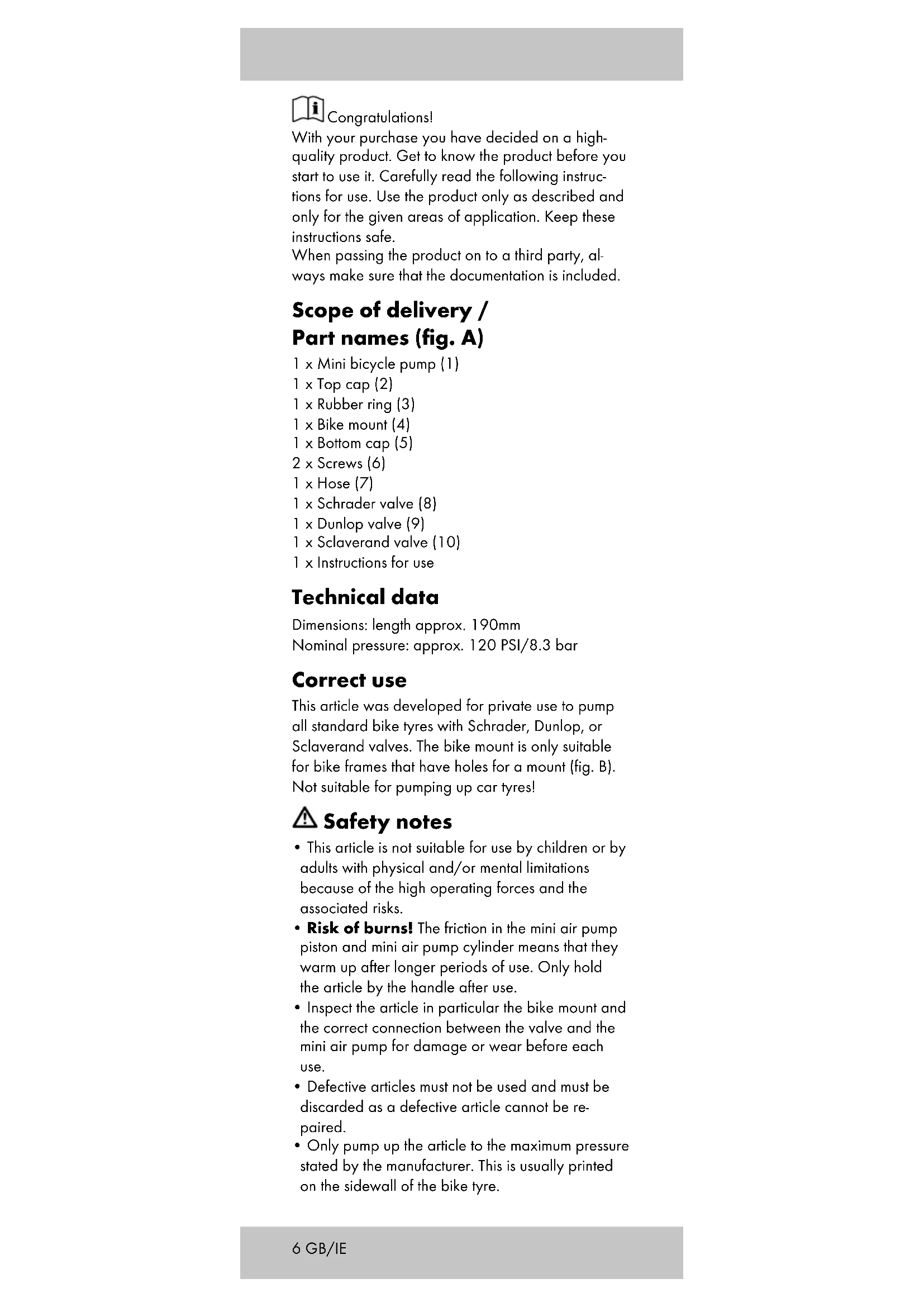

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery / Part names (fig. A)

1 x Mini bicycle pump (1)

1 x Top cap (2)

1 x Rubber ring (3)

1 x Bike mount (4)

1 x Bottom cap (5)

2 x Screws (6)

1 x Hose (7)

1 x Schrader valve (8)

1 x Dunlop valve (9)

1 x Sclaverand valve (10)

1 x Instructions for use

Technical data

Dimensions: length approx. 190mm

Nominal pressure: approx. 120 PSI/8.3 bar

Correct use

This article was developed for private use to pump all standard bike tyres with Schrader, Dunlop, or Sclaverand valves. The bike mount is only suitable for bike frames that have holes for a mount (fig. B). Not suitable for pumping up car tyres!

Safety notes

• This article is not suitable for use by children or by adults with physical and/or mental limitations because of the high operating forces and the associated risks.
• Risk of burns! The friction in the mini air pump piston and mini air pump cylinder means that they warm up after longer periods of use. Only hold the article by the handle after use.
• Inspect the article in particular the bike mount and the correct connection between the valve and the mini air pump for damage or wear before each use.
  • Defective articles must not be used and must be discarded as a defective article cannot be repaired.

• Only pump up the article to the maximum pressure stated by the manufacturer. This is usually printed on the sidewall of the bike tyre.

• There is a risk of explosion with over-inflated tyres!

• The pressure must be controlled using a calibrated measurement device.

Mounting to the bike frame

• Remove the screws from the frame designed for attaching a drinking bottle (fig. B).

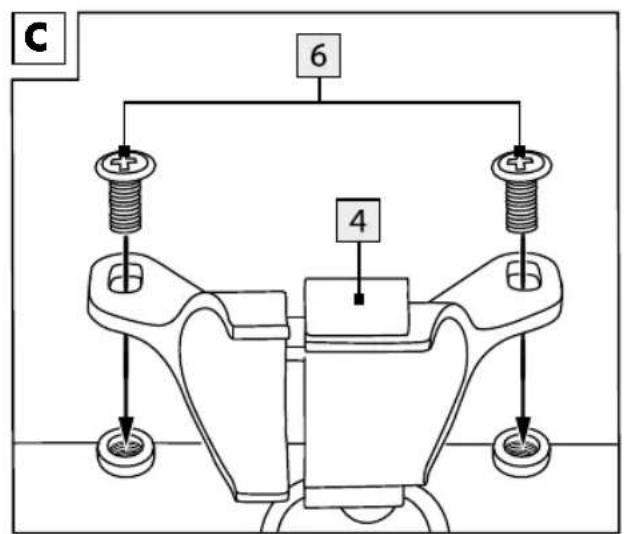

• Attach the bike mount (4) to the frame with the included screws (6) or the screws from the drinking bottle mount (fig. C).

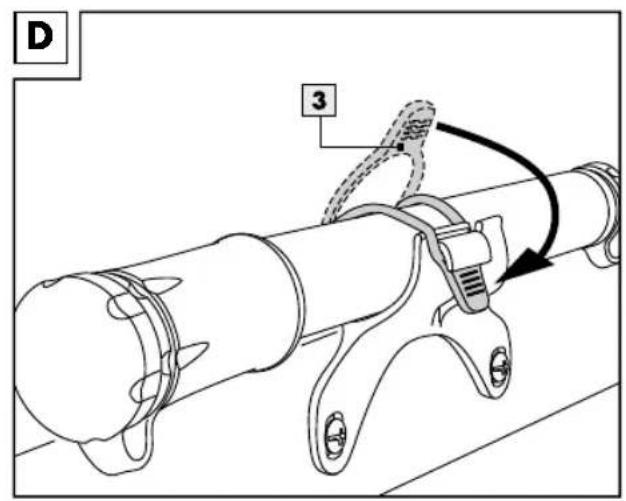

• Secure the pump by placing the rubber ring (3) around the pump (fig. D).
• If the included screws are too large or too small, please purchase the correct screws from a specialist retailer.
  Always ensure the article is attached securely and tightly! The bike mount must stay secure even on unpaved surfaces and it must not wobble.
  Otherwise there is a risk of losing the bike mount with the mini air pump.

Use

• Open the top cap (2) and remove the hose (7).

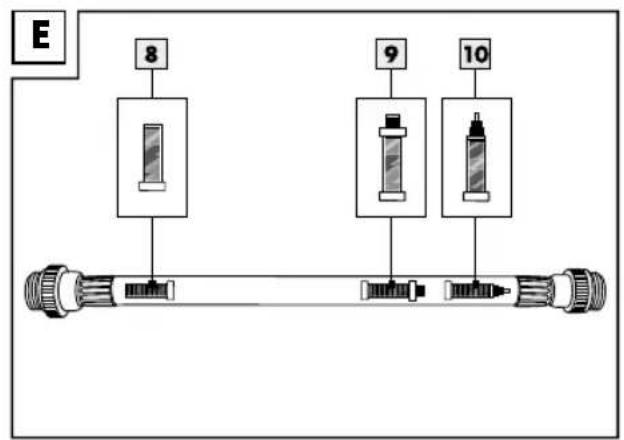

• Open the bottom cap (5). Depending on whether you have a Schrader valve (8), Dunlop valve (9), or Sclaverand valve (10), screw the correct end of the hose to the other end of the mini air pump (see label on the hose: Schrader/Dunlop, Sclaverand) (fig. E).
• Open the cap on the tyre valve.

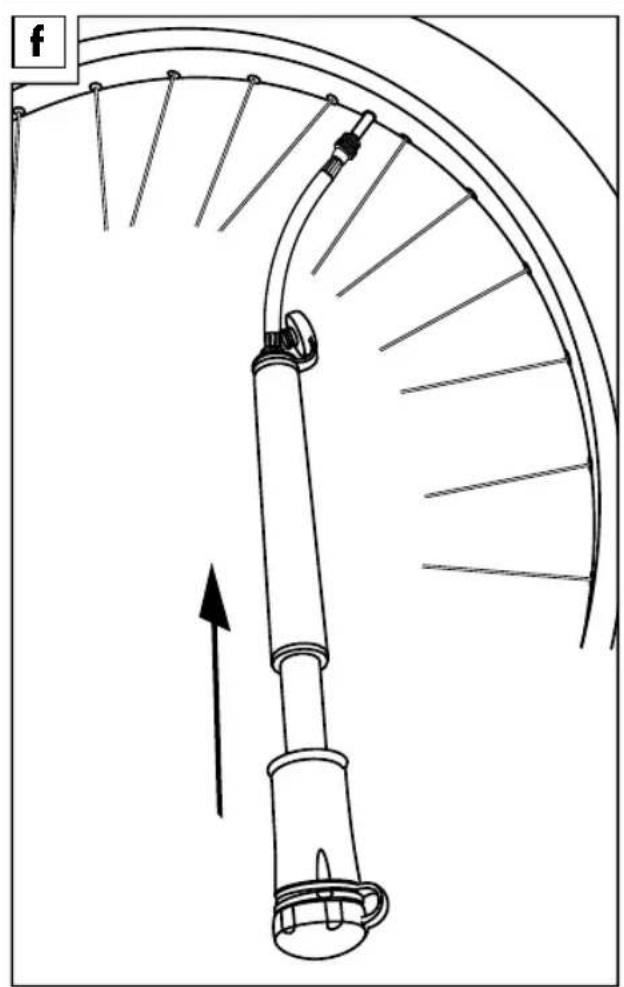

• Screw the correct end of the hose to the OPEN valve and then pump (fig. F).

Special note when pumping bike tyres using the Sclaverand valve (10):

1. Remove the knurled nut (on the bike valve casing) of the bike valve.
2. Place the Sclaverand valve vertically on the bike valve, then pump.
3. Now tighten the knurled nut on the bike valve again after pumping.

- Caution! The hose on the mini air pump must not be bent!

- Pump the mini air pump in a regular motion and do not pump too fast.

When the article is not in use, please always store the hose inside the mini air pump.

Close the caps securely, and always put the mini air pump in the mount with the handle of the air pump pointing upward.

Maintenance and storage

Never submerge the pump in water as this will damage the article. Always store the article in a clean, dry, temperature-controlled room. Important! Only clean with a damp cloth and then wipe dry.

Notes on disposal

Please dispose of the article and all associated components through an authorised waste disposal company or through your local authority facilities. Please observe all valid regulations. If in doubt, please ask at your waste disposal facility regarding environmentally compatible disposal.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to re-placed and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 103008

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

All items are also available for purchase directly from our online shop: www.delta-sport.info
