FP1497 - Water pump CRIVIT - Free user manual and instructions

Product type	Foot pump for inflation
Brand	Crivit
Model	FP1497
Dimensions (L × W × H)	22.5 × 14 × 63 cm
Maximum nominal pressure	6 bar / 87 PSI
Weight (estimated)	Approx. 1.5 kg
Operation	Manual (foot)
Main functions	Inflation of bicycle tires (Schrader valve, quick valve, schléverand), balls, air mattresses and similar items
Compatible valve type	Schrader, quick valve, schléverand
Package contents	Foot pump, ball adapter (G), 2 adapters for inflatable items (H), instruction manual
Maintenance and cleaning	Clean with a damp cloth, dry after cleaning. Do not immerse in water.
Safety	Do not use by children or persons with reduced capacities. Risk of burns in case of prolonged use. Check for damage before each use.
Spare parts and repairability	Parts not repairable by the user. In case of defect, replace the device.
Warranty	3 years from date of purchase (material and manufacturing defects)
General information	Use only on a smooth surface. Place both feet on the base plate (F) during pumping. Do not bend the hose.

Frequently Asked Questions - FP1497 CRIVIT

What is the maximum pressure the FP1497 pump can reach?

The maximum nominal pressure is 6 bar (87 PSI).

What types of valves does the pump support?

It supports Schrader, quick valve and schléverand valves.

How to inflate a ball with this pump?

Insert the ball adapter into the large opening (B) of the double pump head, flip the clamping lever (D) upward to lock, then insert the adapter into the ball.

Can I use this pump to inflate car tires?

No, this pump is designed for bicycle tires and small items. It is not suitable for car tires.

How to maintain the FP1497 pump?

Clean it with a damp cloth and dry it afterwards. Never immerse it in water.

What to do if the pump no longer works properly?

First check for visible damage. In case of defect, the pump cannot be repaired and must be replaced. Contact customer service.

Is the pump suitable for children?

No, due to the high operating forces, it is not suitable for children or persons with reduced physical or mental capacity.

How to inflate a bicycle tire with a Schrader valve?

Open the valve, place the large opening (B) of the double head over the valve, then flip the clamping lever (D) upward.

What to do in case of pump overheating?

Friction can heat the cylinder. In case of prolonged use, only touch the handle (A) and let it cool down.

Where can I find after-sales service for the warranty?

For Switzerland, contact the hotline at 0842 665 566 (CHF 0.08/min, mobile max CHF 0.40/min) or by email at [e-mail]. Keep the receipt.

USER MANUAL FP1497 CRIVIT

Instructions for use

FR CH

POMPE À PIED

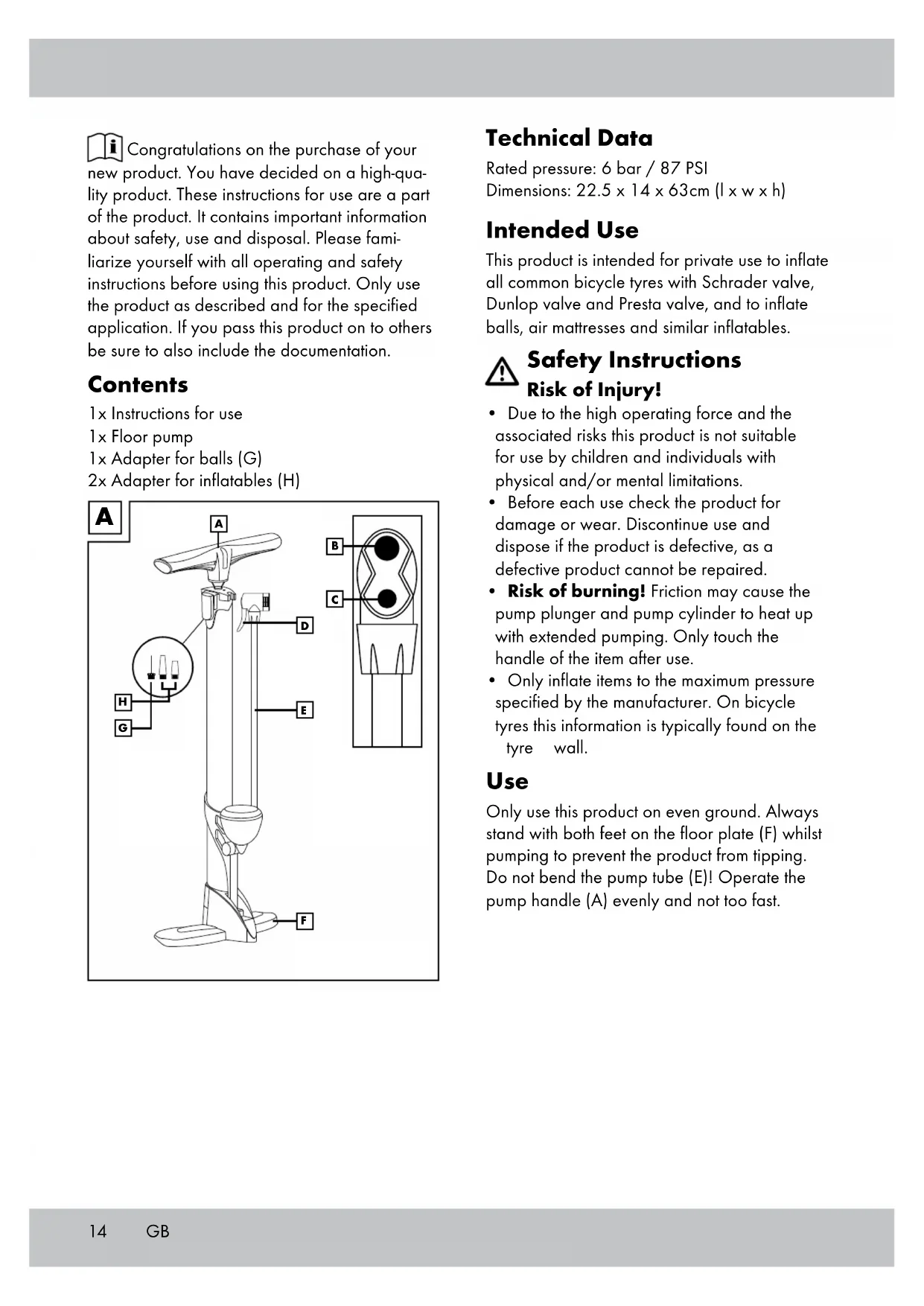

Congratulations on the purchase of your new product. You have decided on a high-quality product. These instructions for use are a part of the product. It contains important information about safety, use and disposal. Please familiarize yourself with all operating and safety instructions before using this product. Only use the product as described and for the specified application. If you pass this product on to others be sure to also include the documentation.

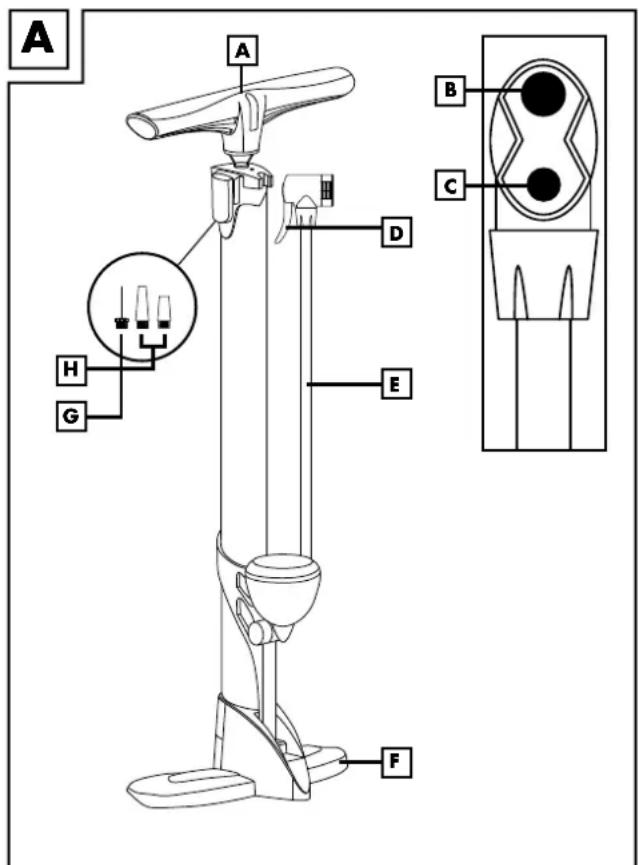

Contents

1x Instructions for use
1x Floor pump
1xAdapterforballs(G)
2x Adapter for inflatable (H)

Technical Data

Rated pressure: 6 bar / 87 PSI

Dimensions: 22.5 × 14 × 63cm ( l × w × h )

Intended Use

This product is intended for private use to inflate all common bicycle tyres with Schrader valve, Dunlop valve and Presta valve, and to inflate balls, air mattresses and similar inflatable.

Safety Instructions Risk of Injury!

• Due to the high operating force and the associated risks this product is not suitable for use by children and individuals with physical and/or mental limitations.
• Before each use check the product for damage or wear. Discontinue use and dispose if the product is defective, as a defective product cannot be repaired.
• Risk of burning! Friction may cause the pump plunger and pump cylinder to heat up with extended pumping. Only touch the handle of the item after use.
• Only inflate items to the maximum pressure specified by the manufacturer. On bicycle tyres this information is typically found on the tyre wall.

Use

Only use this product on even ground. Always stand with both feet on the floor plate (F) whilst pumping to prevent the product from tipping. Do not bend the pump tube (E)! Operate the pump handle (A) evenly and not too fast.

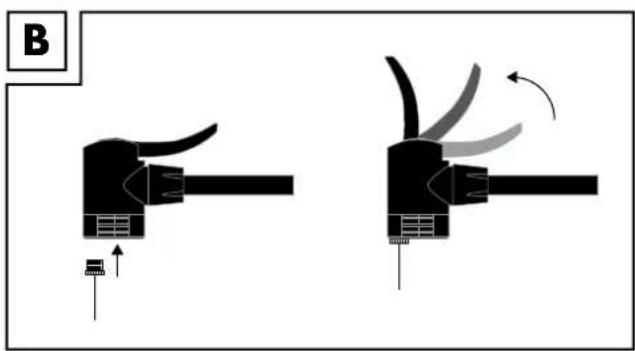

Inflating balls

Insert the ball adapter into the large opening (B) of the dual pump head. Flip the clamping lever (D) up to lock in the adapter. Then insert the adapter in the ball.

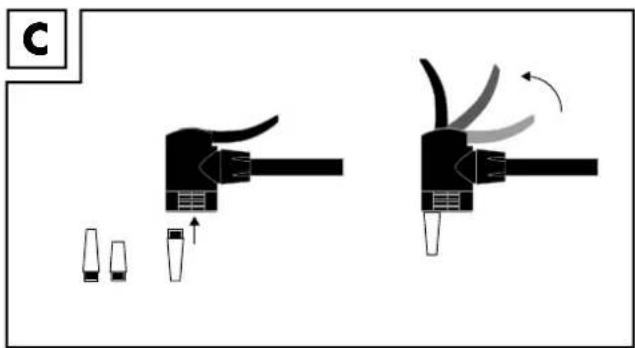

Inflatable

Open the valve on the inflatable. Insert the properly fitting inflatables adapter into the large opening (B) of the dual pump head. Flip the clamping lever (D) up to lock in the adapter. Then insert the adapter into the valve of the inflatable.

Inflating bicycle tyres with Dunlop valves

Remove the closure from the bicycle tyre. Place the small opening (C) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

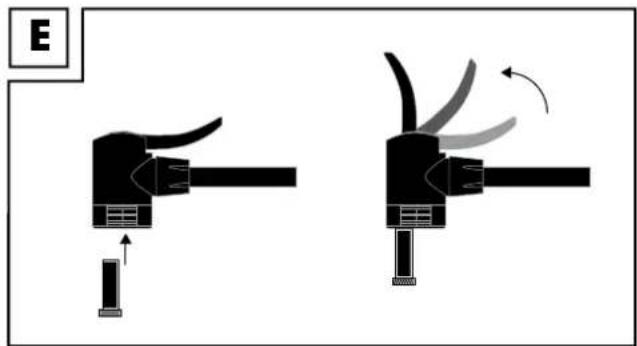

Inflating bicycle tyres with Schrader valve

Remove the closure from the bicycle tyre. Place the large opening (B) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

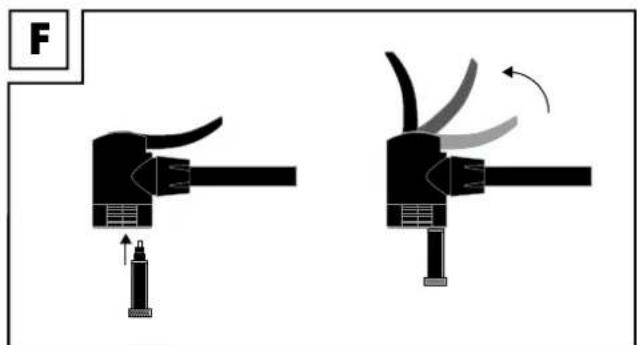

Inflating bicycle tyres with Presta valves

Remove the closure from the bicycle tyre. Loosen the valve nut. Place the small opening (C) of the dual pump head on the valve. Flip the clamp lever (D) up to lock the adapter.

Care, Storage

Do not immerse the product in water, as this will damage the product! Always store the product dry and clean in a temperate room. Important! Only clean with a damp cleaning cloth, then wipe dry.

Disposal

Please dispose of packaging and the item in an environmentally friendly, single-variety manner! Dispose product through an approved waste management company or through your municipality. Always follow the current applicable regulations.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN:73443

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 08/2012
