| Brand | Einhell |
| Model | TCVC 3055 A |
| Appliance type | Water and dust vacuum cleaner |
| Supply voltage | 220-240 V ~ 50-60 Hz |
| Rated power | 850 W |
| Max. power consumption (auto socket) | 2000 W |
| Total max. power consumption | 2850 W |
| Tank volume | 30 L |
| Weight | 6.3 kg |
| Sound pressure level | 78 dB(A) |
| Dry vacuum filter | Pleated filter |
| Liquid vacuum filter | Foam filter |
| Blow function | Yes |
| Automatic mode with tool socket | Yes |
| Included accessories | Flexible suction hose, 2 suction tubes, combination brush, flat nozzle, accessory bag, 4 castors, handle |
| Safety | Float safety valve, automatic shut-off at max. level |
| Maintenance | Clean filters regularly; tank with soapy water |
| Storage temperature | 5-30°C, frost-free |
| Wear parts | Combination brush, flat nozzle, filters, collection bag |
Frequently Asked Questions - TCVC 3055 A EINHELL
User questions about TCVC 3055 A EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual TCVC 3055 A - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TCVC 3055 A by EINHELL.
USER MANUAL TCVC 3055 A EINHELL
GB Original operating instructions Wet and dry vacuum cleaner
D
Gefahr!

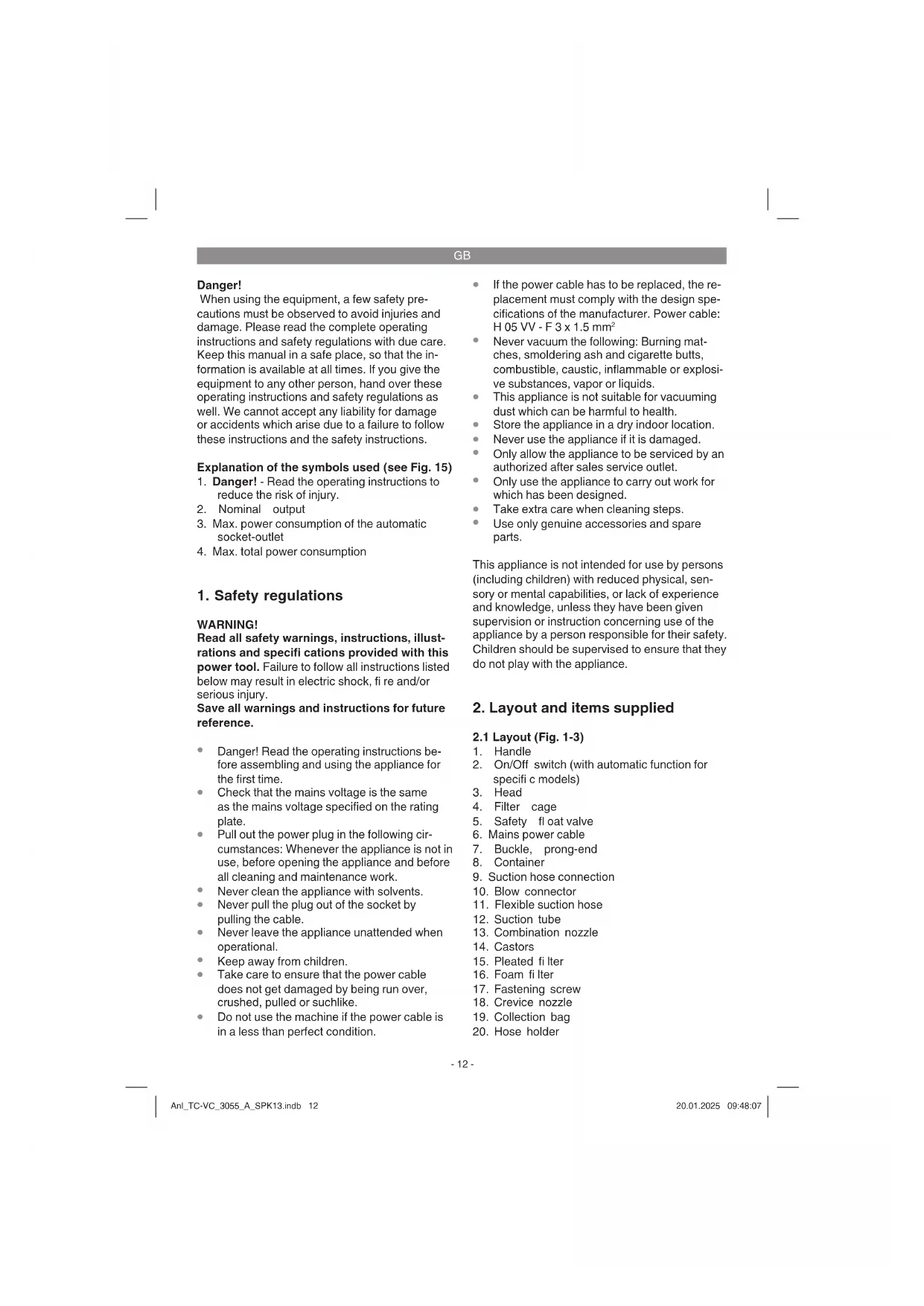

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

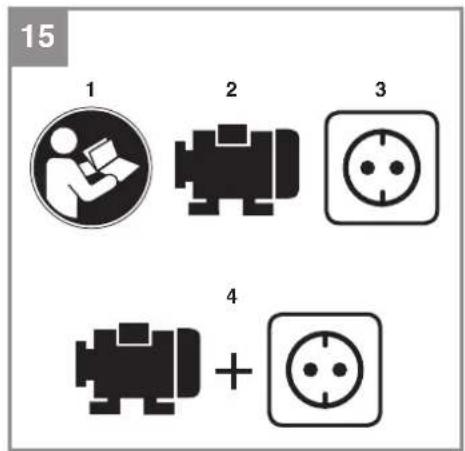

Explanation of the symbols used (see Fig. 15)
- Danger! - Read the operating instructions to reduce the risk of injury.
- Nominal output
- Max. power consumption of the automatic socket-outlet
- Max. total power consumption
1. Safety regulations
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
- Danger! Read the operating instructions before assembling and using the appliance for the first time.
- Check that the mains voltage is the same as the mains voltage specified on the rating plate.
- Pull out the power plug in the following circumstances: Whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.
• Never clean the appliance with solvents. - Never pull the plug out of the socket by pulling the cable.
- Never leave the appliance unattended when operational.
- Keep away from children.
- Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.
-
Do not use the machine if the power cable is in a less than perfect condition.
-
If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer. Power cable: H 05 VV - F 3 x 1.5 mm ^2
- Never vacuum the following: Burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapor or liquids.
- This appliance is not suitable for vacuuming dust which can be harmful to health.
• Store the appliance in a dry indoor location.
• Never use the appliance if it is damaged. - Only allow the appliance to be serviced by an authorized after sales service outlet.
- Only use the appliance to carry out work for which has been designed.
• Take extra care when cleaning steps. - Use only genuine accessories and spare parts.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Layout and items supplied
2.1 Layout (Fig. 1-3)
- Handle
- On/Off switch (with automatic function for specific models)
- Head
- Filter cage
- Safety float valve
- Mains power cable
- Buckle, prong-end
- Container
-
Suction hose connection
-
Blow connector
-
Flexible suction hose
-
Suction tube
-
Combination nozzle
-
Castors
-
Pleated filter
-
Foam filter
-
Fastening screw
-
Crevice nozzle
-
Collection bag
-
Hose holder
GB
- Automatic socket-outlet for electric tools
- Electric tool adapter
- Bag for accessories
- Accessory mount
- Water drain screw
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage: 220-240 V \~ 50-60 Hz
Nominal output: 850 W
Max. power consumption of the automatic socket-outlet: 2,000 W
Max. total power consumption: 2,850 W
Tank volume: 30 l
Sound pressure level L_nA 78 dB(A)
Uncertainty K_pA 2 dB
Weight: 6.3kg
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
• Suction tube (2x)
- Suction hose
• Combination nozzle
- Pleated filter
- Foam filter
- Crevice nozzle
- Bag for accessories
- Castors (4x)
- Handle
• Fastening screw (6x)
• Original operating instructions
5. Before starting the equipment
Warning! Before you connect the tool to the power supply make sure that the data on the rating plate is the same as the mains data.
The equipment is allowed to be connected only to a shock-proof socket-outlet.
5.1 Assembling the equipment
Fitting the equipment head (Fig. 6)
The equipment head (3) is fastened to the tank (8) by the locking hook (7). To remove the equipment head (3), open the locking hook (7) and take off the equipment head (3). When fitting the equipment head (3), make sure that the locking hook (7) locks into place correctly.
3. Proper use
The wet/dry vac is designed for wet and dry vacuuming using the appropriate filter. The equipment is not suitable for the vacuuming of combustible, explosive or harmful substances.
Fitting the castors (Fig. 5)
Fit the castors (14) as shown in Fig. 5.
Fitting the handle (Fig. 4)
Use a screwdriver to fit the handle (1).
GB
5.2 Fitting the fi Iters
Important!
Never use the wet/dry vac without a fi lter. Always make sure that the fi lters are securely seated!
Fitting the foam fi Iter (Fig. 7)
For wet vacuuming, slip the supplied foam fi iter (16) over the fi iter basket (Fig. 2/4). The pleated filter (15) already fitted upon delivery is not suitable for wet vacuuming.
Fitting the pleated fi Iter (Fig. 8)
For dry vacuuming, slip the pleated filter (Fig. 15) over the filter basket (Fig. 2/4). The pleated filter (15) is suitable for dry vacuuming only.
Fitting the dirt bag (Fig. 9)
For vacuuming fi ne dry dirt it is recommended that you also fi t the dirt bag (19). This will ensure that the pleated fi liter (15) does not clog up so quickly and help maintain the vacuuming power. It also makes it easier to dispose of the dust. Slip the dirt bag over the vacuuming hole. The dirt bag is suitable for dry vacuuming only.

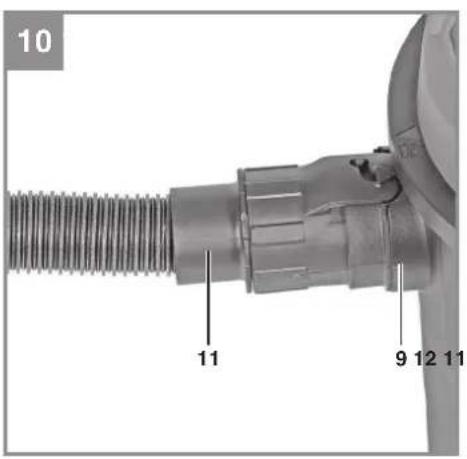

5.3 Fitting the suction hose (Fig. 10-13)
Connect the suction hose (11) to the corresponding connector on the wet/dry vac, depending on the application required.
Vacuuming
Connect the suction hose (11) to the suction hose connector (9).
Blowing
Connect the suction hose (11) to the blow connector (10).
To extend the suction hose (11), the elements which make up the multi-part suction tube (12) can be attached to the suction hose (11).
5.4 Suction nozzles
Combination nozzle (Fig. 13)
The combination nozzle (13) is for vacuuming solids and liquids over medium to large areas.
Crevice nozzle (Fig. 12)
The crevice nozzle (18) is designed for vacuuming solids and liquids in corners, edges and other areas that are difficult to access.
6. Operation
6.1 On/Off switch (Fig. 2/2)
Switch position 0: Off
Switch position I: Normal mode
Switch position AUTO: Automatic mode
6.2 Dry vacuuming
For dry-vacuuming, use the pleated fi iter (15). In addition, you can also fi t the dirt bag. (See point 5.2) Always make sure that the fi iters are securely seated!
6.3 Wet vacuuming
For wet vacuuming, use the foam fi iter (16) (see point 5.2). Check that the fi iter is securely seated at all times.
Water drain screw (Fig. 1)
To make the tank (8) easier to empty after wet vacuuming, it is fitted with a water drain screw (25). Open the water drain screw (25) by turning it anticlockwise and drain the liquid.
When wet vacuuming, the floating safety switch (5) closes when the maximum tank level is reached. At the same time, the suction noise of the equipment will change and become louder. You must then switch off the equipment and empty the tank.
Danger!
The wet/dry vac is not suitable for the vacuuming of combustible liquids. For wet vacuuming, use only the supplied foam fi Iter.
6.4 Automatic mode
Connect the power cable of your electric tool to the automatic socket-outlet (21) and connect the suction hose (11) to the vacuuming connector of your electric tool. Check that the connections are secure and air-tight.
Set the switch (2) on the wet/dry vac to position "AUTO" (automatic mode). The moment you switch on the electric tool, the wet/dry vac will switch on as well. When you switch off the electric tool, the wet/dry vac will switch off as well after a pre-set delay.
6.5 Blowing
Connect the suction hose (11) to the blow connector (10) on the wet/dry vac.
GB
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
8.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
• We recommend that you clean the appliance immediately after you use it.
8.2 Cleaning the appliance head (3)
Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance.
8.3 Cleaning the container (8)
The container can be cleaned with a damp cloth and some soft soap or under running water, depending on the amount of dirt.
8.4 Cleaning the fi Iters
Cleaning the pleated fi Iter (15)
Clean the pleated fi Iter (15) regularly by carefully patting it and cleaning it with a fi ne brush or hand brush.
Cleaning the foam fi Iter (16)
Clean the foam filter (16) with a little soft soap under running water and allow it to air-dry.
8.5 Maintenance
There are no parts inside the equipment which require additional maintenance.
8.6 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
10. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
GB
Disposal
Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools and batteries/rechargeable batteries into household waste!
Only for EU countries:
According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.
If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.
Only for United Kingdom:
According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc. | |
| Consumables* | Pleated filter, foam filter, dirt bag, additional filter, etc. |
| Missing parts | |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
F
Danger!
Position I: Normal drift
Position AUTO: Automatisk drift
6.2 Tørsugning
Hälve K_pA .....2dB
Kaal: 6,3 kg
Oht!
Subject to change without notice
Archive-File/Record: NAPR034061
Documents registrar: Sergey Hirsekorn
Wiesenweg 22, D-94405 Landau/Isar
- SH W&T and dry vacuum cleaner - E Aspirator seu et posseras - I Aspiratuto - DKN VAC-Sonkarog - S. Hsu-och tonsagere - CZV Yasvast pro vysavisni zemokra Izasuva - SK Micro-suchy yvesale - NL Nat-drosgugler - E Aspirador en soco y húmedo - FN Mārid-kulvaimirn - SLO Sosnik ne motre in suu sssanja - I Nedews-suzhadro: RO Apirator umaz-iusacg - GR HZAerprij ruyutiv steveot na uyo dei oedigoupi - P Aspirador universal - HRBSN Ussavat za motruciuio diolenga - RS Ussava za motruciuio diolenga - PL Odkurazza na suena na motro - TRIstak kuri elektrik angolo a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia a unia
Declaration of conformity
We, Einhell UK Ltd
Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom
declare the conformity to UK standards and legislation was assessed for:
Wet and dry vacuum cleaner TC-VC 3055 A (Einhell)
UK legislation
□ Simple Pressure Vessels (Safety) Regulation
X Electrical Equipment (Safety) Regulation
□ Radio Equipment Regulation
□ Personal Protective Equipment Regulation
X The Ecodesign for Energy-Related Products and Energy Information Regulation
X The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation
□ Noise Emission in the Environment by Equipment for use Outdoors Regulation
☒ Electromagnetic Compatibility Regulation
□ Measuring Instruments Regulation
□ Pressure Equipment (Safety) Regulation
Annex V
Annex VI
Noise:measuredL ww = dB (A); guaranteed L ww = dB (A)
P = kW; L/∅ = cm
UK Approved Body:
□ Supply of Machinery (Safety) Regulation
□ Annex IV
UK Approved Body:
UKTE Certifi cate No.:
Standards: BS EN IEC 60335-1; BS EN IEC 60335-2-2; BS EN 62233;
BS EN IEC 55014-1; BS EN IEC 55014-2; BS EN IEC 61000-3-2; BS EN 61000-3-3
Wirral, 2024.12.04
Tom Chambers, Managing Director Einhell UK Ltd.
Archive-File/Record: NAPR034061
Article Number: 23.474.30 I.-No.: 21014
Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany
Documents registrar: Sergey Hirsekorn
EH 01/2025 (01)
