USER MANUAL Silence Force RO4745 ROWENTA

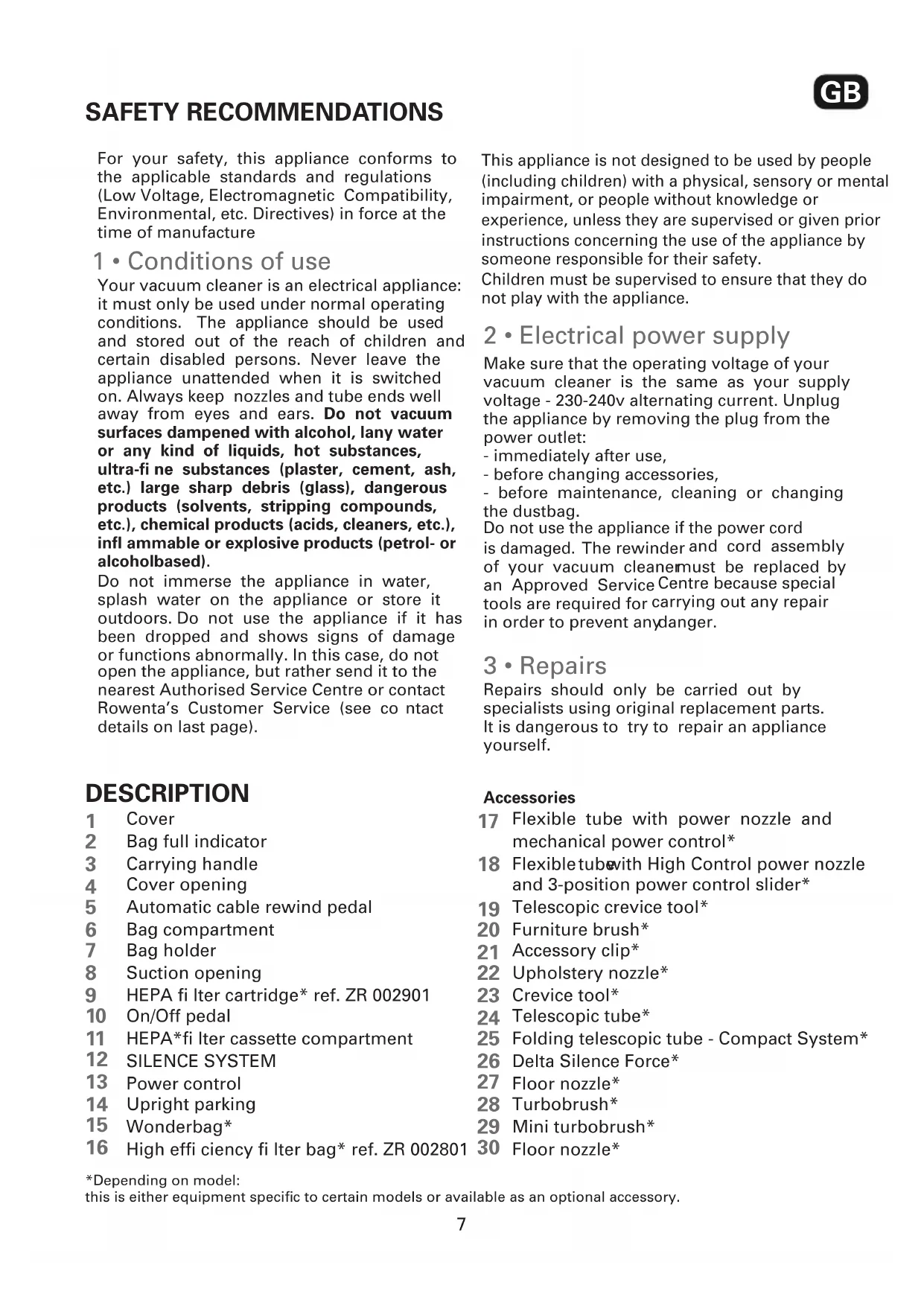

Conformément à la réglementation en vigueur, tout appareil hors d’usage doit être rendu défi nitivement inutilisable : débranchez et coupez le cordon avant de jeter l’appareil. Environnement : Directive 2002/95/CE. Participons à la protection de l’environnement ! Votre appareil contient de nombreux matériaux valorisables ou recyclabes. Confi ez celui-ci dans un point de collecte pour que son traitement soit effectué. 730278_RO47_silence force upgraded_CHvec_730278 21/01/10 10:00 Page67 For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental, etc. Directives) in force at the time of manufactureYour vacuum cleaner is an electrical appliance: it must only be used under normal operating conditions. The appliance should be used and stored out of the reach of children and certain disabled persons. Never leave the appliance unattended when it is switched on. Always keep nozzles and tube ends well away from eyes and ears. Do not vacuum surfaces dampened with alcohol, lany water or any kind of liquids, hot substances, ultra-fi ne substances (plaster, cement, ash, etc.) large sharp debris (glass), dangerous products (solvents, stripping compounds, etc.), chemical products (acids, cleaners, etc.), infl ammable or explosive products (petrol- or alcoholbased).Do not immerse the appliance in water, splash water on the appliance or store it outdoors. Do not use the appliance if it has been dropped and shows signs of damage or functions abnormally. In this case, do not open the appliance, but rather send it to the nearest Authorised Service Centre or contact Rowenta’s Customer Service (see contact details on last page). Make sure that the operating voltage of your vacuum cleaner is the same as your supply voltage - 230-240v alternating current. Unplug the appliance by removing the plug from the power outlet: - immediately after use,- before changing accessories,- before maintenance, cleaning or changing the dustbag.The rewinder and cord assembly of your vacuum cleaner must be replaced by an Approved Service Centre because special tools are required for carrying out any repair in order to prevent any danger. Repairs should only be carried out by specialists using original replacement parts. It is dangerous to try to repair an appliance yourself. SAFETY RECOMMENDATIONS 1 • Conditions of use DESCRIPTION Cover Bag full indicator Carrying handle Cover opening Automatic cable rewind pedal Bag compartment Bag holder Suction opening HEPA fi lter cartridge* ref. ZR 002901 On/Off pedal HEPA*fi lter cassette compartment SILENCE SYSTEM Power control Upright parking Wonderbag* High effi ciency fi lter bag* ref. ZR 002801 Flexible tube with power nozzle and mechanical power control* Flexible tube with High Control power nozzle and 3-position power control slider* Telescopic crevice tool* Furniture brush* Accessory clip* Upholstery nozzle* Crevice tool* Telescopic tube* Folding telescopic tube - Compact System* Delta Silence Force* Floor nozzle* Turbobrush* Mini turbobrush* Floor nozzle* *Depending on model:this is either equipment specifi c to certain models or available as an optional accessory. 2 • Electrical power supply 3 • Repairs Accessories

This appliance is not designed to be used by people (including children) with a physical, sensory or mental impairment, or people without knowledge orexperience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety.Children must be supervised to ensure that they do not play with the appliance.Do not use the appliance if the power cord is damaged.

730278_RO47_silence force upgraded_CHvec_730278 21/01/10 10:00 Page78 Unpack your appliance and remove any labels. Keep your warranty card and carefully read the operating instructions before using your appliance for the fi rst time.Before each use the supply cord should be completely unwound. Do not allow it to become trapped or be pulled over sharp edges. If you use an extension cord, make sure that it is in perfect condition and appropriate to the power rating of your appliance. Never unplug the appliance by pulling on the cord.Never operate the vacuum cleaner without abag and without a fi ltration system (cassette). o not move the vacuum cleaner by pulling its cord, the appliance must be moved by its carrying handle. Never lift the appliance by its cord use the carrying handle. Stop and unplug the appliance after each use. Always turn off and unplug your appliance before maintenance or cleaning. Only use Rowenta bags and fi lters.Use only Rowenta or Wonderbag bags and fi lters.Check that all the fi lters are properly in place. In the case of diffi culty in obtaining accessories and fi lters for this vacuum cleaner, contact the Rowenta customer service department (see last page for contact details).

BEFORE USING FOR THE FIRST TIME

1 • Remove packaging Thanks to the Silence System (an exclusive Rowenta system) your vacuum cleaner makes much less noise when vacuuming. Push the hose into the vacuum opening (fi g. 1) and turn to lock. To remove it, turn in the opposite direction and pull. Attach the accessory clip to the tube and place the accessories on it. The accessory support sits on the tube; the accessories can be taken off the support, which remains attached to the tube (fi g. 2). Assemble the telescopic tube*. Adjust the desired length on the tube (fi g. 4). If your appliance is equipped with the Compact System with folding tubes: (fi g. 3).

Fully unroll the cord, plug in your vacuum cleaner and press the On/Off pedal, (fi g. 6). Set the power using the vacuum cleaner’s power control, if your model is equipped with a High Control wand (fi g. 7) you can also adjust the vacuum power using the 3 position slider* :• Position for fabrics and furniture (fi g.7).

• Position for parquets and smooth fl ooring (fi g.7).
• Position for rugs and wall-to-wall carpeting (fi g.7).

1 • Assembling the elements of the appliance IMPORTANT If the vacuum suction unit is hard to move, reduce the vacuum power on your appliance using the electronic power control on the vacuum cleaner.For corners and other areas that are diffi cult to reach: use the crevice tool*.For furniture: use the brush* or the furniture crevice tool*. IMPORTANT Never operate the vacuum cleaner without a bag and without afi ltration system (cassette).IMPORTANT Always stop and unplug your vacuum cleaner before changing accessories. 2 • Plugging in the electrical power cord and using the vacuum cleaner 2 • Hints and precautions To use, unfold the 2 tubes until you hear a «click». Set to the desired length.For rugs and wall-to-wall carpeting: use the nozzle with brushes lifted.For parquets and smooth fl ooring: use the nozzle with the brush extended or use the parquet nozzle*.*Depending on model:this is either equipment specifi c to certain models or available as an optional accessory.Your appliance is equipped to that end with a safety system to ensure the filter cassette is present.

730278_RO47_silence force upgraded_CHvec_730278 21/01/10 10:00 Page89 After use, stop your appliance by pressing on the on/off pedal and unplug it (fi g.8). Stow the cable by pressing the automatic cable rewind pedal (fi g.9). In the upright position, place the suction unit in the parking position (fi g.10). You can then carry and store your vacuum cleaner in the park position (fi g.13). If your appliance is equipped with the Compact System with folding tubes:

The bag full indicator shows you when the bag is full or saturated. If you notice that your vacuum cleaner is less effi cient, select the maximum power and hold the nozzle off the fl oor. If the indicator remains red, replace the bag. Open the cover on your vacuum cleaner (fi g. 15). Remove the bag or wonderbag and throw it away (fi g. 16-17-18). Place a new bag in the bag support guide using the cardboard (fi g. 19) or a new wonderbag in the support using its ring. Position the bag and open it out inside the compartment (fi g.20). Make sure that the bag is in the correct position before closing the cover. The HEPA fi lter cassette ref. ZR 0029 01 is available from your dealer or Approved Service Centres.

Put the bag or wonderbag back in place. Check that the Hepa* fi lter cassette is fi tted correctly be fore re-closing the cov er. Clean the accessories of your appliance with a soft damp cloth, then dry them. Do not use abrasive or aggressive products. 3 • Storing and transporting the appliance Retract the telescopic tubes (fi g. 11) and press the «Push» button to open the tube and fold it. UTILISATION If your appliance is equipped with CLIP’N’STORE, attach your hose to the accessory clip for easier storage (fi g. 12).

IMPORTANT Always turn off and unplug your appliance before maintenance or cleaning. 1 • Changing the bag IMPORTANT Never operate the vacuum cleaner without a bag. 2 • Change the HEPA* fi lter cassette (ref. ZR 0029 01) IMPORTANT Replace the fi ltration system once a year. Open the cover on your vacuum cleaner (fi g. 15). Remove the bag or wonderbag (fi g. 16), then remove the Hepa fi lter cartridge* (fi g. 21) and dispose of the cassette in a waste bin (fi g.22). Fit the new Hepa* fi lter cassette (ref. ZR 0029 01) in its compartment (fi g. 23). IMPORTANT Never operate the vacuum cleaner without a Hepa fi lter cartridge. Your appliance is equipped with a Hepa fi lter cartridge presence safety system for this (the cover will not close if a Hepa fi lter cartridge has not been installed). 3 • Cleaning your vacuum *Depending on model:this is either equipment specifi c to certain models or available as an optional accessory.

730278_RO47_silence force upgraded_CHvec_730278 21/01/10 10:00 Page910 If your vacuum cleaner does not start

If the suction of your vacuum cleaner has dropped, it makes a noise and whistles

If the bag full indicator remains red

If the fl oor nozzle is hard to move around

If the power cable does not rewind completely

If problems persist, take your vacuum cleaner to the nearest Rowenta approved Service Centre (see list of approved service centres) or contact the Rowenta Customer Service (see contact details on last page). *Depending on model: this is either equipment specifi c to certain models or available as an optional accessory. TROUBLESHOOTING The appliance is not plugged-in, check that the appliance is correctly plugged in. IMPORTANT As soon as your vacuum cleaner starts to malfunction, and before performing any checks stop the appliance by pressing the Start/Stop switch. An accessory or the tube is clogged. Unclog the accessory tube or fl exible hose. The cover was not closed properly: check that the bag is properly installed and reclose the cover. An accessory or the fl exible hose is partially clogged. Unclog the accessory t ube or fl exible hose. The bag is full or clogged with fi ne dust. Fit a new bag or empty the fabric dust bag. The fi lter is full: change the HEPA* fi lter cassette (ref. ZR 0029 01) and fi t it back into position (see page 9 paragraph 2). If the manual suction regulator on the grip is open, close the manual suction regulator*. The bag is full. Fit a new one. Set vacuum power with the 3-position power control*

he power cord is slow in re-entering its housing. Pull the cord out to its entire length and press on the automatic cord rewind pedal. WARRANTY

This product has been designed for domestic use only. Any professional use, innapropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. Read the instructions for use c arefully before using your appliance for the fi rst time: any use which does not conform to these instructions will absolve Rowenta from any liability. If there is no suction

730278_RO47_silence force upgraded_CHvec_730278 21/01/10 10:00 Page1011 *Depending on model: this is either equipment specifi c to certain models or available as an optional accessory.

WHERE CAN YOU BUY THE ACCESSORIES

ACCESSORIES* VACUUMING FITTING AN ACCESSORY PURCHASE LOCATIONS Wonderbag bag Furniture brush* Upholstery nozzle Telescopic crevice tool Floor nozzle Mini turbobrush Turbobrush To clean furniture. To clean furniture. To get into corners and places that are hard to reach. For fragile fl oors. To clean upholstery fabrics in depth. To remove threads and animal hairs ingrained into mats and carpets. Universal bag. Fit the furniture brush onto the end of the power nozzle or tube. Fit the furniture crevice tool onto the end of the power nozzle or the tube. Fit the telescopic crevice tool on to the end of the

ower nozzle or the tube. Fit the hardfl oor tool to the end of the tube. Fit the mini turbobrush to the end of the tube. Fit the turbobrush to the end of the tube. Fit the ring onto the Wonderbag then place it inside the compartment. Rowenta Approved Service Centres (see the attached address list). ENVIRONMENT

In accordance with current regulations, before disposing of an appliance no longer needed, the appliance must be rendered inoperative (by unplugging it and cutting off the supply cord). Environment: Directive 2002/95/EC. Environment protection fi rst! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.
