USER MANUAL HTBT16 Hillvert

Manufacturer Address

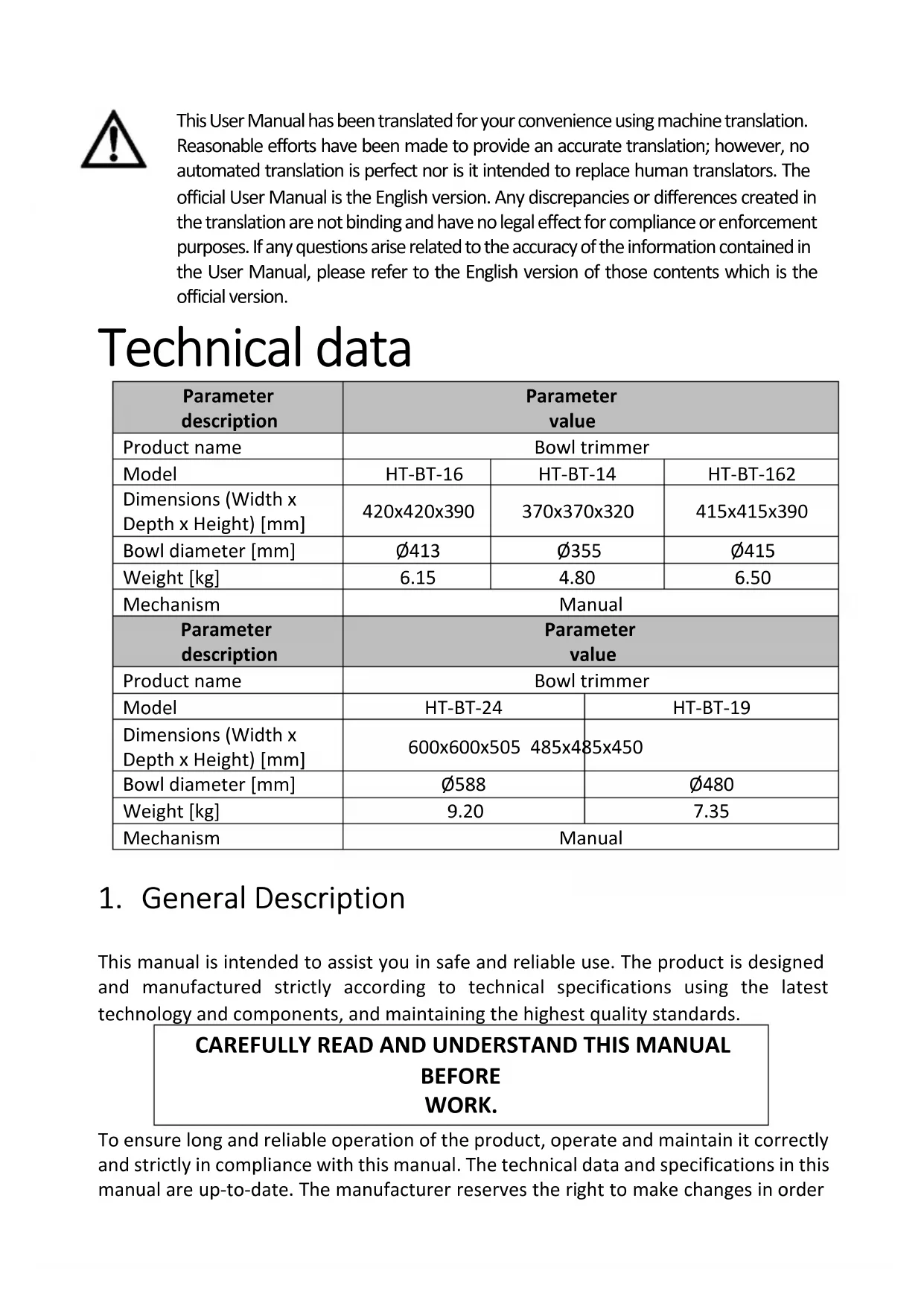

This manual is intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components, and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL

BEFORE WORK. To ensure long and reliable operation of the product, operate and maintain it correctly and strictly in compliance with this manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level. Explanation of symbols

Read the manual before use.

Use the safety cover.

CAUTION! Spinning elements! CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "device" or "product" in the warnings and in the description of the manual refers to Bowl Trimmer 2.1. Safety in the workplace a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device. b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department. d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own! e) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment. f) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.) g) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual. h) Keep packaging components and small installation parts out of the reach of children.

i) Keep the device away from children and animals.

2.2. Personal safety a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device. b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device. c) Use caution and common sense when operating this device. A moment's inattention during operation may result in serious personal injury. d) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations. e) The product is not a toy. Children should be watched to ensure that they do not play with the appliance. f) Do not touch the cutting surfaces with your hands! g) Do not trim with scissors or other objects above cutting surface! 2.3. Safe use of the device a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed. b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up. c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use. e) Keep the product out of the reach of children. f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use. g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws. h) Avoid situations in which the device stops under heavy loads during operation. This can cause overheating of the drive elements and consequent damage to the equipment.

i) Do not touch any moving parts or accessories unless the device is unplugged.

j) Do not move, shift, or rotate the device while in operation. k) Do not leave the device switched on unattended. l) Clean the device regularly to prevent permanent dirt build-up. m) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision. n) Do not tamper with the device to alter its performance or design. o) Keep the unit away from sources of fire and heat. p) Caution! The cutting elements of the device are very sharp! Wear protective gloves when replacing the blades, cleaning or servicing!

CAUTION! Although the product has been designed to be safe and has adequate safeguards, despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed for removing leaves from freshly cut branches of various kinds. The user is responsible for any damage resulting from misuse. 3.1. Product overview1 - Bowl

2 - Mesh with blades / grate

3.2. Preparation for operation

POSITIONING OF THE UNIT

Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Disassemble all components and wash them before first use.

3.3. Working with the device OPERATING THE UNITa) Prepare freshly cut branches of appropriate length, so as to facilitate unobstructed spinning by the rubbers over the mesh. CAUTION! While spinning, the rubbers will push the branches against the mesh and drag them along it. The cut leaves fall into the bowl whilst fruits, stalks etc. remain on the mesh. b) Place the bowl on level, stable, clean, and dry surface (1). c) Place mesh with blades over the bowl (2). d) Place branches evenly on the mesh. e) Place cover on the bowl with mesh (3). NOTE: When attaching the cover, align the cover fastening nut with the gearbox shaft on the spiral grate! f) Attach the crank on the top of cover (4). g) Turn the crank of the device in a clockwise direction (5). Turning the crank will move the rubbers under the cover. h) Continue turning the crank until the desired results are obtained.

i) After finished work with the device, empty the bowl and mesh.

j) The disassembly is done in reverse order to its assembly.

INSTALLATION / CHANGING THE BLADE

a) CAUTION! It is forbidden to change blades without protective gloves on! Make sure you are properly equipped with personal protective equipment before replacing blades! b) The device is adapted to the installation of crosswise or lenghtwise blades (A, B). c) The blades are located on the mesh of the device. d) To change the blade, turn the mesh with blades so that the blades are facing upwards. e) Unscrew and remove the nut securing the blades to the mesh (C). f) Slide out the worn blades, and install new ones in their place. g) Secure by tightening the nut. 3.4. Cleaning and maintenance a) Pull out the mains plug before each cleaning and when the unit is not in use. b) In the case of leaves intended for brewing, for example, only mild cleaning agents designed for cleaning food contact surfaces may be used to clean the device. c) After each cleaning, all the parts should be dried well before the unit is used again. d) Store the unit in a dry and cool place protected from moisture and direct sunlight. e) Do not spray the unit with a stream of water or immerse it in water. f) Make sure that no water enters through the ventilation openings in the casing. g) Clean the ventilation openings with a brush and compressed air.h) Perform regular inspections of the unit checking technical fitness and any damages.

i) Use a soft cloth for cleaning.
