UAWSO 2 D1 - Battery tester ULTIMATE SPEED - Free user manual and instructions

Product Type	Battery and Alternator Tester
Model	UAWSO 2 D1
Brand	Ultimate Speed
Input Voltage	6 V (5.6 - 7.8 V) and 12 V (11.5 - 15.5 V)
Battery Test Voltage Range	6 V: 5.6-7.8 V; 12 V: 11.5-15.5 V
LED Indicators	Very low charged, Half charged, Fully charged, Charging function OK, Overvoltage/controller defect
Main Functions	Battery test (charge status), alternator test (charging function), automatic voltage detection
Ambient Temperature	5 °C to 40 °C
Power Supply	Powered by the tested battery (no internal battery)
Included Accessories	2 quick-connect clamps (red +, black -), instruction manual
Mounting	Magnetic strip on the back for mounting on bodywork
Housing Material	Plastic
Weight	Approximately 150 g (estimated)
Dimensions (L x W x H)	Approximately 15 x 5 x 3 cm (estimated)
Cleaning	Damp cloth, do not immerse, no harsh chemicals
Safety	Short-circuit protection, wear gloves and goggles, use indoors only
Spare Parts	Measurement cables not repairable, discard device if damaged
Warranty	3 years from date of purchase
Certifications	CE, compliance with EU directives (EMC, RoHS)
Intended Use	Household, non-commercial

Frequently Asked Questions - UAWSO 2 D1 ULTIMATE SPEED

How to connect the battery tester?

First connect the red clamp (+) to the positive battery terminal, then the black clamp (-) to the negative terminal. Make sure the clamps are securely attached.

What to do if no LED lights up?

In 6 V mode, this indicates a defective or fully discharged battery. In 12 V mode, if a 6 V light turns on, the 12 V battery is likely very discharged or defective. Recharge or replace the battery.

How to test the alternator?

Connect the tester to the battery, start the engine and turn on all consumers (headlights, radio, etc.). Briefly rev the engine to 2500 rpm. The Charging function OK to MAXIMUM lights indicate a properly working alternator.

What does the 'Overvoltage/controller defect' light mean?

This light indicates overvoltage due to a defective voltage regulator. The measured voltage exceeds normal values (about 7.8 V in 6 V and 15.5 V in 12 V). Contact a garage.

Can I use the tester on a battery being charged?

No, the device is designed to test batteries not connected to a charger. Disconnect any charger before testing.

How to clean the tester?

First disconnect it from the battery. Clean the housing with a damp cloth. Never immerse the device in water and do not use abrasive products.

What safety precautions should I take?

Wear protective gloves and goggles. Avoid sparks near the battery. Do not use the device in humid environments. Connect the clamps in the correct order to avoid short circuits.

Does the tester automatically detect voltage?

Yes, it automatically detects whether the battery is 6 V or 12 V. If the detection is incorrect (e.g., a very discharged 12 V battery recognized as 6 V), use the button to manually select the mode.

What to do if only the 'Very low charged' light is on?

This means the battery is low (voltage about 5.8 V in 6 V or 11.5 V in 12 V). Recharge it before use.

How to dispose of the tester at end of life?

Do not throw it in household waste. Take it to a collection point for electrical devices or a recycling center. Remove batteries if present (this model does not contain any).

USER MANUAL UAWSO 2 D1 ULTIMATE SPEED

Operation and Safety Notes

Translation of the original instructions

FR BE CH

TESTEUR DE BATTERIE ET D'ALTERNATEUR

CY / MT Operation and Safety Notes Page 3

Intended use...... Page 5

Scopeofdelivery Page 6

Technical Specifications Page 6

Description of device ...... Page 6

Safety instructions ...... Page 7

Operation Page 10

Testing batteries and alternators ...... Page 10

Select operating mode......Page 10

Battery test/Starting capability......Page 10

Alternator test Page 11

Cleaning Page 12

Information about recycling and disposal...... Page 12

EC Declaration of Conformity......Page 14

Warranty and service information......Page 15

Warranty conditions......Page 16

Warranty period and statutory claims for defects ...... Page 16

Extent of warranty ...... Page 17

Processing of warranty claims......Page 17

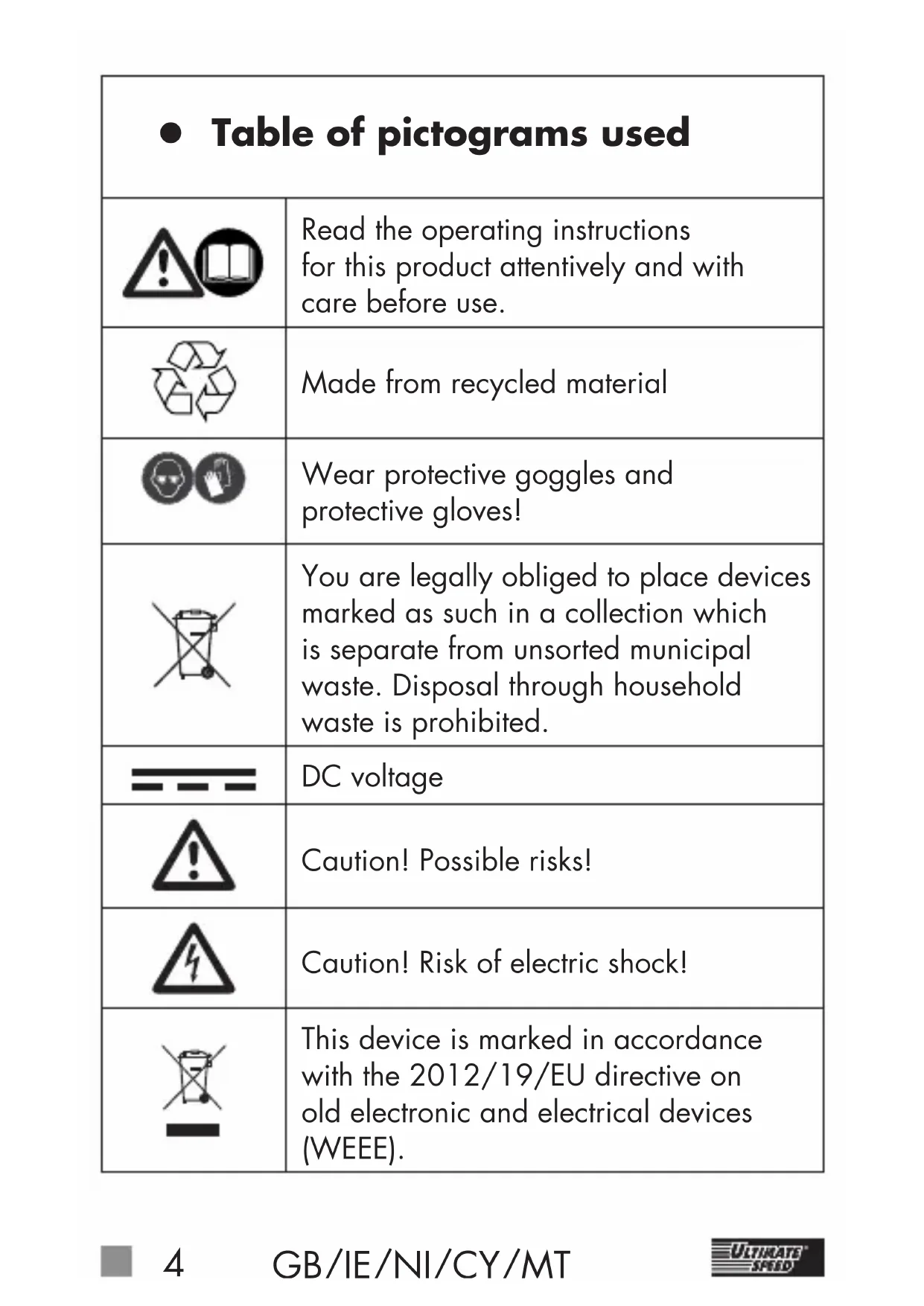

Table of pictograms used
	Read the operating instructions for this product attentively and with care before use.
	Made from recycled material
	Wear protective goggles and protective gloves!
	You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.
	DC voltage
	Caution! Possible risks!
	Caution! Risk of electric shock!
	This device is marked in accordance with the 2012/19/EU directive on old electronic and electrical devices (WEEE).

Battery & Alternator Tester UAWSB 2 D2

- Introduction

Congratulations! You have purchased one of our high-quality products. The operating instructions form part of this product. They contain important information on safety, usage and disposal. Please familiarise yourself with all operating and safety instructions before use. Use the product only as described and only for the specific applications as stated. Ensure you hand over all documentation when passing the product on to anyone else. The device should only be used by specialists or those who been trained.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

The device is to be used for checking the charge level of a 6 or 12 Volt battery. It can also be used to test the charging function of an alternator. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for

commercial use. Commercial use will void the guarantee.

- Scopeofdelivery

■ Battery & Alternator Tester UAWSB 2 D2
■ 2 quick contact connector clamps, fully assembled (1 red "+" , 1 black "-" )
- Operating instructions

• TechnicalSpecifications

■ Input voltage in 6 V operation
■ Input voltage in 12 V operation
■ Ambient temperature: 5 °C to 40 °C

$$ 5. 6 - 7. 8 \mathrm{V} = - - $$

$$ 1 1. 5 - 1 5. 5 \mathrm{V} = - - $$

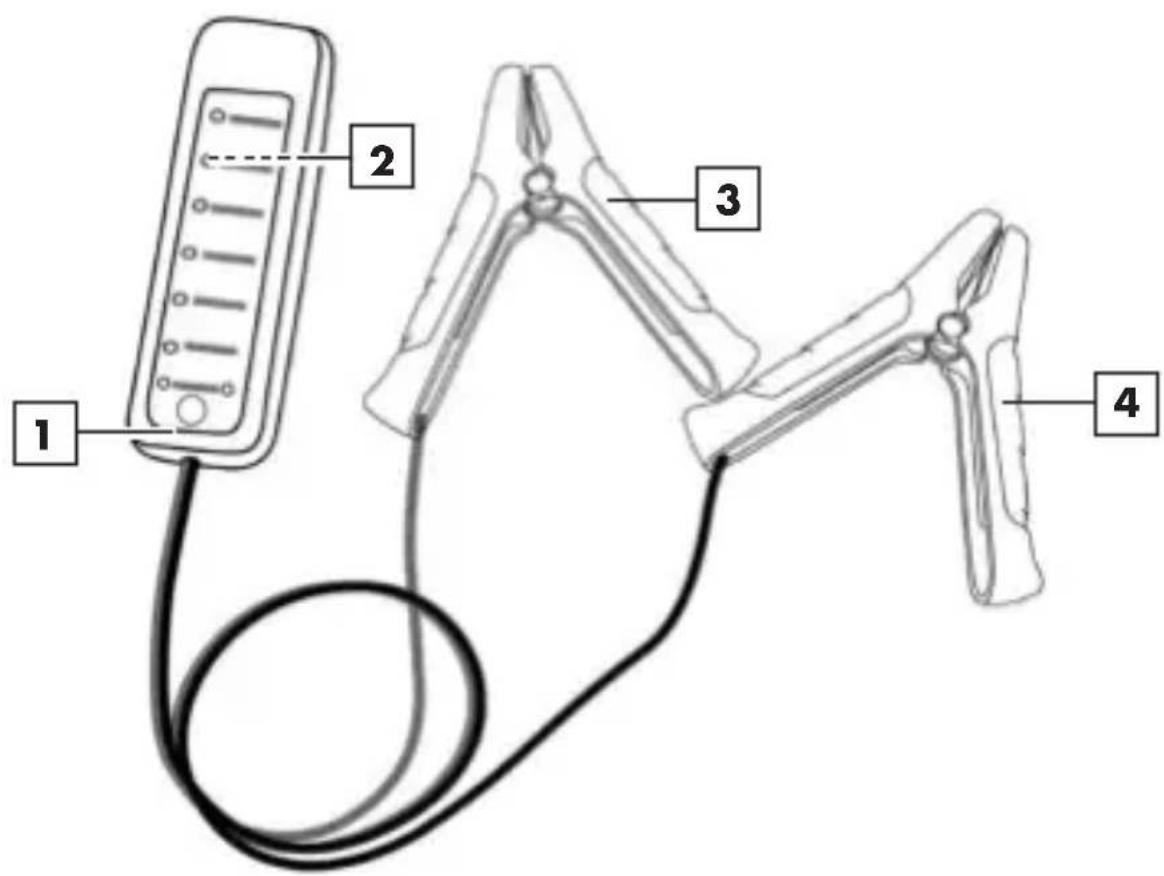

• Descriptionofdevice

1	Selector switch for 6 V/12 V operation
2	Magnetic strips (on the back of the device)
3	Red quick contact connector clampPositive terminal (“+”)
4	Black quick contact connector clampNegative terminal (“-”)

1 2 3 4

- Safetyinstructions

■ The device is only suitable for indoor operation!

■ Do not use the device in wet or moist environments.

■ Do not operate the device with a damaged measuring cable.

■ Lay the measuring cable such that it does not come into contact with rotating parts in the engine compartment.

CAUTION: Damaged measur-

ing cables mean there is a danger to life through electric shock. Dispose of the device if the measuring cable is damaged. Measuring cables are not intended to be repaired.

EXPLOSION AND FIRE

HAZARDS: Ensure that explosive or flammable substances, such as petrol or solvents cannot be ignited when you are using the device! Keep sources of ignition (e.g. open fire, lit cigars, cigarettes or electric sparks) away from the starter batteries.

DANGER OF CAUSTIC

BURNS:

Protect your eyes and skin from caustic burns from the acid (sulphuric acid) when it comes into contact with the battery! Do not look directly at the battery when it is connected and use acid-resistant safety goggles, clothing and gloves! If your eyes or skin have

come into contract with the sulphuric acid, flush the affected body region with plenty of clear, running water and seek medical advice at once!

- Avoid an electrical short circuit when connecting the device to the battery. Only connect the red quick contact connector clamp ③ to the positive terminal ("+" ) of the battery. Only connect the black quick contact connector clamp ④ to the negative terminal ("-") of the battery.

■ Only touch the quick contact connector clamps ③ and ④ on the insulated area!

ATTENTION: AVOID

MATERIAL DAMAGE FROM IMPROPER USE!

■ Only use the device with the original parts it was delivered with!
- Keep the contact surfaces of the battery free of dust and lubricants. Clean the contact surfaces with a clean, dry cloth as necessary.

- Operation

■ First connect the red quick contact connector clamp 3 to the positive terminal ("+" ) of the battery.
■ Then connect the black quick contact connector clamp 4 to the negative terminal (“-”) of the battery.
During the measurement process, the device can be fixed to the vehicle body using the magnetic strips 2 on the back of the device.

- Testing batteries and alternators

- Select operating mode

■ The device automatically detects whether a 6 V or 12 V battery is connected.
If this function does not work (e.g. discharged 12 V battery is detected as a 6 V battery), then set the selector switch 1 on the front of the device to 6 V or 12 V, depending on the type of battery or alternator to be tested.

- Battery test/Starting capability

If only the “very low charged” LED lights up, the battery charge level is low. In this LED status the electrical voltage in 6 Volt operating mode is approximately 5.8 Volt and in 12 Volt operating mode it is approximately 11.5 Volt. The battery must be recharged.
If the "half charged" LED lights up, the battery is approximately half charged. In this LED status the

electrical voltage in 6 Volt operating mode is approximately 6.1 Volt and in 12 Volt operating mode it is approximately 12 Volt. It is recommended that the battery is recharged.

If the “fully charged” LED lights up, then the battery is fully charged and ready to start. In this LED status the electrical voltage in 6 Volt operating mode is approximately 6.4 Volt and in 12 Volt operating mode it is approximately 12.6 Volt.

Attention: Please refer to the operating instructions

about the maintenance of the battery prior to charging!

Please note: If no LED lights up in 6 V operating

mode, then it can be assumed that the battery is defective or deeply discharged. If an LED in the 6 V operating mode lights up when a 12 V battery is connected, then it can be assumed that the battery is deeply discharged or defective.

- Alternator test

■ Connect the device to the battery as described under "Operation".
■ Start the engine and switch on all consumers (headlights, radio, heated rear window, etc.).
■ Briefly increase the idle speed to 2500 RPM.
If the "charging function O.K." LED to "charging function MAXIMUM" lights up, the alternator or voltage regulator is OK. In this LED status the electrical voltage in 6 Volt operating mode is approximately

6.7 Volt or 7.3 Volt and in 12 Volt operating mode it is approximately 13.2 Volt or 14.5 Volt.

If the “Overvoltage/controller defect” LED lights up, then the alternator or voltage regulator is defective. In this LED status the electrical voltage in 6 Volt operating mode is approximately 7.8 Volt and in 12 Volt operating mode it is approximately 15.5 Volt. In this case contact your motor vehicle garage.

Cleaning

DANGER OF ELECTRIC SHOCK: Always disconnect the connection to the battery, before you clean the device. Under no circumstances should you immerse the device in water or hold it under running water.

ATTENTION: POSSIBLE MATERIAL DAMAGE:

Do not use any aggressive or abrasive detergents, as these could corrode the surface of the housing. Clean the outside of the housing with a slightly damp cloth.

• Information about recycling and disposal

DO NOT DISPOSE OF ELECTRICAL TOOLS IN HOUSEHOLD WASTE!

DON'T THROW AWAY - RECYCLE!

According to European Directive 2012/19/EU, used electrical devices must be collected separately for

environmentally compatible recycling or recovery. The symbol of the crossed out dustbin means that this device must not be disposed of in household waste at the end of its service life. The device must be handed in at established collection points, recycling centres or waste management depots. The disposal of defective devices which you have sent in will be carried out free of charge. In addition, distributors of electrical and electronic equipment as well as food distributors are obliged to accept returned waste. Kaufland provides you with return options directly in its branches and shops. Return and disposal is free of charge for you. When buying a new device you have the right to return an equivalent old device at no charge. In addition you have the option, regardless of whether you are buying a new device, to hand in (up to three) old devices at no charge, as long as the device is no larger than 25 cm in any dimension. Before returning the device please delete all personal information. Before returning, please remove batteries or rechargeable battery packs which are not enclosed by the old device, as well as bulbs, which can be removed without destroying the product and take these to a separate collection point.

Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company

in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

• EC Declaration of Conformity

We,

C. M. C. GmbH Holding

Responsible for documentation:

Dr. Christian Weyler

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

hereby take sole responsibility for declaring that the product

Battery & Alternator Tester

IAN: 435073_2304

Year of manufacture: 52/2023

Art. no.: 2615

Model: UAWSB 2 D2

meets the basic safety requirements as specified in the European Directives

EC Guideline on Electromagnetic Compatibility

2014/30/EU

RoHS Directive

2011/65/EU+2015/863/EU

and the amendments to these Directives.

The manufacturer will be solely responsible for the creation of the declaration of conformity.

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. This conformity assessment is based on the following harmonised standards:

EN 55014-1:2017

EN 55014-2:2015

St. Ingbert, 01 June 2023

C.M.C. GmbH Holding Katharina-Loth-Straße 15 66386 St. Ingbert Tel. [phone] Fax [phone]

pp Dr. Christian Weyler

- Quality Assurance -

- Warranty and service information

Warranty from C.M.C GmbH Holding

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred. If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any

damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances. The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow

the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.
