RCD1185 - Radio Soundmaster - Free user manual and instructions

Product Type	Radio with CD/MP3 player
Brand	Soundmaster
Model	RCD1185
Mains Power	230 V ~ 50/60 Hz
Battery Power	DC 6 V (4 x C/UM-2 batteries)
FM Frequency Range	87.5 - 108 MHz
Antenna	Telescopic FM antenna
CD Playback Functions	Play, pause, stop, next/previous track, programming (20 tracks for audio CD, 99 tracks for MP3), repeat (1, album, all, random), resume
Headphone Output	3.5 mm stereo jack
Safety Instructions	Class 1 laser, avoid exposure to laser beam; do not open the device; risk of electric shock; do not expose to moisture; do not use detergents
Maintenance and Cleaning	Clean only with a dry cloth. Do not use detergents or abrasive cloths.
Auto Standby	The device enters standby after approximately 10 minutes without a signal (ERP2 compliant). To turn it back on, press PLAY/PAUSE.
Included Accessories	Main unit, power cord, instruction manual
Batteries	Use only mercury- and cadmium-free batteries; used batteries must be recycled separately.
General Information	Device designed for moderate climates. Do not dispose of with household waste. Complies with Directive 2014/53/EU.

Frequently Asked Questions - RCD1185 Soundmaster

How to connect the device to the mains?

Unroll the power cord, plug one end into the AC socket on the device and the other into a standard mains outlet. Verify that the indicated voltage matches your mains (230 V). Do not plug in with wet hands.

How to use the radio?

Set the FUNCTION selector to FM. Use the TUNING knob to set the desired frequency. Adjust the volume. For better reception, fully extend the FM antenna.

How to play an audio CD or MP3 CD?

Set the selector to CD/MP3. Place a CD in the compartment and close the lid. Press PLAY/PAUSE to start playback. Use the NEXT and PREVIOUS buttons to change tracks.

How to program CD playback?

In stop mode, press PROG. The display shows '01' and 'PROG' flashes. Use NEXT/PREVIOUS to select a track, then press PROG again to memorize it. Repeat up to 20 tracks (audio CD) or 99 tracks (MP3). Press PLAY/PAUSE to play the program.

How to use the repeat function?

Press REPEAT repeatedly to select the mode: REP (repeat one track), REP ALBUM (repeat MP3 album), REP ALL (repeat entire CD), RAND (random play). Press until indicators disappear to disable.

What to do if the device does not turn on with batteries?

Check that you have installed 4 C size (UM-2) batteries respecting the indicated polarities. If the batteries are used, replace them. Make sure the power cord is unplugged when using batteries.

How to clean the device?

Use a soft dry cloth. Do not use detergents or abrasive cloths that could damage the surface.

The device turns off by itself: is this normal?

Yes, the device automatically enters standby after approximately 10 minutes without a signal (ERP2 compliance). To turn it back on, press the PLAY/PAUSE button. If you hold this button for 5 seconds, the device goes into standby.

What are the risks related to the laser?

The device contains an invisible Class 1 laser. Do not open the casing as exposure to the laser beam can injure eyes. Have any repairs done by qualified personnel.

How to dispose of used batteries?

Used batteries are hazardous waste. Do not throw them away with household waste. Deposit them at a designated collection point (store, recycling center). Always remove completely empty batteries.

USER MANUAL RCD1185 Soundmaster

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

警告	WARNING
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

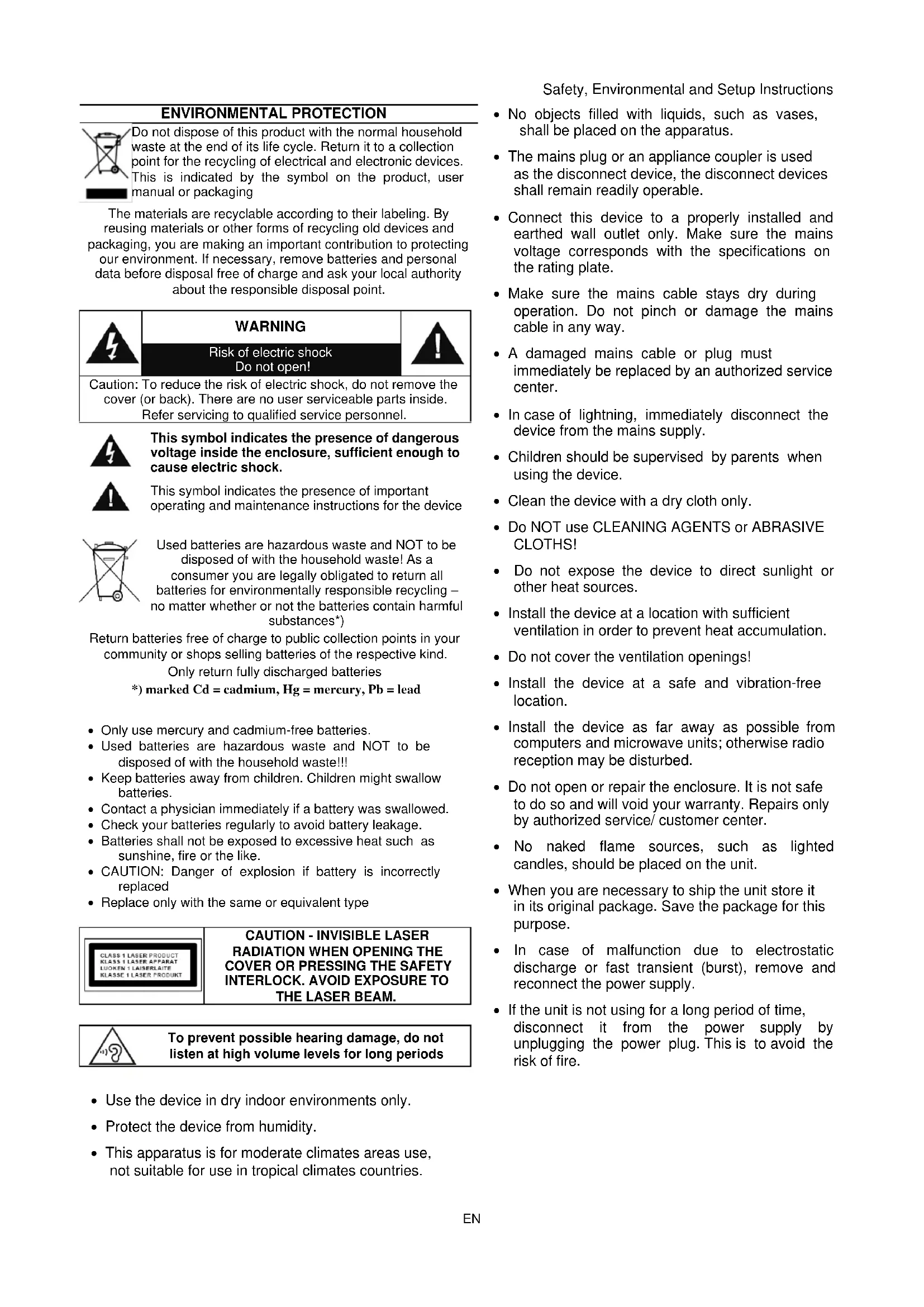

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

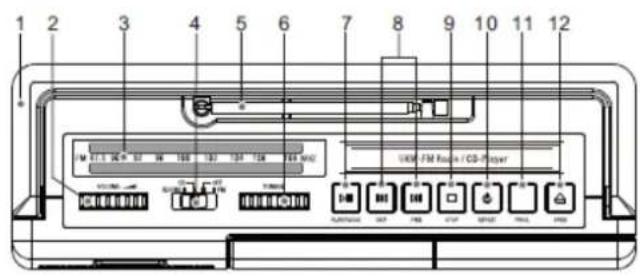

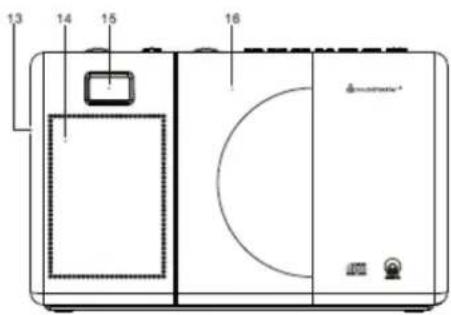

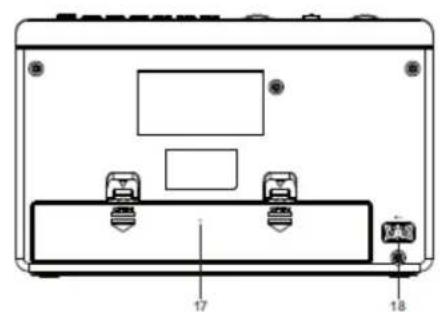

LOCATION OF CONTROLS

1 Handle

10 Repeat Button

2 Volume Control

11 Prog/+10 Button

3 Dial Scale

12 Door Eject Button

4 Function Switch

13 Phones Jack

5 FM Antenna

14 Speaker

6 Tuning Control

15 LCD Display

7 Play/Pause Button

16 CD Door

8 Back/Skip Button

17 Battery Door

9 Stop Button

18 AC Socket

CONTENT OF DELIVERY

Main unit

AC cable

Instruction manual

AC OPERATION

Before operation, please make sure that the VOLTAGE mentioned on the unit is same as the voltage of your local area. Unravel the AC power cord, insert one end into the AC socket on the set, and the other end into a standard AC outlet.

Attention

1. Do not plug or unplug the power cable while you have wet hands.
2. When planning not to use this unit for a long time, disconnect the power cable from the wall outlet.
3. When disconnecting the power cord from the wall outlet, do not pull on the cord in order to avoid shock risks caused by damaged cable.

BATTERY OPERATION

Disconnect the AC cord set completely. Open the battery compartment door and insert 4 pieces UM-2 "C" size batteries into the battery compartment with battery polarity as shown inside the battery compartment.

HEADPHONE

1. Insert the headphone cable (requires 3.5mm stereo plug, not supplied) into the headphone jack on the unit.
2. Tune the desired volume level on the main unit.

RADIO

1. Set the FUNCTION switch to FM position.
2. Rotate the TUNING control to tune to your desired radio station.
3. Adjust the sound level by rotating the VOLUME control.
4. To turn off the radio, set the FUNCTION switch to OFF position.

For best reception, fully extend the FM Antenna to receive FM stations.

CD MODE

You can also play MP3 CDs with this unit. The functions are the same as with normal audio CDs.

1. Set the FUNCTION switch to the CD.MP3 position.
2. Insert the CD disc in the CD compartment and close the CD door, the unit will start reading the disc, the LCD display will show the total number of tracks of the entire disc after reading. For MP3 CDs, "MP3" appears on the display, showing the number of albums and then the total number of tracks.
3. To start playing the CD, press the button.
4. To pause CD playback, press the button again.
5. Adjust the VOLUME Control to the desired volume level.
6. To stop playing the CD, press the STOP button.

Skip Mode

1. During play or pause mode, press the button to go to the next track.
2. During play or pause mode, press the button to go back to the beginning of the track.
3. During play mode, press the button twice will go back to the previous track.
4. For MP3-CD, press the PROG/+10 button to skip the track in 10 multiples.

Programming the CD Player

You can program with audio CDs 20 tracks or with MP3-CDs 99 tracks. The programming of the CD player should be done during STOP mode.

1. Press the PROG button, the LCD display will show '01' and "PROG" flash continuously.
2. Press the or buttons to select the desired track.
3. Press the PROG button again to store this track in memory, the LCD will show '02' and flash continuously.
4. Repeat steps from 2 to 3 to store more tracks in memory. You can store up to 20 tracks in the memory.
5. Press the button to play the disc in the programmed order.
6. To stop playing, press the STOP button.
7. To cancel the programming list, press the STOP button and open the CD door or set the FUNCTION switch to OFF position.

Repeat Mode

Repeat 1: Press the REPEAT button once, the REP indicator will flash on the LCD display. This single track will be repeated.

Play complete folder (only with MP3-CD!): Press the REPEAT button again. The display will show REP ALBUM. The complete folder will be repeated.

Repeat All: Press the REPEAT button again, the REP ALL indicator will show on LCD display.

The whole disc will be played continuously.

Random play: Press the REPEAT button again, the display will show RAND. The tracks of the CD are played in a random order.

To Cancel Repeat Function: Press the REPEAT button until all indicator turned off.

CD resume function

RESUME - continuing from where you have stopped

1. Set the FUNCTION switch to RESUME position.
2. To start playing the CD, press the button.
3. Press STOP in once whenever you want to stop playback.
4. Press to resume playback.
5. Playback continues from where you have stopped.

To deactivate RESUME, set the function switch to "CD.MP3", "FM" or "OFF".

Note:

Opening the CD door during playback, RESUME function is also activated.

Important Note

Automatic standby switching

To comply with the ERP2 directive, the unit automatically switches to standby after approximately 10 minutes without a signal. To switch the unit on again, press the button on the unit.

If the button is pressed continuously for 5 seconds, the unit switches to standby mode. To switch the unit on again, press the button on the unit.

TECHNICAL SPECIFICATION

Power supply

:230V\~50/60Hz

Battery supply

:DC6V=4x1.5V“C”size/UM-2

FM range

:87.5-108MHz

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH
